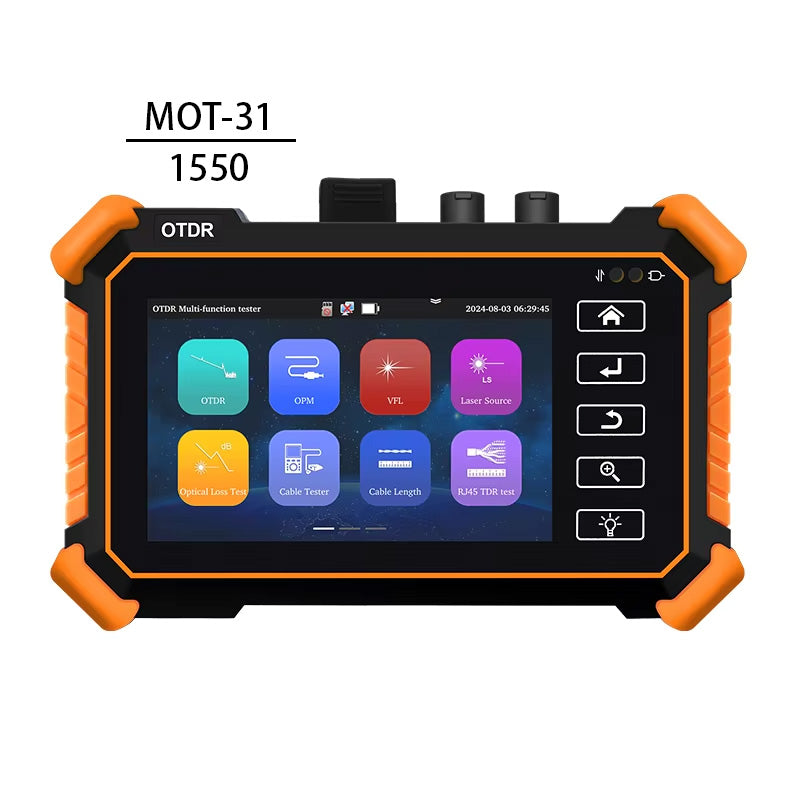

Tahlitech OTDR Tester Optic Time-domain Reflectometer 5.55 Inch Screen OPM VFL UTP Cable Optic Fiber Tester Tool Kit

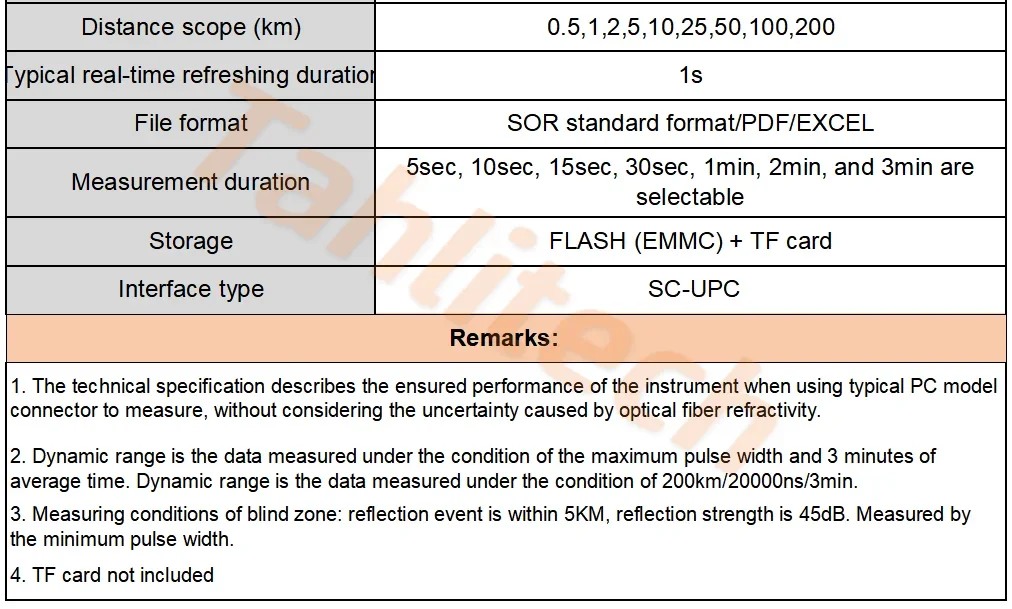

SPECIFICATIONS
Battery: 3.7V 4000mAh
Brand Name: TahLiTech
Cable Length: th Max 3KM, test cable open measurement
Dynamic range: 26/24dB (Optional)
Fiber Type: Single Mode
Fiber testing range: Max 100KM
High-concerned chemical: None

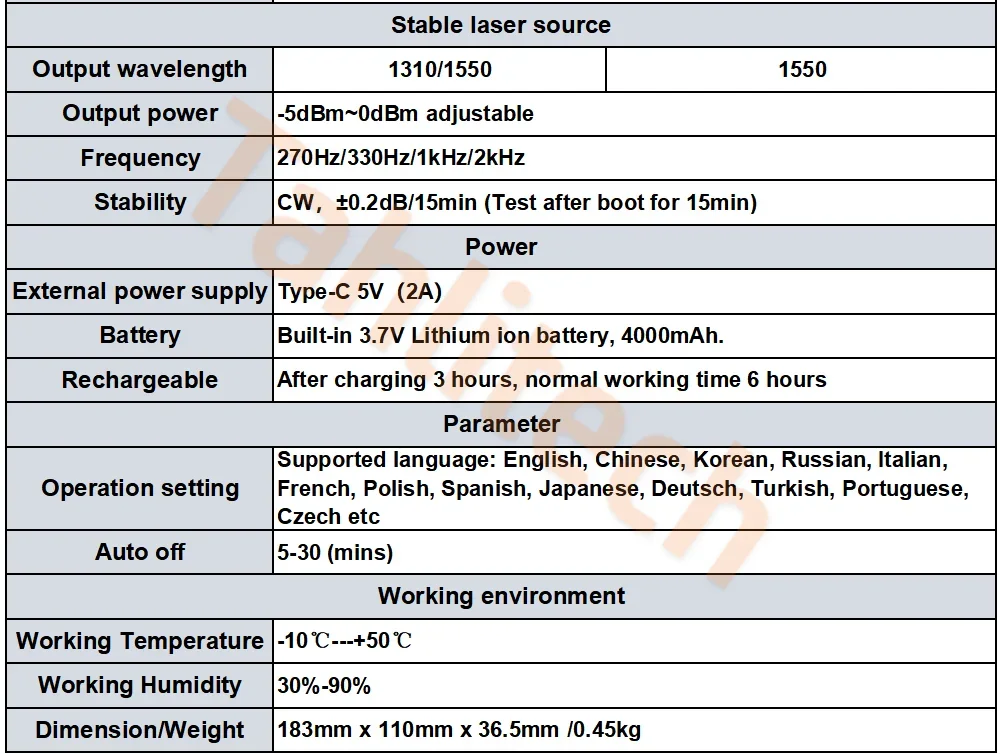

Laser source: Support

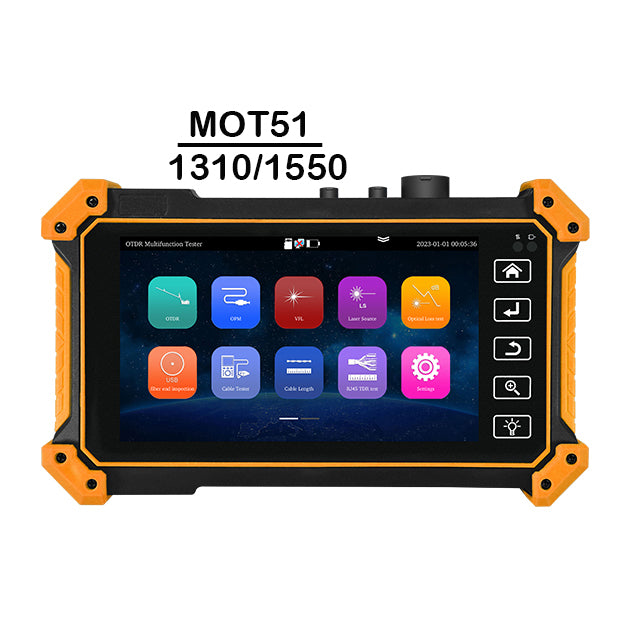

Model Number: MOT50/51

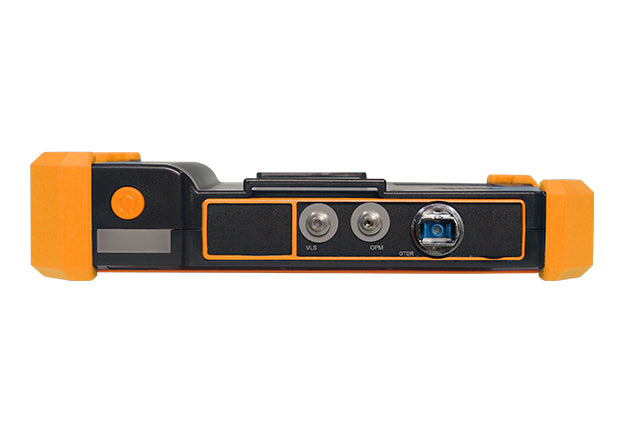

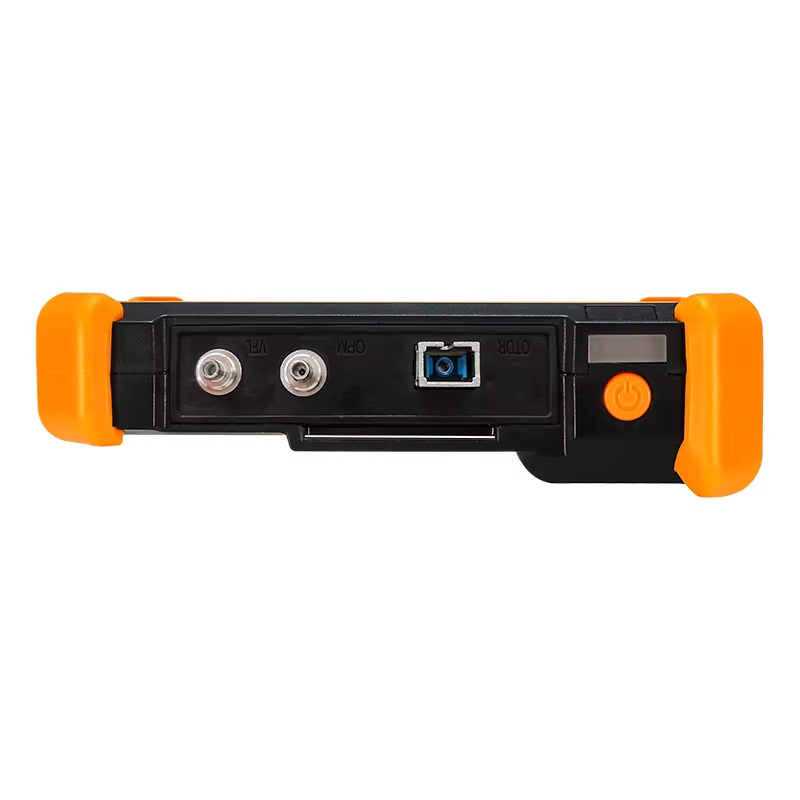

OTDR interface type: SC/UPC

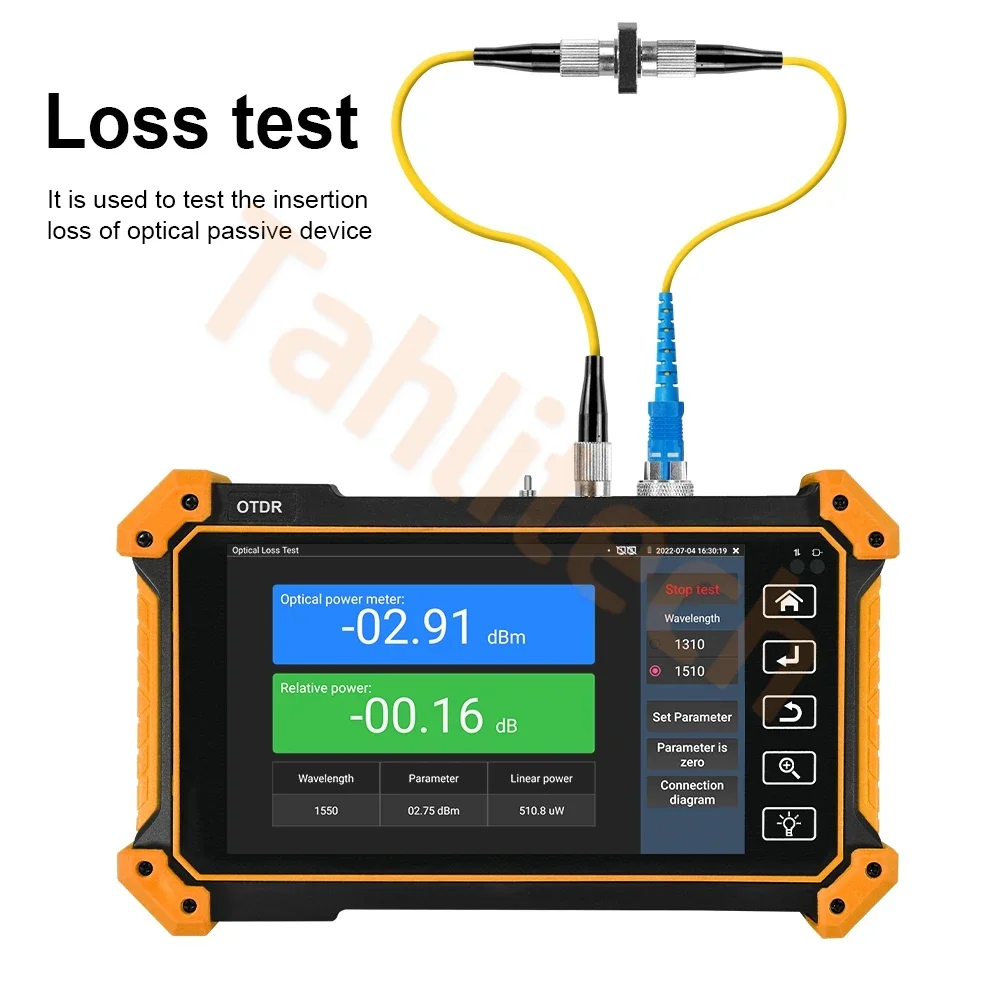

Optical loss test: Support
Optical power meter: Support
Screen: 5.55 inch LCD screen,1280*720 resolution
Size: 5.55"
UTP Cable test: Test cable sequence, status and cable remote

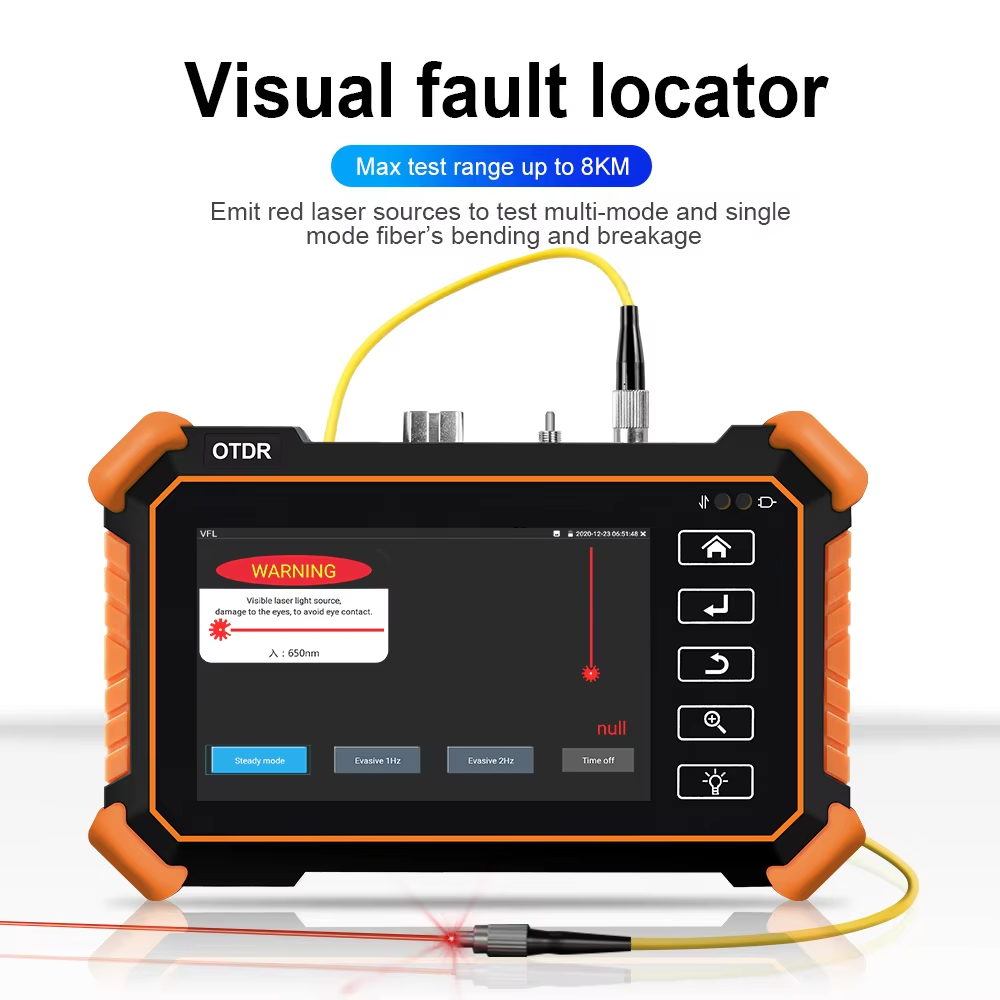

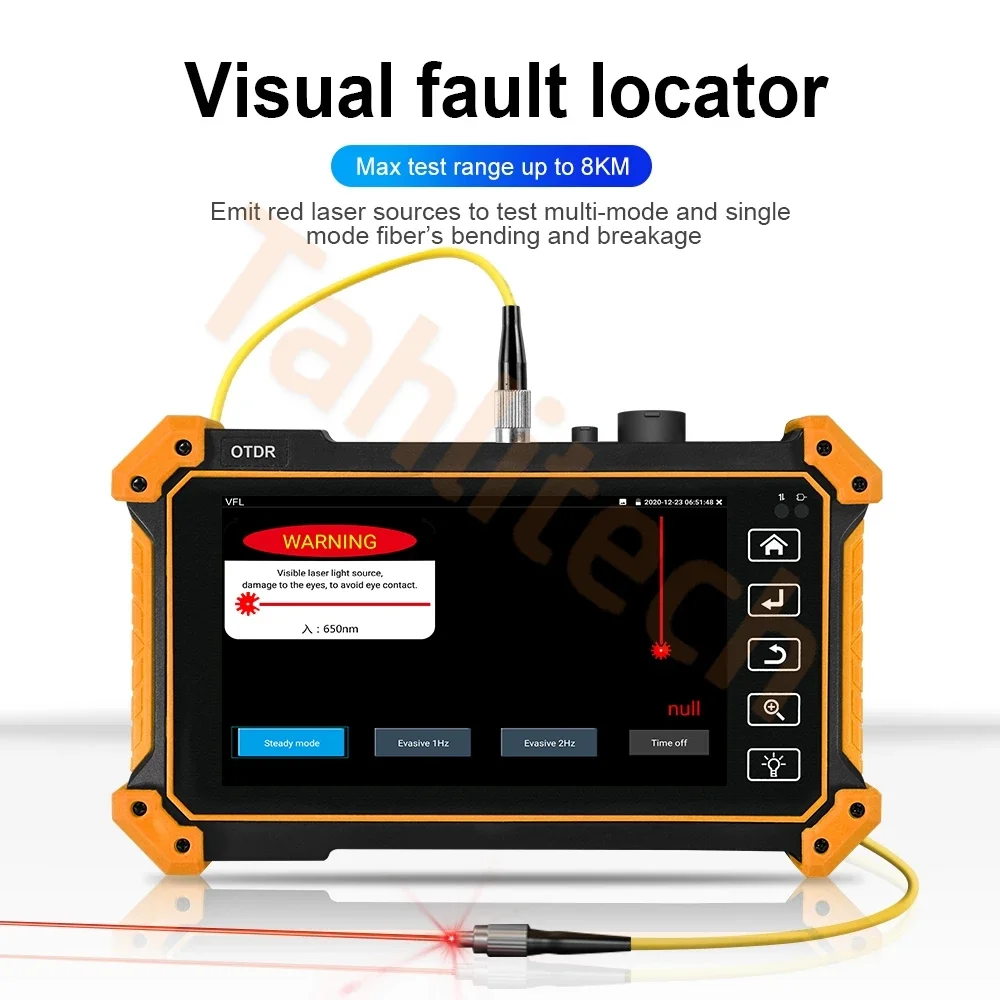

Visual fault locator: Support
Wavelength: 1310/1550/1610nm (Optional)
Wireless function: No
Description
5.55" OTDR Active Fiber Live Test 1550nm 24/26/28dB 100KM Fiber Reflectometer Touch Screen OPM VFL Tester SC/UPC Connector

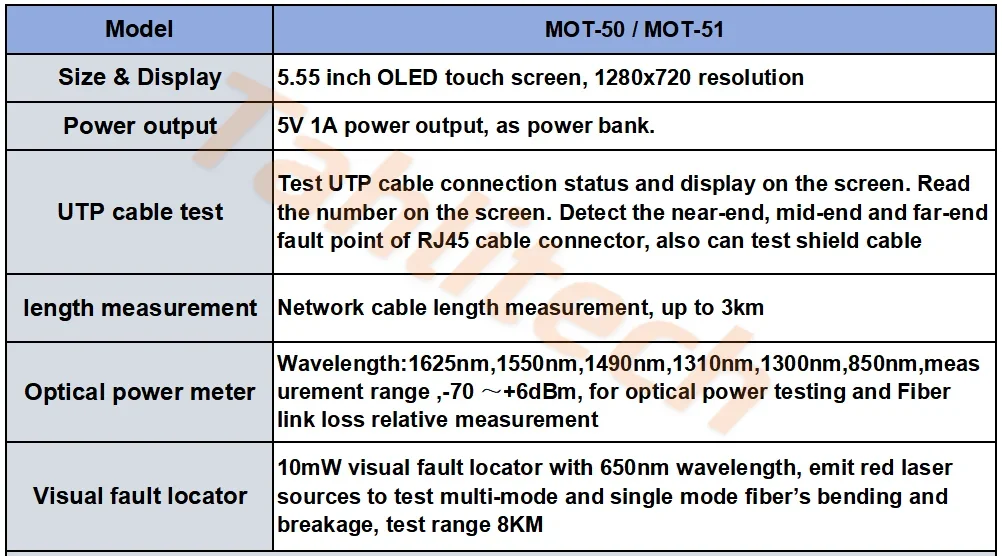

Main Features:
5.55 inch OLED touch screen, 1280x720 resolution

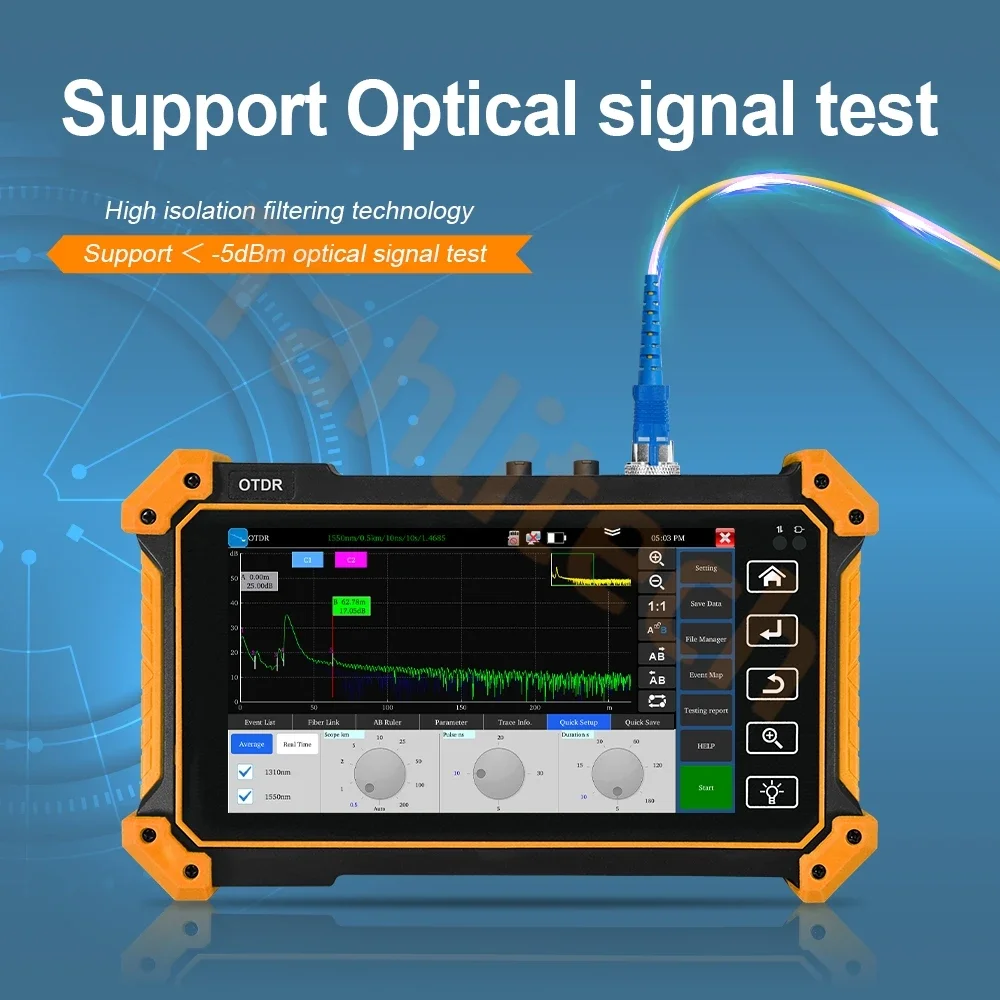

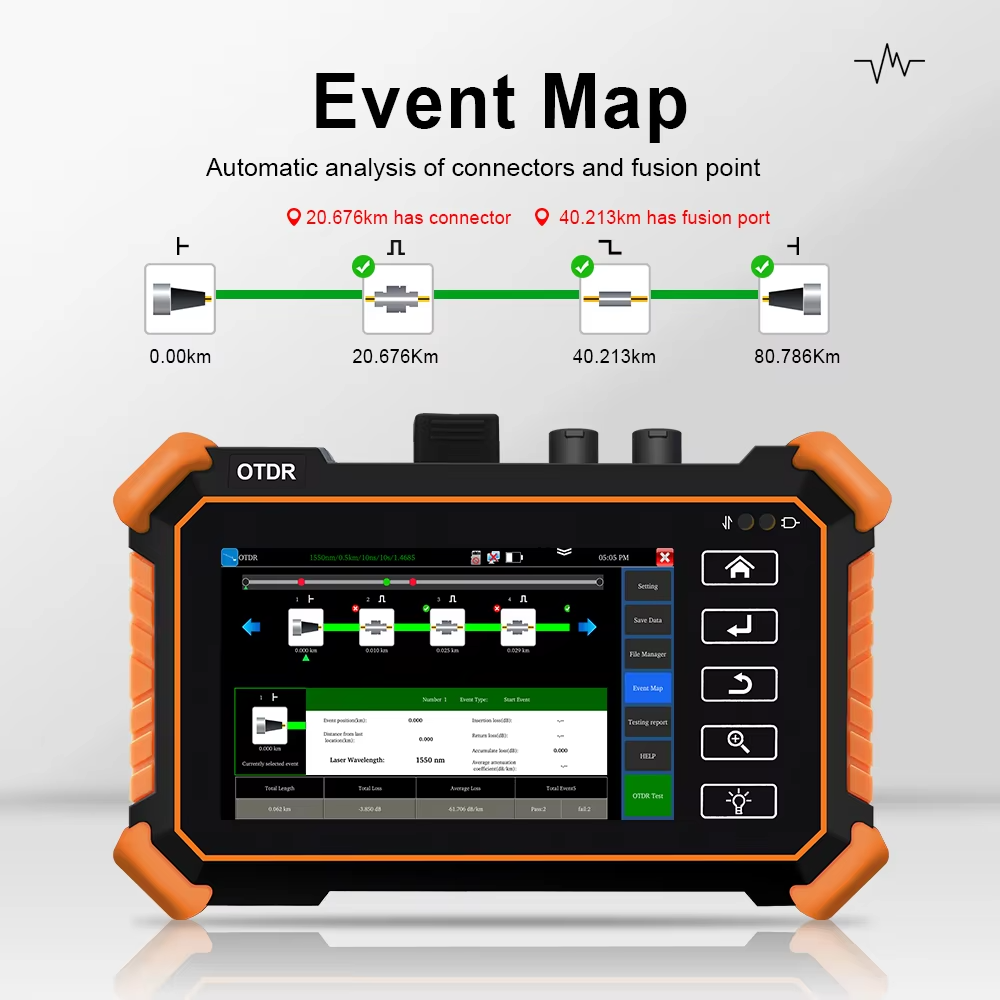

OTDR Auto testing, event map, easy to use

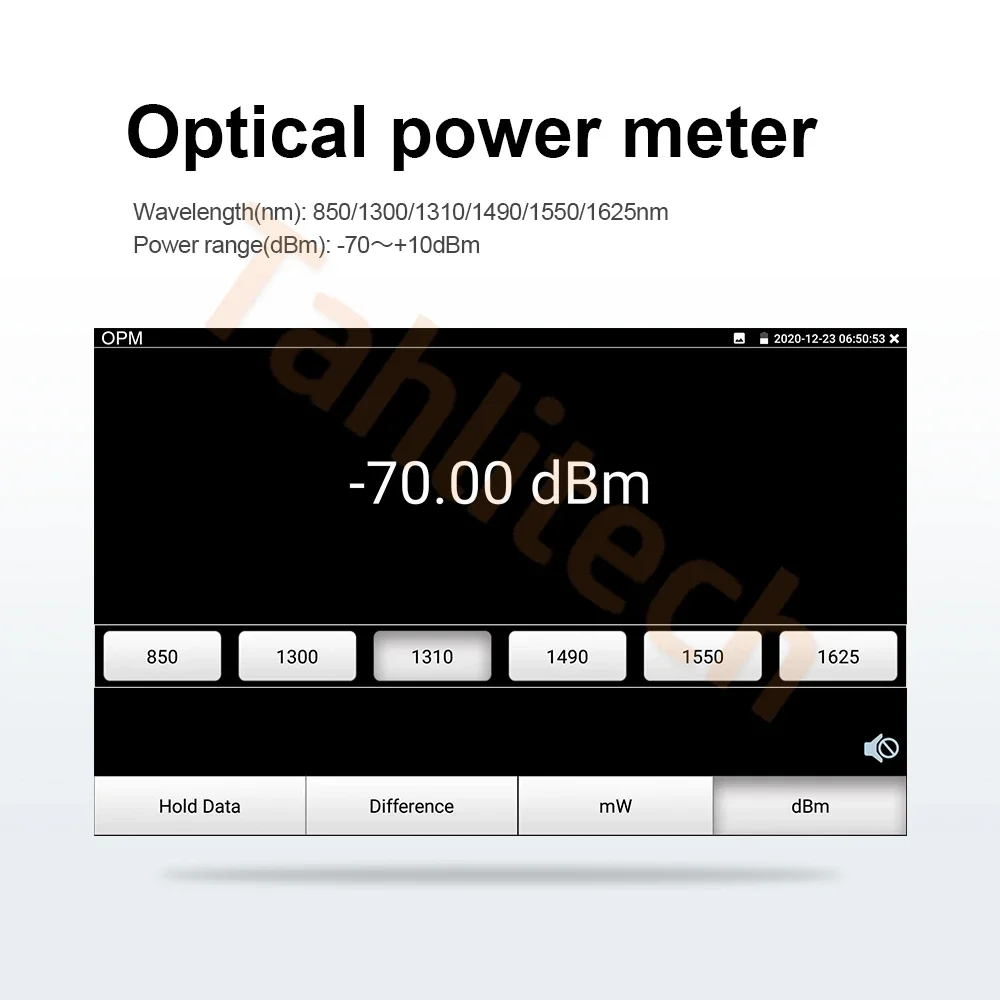

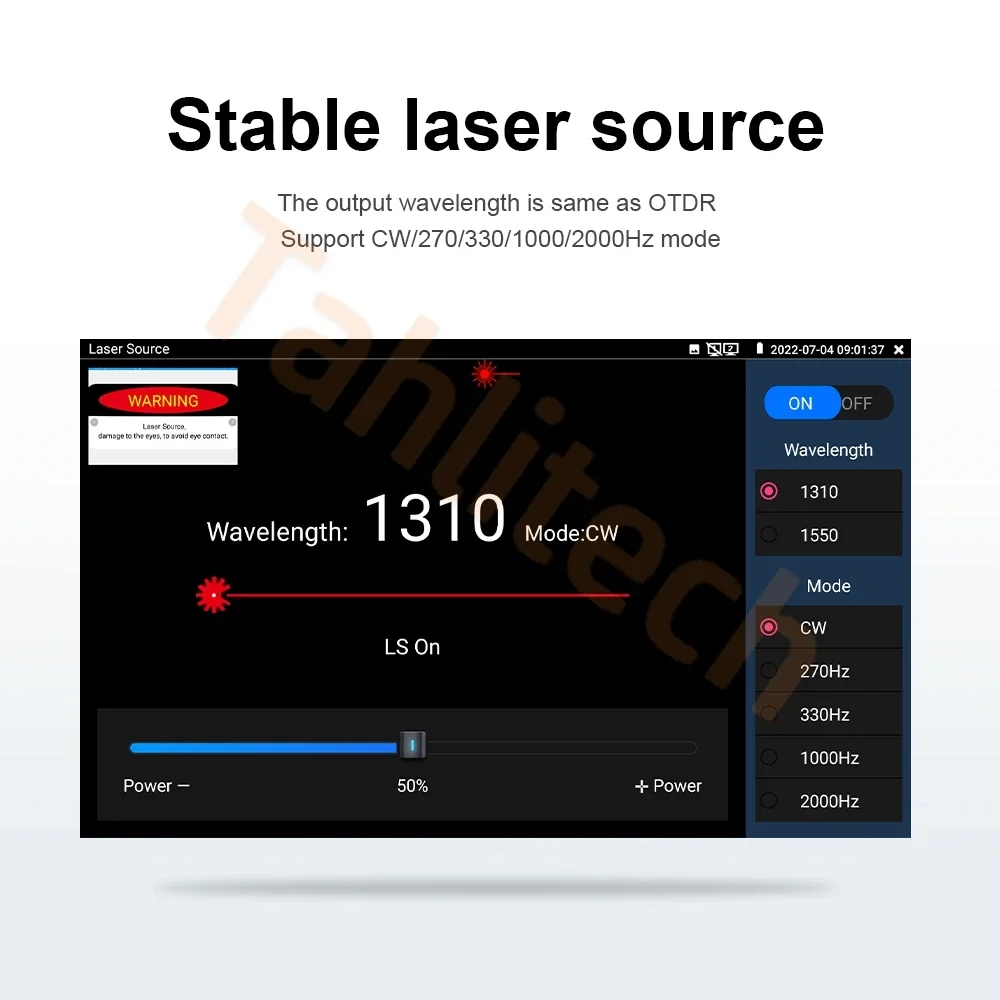

Stable laser source, optical power meter and visual fault locator

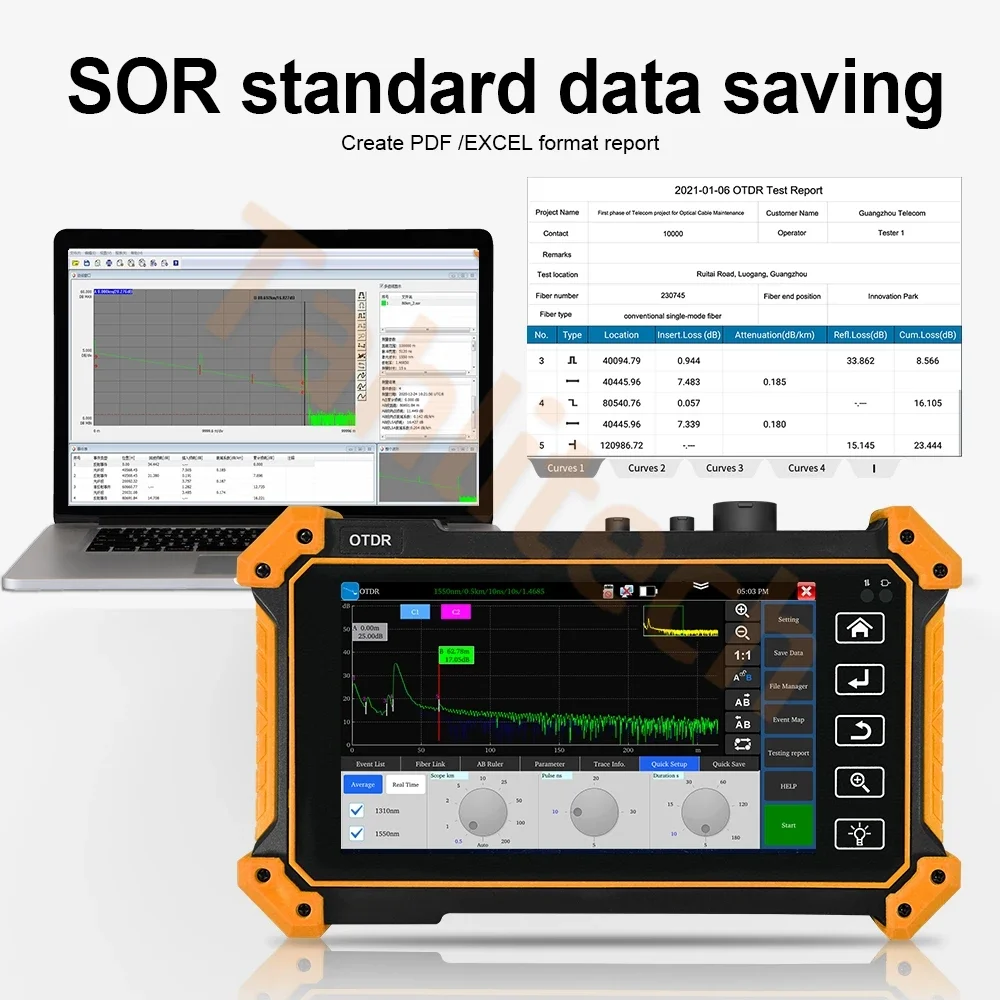

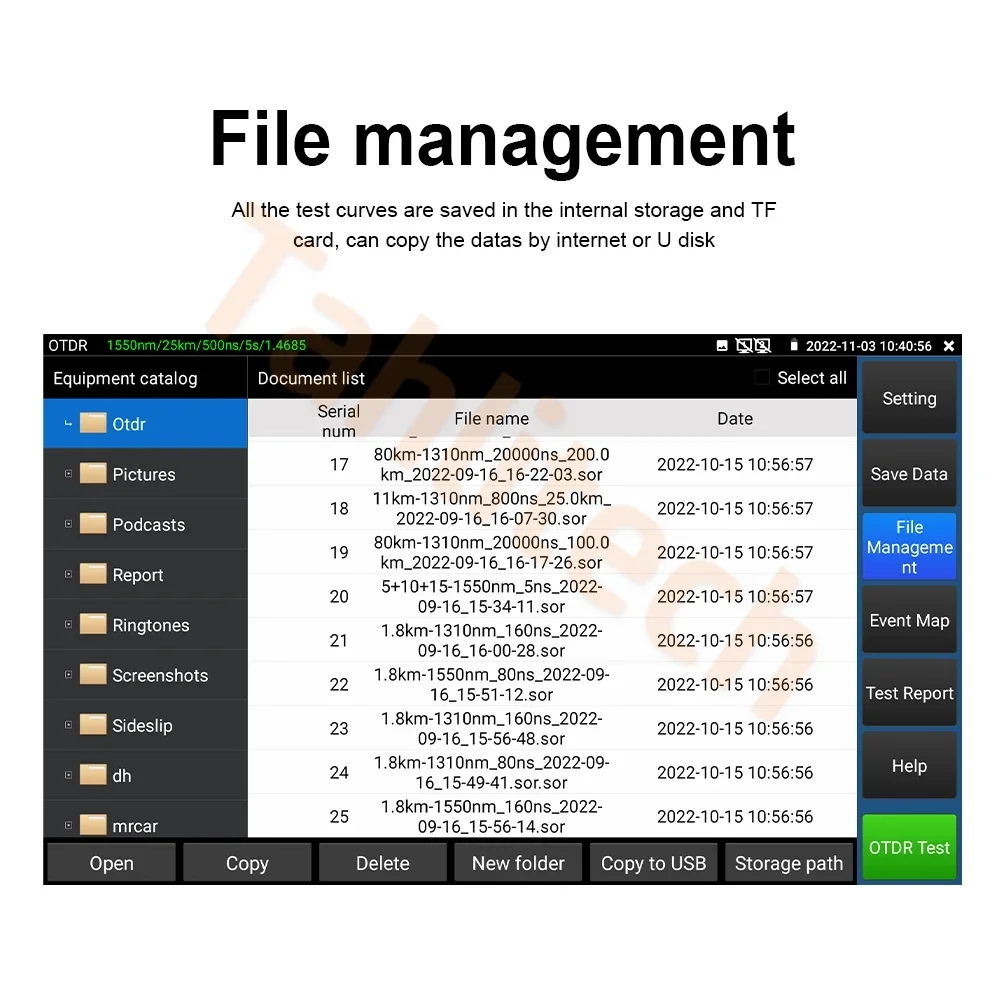

Report saved as SOR, PDF format etc,
Network cable length measurement, up to 3km

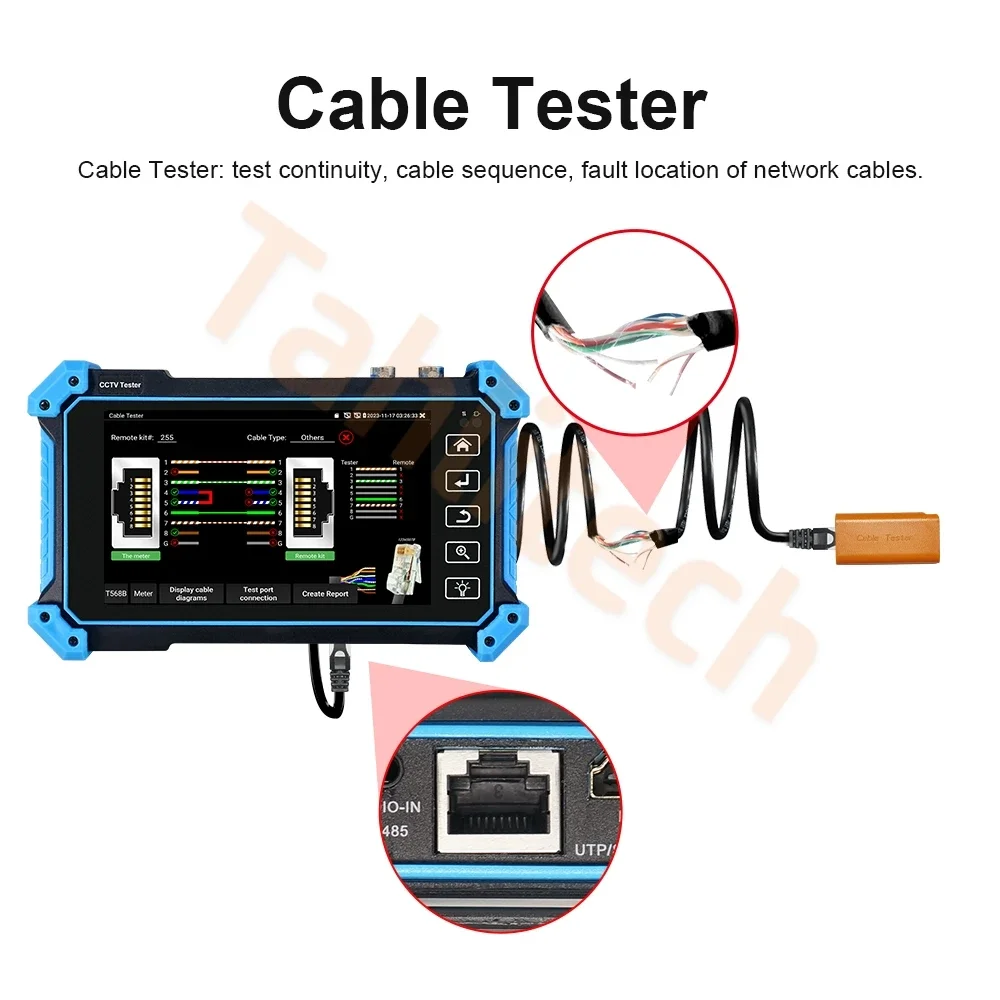

UTP cable test, for network cable's sequence and continuity

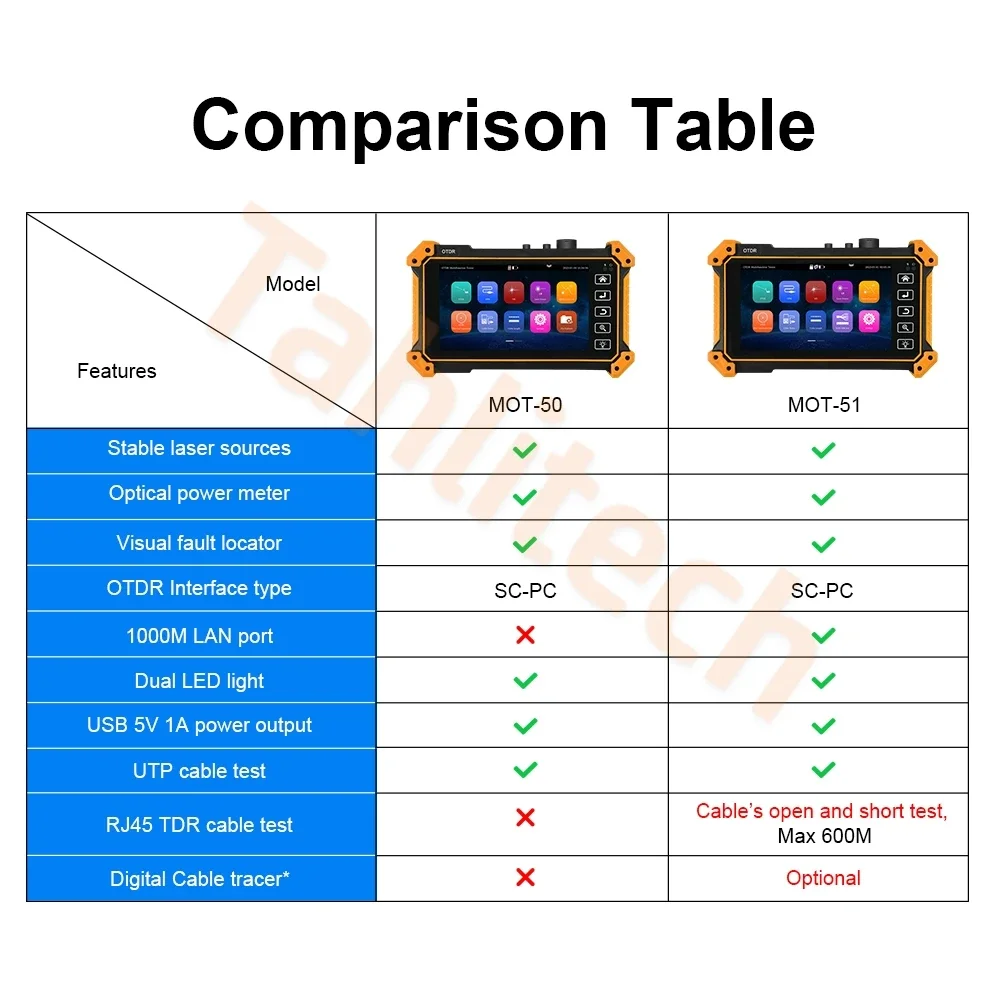

RJ45 TDR cable test* (only for MOT-51)
PING, PPPOE, IP scan, port flashing etc network test * (only for MOT-51)
Application:

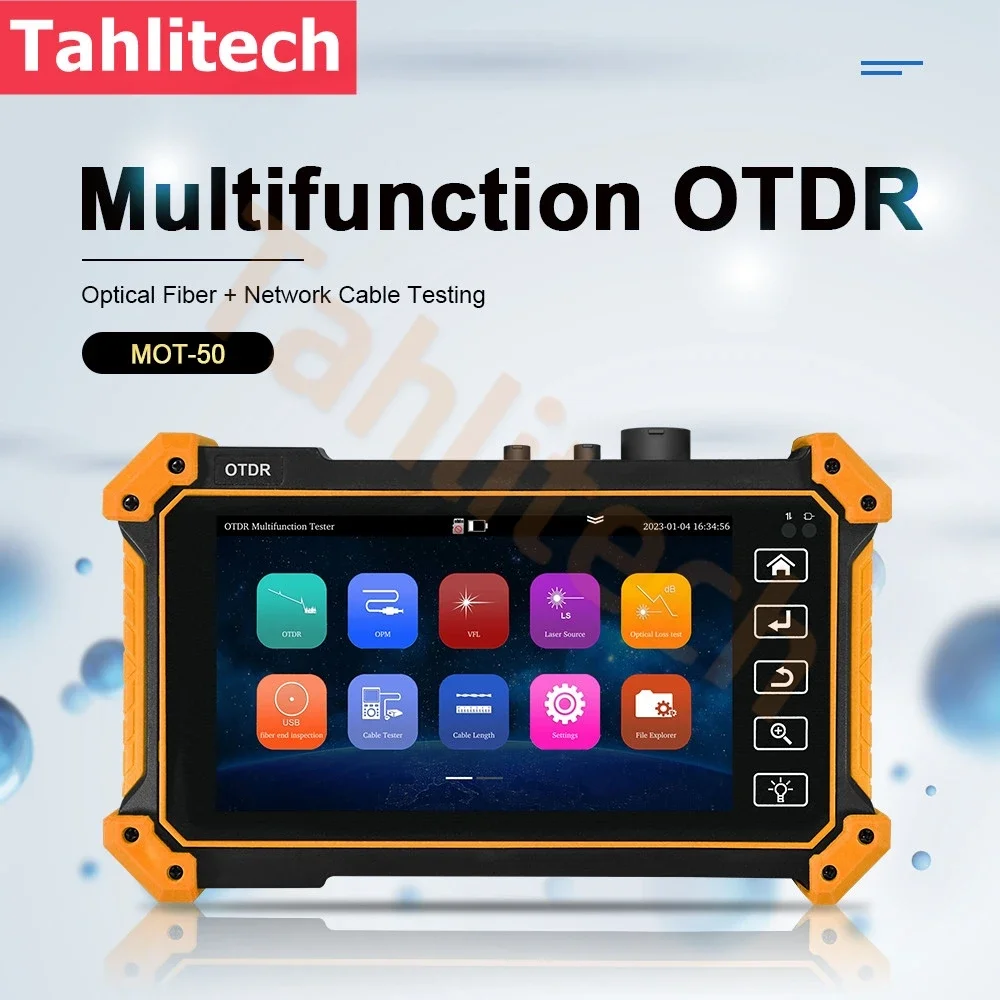

Multi-function MOT-50 OTDR is an essential tool for fiber length, network and cable testing. OTDR displays the power of the returned signal related to distance. The information can be used to confirm the transmission quality of a fiber optic link. It is widely used in the maintenance, construction and monitoring of cable line.
It can measure the optical fiber length, transmission attenuation of optical fiber, attenuation of splice, and failure location, etc. the Multi-function OTDR can make working conditions safer and increasing productivity.
● Fiber length testing and Event Map etc
● Network cabling project installation and maintenance
