NOYAFA NF-983(MOT-31) Multi-function OTDR Optical Fiber+Network Cable Testing Tool, IP Scan, Port Flashing

Regular price: R 12,878.14
Sale price: R 12,878.14
Regular price: ~~R 16,775.47~~
Unit price: per

Shipping calculated at checkout.

Color

Ships From

Quantity must be 1 or more

NOYAFA NF-983(MOT-31) Multi-function OTDR Optical Fiber+Network Cable Testing, IP Scan, Port Flashing and Other Network Tests

SPECIFICATIONS

Battery Included: Yes

Brand Name: None

Certification: CE

Equipment Name: OTDR

High-concerned chemical: None

Function1: Optical Signal Detection

Function2: Laser Source

Function3: Optical Power Meter

Function4: IPS Touch Screen

Function5: Visual Fault Locator

Function6: Optical Loss Test

Function7: UTP Cable Test

Description

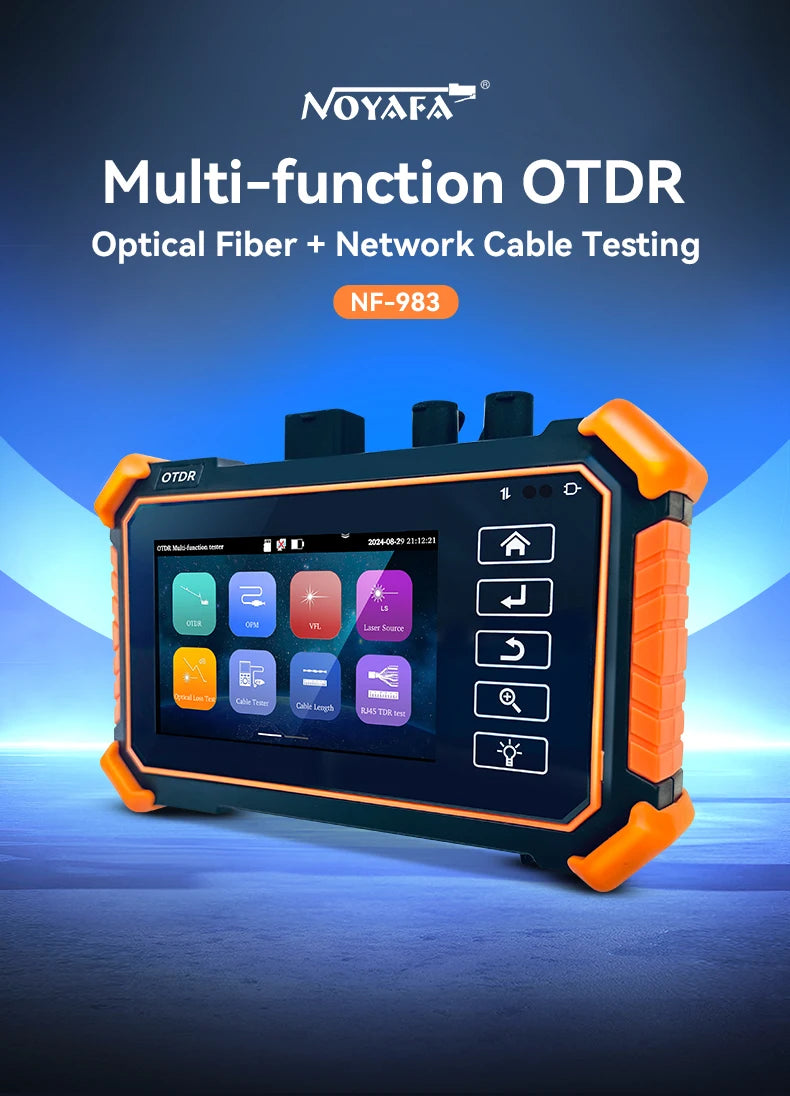

NOYAFA NF-983(MOT-31) Multi-function OTDR Optical Fiber+Network Cable Testing, IP Scan, Port Flashing and Other Network Tests.

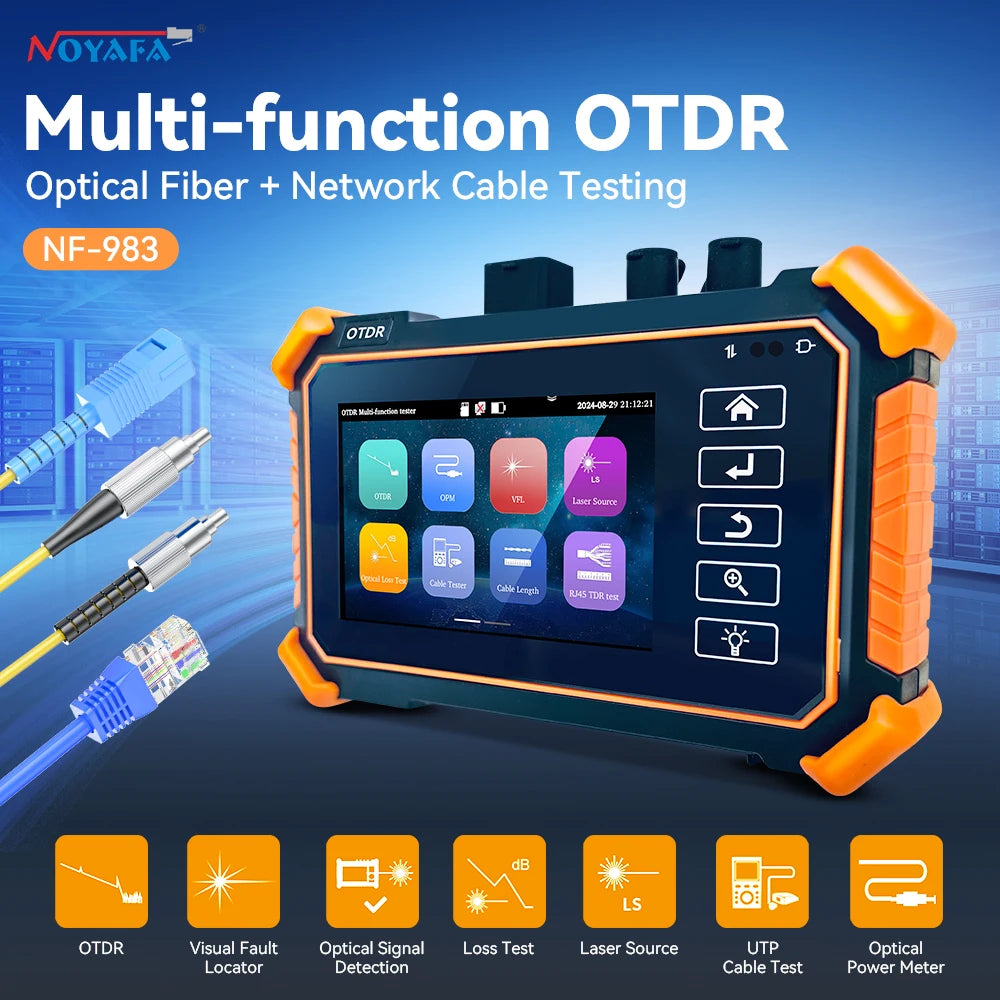

* Multi-function OTDR+Optical Fiber + Network Cable Testing

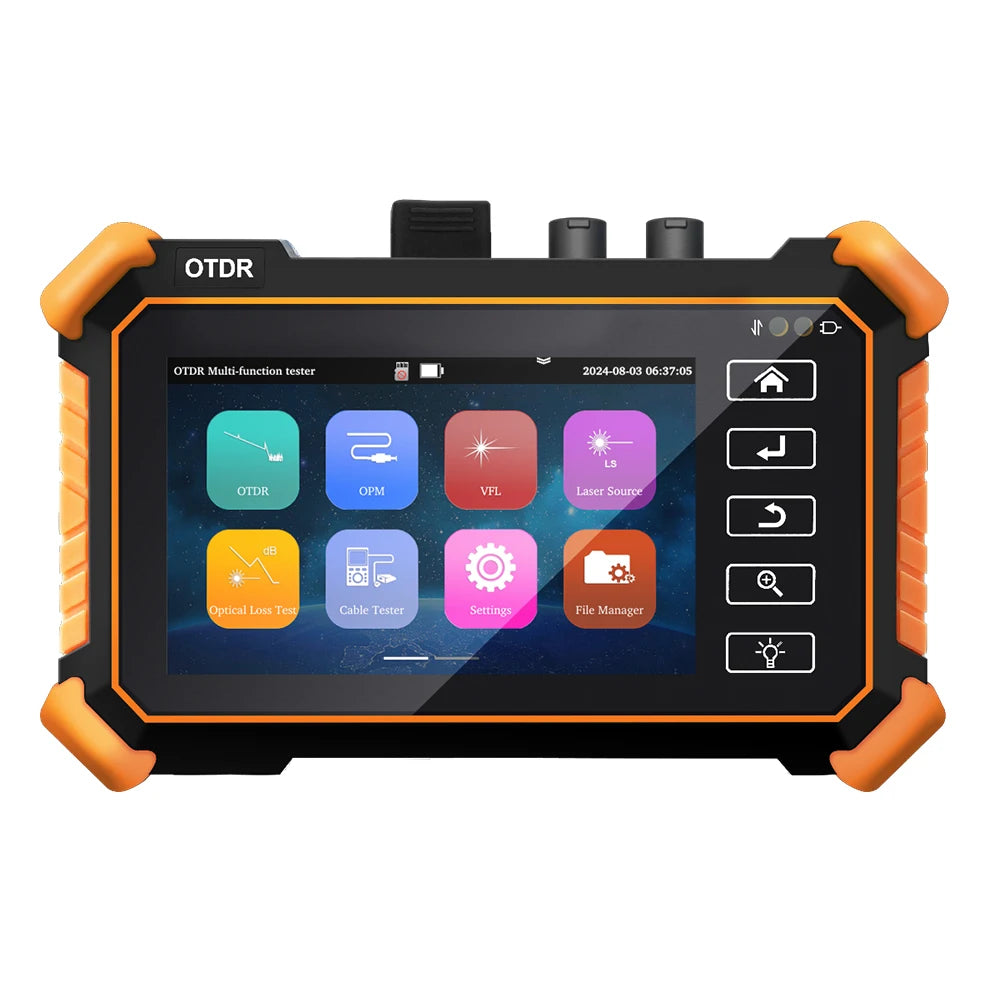

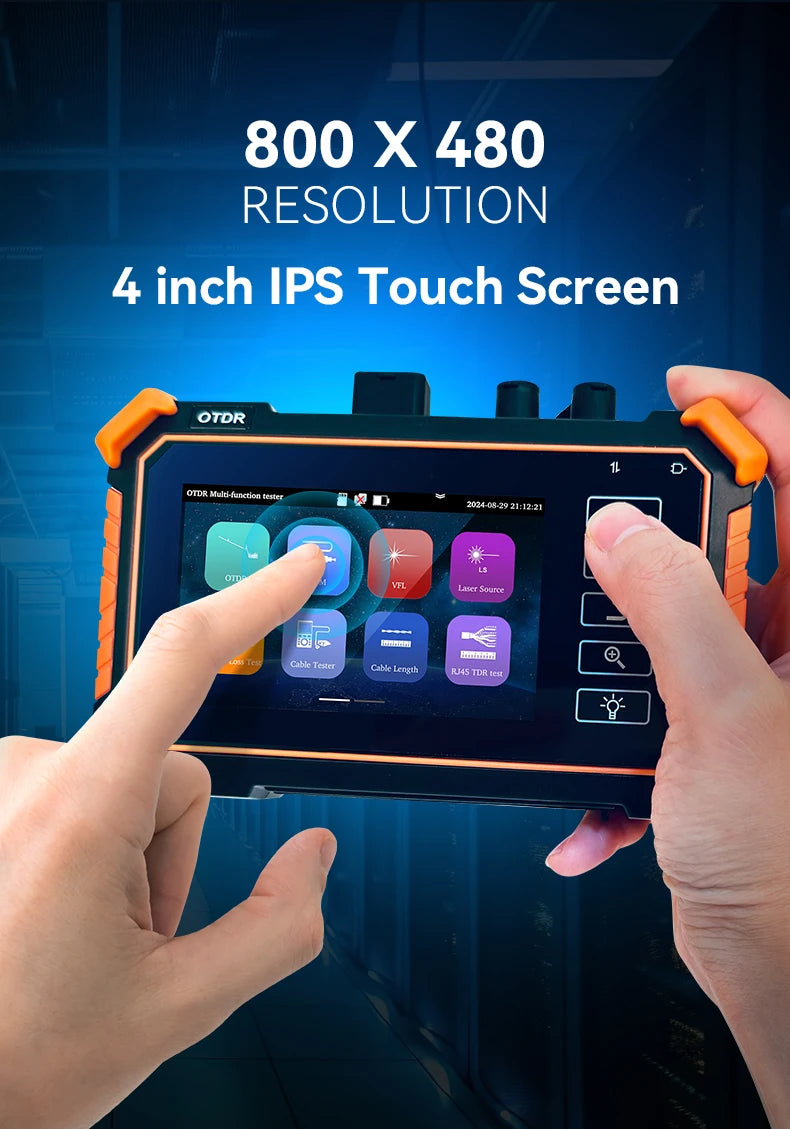

1) 4 inch touch screen, 800 x 480 resolution

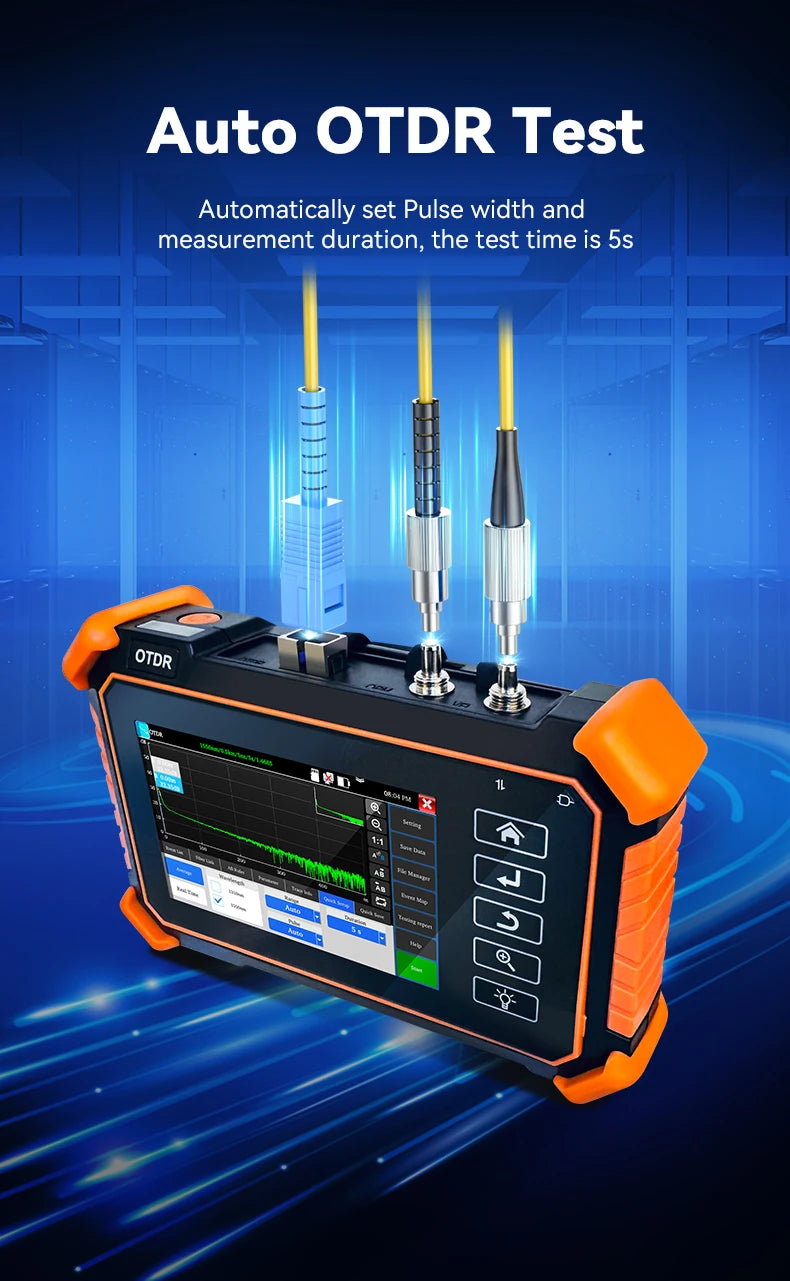

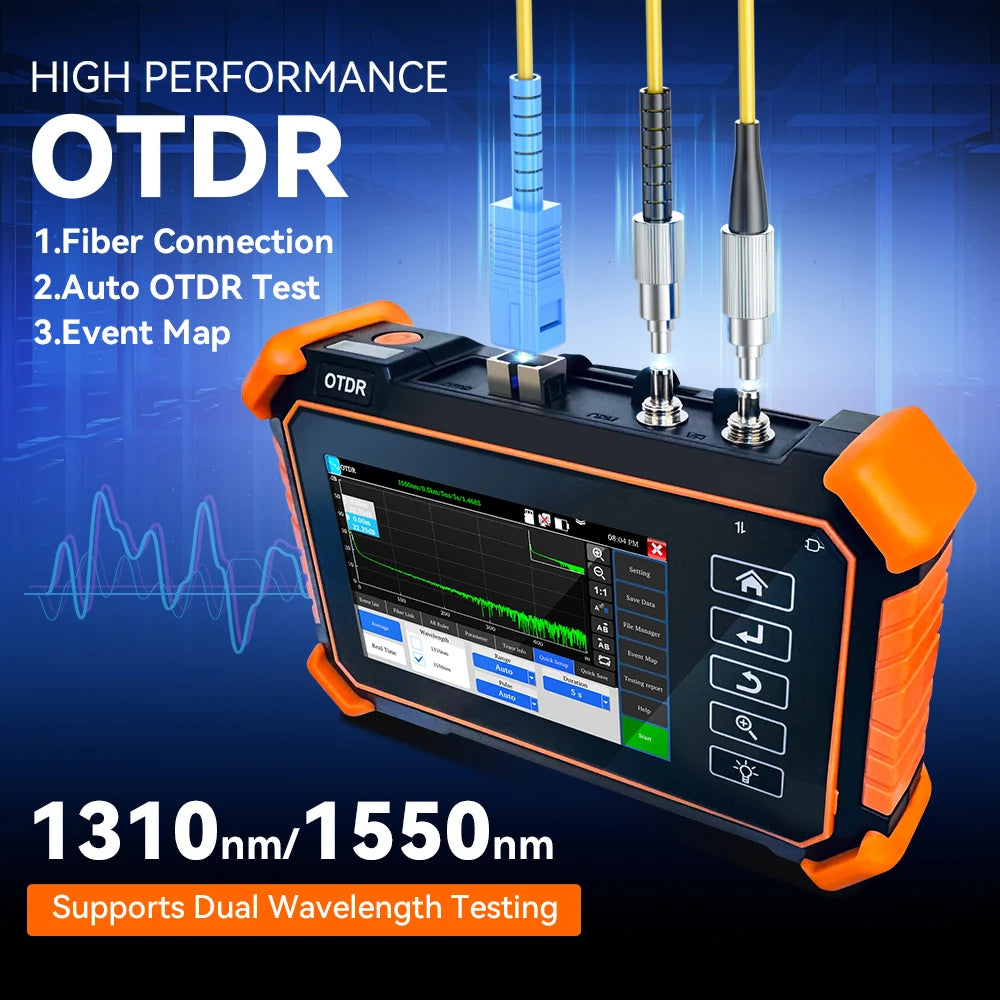

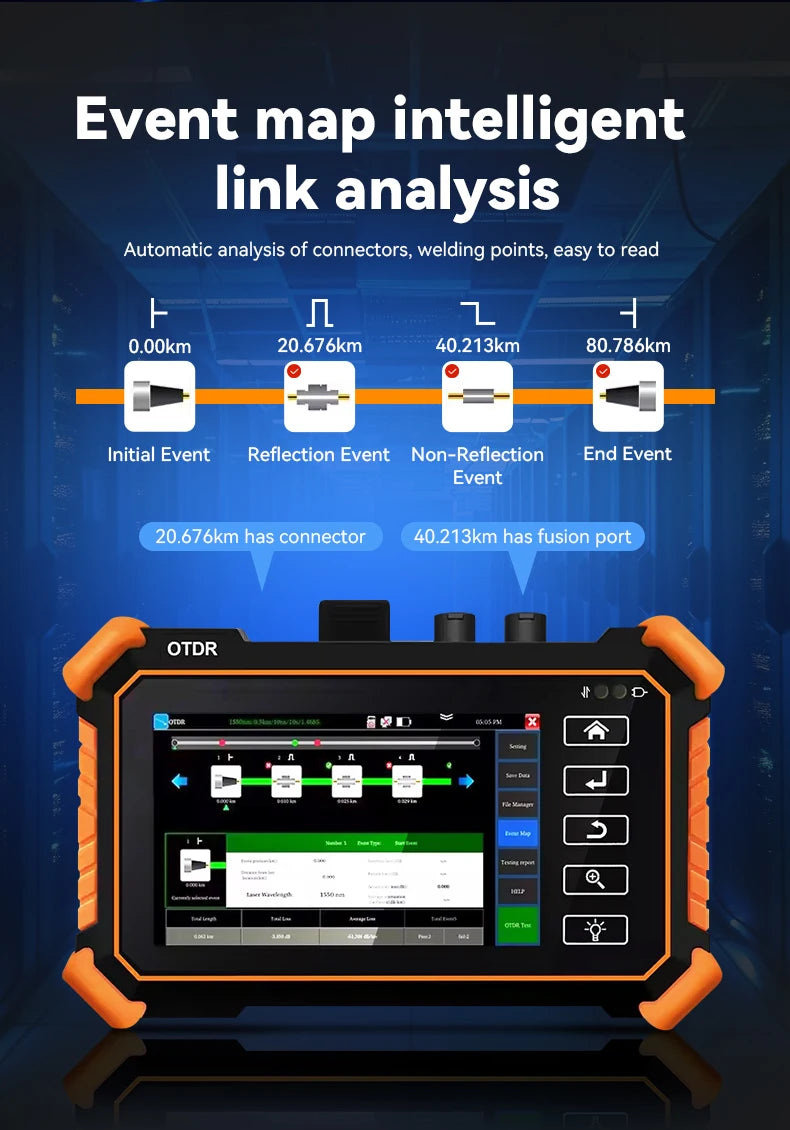

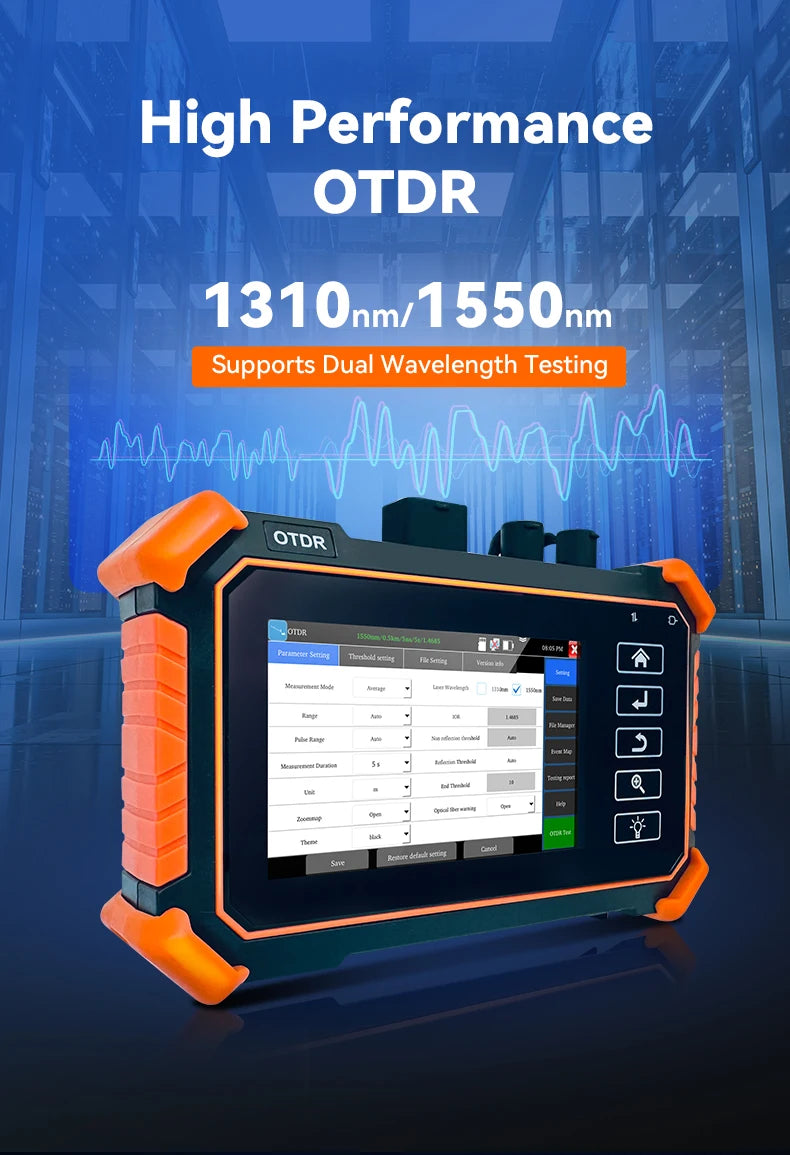

2) OTDR Auto testing, event map, easy to use

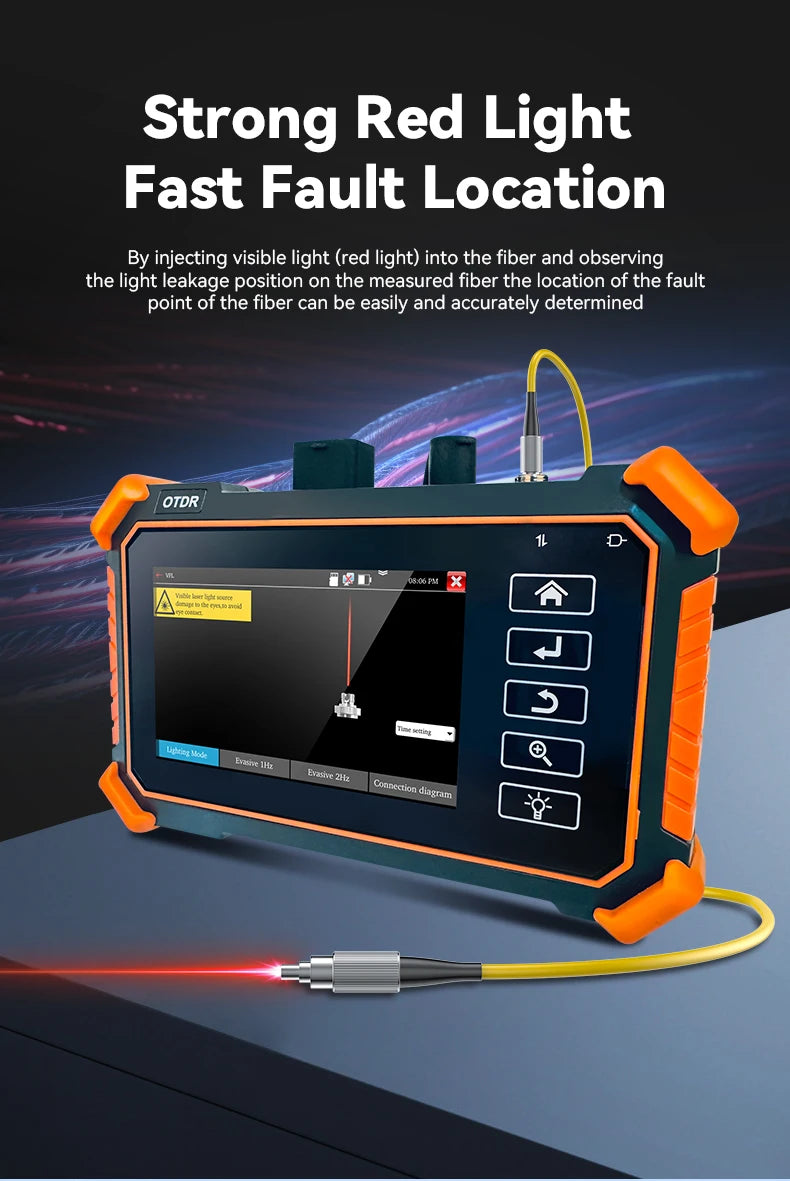

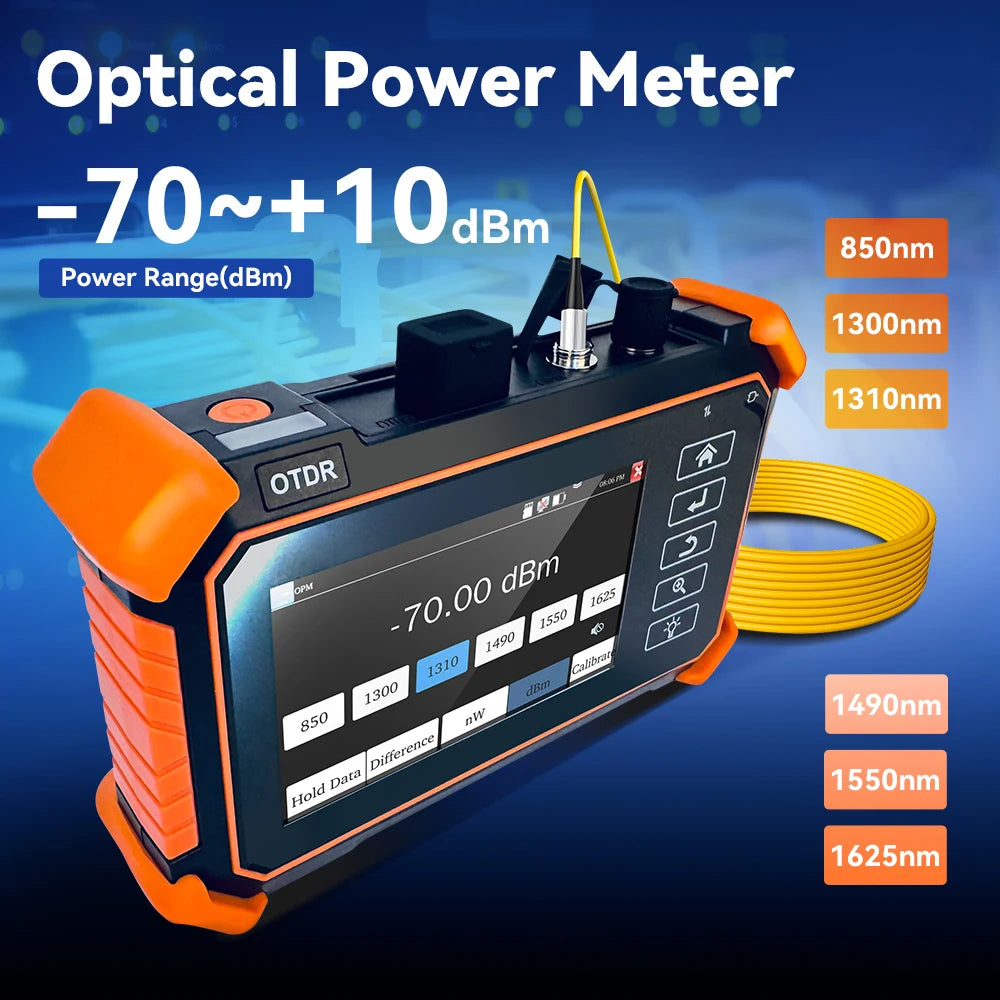

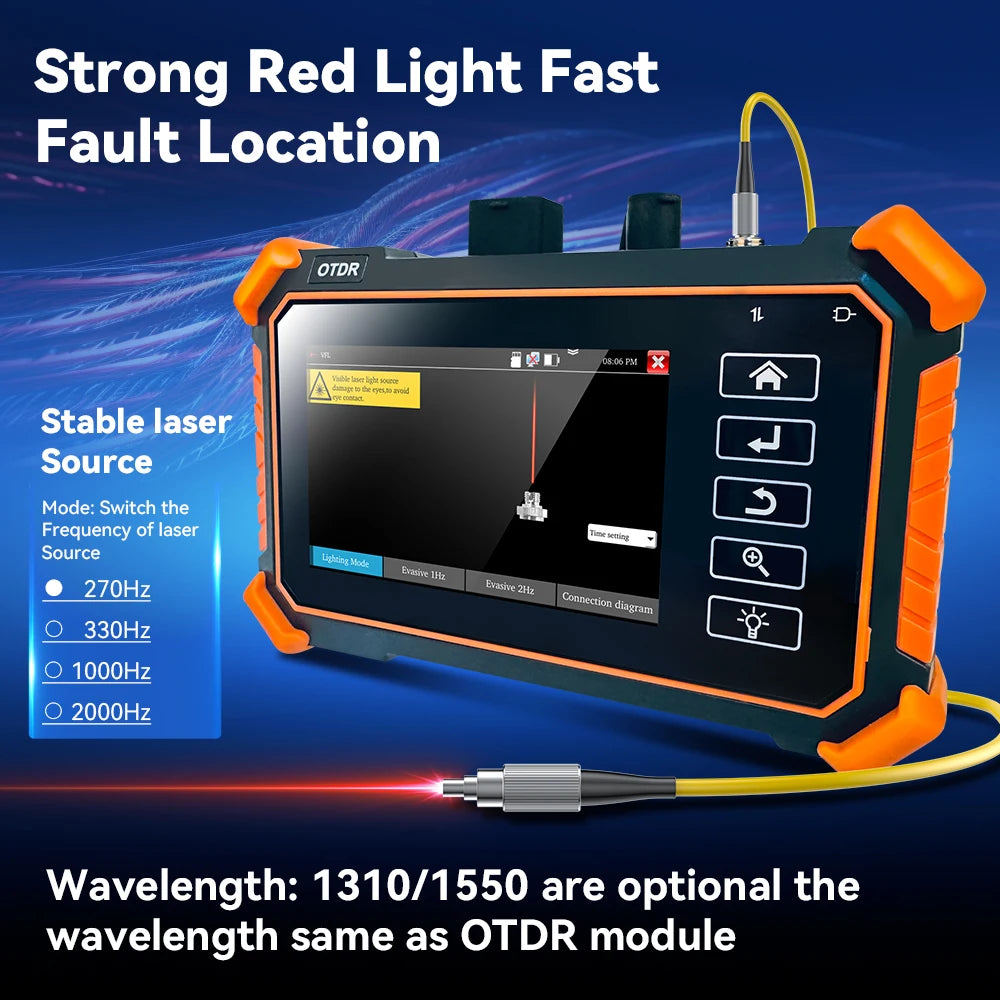

3) Stable laser source, optical power meter and visual fault locator

4) Report saved as SOR, PDF format etc

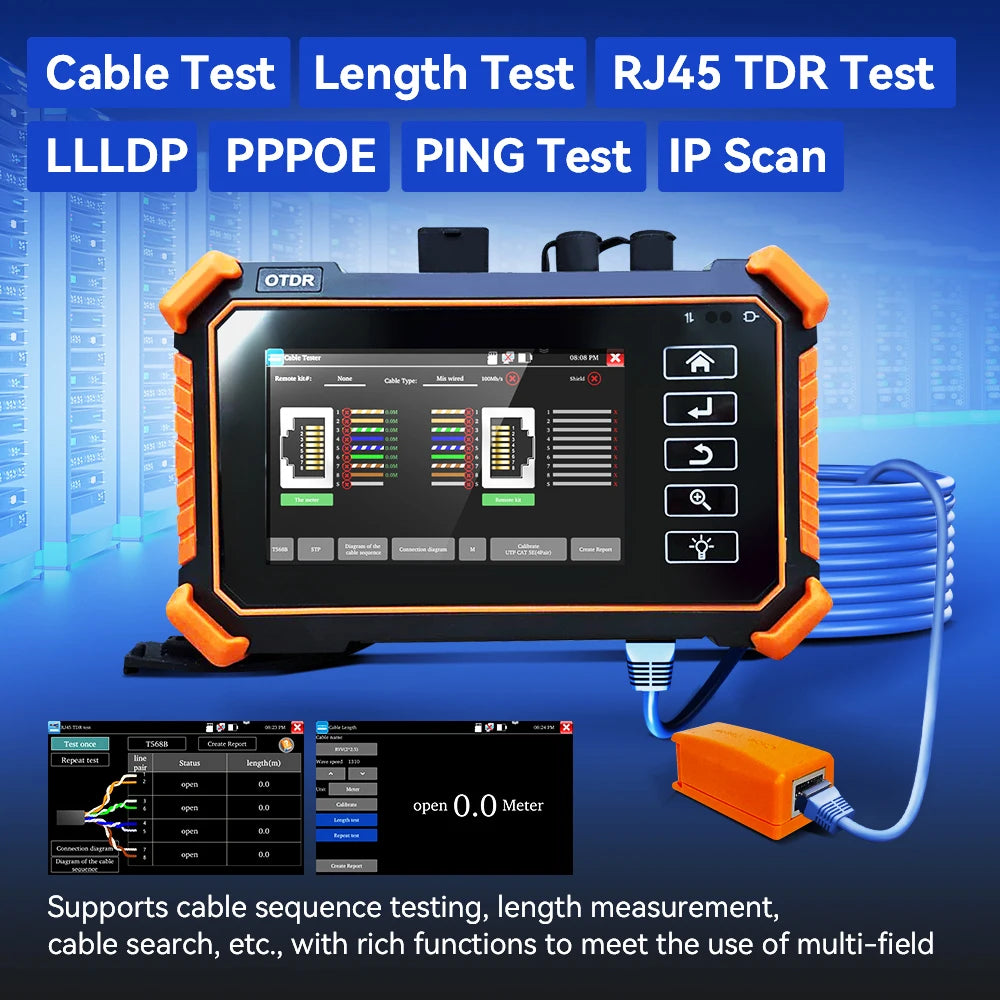

5) Network cable length measurement, up to 3km

6) UTP cable test, for network cable’s sequence and continuity

7) RJ45 TDR cable test* (only for NF-983)ING, PPPOE, IP scan, port flashing etc network test * (only for NF-983)

Application

● Multi-function NF-983 OTDR is an essential tool for fiber length, network and cable testing. OTDR displays the power of the returned signal related to distance. The information can be used to confirm the transmission quality of a fiber optic link. It is widely used in the maintenance, construction and monitoring of cable line.

● It can measure the optical fiber length, transmission attenuation of optical fiber, attenuation of splice, and failure location, etc. the Multi-function OTDR can make working conditions safer and increasing productivity.

● Fiber length testing and Event Map etc.

● Network cabling project installation and maintenance.

Remarks:

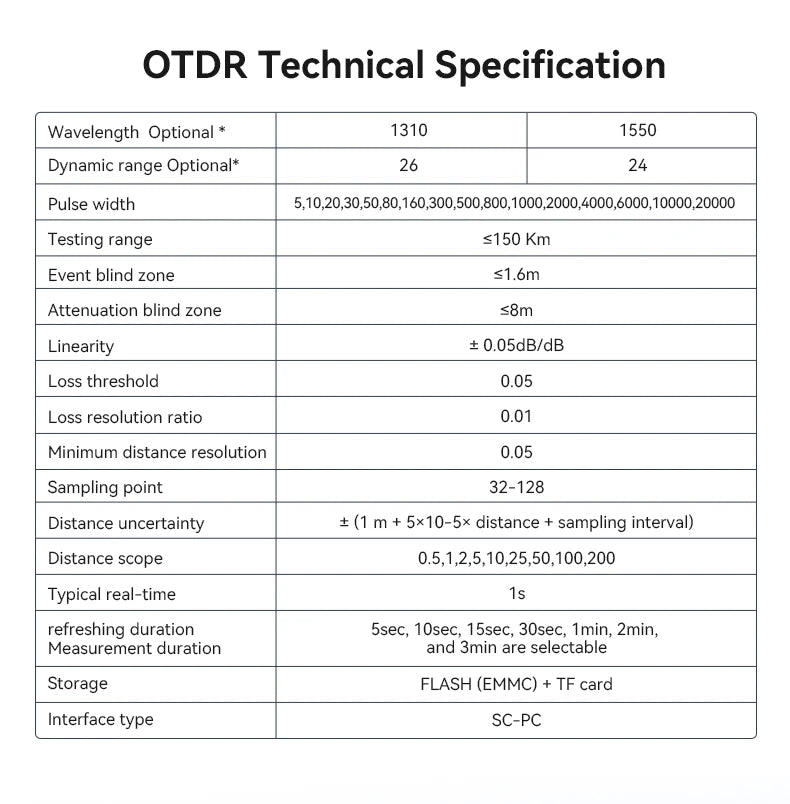

1. The technical specification describes the ensured performance of the instrument when using typical PC model connector to measure, without considering the uncertainty caused by optical fiber refractivity.

2. Dynamic range is the data measured under the condition of the maximum pulse width and 3 minutes of average time. Dynamic range is the data measured under the condition of 200km/20000ns/3min.

3. Measuring conditions of blind zone: reflection event is within 5KM, reflection strength is 45dB. Measured by the minimum pulse width.

4. TF card not included.

Imagine if you could be satisfied and content with your purchase. That can very much be your reality with the NOYAFA NF-983(MOT-31) Multi-function OTDR Optical Fiber+Network Cable Testing Tool, IP Scan, Port Flashing.
