NOYAFA NF-8506 Network Cable Tester Support PING test/IP scan/network port speed Multifunction Cable Tracker finding tool

Regular price: R 6,486.26
Sale price: R 6,486.26
Regular price: ~~R 8,042.97~~
Unit price: per

Shipping calculated at checkout.

Color

Ships From

Quantity must be 1 or more

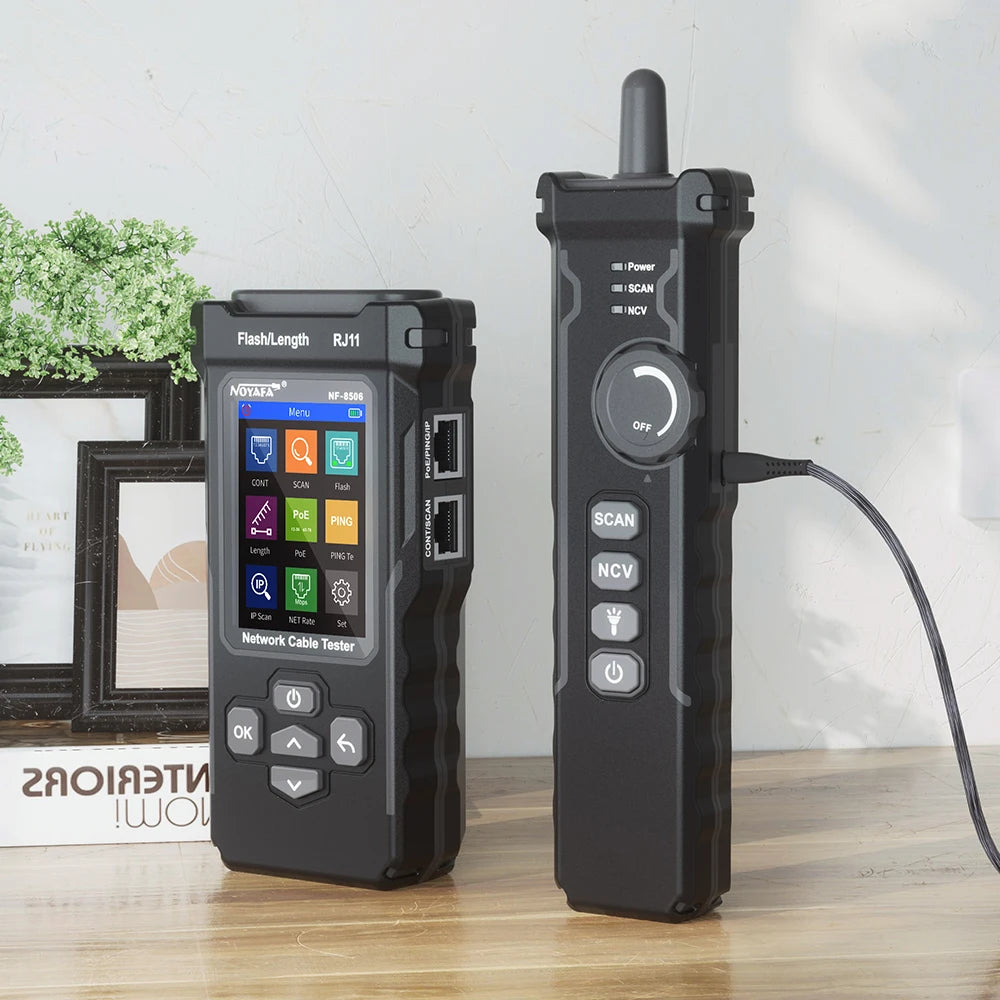

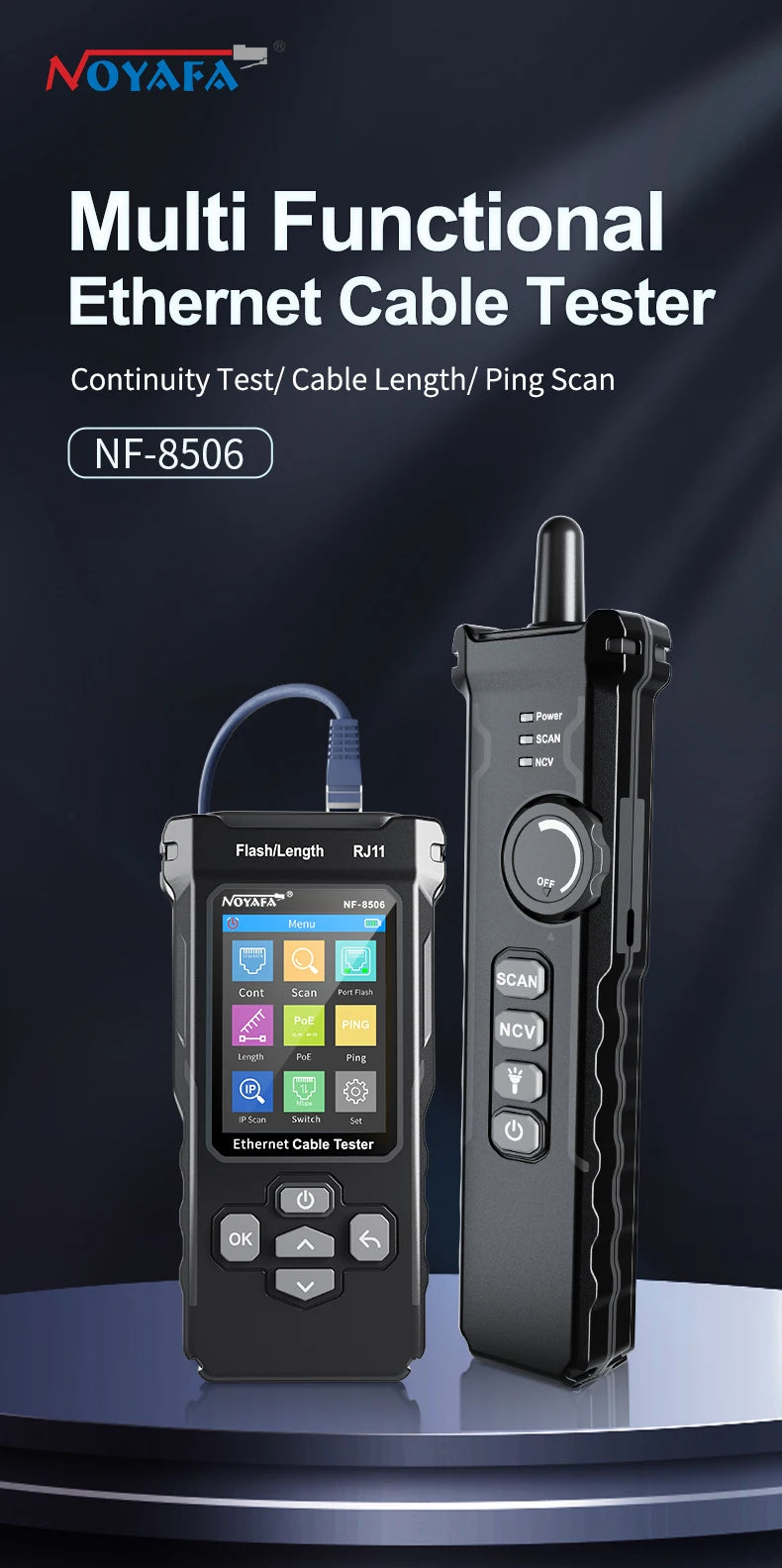

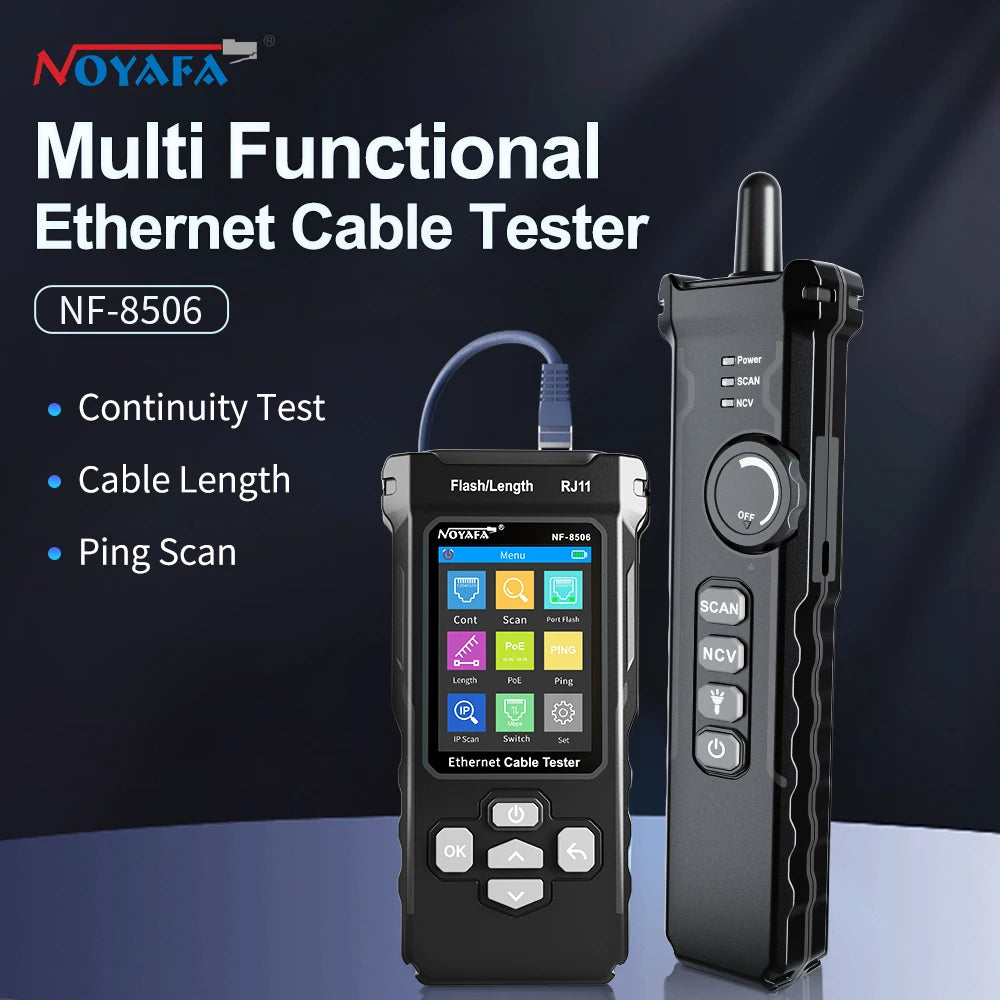

NOYAFA NF-8506 Network Cable Tester Support PING test/IP scan/network port speed Multifunction Cable Tracker finding tool

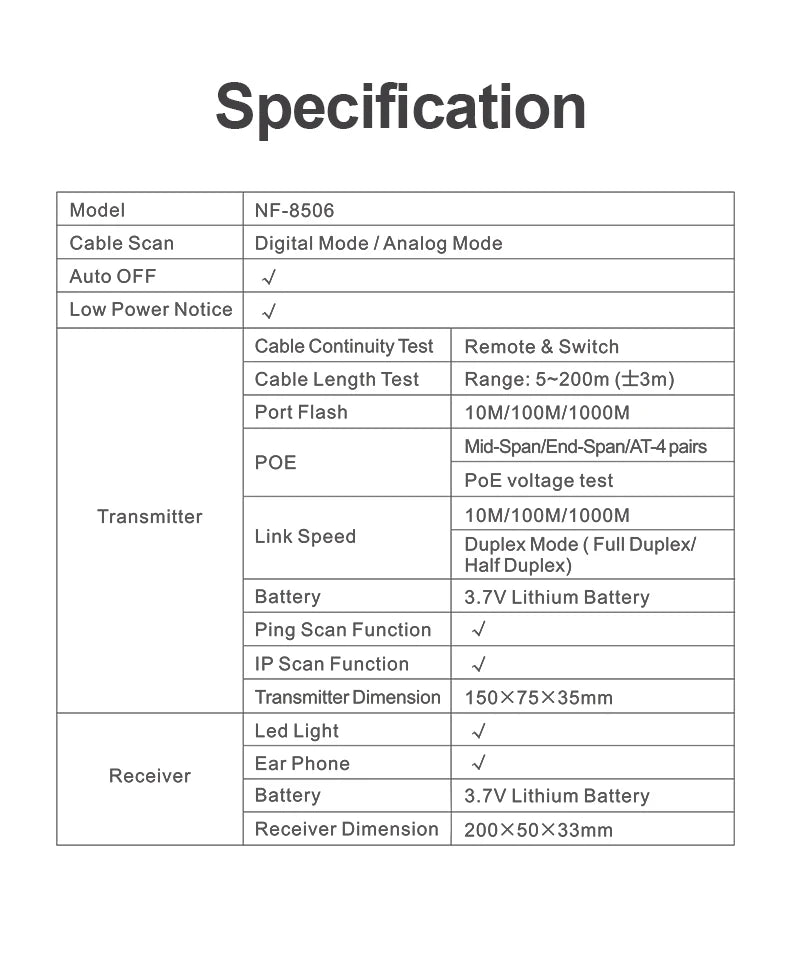

SPECIFICATIONS

Battery Included: Yes

Brand Name: NOYAFA

Certification: CE

Frequency Range: 455KHz

High-concerned chemical: None

NOYAFA Model: NF-8506

Description

Model：NF-8506

Cable Scan：Digital Mode /Analog Mode

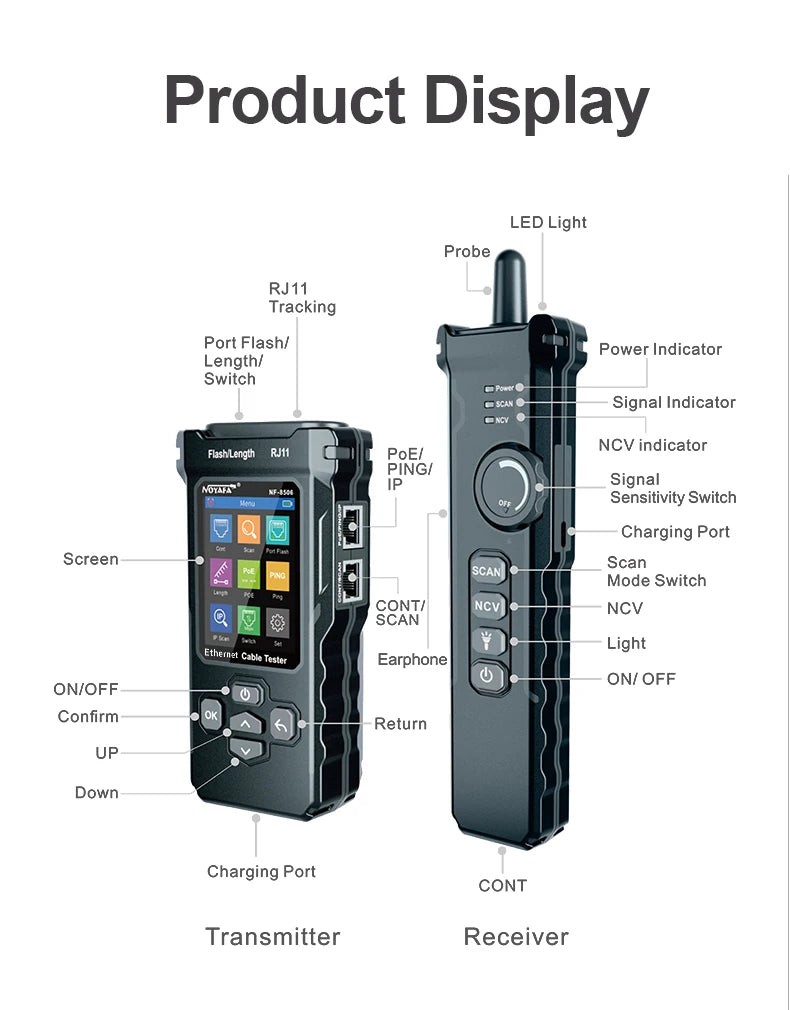

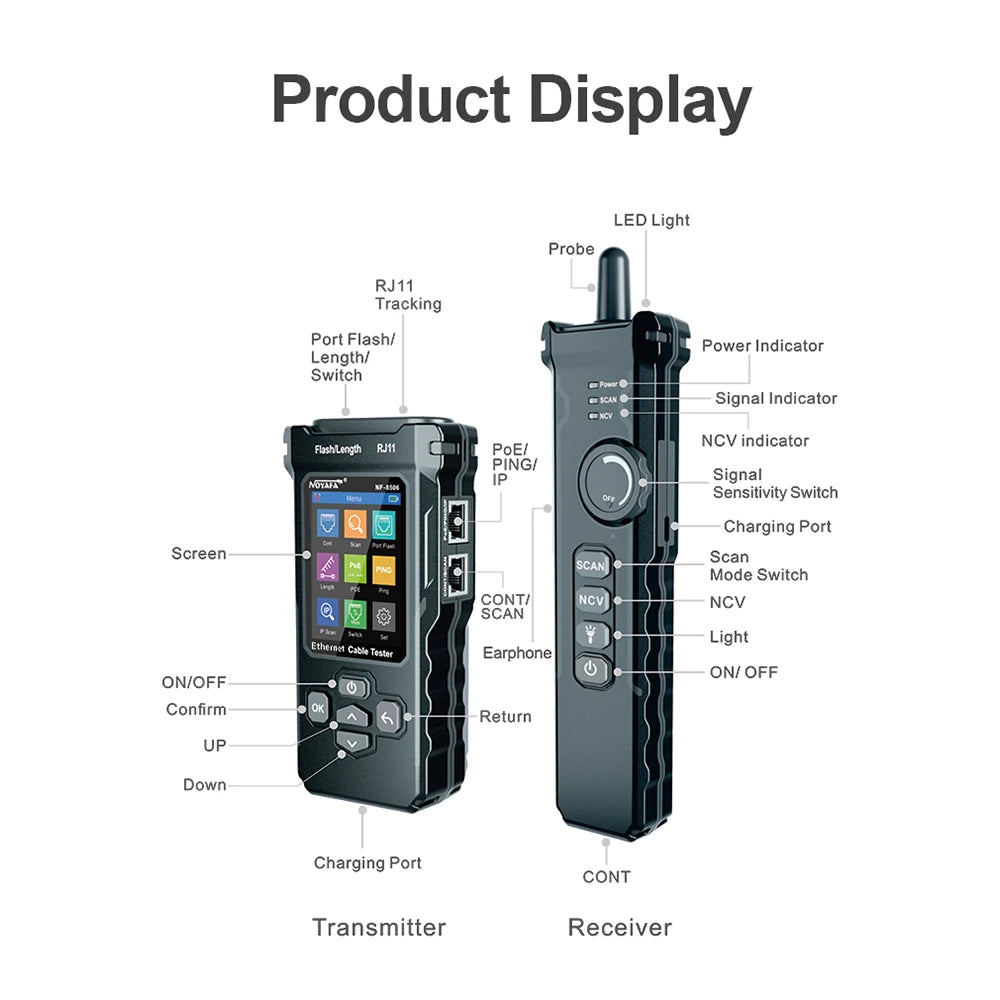

Transmitter

1. Cable Continuity Test：Remote & Switch

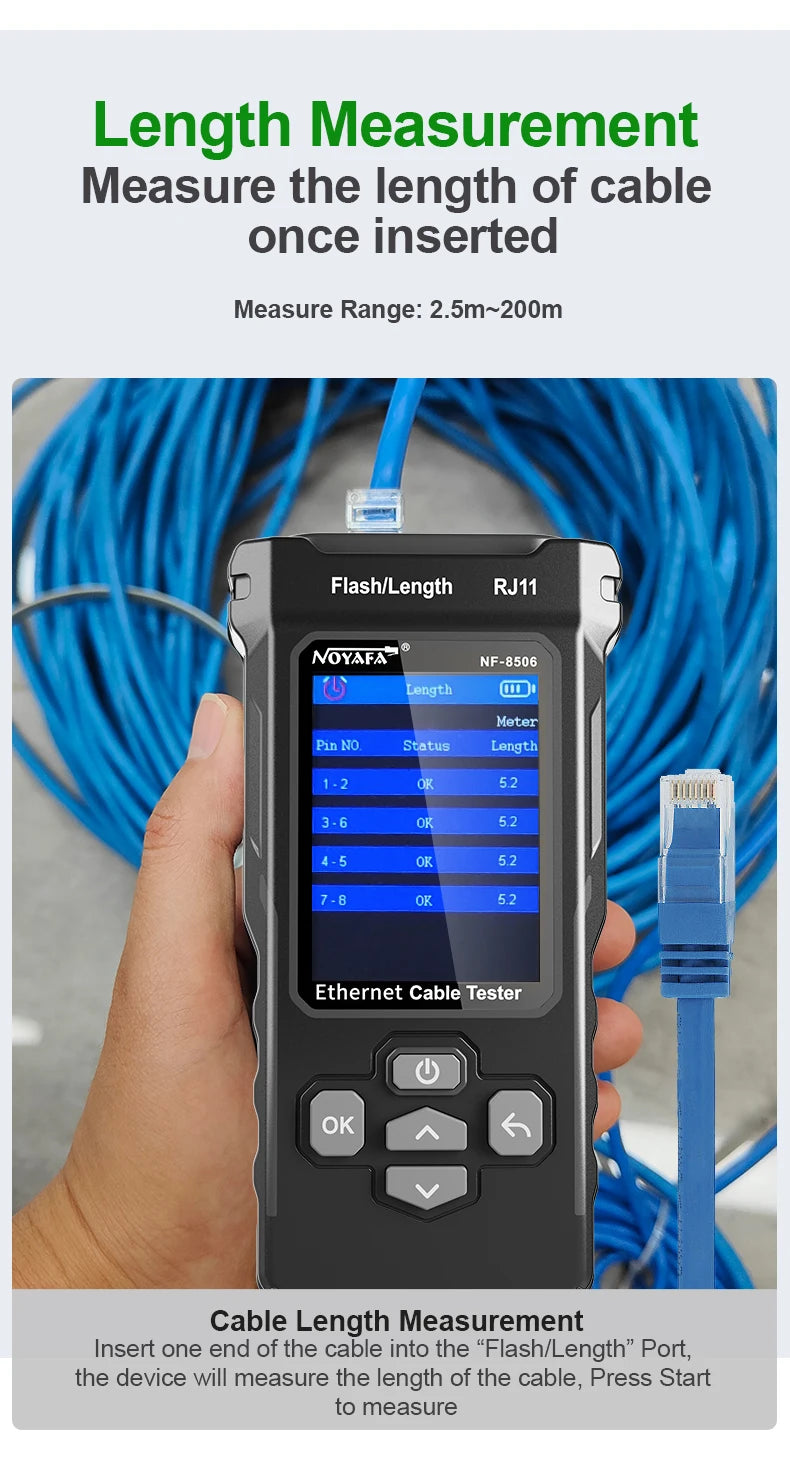

2. Cable Length Test：Range: 5〜200m (±3m)

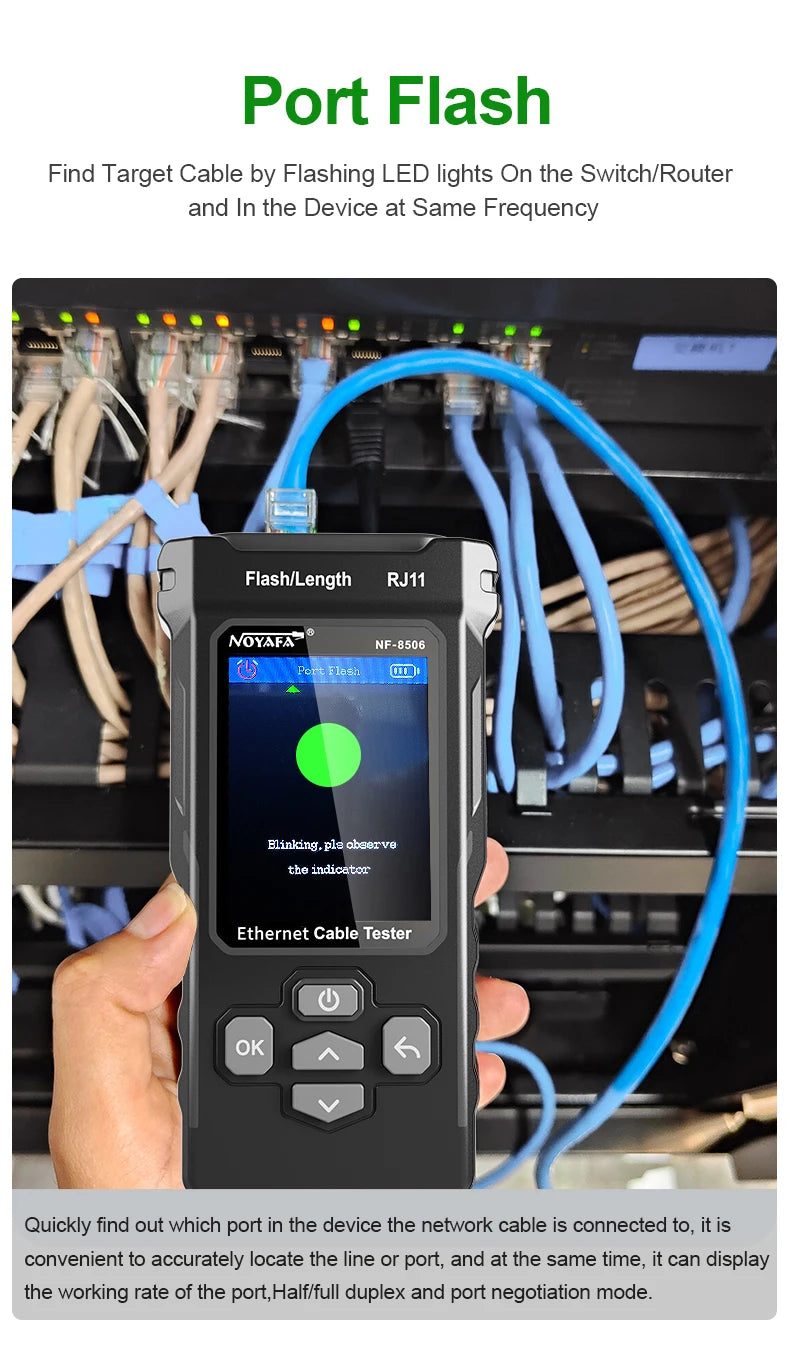

3. Port Flash：10M/100M/1000M

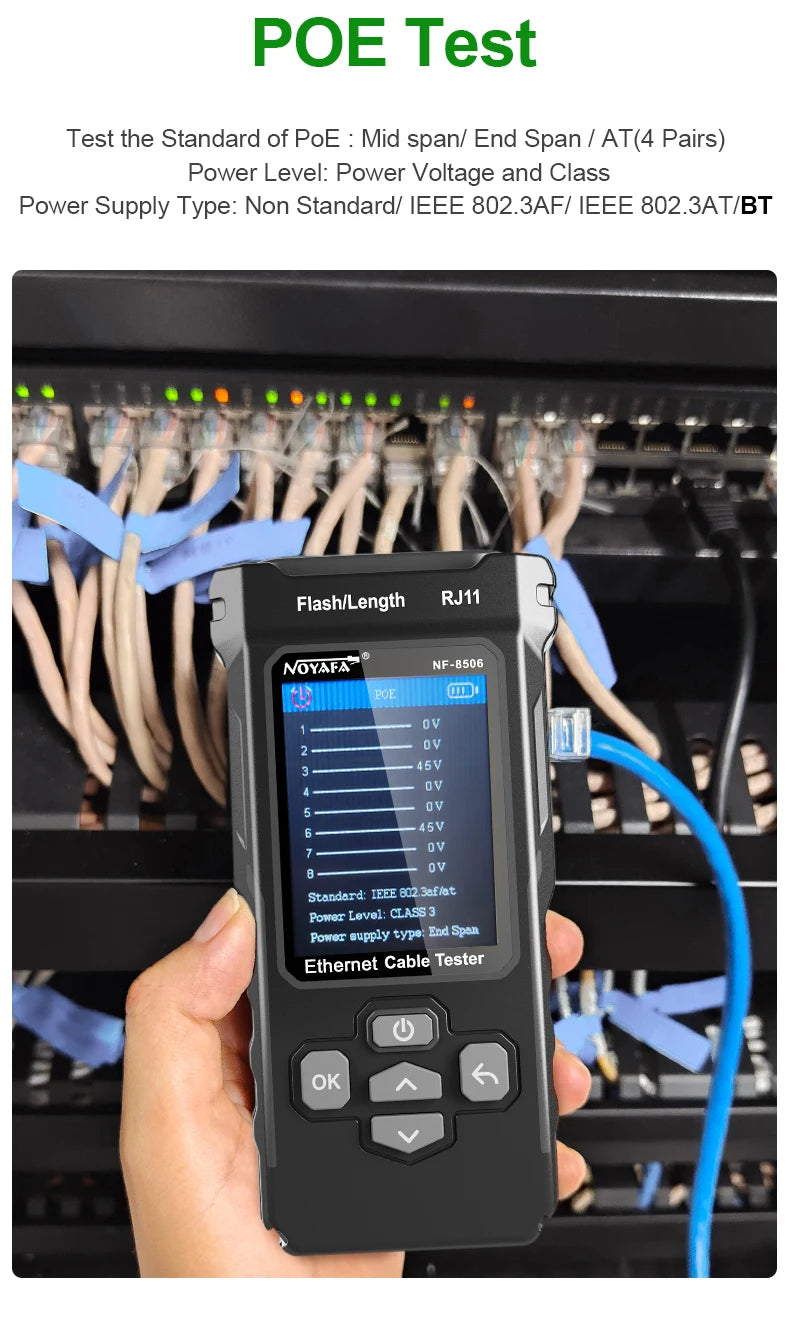

4. POE：Mid-Span/End-Span/AT-4 pairs/POEvoltage test

5. Link Speed：10M/100M/1000M/Duplex Mode (Full Duplex/ Half Duplex)

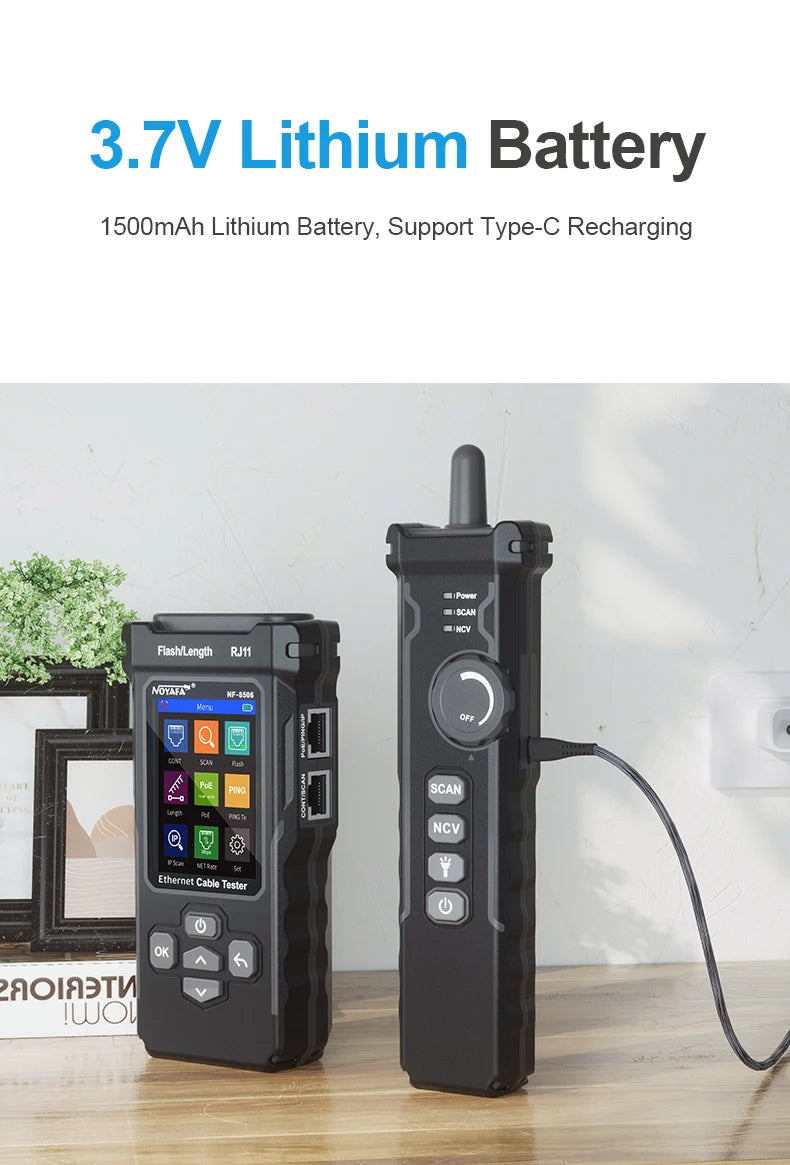

6. Battery：3.7 V Lithium Battery

7. Function：Ping Scan /IP Scan Function

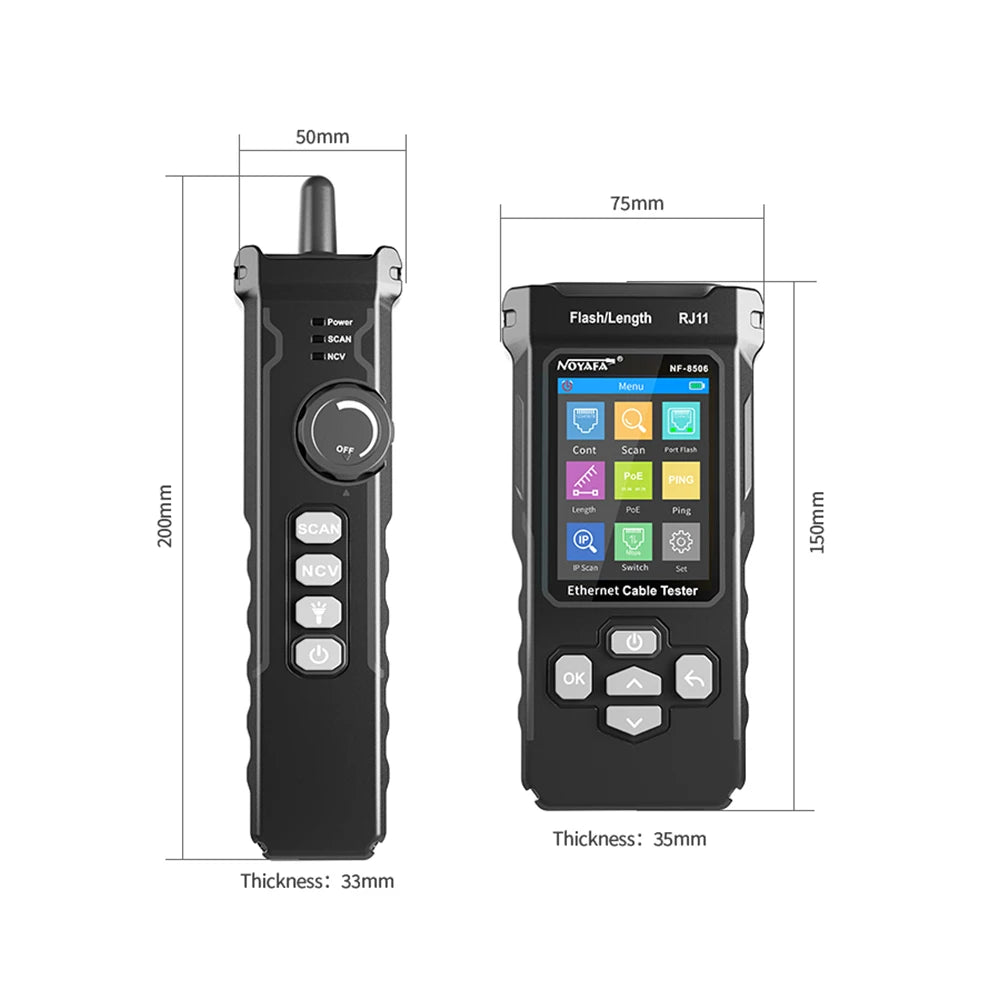

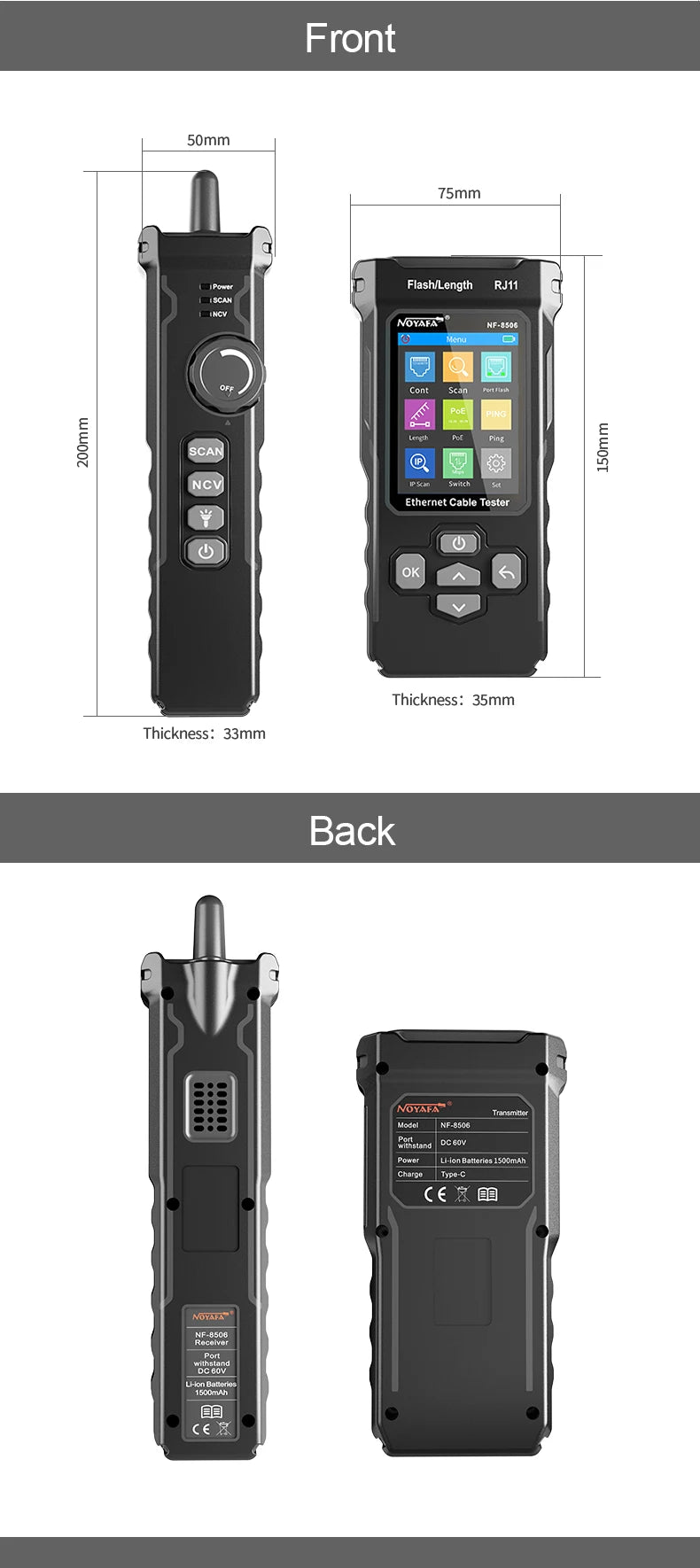

8. Transmitter Dimension：150×75×35mm

Receiver

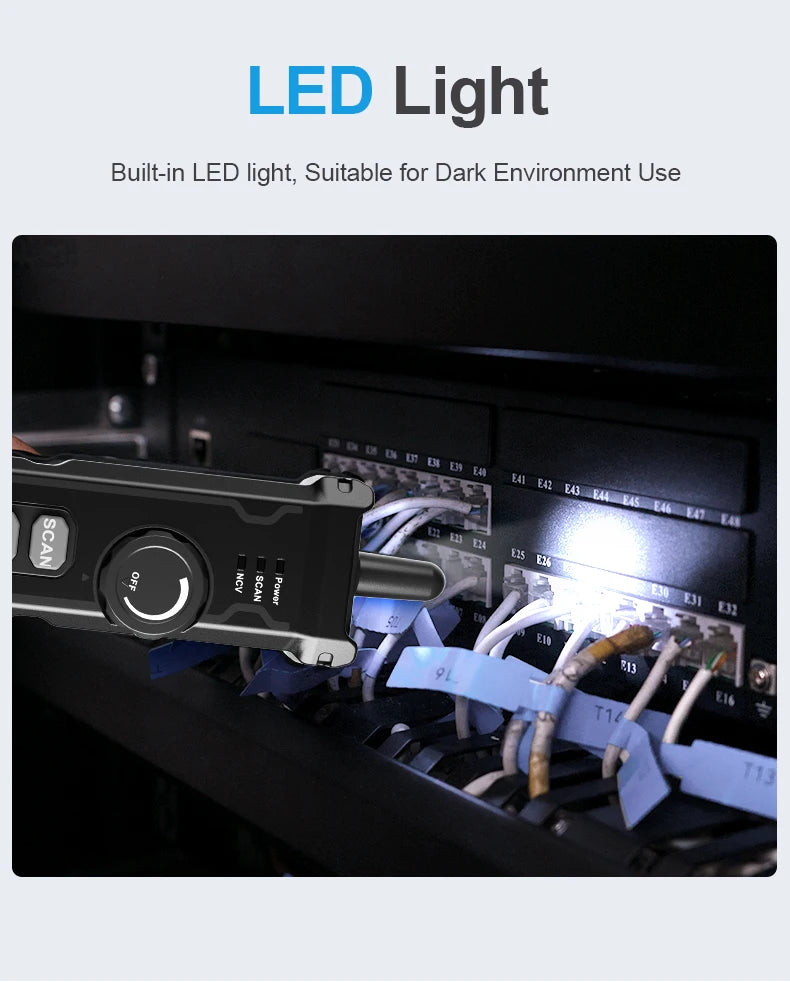

1. Led Light

2. Ear Phone

3. Battery：3.7 V Lithium Battery

4. Receiver Dimension：200×50×33mm

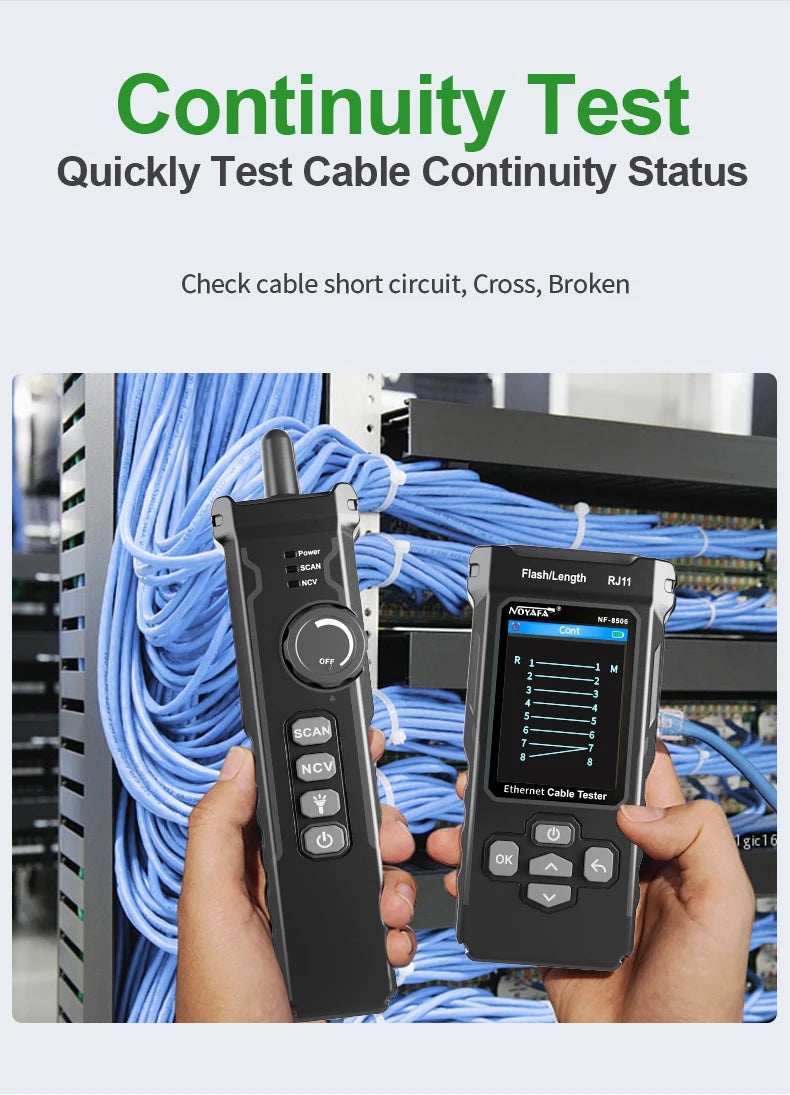

1. Cable Continuity Test

2. Modes: Remote and Switch.

3. Remote: Can test cable continuity, Cross/ Short Condition.

4. Switch: Can only test cable continuity.

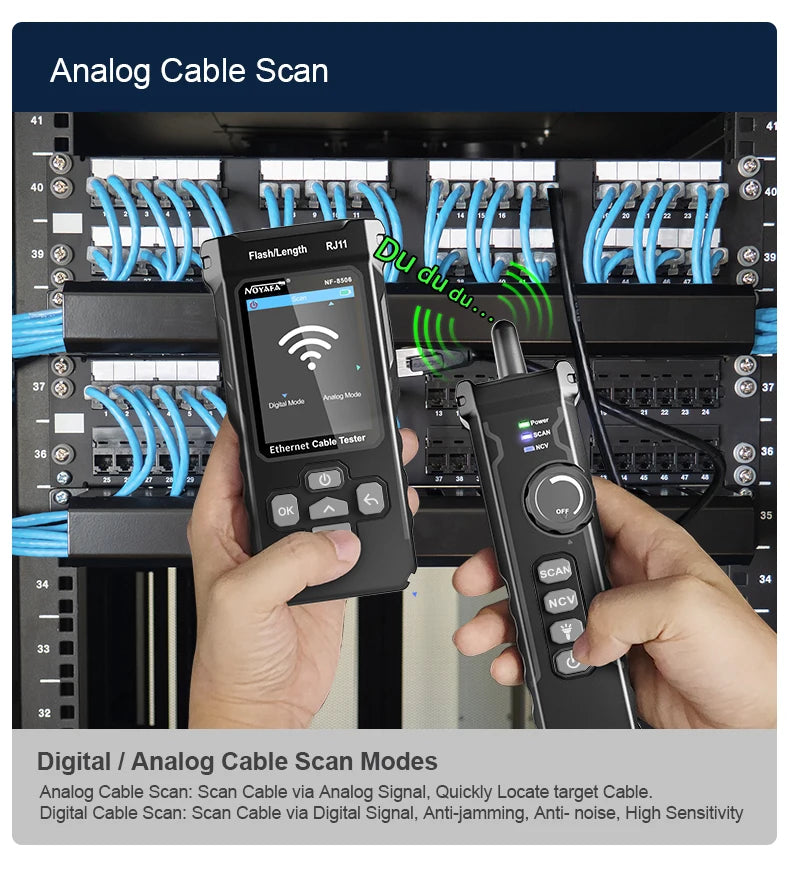

5. Receiver: If the scan signal indicator stays on, it means the receiver is in Digital mode; If the scan signal indicator blinks, it means the receiver is in Analog mode.

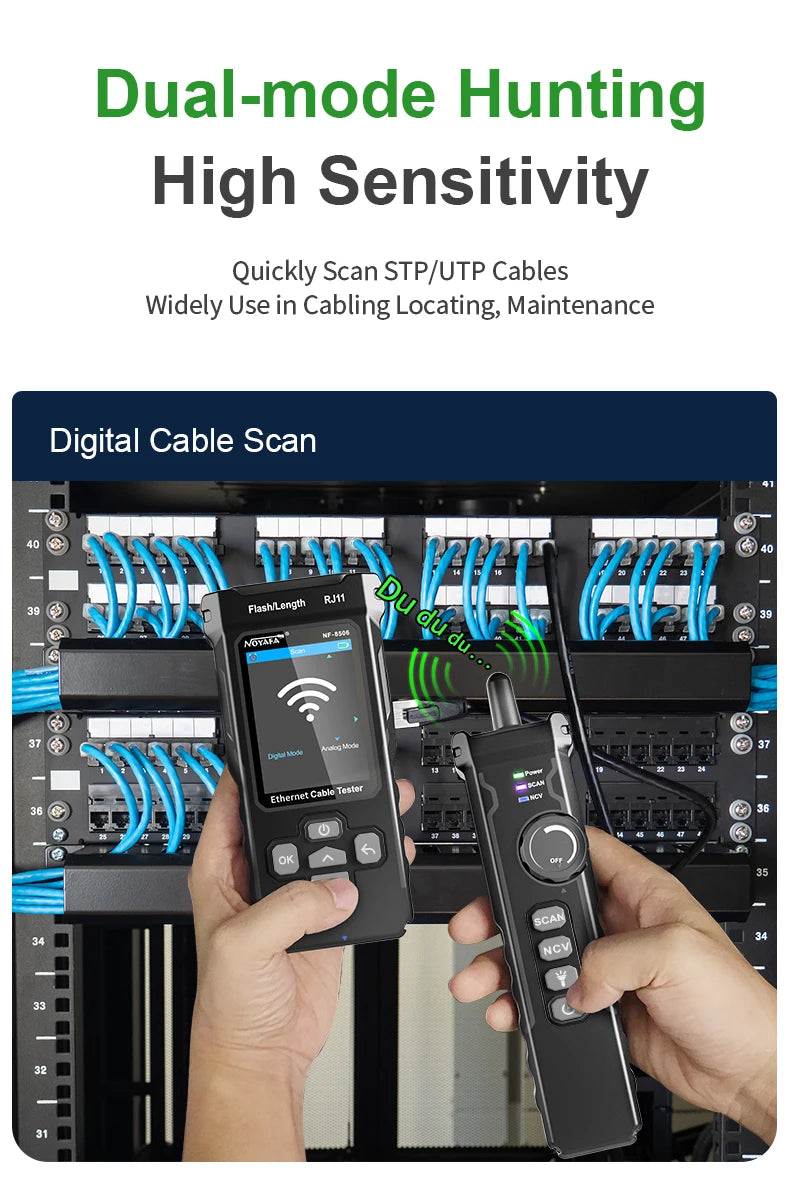

6. Two Modes: Digital Mode / Analog Mode, Customers can use UP/ Down to switch.

7. Digital Mode: Anti- interference, when tracking cables with load from 1000M switches, customers were suggested use this mode.

8. Analog Mode: With little noise, customers were suggested to use this 9.mode when tracking cables without load.

10. Transmitter:Default set to Digital mode, use UP/Down button to switch between the two modes.

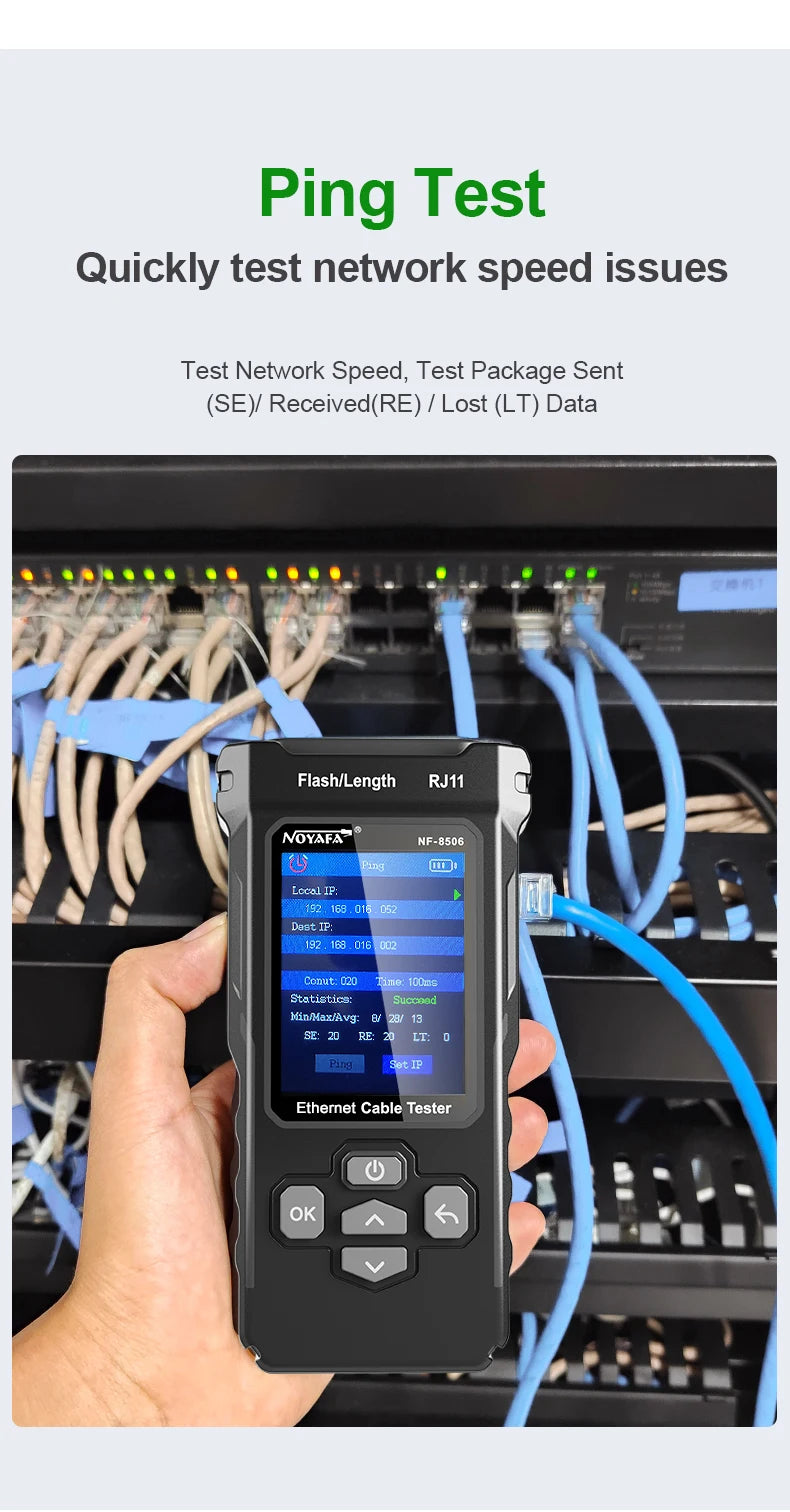

11. Test Ping：Customers were suggested to set IPV4 for the first time to use Ping test function, after enter the Ping test function customers can use UP/Down button to choose "Set IP" to set the local IP, Subnet Mask, and Gateway, after setting these, customers need to save the settings then can return to use the Ping scan functions.

12. Balayage IP：Using UP/Down button to choose "Set IP' to set the local IP, Subnet Mask, and Gateway, after setting these, customers need to save the settings then can return to use the IP scan functions.

13. Test de commutateur：After testing, the testing result will show the standard of the switch (10M/100M/1000M) and also the duplex mode of the switch.

14. PS: After testing, customers need to reprocess the whole steps for new port testing to ensure the accuracy of the testing.

15. Réglages：Customers can set language, backlight level, backlight time, auto default setting, about etc.

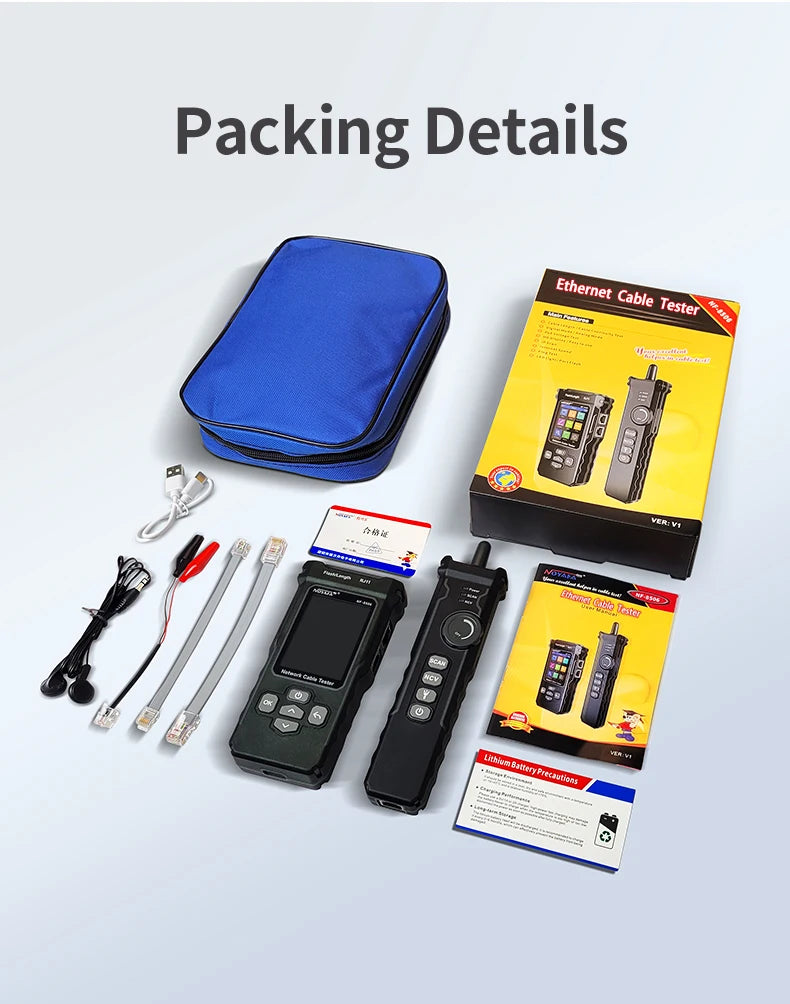

Package includes:

Transmitter：1 pc

Tool Bag：1 pc

Receiver：1 pc

Packing Box: 1 pc

User Manual：1 pc

Warranty Card：1 pc

Lithium Battery Notification Card：1 pc

Recharging Cable：1 pc

The NOYAFA NF-8506 Network Cable Tester Support PING test/IP scan/network port speed Multifunction Cable Tracker finding tool is the product you didn't think you need, but once you have it, something you won't want to live without.
