FTTH Tool Kit High Precision Handheld Fiber Optical Power Meter -70+3 Dbm Fiber Optical Cable, 800~1700nm used in Maintenance in Telecoms

Regular price: R 41,522.80
Sale price: R 41,522.80
Regular price: ~~R 53,979.64~~
Unit price: per

Shipping calculated at checkout.

Color

Quantity must be 1 or more

Ftth Tool Kit High Precision Handheld Fiber Optical Power Meter -70+3 Dbm Fiber Optical Cable, 800~1700nm used in Maintenance in Telecoms

SPECIFICATIONS

Battery Operating Time: 240 h with 1.5V Battery(3)

Brand Name: HS

Calibrated Wavelength(nm): 850, 1300, 1310, 1490, 1550, 1625

Detector: InGaAs

High-concerned Chemical: None

Measurement Range (dBm): -70~+6 -50~+26

Model Number: HS-1001

Operating Temperature(℃): -10 ~ +60

Relative Humidity: 0 to 95% (non-condensing)

Resolution(dB): 0.01

Storage Temperature(℃): -25 ~ +70

Type: Testers & Tools

Uncertainty: ±5%

Use: FTTH

Warranty Time: 1 years

Wavelength(nm): 800~1700nm

Product Description

FTTH Tool Kit High Precision Handheld Fiber Optical Power Meter -70+3 Dbm Fiber Optical Cable, 800~1700nm used in Maintenance in Telecoms

Feature

1. Comfortable LCD display and optional backlight LCD display supports night operation;

2. Power measurements in dBm or mw and insertion loss in dB;

3. Reference power level storage(Ref Setting)

4. Low battery consumption, more than 240 hours continual operation time with three 1.5V alkaline batteries; 5. 10 minutes Auto-off function can be activated or deactivated.

Applications

1. Maintenance in Telecom

2. Maintenance in CATV

3. Fiber Optic Lab Testing

4. Other Fiber Optic Measurements

Description

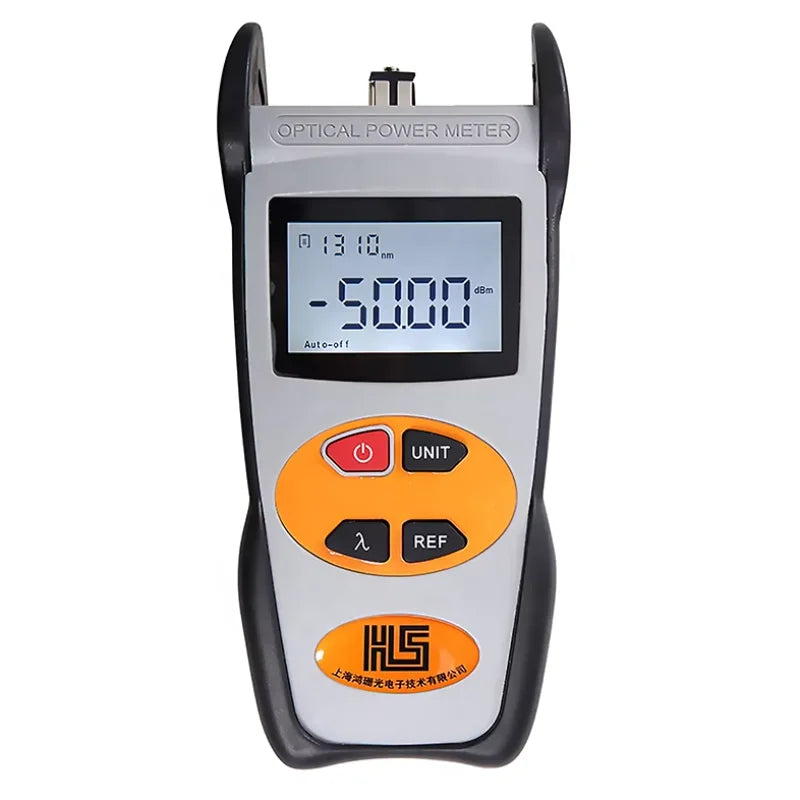

This optical power meter series is a compact and an easy-to-use testing instrument for optical fiber networks, which can be used for absolute optical power measurements as well as for relative loss measurements in optical fibers. It has features of ingenious appearance, wide range of power measurement, high accuracy with high performance-to-price ratio.

Product Paramenters

Type	HS 1001-A	HS1001-C
Wavelength(nm)	800~1700nm
Detector	InGaAs
Measurement Range (dBm)	-70~+6	-50~+26
Uncertainty	±5%
Calibrated Wavelength(nm)	850,1300,1310,1490,1550,1625
Resolution(dB)	0.01

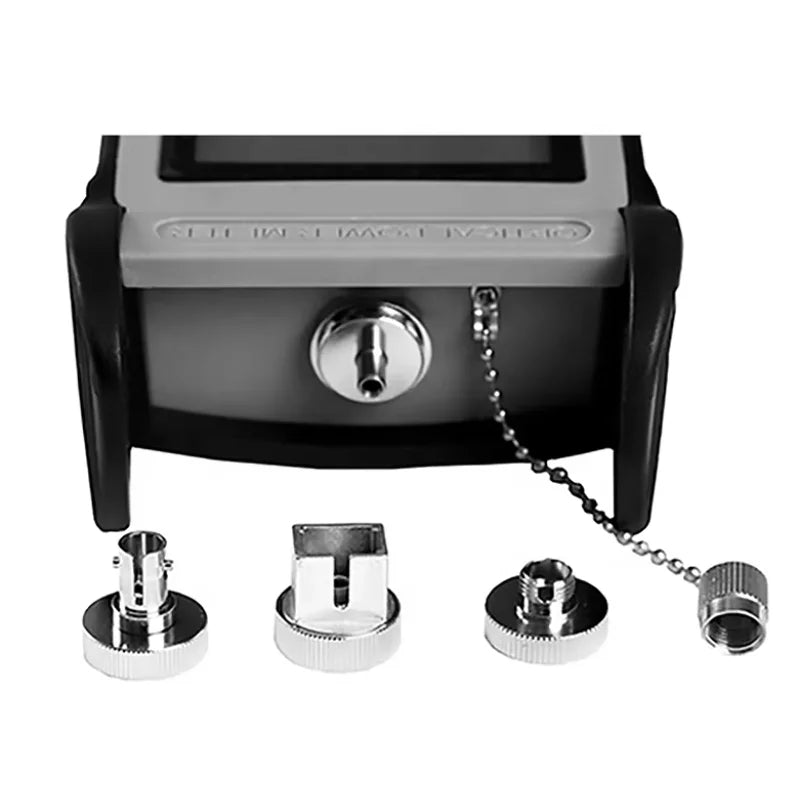

Optical Connector	FC(interchangeable SC,ST) / as well as 2.5mm universal
Power Supply	Alkaline Battery(3 AA 1.5V batteries)
Battery Operating Time	240 h with 1.5V Battery(3)
Operating Temperature(℃)	-10 ~ +60
Storage Temperature(℃)	-25 ~ +70
Relative Humidity	0 to 95% (non-condensing)
Dimension(mm)	200 x 90 x 50 mm
Weight(g)	285

The FTTH Tool Kit High Precision Handheld Fiber Optical Power Meter -70+3 Dbm Fiber Optical Cable, 800~1700nm used in Maintenance in Telecoms is a sensational customer favorite, and we hope you like it just as much.
