Ftth data center fiber optic tool equipment fusion splicer afs-40 communication cables splicing machine optical fiber welder

Ftth data center fiber optic tool equipment fusion splicer afs-40 communication cables splicing machine optical fiber welder

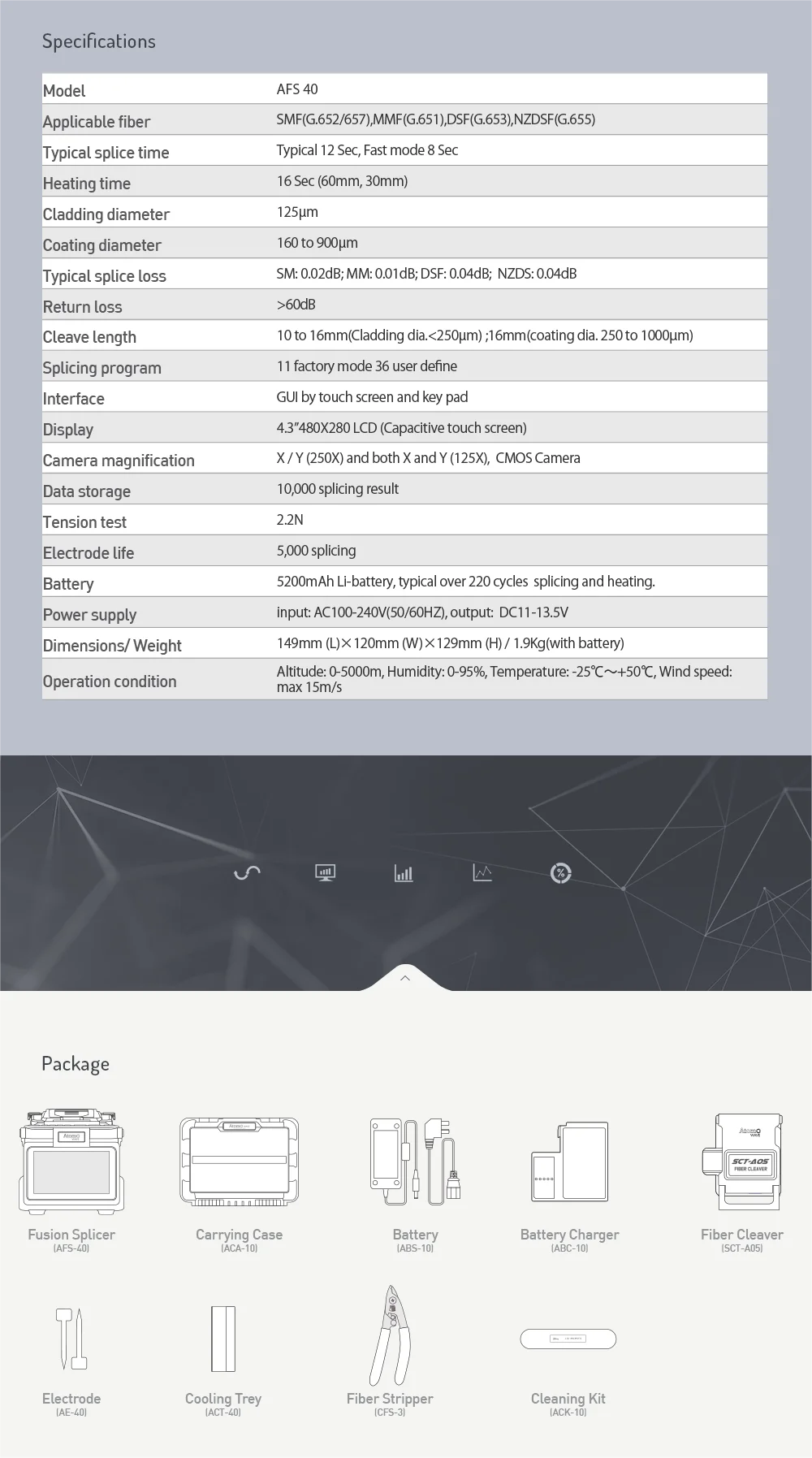

SPECIFICATIONS

High-concerned Chemical: None

Type: Other

Model Number: TW-AFS-40-DL

Type: Fiber fusion splicer

Brand Name: Atomowave

Use: Fiber Splicing

Warranty Time: 1

Network: 3G, 4g, None, None, Wired LAN, Wireless Lan

Product Name: Atomo wave AFS-40 Fusion Splicing Machine

Model: AFS 40

Applicable Fiber: SMF(G.652/657),MMF(G.651),DSF(G.653),NZDSF(G.655)

Typical splice time: Typical 12 Sec, Fast mode 8 Sec

Heating time: 16 Sec (60mm,30mm)

Splicing program: 11 factory mode 36 user define

Cladding diameter: 125um

Coating diameter: 160 to 900um

Tension test: 2.2N

Dimensions/ Weight: 149mm(L)X120mm (W)x129mm (H)/1.9Ka(with battery)

Product Description

Ftth data center fiber optic tool equipment fusion splicer afs-40 communication cables splicing machine optical fiber welder

Product details

Description

AFS-40 is High performance Active Clad Alignment fusion splicer which designed for various FTTx field. Fully featured, easy splicing, dedicated splicer with unique home device-inspired design, suitable for indoor installation and outdoor deployment.

Features

+ Stable low splicing loss spread (0.02dB +_ 0.02 G652)

+ High speed splicing and shrinking heater (8 Sec / 16 Sec)

+ Full touch screen GUI

+ Switchable SOC (Splice On Connector)

platform (Holder, Heater)

+ Durable battery power (over 220 time splicing and

​ ​shrinking)

+ Full cover LED working illumination

+ Auto compensation function for various environment
