Fiber Optic Splicing Machine AI-8C 6 Motors Automatic Fiber Fusion Splicer 6S OEM FTTH 1 YEAR Six Motors Auto Focus 8.5KGS SM/MM

Regular price: R 28,365.85
Sale price: R 28,365.85
Regular price: ~~R 39,446.26~~
Unit price: per

Shipping calculated at checkout.

Specification

Quantity must be 1 or more

SPECIFICATIONS

Built-in battery: 7800 mAH lithium battery

Connector Type: None

Fiber Type: SM/MM

Focus mode: Six motors auto focus

Frequency Range: None

Heating time: 15S

Model Number: AI-8C

Network: None

Package: Carton Box

Port: None

Power - Minimum Receivable: None

Power Source: AC 220 V

Product Name: Fiber Fusion Splicer

Splicing time: 6S

Type: Fiber Fuison Splicer,Testers &Tools

Use: FTTH

Warranty: 1 Year

Warranty Time: 1 YEAR

Weight: 8.5KGS

Product Description

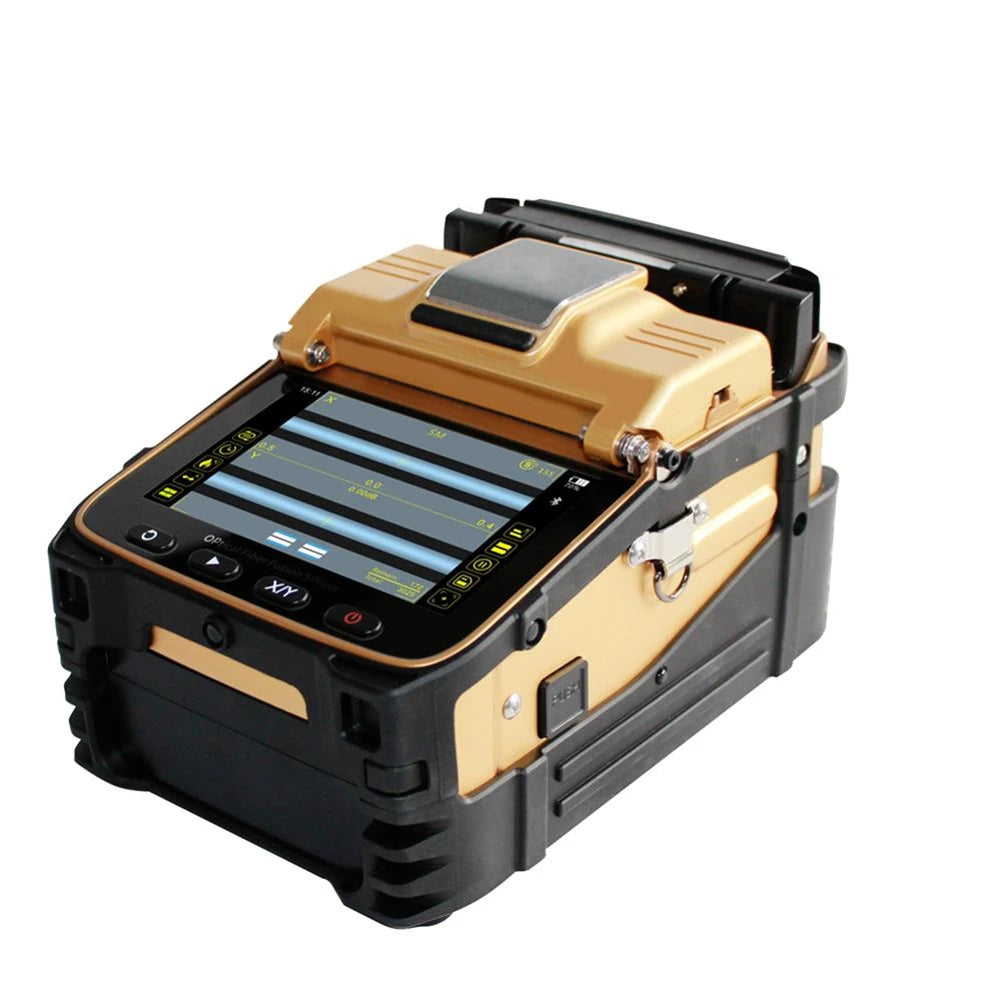

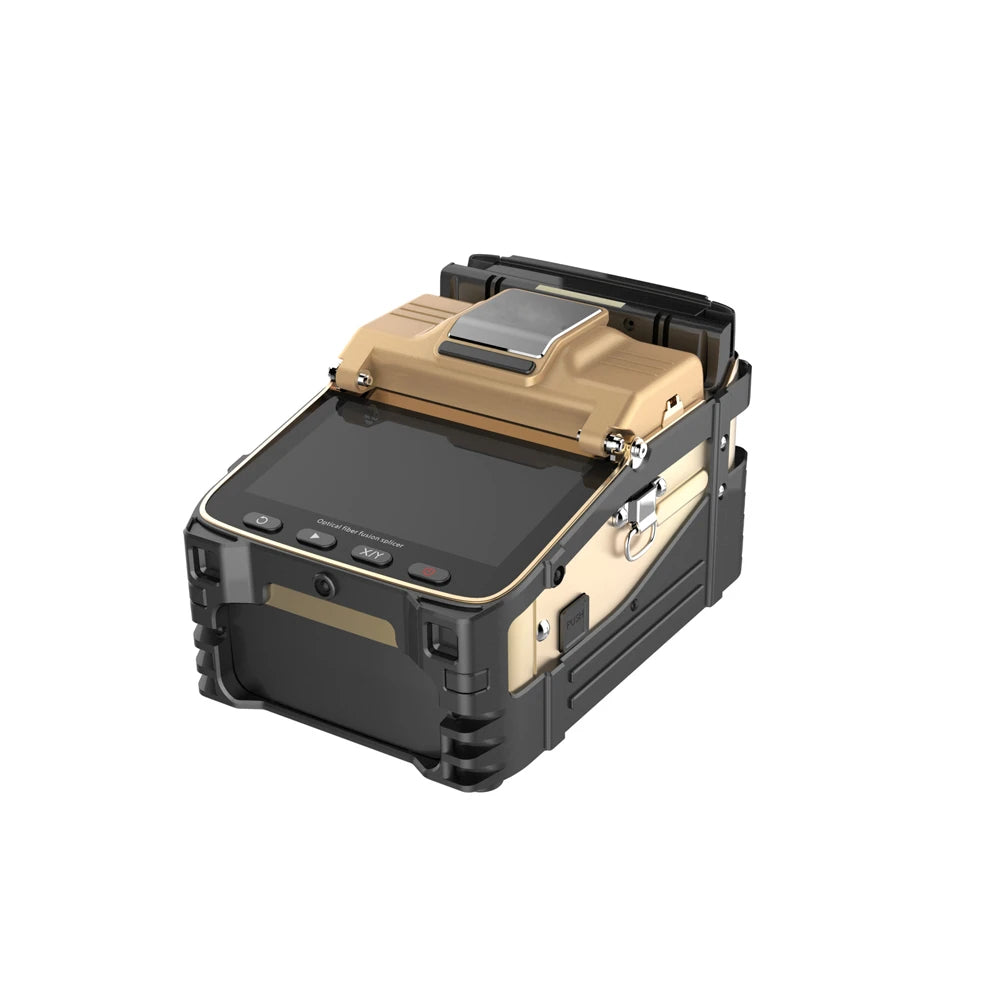

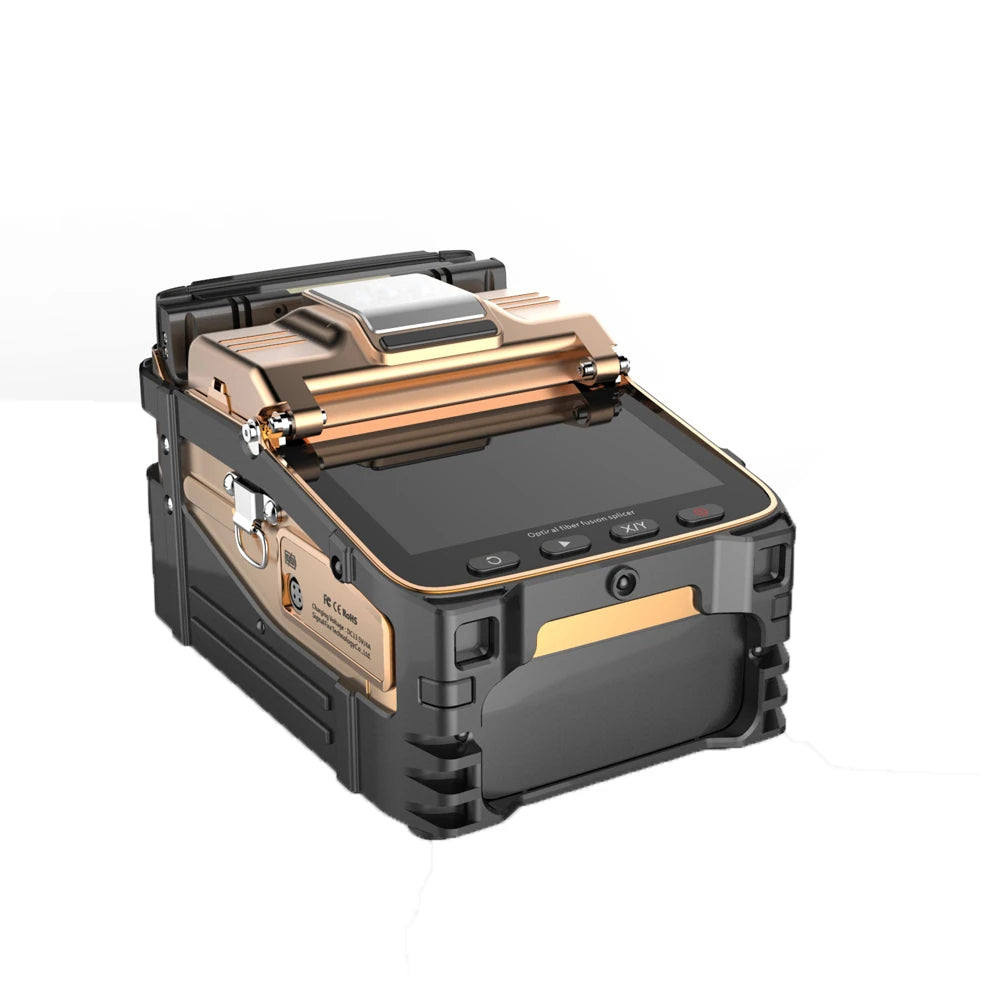

Fiber Optic Splicing Machine AI-8C 6 Motors Automatic Fiber Fusion Splicer

AI-8C adopts the latest core alignment technology with auto focus and six motors, it is a new generation of fiber
fusion splicer. It is fully qualified with 100 km trunk construction, FTTH project, security monitoring and other fiber cable
splicing projects. The machine uses industrial quad-core CPU, fast response, is currently one of the fastest fiber splicing
machine in the market; with 5-inch 800X480 high-resolution screen, the operation is simple and intuitively; and up to 300 times focus magnifications, making it is very easy to observe the fiber with naked eyes. 5 seconds speed core alignment splicing, 15 seconds heating, the working efficiency increased by 50% compared to ordinary splicing machines.

Specifications

Fiber alignment	Core / cladding alignment / manual alignment
Splicing time	6S
Heating mode	Automatic heating(Preheating)
Focus mode	Six motors auto focus
Applicable fibers	SM(G.652&G.657),MM(G6.52),DS(G.657),NZDS(G.655)
Splice loss	0.025dB(SM),0.01dB(MM),0.04dB(DS/NZDS)
Control technology	Real-time control and calibration of fusion ARC
Return loss	Better than 60DB
Fiber diameter	Cladding diameter:80-150 Coating diameter:100-1000
Fiber cleave length	Coating less than 250:8-16mm; Coating less than 250-1000:16mm
Language Setting	10 languages to switch freely
Tension Test	Standard 2N
Fiber holders	3 in 1 fiber holder,SM,MM,bare fiber,pigtail,rubber-insulated,multi fiber cable
Magnification	300 for X or Y view, 150 for X or Y view

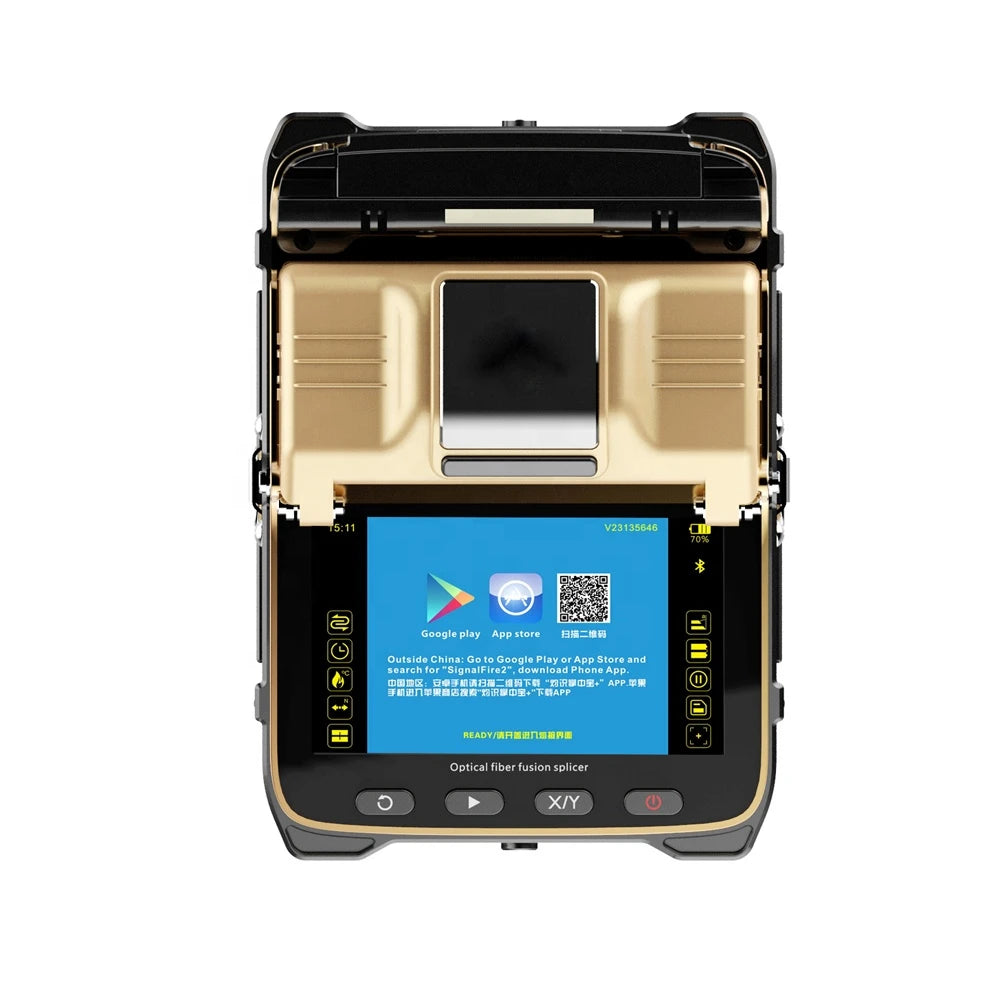

Screen	5 inch TFT color display
Splicing mode	Normal / high precision splicing
Splicing record storage	Synchronize to the phone,the server to cloud storage unlimited
Built-in battery	7800 mAh high capacity lithium battery,charging time≤3.5 hours,continuous splicing and heating about 240 times
Power supply	Input AC 100-240V 50/60Hz, Output DC 13.5V/4A,the current power mode can be identified,real-time detection of battery power
Operating conditions	Temperature -15~+50℃,humidity:<95% RH(no condensation),Working altitude:0~5000m.Resist max.wind speed:≤15m/s
Shrinkable tube	60mm,40mm

Details

Packaging & Delivery

Packing: Packed in standard export cartons, or as customer's requirment

The Fiber Optic Splicing Machine AI-8C 6 Motors Automatic Fiber Fusion Splicer 6S OEM FTTH 1 YEAR Six Motors Auto Focus 8.5KGS SM/MM destined to impress, and priced at only R 28,365.85, for a limited time.
