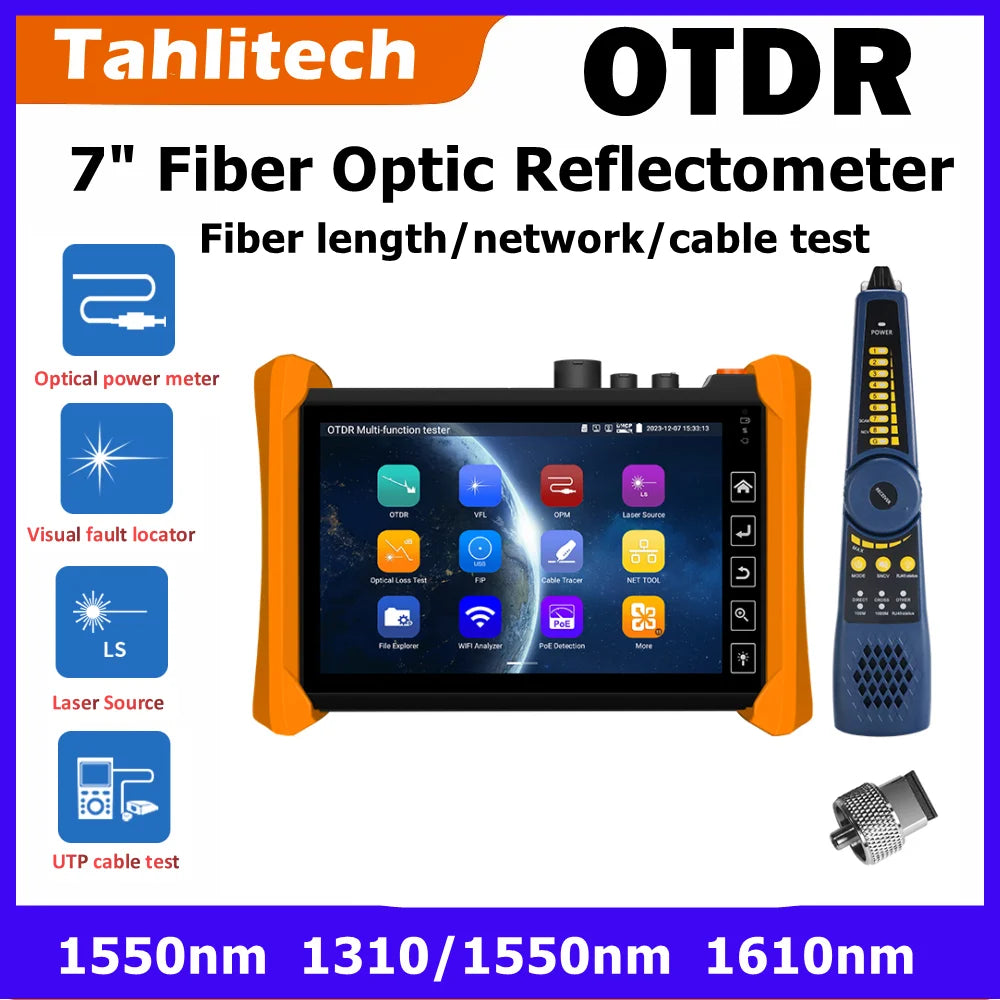

Fiber Optic Reflectometer MOT-73 OTDR 1310/1550nm 1610nm 28/26/24dB 7" Touch Screen VFL OLS OPM Event Map Ethernet Cable Tester

Regular price: R 21,828.47
Sale price: R 21,828.47
Regular price: ~~R 28,801.46~~
Unit price: per

Shipping calculated at checkout.

Color

Quantity must be 1 or more

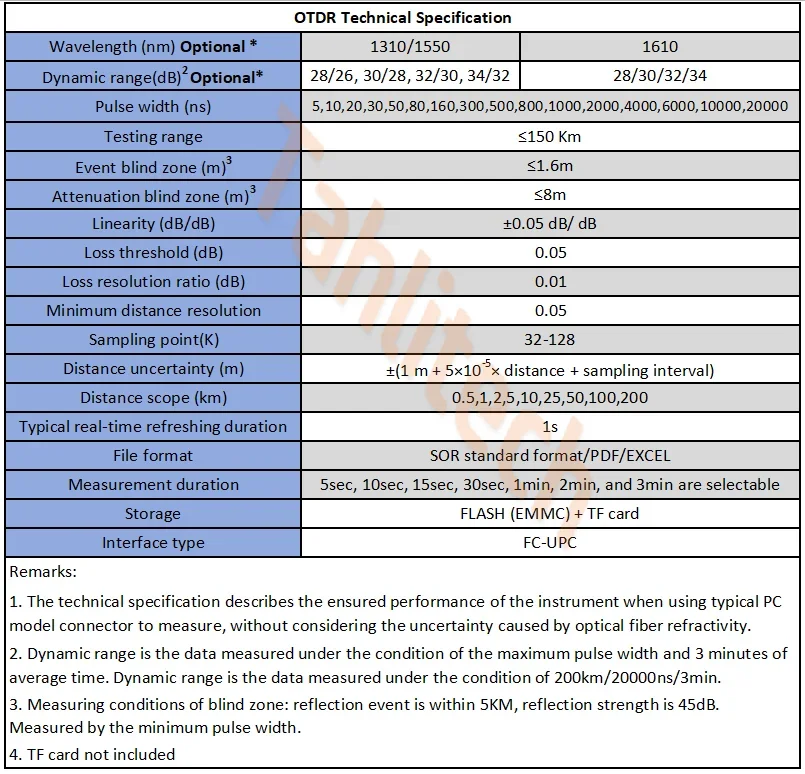

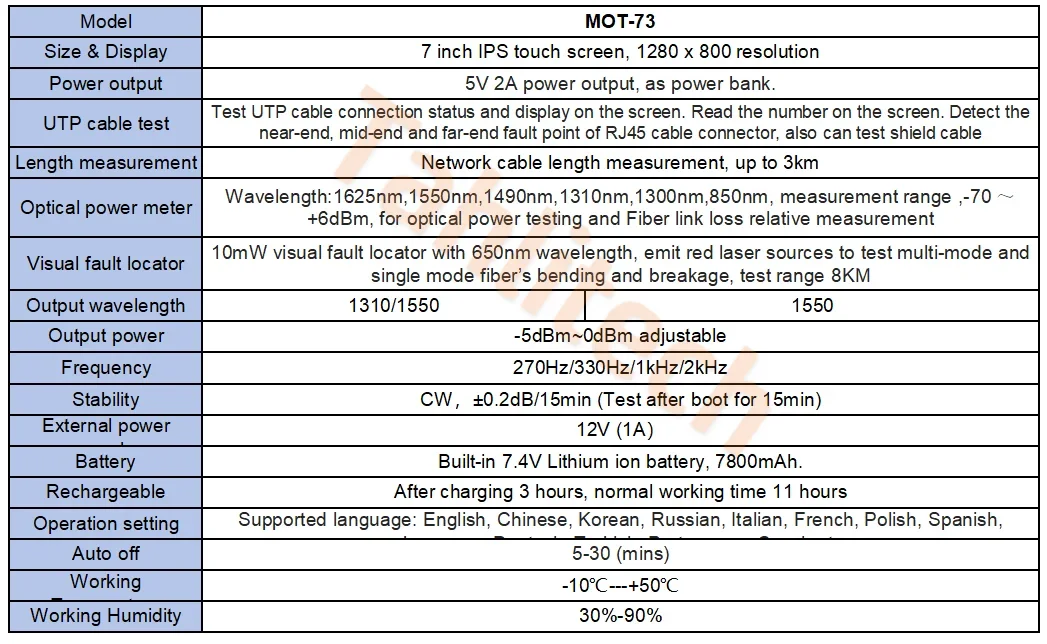

SPECIFICATIONS

Battery: 7.4V 7800mAh

Brand Name: TahLiTech

Certification: CE

Connector Type: FC/UPC

Dynamic range: 24/28/26dB (Optional)

Fiber Type: Single Mode

Fiber testing range: Max. 150 Km

High-concerned chemical: None

Laser source: Support

Model Number: MOT-73

OTDR interface type: FC-UPC

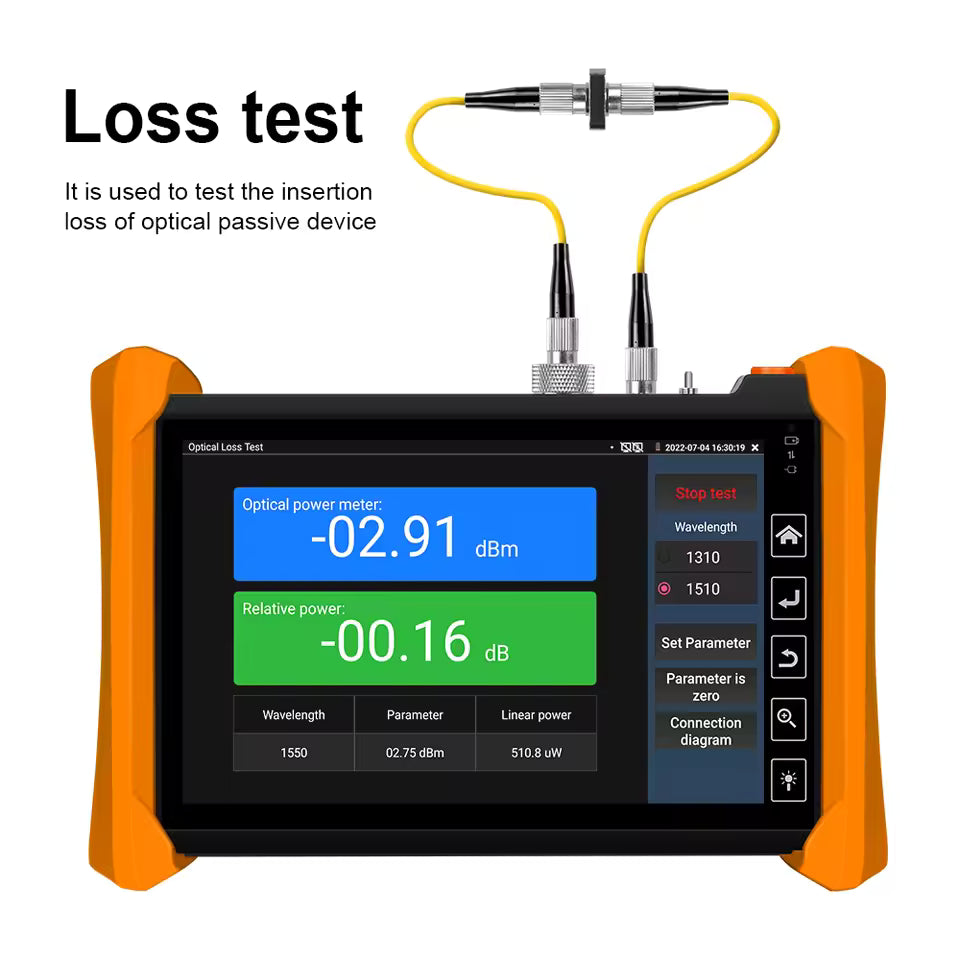

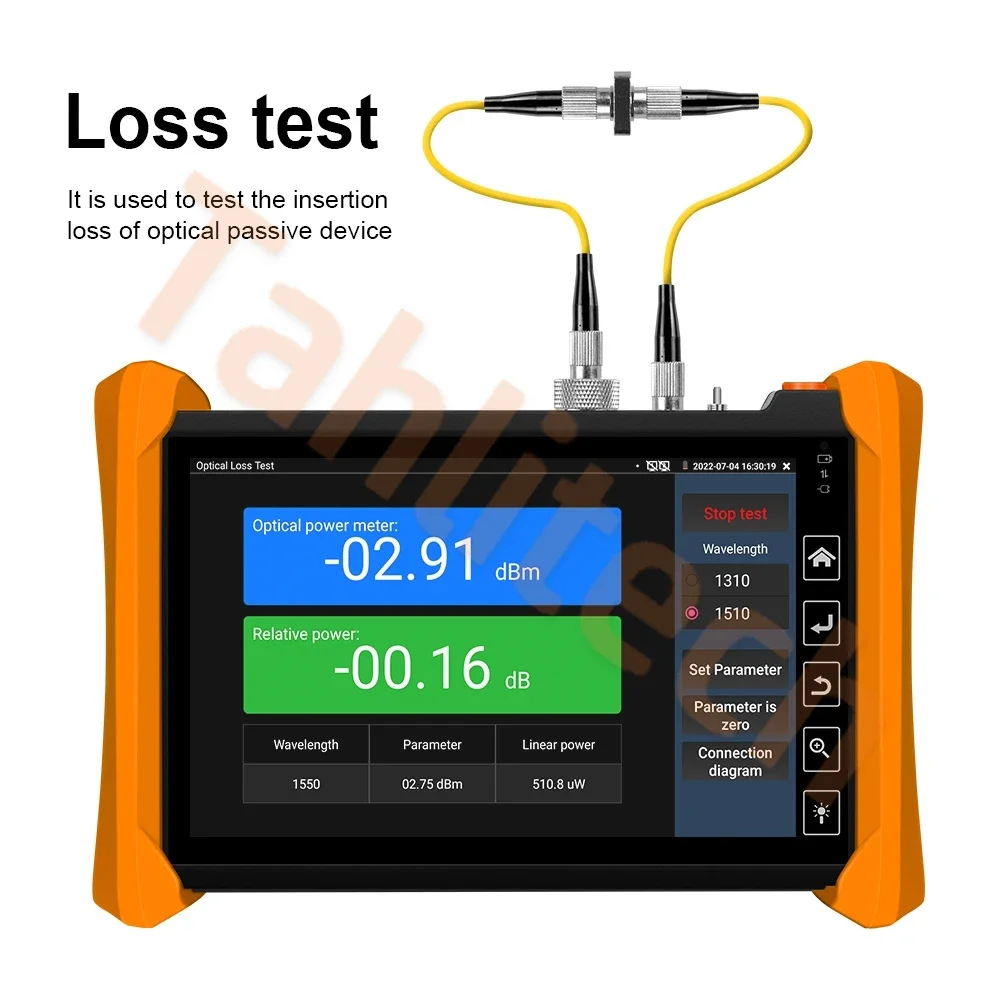

Optical loss test: Support

Optical power meter: Support

Screen: 7 inch Touch Screen

Size: 7 Inch

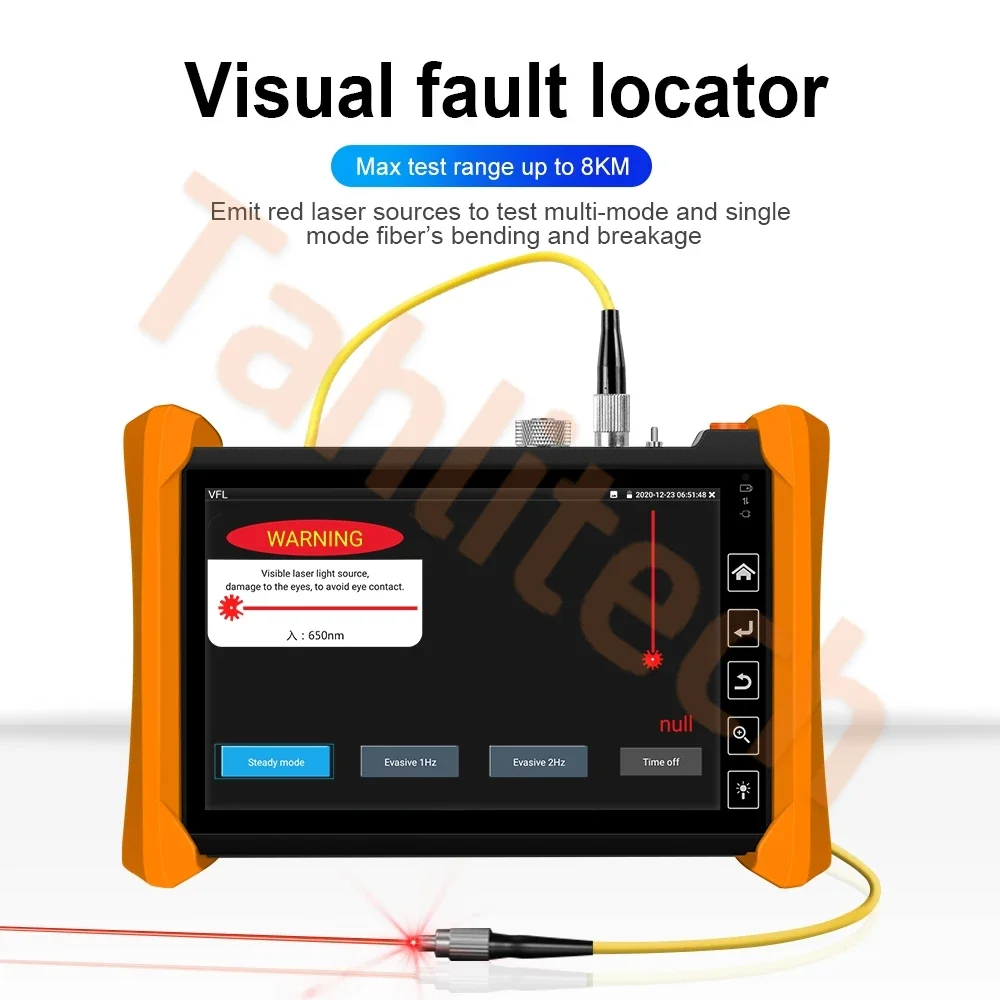

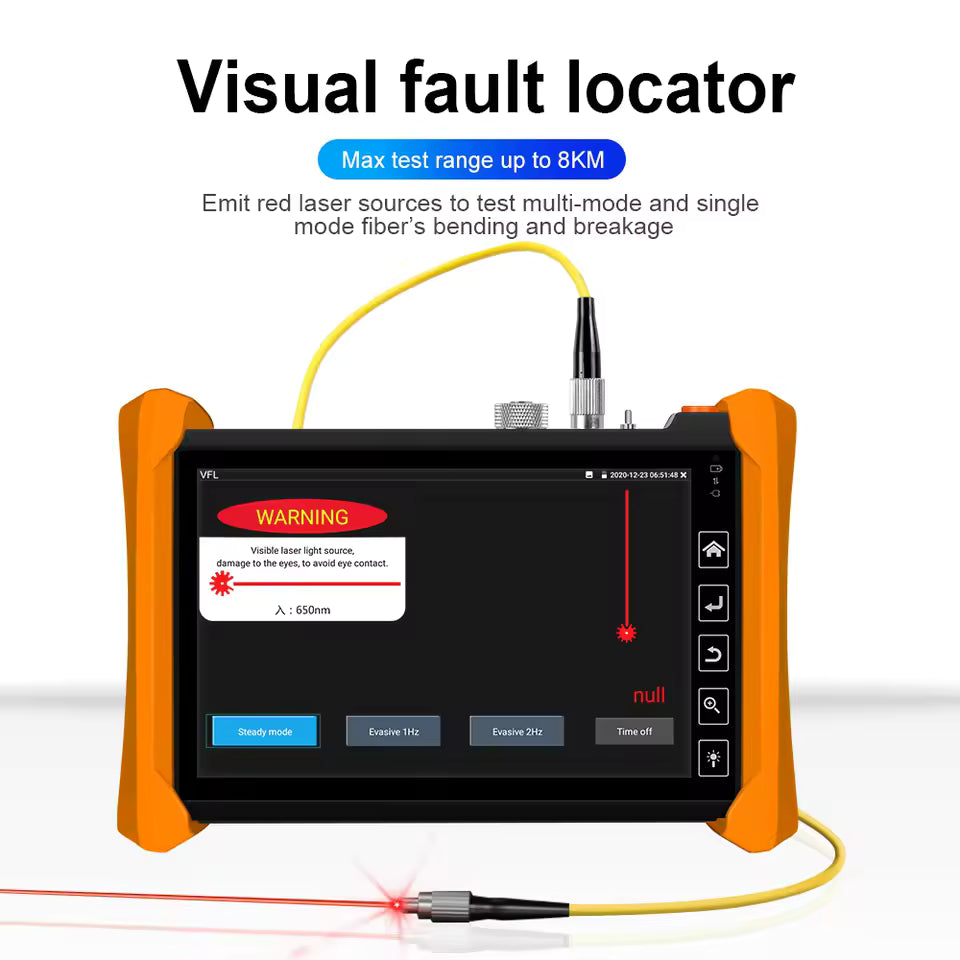

Visual fault locator: Support

Wavelength: 1550/1310/1550/1610nm (Optional)

Wireless function: Yes

Description

OTDR 7" HD IPS Touch Screen OTDR OPM VFL Optic Time-Domain Relfletometeter UTP Cable OPtic Fiber Tester

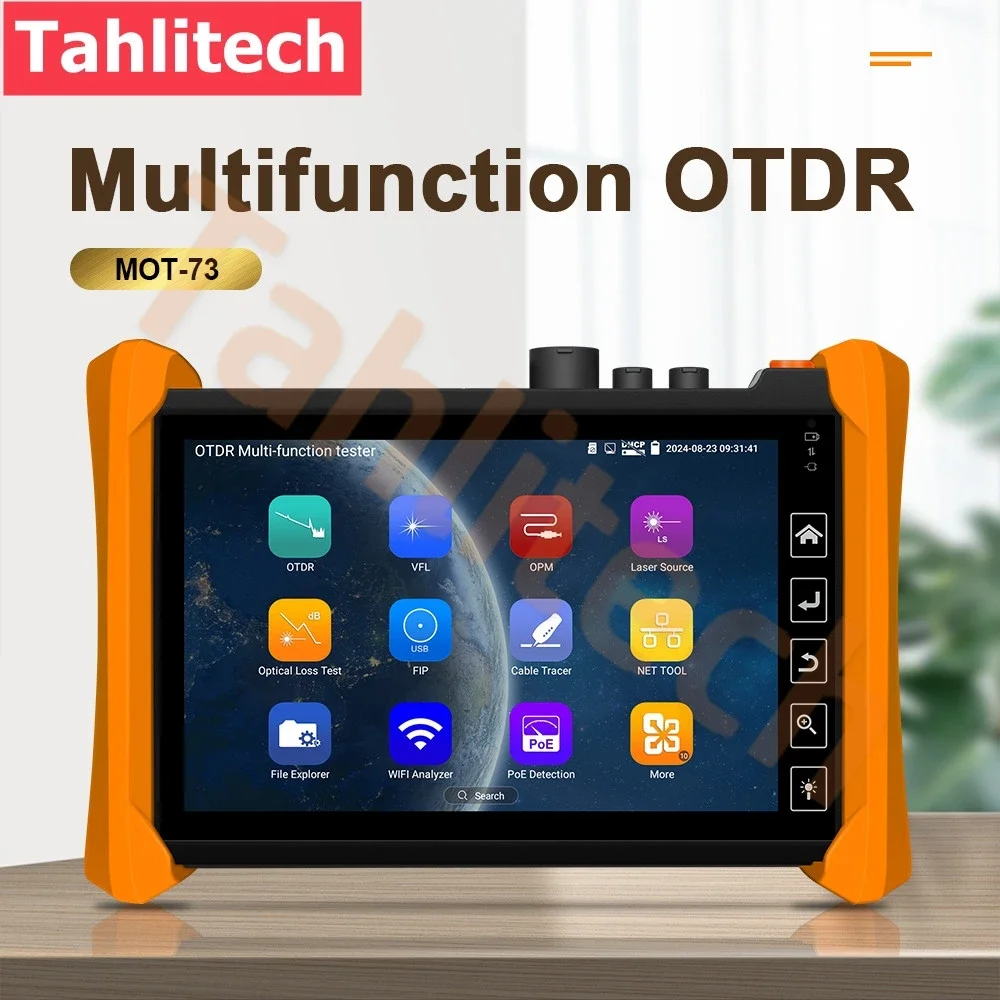

OTDR Main Features:

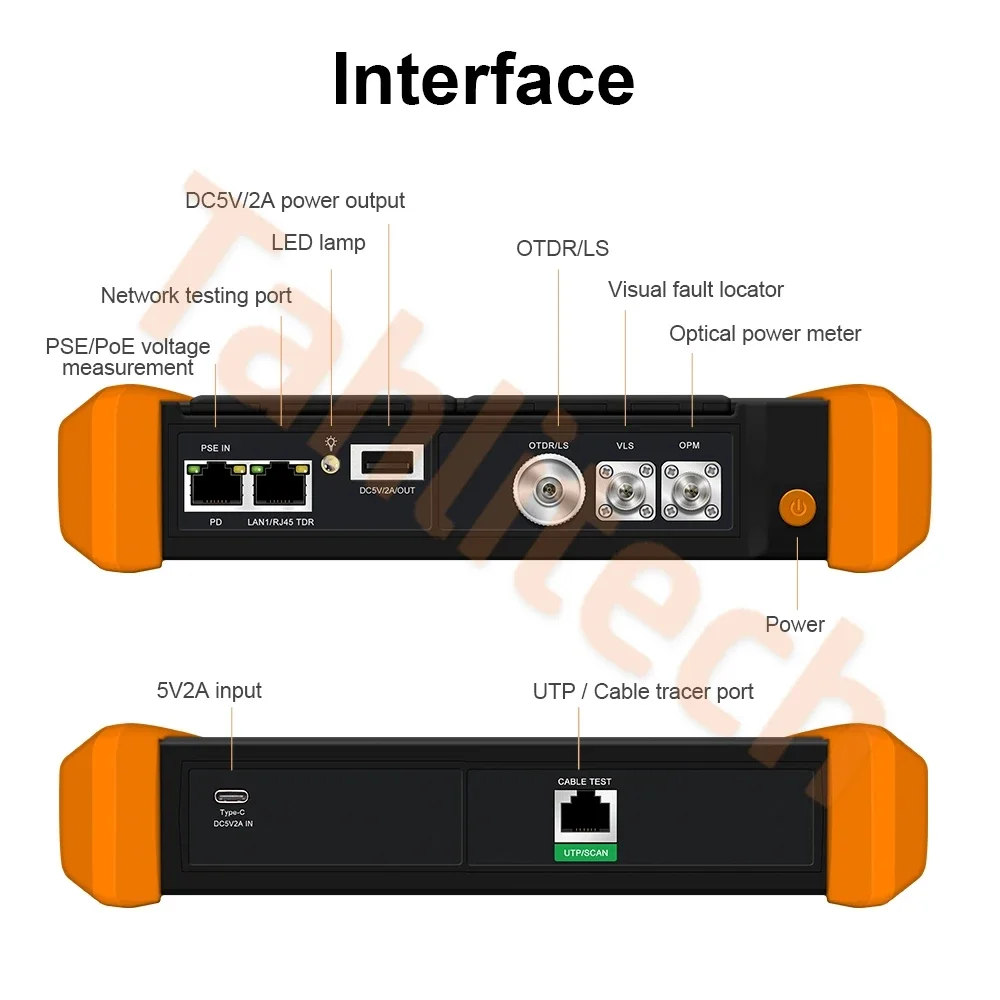

1. 7 inch IPS touch screen, 1280 x 800 resolution

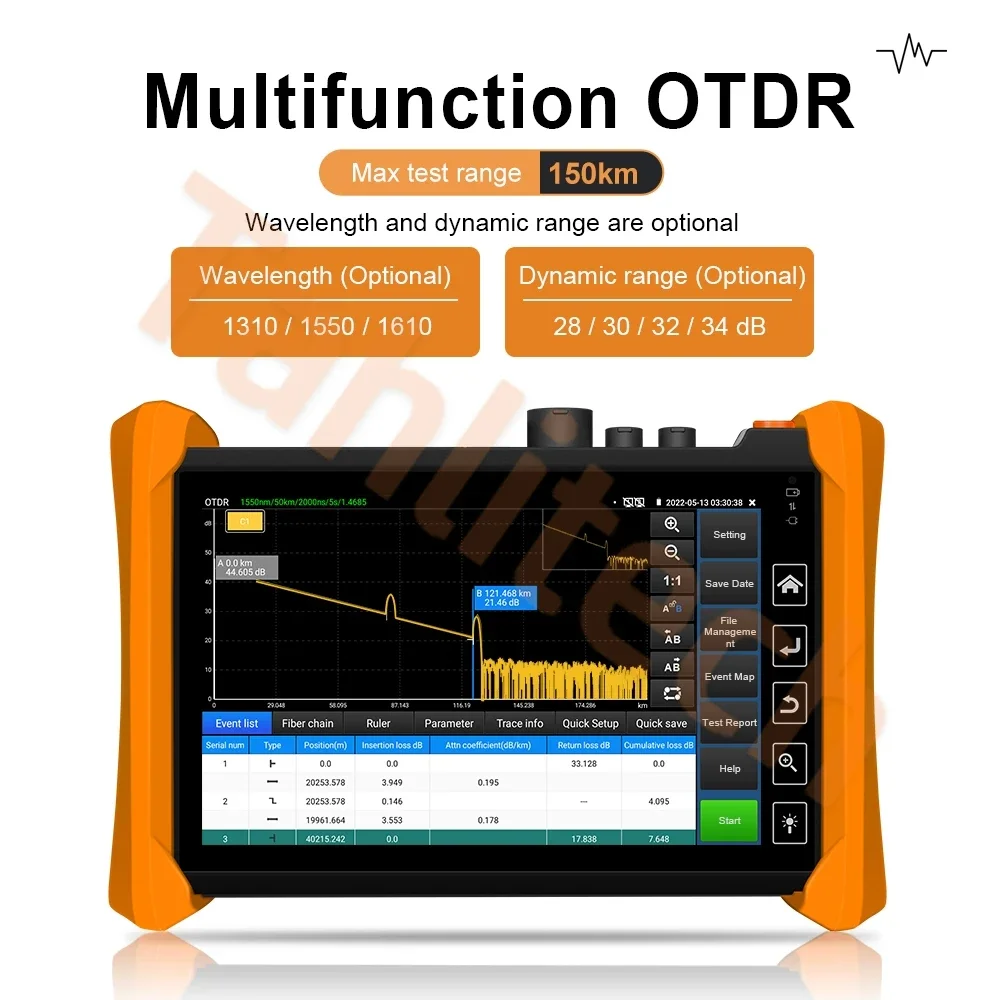

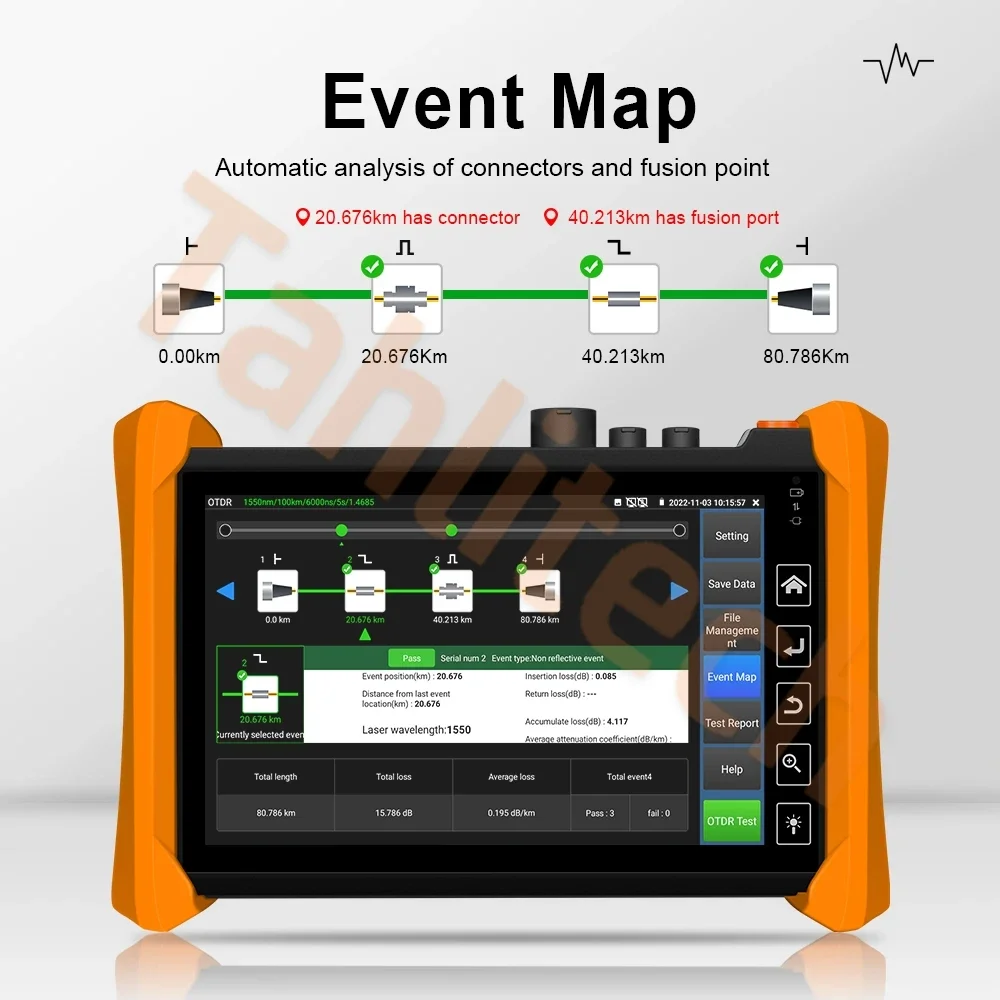

2. OTDR Auto testing, event map, easy to use

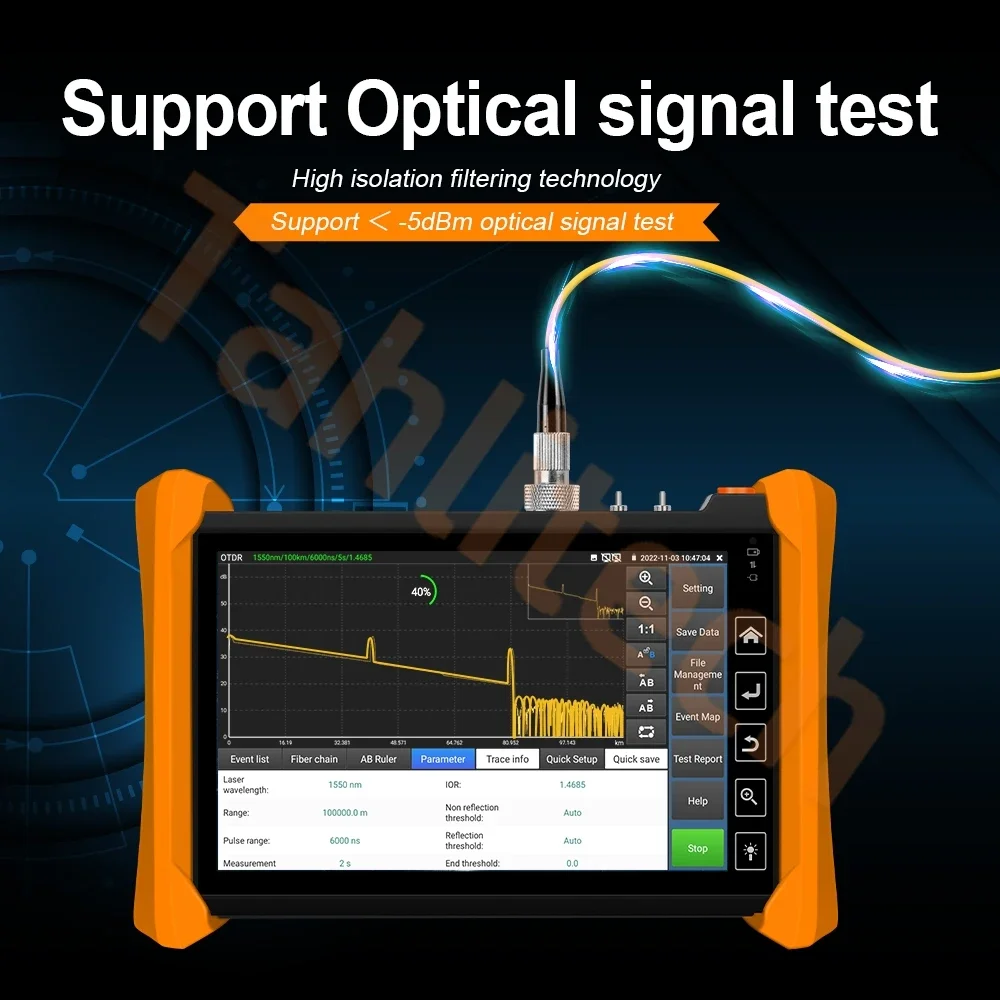

3. Stable laser source, optical power meter and visual fault locator

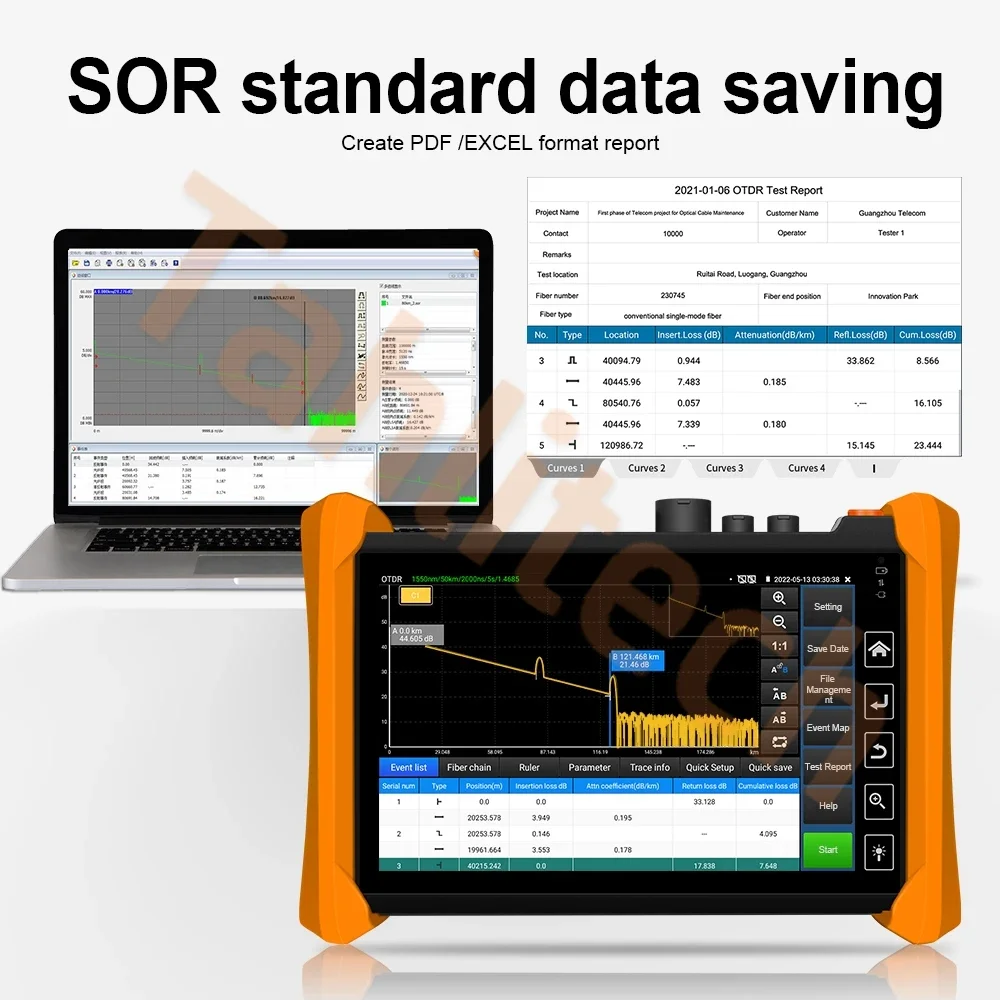

4. Report saved as SOR, PDF format etc

5. Network cable length measurement, up to 3km

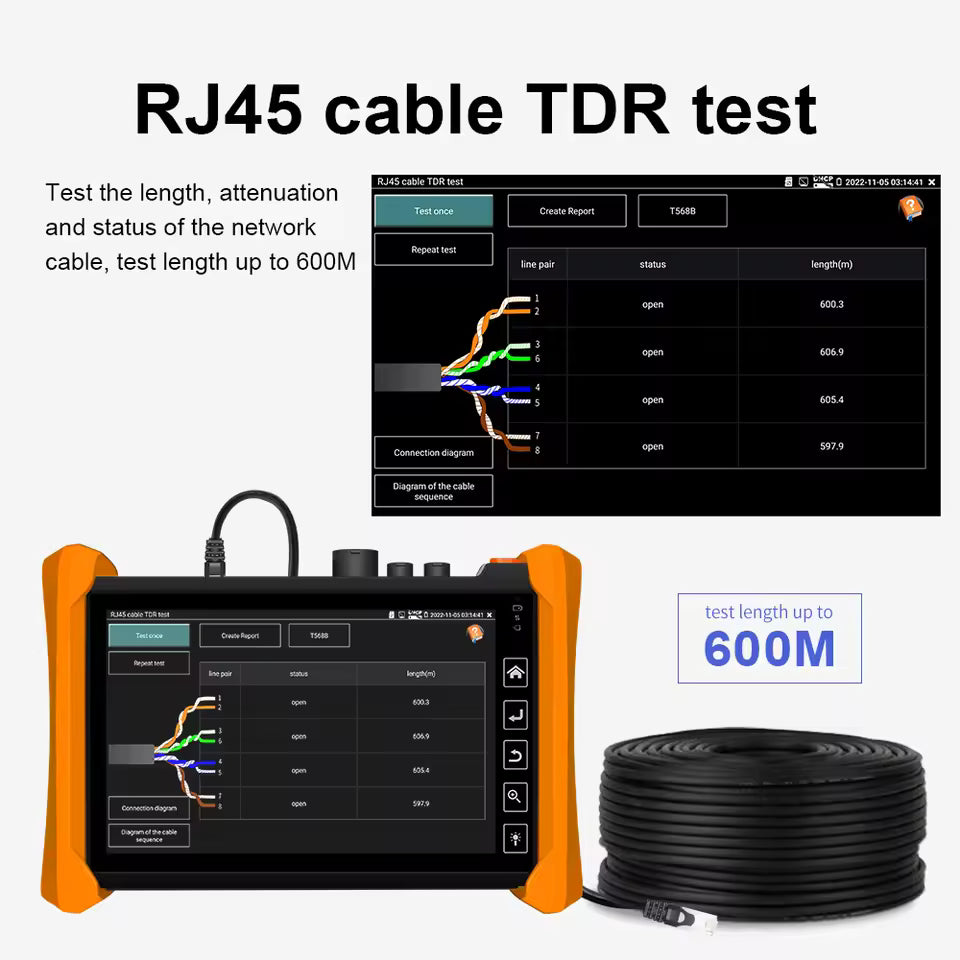

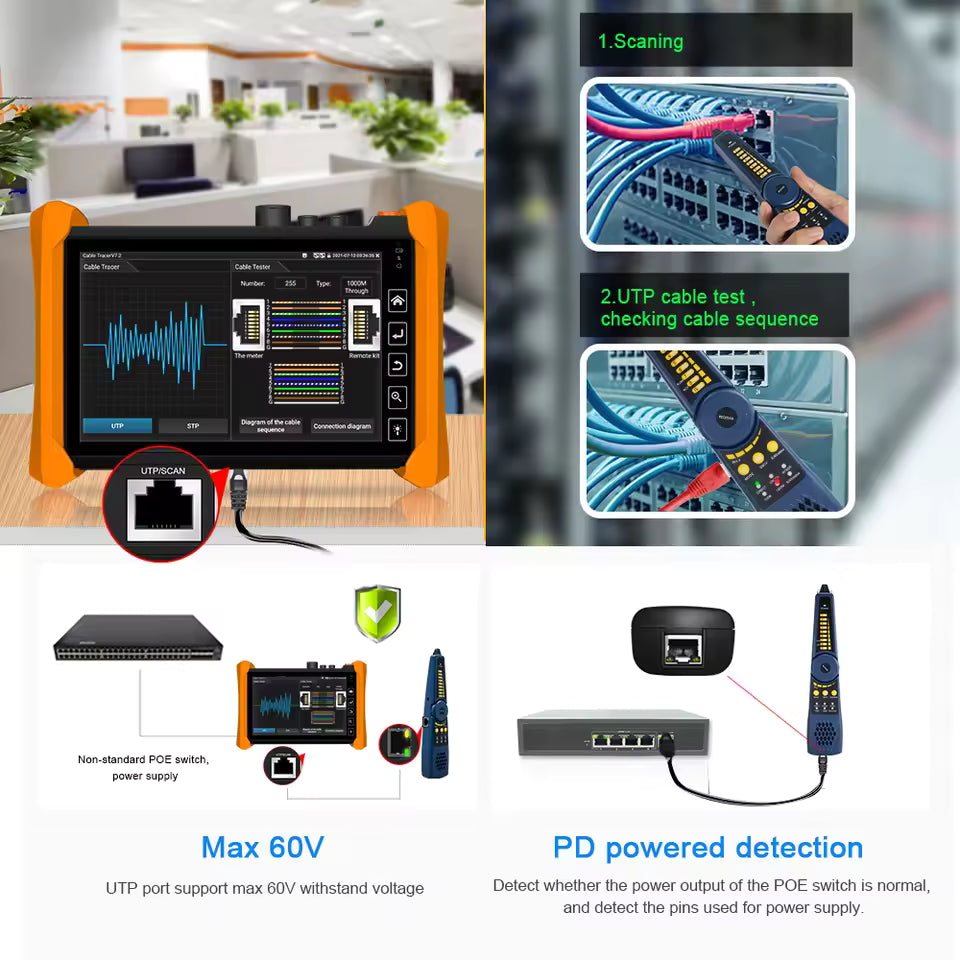

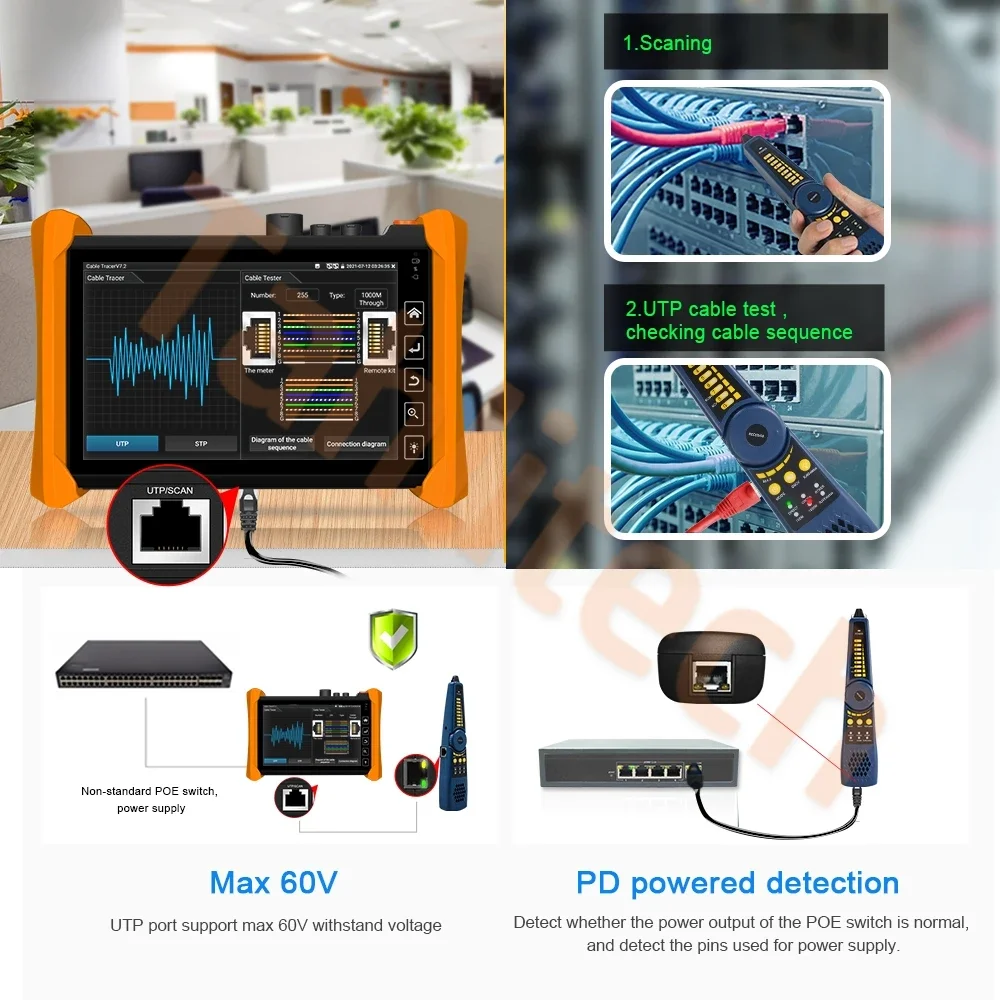

6. UTP cable test & RJ45 TDR cable test

7. Digital cable tracer, searching for cables

8. Android system, WIFI testing

9. Dual 1000M LAN ports, PING test, PPPOE, IP scan, port flashing

Application:

● Fiber length testing and Event Map etc

● Network cabling project installation and maintenance

Multi-function MOT-73 OTDR is an essential tool for fiber length, network and cable testing. OTDR displays the power of the returned signal related to distance. The information can be used to confirm the transmission quality of a fiber optic link. It is widely used in the maintenance, construction and monitoring of cable line.

It can measure the optical fiber length, transmission attenuation of optical fiber, attenuation of splice, and failure location, etc. the Multi-function OTDR can make working conditions safer and increasing productivity.

The Fiber Optic Reflectometer MOT-73 OTDR 1310/1550nm 1610nm 28/26/24dB 7" Touch Screen VFL OLS OPM Event Map Ethernet Cable Tester is evocative, to say the least, but that's why you're drawn to it in the first place.
