⁸ Fiber Optic Fusion Splicer Ofc Splicing Machine AI-8C Signal Fire Opti – Let's Fibre Technologies
Fiber Optic Fusion Splicer Ofc Splicing Machine AI-8C Signal Fire Optical Fiber Fusion Splicer Li-ion battery 7800 mAh battery
Fiber Optic Fusion Splicer Ofc Splicing Machine AI-8C Signal Fire Optical Fiber Fusion Splicer Li-ion battery 7800 mAh battery
Fiber Optic Fusion Splicer Ofc Splicing Machine AI-8C Signal Fire Optical Fiber Fusion Splicer Li-ion battery 7800 mAh battery
  • Load image into Gallery viewer, Fiber Optic Fusion Splicer Ofc Splicing Machine AI-8C Signal Fire Optical Fiber Fusion Splicer Li-ion battery 7800 mAh battery
  • Load image into Gallery viewer, Fiber Optic Fusion Splicer Ofc Splicing Machine AI-8C Signal Fire Optical Fiber Fusion Splicer Li-ion battery 7800 mAh battery
  • Load image into Gallery viewer, Fiber Optic Fusion Splicer Ofc Splicing Machine AI-8C Signal Fire Optical Fiber Fusion Splicer Li-ion battery 7800 mAh battery

Fiber Optic Fusion Splicer Ofc Splicing Machine AI-8C Signal Fire Optical Fiber Fusion Splicer Li-ion battery 7800 mAh battery

R 32,425.71
R 32,425.71
R 45,500.60
Sold out
Shipping calculated at checkout.

Fiber Optic Fusion Splicer Ofc Splicing Machine AI-8C Signal Fire Optical Fiber Fusion Splicer Li-ion battery 7800 mAh battery

SPECIFICATIONS

Battery: Li-ion battery 7800 mAh

Brand Name: Signalfire

Cleaved Length: 8~16mm

Fiber Alignment: Core/cladding alignment Manual alignment

Heat Shrinkable Tube: 60mm,40mm

Heat Time: ≤30s

Model Number: AI-8C

Product name: AI-8C Signal Fire Optical Fiber Fusion Splicer

Splicing Mode: Manual, Half Auto, Auto

Splicing Time: ≤9s

Splicing Type: SM, MM, DS, NZDS

Type: Fiber fusion splicer

Use: Fiber Cable Splicing

View Display: 5 inch TFT color display

Warranty Time: one year

Description

Fiber Optic Fusion Splicer Ofc Splicing Machine AI-8C Signal Fire Optical Fiber Fusion Splicer Li-ion battery 7800 mAh battery

FTTH splicing machine AI-7/8C uses the latest core alignment technology with auto focus and six motors, it is a new generation of fiber fusion splicer. It is fully qualified with 100 km trunk construction, FTTH project, security monitoring and other fiber cable splicing projects. The machine uses industrial quad-core CPU, fast response, is currently one of the fastest fiber splicing machine in the market; with 5-inch 800X480 high-resolution screen, the operation is simple and intuitively; and up to 300 times focus magnifications, making it is very easy to observe the fiber with naked eyes. 6 seconds speed core alignment splicing, 15 seconds heating, the working efficiency increased by 50% compared to ordinary splicing machines.

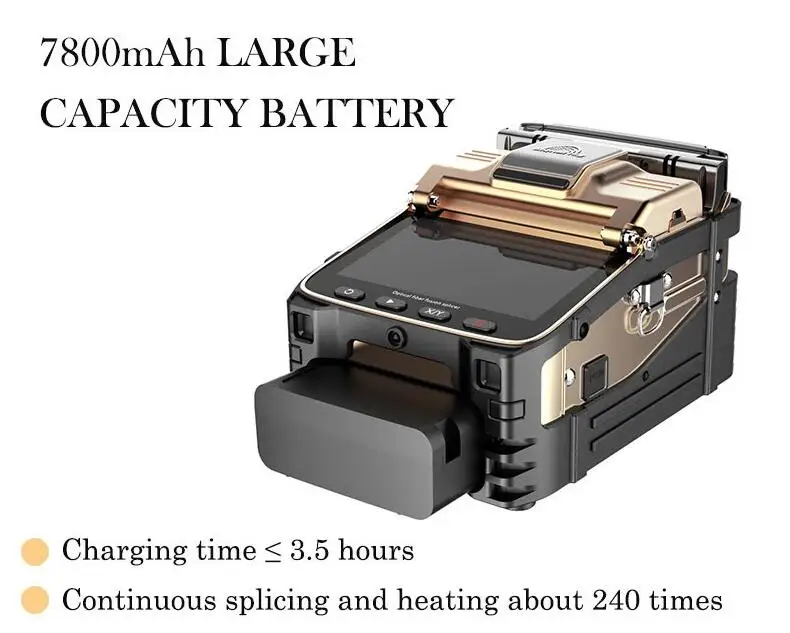

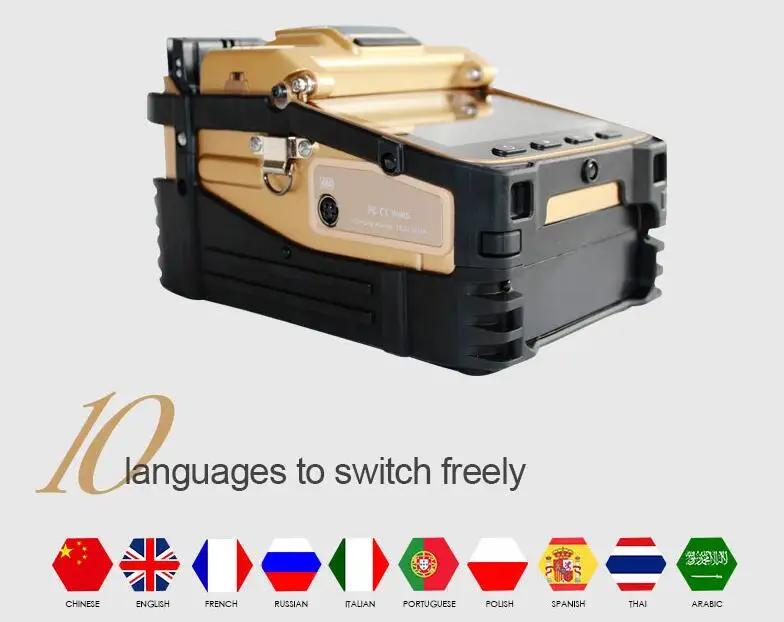

AI-8C. battery.jpgAI-8C. languages.jpg

Features

Applicable Fibers

SM(G.652&G.657),MM(G.651),DS(G.657)

,NZDS(G.655)
Splice Loss 0.025dB(SM),0.01dB(MM)0.04dB(DS/NZDS)
Focus mode Auto focus
Fiber alignment Core/cladding alignment Manual alignment
Typical splicing time 6S(AI-8) / 8S(AI-7)
Typical heating time

15 S (AI-8) / 18 S (AI-7)
Fast heating function, heating time

can be set
Control technology Real-time control and calibration of fusion ARC
Return loss Better than 60DB
Fiber diameter

Cladding Diameter 80-150μm,Coating

Diameter 100-1000μm
Fiber Cleave Length

Coating less than 250µm:8-16mmCoating

less m250-1000μm:16mm
Heat shrinkable tube 60mm,40mm
Tension Test Standard 2N
Fiber holders Multi function holders,Applicable for SM, MM, bare fiber, pigtail, rubber-insulated, multi fiber cable
Magnification 300 for X or Y view, 150 for X or Y view
Screen 5.1 inch TFT color display
Software upgrade Mobile APP update,Turn on Bluetooth sync to the machine
Splicing Mode Normal / high precision splicing
Splicing record storage Synchronize to the phone, the server to cloud storage unlimited
Built-in battery 7800 mA high-capacity lithium battery, charging time ≥ 3.5 hours, continuous splicing and heating about 200 times
Power supply Input AC100-240V 50 / 60HZ, output DC13.5V / 4A, the current power mode can be identified, real-time detection of battery power
Operating Conditions Temperature -15 ~ +50 ℃, humidity: <95% RH (no condensation),Working altitude: 0 ~ 5000m. Resist max. wind speed: ≤ 15m / s
Built-in lighting easy for night operation




Specifications

1: High resolution LCD color display
2: New PAS image processing technology
3: Advanced fiber core and cladding collimation method
4: Dual heater can be divided into time control, typical heating time of 30 seconds
5: Three kinds of magnification, the largest 360 times
6: Four display modes, the core is clearly visible
7: Eight seconds fast welding
8: Pluggable large capacity 8Ah lithium battery, suitable for field without power supply construction
9: New windproof cap structure design to strengthen the dustproof and windproof ability
10: Working mode: automatic, manual and fully automatic
11: Data is stored in 8000 groups (this bid is in 10000 groups)
12: USB data interface

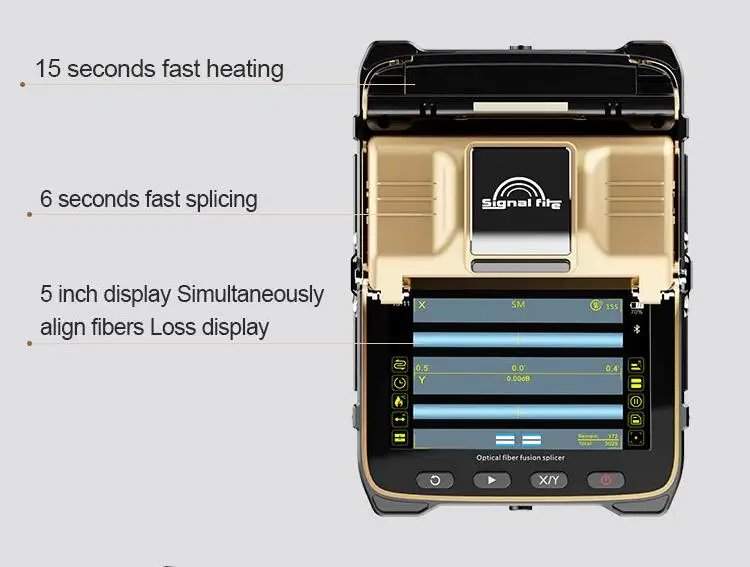

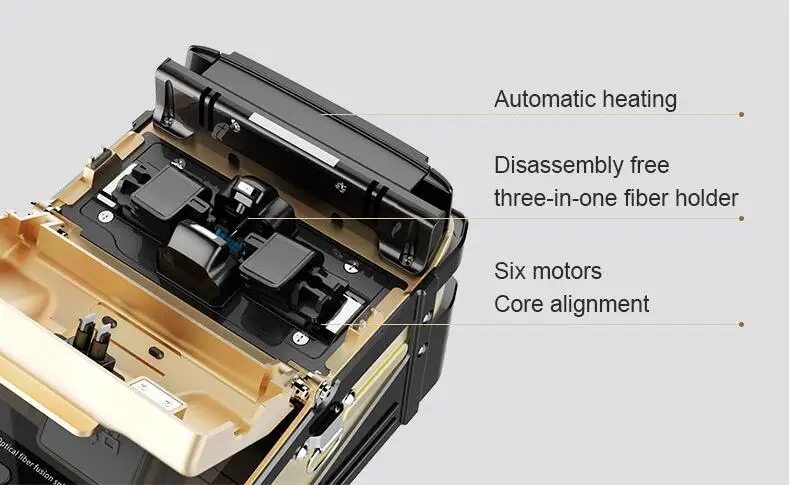

 AI-8C. feature.jpgAI-8C. features 2.jpg

Packaging & Shipping

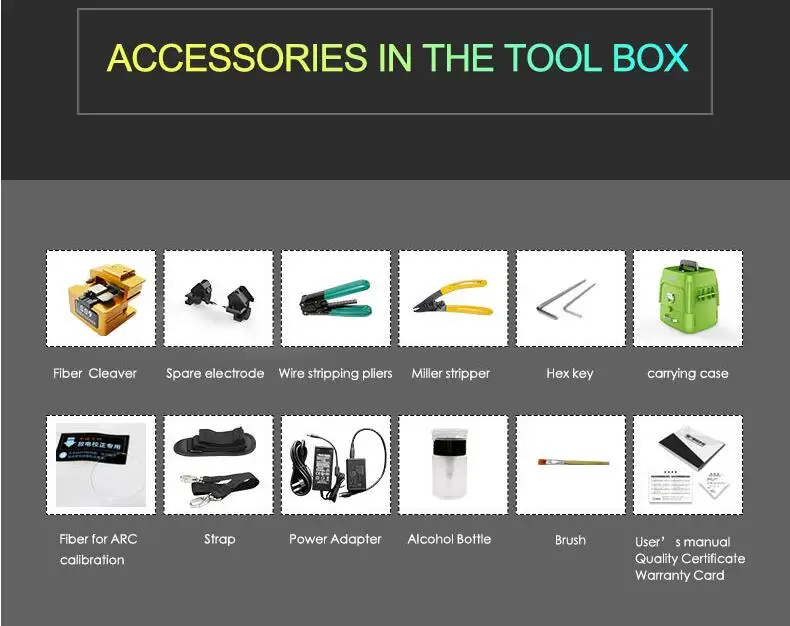

AI-8C. accessories 790Outer Carton Package Size:  34*36*39cm

Net Weight: 8.4kg

The Fiber Optic Fusion Splicer Ofc Splicing Machine AI-8C Signal Fire Optical Fiber Fusion Splicer Li-ion battery 7800 mAh battery was built with people like you in mind. Something to keep you happy. Every. Single. Day.
