Fiber Optic Fusion Splicer FSM-90S+ GPRS Compatible 7sec Splicing Time 6380mAh Battery, 2.8kg, Wired LAN,GPRS,4G,3G,fttx,backbone

Regular price: R 240,597.12
Sale price: R 240,597.12
Regular price: ~~R 322,309.35~~
Unit price: per

Shipping calculated at checkout.

Default Title

Quantity must be 1 or more

SPECIFICATIONS

Battery module: 6380mAh, >300 times splicing and heating

Electrode life: Approx. 5000 splices

Heating time: 9 sec (typic)

Model Number: 90S+

Network: Wired LAN,GPRS,4 G,3 G,fttx,backbone,data center

Size: 17(W)*17.3(D)*15(H) cm

Splicing time: SM FAST mode: 7sec.

Type: Fiber fusion splicer

Weight: 2.8kg

Cleaver: CT-08/ CT-50

Description

Fiber Optic Fusion Splicer FSM-90S+ GPRS Compatible 7sec Splicing Time 6380mAh Battery, 2.8kg, Wired LAN,GPRS,4G,3G,fttx,backbone,Data center

Features

>>Fiber Optic Equipment

>>Splicing Machine

>>FSM-90S+ with CT-50 Cleaver

>>Fusion Splicer

Product Details

Product Description

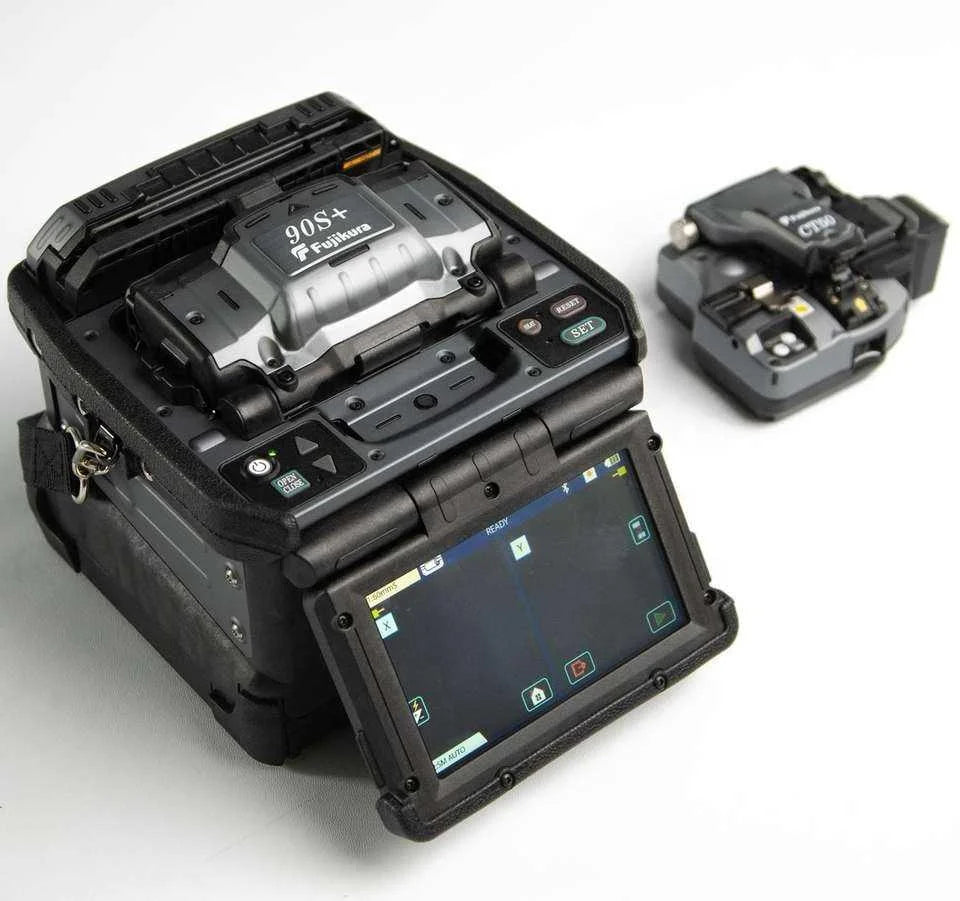

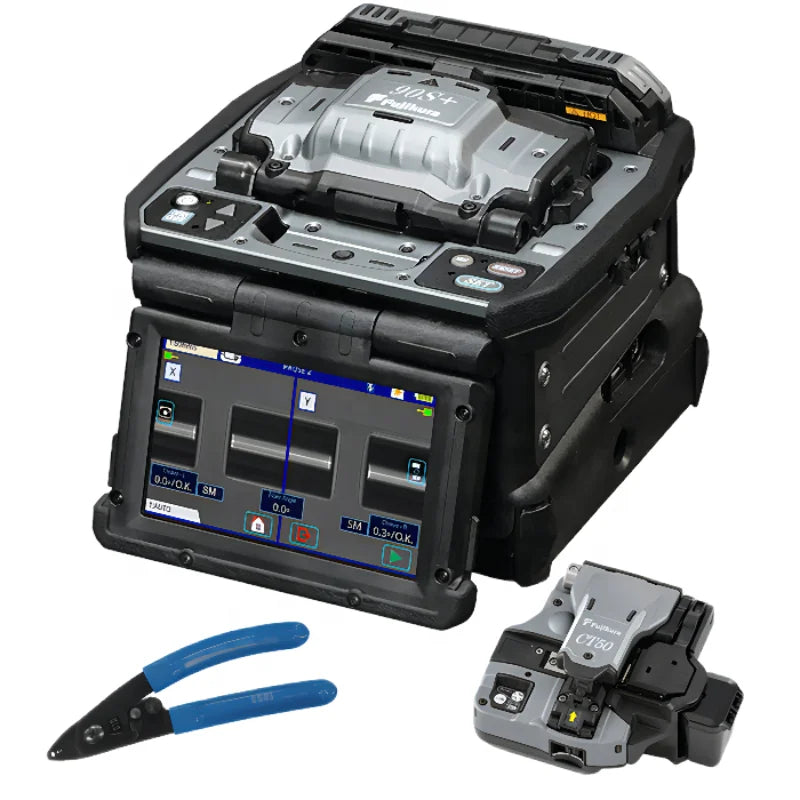

Core Alignment Fujikua Fusion Splicer 90S+ Kit, With CT50 Cleaver

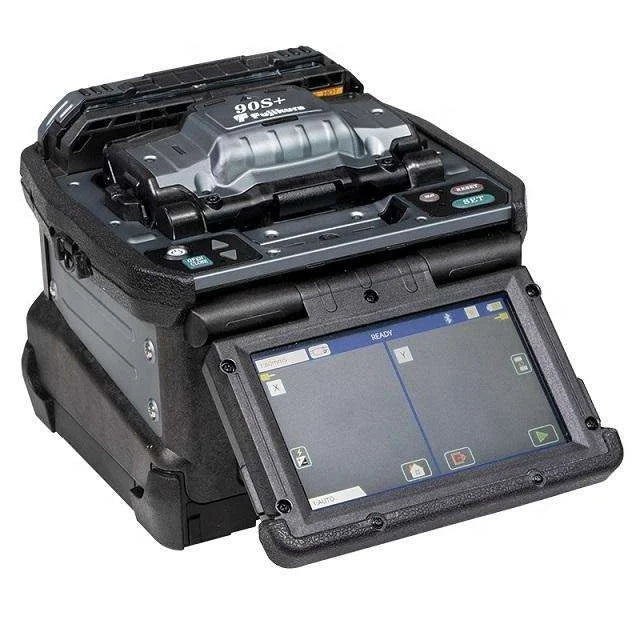

The 90S+ is a core alignment fusion splicer, setting a new standard in the market for fusion splicing.

The 90S+ is packed with a whole host of new and enhanced features, specifically developed to enable faster splice cycle times with higher precision

Features:
** Cleaver tracking and upkeep with wireless communication
** Improved real-time arc control for fibers with poor cleave angles

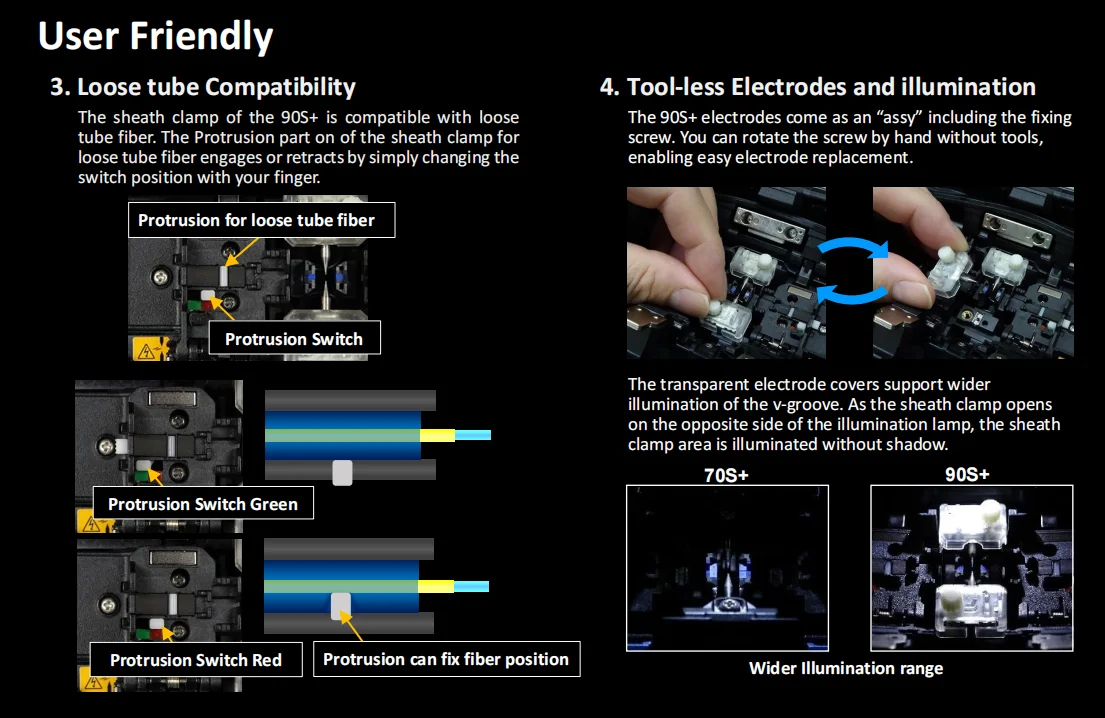

** Loose and tight buffer with same sheath clamp
** Automated wind protector, sheath clamps and splice operation
** Graphical User Interface with 5.0" Touchscreen
** PC software and 90S+ manual downloaded from splicer

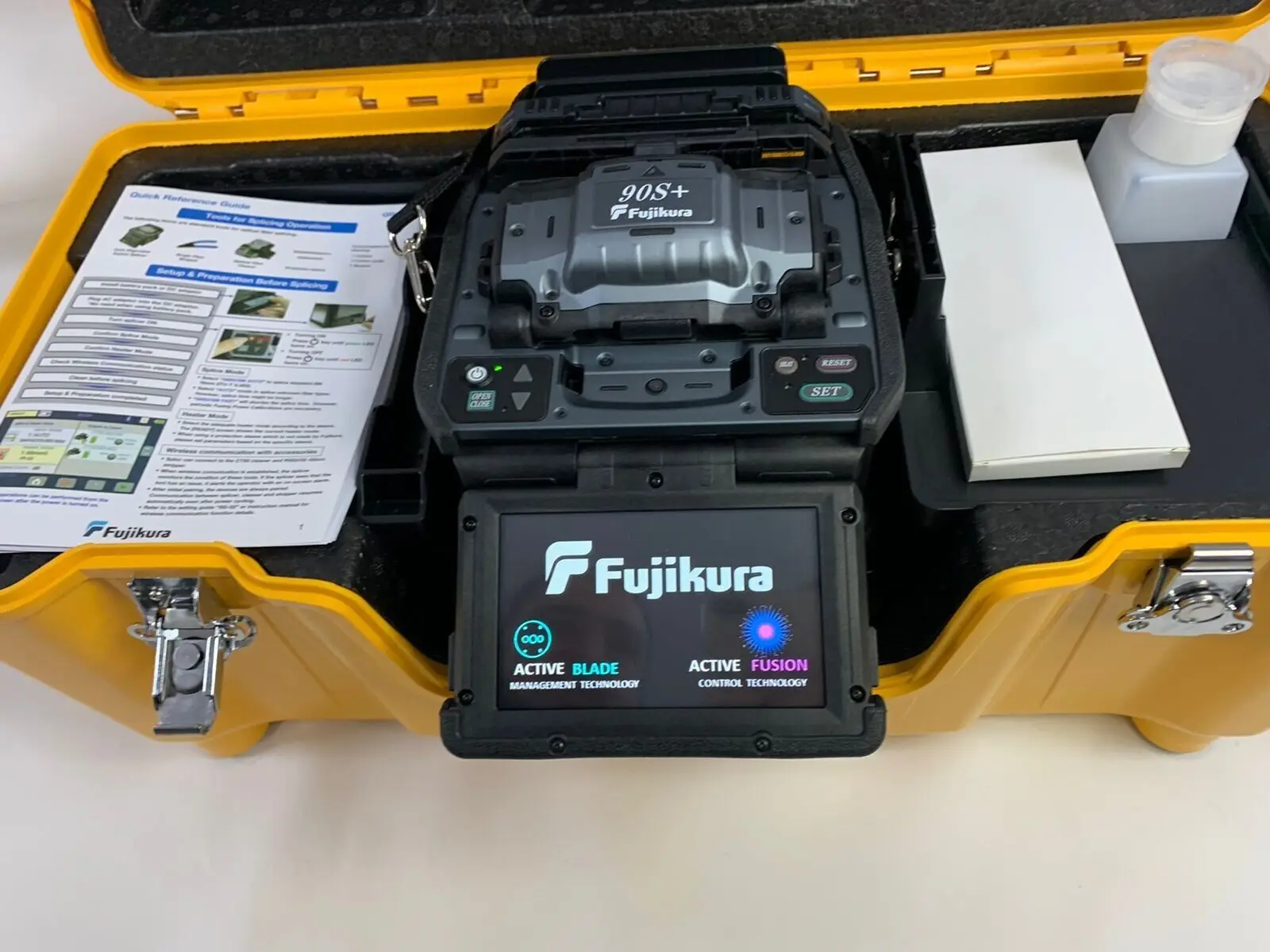

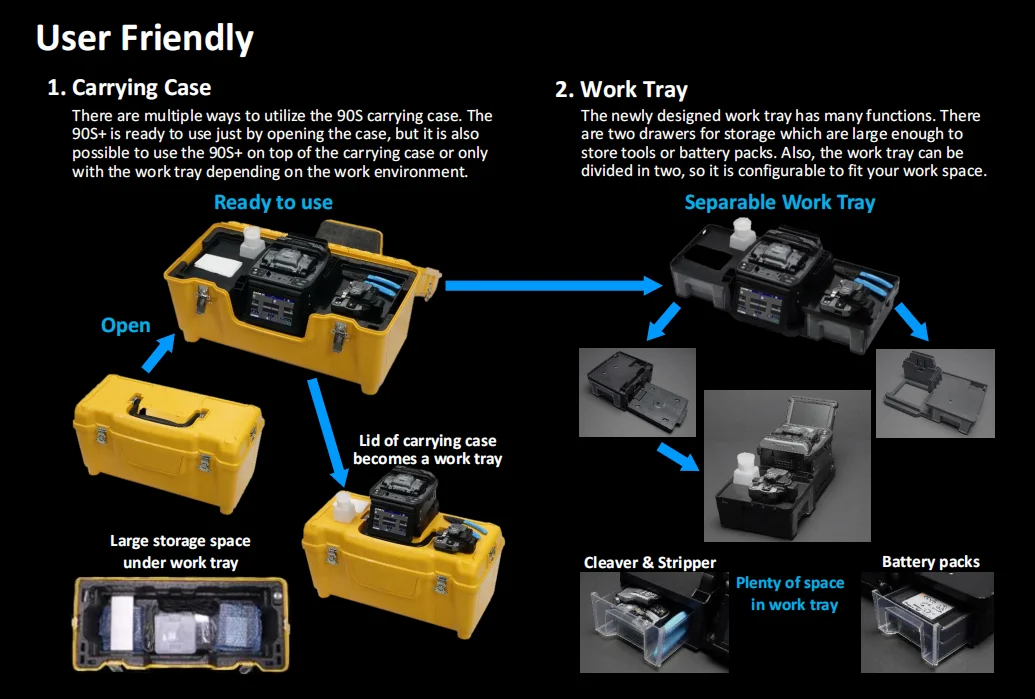

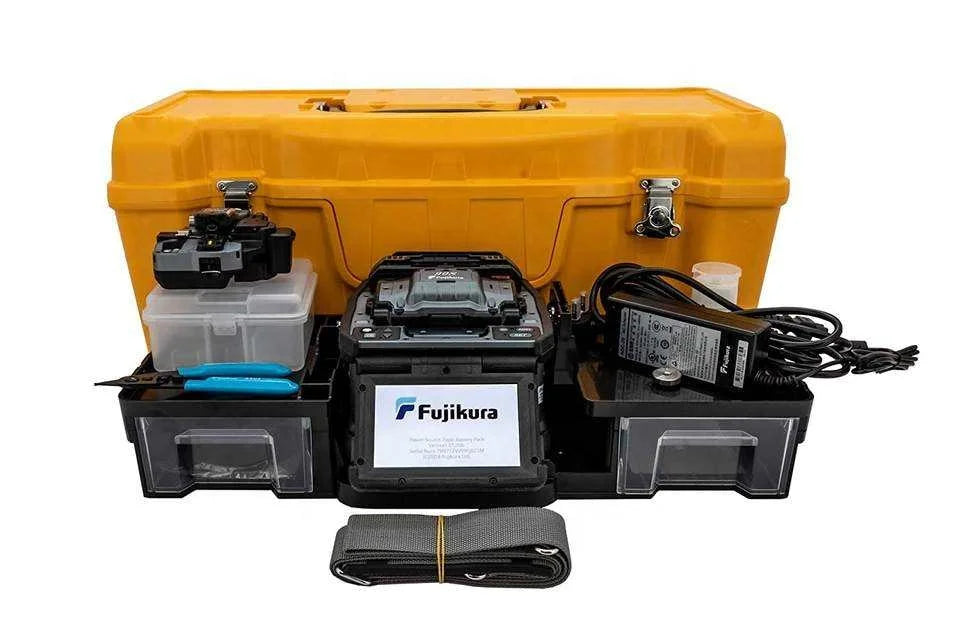

** Multi-function transit case with integrated workstation
** Lithium-ion battery with 300 splices/shrinks per charge

Products Description

Fiber alignment method	active core alignment
Applicable fiber	fiber type	Single mode optical fiber
	fiber type			Multi mode optical fiber
		cladding diameter	80 μm - 150 μm
Applicable coating	sheath clamp	coating diameter: max. 3 000 μm
Applicable coating	sheath clamp			cleave length: 5 mm - 16 mm
Fiber splice performance	splice loss	ITU-T G.652: avg. 0.02 dB
				ITU-T G.651: avg. 0.01 dB
				ITU-T G.653: avg. 0.04 dB
				ITU-T G.655: avg. 0.04 dB
				ITU-T G.657: avg. 0.02 dB
		splice time	SM FAST mode: avg. 7 sec - 9 sec
		splice time		AUTO mode: 14 sec - 16 sec
Applicable protection sleeve	sleeve type	heat shrinkable sleeve
		sleeve length	max. 66 mm
		sleeve diameter	max. 6.0 mm before shrinking
Sleeve heat performance	heat time	60 mm slim mode: avg. 9 sec - 10 sec
Sleeve heat performance	heat time			60 mm mode: avg. 13 sec - 15 sec
Fiber tensile test force	approx. 2.0 N
Electrode life	approx. 5 000 splices
Dimensions (W × D × H)	170 × 173 × 150 mm
Weight	2.8 kg (with battery)
Environmental condition	temperature	operate: -10°C - +50°C
	temperature			storage: -40°C - +80°C
		humidity	operate: 0% - 95% RH non-condensing
		humidity		storage: 0% - 95% RH non-condensing
		altitude	max. 5 000 m
AC adaptor	input	AC 100 to 240 V, 50/60 Hz, max. 1.5 A
Battery pack	type	rechargeable lithium-ion
		output	approx. DC 14.4 V / 6,380 mAh
		capacity	approx. 300 splice and heat cycles
		temperature	recharge: 0°C - 30°C
		temperature		storage: -20°C - +30°C
		battery life	approx. 500 recharge cycles
Display	LCD monitor	TFT 5 inches with touch screen
Display		magnification	200 to 300x
Illumination	V-grooves	LED lamp
Interface	PC	USB2.0 Mini B type
		external LED lamp	USB2.0 A type approx. DC 5 V, 500 mA
		ribbon stripper	Mini DIN 6 pin DC 12 V, max. 1 A
		wireless	Bluetooth 4.1 LE
Data storage	splice mode	100 splice modes
		heat mode	30 heat modes
		splice result	20 000 splices
		splice image	100 images
Screw hole for tripod	1/4-20UNC
Other features	automatic functions	splice mode select by fiber type analysis
				discharge power calibration
				wind protector: open/close
				sheath clamp: open
				heater lid: open/close
				heater clamp: open/close
		reference guide	video and PDF file stored in splicer
		sheath clamp	easy sleeve positioning clamp
		electrode	replaceable without tool

The Fiber Optic Fusion Splicer FSM-90S+ GPRS Compatible 7sec Splicing Time 6380mAh Battery, 2.8kg, Wired LAN,GPRS,4G,3G,fttx,backbone is far and away, one of our most popular items. People can't seem to get enough of it.
