Aitelong SAT-17T 7sec Fast Fiber Fusion Splicing Machine Fusion Fibre Optics Core alignment + cladding alignment, Single/Multi-mode Fiber

SPECIFICATIONS

Applicable fiber dimensions: Cladding diameter: 80-150um; Coating diameter:100-1000um

Applicable type of fibers: SM, MM, DS NZDS, EDF

Battery life: 1000 charging cycles

Brand Name: Aitelong

Certification: CE

DIY Supplies: Electrical

Electrode life: Typical 3,000 times, and replaceable

Fiber alignment: Core alignment and cladding alignment

Fiber count: Single fiber

High-concerned Chemical: None

Image display: High-performance 4.3 inch LCD

Model Number: SAT-17T-2

Product name: Fusion Splicer

Return loss: Better than 60dB

Splicing time: 9s / 7s (fast mode)

Type: Fiber fusion splicer

Use: For fiber optic cable splicer

Warranty Time: one year

Product details

Aitelong SAT-17T 7sec Fast Fiber Fusion Splicing Machine Fusion Fibre Optics Core alignment and cladding alignment, Single/Multi-mode Fiber

Product name Fusion Splicer
Fiber alignment Core alignment and cladding alignment
Applicable type of fibers SM , MM, DS NZDS,EDF
Fiber count Single fiber
Applicable fiber dimensions Cladding diameter:80-150um; Coating diameter:100-1000um
Return loss Better than 60dB
Splicing time 9s / 7s (fast mode)
Image display High-performance 4.3 inch LCD
Battery life 1000 charging cycles
Electrode life Typical 3,000 times, and replaceable
Product Keywords Fiber Fusion Splicing Machine Fusion de Fibre Optique,SAT-17T 7sec Fiber Fusion Splicing Machine, SAT-17T 7sec Fas Fusion De Fibre Optique



SAT- 17T Fusion Splicer features a full automatic heater, thus making it one of the best Fusion Splicer. In addition it has a 7800mAH large Li battery pack, hence making it highly effective and efficient.With its compatibility with bare fiber tail fiber and indoor cable it is rated as the most efficient for this function.

Features

Ultra-low Splice loss
Mirror Less Design
Low weight , less than 2Kg with battery and bumper
Full automatic heater
7 sec fast splicing
7800mAH large Li battery pack
Compatable with bare fiber,tail fiber and indoor cable
Wind protect, dust-proof, water-proof

Specifications:

Applicable Fibers

SM (single mode), MM (multi-mode), DS(dispersion), NZDS (non-zero dispersion),EDF(Erbium-doped fiber)

Average Loss

0.02dB(SM), 0.01dB(MM), 0.04dB(DS),

0.04dB(NZDS), 0.02dB (BIF/UBIF)

Return Loss

Better than 60dB

Typical Splicing Time

9s / 7s (fast mode)

Fiber Aligning

Core alignment and cladding alignment

Fiber Diameter

Cladding diameter:80-150um

Coating diameter:100-1000um

Magnification

X or Y, magnify 360X

X + Y, magnify 180X

Image display

High-performance 4.3 inch LCD

Tensile test

Standard 2N

Splicing Mode

100 (10 factory pre-defined)

Heating Mode

100 (4 factory pre-defined)

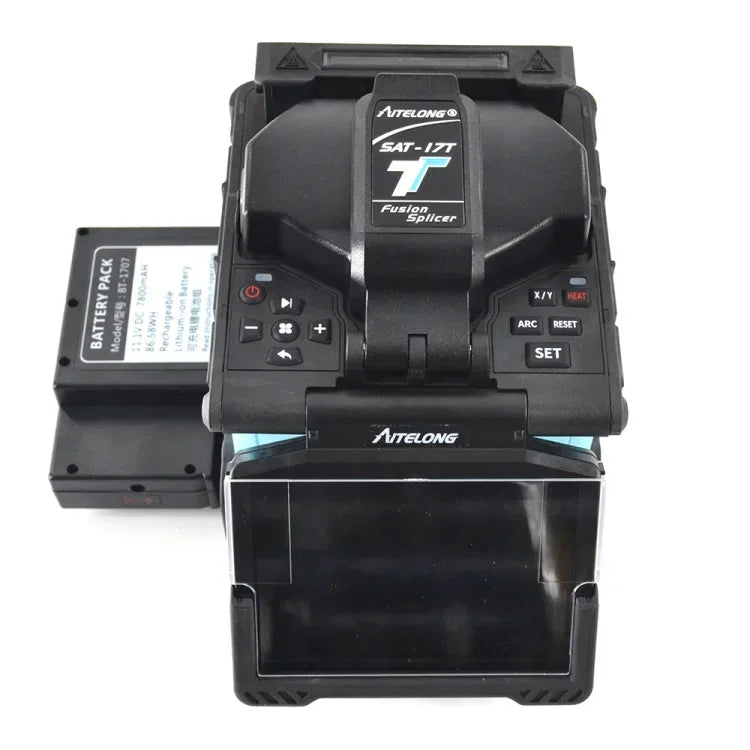

Battery capacity

7800mAH, 86.58WH

300 times (splicing and heating)

Charging time: about 3h (can be used while charging)

Battery life

1000 charging cycles

Electrode life

Typical 3,000 times, and replaceable

External interface

Mini USB

Result record

Maxmium10000 results

Heater Function

Automatic, support user defined heating mode
