6 Motors Ai-9 AI-6C AI-6A AI-8C AI-7C AI-10 HY-802 Fiber Fusion Splicer 7800mAh battery Network: Wireless LAN, Wired LAN, wifi, 4G, 3G

Regular price: R 42,415.81
Sale price: R 42,415.81
Regular price: ~~R 59,235.87~~
Unit price: per

Shipping calculated at checkout.

Color

Quantity must be 1 or more

SPECIFICATIONS

Battery: 7800mAh

Fiber diameter: Cladding Diameter:80-150μm Coating Diameter:100-1000μm

Focus mode: Six motors Auto focus

Heating mode: Automatic heating(Preheating)

Heating time: 15s

High-concerned chemical: None

Model: AI9

Model Number: AI-9

Network: Wireless Lan, Wired LAN, wifi, 4g, 3G

Screen: 5 inch TFT color display

Splicing Mode: Normal / high precision splicing

Splicing time: 5s

Type: Fiber fusion splicer

Use: Fiber splicing

Warranty Time: 1 year

Wireless function: No

Description

6 Motors Ai-9 AI-6C AI-6A AI-8C AI-7C AI-10 HY-802 Fiber Fusion Splicer 7800mAh battery Network: Wireless LAN, Wired LAN, wifi, 4G, 3G

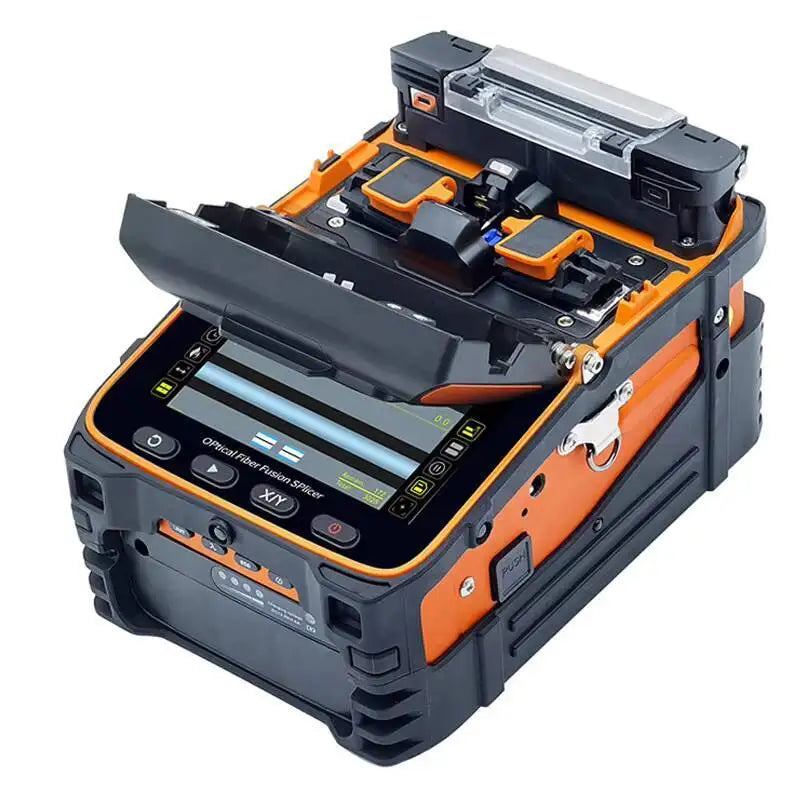

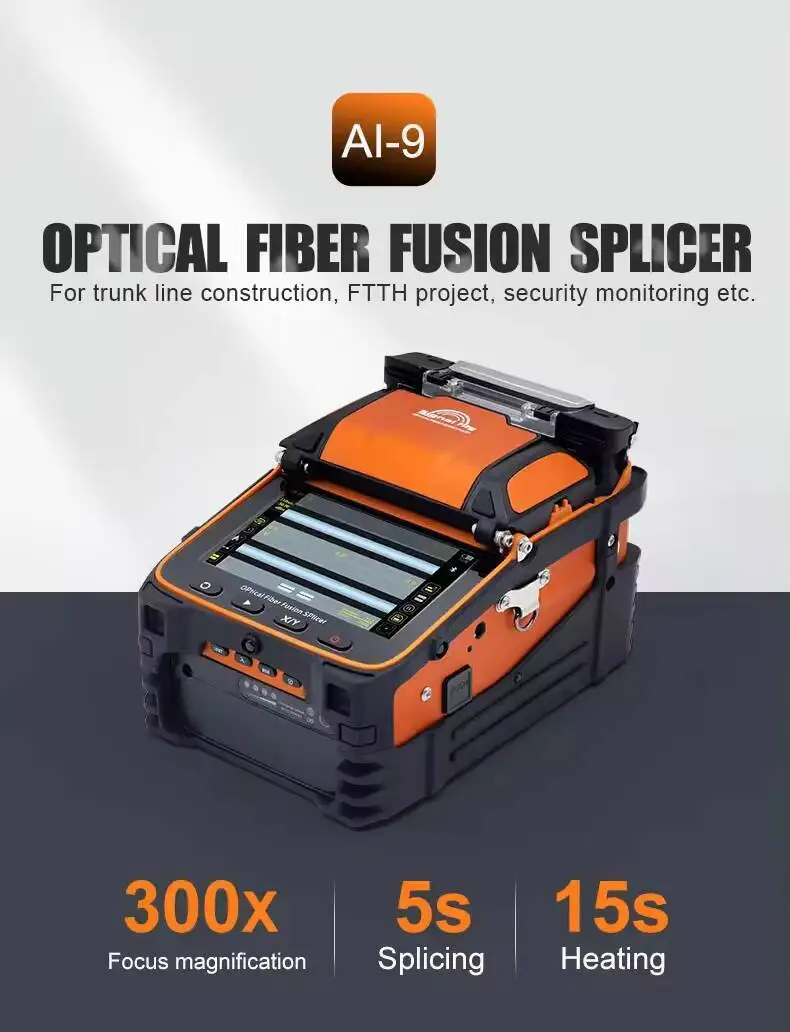

AI-9 Fiber Optic Fusion Splicer

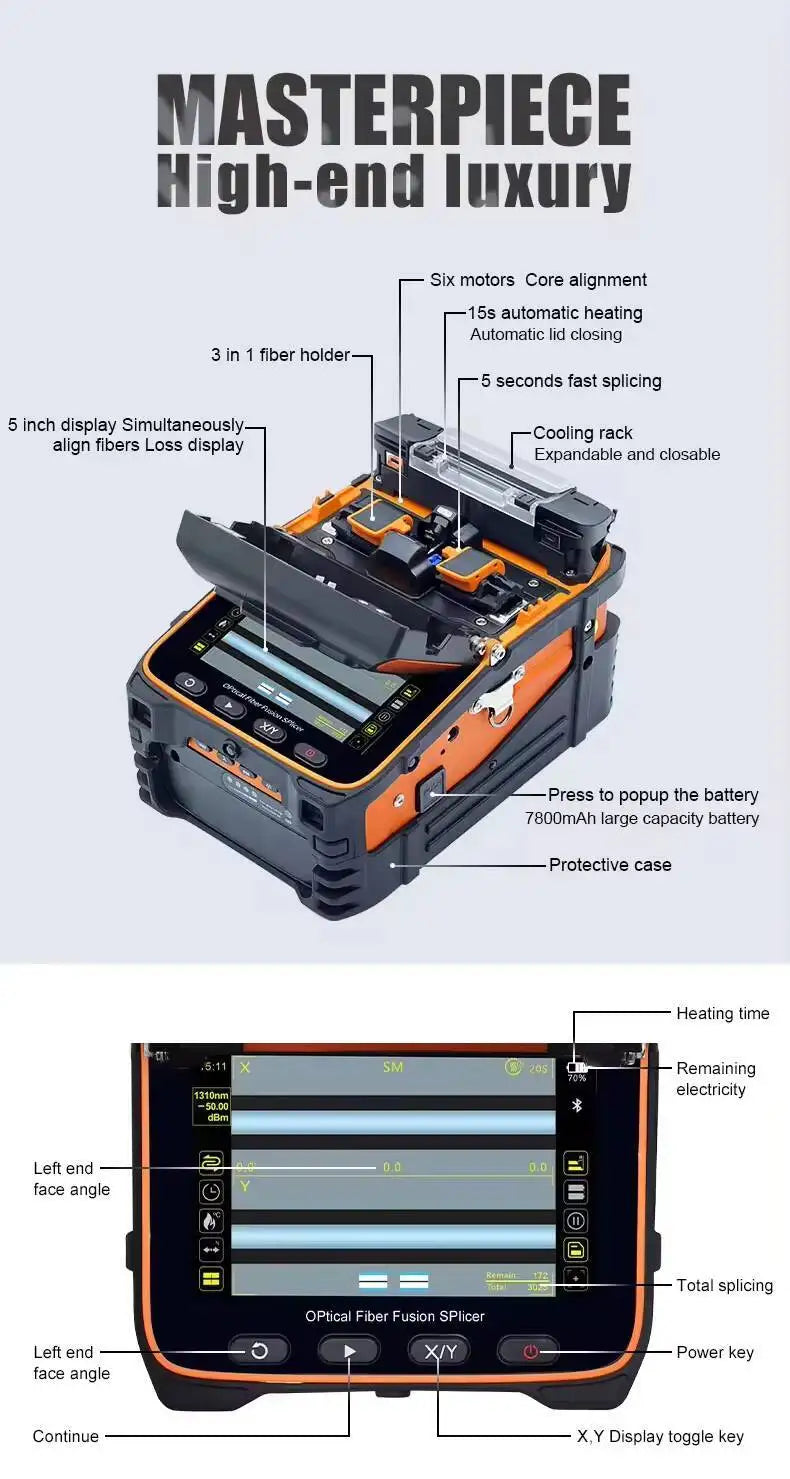

AI-9 adopts the latest core alignment technology, with autofocus and six motors, and is a new generation of fiber fusion splicer. This machine uses an industrial-grade quad-core CPU, which is fast and responsive. It is one of the fastest fiber fusion splicers on the market. It is equipped with a 5-inch 800X480 high-resolution screen for simple and intuitive operation; and a focus magnification of up to 300 times, making it It becomes very easy to observe the fibers with the naked eye. 5 seconds of extremely fast core-to-core splicing, 15 seconds of heating, and the work efficiency is 50% higher than that of ordinary splicing machines. The core components are all imported brands, with aviation metal body materials and exquisite craftsmanship details. Combining advanced technology and design, the new generation of optical fiber splicing splicer will bring you a reliable and comfortable user experience.

Specifications

AI-9 fiber optic fusion splicer
Tension Test	Standard 2N
Fiber holders	3 in 1 fiber holder, SM, MM, bare fiber, pigtail, rubber-insulated, multi fiber cable
Screen	5 inch TFT color display
Splicing Mode	Normal / high precision splicing
Splicing method	Fully automatic、Step by step splicing
Shrinkable tube	60mm、50mm、40mm、25mm
Small hole	Stripping 2~3mm fiber jackets
Splicing time	5S
Heating time	15S

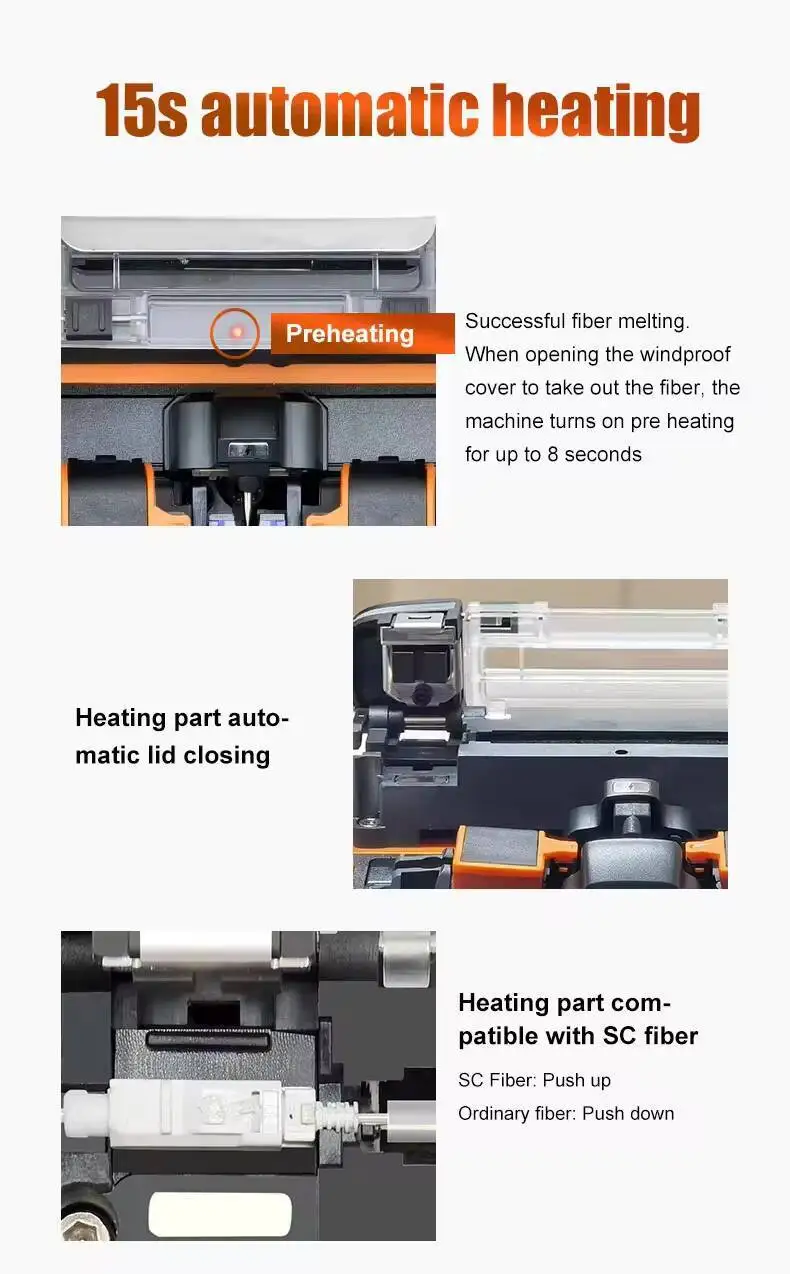

Heating mode	Automatic heating（Preheating）
Focus mode	Six motors Auto focus
Splice Loss	0.025dB（SM）、0.01dB（MM）0.04dB（DS/NZDS）
Return loss	Better than 60DB
Fiber diameter	Cladding Diameter：80-150μm Coating Diameter：100-1000μm
Fiber Cleave Length	Coating less than 250µm：8-16mm Coating less than 250-1000µm:16mm
Software updates Length
Boot time	1 second
Built-in battery	7800 mA high-capacity lithium battery, charging time ≤ 3.5 hours, continuous splicing and heating about 260 times
Operating Conditions	Temperature -15~ +50 C,Working altitude:0 ~ 5000m, Resist max. wind speed:≤15m/s

Product Display

The 6 Motors Ai-9 AI-6C AI-6A AI-8C AI-7C AI-10 HY-802 Fiber Fusion Splicer 7800mAh battery Network: Wireless LAN, Wired LAN, wifi, 4G, 3G is a sensational customer favorite, and we hope you like it just as much.
