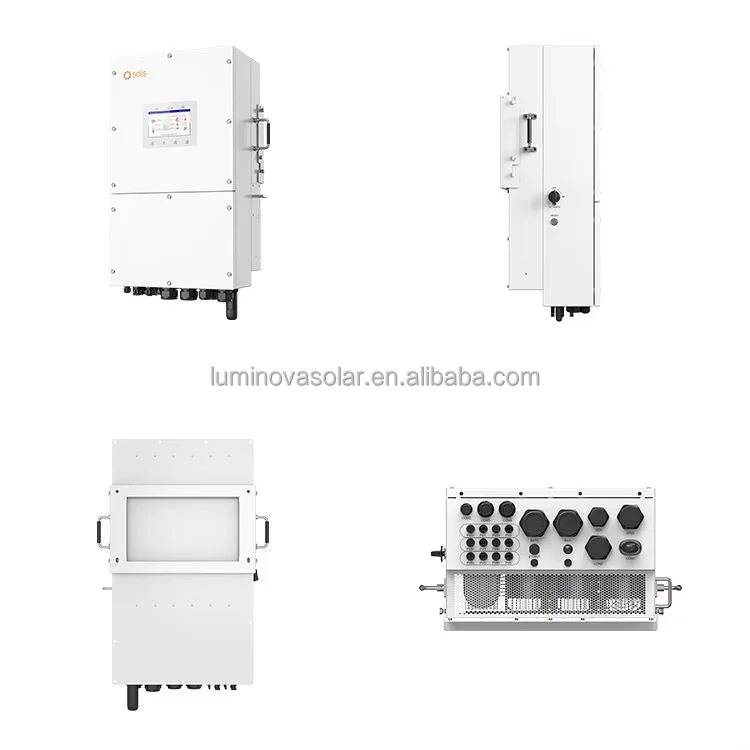

⁸ Solis S6-EH3P(8-15)K02-NV-YD-L Hybrid Inverter 8KW/10KW/12KW/15KW 48V – Let's Fibre Technologies
Solis S6-EH3P(8-15)K02-NV-YD-L Hybrid Inverter 8KW/10KW/12KW/15KW 48V Solar Power AC Output for Home Use

Solis S6-EH3P(8-15)K02-NV-YD-L Hybrid Inverter 8KW/10KW/12KW/15KW 48V Solar Power AC Output for Home Use

R 81,010.56
R 81,010.56
R 113,699.04
Sold out
Shipping calculated at checkout.

Solis S6-EH3P(8-15)K02-NV-YD-L Hybrid Inverter 8KW/10KW/12KW/15KW 48V Solar Power AC Output for Home Use

SPECIFICATIONS

Brand Name: Solis

Input Voltage: 200-850V

Inverter Efficiency: 97.5%

Model Number: S6-EH3P8K02-NV-YD-L

Output Current: 12.2/11.5A

Output Frequency: 50/60HZ

Output Type: Three Phase

Output Voltage: 3/N/PE, 220 V / 380 V; 3/N/PE, 230 V / 400 V

Size: 530*760*400mm

Type: DC/AC Inverters

Weight: 52kg

Description

Solis S6-EH3P(8-15)K02-NV-YD-L Hybrid Inverter 8KW/10KW/12KW/15KW 48V Solar Power AC Output for Home Use

Specifications

S6-EH3P(8-15)K02-NV-YD-L



Models

8K

10K

12K

15K

Input DC (PV side)



Max. usable PV input power

12.8 KW

16 KW

19.2 KW

24 KW

Max. input voltage

1000 V



Rated voltage

550 V



Start-up voltage

160 V



MPPT voltage range

200-850 V



Max. input current

20A/40A



40A/40A

Max. short circuit current

30A/50A



50A/50A

MPPT number/Max. input strings number

2/3



2/4

Battery



Battery type

Li-ion / Lead-acid



Battery voltage range

40-60 V



Max. charge / discharge current

180 A

220 A

250 A

290 A

Communication

CAN/RS485



Output AC (Grid side)



Rated output power

8 KW

10 KW

12 KW

15 KW

Max. apparent output power

8 KVA

10 KVA

12 KVA

15 KVA

Operation phase

3/N/PE



Rated grid voltage

380 V / 400 V



Rated grid frequency

50 Hz / 60 Hz



Rated grid output current

12.2 A / 11.5 A

15.2 A / 14.4 A

18.2 A / 17.3 A

22.8 A / 21.7 A

Max. output current

12.2 A / 11.5 A

15.2 A / 14.4 A

18.2 A / 17.3 A

22.8 A / 21.7 A

Power factor

>0.99 (0.8 leading - 0.8 lagging)



THDi

< 3%



Input AC (Grid side)



Input voltage range

323-460 V



Max. input current

18.3 A / 17.3 A

22.8 A / 21.7 A

27.3 A / 26.0 A

34.2 A / 32.5 A

Frequency range

45-55 Hz / 55-65 Hz



Input Generator



Max. input power

8 KW

10 KW

12 KW

15 KW

Max. input current

12.2 A

15.2 A

18.2 A

22.8 A

Rated input voltage

3/N/PE, 380 V / 400 V



Rated input frequency

50 Hz / 60 Hz



Output AC (Back-up)



Rated output power

8 KW

10 KW

12 KW

15 KW

Max. apparent output power

2 times of rated power, 10 s



Back-up switch time

< 10ms



Rated output voltage

3/N/PE, 380 V / 400 V



Rated frequency

50 Hz / 60 Hz



Rated output current

12.2 A / 11.5 A

15.2 A / 14.4 A

18.2 A / 17.3 A

22.8 A / 21.7 A

Max. Continuous output current

12.2 A

15.2 A

18.2 A

22.8 A

Max. Continuous AC Passthrough current

50 A



THDv (@linear load)

<3%



Efficiency



Max. efficiency

97.6%



EU efficiency

97.0%



General Data



Dimensions (W*H*D)

430*660*295 mm



Weight

42 kg



Topology

Non-isolated



Operating ambient temperature range

-40 ~ +60°C



Ingress protection

IP66



Cooling concept

Intelligent redundant fan-cooling



Max. operation altitude

4000 m



Grid connection standard

NRS 097-2-1, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530, SriLanka, EN 50438L, Vietnam, PEA\MEA



Safety/EMC standard

IEC/EN 62109-1/-2, IEC/EN 61000-6-1/-3


The Solis S6-EH3P(8-15)K02-NV-YD-L Hybrid Inverter 8KW/10KW/12KW/15KW 48V Solar Power AC Output for Home Use is far and away, one of our most popular items. People can't seem to get enough of it.
