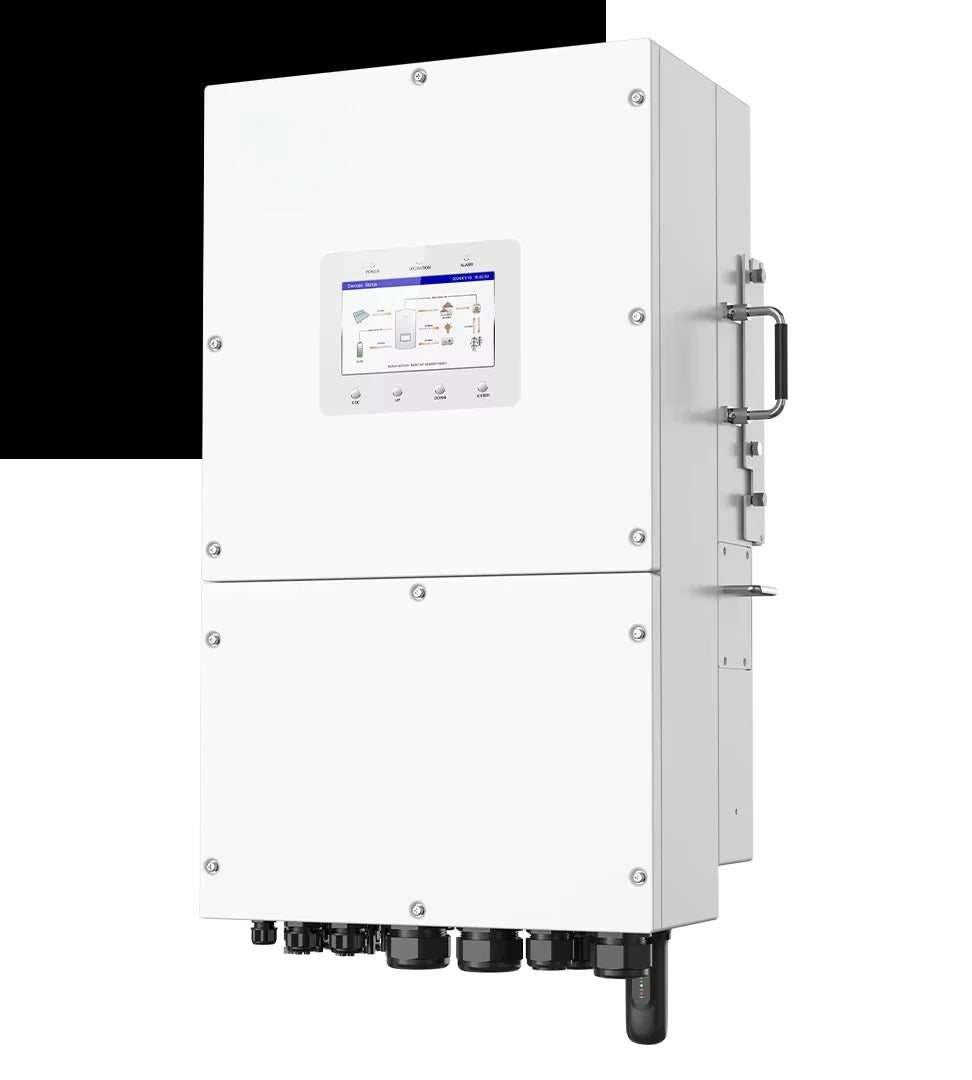

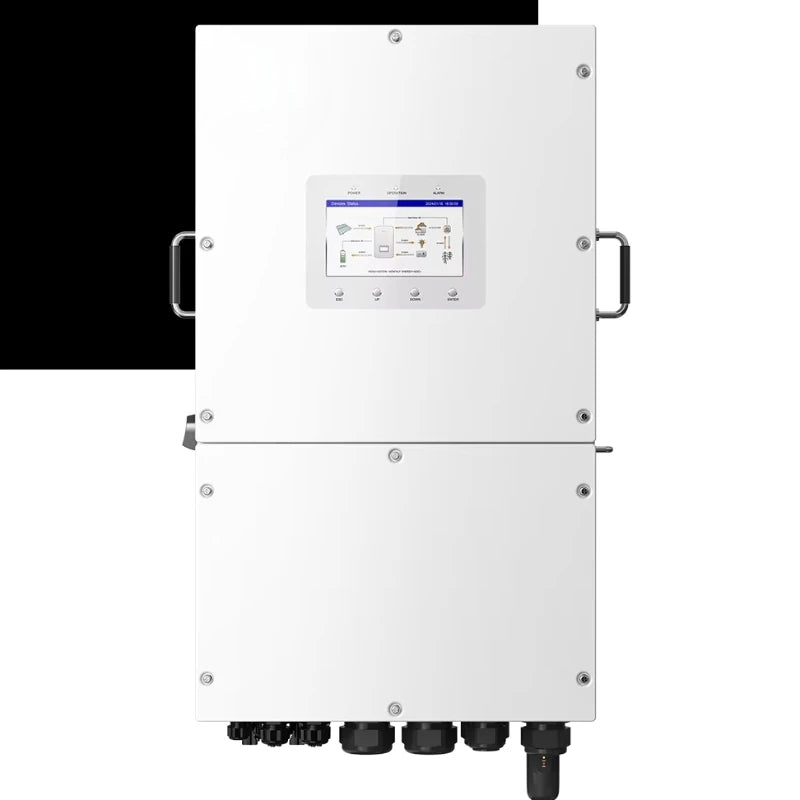

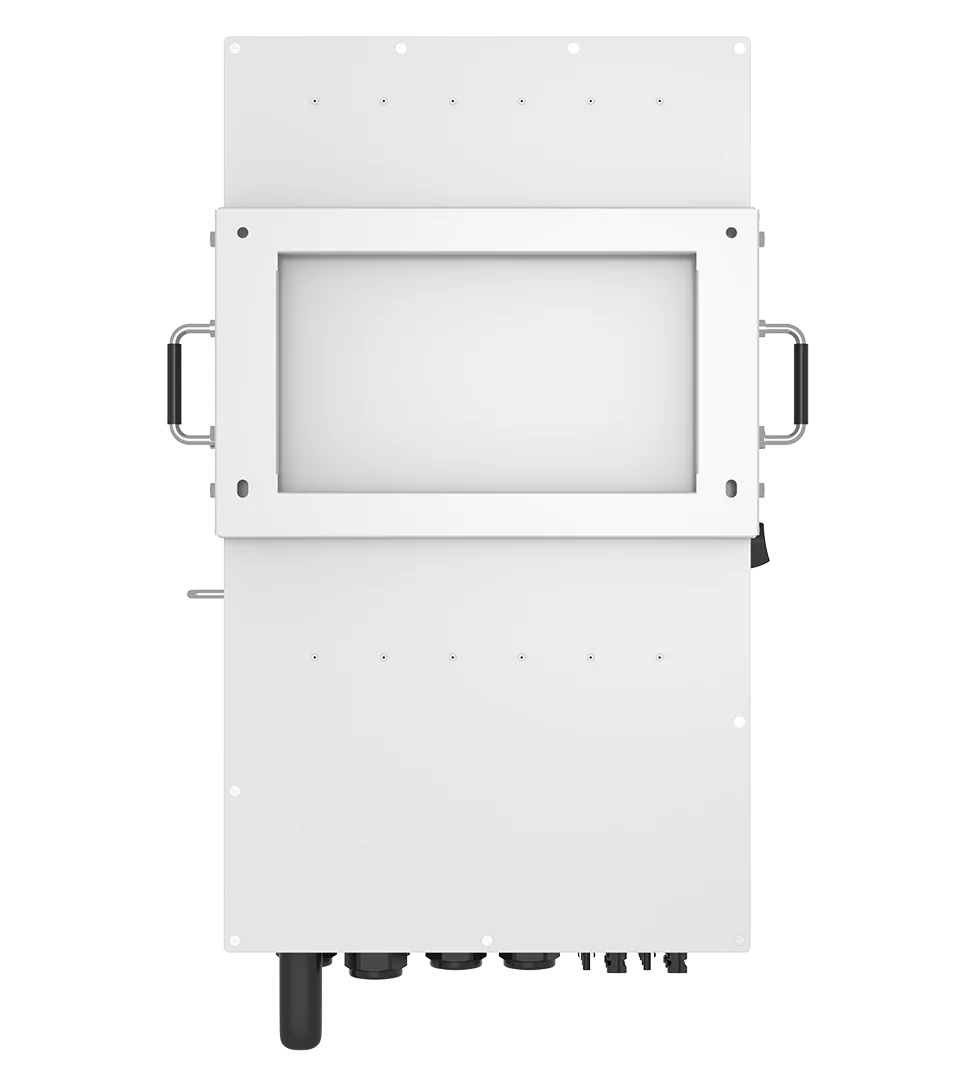

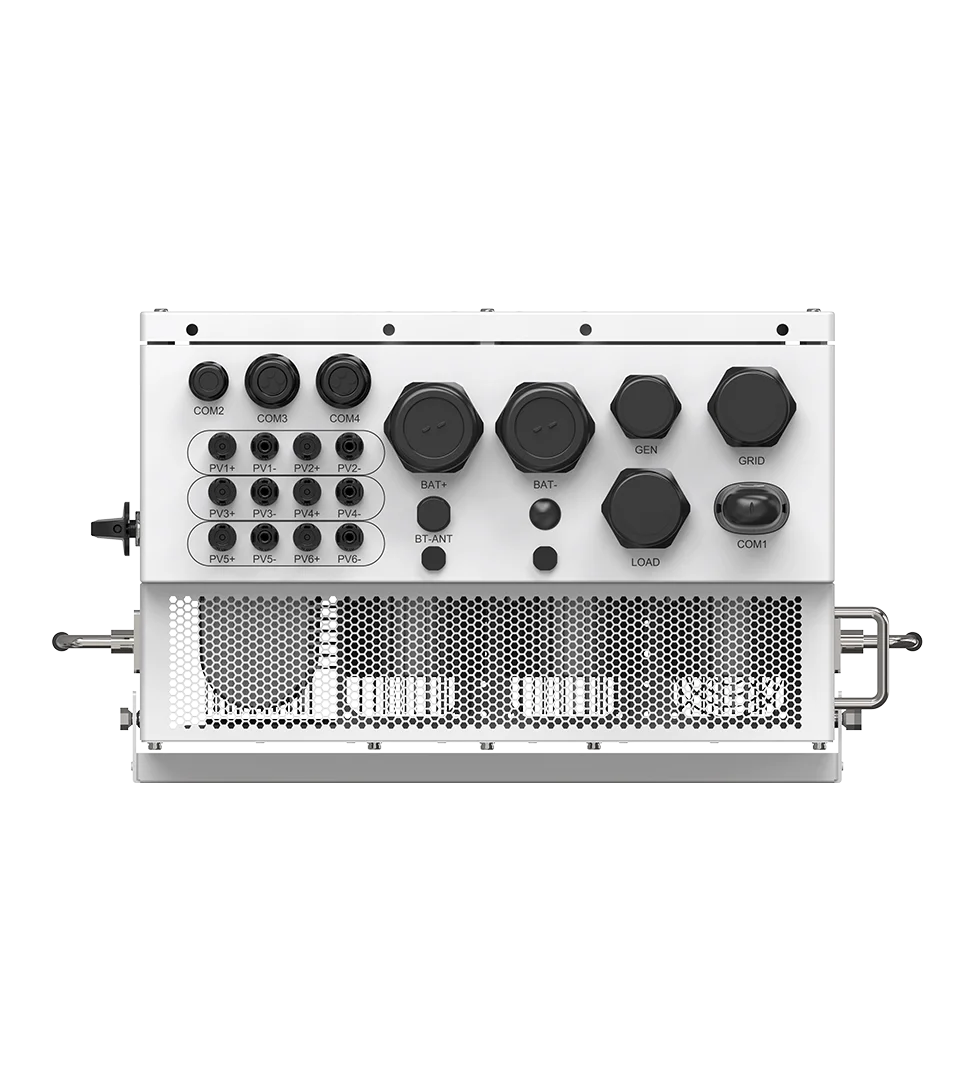

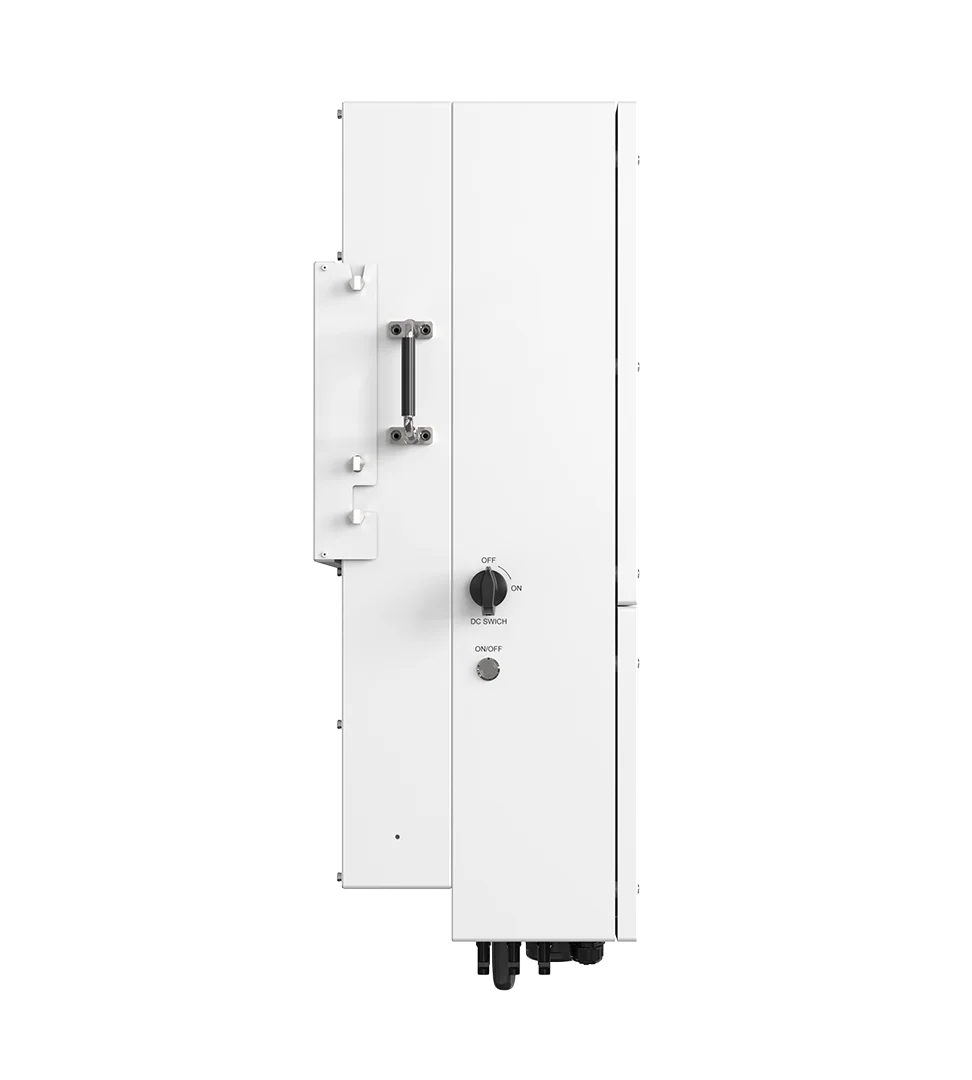

Solis S6-EH1P6K-L-PLUS Single Phase 45-55Hz/55-65Hz Efficient Solar Inverter 220 V / 230 V Output Voltage 63.6 A / 60.9 A Solar System

Regular price: R 54,301.40
Sale price: R 54,301.40
Regular price: ~~R 76,212.48~~
Unit price: per

Shipping calculated at checkout.

Color

Quantity must be 1 or more

SPECIFICATIONS

Brand Name: Solis

High-concerned chemical: None

Inverter efficiency: 99.8%

Model: S6-EH1P(12-16)K-L

Output current: 63.6 A / 60.9 A

Type: Hand Tool Parts

Brand: Solis

Input voltage: 187-253 V

Output frequency: 45-55Hz/55-65Hz

Output Type: Single Phase

Output Voltage: 220 V / 230 V

Size: 464*763*282mm

Type: AC-DC-AC

Weight: 48.5kg

Specifications

Models	3kw	6kw	8kw
Recommended max. PV array size	6kw	12kw	16kw
Max. input voltage	550 V
Rated voltage	380 V
Start-up voltage	100 V
MPPT voltage range	80-520 V
Max. input current	40 A / 40 A / 40 A
Max. short circuit current	50 A / 50 A / 50 A
MPPT number/Max. input strings number	3/6
Battery type	Li-ion / Lead-acid
Battery voltage range	40 - 60 V
Max. charge / discharge power	3kw	6kw	8kw
Operation phase	220 V / 230 V
Rated grid output current	54.5 A / 52.2 A	63.6 A / 60.9 A	72.7 A / 69.6 A
Max. output current	54.5 A / 52.2 A	63.6 A / 60.9 A	72.7 A / 69.6 A
Input voltage range	187-253 V
Frequency range	45-55 Hz/55-65 Hz
Max. apparent output power	2 times of rated power, 10 s
Rated output current	54.5 A / 52.2 A	63.6 A / 60.9 A	72.7 A / 69.6 A
Max. output over current protection, 10 sec	109 A	127 A	145 A
Max. input current	54.5 A	63.6 A	72.7 A
Dimensions (WHD)	464763282 mm
Weight	48.5 kg
Grid connection standard	NRS 097-2-1, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530
Communication	RS485, Optional: Wi-Fi, LAN

Displays

The Solis S6-EH1P6K-L-PLUS Single Phase 45-55Hz/55-65Hz Efficient Solar Inverter 220 V / 230 V Output Voltage 63.6 A / 60.9 A Solar System was built with people like you in mind. Something to keep you happy. Every. Single. Day.
