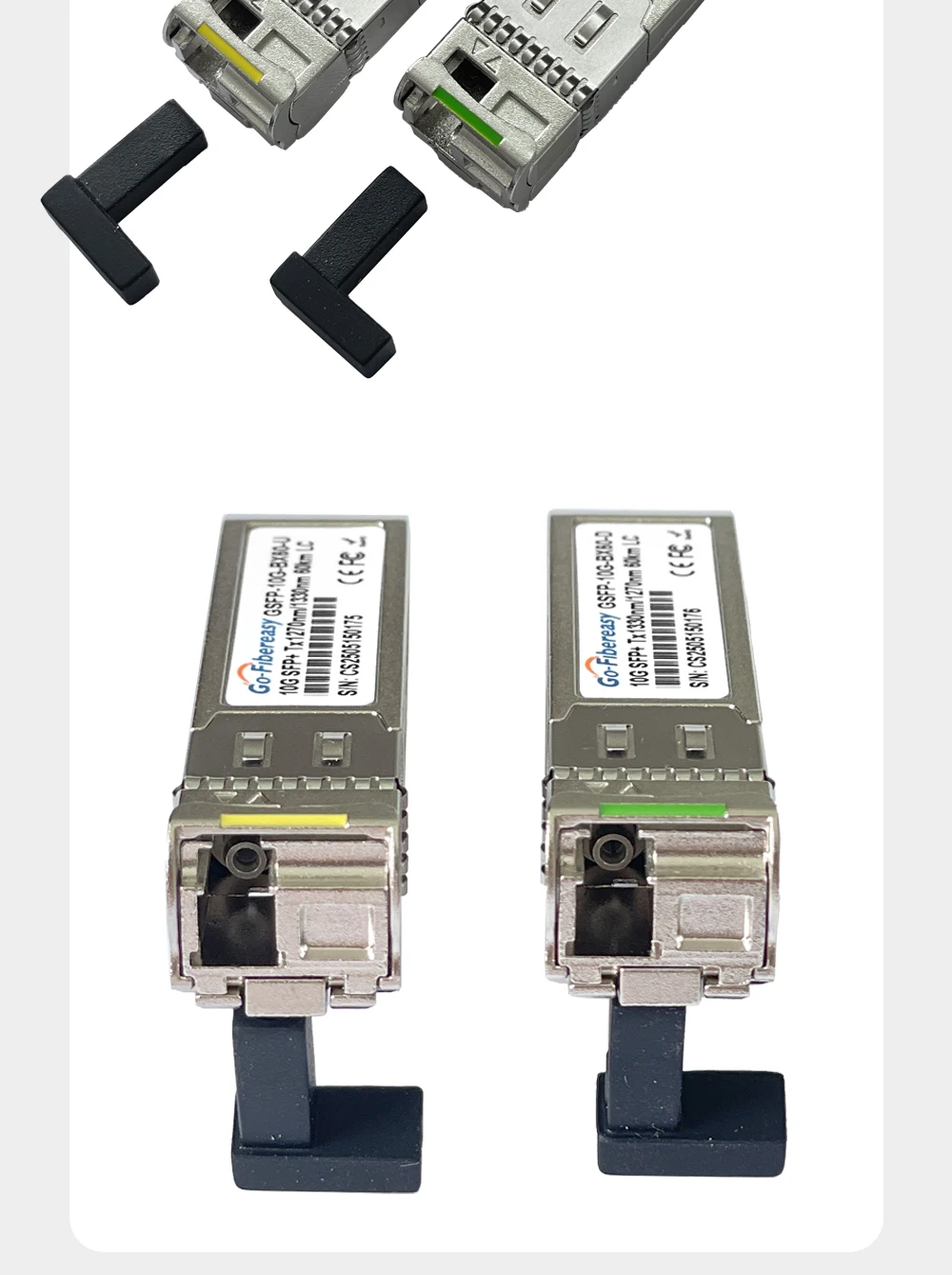

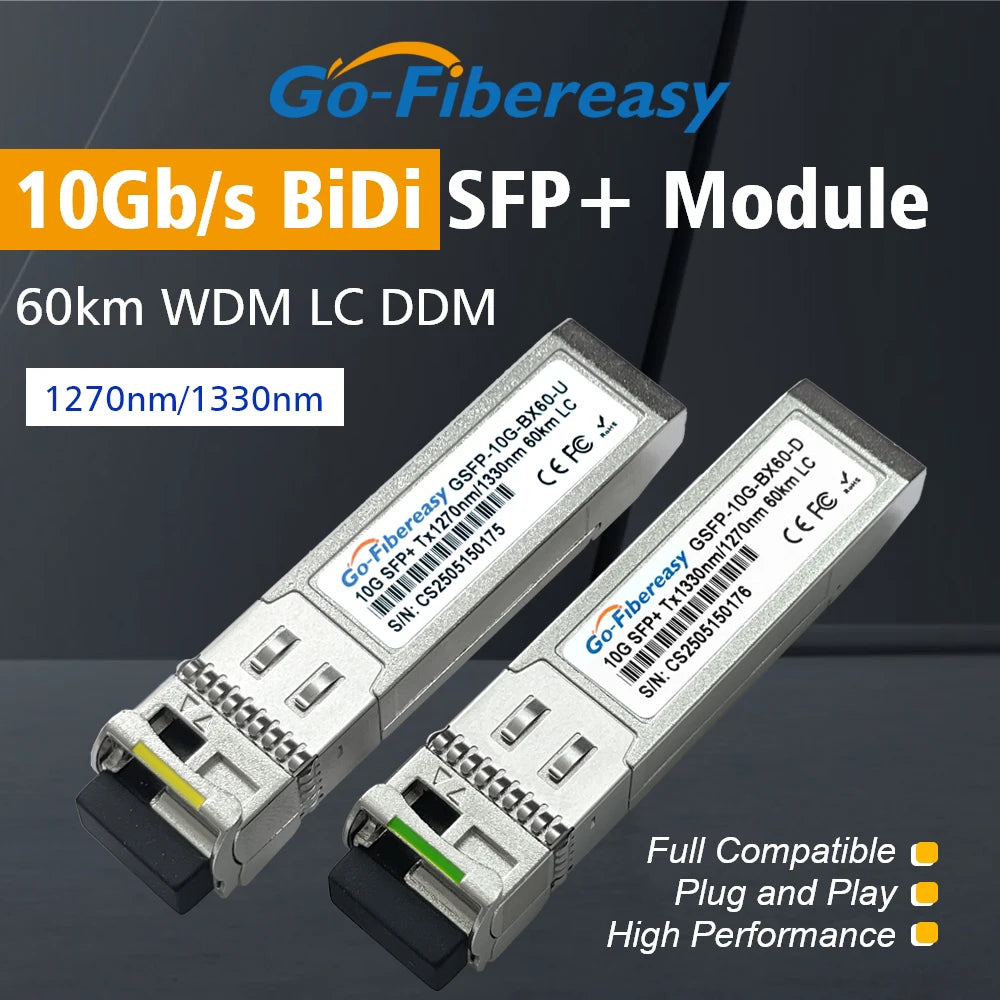

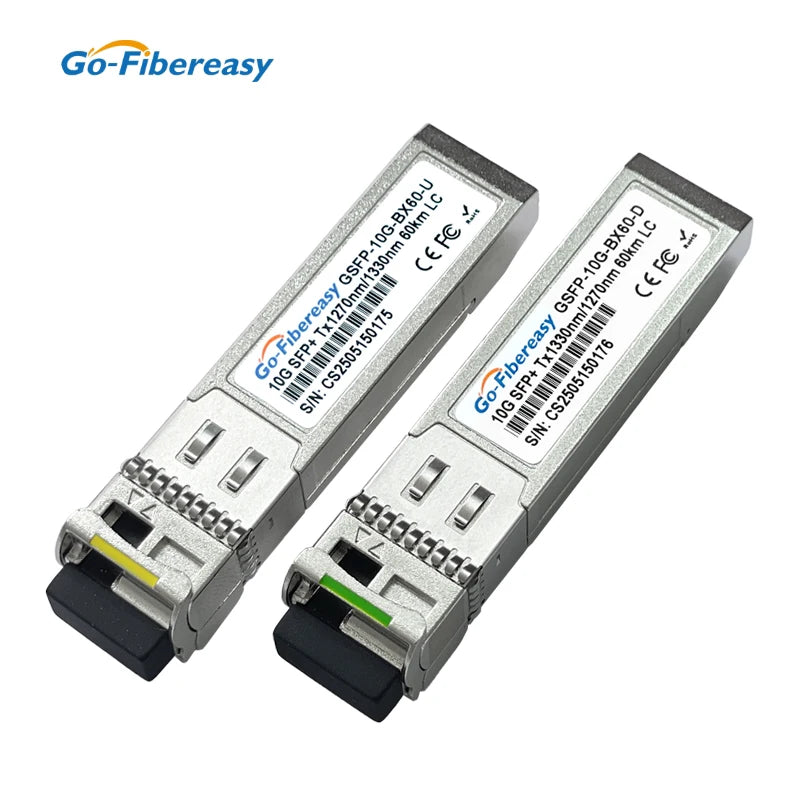

SFP 10Gb BiDi Optical Module 60km LC WDM Tx1270/Rx1330nm Single-Fiber Bidirectional Transceiver For Ubiquiti,Mikrotik

Regular price: R 8,418.51
Sale price: R 8,418.51
Regular price: ~~R 10,102.21~~
Unit price: per

Shipping calculated at checkout.

Color

Ships From

Quantity must be 1 or more

SFP 10Gb BiDi Optical Module 60km LC WDM Tx1270/Rx1330nm Single-Fiber Bidirectional Transceiver For Ubiquiti,Mikrotik,ZTE Switch

SPECIFICATIONS

Brand Name: Go-Fibereasy

Certification: CE,FCC,RoHS

Commercial Temperature Range: 0 to 70°C (32 to 158°F)

Compatible with: Ubiquiti, QSFPTEK, Mikrotik, Transition Networks, Zyxel, Ericsson, Enterasys, Brocade, Mellanox, Alcatel-lucent, Customized Brands, Cisco, Arista, FOUNDRY, TP-link, Allied, Extreme, Dell Force10, Juniper, D-Link, Linksys, Netgear, IBM, Intel, Trendnet, Open Switch, Dell, F5 Networks, Hirschmann, Moxa, Planet, Supermicro, AVAGO, Avaya, Ciena, Finisar, H3C, SMC, Huawei

Connector Type: LC/UPC,Simplex LC Port

DDM/DOM: Support

Data Rate: 10Gbps

Fiber Type: Single Mode

Form Factor: SFP+ BIDI Transceiver Module

High-concerned chemical: None

Model Number: GSFP-10G-BX60-U/D BiDi 10G SFP+ Module

Power budget: 6.2dB

Protocols: IEEE 802.3ae, SFP+ MSA Compliant, CPRI, eCPRI

Receiver Overload: 0.5dBm

Receiver Sensitivity: < -14.4dBm

Size: 16x14x2cm

TX Power: -8.2~0.5dBm

Transmission Distance: 60km

Type: LR

Typical Power Consumption: ≤1W

Wavelength: 1270nm/1330nm

Wireless function: No

Description

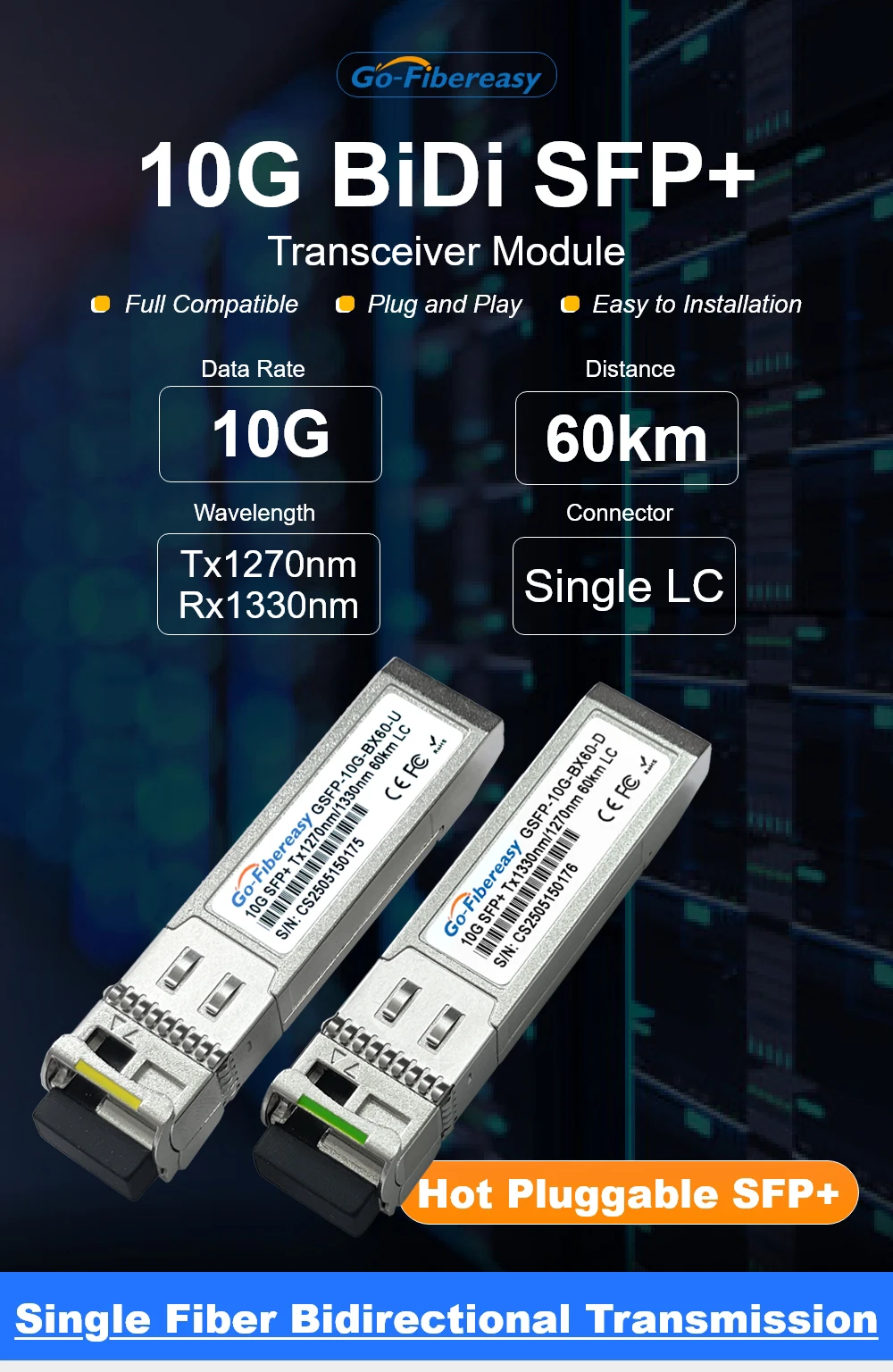

10Gb BiDi SFP+ Module LC Single Fiber Optical Transceiver WDM 1270/1330nm SFP Single-fiber Bidirectional Transmission

Transmission Distance: 60km

Compatible with: Mikrotik, Cisco, Ubiquiti, HuaWei, Mellanox, TP-Link, Juniper, D-Link, Intel, Netgear, Dell....Fiber Optical Equipment, Optical Switch, Router

Product Features:

● Supports 9.95 to 11.3Gb/s bit rates

● Simplex LC Connector

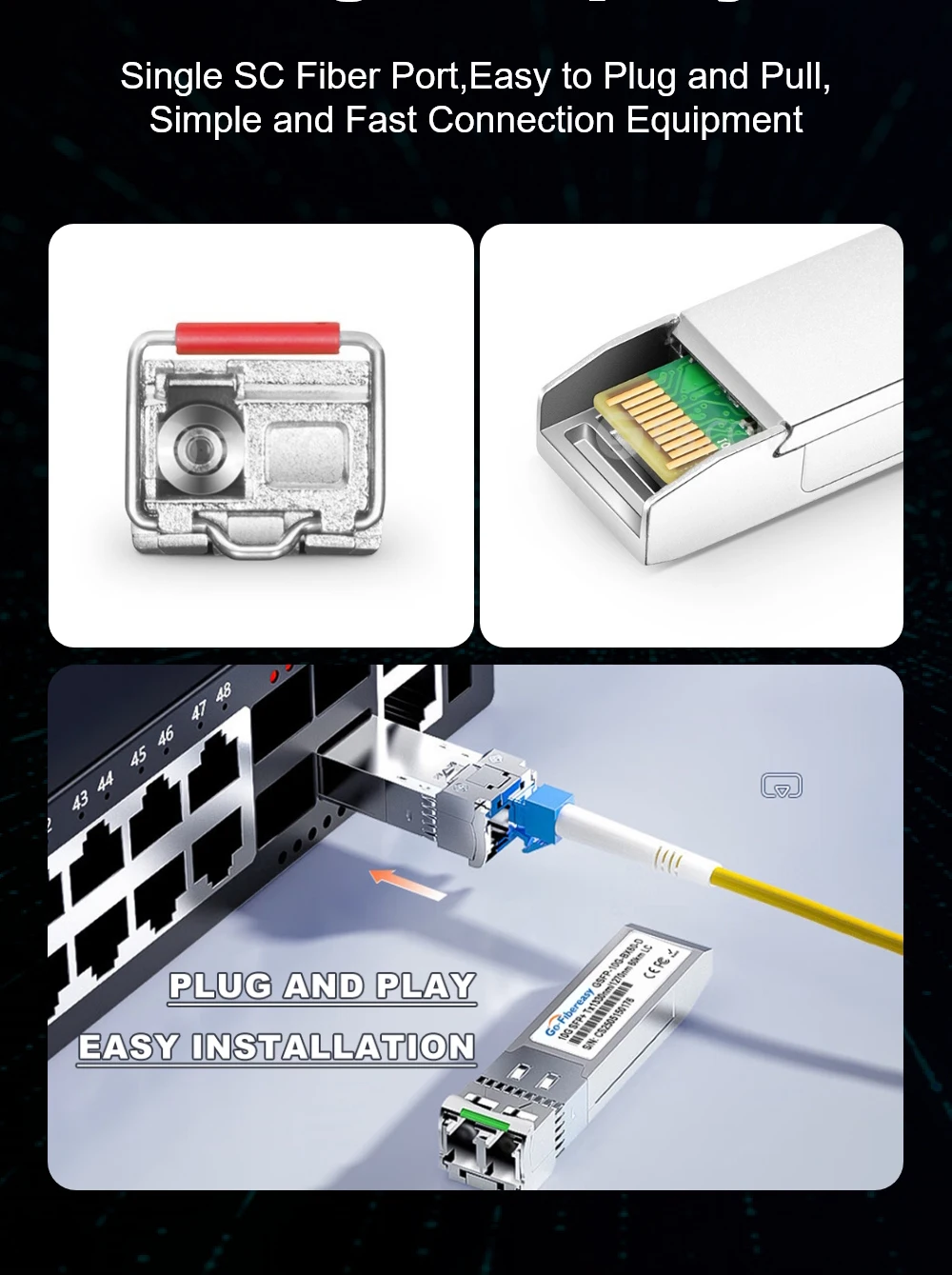

● Hot Pluggable SFP+ Footprint

● Uncooled 1270nm DFB transmitter, 1330nm PIN photo-detector

● Uncooled 1330nm DFB transmitter, 1270nm PIN photo-detector

● Applicable for 60km SMF connection

● Low power consumption, < 1W

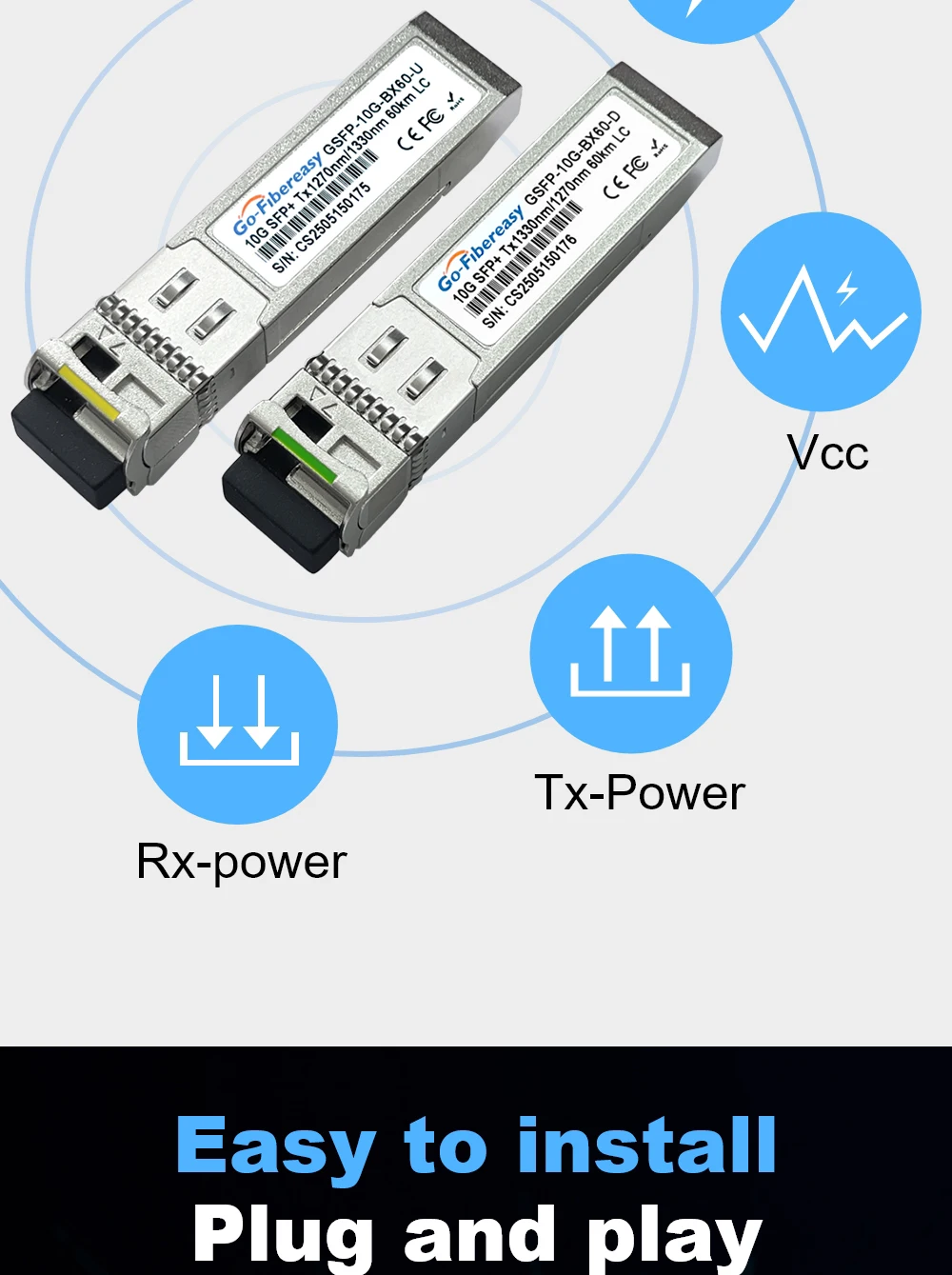

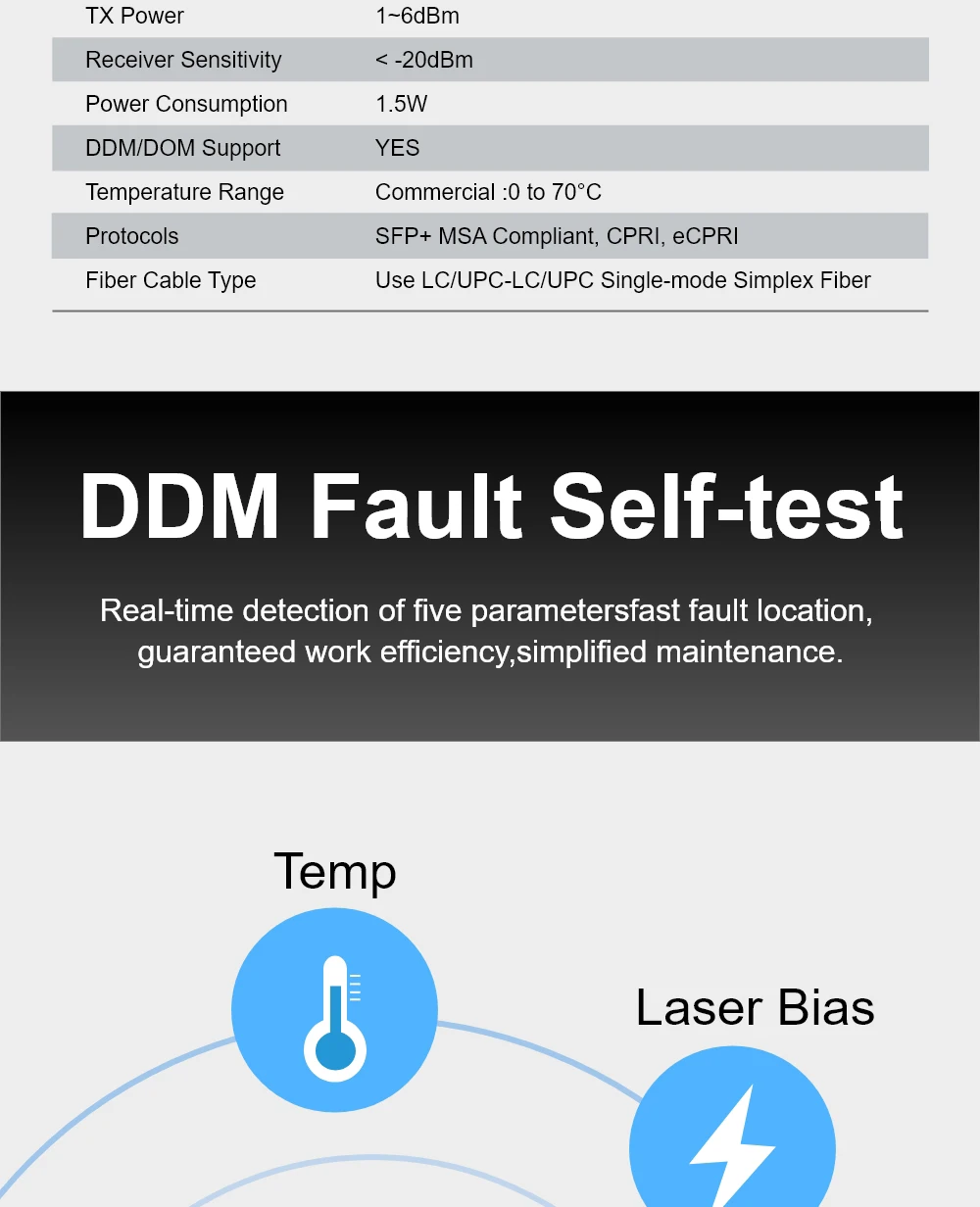

● Digital Diagnostic Monitor Interface

● Optical interface compliant to IEEE 802.3ae 10GBASE-LR

● Electrical interface compliant to SFF-8431

● Operating case temperature: Commerical: 0~70℃

The SFP 10Gb BiDi Optical Module 60km LC WDM Tx1270/Rx1330nm Single-Fiber Bidirectional Transceiver For Ubiquiti,Mikrotik is evocative, to say the least, but that's why you're drawn to it in the first place.
