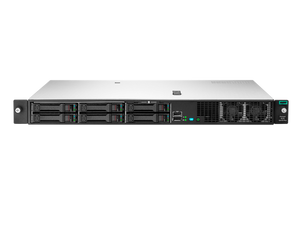

Hpe Proliant Dl20 Gen10 Plus E-2314 2.8Ghz 4-Core 1P 16Gb-U 4Sff 800W Rps Server powered by Intel Xeon E and Pentium Processors P66395-421

HPE ProLiant DL20 Gen10 Plus server

The dense and compact HPE ProLiant DL20 Gen10 Plus server powered by Intel Xeon E and Pentium Processors provides a unique blend of enterprise class capabilities & value. It offers outstanding configuration flexibility to cater to a wide variety of business requirements at an affordable price point. Deploy this dense platform for diverse workloads in space constrained environments and maintain it with ease by automating the most essential server lifecycle management tasks with HPE iLO 5.

2 LFF Front View Gen10 Plus

1.

Access Panel

7.

Health LED

2.

Optical drive bay

8.

NIC Status LED

3.

Serial number/iLO information pull tab

9.

USB 3.2 Gen1 Port

4.

Front Fan Assembly

10.

iLO Service Port (USB)

5.

System Power LED

11.

Two-bay LFF hot-plug drive bays

6.

UID LED

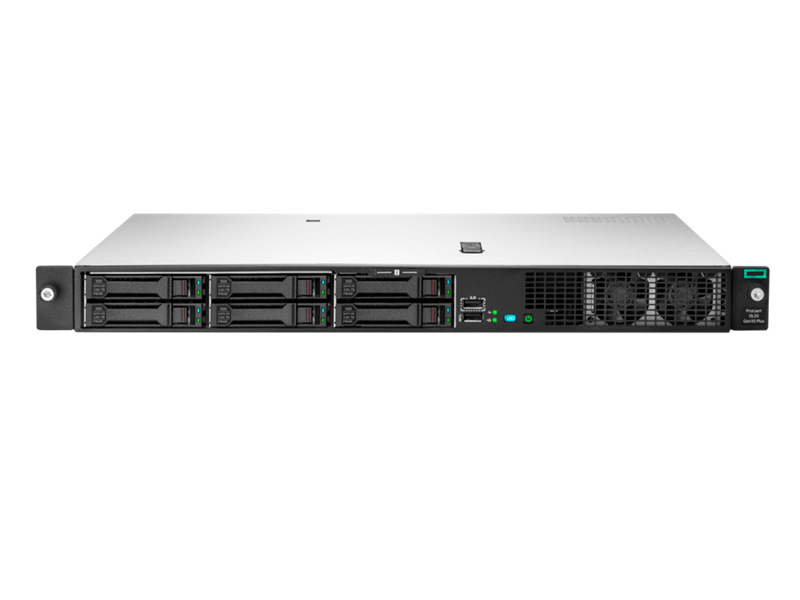

4 (+2) SFF Front View Gen10 Plus

1.

Access Panel

7.

Health LED

2.

2 SFF hot-plug drive bays (optional)

8.

NIC Status LED

3.

Serial number/iLO information pull tab

9.

USB 3.2 Gen1 Port

4.

Front Fan Assembly

10.

iLO Service Port (USB)

5.

System Power LED

11.

Four-bay SFF hot-plug drive bays

6.

UID LED

Internal View - Standard for all 2LFF DL20 Gen10 Plus

1.

Fan cage shown with 2 fans

7.

Not shown: Optional Smart Storage Battery

2.

Processor shown with heat sink

8.

Modular Smart Array connector

3.

Four DDR4 DIMM Slots

9.

TPM 2.0 Gen10

4.

System Battery

10.

PCIe Riser

5.

Central fan assembly (3^rd fan)

11.

Not shown: Dedicated iLO/M.2 LP Enablement Kit

6.

Power Supply (1x290W shown)

Rear View – Standard for all DL20 Gen10 Plus

1.

Slot 1 PCIe 4.0

6.

Two USB 3.2 Gen1 Ports

2.

Slot 2 PCIe 4.0

7.

NIC Port (1Gb)

3.

Option: Serial Port

8.

NIC port (1Gb) / Sideband iLO management port (configurable in RBSU)

4.

290W Non hot plug Power Supply

9.

VGA port

5.

UID LED

10.

Dedicated iLO Management Port (Default)

What’s New

· Supports latest Intel Xeon E-2300 and Pentium processors up to 8 cores and 3200MT/s UDIMM with support for Intel Software Guard Extensions. Intel SGX is an architecture extension designed to increase the security of application code and data.

· Dedicated iLO Management Port & serial port option kit for faster and more secure data transmission

· 3200 MT/s HPE DDR4 Standard Memory UDIMM offering 8GB, 16GB, and 32GB. Max 128GB memory capacity.

· Support for onboard M.2 NVMe/SATA SSD.
