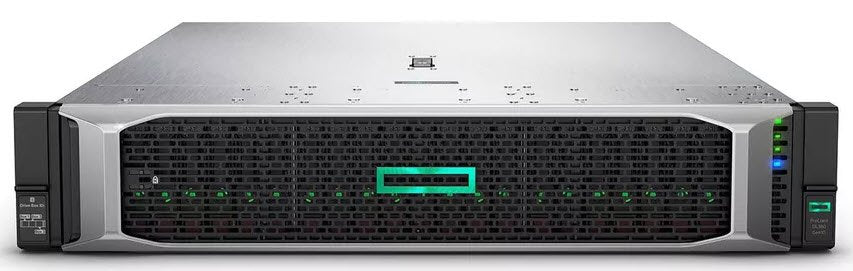

HPE Proliant Dl380 Gen10 6226R 2.9Gh Server 16-core 1p 32gb-r S100i Nc 8sff 800w, 2P 2U HPE ProLiant delivers world-class performance P24846-B21

What’s New

• North America BTO SKU - HPE ProLiant DL380 Gen10 5218 2.3GHz 16-core 1P 192GB-R P408i-a 8SFF 800W PS Server (P63680-B21)

Platform Information

Form Factor

• 2U rack

Chassis Types

• 8 SFF with optional Universal Media Bay, and optional SFF or NVMe drive bay options
• 24 SFF bay with additional 6SFF rear drive bay option to total 30 SFF drives
• 8 LFF with Universal Media Bay
• 12 LFF with optional 4 LFF mid-plane and optional 3LFF + 2 SFF rear drive bay to total 19 LFF drives + 2 SFF drives

Notes:

• The 3 LFF rear drive box will consume space for the secondary and tertiary riser.
• The 8 and 12 LFF chassis also supports the 2 SFF rear drive box which allows for the user to attach a secondary or tertiary riser.
• The 8 NVMe drive option (826689-B21) can only be leveraged in the SFF chassis and replaces Box 1, 2 or 3, however there is a maximum of 20 NVMe drives supported with Partial population of Box 1.
• The Premium cage (826690-B21, 6 SAS/SATA+2 NVMe) can only be leveraged in the SFF chassis and replaces Box 1, 2 or3.
• The Universal Media Bay (826708-B21) not available with the LFF chassis or the 24 SFF front end, and can only be populated in Box 1.
• The 8 SFF can be upgraded with additional 8SFF drive box to total 16 or 24 SFF drives. For optimal upgrade Box 2 should be populated second, with Box 1 the last to be populated for a field upgrade to 24 SFF. For CTO builds requiring 24 SFF please use the 24 SFF chassis (868704-B21) or (P19719-B21). Note a field upgrade to 24 SFF will require a High Performance fan kit (867810-B21).
• The 8 LFF chassis cannot be upgraded to 12 LFF front in the field; however, the 4-LFF Mid plane (826686-B21) is supported, but will also require a performance fan kit (867810-B21).
• The 8LFF chassis ships with 6-standard fans.
• All models come with the S100i Smart Array Controller with embedded software RAID support for 12 drives. The S100iuses 14 embedded SATA ports, but only 12 ports are accessible as 2 are leveraged to support the 2 M.2 options on the primary riser.
