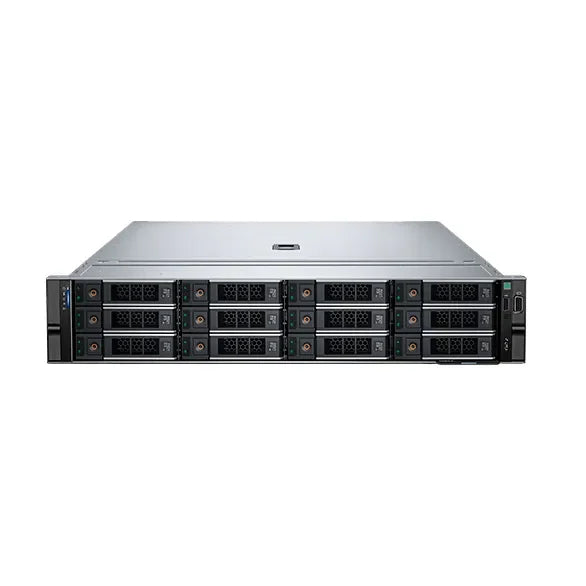

Dell PowerEdge Intel Xeon Processor Server R760 PowerEdge R760xs 2U Rack Server 3.84TB SSD vSAS 12Gbps 512e RI 2.5inch Hot-Plug

Regular price: R 184,345.95
Sale price: R 184,345.95
Regular price: ~~R 238,564.95~~
Unit price: per

Shipping calculated at checkout.

Default Title

Quantity must be 1 or more

SPECIFICATIONS

Brand Name: Dell PowerEdge

DIY Supplies: Electrical

Hard Drive: 3.84TB SSD vSAS 12Gbps 512e RI 2.5in Hot-Plug

High-concerned Chemical: None

Model NO.: R760 server

Processor Main: 3.4GHz

Processor Type: Intel Xeon

RAID Controller: H345 h745 h755 raid card

Raid: Front PERC H355 Rear Load

Specification: 2U rack server

Type: Rack

Model Number: R760

Private Mold: NO

Processor main frequency: 3.4GHz

Processor type: intel xeon

Products status: Stock

Size: 707mm*482mm*86.8mm

Type: Rack

Product Description

Technical Specifications

Processor	Up to two 4th Generation Intel Xeon Scalable processor with up to 32 cores per processor
Memory	• 16 DDR5 DIMM slots, supports RDIMM 1 TB max, speeds up to 4800 MT/s, supports registered ECC DDR5 DIMMs only
Storage controllers	• Internal Controllers: PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i • Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 1, 2 x M.2 NVMe SSDs or USB • External HBA (non-RAID): HBA355e; Software RAID: S160
Drive Bays	Front bays: • 0 drive bay • Up to 8 x 3.5-inch SAS/SATA (HDD/SSD) max 160 TB • Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 240 TB •Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.88 TB • Up to 16 x 2.5-inch SAS/SATA (HDD/SSD) max 121.6 TB • Up to 16 x2.5-inch (SAS/SATA) + 8 x 2.5-inch (NVMe) (HDD/ SSD) max 244.48 TB
GPU Options	2 x 75 W SW, LP
Hot swap Redundant Power Supplies	• 1800 W Titanium 200—240 VAC or 240 HVDC • 1400 W Platinum 100—240 VAC or 240 HVDC • 1100 W Titanium 100—240 VAC or 240 HVDC •1100 W LVDC -48 — (-60) VDC 800 W Platinum 100—240 VAC or 240 HVDC, • 700 W Titanium 200—240 VAC or 240 HVDC • 600 W Platinum 100—240 VAC or 240 HVDC
Cooling Options	• Air cooling
Fans	• Standard (STD) fans/High performance Silver (HPR) fans/ High performance Gold (VHP) fans, Up to 6 hot swappable fans
Dimensions	• Height – 86.8 mm (3.41 inches) • Width – 482 mm (18.97 inches) • Depth – 707.78 mm (27.85 inches) – without bezel 721.62 mm (28.4 inches) – with bezel • Weight – Max 28.6 kg (63.0 lbs.)
Form Factor	2U rack server
Embedded Management	• iDRAC9 • iDRAC Direct • iDRAC RESTful API with Redfish • iDRAC Service Module • Quick Sync 2 wireless module
Bezel	Optional LCD bezel or security bezel
OpenManage Software	• CloudIQ for PowerEdge plug in • OpenManage Enterprise • OpenManage Enterprise Integration for VMware vCenter • OpenManage Integration for Microsoft System Center • OpenManage Integration with Windows Admin Center • OpenManage Power Manager plugin • OpenManage Service plugin • OpenManage Update Manager plugin
Mobility	OpenManage Mobile
Embedded NIC	2 x 1 GbE LOM

The Dell PowerEdge Intel Xeon Processor Server R760 PowerEdge R760xs 2U Rack Server 3.84TB SSD vSAS 12Gbps 512e RI 2.5inch Hot-Plug is the product you didn't think you need, but once you have it, something you won't want to live without.
