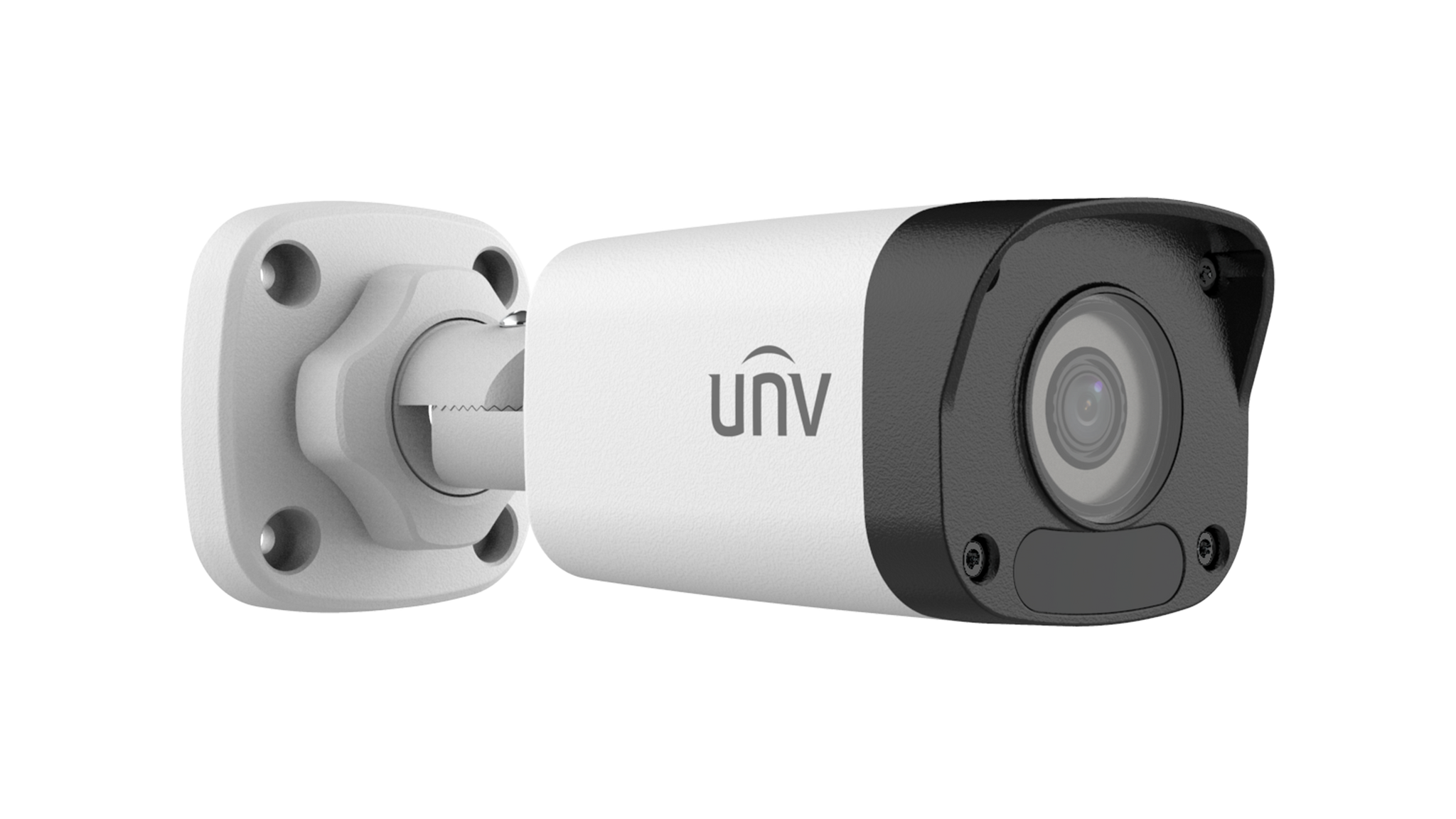

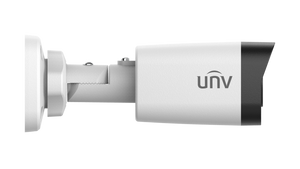

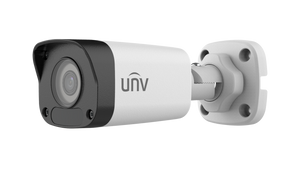

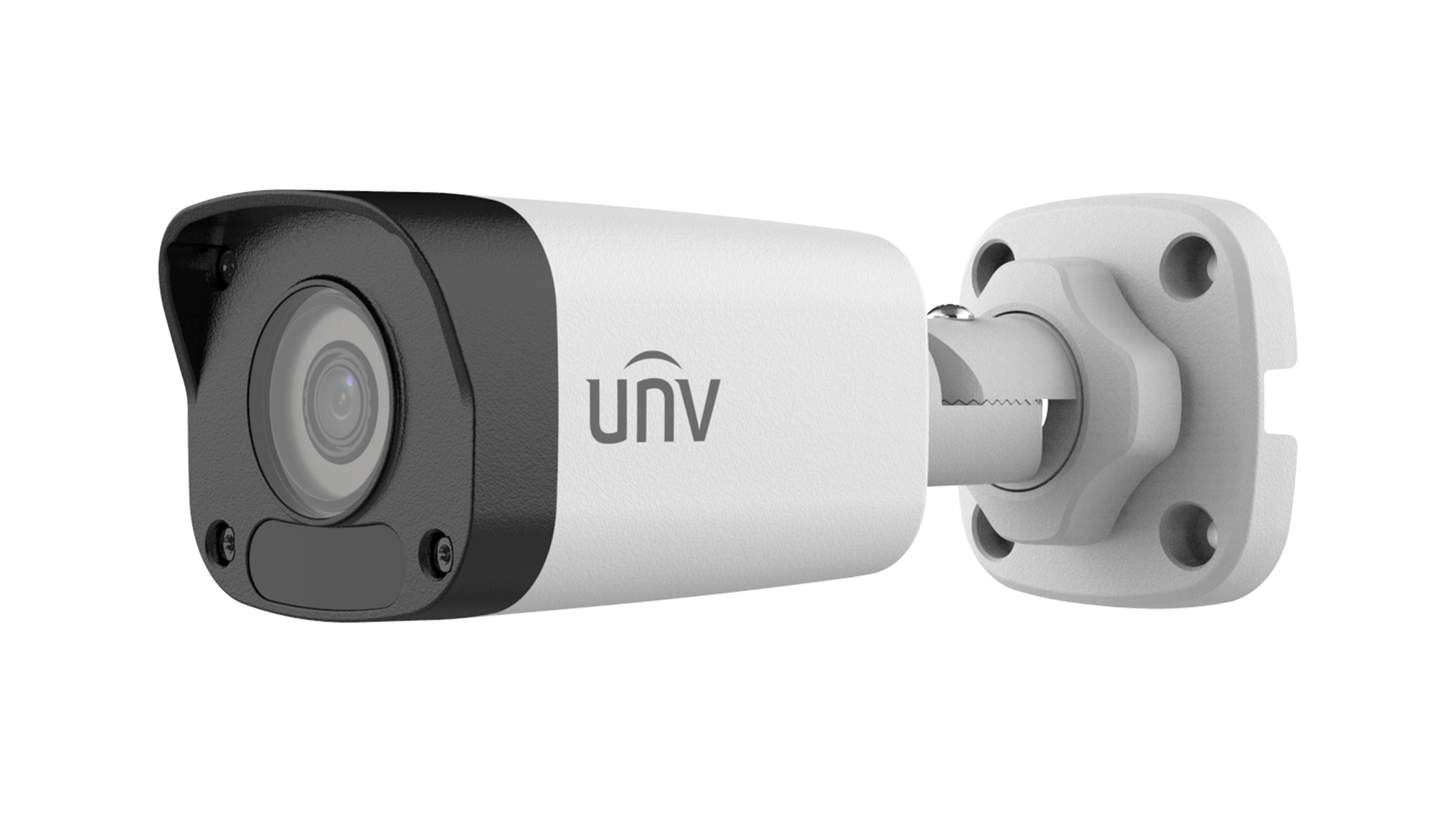

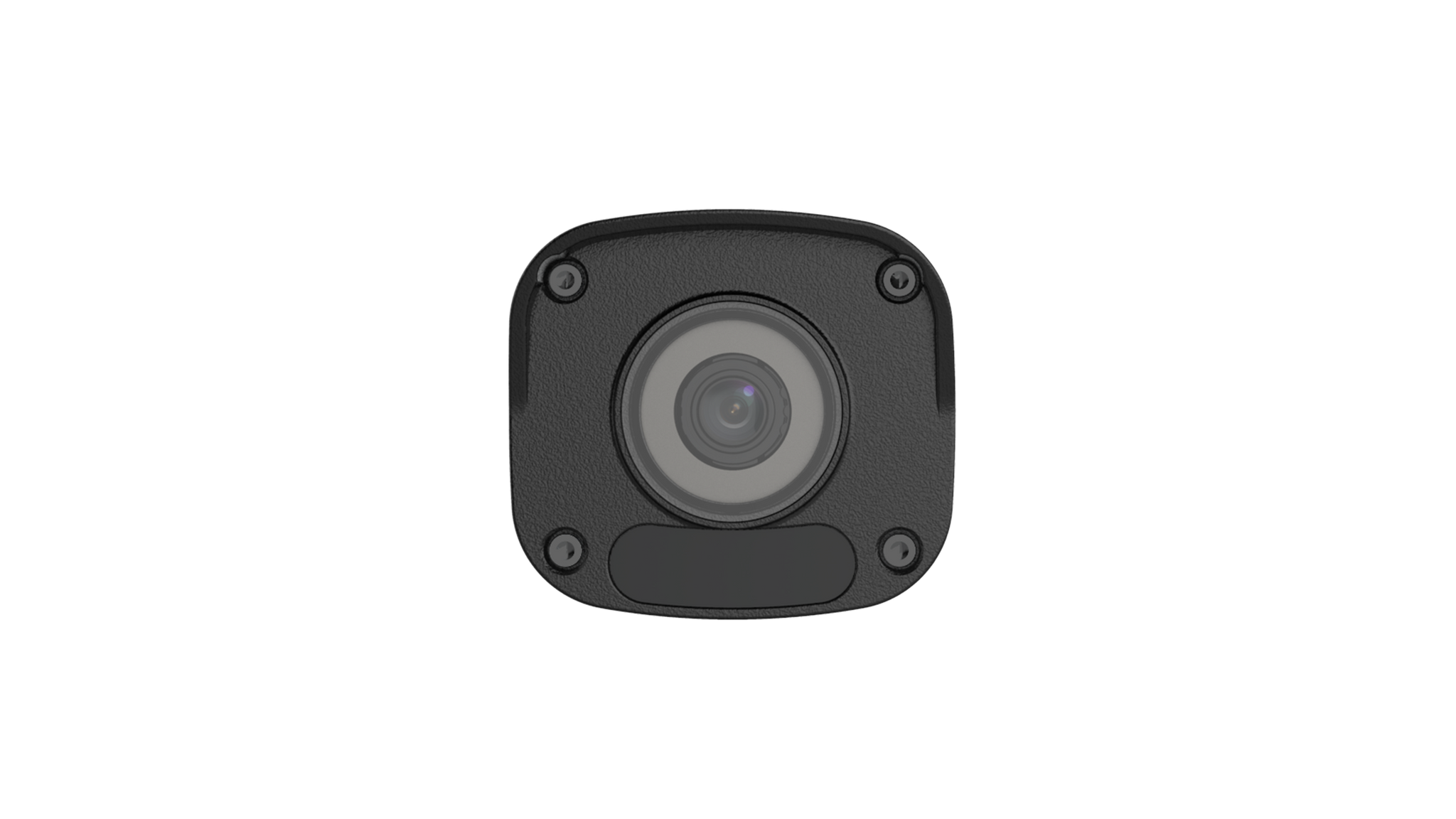

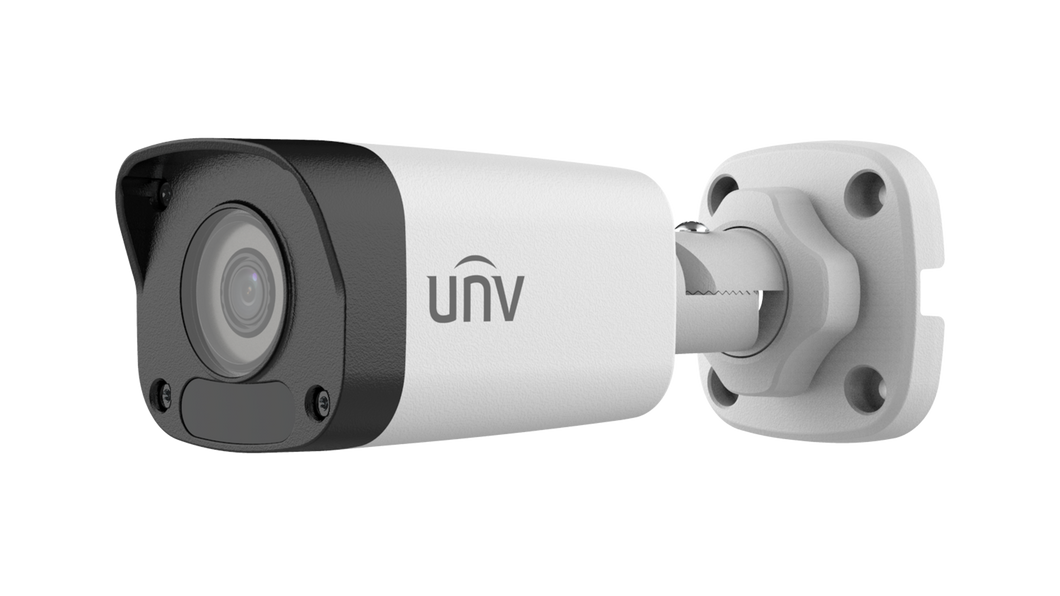

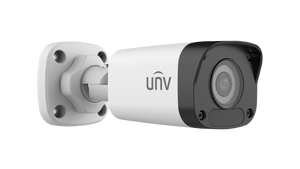

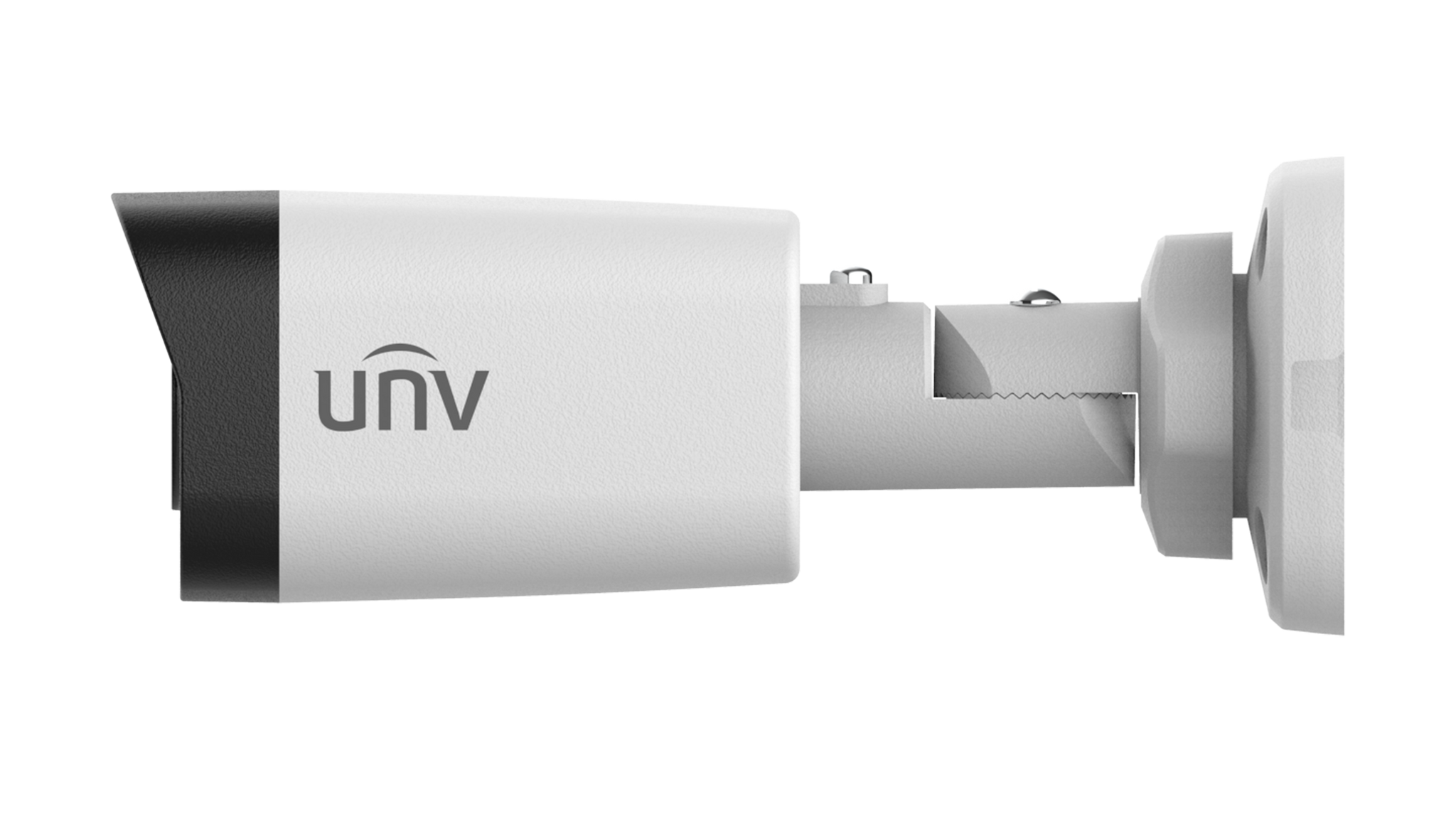

UNV Ultra H.265 A 4MP Mini Fixed Bullet-Camera (Plastic) Now support up to 30 FPS, No Analytics, PoE, IR 30m, 2.8mm lens, IP67, Motion and Intrusion
UNV Ultra H.265 A 4MP Mini Fixed Bullet-Camera (Plastic) Now support up to 30 FPS, No Analytics, PoE, IR 30m, 2.8mm lens, IP67, Motion and Intrusion
UNV Ultra H.265 A 4MP Mini Fixed Bullet-Camera (Plastic) Now support up to 30 FPS, No Analytics, PoE, IR 30m, 2.8mm lens, IP67, Motion and Intrusion
UNV Ultra H.265 A 4MP Mini Fixed Bullet-Camera (Plastic) Now support up to 30 FPS, No Analytics, PoE, IR 30m, 2.8mm lens, IP67, Motion and Intrusion
UNV Ultra H.265 A 4MP Mini Fixed Bullet-Camera (Plastic) Now support up to 30 FPS, No Analytics, PoE, IR 30m, 2.8mm lens, IP67, Motion and Intrusion
UNV Ultra H.265 A 4MP Mini Fixed Bullet-Camera (Plastic) Now support up to 30 FPS, No Analytics, PoE, IR 30m, 2.8mm lens, IP67, Motion and Intrusion
  • Load image into Gallery viewer, UNV Ultra H.265 A 4MP Mini Fixed Bullet-Camera (Plastic) Now support up to 30 FPS, No Analytics, PoE, IR 30m, 2.8mm lens, IP67, Motion and Intrusion
  • Load image into Gallery viewer, UNV Ultra H.265 A 4MP Mini Fixed Bullet-Camera (Plastic) Now support up to 30 FPS, No Analytics, PoE, IR 30m, 2.8mm lens, IP67, Motion and Intrusion
  • Load image into Gallery viewer, UNV Ultra H.265 A 4MP Mini Fixed Bullet-Camera (Plastic) Now support up to 30 FPS, No Analytics, PoE, IR 30m, 2.8mm lens, IP67, Motion and Intrusion
  • Load image into Gallery viewer, UNV Ultra H.265 A 4MP Mini Fixed Bullet-Camera (Plastic) Now support up to 30 FPS, No Analytics, PoE, IR 30m, 2.8mm lens, IP67, Motion and Intrusion
  • Load image into Gallery viewer, UNV Ultra H.265 A 4MP Mini Fixed Bullet-Camera (Plastic) Now support up to 30 FPS, No Analytics, PoE, IR 30m, 2.8mm lens, IP67, Motion and Intrusion
  • Load image into Gallery viewer, UNV Ultra H.265 A 4MP Mini Fixed Bullet-Camera (Plastic) Now support up to 30 FPS, No Analytics, PoE, IR 30m, 2.8mm lens, IP67, Motion and Intrusion

UNV Ultra H.265 A 4MP Mini Fixed Bullet-Camera (Plastic) Now support up to 30 FPS, No Analytics, PoE, IR 30m, 2.8mm lens, IP67, Motion and Intrusion

R 1,657.50
R 1,657.50
Sold out
Shipping calculated at checkout.

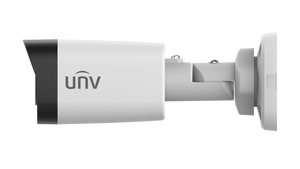

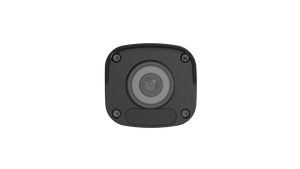

UNV - Ultra H.265 - A - 4MP Mini Fixed Bullet-Camera (Plastic) Now support up to 30 FPS

Description

UNV Ultra H.265 - A - 4MP Mini Fixed Bullet-Camera (Plastic) Now support up to 30 FPS, No Analytics, PoE, IR 30m, 2.8mm lens, IP67, Motion and Intrusion

SKU#: UN-IPC2124LB-SF28-A
Warranty: 1 Year
Manufacturer SKU#: IPC2124LB-SF28-A

Categories:
Surveillance, IP Cameras, Bullet-Camera
Brand: Uniview

Features

Uniview No Analytics, PoE, IR 30m, 2.8mm lens, IP67, Motion & intrusion detction

IPC2124LB-SF28(40)-A
4MP Fixed IR Bullet Network Camera
• High quality image with 4MP, 1/3.0"CMOS sensor
• 4MP (2560*1440)@25/20fps; 3MP (2304*1296)@25/20fps; 2MP (1920*1080)@30/25fps; 720P (1280*720)@30/25fps
• H.265, H.264
• Smart IR, up to 30m (98ft) IR distance
• Day/night functionality
• 2D/3D DNR (Digital Noise Reduction)
• IP67 protection
• DC12V or PoE(IEEE 802.3af) power supply
• 3-Axis

Specifications

IPC2124LB-SF28-A IPC2124LB-SF40-A
Camera
Max Resolution 4 MP
Sensor 1/3.0" CMOS
Min. Illumination Colour: 0.01 lux (F2.1, AGC ON)
0 lux with IR on
Day/Night IR-cut filter with auto switch (ICR)
Shutter Auto/Manual, 1 ~ 1/100000s
Adjustment Angle Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotate: 0° ~ 360°
S/N >52 dB
WDR DWDR
Lens
Focal Length 2.8 mm 4.0 mm
Iris Type Fixed
Iris F2.1
Field of View (H) 97.0° 79.0°
Field of View (V) 52.2° 42.3°
Field of View (D) 107.5° 85.1°
DORI
DORI Distance (Lens) 2.8mm 4.0mm
DORI Distance (Detect) 63.0m(206.7ft) 90.0m(295.3ft)
DORI Distance (Observe) 25.2m(82.7ft) 36.0m(118.1ft)
DORI Distance (Recognize) 12.6m(41.3ft) 18.0m(59.1ft)
DORI Distance (Identify) 6.3m(20.7ft) 9.0m(29.5ft)
Illuminator
Supplemental Light IR
Illumination Distance (IR) 30 m (98.4 ft)
Wavelength 850 nm
IR On/Off Control Auto/Manual
Video
Video Compression Ultra 265, H.265, H.264
H.264 Code Profile Baseline profile, Main profile, High profile
Frame Rate Main Stream: 4MP (2560*1440), Max 25fps; 3MP(2304*1296), Max 25fps;2MP(1920*1080),Max 30fps
Sub Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps
Video Bit Rate 128 Kbps to 6144 Kbps
U-code Support (Main stream)
OSD Up to 4 OSDs
Privacy Mask Up to 4 areas
ROI Support
Video Stream Dual Streams
White Balance Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2
Digital Noise Reduction 2D/3D DNR
Smart IR Support
Flip Normal, Flip Vertical, Flip Horizontal, 180°
Dewarping N/A
HLC Support
BLC Support
Defog Digital Defog
Events
Basic Detection Motion Detection
General Function Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, UPnP, HTTP, HTTPS, QoS, SSL/TLS
Compatible Integration ONVIF (Profile S, Profile T) ,
API, SDK
User/Host Up to 32 users. 3 user levels: administrator, common user and operator
Security Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, WSSE and Digest Authentication for ONVIF
Client UNV-Link, UNV-Link Pro, EZStation
Web Browser Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+
Interface
Audio I/O N/A
Alarm I/O N/A
Serial Port N/A
Built-in Mic N/A
Built-in Speaker N/A
WIFI N/A
Network 1 × RJ45 10 M/100 M Base-TX Ethernet
Video Output N/A
Certification
EMC CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035)
FCC (FCC 47 CFR part15 B)
Safety CE LVD (EN 62368-1)
CB (IEC 62368-1)
UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
Environment CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
Protection IP67 (IEC 60529)
General
Power DC 12V±25%, PoE (IEEE 802.3af)
Power Consumption Max 5.0W
Power Interface Ø5.5 mm coaxial power plug
Dimensions 161 × 63 ×62mm (6.4” × 2.5” × 2.4”) (L x W x H)
Weight 0.31kg(0.68lb)
Material Graphene + Plastic
Working Environment -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Storage Environment -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Surge Protection 4 KV
Reset Button N/A
Web Client Language 1 Language: English



The UNV Ultra H.265 A 4MP Mini Fixed Bullet-Camera (Plastic) Now support up to 30 FPS, No Analytics, PoE, IR 30m, 2.8mm lens, IP67, Motion and Intrusion is a sensational customer favorite, and we hope you like it just as much.
