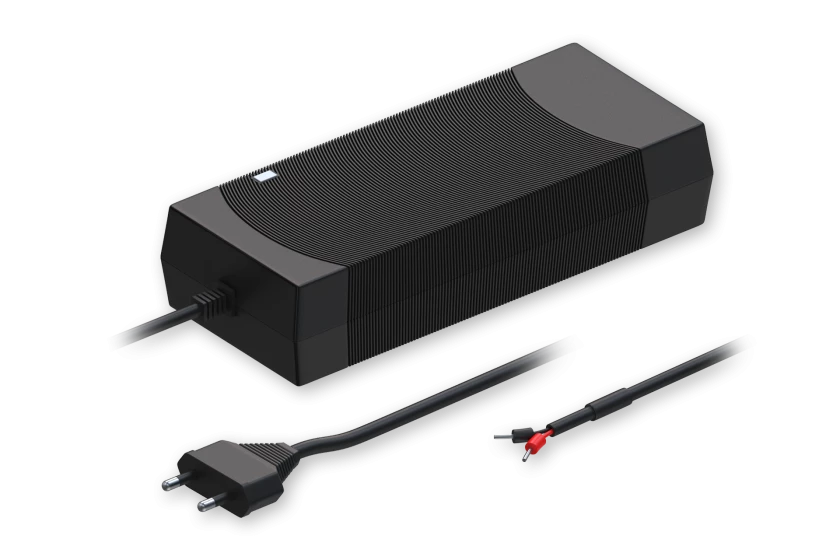

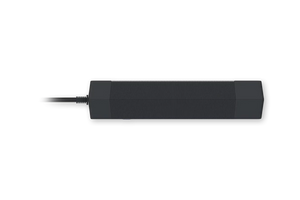

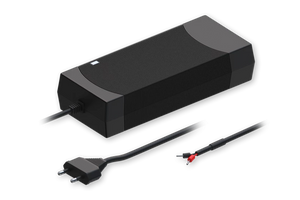

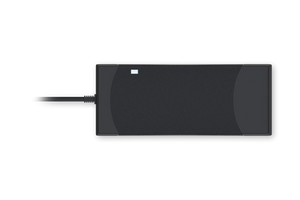

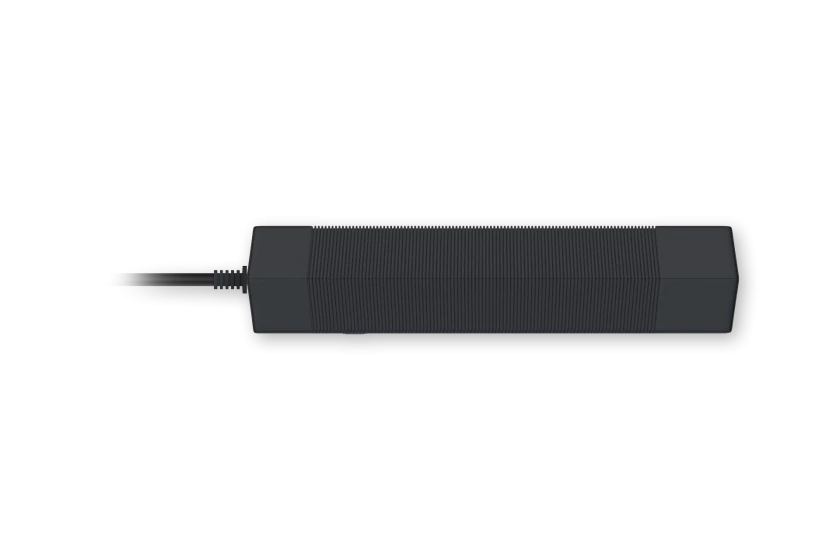

Teltonika PR313EU3 EU 2-pin power supply, 130W - For TSW040, TSW200, TSW202 switches

Technical Data

• GENERAL




• Input voltage

  100 – 240 VAC

• Input frequency

  50 / 60 Hz

• Input current

  2.5 A

• Input connector

  EU (Type C)

• Output voltage

  50 VDC

• Output current

  2.6 A

• Output connector

  2-pin, with cord end terminals

• Weight

  500 g

• ADDITIONAL




• Input voltage range

  90 – 264 VAC

• Input frequency range

  47 – 63 Hz

• Maximum input inrush current

  50 A

• Output voltage maximum deviation

  47.5 – 52.5 VDC

• Short circuit protection

  ✓

• HIPOT (dielectric withstand test)

  Primary to Secondary: 4242 VDC

• MTBF

  50000 h

• PSU efficiency standard

  DoE Level VI

• Certification

  Safety: EN 60335-1:2012+A11:2014+A13:2017, EN 60335-2-29:2004+A2:2010+A11:2018, EN 62233:2008

  EMC: EN 55014-1:2017, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 55014-2:2015 (IEC 61000-4-2:2008, IEC 61000-4-4:2012, IEC 61000-4-5:2014, IEC 61000-4-6:2013, IEC 61000-4-11:2004+A1:2017)
