⁸ Cisco Catalyst 3850 / 9300 Power Supply, 715W AC, Hot-swappable, Plug- – Let's Fibre Technologies

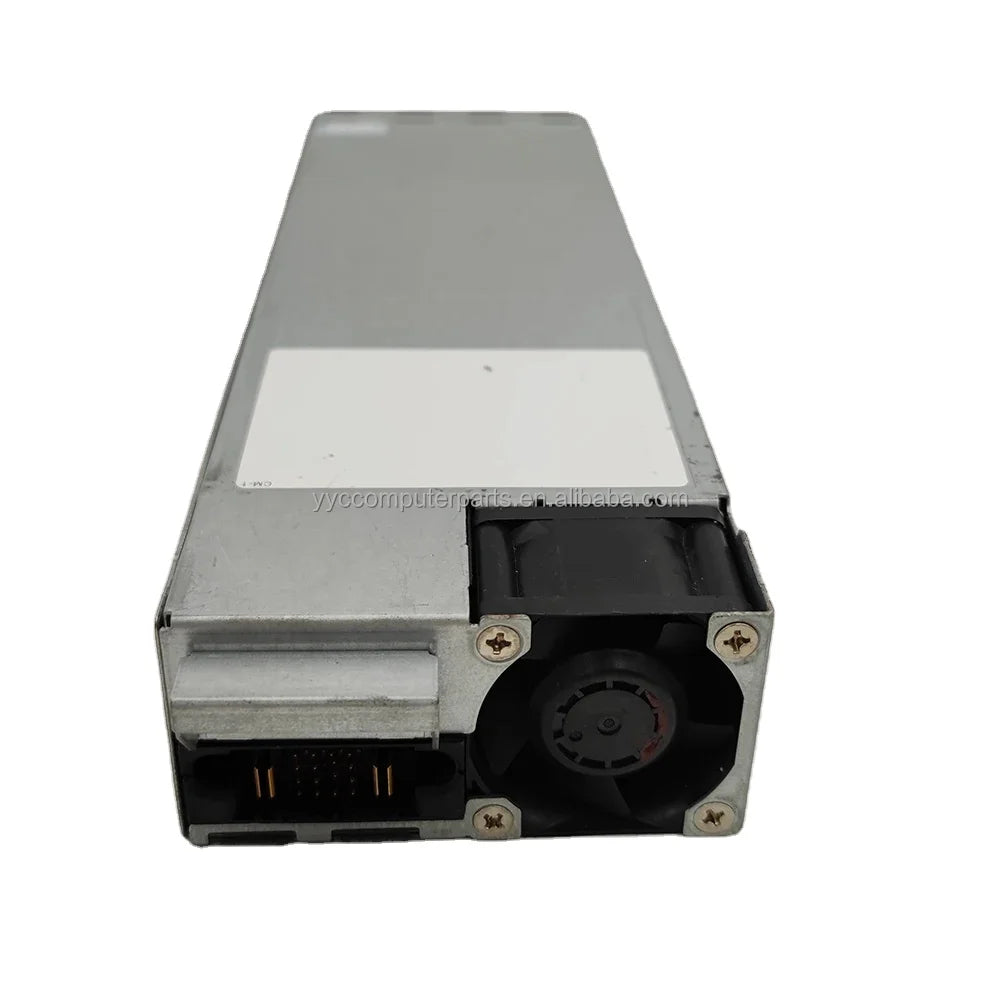

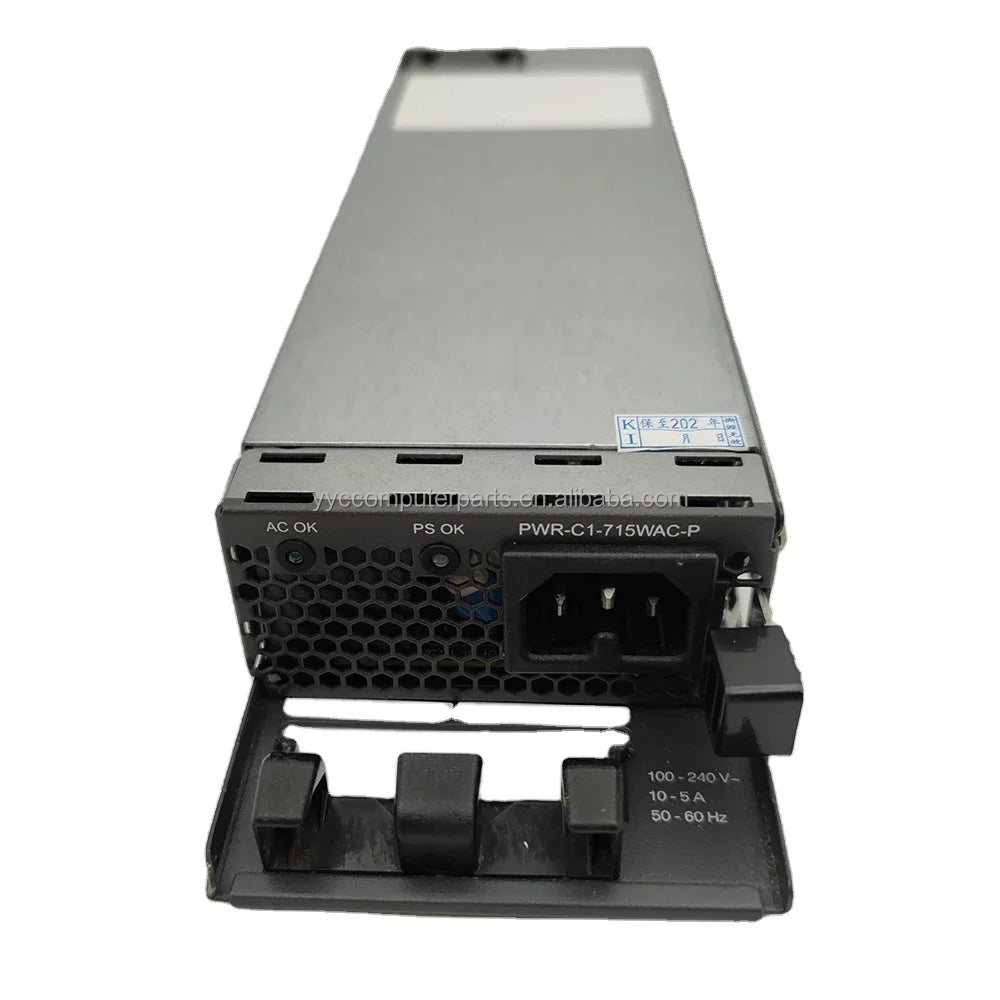

Cisco Catalyst 3850 / 9300 Power Supply, 715W AC, Hot-swappable, Plug-in module Power Supply Module with 24Pin 715W PWR-C1-715WAC-P
Cisco Catalyst 3850 / 9300 Power Supply, 715W AC, Hot-swappable, Plug-in module Power Supply Module with 24Pin 715W PWR-C1-715WAC-P
  • Load image into Gallery viewer, Cisco Catalyst 3850 / 9300 Power Supply, 715W AC, Hot-swappable, Plug-in module Power Supply Module with 24Pin 715W PWR-C1-715WAC-P
  • Load image into Gallery viewer, Cisco Catalyst 3850 / 9300 Power Supply, 715W AC, Hot-swappable, Plug-in module Power Supply Module with 24Pin 715W PWR-C1-715WAC-P

Cisco Catalyst 3850 / 9300 Power Supply, 715W AC, Hot-swappable, Plug-in module Power Supply Module with 24Pin 715W PWR-C1-715WAC-P

R 12,758.49
R 12,758.49
R 16,619.62
Sold out
Shipping calculated at checkout.

Cisco Catalyst 3850 / 9300 Power Supply, 715W AC, Hot-swappable, Plug-in module Power Supply Module with 24Pin 715W PWR-C1-715WAC-P

Description

The Cisco PWR-C1-715WAC-P is a highly reliable and efficient power supply designed for networking hardware. Equipped with an output power of 715W, this AC power supply module supports a wide range of Cisco switches and is built to ensure your network remains operational in various power conditions. Its plug-and-play installation and energy-efficient features make it an excellent choice for businesses looking to optimize their network's performance and resilience.

Quick Specs

Product Name PWR-C1-715WAC-P
Brand Cisco
Power Output 715W
Input Voltage AC 100-240V
Compatibility Cisco Catalyst Series Switches

Product Features

  • ● High-efficiency operation with up to 715W of power output.
  • ● Support for automatic failover for maximum uptime.
  • ● Hot-swappable design allows for easy installation and replacement without network disruption.
  • ● Environmentally-friendly with energy-efficient features to reduce power consumption.
  • ● Built-in overvoltage, overcurrent, and overtemperature protection.

Product Applications

  • ●Data centers requiring robust power supply backups to maintain network uptime during power fluctuations.
  • ●Enterprise-level networks looking to enhance energy efficiency and reduce operational costs.
  • ●High-density network environments where reliable power supply is critical for handling high volumes of data and network traffic.

Supported Options

Rack Mount Kit ACK-I-RACK-MOUNT-1
Cable Guard CGUARD-LX
Air Filter AFILT-7341

Compare to Similar Items

Models Differences
PWR-C2-1025WAC Output power of 1025W, higher than PWR-C1-715WAC-P
PWR-C1-350WAC Output power of 350W, lower than PWR-C1-715WAC-P
PWR-C1-1100WAC Output power of 1100W, significantly higher than PWR-C1-715WAC-P; best for larger networks

PWR-C1-715WAC-P Specifications
Power supply rated maximum output power 715W
Total output BTU
(note: 1000 BTU/hr = 293W)		 2440 BTU/hr, 715W
Input-voltage range and frequency

100 to 240 VAC,

50 to 60 Hz
Input current 10-5A
Output ratings -56V at 12.8A
Output holdup time 20 ms minimum at 100VAC
Power-supply input receptacles

IEC 320-C16

(IEC60320-C16)
Power Supply Efficiency Platinum Efficiency
MTBF 1,054,881 (ranges from 1.05M to 2.6M depending on temperature, input voltage and vendor)
Power cord rating 15A
Physical specifications

(H x W x D): 1.58 x 3.25 x 12.20 in

Weight: 2.6 lb (1.2 kg)
Operating temperature

Normal operating temperature* and altitudes:

●  -5°C to +45°C, up to 5000 feet (1500m)

●  -5°C to +40°C, up to 10,000 feet (3000m)

*Minimum ambient temperature for cold start is 32°F (0°C)

Short-term* exceptional conditions:

●  -5°C to +50°C, up to 5000 feet (1500m)

●  -5°C to +45°C, up to 10,000 feet (3000m)

●  -5°C to +45°C, at sea level with single fan failure

*Not more than following in one-year period: 96 consecutive hours, or 360 hours total, or 15 occurrences
Storage temperature -40° to 158°F (-40° to 70°C)
Relative humidity operating and nonoperating noncondensing 5% to 90% noncondensing
Altitude 10,000 ft. (3000 meters), up to 45°C
EMI and EMC compliance

FCC Part 15 (CFR 47) Class A

ICES-003 Class A

EN 55032 Class A

CISPR 32 Class A

AS/NZS 3548 Class A

BSMI Class A
(AC input models only)

VCCI Class A

EN 55024, EN300386,
EN 61000-3-2, EN 61000-3-3

EN61000-4-2, EN61000-4-3,
EN61000-4-4, EN61000-4-5,
EN61000-4-6
LED indicators

“AC OK”: Input power to the power supply is OK

“PS OK”: Output power from the power supply is OK


*PWR-C1-715WAC-UP is available as an PSU upgrade option to 715W primary PSU

Every product is unique, just like you. If you're looking for a product that fits the mold of your life, the Cisco Catalyst 3850 / 9300 Power Supply, 715W AC, Hot-swappable, Plug-in module Power Supply Module with 24Pin 715W PWR-C1-715WAC-P is for you.
