Yeacomm YF-P11K Outdoor WiFi CPE 4G CPE WIFI Kit waterproof 4G LTE TDD FDD outdoor CPE wireless Router with POE 300Mbps Enterprise

Yeacomm YF-P11K Outdoor WiFi CPE 4G CPE WIFI Kit waterproof 4G LTE TDD FDD outdoor CPE wireless Router with POE 300Mbps Enterprise

SPECIFICATIONS

2.4G Wi-Fi Transmission Rate: 300 Mbps

4G Speed: CAT4 150Mhz

5G Wi-Fi Transmission Rate: None

Application: ENTERPRISE

Brand Name: YEACOMM

Certification: CE FCC ROHS

Chipset: ATHEROS 9341

Color: White

DDNS: Support

Encryption Type: WPA2-PSK, WPA2, WPA, WEP

Firewall: Support

Function: FireWall, QoS, VPN

Interface: RJ45

LAN Ports: 1

Max. LAN Data Rate: 300Mbps

Products Status: New, Stock

SMS: support

Standards And Protocols: Wi-Fi 802.11g, Wi-Fi 802.11b, Wi-Fi 802.11n, Wi-Fi 802.11a

Supports WDS: No

Supports WPS: Yes

Type: Wireless

WAN Ports: 1

WIFI: 802.11b/g/n 150Mbps

Waterproof and Dustproof: IP66

Wi-Fi Supported Frequency: 2.4G

Wi-Fi Transmission Standard: 802.11n

Wired Transfer Rate: 10/100Mbps

With Modem Function: NO

Outdoor WiFi CPE YF-P11K 4G CPE WIFI KIT

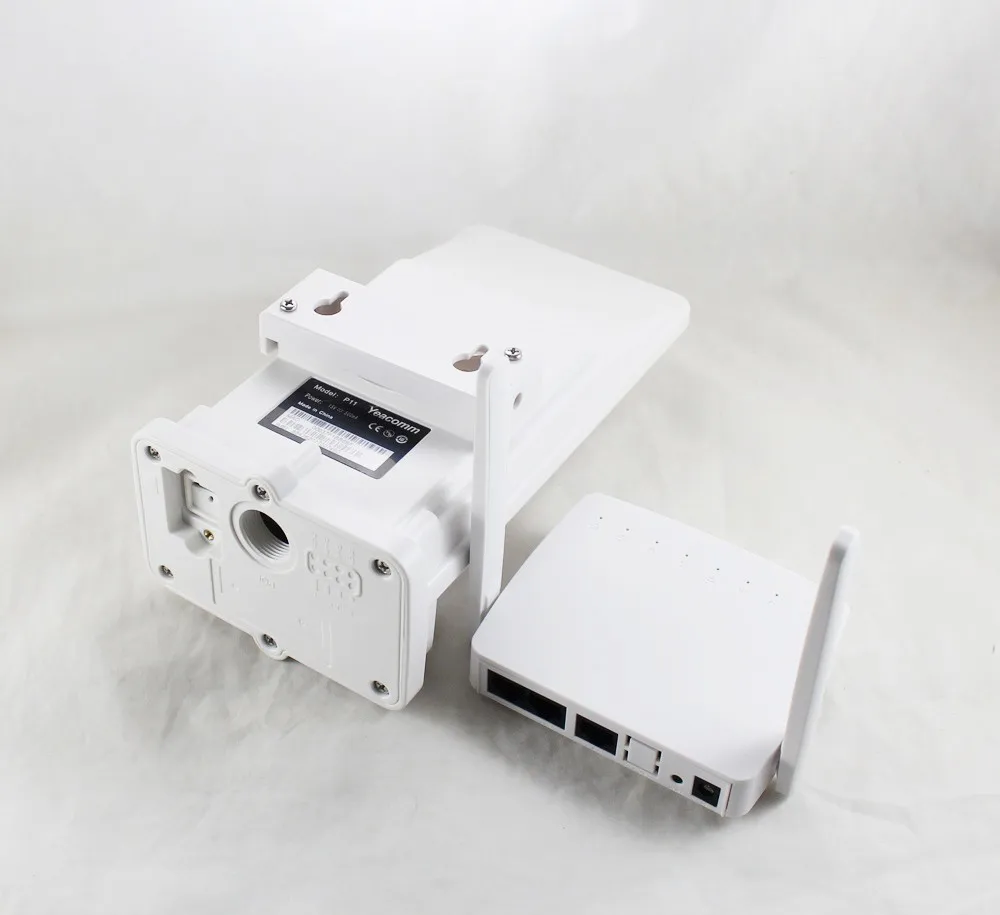

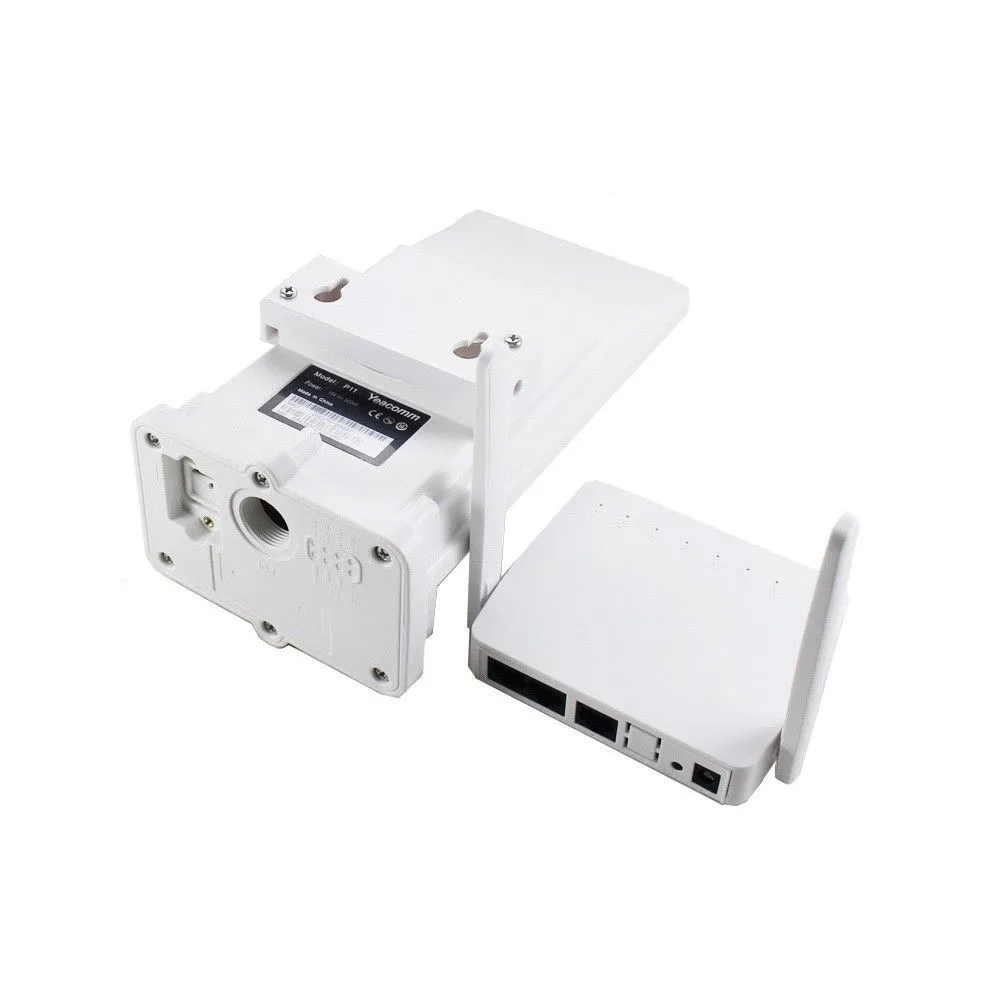

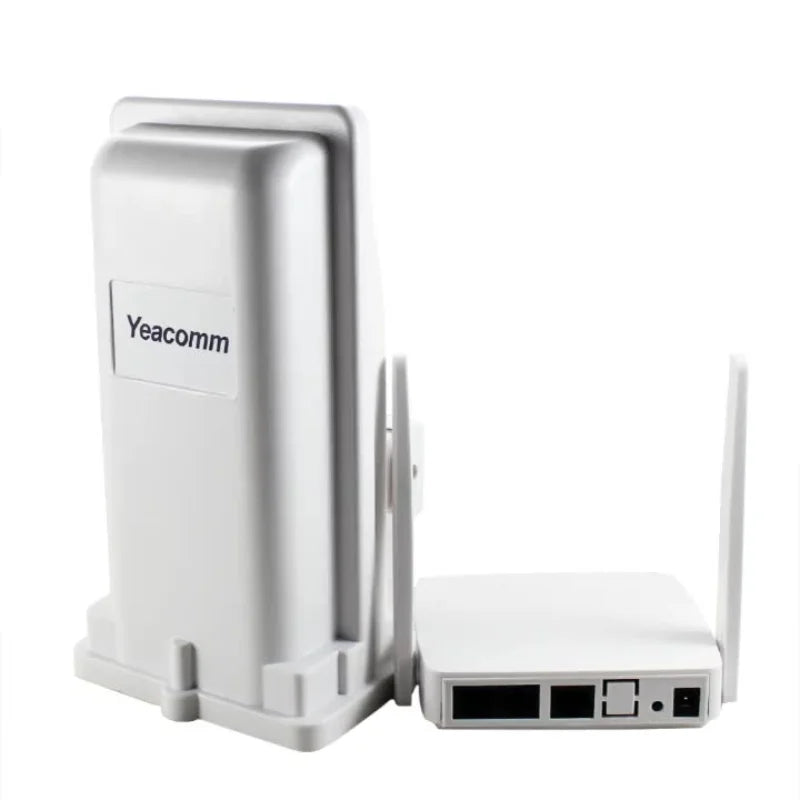

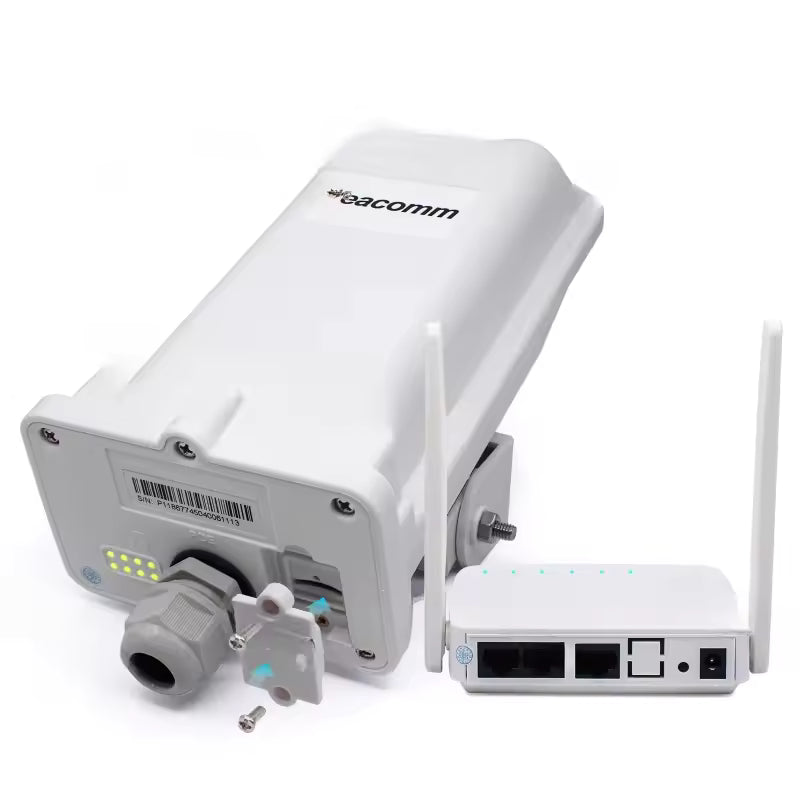

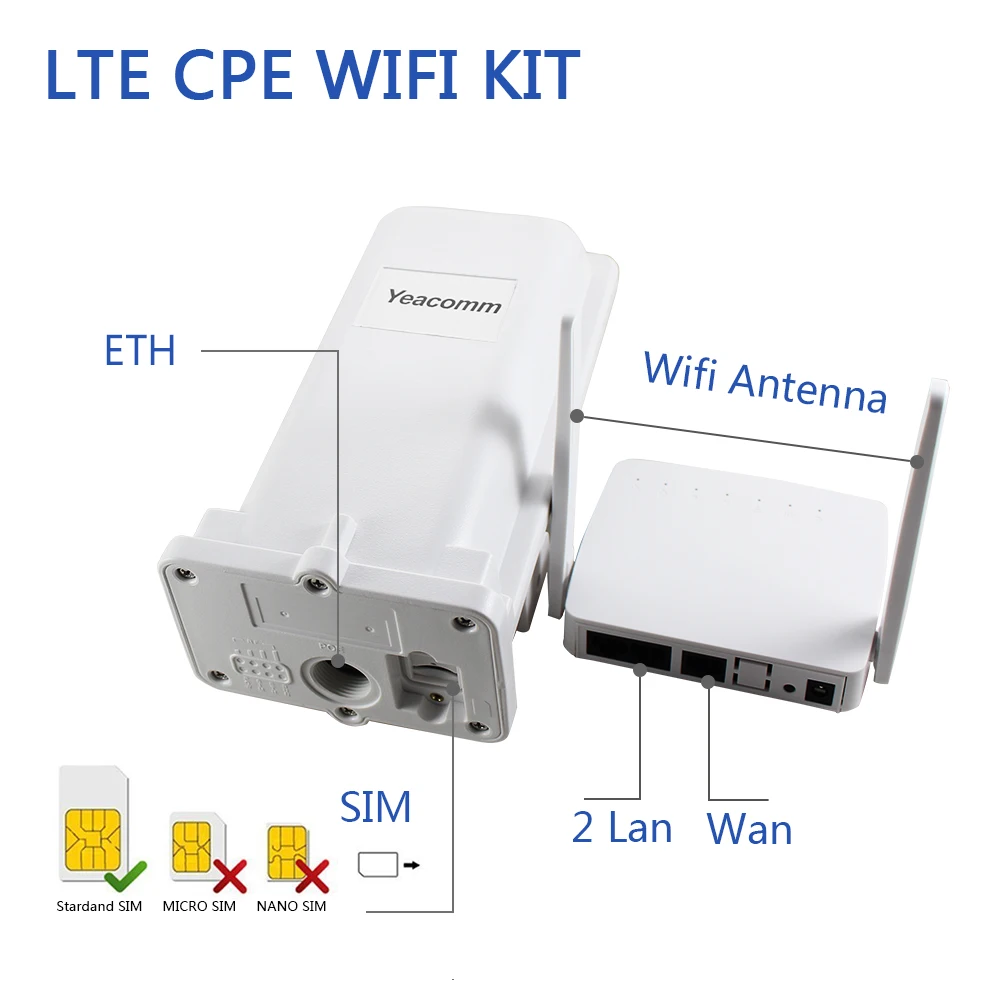

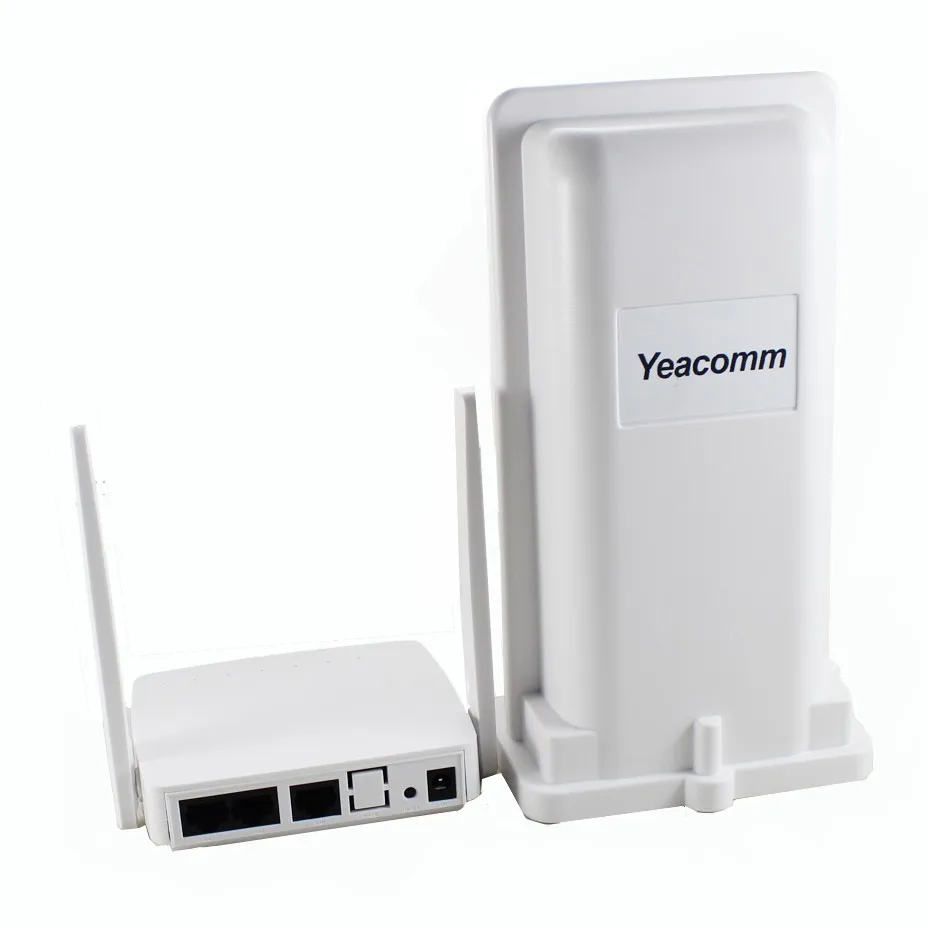

Yeacomm 4G WIFI KIT YF-P11K is divided into two parts (an outdoor LTE unit with sim card slot and an indoor unit with WIFI function.)

The outdoor unit designed with built-in high gain antenna to achieve LTE signal amplification. The water-proof and lightning-proof casing helps the unit to be good used at outdoors.

The indoor unit is placed in the room. It is just like a normal wireless router with 2 Lan ports and WIFI.

These 2 parts connected By Category 5 cable. The indoor unit supply power to the outdoor unit through POE, while the indoor unit provides two Ethernet ports and WIFI signal.

The outdoor unit.

Lan: 1 x 10/100 Mbps Ethernet port(RJ45)

Antenna: Cellular: high gain Internal 8DBi

SIM/UIM: Standard 3V/1.8V user card interface, 15KV ESD protection

Power: POE, through RJ45 port

Dimensions: 252 x 112 x 58mm

Weight: about 560g

The indoor unit.

Wan: 1 x 10/100 Mbps wan port(RJ45)

Lan: 2 x 10/100 Mbps Ethernet port(RJ45)

Antenna: 2 x WIFI antenna

Power: 1 x DC power adapter , DC15V/1A

Dimensions: 105mm x 95mm x 20mm

Weight:125g
