UBIQUITI RD-5G30-LW UISP airMAX RocketDish 5 GHz, 30 dBi LW Antenna Basestation Or Point-to-Point Bridge Or Network Backhaul

Regular price: R 27,129.52
Sale price: R 27,129.52
Regular price: ~~R 37,727.00~~
Unit price: per

Shipping calculated at checkout.

Default Title

Quantity must be 1 or more

UBIQUITI RD-5G30-LW UISP airMAX RocketDish 5 GHz, 30 dBi LW Antenna Basestation Or Point-to-Point Bridge Or Network Backhaul airMAX 5 GHz, 30 dBi RocketDish LW

SPECIFICATIONS

Brand Name: UBIQUITI

Certification: CE,FCC

High-concerned chemical: None

Model Number: RD-5G30-LW

Product Description

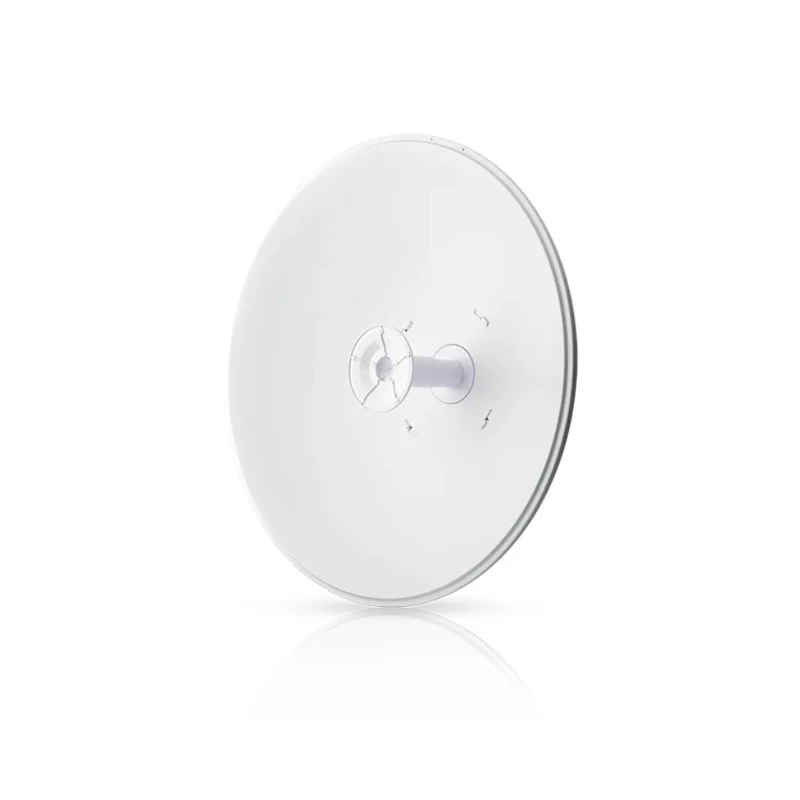

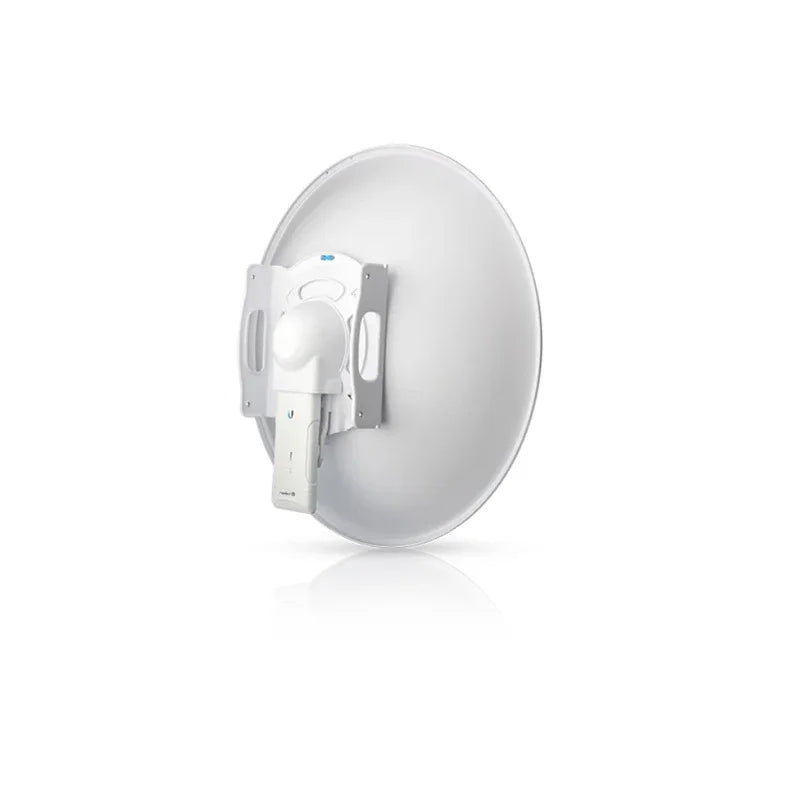

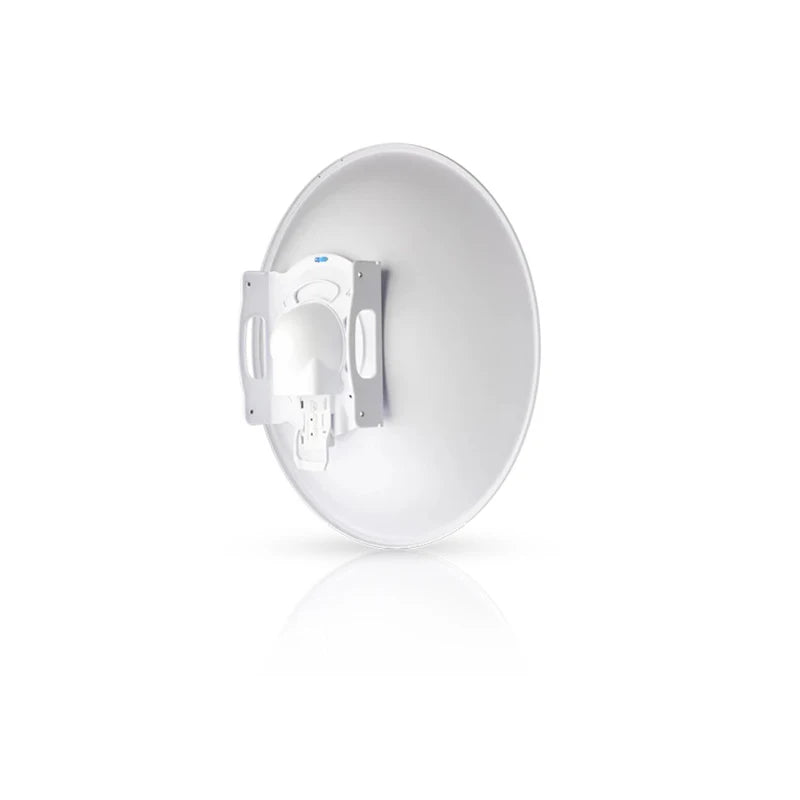

UISP airMAX RocketDish, 5 GHz, 30 dBi LW Antenna

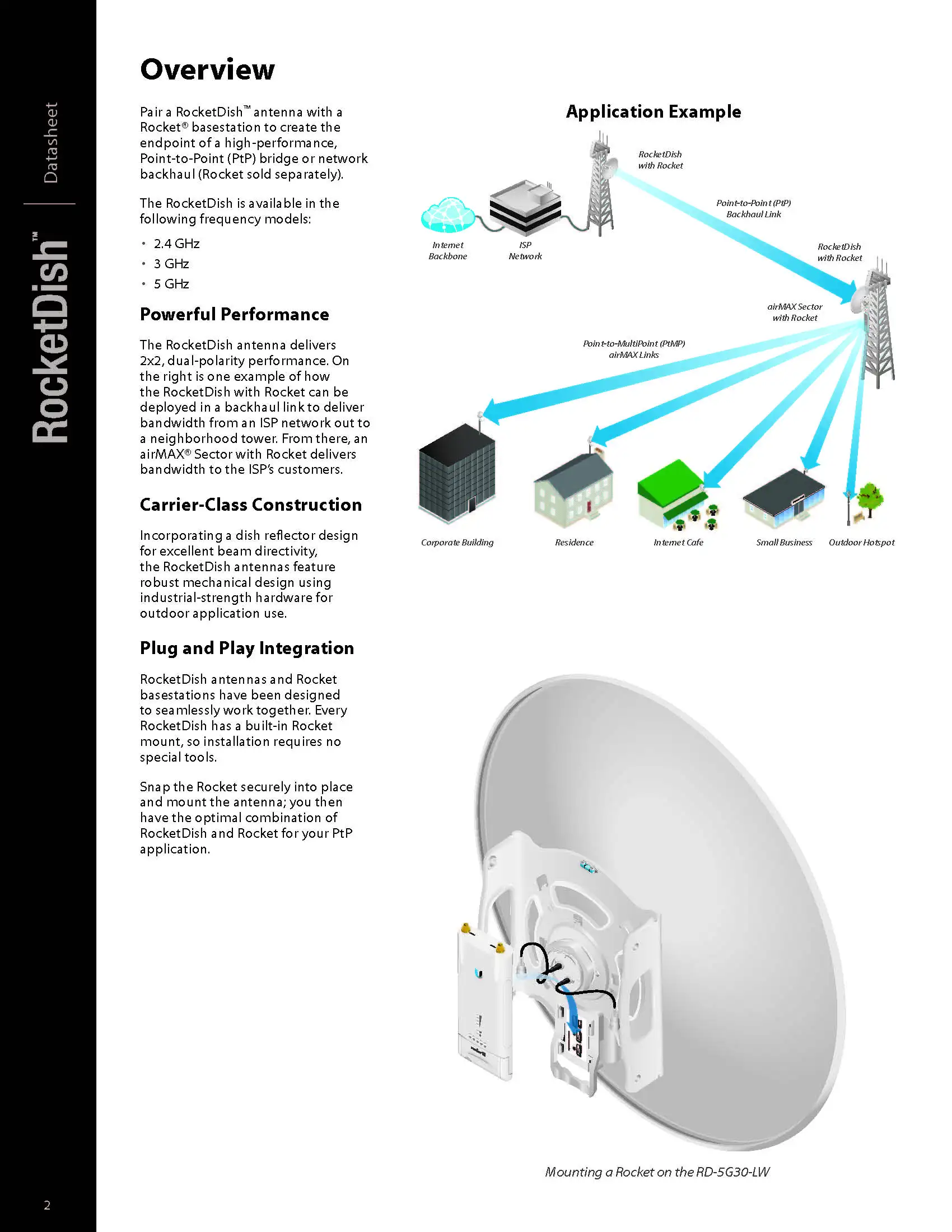

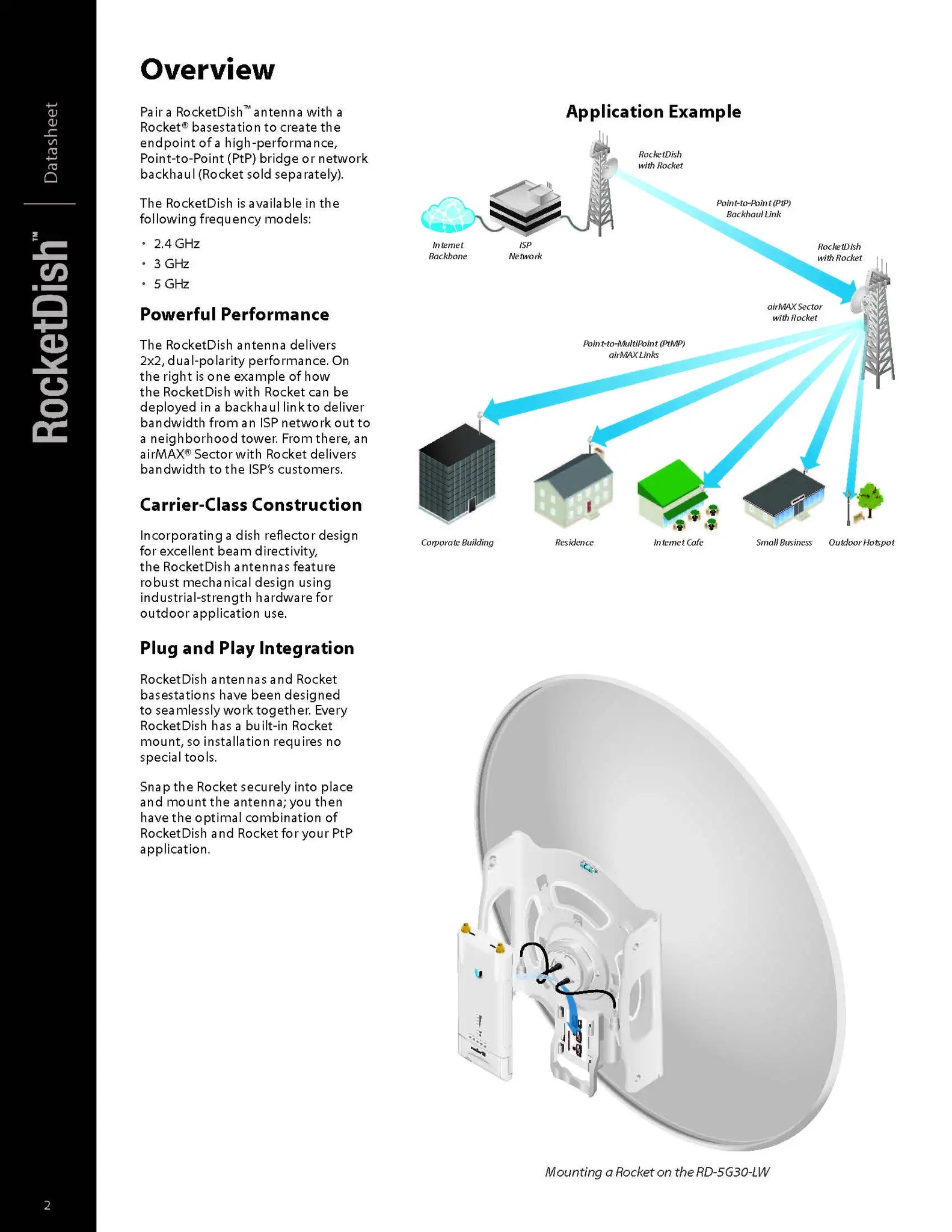

Pair a RocketDish™ antenna with a Rocket® basestation to create the endpoint of a high-performance, Point-to-Point (PtP) bridge or network backhaul (Rocket sold separately). The RocketDish is available in the following frequency models:

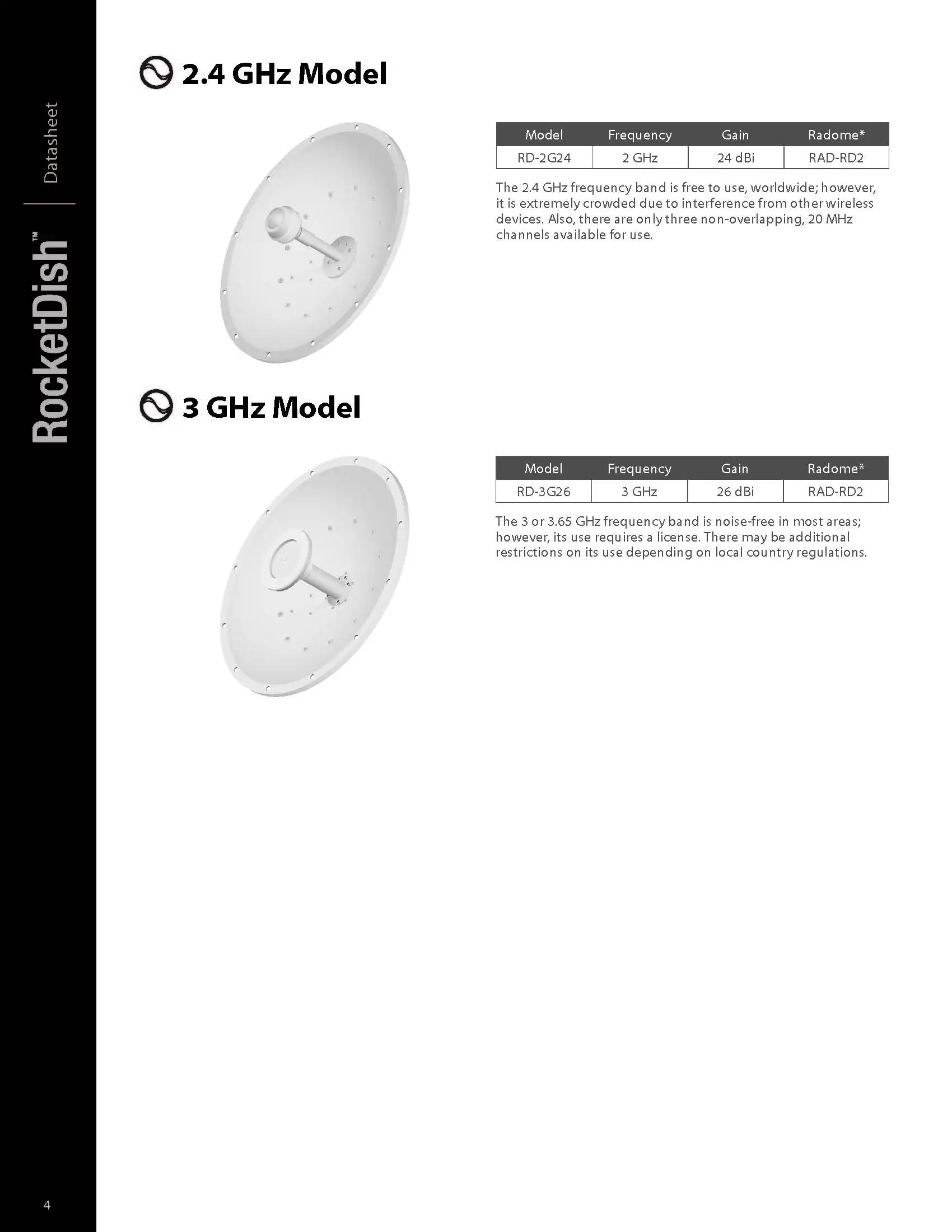

- 2.4 GHz
- 3 GHz
- 5 GHz

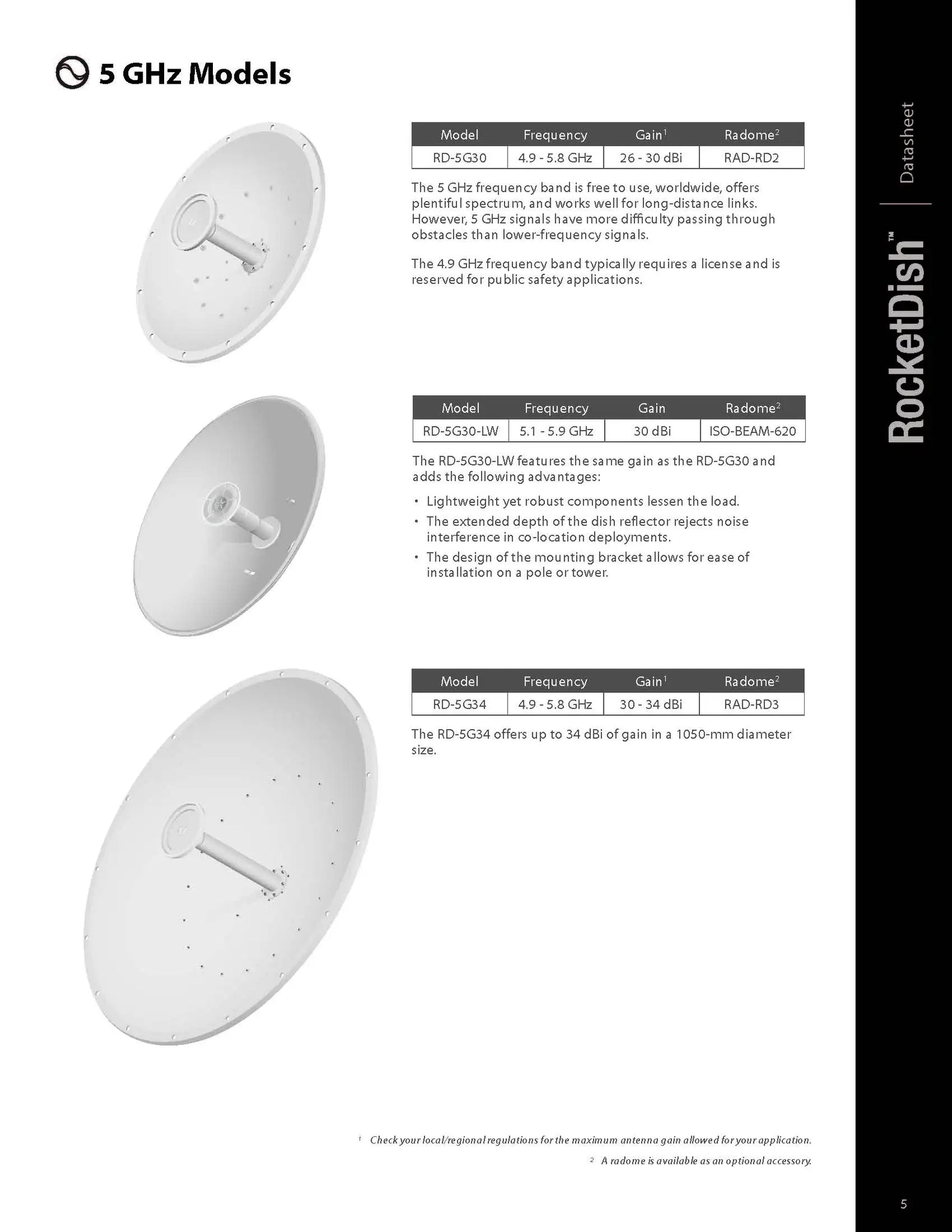

The 5 GHz frequency band is free to use, worldwide, offers plentiful spectrum, and works well for long-distance links. However, 5 GHz signals have more difficulty passing through obstacles than lower-frequency signals.

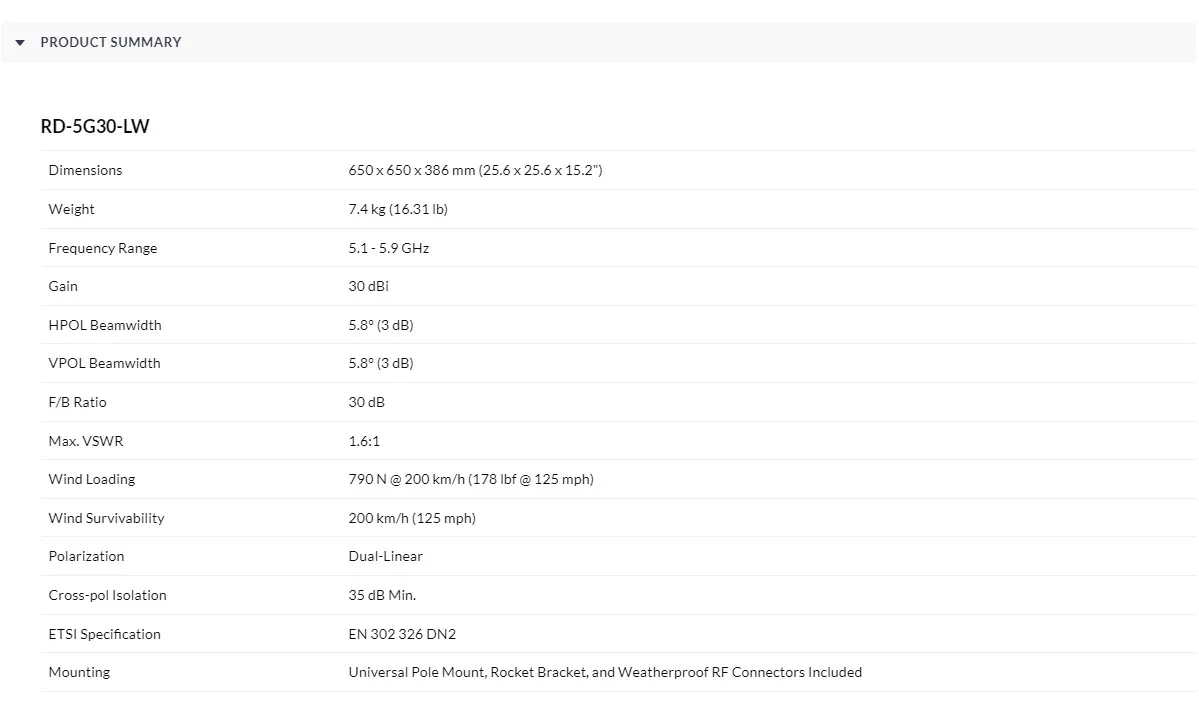

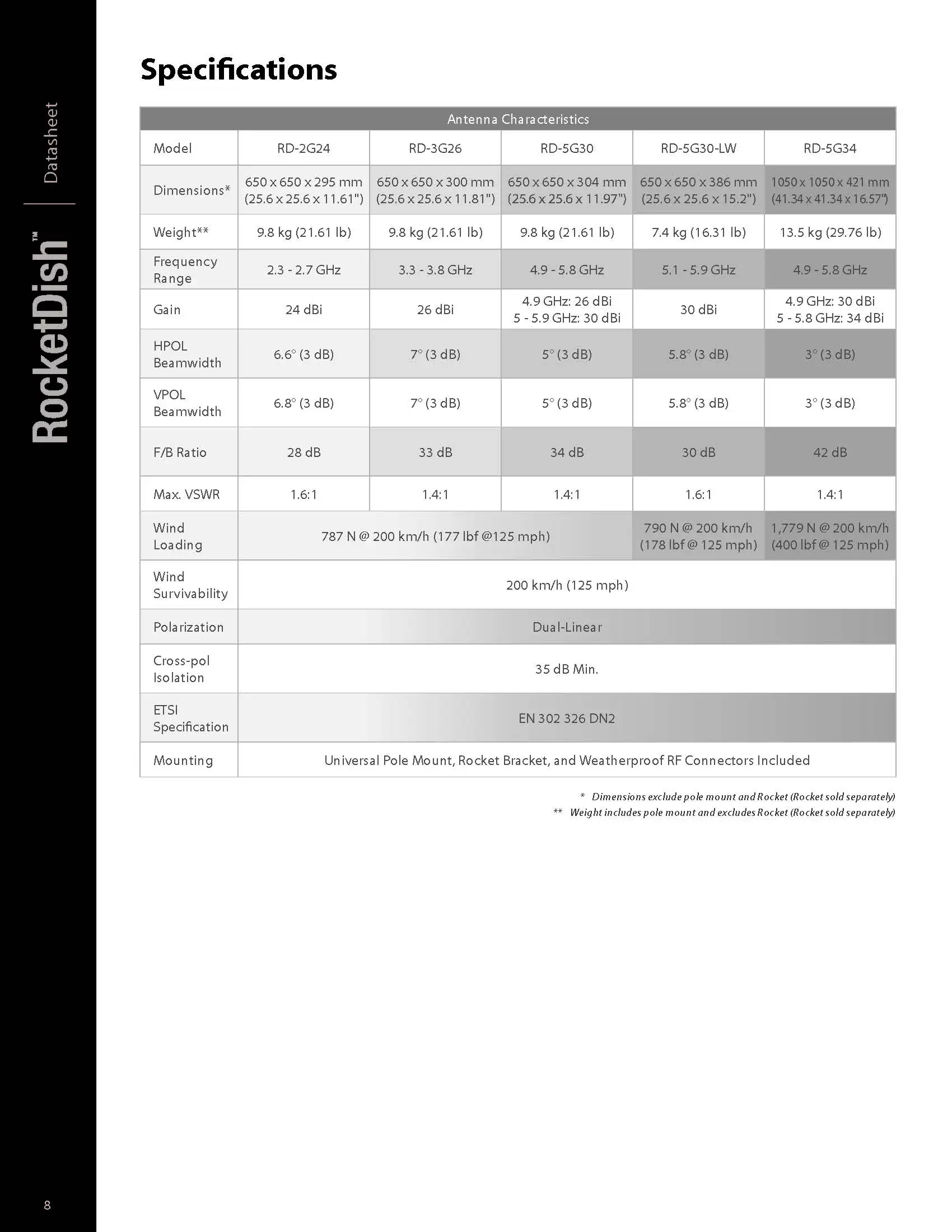

Technical Specifications

RD-5G30-LW
Dimensions	650 x 650 x 386 mm (25.6 x 25.6 x 15.2")
Weight	7.4 kg (16.31 lb)
Frequency Range	5.1 - 5.9 GHz
Gain	30 dBi
HPOL Beamwidth	5.8° (3 dB)
VPOL Beamwidth	5.8° (3 dB)
F/B Ratio	30 dB
Max. VSWR	1.6:1
Wind Loading	790 N @ 200 km/h (178 lbf @ 125 mph)
Wind Survivability	200 km/h (125 mph)
Polarization	Dual-Linear
Cross-pol Isolation	35 dB Min.
ETSI Specification	EN 302 326 DN2

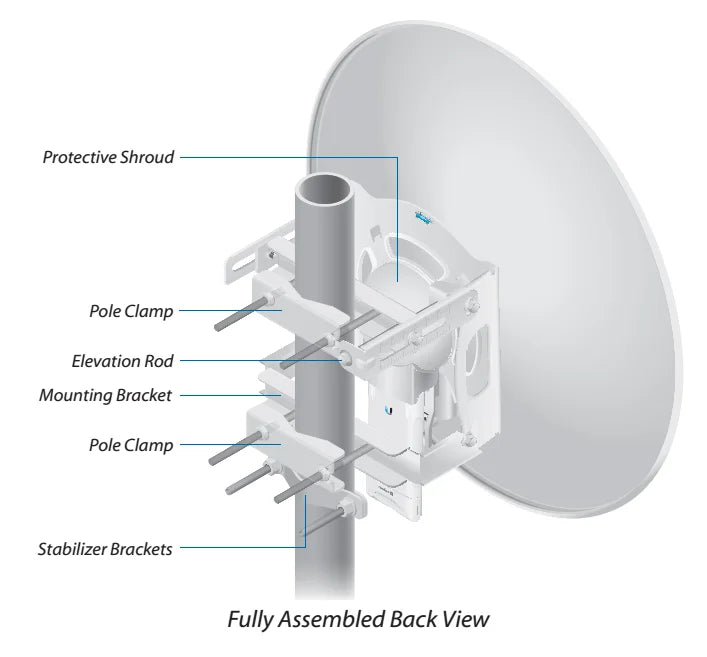

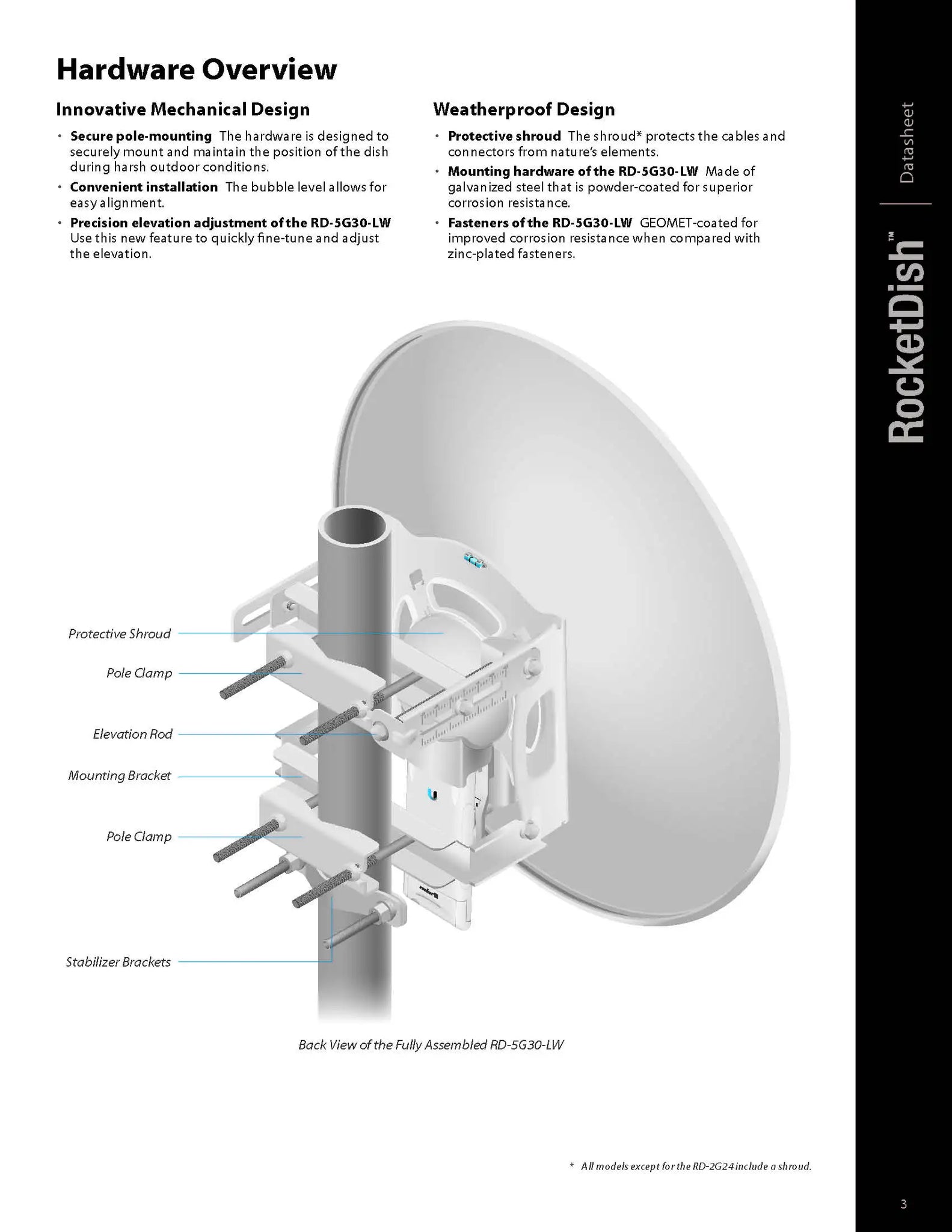

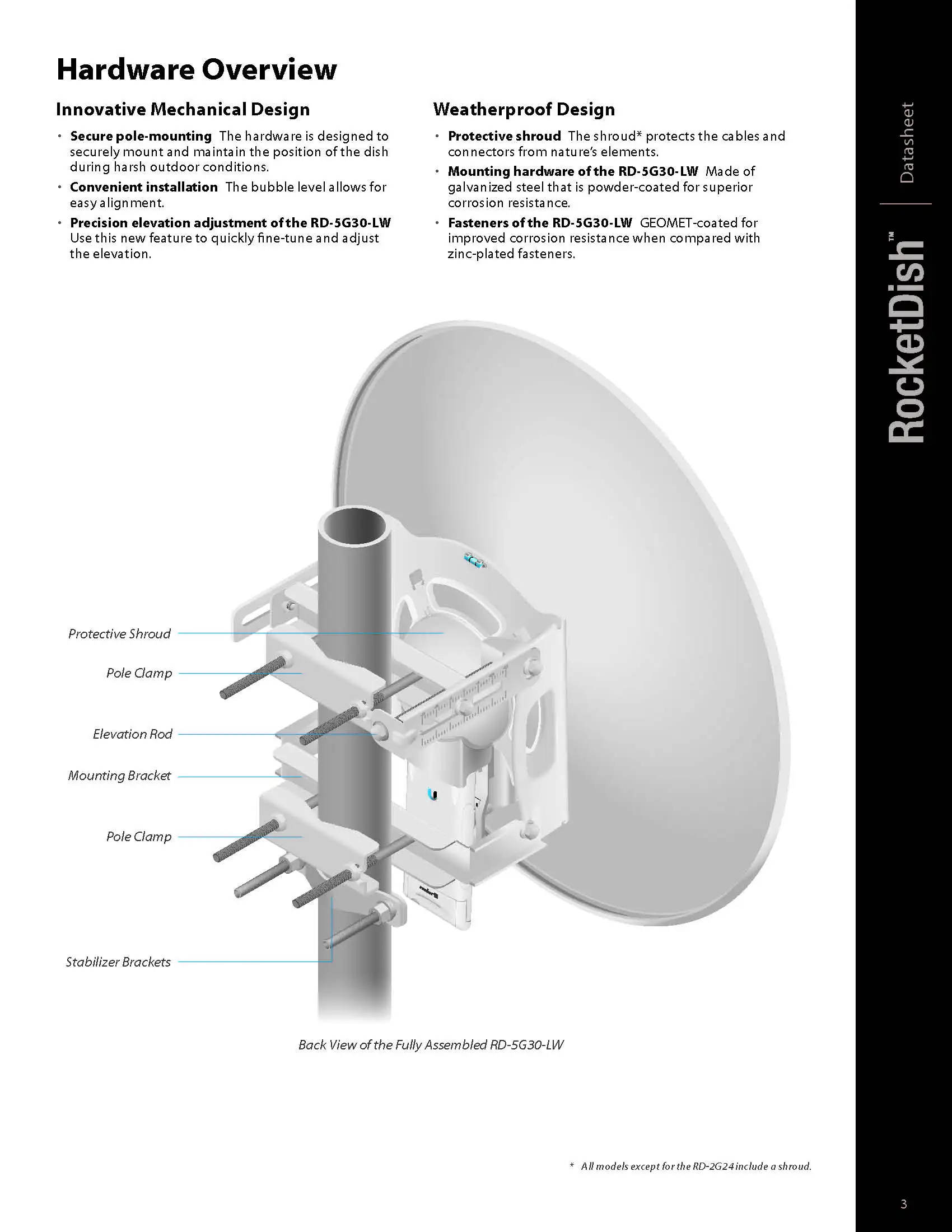

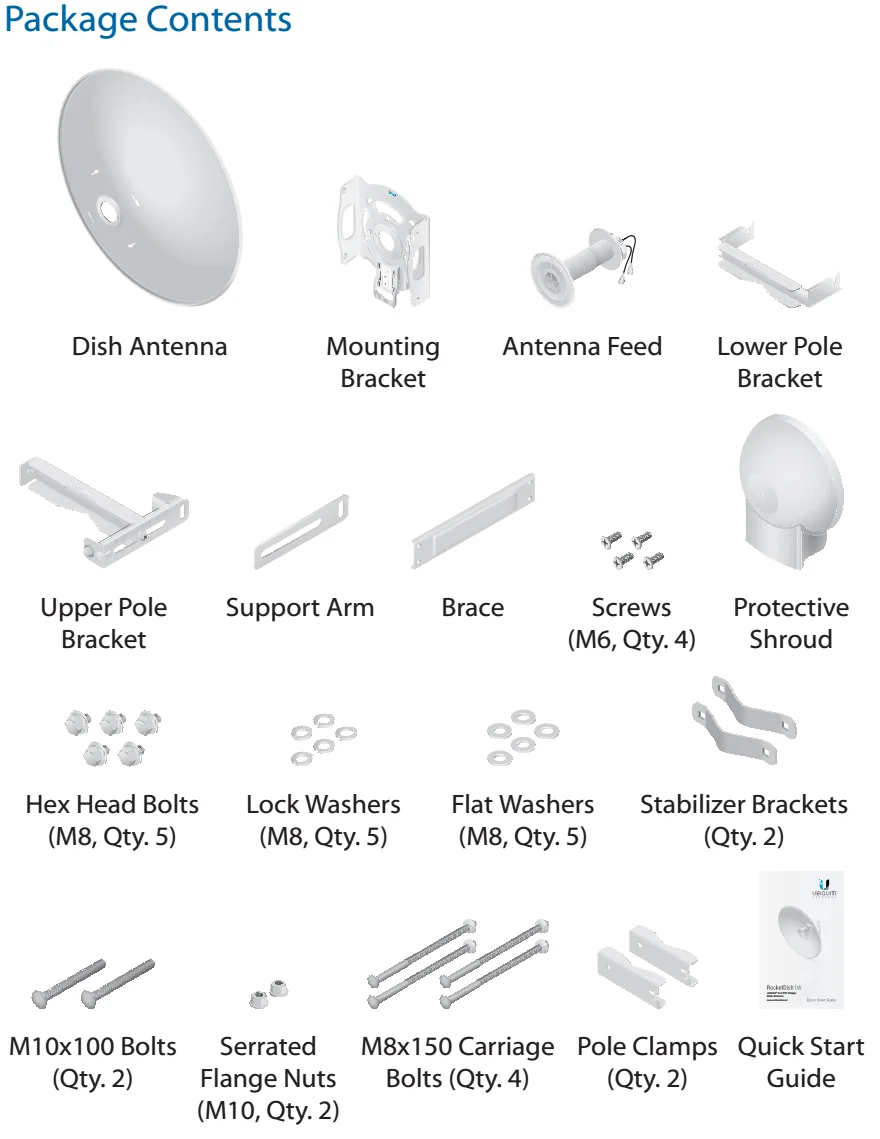

Mounting	Universal Pole Mount, Rocket Bracket, and Weatherproof RF Connectors Included
NDAA Compliant	Yes

The UBIQUITI RD-5G30-LW UISP airMAX RocketDish 5 GHz, 30 dBi LW Antenna Basestation Or Point-to-Point Bridge Or Network Backhaul is evocative, to say the least, but that's why you're drawn to it in the first place.
