UBIQUITI LBE-5AC-Gen2 5GHz 23DBI Outdoor High Power Wireless Bridge Wifi Access Point CPE 100-Meter Gigabit Network Port 2.4 and 5GHz
SPECIFICATIONS
Brand Name: UBIQUITI
High-concerned Chemical: None
Use: Windows App
Model: LBE-5AC-Gen2
Color classification: LBE-M5-23 (100 m network port) LBE-5AC-GEN2 (gigabit network port)
Type of network device: Wireless Bridge
Product Images
Product Description
UBIQUITI LBE-5AC-Gen2 5GHz 23DBI Outdoor High Power Wireless Bridge Wifi Access Point CPE 100-Meter Gigabit Network Port 2.4 and 5GHz
The Networks LBE-5AC-Gen2 is a 802.11ac LiteBeam CPE. It uses both 2.4 and 5GHz frequencies with a 23dBi, and utilizes the new UMobile app for easy setup and installation.

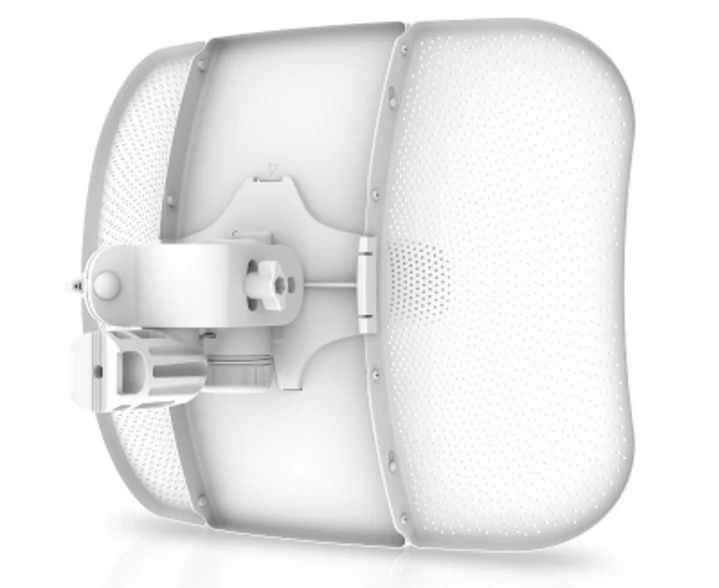

LiteBeam 5AC features a two-mount system that provides adjustment flexibility along both axes for versatile mounting options. The mounting system, couples with the built-in bubble level, enables quick and easy alignment.
The AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.
Technical Specifications
Dimensions | 358 x 271.95 x 272.5 mm (14.09 x 10.71 x 10.73") |
Weight | Without Mount 800 g (1.76 lb) With Mount 980 g (2.16 lb) |
Max. Power Consumption | 7W |
Power Method | Passive PoE (Pairs 4, 5+; 7, 8 Return) |
Supported Voltage Range | 24V ± 10% |
Operating Frequency | Worldwide 2412 - 2462 MHz 5150 - 5875 MHz USA: U-NII-1 5150 - 5250 MHz |
Gain | 23 dBi |
Networking Interface | (1) 10/100/1000 Ethernet Port |
Processor Specs MIPS | 74Kc |
Memory | 64 MB DDR2 |
LEDs | Power, Ethernet |
Channel Sizes | PtP Mode 10/20/30/40/50/60/80 MHz PtMP Mode 10/20/30/40 MHz |
Enclosure Characteristics | Reflector (SGCC 0.6T) / Plastic: PC |
Mounting | Pole-Mounting Kit (Included) |
Wind Loading | 275 N @ 200 km/h (61.8 lbf @ 125 mph) |
Wind Survivability | 200 km/h (125 mph) |
ESD/EMP Protection | ± 24 kV Contact / Air |
Operating Temperature | -40 to 70° C (-40 to 158° F) |
Operating Humidity | 5 to 95% Noncondensing |
Certifications | CE, FCC, IC |
