UBIQUITI AM-5G16-120 UISP AirMAX Sector 5 GHz, 120º, 16dBi Antenna, 2x2 BaseStation Sector Antenna Pair, RocketM BaseStation

Regular price: R 15,084.95
Sale price: R 15,084.95
Regular price: ~~R 15,286.95~~
Unit price: per

Shipping calculated at checkout.

Default Title

Quantity must be 1 or more

Description

5 GHz, 120º, 16 dBi or 90º, 17 dBi antenna for sector coverage in Point-to-MultiPoint (PtMP) networks.

UISP airMAX Sector 5 GHz, 120º, 16 dBi Antenna

- airMAX 2x2 BaseStation Sector Antenna Pair the airMAX Sector Antenna with a RocketM BaseStation for sector coverage in Point-to-MultiPoint (PtMP) networks.

SPECIFICATIONS

Brand Name: UBIQUITI

High-concerned Chemical: None

Model Number: AM-5G16-120

Certification: CE

Certification: EAC

Certification: FCC

Certification: RoHS

Brand Name: UBIQUITI

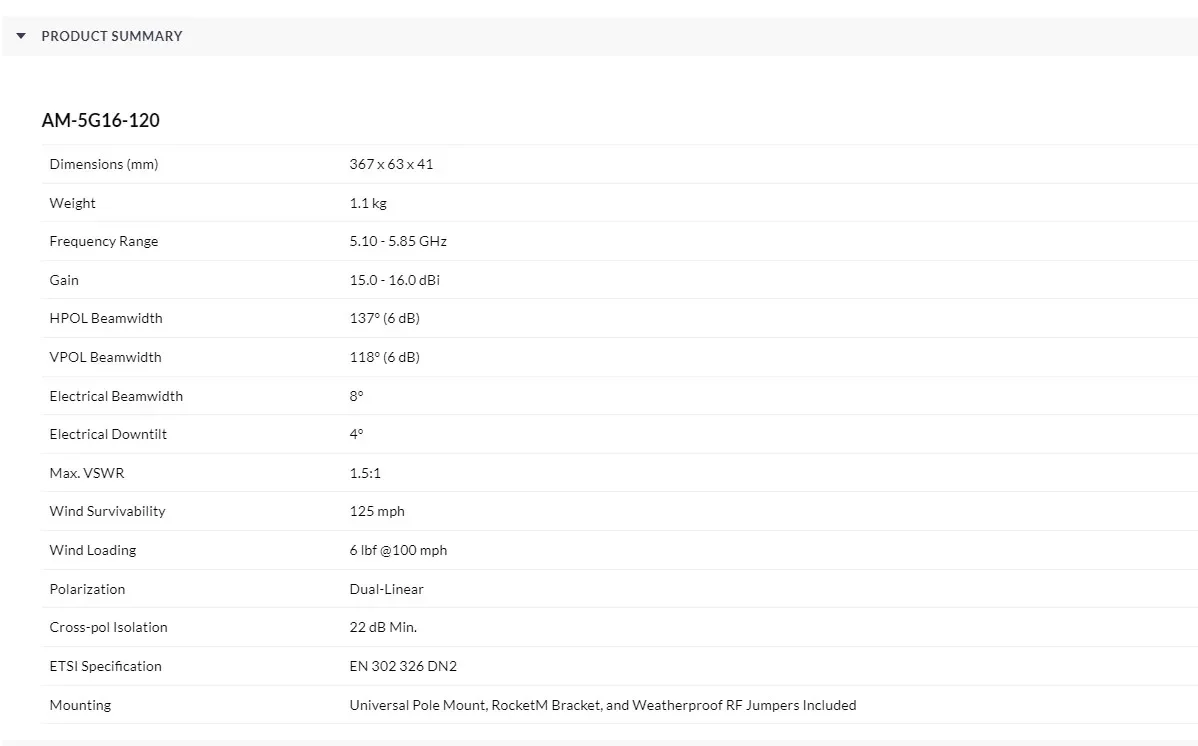

Technical Specification

AM-5G16-120
Dimensions	367 x 63 x 41 mm (14.4 x 2.5 x 1.6")
Weight	1.1 kg (2.4 lb)
Frequency Range	5.10 - 5.85 GHz
Gain	15.0 - 16.0 dBi
HPOL Beamwidth	137° (6 dB)
VPOL Beamwidth	118° (6 dB)
Electrical Beamwidth	8°
Electrical Downtilt	4°
Max. VSWR	1.5:1
Wind Survivability	200 km/h (125 mph)
Wind Loading	26 N @ 160 km/h (6 lbf @100 mph)
Polarization	Dual-Linear
Cross-pol Isolation	22 dB Min.
ETSI Specification	EN 302 326 DN2
Mounting	Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included

Imagine if you could be satisfied and content with your purchase. That can very much be your reality with the UBIQUITI AM-5G16-120 UISP AirMAX Sector 5 GHz, 120º, 16dBi Antenna, 2x2 BaseStation Sector Antenna Pair, RocketM BaseStation.

Inventory Last Updated: Apr 25, 2025
