UBIQUITI airMAX LiteBeam M5 LBE-M5-23 5GHz 23dBi Long-Range Network Antenna Outdoor 5G Long Range Wireless Bridge 5ac Only 1Units

Regular price: R 10,008.83
Sale price: R 10,008.83
Regular price: ~~R 12,900.27~~
Unit price: per

Shipping calculated at checkout.

Color

Quantity must be 1 or more

Ubiquiti airMAX LiteBeam M5 LBE-M5-23 5GHz 23dBi Long-Range Lightweight Network Antenna Outdoor 5G Long Range Wireless Bridge 5ac LBE-M5-23-AR

Description of LBE-M5-23

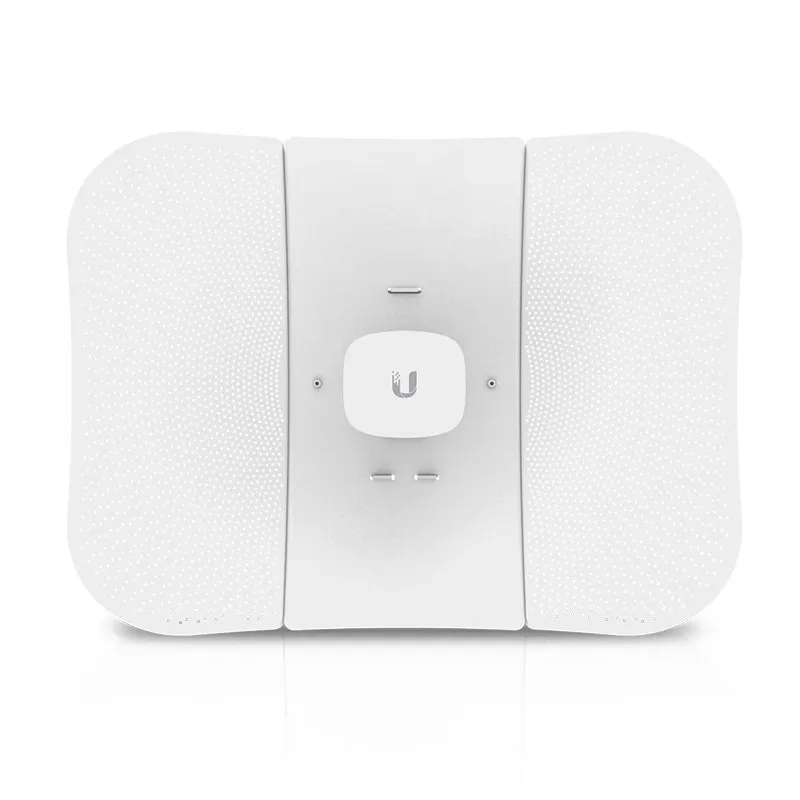

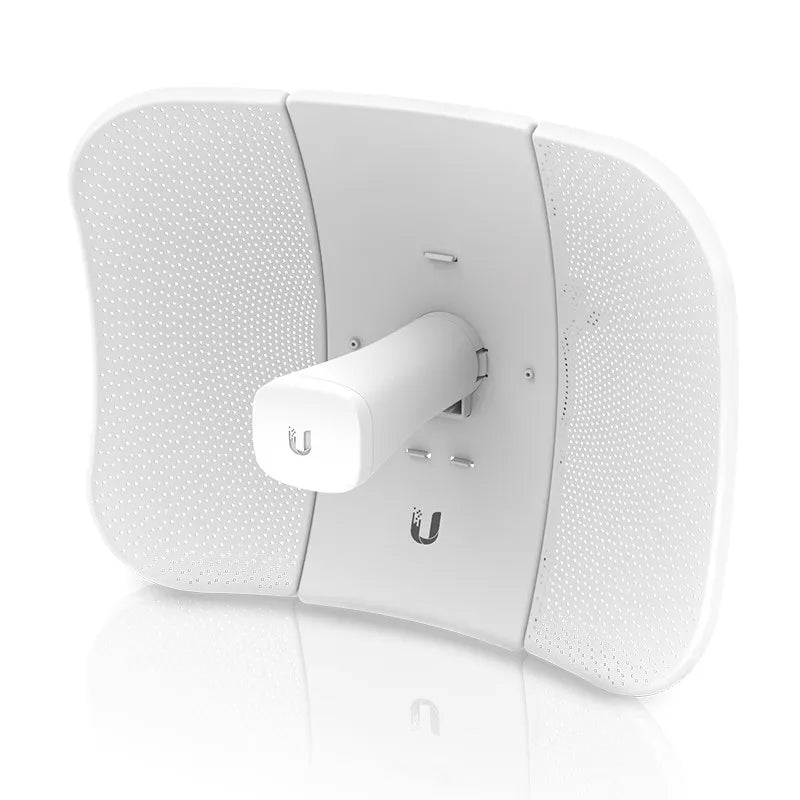

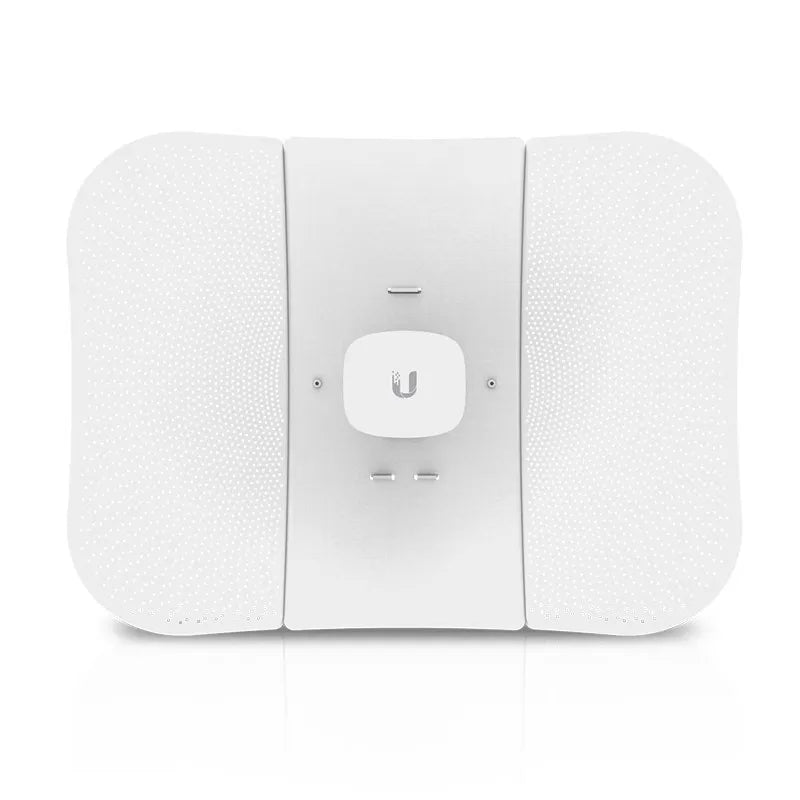

Ubiquiti airMAX LiteBeam M5 LBE-M5-23 5GHz 23dBi Long-Range Lightweight Network Antenna

Long-Range, Lightweight airMAX CPE
The LiteBeam M is an ultra-lightweight airMAX CPE device with incredible range and disruptive pricing.

High-Gain, Directional Antenna
The LiteBeamM provides 23 dBi of gain for long-distance connectivity and uses a directional antenna pattern for improved noise immunity.

Breakthrough Industrial Design

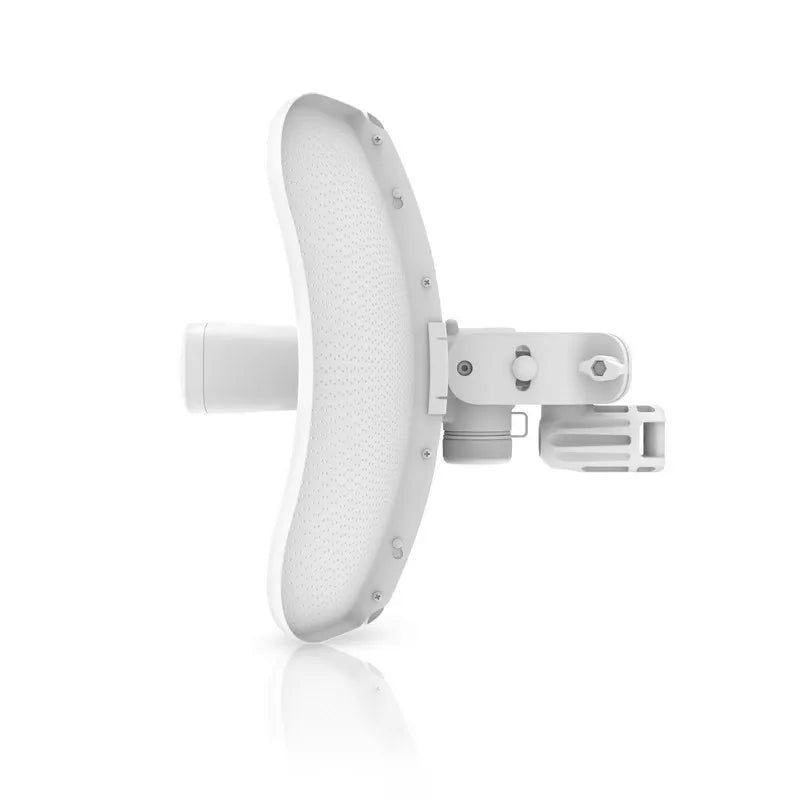

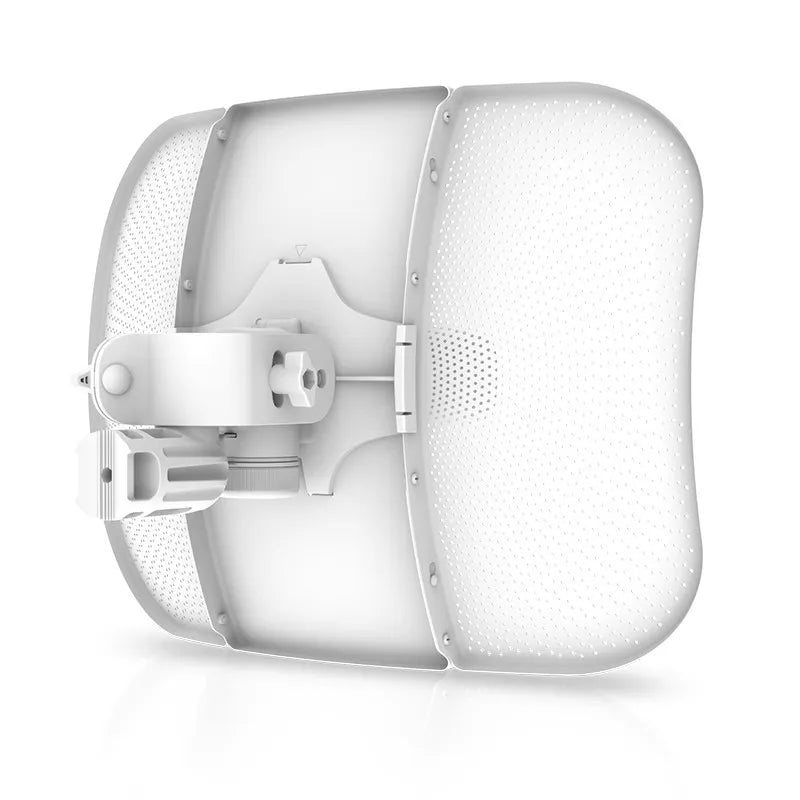

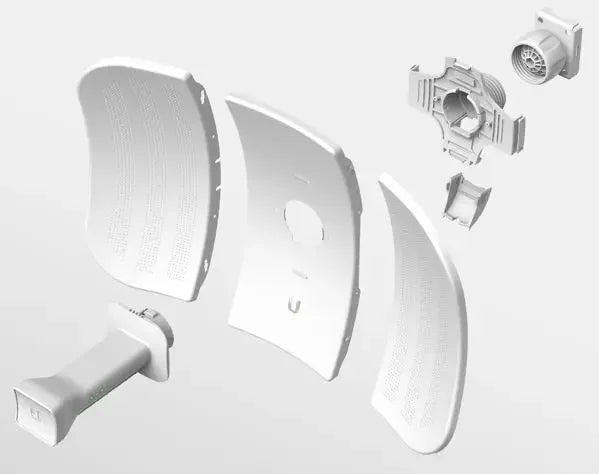

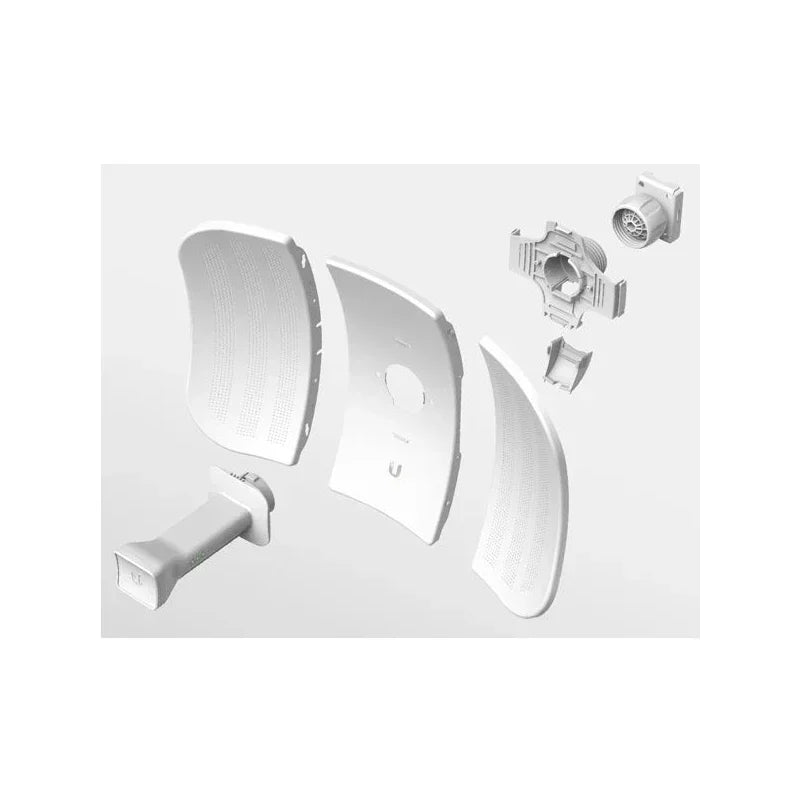

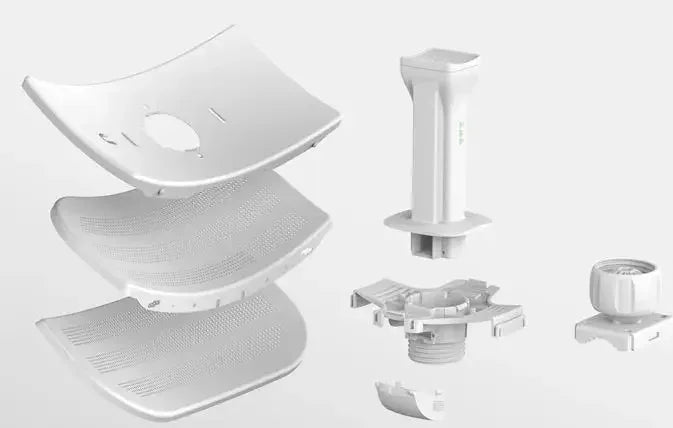

Featuring the freedom of three-axis alignment, the LiteBeamM fully assembles in seconds no tools needed. Only a single wrench is required for pole-mounting.

Compact in Size, Light in Weight
A lightweight form factor contained within ultra compact packaging, the LiteBeamM is ideal for shipping and logistics.

Specifications of LBE-M5-23:

Ubiquiti Networks LBE-M5-23
Maximum data transfer rate: 100 Mbit/s
Antenna gain level (max): 23 dBi
Frequency band: 5.15 - 5.875 GHz
Networking standards: IEEE 802.11n
Connectivity technology: Wired

Description of LBE-5AC-GEN2

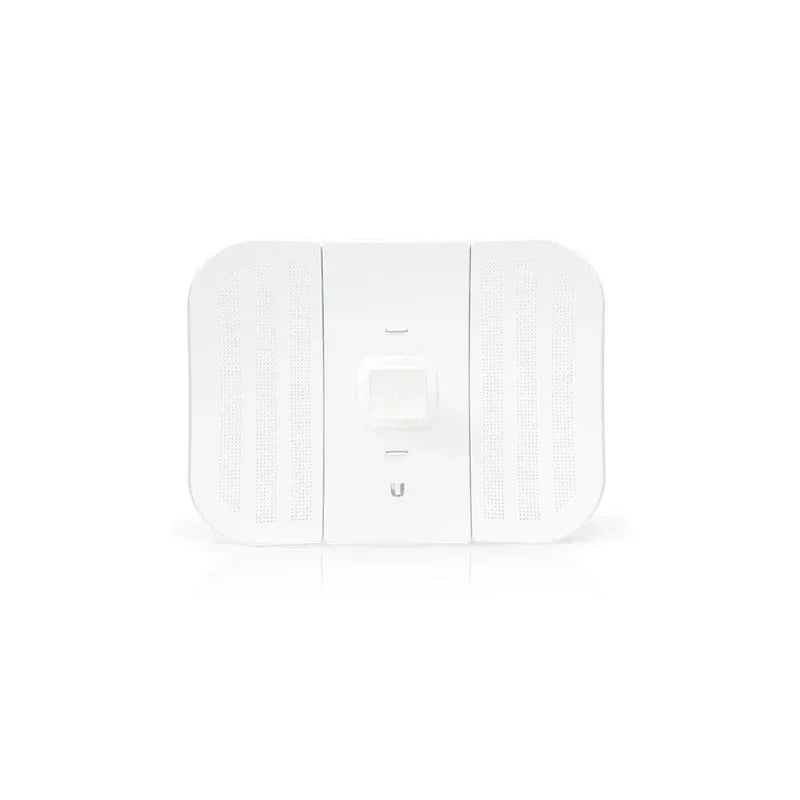

Ubiquiti's LBE-523ACG2 is an airMAX AC 5GHz radio with a 23dBi antenna. It is designed as a lightweight, cost-effective, long-distance CPE (client premises equipment) or PtP (point-to-point) solution. The dedicated 2.4GHz management radio allows for easy set-up via the UISP network management platform.

Specifications of LBE-5AC-GEN2

Antenna Gain: 23dBi
Beam-width: 15°
Data Rate: 867Mbps
Ethernet Ports: 1x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 7W
Mounting: Pole-Mount
Operating System: airOS
Operating Temperature: -40°C to 70°C
PoE Input: 24V Passive PoE
PoE Output: None
Power Input: 24V; 0.3A Gigabit PoE Injector (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 24V
USB Ports: None

Dimensions: 358 x 271.95 x 272.5mm
Weight: 980g

Product Details

Technical Specs

Product name	LBE-M5-23 LBE-5AC-GEN2
Hardware	-- Wireless standards : 802.11ac/n/a -- Wireless Speed up to 433Mbps -- CPU: QCA9531+QCA9887 -- RAM: 64MB -- Flash： 16MB -- Ethernet：10/100Mbps - 23dBi antenna -- Tx Power up to 20dbm -- 24V Passive PoE
Antenna	-- 23dBi dish antenna -- Beamwidth(HPBW) Horizontal:12，Vertical:12° -- Open space 5-10KM
Physical Parameters	-Dimension: 300*400mm -Wight: 1.5kg -Enclosure: (Dish) -ESD Protection: 8kV -Working Temp: -20 ~ 50°C -Storage Temp: -30 ~60°C -Working Humidity: 10%〜95% non-condensing
Interfaces	1x 10/100 Base-T Ethernet ( LAN with Passive PoE)
Security	Integrated Firewall -WPA/WPA2;WPA-PSK/WPA2-PSK (AES/TKIP) Encryption; 64/128-bit WEP;
LED	-- Power：On/Off -- LAN:On/Off/Flashing -- WLAN:On/Off/Flashing -- RSSI Signal:1,2,3
Power	-- 24VDC, 0.75A -- Power Consuption: 8W
Certifification	-- CE, RoHS
Package content	-WIS-D523 Radio -Quick Setup Guide -Power Adapter with Passive PoE -Mounting bracket & kits
Warranty	1 Year

The UBIQUITI airMAX LiteBeam M5 LBE-M5-23 5GHz 23dBi Long-Range Network Antenna Outdoor 5G Long Range Wireless Bridge 5ac Only 1Units is the product you didn't think you need, but once you have it, something you won't want to live without.
