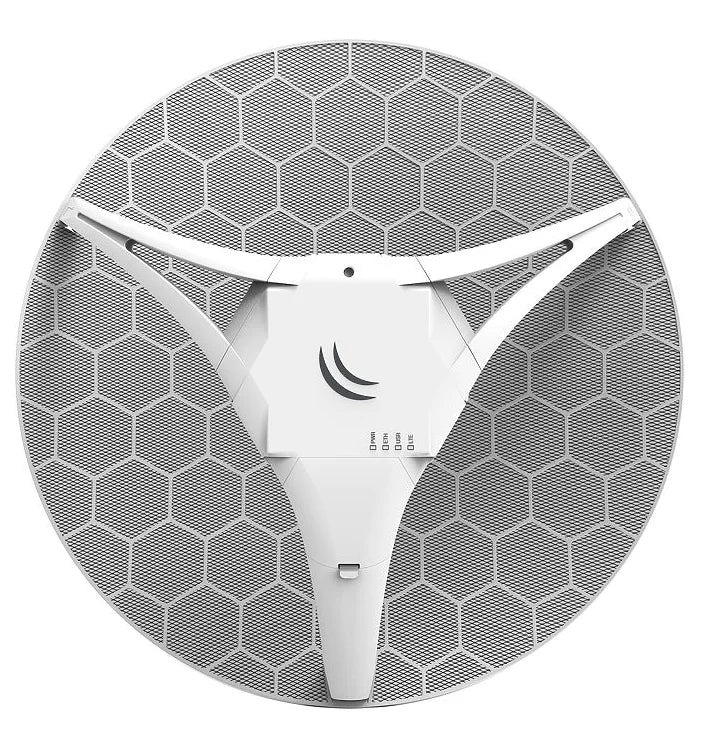

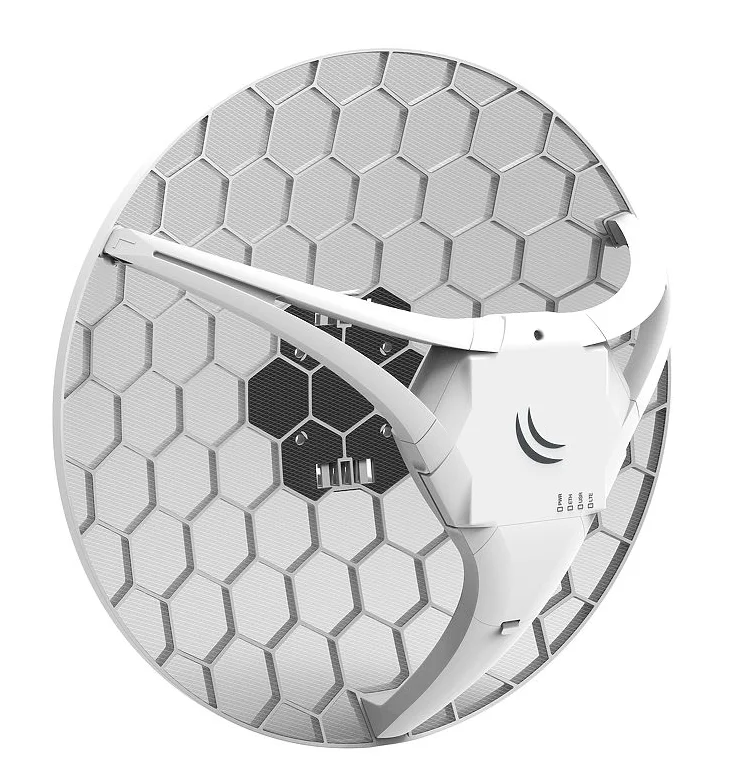

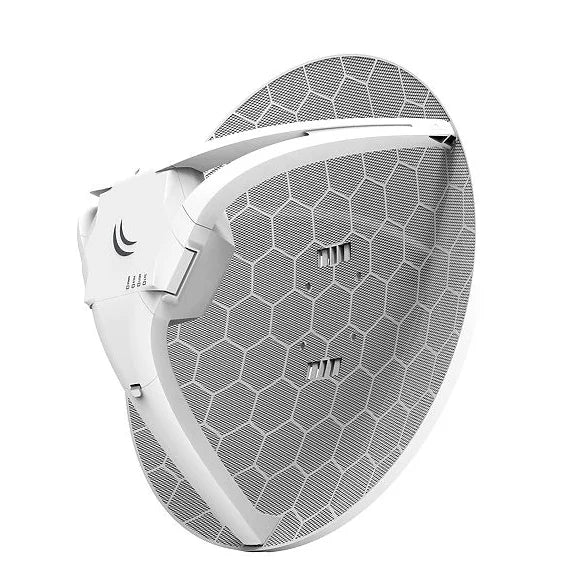

Mikrotik LHG LTE6 kit RBLHGR&R11e-LTE6 wireless bridge Access Point 1 Modem (Micro SIM), 1 MiniPCI-e slots, 1x 10/100 Ethernet ports

Regular price: R 13,422.50
Sale price: R 13,422.50
Regular price: ~~R 17,484.57~~
Unit price: per

Shipping calculated at checkout.

Default Title

Quantity must be 1 or more

SPECIFICATIONS

10/100 Ethernet ports: 1

Brand Name: MikroTik

CPU: QCA9531

CPU nominal frequency: 650 MHz

Max power consumption: 6 W

Model Number: LHG LTE6 Kit / RBLHGR&R11e-LTE6

Network: None

PoE in input Voltage: 12-57 V

Product name: LHG LTE6 kit/RBLHGR&R11e-LTE6

Size of RAM: 64 MB

Tested ambient temperature: -30°C to 60°C

Type: Fiber Optic Transceivers

Use: FTTH

Warranty: 1 Year

Warranty Time: 1 Year

Description

Mikrotik LHG LTE6 kit/RBLHGR&R11e-LTE6 wireless bridge AP

Great solution for great distances

The LHG LTE6 kit is a device for very remote locations that are within cellular network coverage. Mount it outdoors, on a pole, mast or any tall structure, and connect even where cell phones fail. Due to its large sized high gain antenna, LHG LTE6 kit can connect to cell towers in extreme rural locations, giving you the ability to provide last mile internet access where nothing else is available.

The new LHG LTE6 kit features a CAT6 LTE modem, which enables carrier aggregation and allows the device to use multiple bands at the same time. A huge advantage when there are a lot of LTE users in the area. It provides better responsiveness in a crowded environment and higher efficiency for weaker signal situations in the countryside. We have seen Internet speed doubling in rural areas after switching to CAT6, so there is no need to wait for cable network expansions.

Specifications

Details
Product code	RBLHGR&R11e-LTE6
Architecture	MIPSBE
CPU	QCA9531
CPU core count	1
CPU nominal frequency	650 MHz
License level	3
Size of RAM	64 MB
Storage size	16 MB
Storage type	FLASH
Tested ambient temperature	-30°C to 60°C

Powering

Details
PoE in	802.3af/at
PoE in input Voltage	12-57 V
Number of DC inputs	1 (PoE-IN)
Max power consumption	6 W
FAN count	Passive

Mobile

Details
2G Category	Class12
2G bands	2 (1900MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz)
3G Category	R7 (21Mbps Downlinks, 5.76Mbps Uplink) / R8 (42.2Mbps Downlink, 5.76Mbps Uplink)
3G bands	1 (2100MHz) / 2 (1900MHz) / 5 (850MHz) / 8 (900MHz)
LTE Category	6 (300Mbit/s Downlink, 50Mbit/s Uplink)
LTE FDD bands	1 (2100MHz) / 2 (1900MHz) / 3 (1800MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 5 (850MHz) / 12 (700MHz) / 17 (700MHz) / 25 (1900MHz) / 26 (850MHz)
LTE TDD bands	38 (2600MHz) / 40 (2300MHz) / 39 (1900MHz) / 41n (2500MHz)

Ethernet

Details
10/100 Ethernet ports	1

Peripherals

Details
Number of SIM slots	1 Modem (Micro SIM)
MiniPCI-e slots	1

Other

Details
Mode button	Yes

Certification & Approvals

Details
Certification	CE/RED, EAC, ROHS

Ethernet test results

RBLHGR&R11e-LTE6		QCA9531 100M one port test
Mode	Configuration	1518 byte		512 byte		64 byte
Mode	Configuration	kpps	Mbps	kpps	Mbps	kpps	Mbps
Bridging	none (fast path)	8.1	98.4	23.5	96.3	173.6	88.9
Bridging	25 bridge filter rules	8.1	98.4	23.5	96.3	70.9	36.3
Routing	none (fast path)	8.1	98.4	23.5	96.3	160.8	82.3
Routing	25 simple queues	8.1	98.4	23.5	96.3	90.8	46.5
Routing	25 ip filter rules	8.1	98.4	23.5	96.3	43.2	22.1

All tests are done with Xena Networks specialized test equipment (XenaBay), and done according to RFC2544 (Xena2544)
Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

The Mikrotik LHG LTE6 kit RBLHGR&R11e-LTE6 wireless bridge Access Point 1 Modem (Micro SIM), 1 MiniPCI-e slots, 1x 10/100 Ethernet ports destined to impress, and priced at only R 13,422.50, for a limited time.
