MikroTik LHG 5 RBLHG-5nD-3 5.8G with integrated 24.5dBi grid antenna point-to-point long-distance 100M wireless bridge (three packs)
MikroTik LHG 5 RBLHG-5nD-3 5.8G with integrated 24.5dBi grid antenna point-to-point long-distance 100M wireless bridge (three packs)
MikroTik LHG 5 RBLHG-5nD-3 5.8G with integrated 24.5dBi grid antenna point-to-point long-distance 100M wireless bridge (three packs)
MikroTik LHG 5 RBLHG-5nD-3 5.8G with integrated 24.5dBi grid antenna point-to-point long-distance 100M wireless bridge (three packs)
  • Load image into Gallery viewer, MikroTik LHG 5 RBLHG-5nD-3 5.8G with integrated 24.5dBi grid antenna point-to-point long-distance 100M wireless bridge (three packs)
  • Load image into Gallery viewer, MikroTik LHG 5 RBLHG-5nD-3 5.8G with integrated 24.5dBi grid antenna point-to-point long-distance 100M wireless bridge (three packs)
  • Load image into Gallery viewer, MikroTik LHG 5 RBLHG-5nD-3 5.8G with integrated 24.5dBi grid antenna point-to-point long-distance 100M wireless bridge (three packs)
  • Load image into Gallery viewer, MikroTik LHG 5 RBLHG-5nD-3 5.8G with integrated 24.5dBi grid antenna point-to-point long-distance 100M wireless bridge (three packs)

MikroTik LHG 5 RBLHG-5nD-3 5.8G with integrated 24.5dBi grid antenna point-to-point long-distance 100M wireless bridge (three packs)

R 13,921.98
R 13,921.98
R 18,135.22
Sold out
Shipping calculated at checkout.

MikroTik LHG 5 RBLHG-5nD-3 5.8G with integrated 24.5dBi grid antenna point-to-point long-distance 100M wireless bridge (three packs)

SPECIFICATIONS

10/100 Ethernet ports: 1

Application: RBLHG-5nD-3

Brand Name: MikroTik

CPU nominal frequency: 3

Licence level: 600 MHz

Max Power consumption: 6 W

Model Number: RBLHG-5nD-3

Network: None

Size of RAM: 64 MB

Storage size: 16 MB

Storage type: Flash

Supported input voltage: 11 V - 30 V (passive PoE)

Type: Optical Fibers

Use: Outdoor

Warranty: 1 Year / 12 Months

Warranty Time: 1 Year

MikroTik LHG 5 RBLHG-5nD-3 5.8G 24.5dbi point-to-point long-distance 100M wireless bridge (three packs)

Overview

The Light Head Grid (LHG) is a compact and light wireless device with an integrated 24.5 dBi grid antenna. It is perfect for point to point links or for use as a CPE at longer distances (licence level 3). The grid design ensures protection against wind, and the fact that the antenna element is built into the wireless unit means no loss on cables.

The device comes disassembled for compact shipping, but is very easy to assemble and includes a simple to use grounding attachment point. The package also contains a small adapter for tilting the antenna five degrees from the original position.

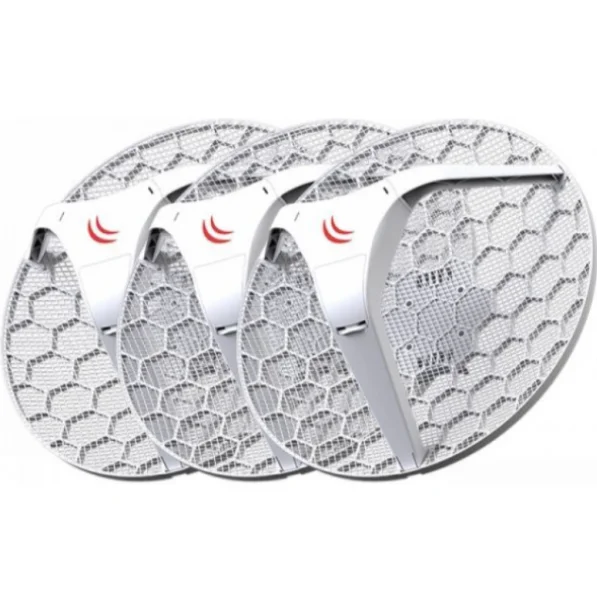

Ordering RTB-RBLHG-5ND-3 you get three RTB-RBLHG-5ND in one box




Specifications

Licence level 3
CPU nominal frequency 600 MHz
Size of RAM 64 MB
Storage type Flash
Storage size 16 MB
10/100 Ethernet ports 1
Wireless Built-in 5 GHz 802.11a/n, dual-chain
Wireless chip model AR9344
Operating frequency:
International 5150 - 5875 MHz
USA 5170 - 5250 MHz
5725 - 5835 MHz
Antenna gain 24.5 +/- 0.5 dBi
Antenna beam width 7°
PoE in Yes
Supported input voltage 11 V - 30 V (passive PoE)
Wind Survivability 205 km/h
Wind Loading 186N @ 205 km/h
Cross polar 15 dBi
Port to port isolation 20 dB
Front to back ratio 25 dB
Operating Temperature -40 to 70° C
Operating Humidity 5 to 95% noncondensing
Shock and Vibration ETSI300-019-1.4
ETSI specification EN 302 326 DN2
Dimensions diameter 391 x 222 mm; package 450 x 450 x 145 mm
Weight Unit: 560 g; package: 1.98 kg
Max Power consumption 6 W
Imagine if you could be satisfied and content with your purchase. That can very much be your reality with the MikroTik LHG 5 RBLHG-5nD-3 5.8G with integrated 24.5dBi grid antenna point-to-point long-distance 100M wireless bridge (three packs).
