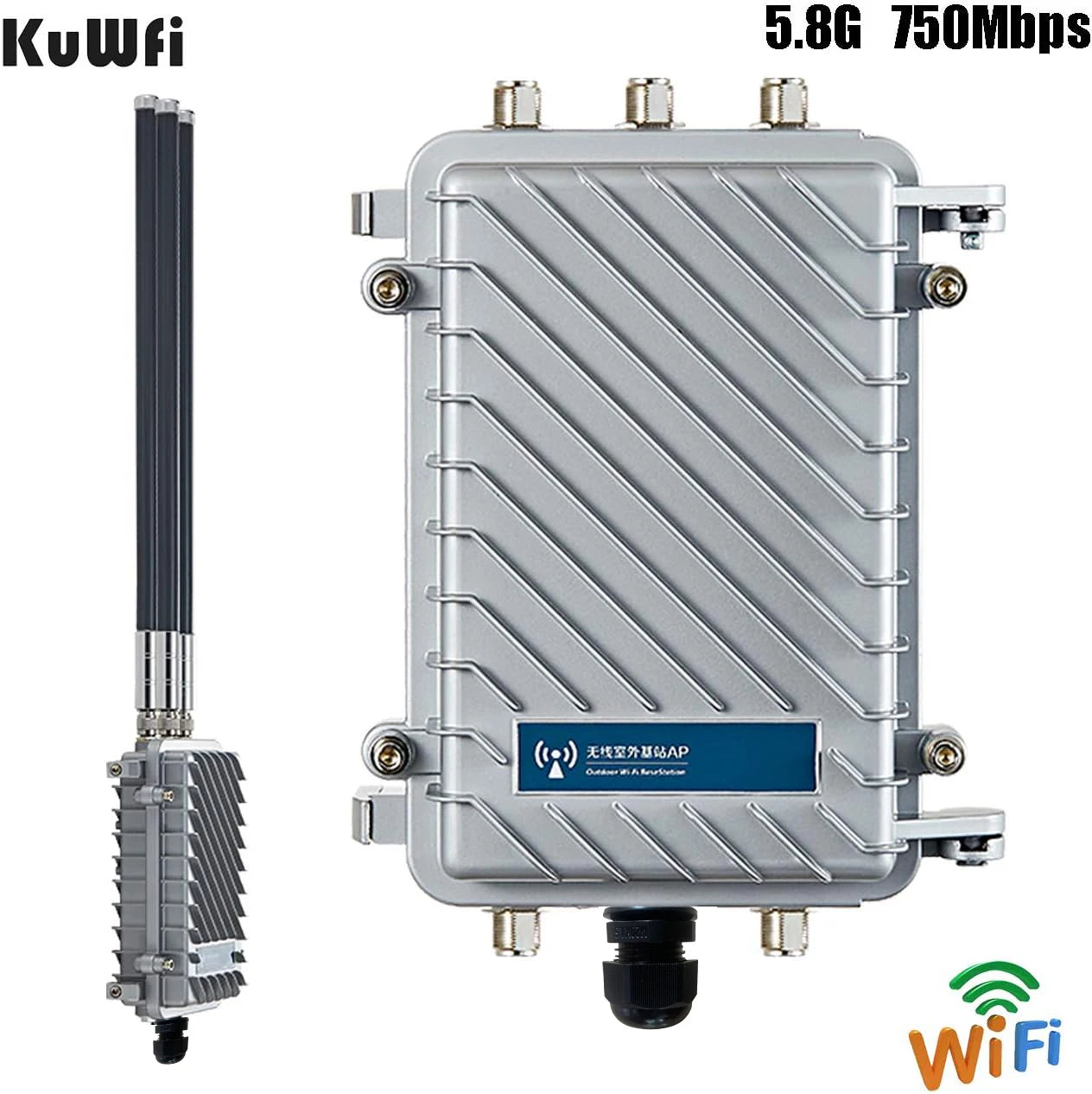

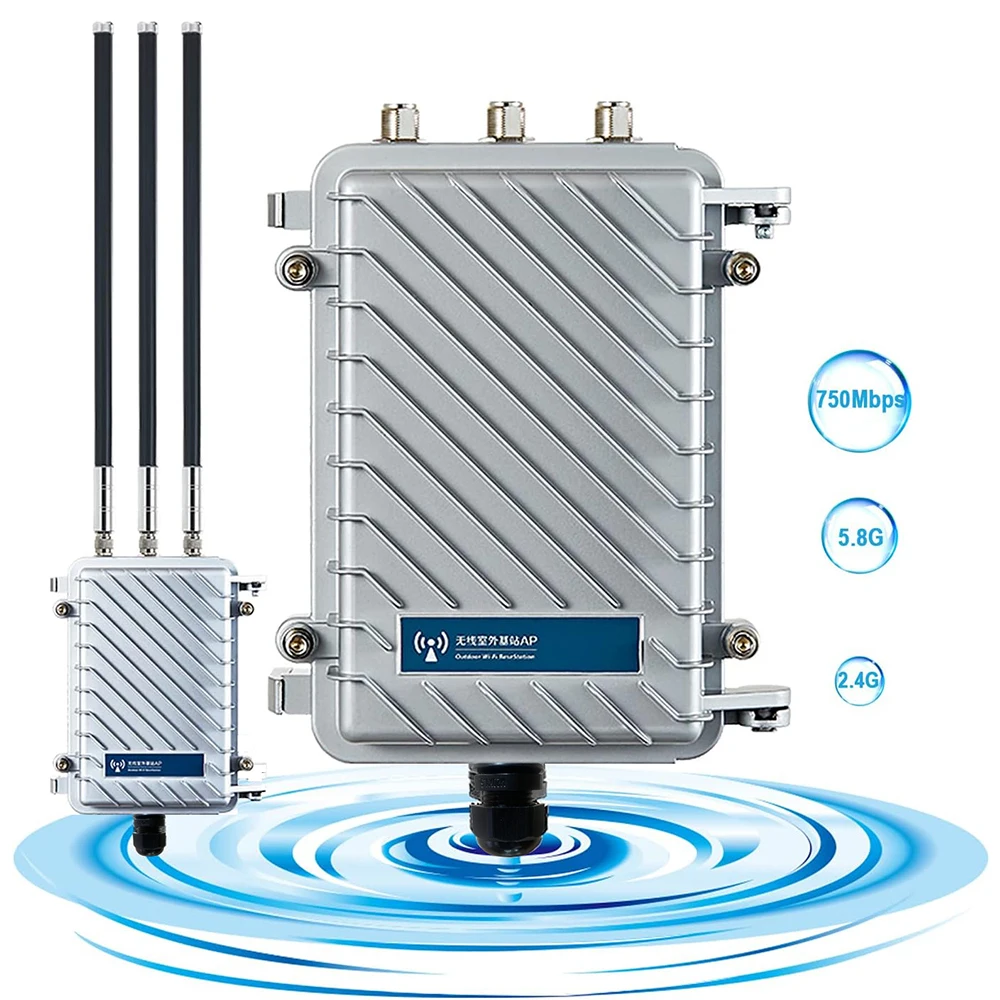

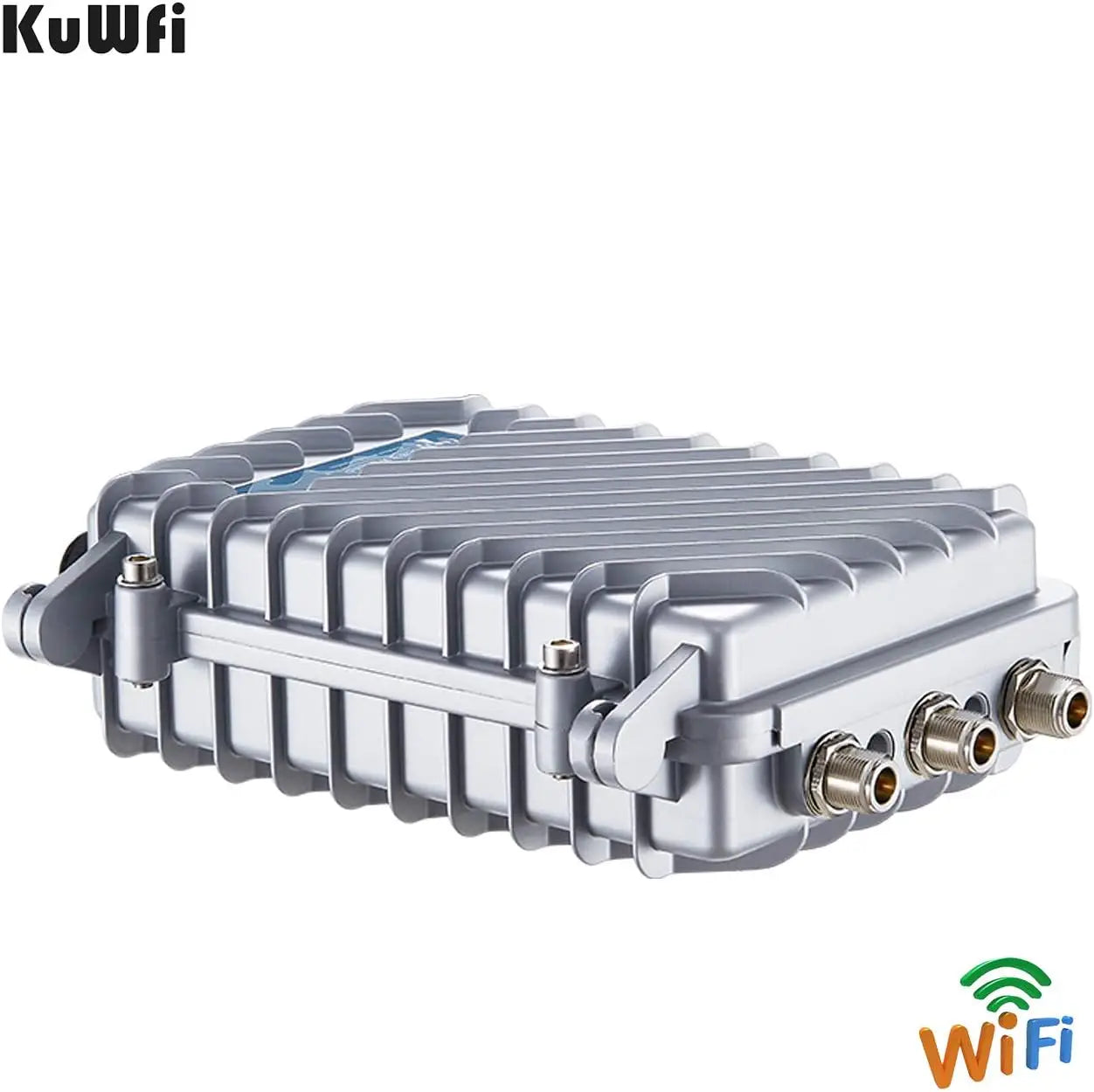

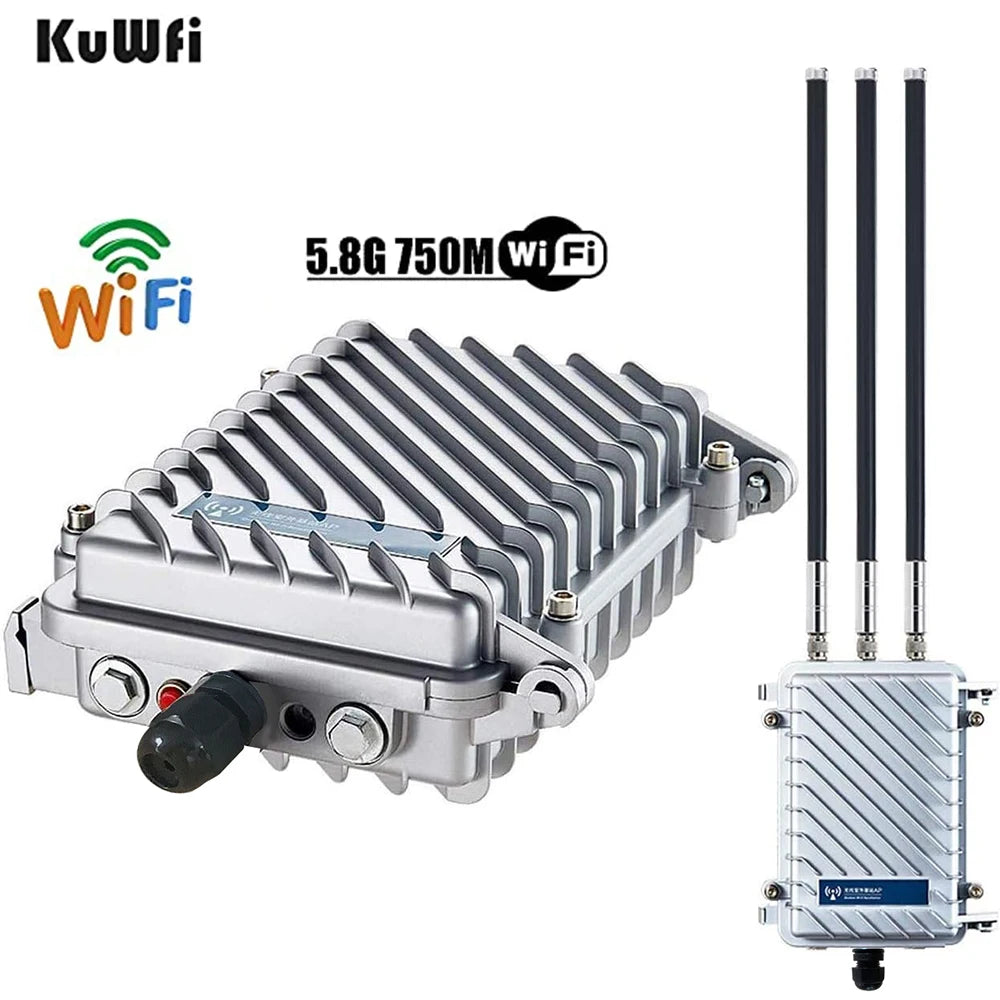

KuWFi Outdoor Wireless Bridge WiFi Access Point 750Mbps Wireless Repeater 2.4G&5.8G Wifi Antennas Waterproof Base Station AP
SPECIFICATIONS
2.4G Wi-Fi Transmission Rate: 300 Mbps
Antenna Type: Fixed
Application: Outdoor
Brand Name: KuWFi
Certification: CE
Choice: yes
Frequency: 5 GHz
Frequency Band Class: Dual-Band
Function: Firewall
High-concerned chemical: None
LAN Ports: 1
Max. LAN Data Rate: 750Mbps
Package: Yes
Recommended Uses: Home
Standards And Protocols: Wi-Fi 802.11g
Support Mesh: Not Supported
Supports WDS: Yes
Type: WireLess
WAN Ports: 1 x10/100Mbps
Wi-Fi Transmission Standard: 802.11ac
Wireless Communication Standard: 802.11.ac
Wireless transmission rate: 450M
With Modem Function: No
semi_Choice: yes
Product Details

Product Introduction
1. KuWFi-AP610H is an 11ac dual band Outdoor wireless access point with 750Mbps data rate, It comply with IEEE 802.11ac/b/g/n standard
2. 2.4G 300Mbps and 5G 450Mbps high rate, 500mW high power design, with N type antenna connector, for wider outdoor wifi range and more users
3. Outdoor PoE Access Point support wireless AP, Gateway, WiFi Repeater, Bridge, WISP, WDS operation mode, user can flexibly choose a suitable wireless mode to build or extend the wireless networking based on exist networking structure
4. Outdoor WiFi bridge with metal waterproof, dustproof and sunscreen shell, temperature adaptive, to work in harsh outdoor environment, meanwhile, the auxiliary cooling function make HW-AP610 work normal at -20℃ to 55℃
5. Support full frequency and more than 200 channels if need, to avoid the Wi-Fi Interference, guarantee the stable wireless connection. Meantime, it support Power over Ethernet, support IEEE 802.3af PoE, 48V, easy in setup even no power socket nearby
Product Features:
Operation Mode: AP/Wi-Fi Repeater
Data Rate: 2.4G: 300Mbps & 5.8G: 450Mbps
Wireless: 802.11ac, 1T1R 600Mbps
Memory: 128MB DDR2 RAM Flash: 16MB
Interface:
- 1* 10/100 Mbps RJ45 Port, support 48V active PoE
- 1 * Reset Button
Antenna: N Connector, can connect with panel antenna/omni antenna
LED Light: WAN, LAN
Size: 230mm * 150 mm * 80 mm
Power: POE 48V (24V PoE is optional);110V/220V
Max Users: 128
Package Included:
1* KuWFi-AP610H unit

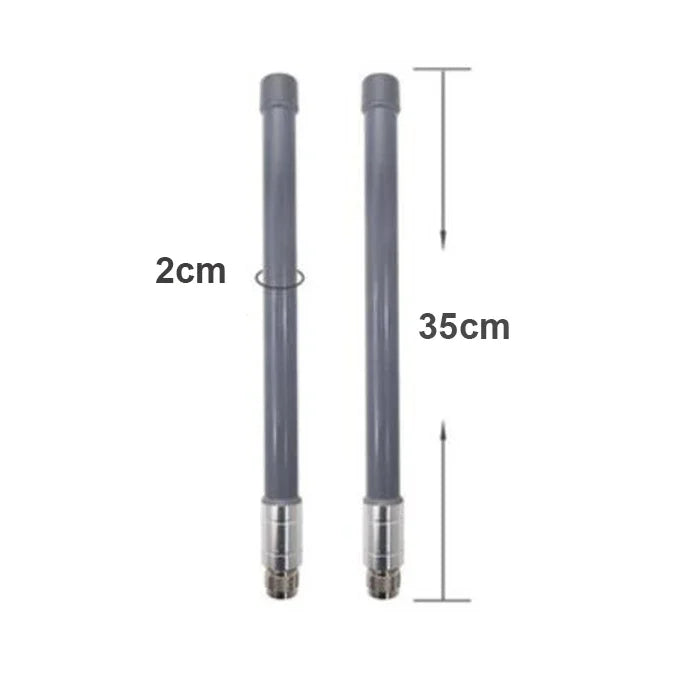

1* 5.8G antenna
2* 2.4G antenna
1* Some installation accessories
1* User Manual
