KuWFi 300Mbps Outdoor 4G LTE WiFi Router CAT4 Detachable External Antenna WAN LAN Port Support 24V POE 64 Users

KuWFi 300Mbps Outdoor LTE WiFi CAT4 4G Wireless Router Detachable External Antenna WAN LAN Port Support 24V POE 64 Users

SPECIFICATIONS

Brand Name: KuWFi

With Modem Function: No

Hign-concerned Chemical: None

Type: WireLess

WAN Ports: 1 x10/100Mbps

Wi-Fi Supported Frequency: 2.4G

5G Wi-Fi Transmission Rate: None

2.4G Wi-Fi Transmission Rate: 300 Mbps

Function: Firewall

Certification: none

Number of USB Interfaces: None

Max. LAN Data Rate: 300Mbps

Standards And Protocols: Wi-Fi 802.11g

Standards And Protocols: Wi-Fi 802.11b

Standards And Protocols: Wi-Fi 802.11n

Wi-Fi Transmission Standard: 802.11b

Wired Transfer Rate: 10/100Mbps

Package: Yes

Supports WDS: No

LAN Ports: 1

Supports WPS: No

Application: Outdoor

Choice: yes

semi_Choice: yes

Product Description

Frequency Bands:

EU Version:
4G LTE FDD:B1/B3/B7/B8/B20(2100/1800/2600/900/800MHZ)
4G LTE FDD:B38/B39/B40/B41(2600/1900/2300/2500MHZ)
3G WCDMA:B1/B8(2100/900MHZ)
2G GSM:B3/B8(1800/900MHZ)
Applicable to Europe, Africa, Asia, all countries and regions, such as Russia, Israel, South Korea, Spain, Brazil, Ukraine, France, Italy, Netherlands, India, Nigeria, Switzerland, Kazakhstan, Poland, Ghana, etc.

LA Version:
Supported Bands: B1/B2/B5/B7/B8/B28/B66

Applicable to North and South Amercia countries, such as Mexico, Brazil, Venezuela, Chile, Peru, Colombia, Bolivia.

This router is unlcoked. But different operators have different frequency bands in different countries.

If you don't know the 4G frequency band used in your country/region, please check on the following website:

web: https://en.wikipedia.org/wiki/List_of_LTE_networks

Overview:

Outdoor 4G router designed for WIFI users to get access to internet via 3g/4g sim card. It is used to supply internet access to indoor &outdoor WiFi coverage and monitor camera project

Features:

CAT4 4G Router:

Once you have inserted the SIM card and configured the APN information correctly, the device will be able to access the internet.4G network with the fastest download speed of up to 150Mbps and upload speed of up to 50Mbps.

IP67 grade three-proof design:

It adopts three-proof design, and has good heat dissipation function, which can adapt to various thunderstorms, snow and other harsh weather.

Wired network, 4G wifi optional:

Whether it is 4G network or wired broadband, the router can connect to the network as needed, so that you can surf the Internet without worry and enjoy broadband life anytime, anywhere.

Dual antenna high speed:

2.4G Internal 5dBi x 2PCS,4G external 5dBi x 2PCS, Internal LTE diversity antenna. Wi-Fi Transfer rate：UP to 300Mbps. Support LED indicator.

Outdoor wifi distance :

10-100M （Outdoor accessibility）,support max 64 wifi user at the same time.

Specifications:

- Flash/RAM/:8/64M
- Wi-Fi：IEEE 802.11b/g/n
- Wi-Fi Transfer rate：UP to 150Mbps
- Encryption：Wi-Fi Protected Access (WPA/WPA2)2
- Customization：Smart system,high-level；Customization possibility
- LED：LED indicator

Interface type
Wan: 1 x 10/100 Mbps wan port(RJ45)
Lan: 1 x 10/100 Mbps Ethernet port(RJ45)
Antenna: 1*wifi antenna ,1*4G antenna
Power: POE, through RJ45 port
Reset: Restore the router to its original factory default setting

Speed(CAT4)
FDD - LTE Downlink：150Mbps， Uplink：50Mbps
TDD-LTE: Downlink：150Mbps， Uplink：50Mbps
HSPA+: 42Mbps(download speed) 5.76Mbps(upload speed)
HSUPA: 5.76Mbps (upload speed)/ HSDPA: 7.2Mbps(download speed)
UMTS:384Kbps (download speed/upload speed)

Package Includes:

1x Outdoor 4G LTE Router
2x Antenna
1x 24V/0.5A POE Power Adapter
1x RJ45 Cable
1x User Manual

Wide Signal Coverage

Supports Standard Sim Card, Plug and Play

Supports Max. 64 WiFi Users at the Same Time

Multi Protection, Design for Outdoor Usage

High Power Antenna

Support POE, Easy to Use with RJ45 Cable

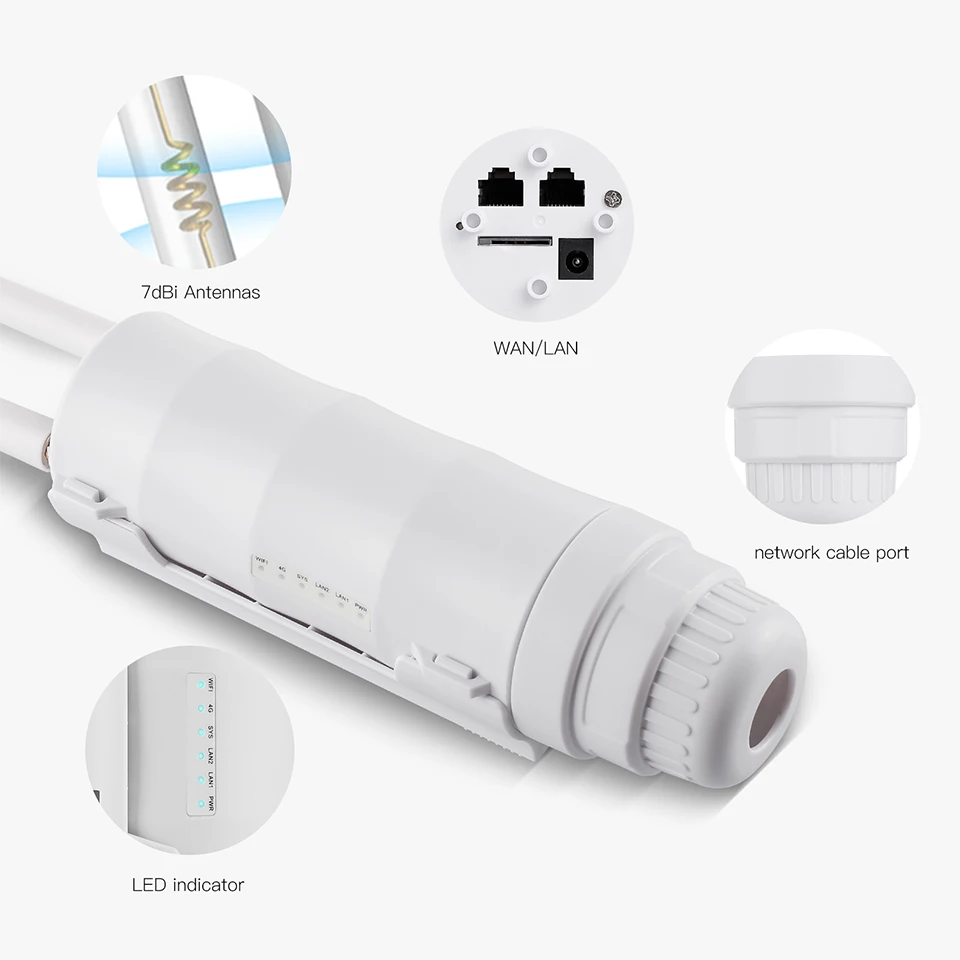

Interfaces, Antennas and Indicators

Two Installation Steps

Size and Installation Display

Mesh WiFi Installation Example

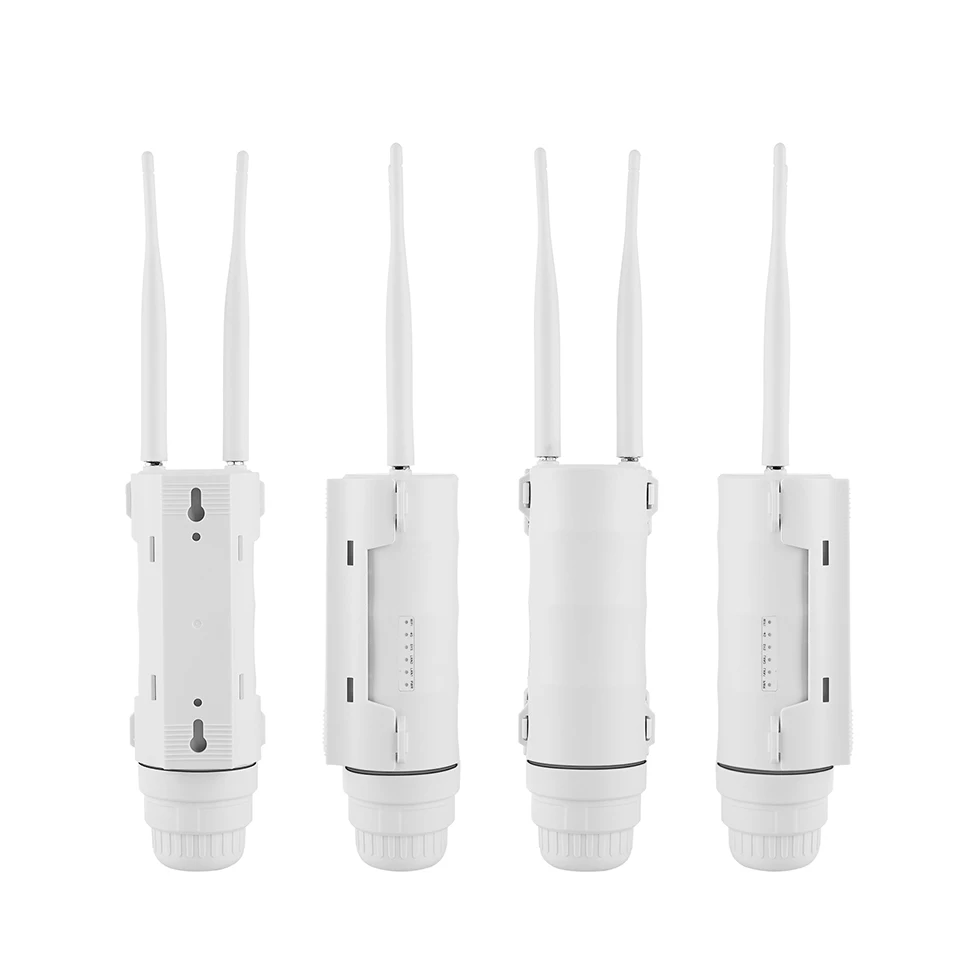

Product Display from Different Angles
