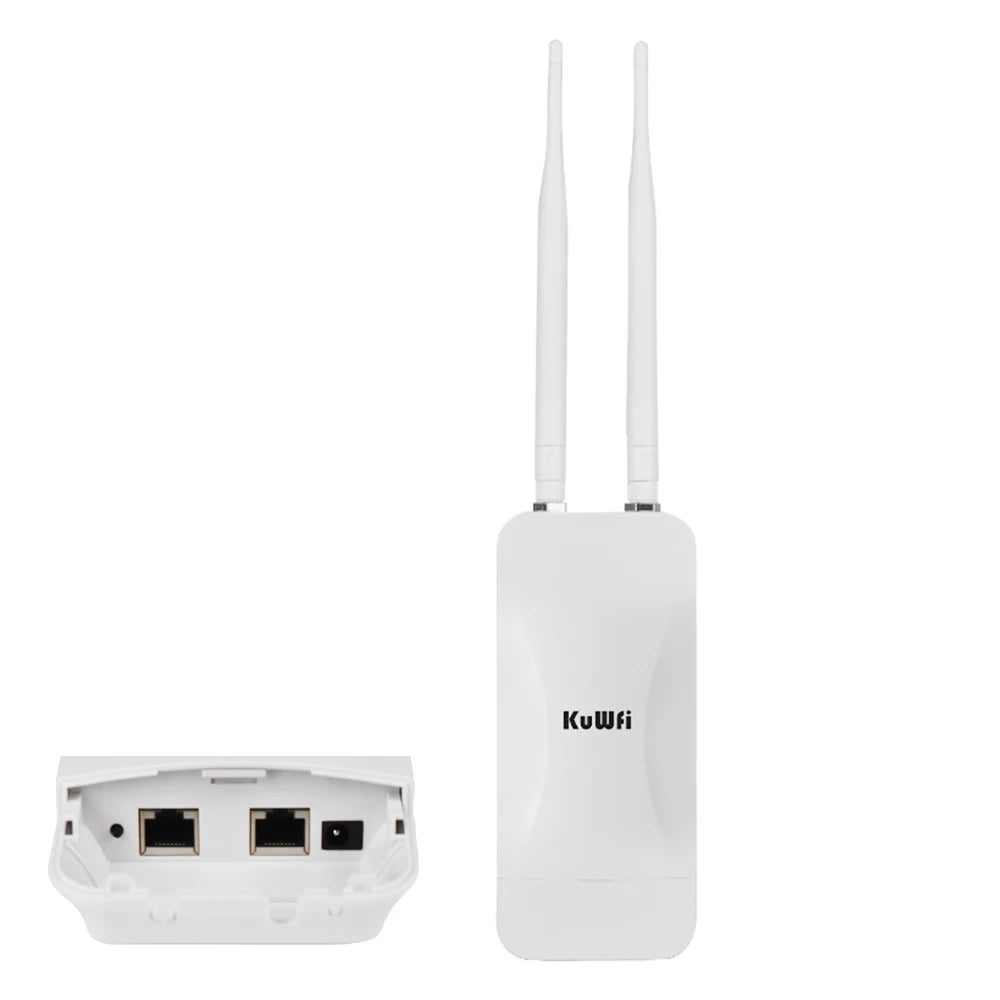

KuWFi 1200Mbps Outdoor AP Router Dual Band Wireless Wi-Fi Access Point with High Gain External Antenna Support 24V POE Repeater
SPECIFICATIONS
2.4G Wi-Fi Transmission Rate: 300 Mbps
2.4GHz WIFI transmission protocol: 802.11 b/g/n
2.4GHz Working Frequency Band: 2.4GHz to 2.484GHz
5G Wi-Fi Transmission Rate: 867Mbps
5GHz WIFI transmission protocol: 802.11 a/n/ac
5GHz Working Frequency Band: 5.150GHz to 5.850GHz
Antenna Type: Fixed
Antenna gain: 5 dBi
Application: Outdoor
Brand Name: KuWFi
CPU: MT7628DAN + MT7613BEN
Certification: CE
Choice: yes
Color: White
Flash: 8MB
Frequency: 5 GHz
Frequency Band Class: Dual-Band
Function: QoS
High-concerned chemical: None
LAN Port: 10/100Mbps
LAN Ports: 1
Max. LAN Data Rate: 867Mbps
Mode: AP Mode or Gateway Mode or Repeater Mode
Model Number: AP1200
Normal Operating Temperature: -30°C to 55°C
Number of USB Interfaces: None
Package: Yes
Recommended Uses: Home
Standards And Protocols: Wi-Fi 802.11g,Wi-Fi 802.11b,Wi-Fi 802.11n,Wi-Fi 802.11ac
Storage Temperature: -40°C to 70°C
Support Mesh: Not Supported
Supports WDS: No
Supports WPS: No
Type: WireLess
WAN Port: 10/100Mbps,Support 24V POE
WAN Ports: 1 x10/100Mbps
Wi-Fi Supported Frequency: 2.4G & 5G
Wi-Fi Transmission Standard: 802.11g
Wired Transfer Rate: 10/100Mbps
Wireless Communication Standard: 802.11.ac
Wireless transmission rate: 1200M
With Modem Function: No
semi_Choice: yes
Product Description:
KuWFi AP1200F is an entry-level dual-frequency 802.11ac outdoor wireless access point product, providing 2.4GHz and 5.8GHz dual-frequency wireless services, 2.4GHz up to 300Mbps access rate, 5GHz up to 866Mbps access rate.
Product Features:
1200Mbps Dual Band AP Router:

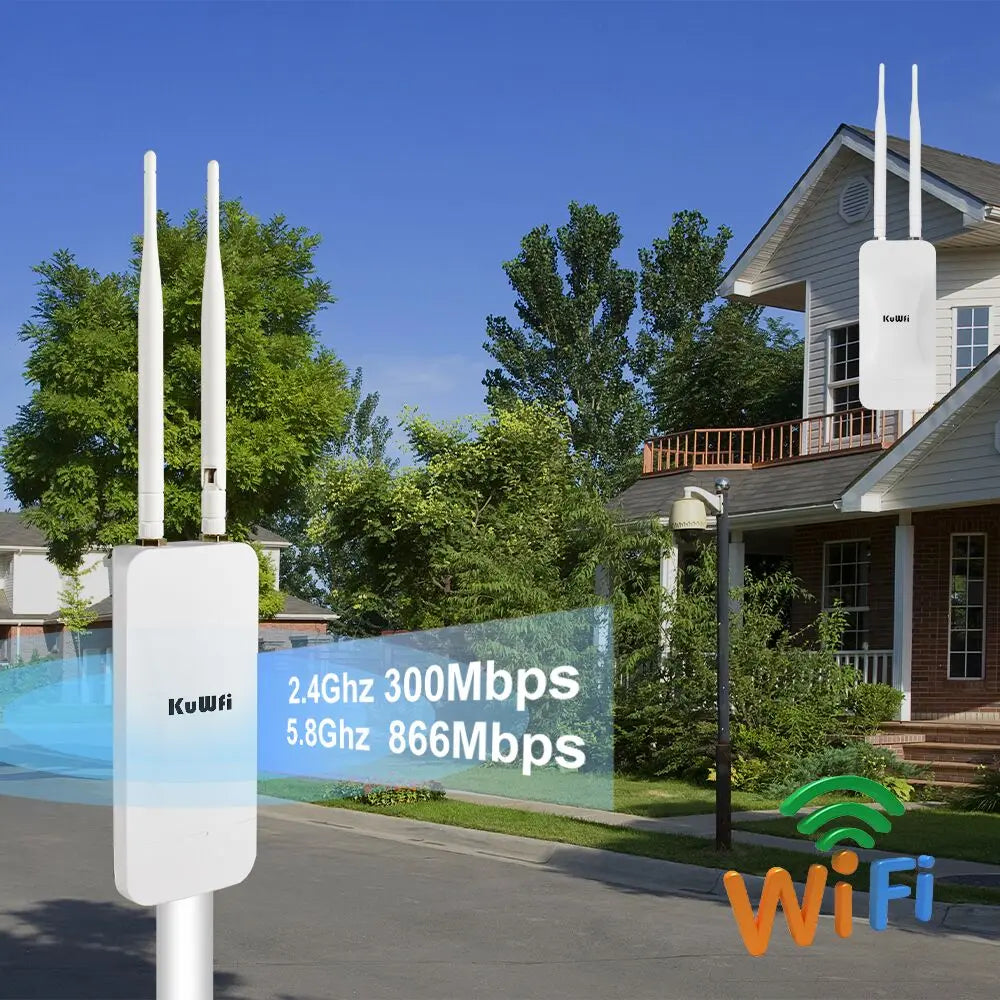

Providing 2.4GHz and 5.8GHz dual-frequency wireless services, 2.4GHz up to 300Mbps access rate, 5GHz up to 866Mbps access rate.
Support Three Modes:
①AP Mode:
Devices cover wireless network signals over other clients and devices, and use Ethernet to connect to other routers for WAN access
②Gateway Mode:
The device is connected to the WAN network through the WAN port and connected to the Internet using static IP, DHCP or PPPOE
③Repeater Mode:
Users can turn on Rpeater Mode to extend the distance of other WiFi signals. In order to keep the Wifi signal stable, it is recommended that users avoid the wall as much as possible when using.

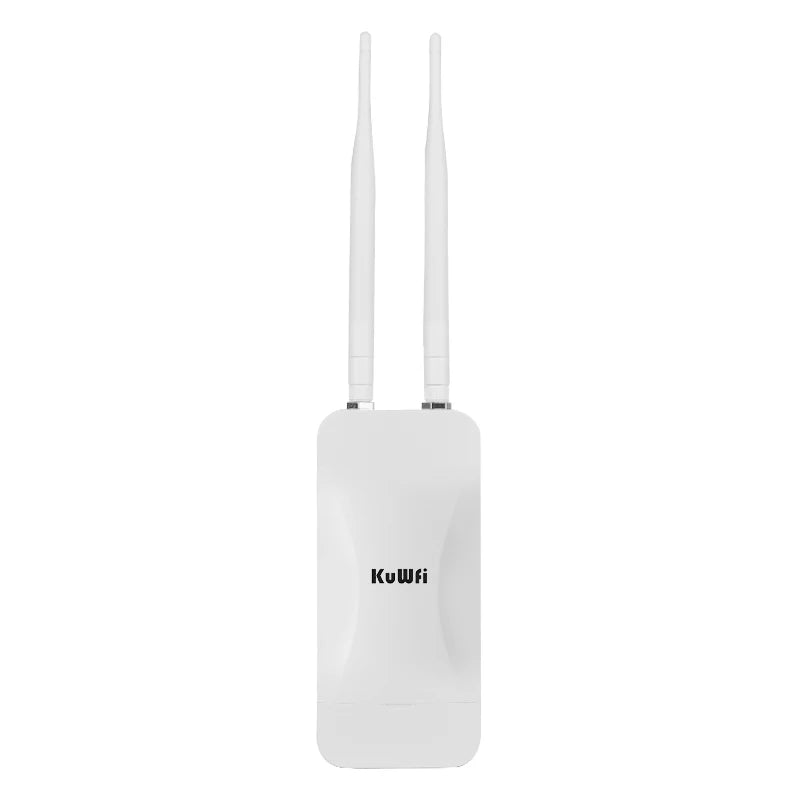

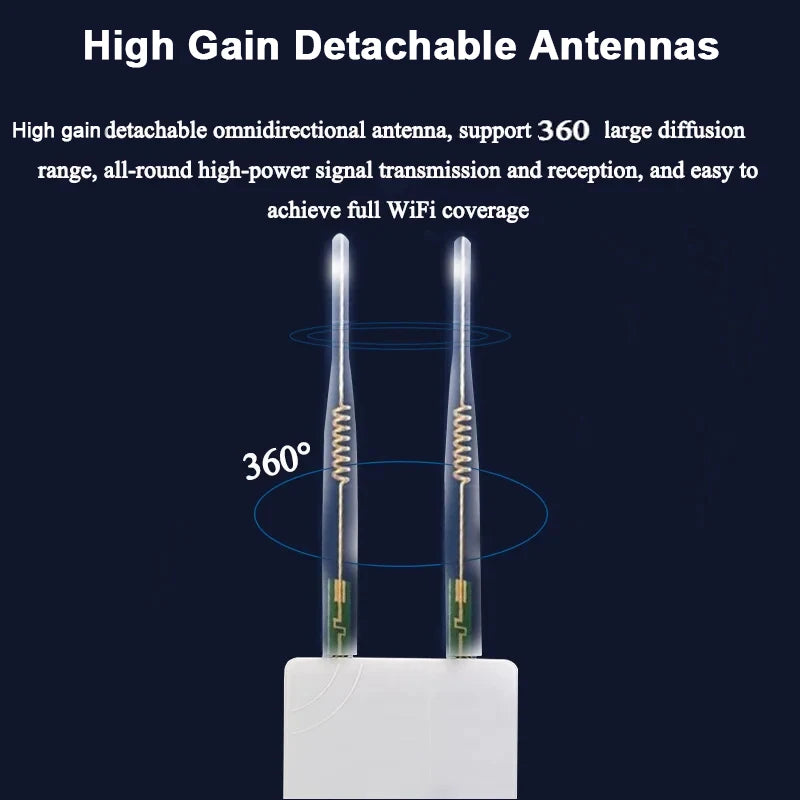

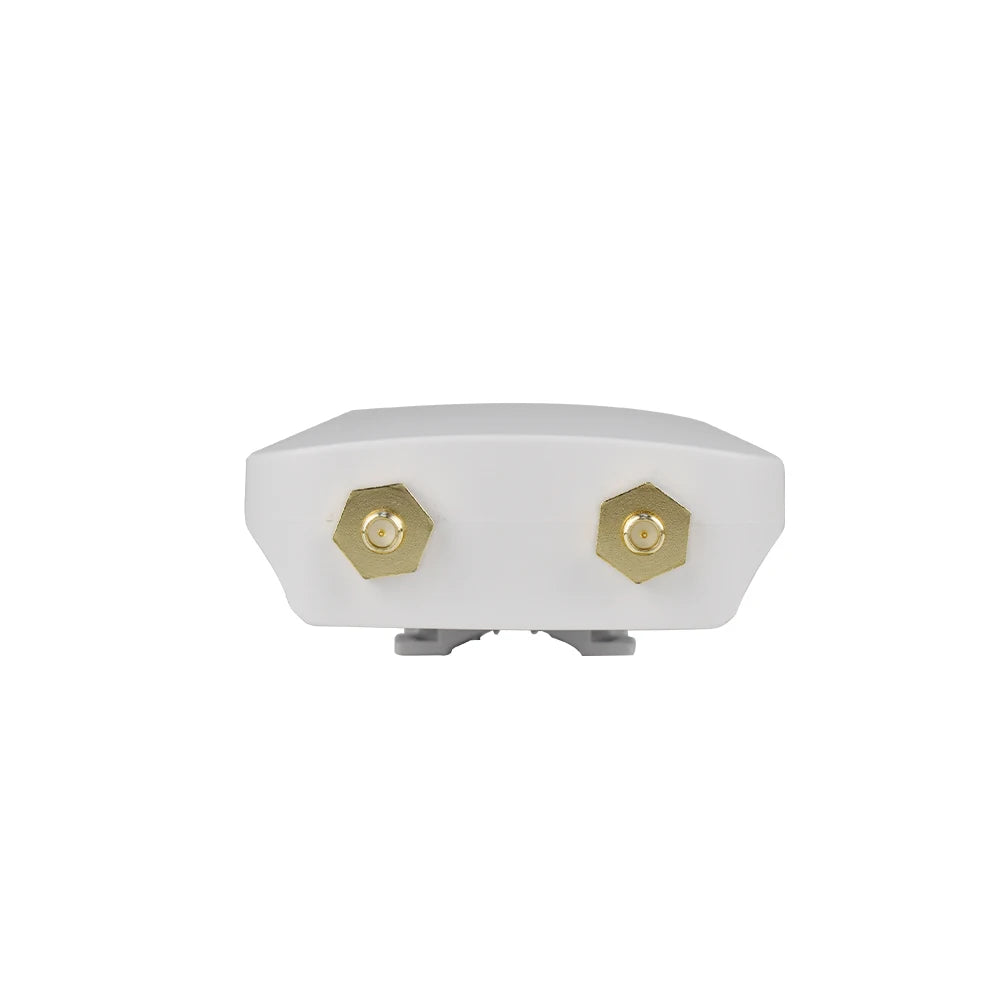

Two External Antennas:

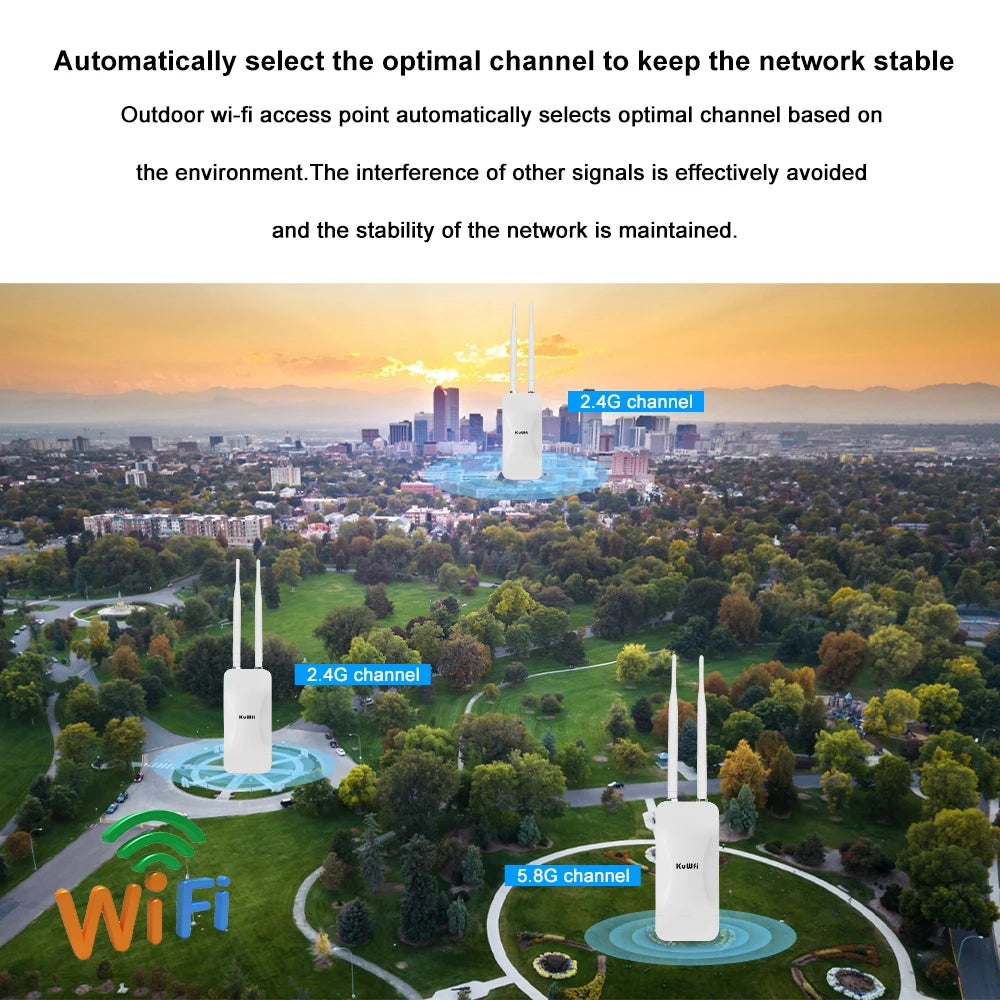

2*5dbi external antennas providing even better wireless performance, transmission rates, stability technology automatically avoids channel conflicts using its channel selection feature.

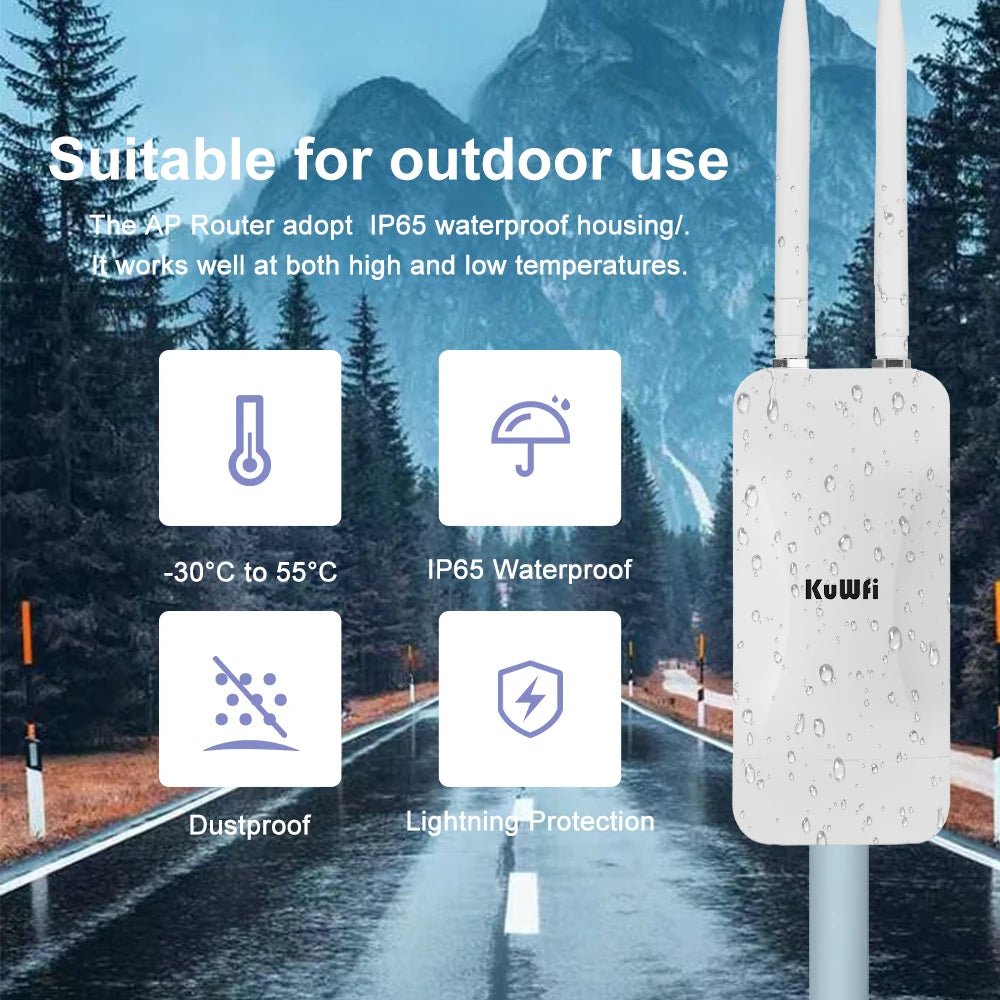

Outdoor IP65 Waterproof:
Outdoor IP65 waterproof design,Weatherproof enclosure and lightning protection ensure safety and stable connection in harsh outdoor conditions

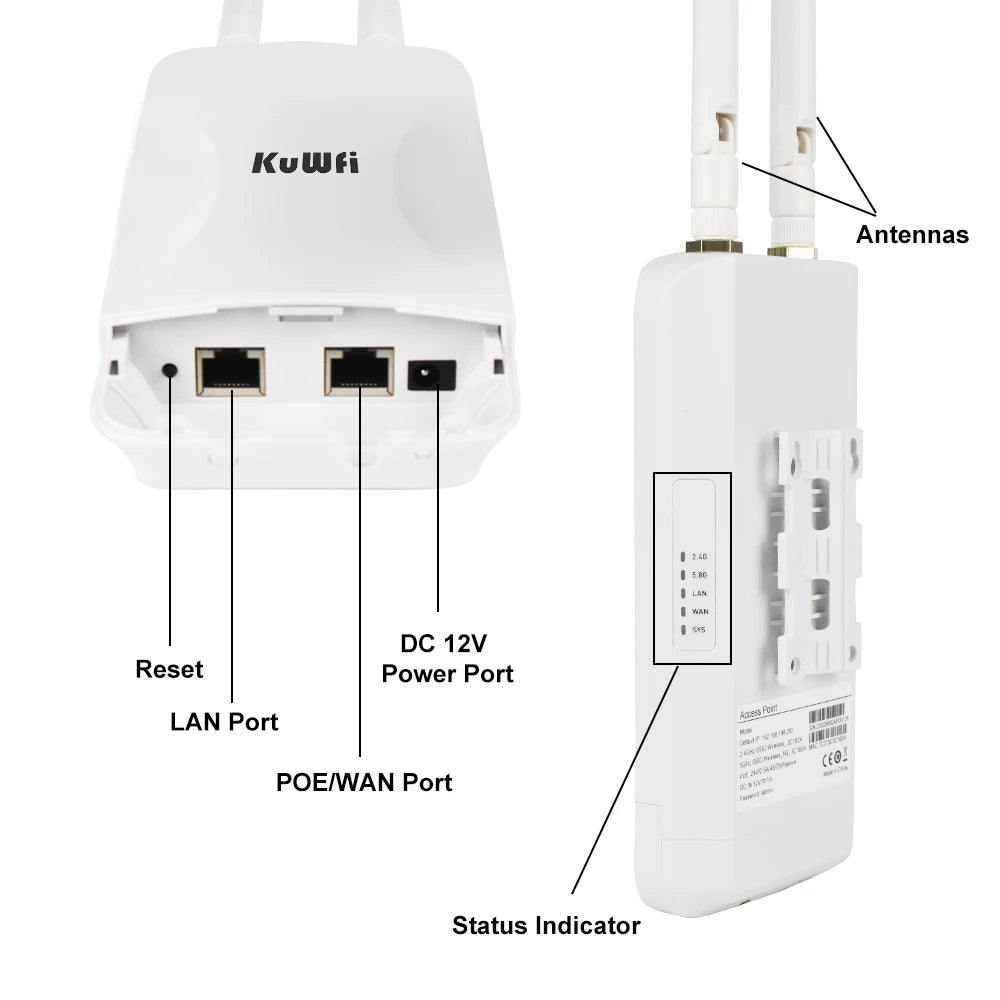

Two Power Supply Modes:
The AP Router support 24V POE power supply and DC 12V power supply(Package not include DC Power).To meet the needs of different customer need.
Product Specifications:
Produt Model: AP1200F
CPU: MT7628DAN+ MT7613BEN
Flash: 8MB
External dual-frequency antenna: 2.4GHz / 5GHz omnidirectional antennas
Antenna gain: 5 dBi
2.4GHz Working Frequency Band: 2.4GHz to 2.484GHz
2.4GHz WIFI transmission protocol: 802.11 b/g/n
5GHz Working Frequency Band: 5.150GHz to 5.850GHz
5GHz WIFI transmission protocol: 802.11 a/n/ac
WAN Port: 10/100Mbps,Support 24V POE
LAN Port: 10/100Mbps
Normal Operating Temperature: -30°C to 55°C
Storage Temperature: -40°C to 70°C
Humidity: 5%~95% (no condensation)
Package Contents:
1x AP Router
1x 24V POE Power Supply
1x Network Cable
1x User Manual
2x Nylon Cable Tie
