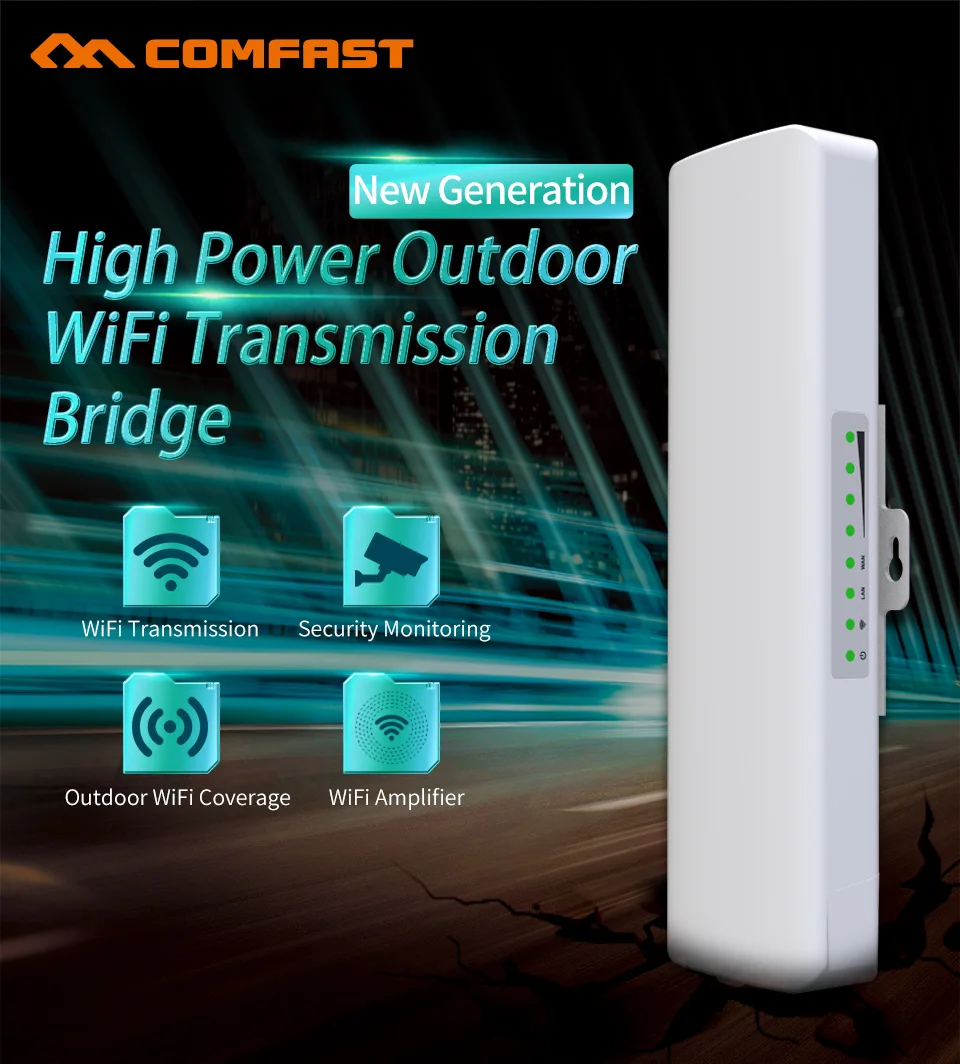

COMFAST Outdoor WiFi Bridge 3-5KM Long Range Network Monitoring CPE Client Receiver WiFi Signal Extender Transmission CF-E314N
Product Description
CF-E314A V2 wireless network bridge is designed for outdoor long-distance transmission

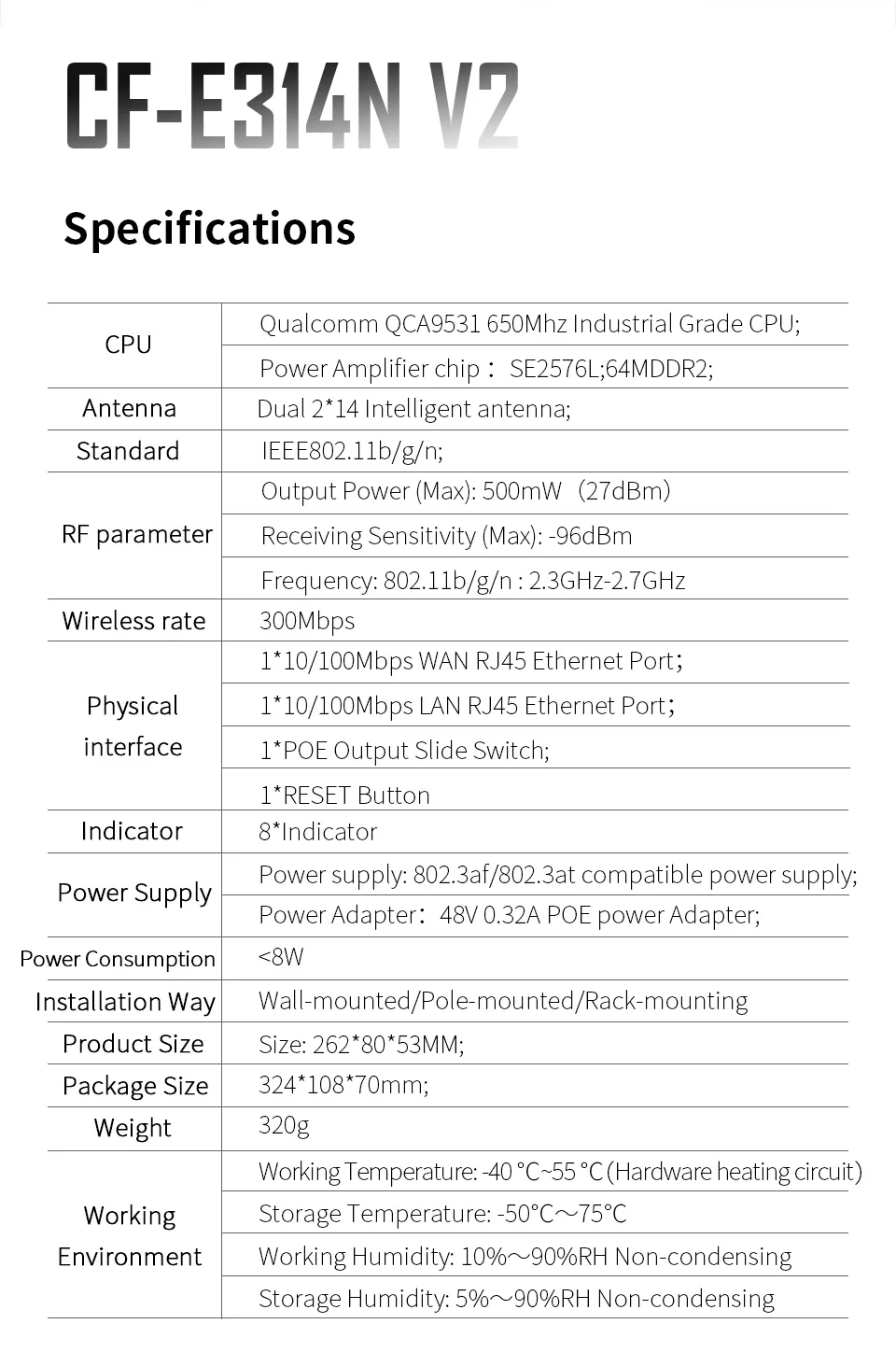

1. QCA9531 650Mhz Chipset


Comprehensive protection to against severe outdoor environnments
Low Temperature Protection
It can support work and start up under low temperature
Qualcomm chip Perfect Performance
As Qualcomm's global strategic partner , COMFAST products all use Qualcomm chipset , because we believe that QUALCOMM holds the high performance highland around the world
High Gain Antenna Long distance stability
Ensure stable transmission , no delay , no stagnation
More channels Less interference
It provides more optional channels And support channel automatic selection. Substantially reduce the interference. From same channel when transfer signal
48V POE Power Supply ,Reduce network costs
Toggle the switch to the left , connect a network cable to supply power to the surveillance camera , and realize view transmission , saving engineering cost and power supply troubles
Hidden SSID Safety Wifi
Support SSID hiding , solve network problems,and ensure project stability
Powerful Sinmax Software OS
SINMAX is a multifunctional software OS and it is very easy to do settings up
Applicable scene
Elevator & Community & Driving school
Factory & Scenic spot & Site
Elevator Monitoring Application
Connect Application Diagram
Point to Point Connection Diagram
Multiple cameras connecting way 1 : Connect the camera to the switch , then connect with COMFAST CPE It will transmit the data through two CPE
Multiple cameras connecting way 2 : If the distance among the cameras is so far , each camera is configured with double CPE . The control center connect CPE with AP mode through the switch ,then connect with the DVR
Point to Multi-point Connection Diagram
If the angle between camera and control center is within 60 , there can consider one point to multi point connection . It can reduce CPES with the transimitting mode , which can save project cost a lot . Pls pay attention that it has to be meet the angle and brandwith requirements
Easy to install and maintain
Construction assistant
How to connect
Packing List
