COMFAST Outdoor AP 300Mbps 1km Long Range CPE 2.4G Wireless Wifi Bridge 9dBi Antenna Nanostation Router

Stable transmission High-definition quality

CPE work in the 2.4GHz band, the transmission rate reach to 300Mbps,ensure Monitor image quality is stable, clear, and not dropped

Anti-interference Broadband

Support 2.3-2.7GHZ broadband,support more channel optional, Significantly reduced co-channel signal interference, data transfer is smooth and will not be lost.

Qualcomm chipset, Quality Assurance

Adopt Qualcomm QCA9531 650MHz high frequency chipset, which improve the CPU performance and reduce power consumption,(Stability has been tested by engineering users)

PoE power supply

9-24V 0.5A POE power supply, specification wiring,reduce networking cost

Hide SSID Refuse other people to get free WiFi

COMF AST wireless CPE support SSID broadcast hide, can easy solve the troubles of network security and ensure the engineering stability.

Diverse software management functions

COMFAST wireless CPE software has a scientific and user-friendly operation interface, and the user is easy to set up, easy to use, rich in functions and practical.

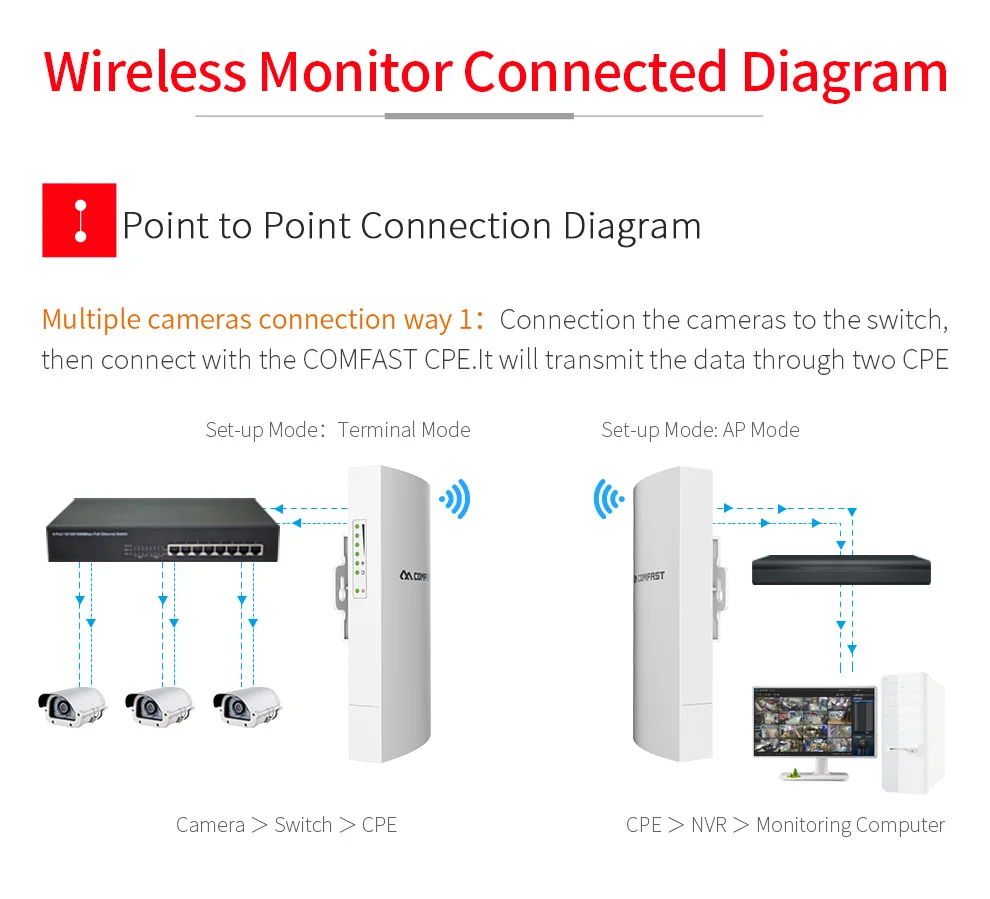

Wireless Monitor Connected Diagram

Point to Point Connection Diagram

Multiple cameras connection way 1: Connection the cameras to the switch, then connect with the COMFAST CPE.It will transmit the data through two CPE.

Multiple cameras connection way 2: If the distance among the cameras is so far ,each camera is configured with two CPEs.The control center connect CPE with AP mode through the switch,then connect with the NVR

Point to Muti-point Connection Diagram

If the angle of camera and monitor center is less than 60degree,there can consider one point to multi point connection.It can reduce CPEs with the transmitting mode,which can save project cost a lot.Pls pay attention that it has to meet the angle and Broadband requiement.

In wireless monitoring transmission,we suggest you to use above way to do connection.Pls pay attention the transmission angle for the device is 60degree.

Signal Tracking & Precise Positioning

The CPE comes with signal indicator ,users can adjust the angel of the CPE according to the signal strength,easy to achieve high quality of long-range wireless transmission effect.

Easy to install

No need install tools, supports pole mounted and wall mounted, convenient and flexible
