COMFAST Outdoor Access Point 1300Mbps Long Range WiFi Antenna Extender 5Ghz/2G High Power Gigabit Port Directional PoE AP Router

COMFAST Outdoor Access Point 1300Mbps Long Range Wifi Antenna Extender 5Ghz/2G High Power Gigabit Port Directional POE AP Router

SPECIFICATIONS

Brand Name: COMFAST

With Modem Function: No

Hign-concerned Chemical: none

Type: WireLess

WAN Ports: 1 x10/100/1000Mbps

Wi-Fi Supported Frequency: 2.4G & 5G

5G Wi-Fi Transmission Rate: 867Mbps

2.4G Wi-Fi Transmission Rate: 450 Mbps

Function: Firewall

Function: VPN

Certification: CE

Number of USB Interfaces: None

Max. LAN Data Rate: 1300Mbps

Standards And Protocols: Wi-Fi 802.11ac

Wi-Fi Transmission Standard: 802.11ac

Wired Transfer Rate: 10/100/1000Mbps

Package: Yes

Supports WDS: Yes

LAN Ports: 1

Supports WPS: Yes

Application: outdoor

WAN Ports: 1

Products Status: Stock

Outdoor AP Chipset: Qualcomm QCA9563+QCA8337+QCA9886

Outdoor Access Point Feature 2: High power outdoor AP

Long Range Wifi Router Feature 3: Wide coverage

wifi access point WAN Port: 1*10/100/1000Mbps RJ45 WAN Port

outdoor acces point AP: outdoor wifi router

wifi antenna long range poe: 48V/0.5A POE Power supply

wifi Antenna Application: for Scenery Spot

Outdoor AP output power: 500mW outdoor wifi router

High power wireless outdoor AP Antenna: 2.4Ghz:11dBi antenna +5.8Ghz:13dBi antenna

1300Mbps dual band outdoor AP Function: For outdoor big area wifi coverage

poe acess point Application: For plaza, resorts, scenic spots and other large outdoor places.

Wifi AP Model: CF-WA350

Access point POE AP Flash: 16MB

Outdoor AP Router DDR: 128MB

Outdoor wifi ap Wireless Rate: 2.4GHz: 450Mbps; 5.8GHz: 867Mbps

access point wifi Feature: Support POE power supply, Waterproof Connector

Outdoor AP Feature: 360 Degree wifi coverage

long range wifi router LAN port: 1*10/100/1000Mbps RJ45 LAN Port

Outdoor wifi access point: long range wifi router

Outdoor Access Point: outdoor wifi

access point wifi: wifi extender outdoor

outdoor access point ROUTER: outdoor wifi extender

Wifi antenna long range: Outdoor Wi-Fi Router

Outdoor wifi antenna: Outdoor wifi waccess point

Outdoor Poe Access Point: poe access point

Choice: yes

semi_Choice: yes

Comfast Outdoor Access Point 1300Mbps Long Range Wifi Antenna Extender 5Ghz/2G High Power Gigabit Port Directional POE AP Router

Product Overview:



CF-WA350 is an outdoor access point AP with long-range directional coverage, supporting Gigabit dual-band channel and Qualcomm tri-core chips,The high-gain directional antennas are configured in 2.4GHz and 5.8GHz frequency bands respectively, achieving 60° horizontal coverage and 30 °Cover vertical coverage, which is suitable for meeting the needs of long-range wireless coverage in outdoor environments.

Product Features:



1.Professional Outdoor Shell Design

CF-WA350 supports IP67 protection level, effectively preventing the wind, frost, rain and snow and other severe weather effects on the equipment, preventing dust, rain and snow.Rain and snow and other inclement weather on the equipment, preventing dust,

water droplets, etc., to ensure that the equipment can be safely and stably operated even in bad weather.The CF-WA350 is designed to protect the equipment from dust, water droplets, etc.



2.High gain antenna, long range directional coverage

CF-WA350 2.4GHz band is equipped with11dBi directional antenna.

5.8GHz band with 13dBi directional antenna, fully meets the needs of outdoor plazas, stadiums, scenic spots, parks, amusement parks, etc.meet the needs of outdoor squares, stadiums, scenic spots, parks, amusement parks and other environments with long-distance wireless coverage.parks, amusement parks, and other environments.



3.Strong Chip Configuration

Qualcomm  QCA9563+QCA8337+QCA9886 tri-core chip program.And equipped with high-performance independent power amplifier circuit (PA: Power Amplifier) to improve wireless transceiver performance. and the signal is more powerful than ordinary APs.



4.1300Mbps dual-band high-speed wireless rate



CF-WA350 adopts the 802.11ac standard, which supports dual-band high-speed wireless rate of 1300Mbps. CF-WA350 adopts 802.11ac standard and supports 2.4GHz & 5.8GHz dual band, 2.4GHz band provides  450Mbps wireless rate, 5.8GHz band provides 867Mbps wireless rate.The higher wireless rate can meet the higher wireless demand.wirelessly

Specification:



1.Brand: COMFAST

2.Model: CF-WA350

3.Colour: White

4.Chipset: Qualcomm QCA9563+QCA8337+QCA9886 Chipset, PA chip: 2.4Ghz SE2576L+5.8Ghz SKY85728-11

5.Wireless standard: Support IEEE802.11a/b/g/n/ac;

6.Flash memory: DDR 128MB; FLASH 16MB;

7.Supports a maximum of 160+users;

8.Maximum transmit power: 27dBm (500mW);

9.Physical Interface: 1*10/100/100/100/1000Mbps RJ45 WAN Ethernet port; 1*10/100/100/1000Mbps RJ45 LAN Ethernet ports; 1*Reset button;

10.Wireless Speed: 2.4Ghz: 450 Mbps; 5.8Ghz: 867 Mbps ；.

11.Antenna Amplification: 2.4Ghz 11dBi directional antenna / 5.8Ghz 13dBi directional antenna;

12.Power supply: Power mode: POE power supply;

13.power adapter: 48V 0.5A (configured);

14.Maximum power consumption :<20W

15.Installation method ：Mounting ；

16.Protection class ：IP67   Housing material ：ABS

17.Product size :300*180*50mm

18.Indicator light ：Power, WIFI, WAN, LAN；

19.Environment ： Operating temperature: 0°C ~ 40'C;

Storage temperature: -40°C ~ 70°C

Operating humidity: 10% ~ 90%RH non-condensing;

Storage humidity: 5% ~ 90%RH non-condensing.

Package content:

1*AP main body

1*Power adapter

1*Network cable

2*Stainless Ties

1*User Manual

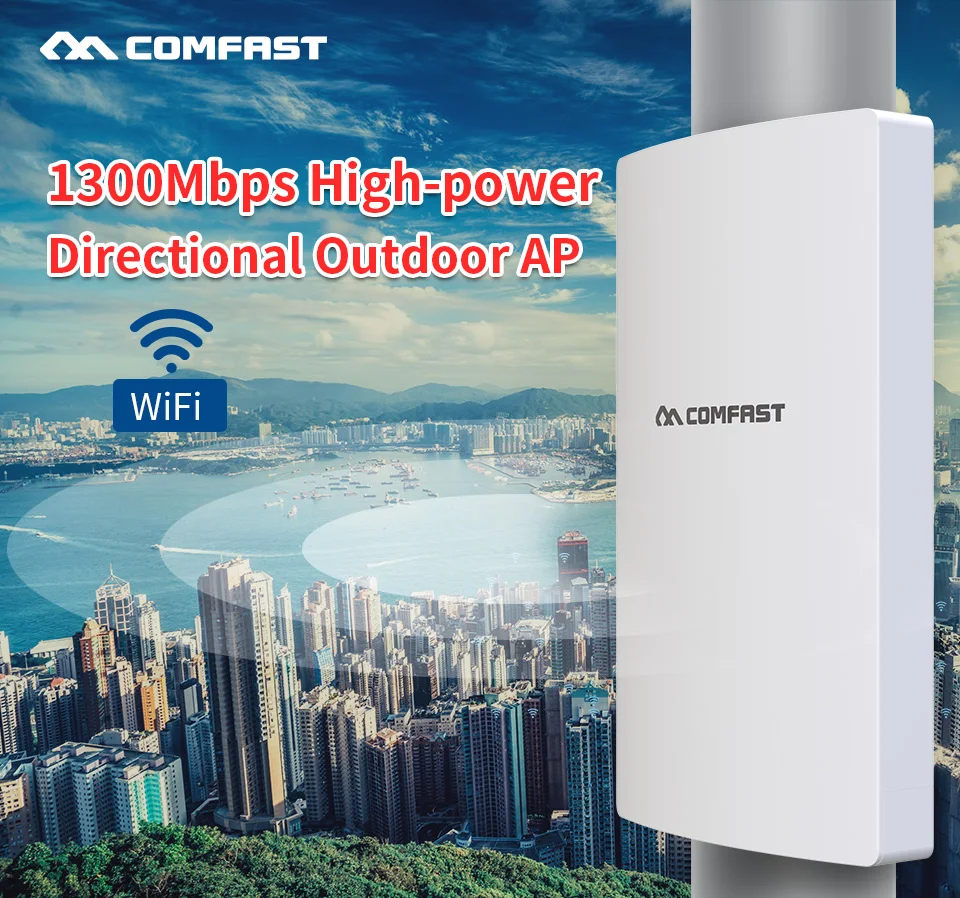

1300Mbps High Power Directional Outdoor AP

Luxury Configuration of Wifi Coverage ProjectQualcomm Three Chips
1300Mbps High Speed   High Power160+ Support more users
Dual Gigabit Ports   WAVE 2 technology   Dual Antenna Design    High Grade Ingress Portection Rating

Outdoor Long distance Directional Wifi Coverage

CF-WA350 is equipped with long range directional antenna in 2.4Ghz & 5.8Ghz Band respectively, Which can fully meet the wireless coverage requirements of outdoor remote environment

Direction Antenna launch angle 60 degree

Directiona Antenna Launch vertical 30 degrees





New Wave 2 Technology

802.11ac wave 2 MU-MIMO, technology allows multiple clients to connect to a single Wave 2 AP for simultaneous inernet access, resulting in increased terminal throughput and user experience.

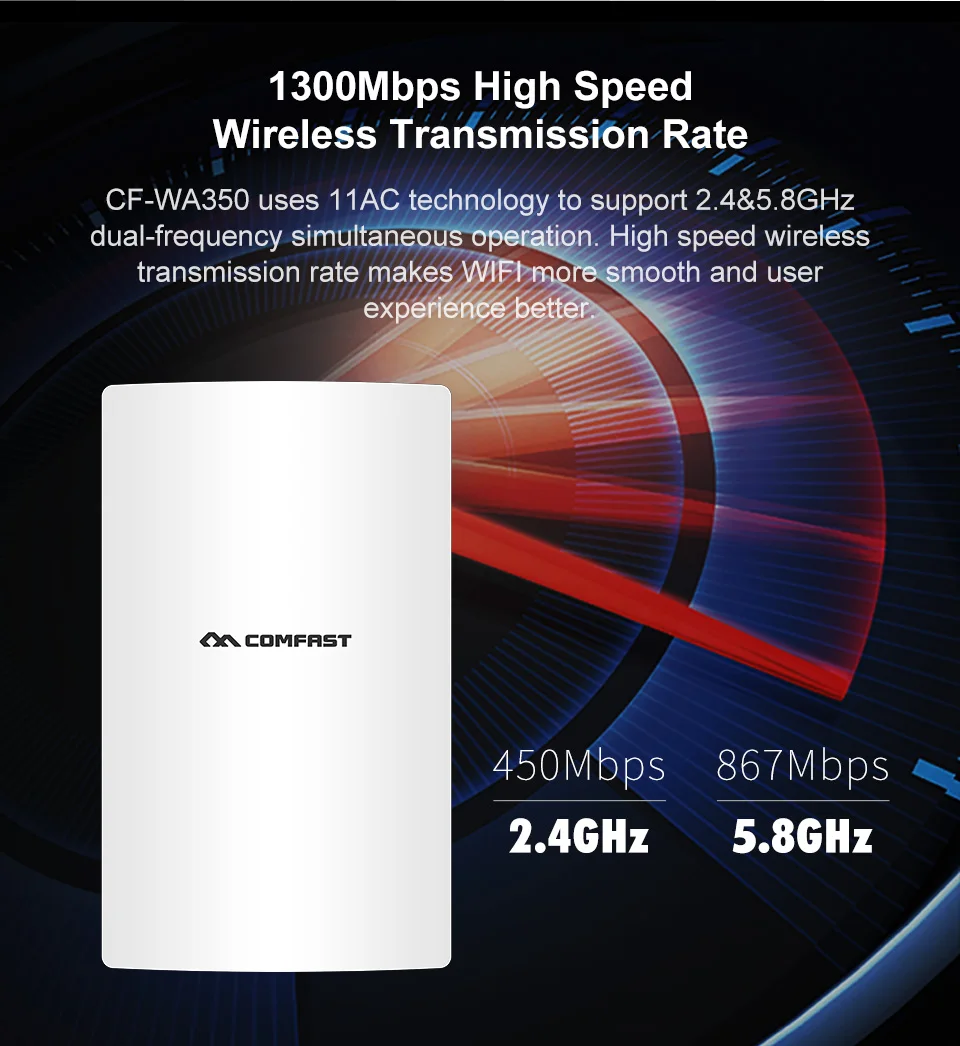

1300Mbps High speed Wireless transmission rate

CF-WA350 uses 11AC technology to support 2.4& 5.8Ghz dual -frequency simultaneous operation ,High speed wireless experience better. 2.4Ghz 450Mbps + 5.8Ghz 867Mbps

Gigabit Port to meet Multiple Specification of Access

CF-WA350 Configure two gigabit ports, support higher bandwidth ,More anglie and smooth transport

Gigabit Wan Port Gigabit Lan Port

Stong Anti-jamming and adjustable Power

When high density coverage interference is strong ,AP transmit power can be adjusted flexibly and wireless can be impoved.
strong Anti-jamming
Adjustable Power

Before Adjusting

There is interference in the overlap of signal coverage

After Adjustment

Signal Coverage without inerference

Note:0% 12.5% 25% 50% 75% 100% Multiple gear positions adjustable
