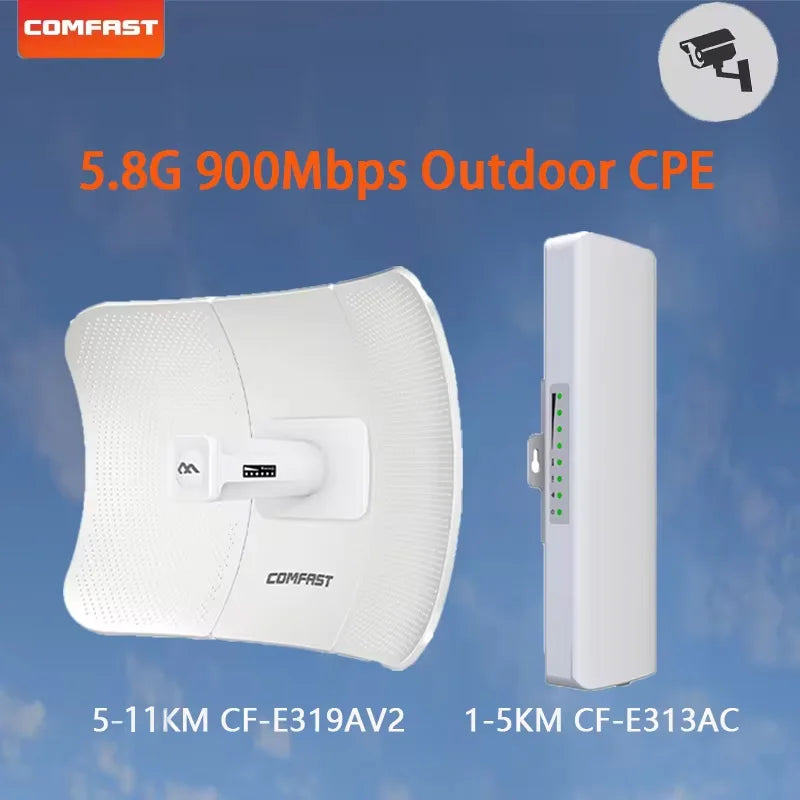

COMFAST 5.8G 900Mbps Outdoor CPE WiFi Router 1-11KM long range Extender High Power Wireless Bridge AP
SPECIFICATIONS
2.4G Wi-Fi Transmission Rate: None
5G Wi-Fi Transmission Rate: 867Mbps
5Ghz point to point: Long Range Amplifier
5Ghz point to point Port 1: 1*10/100/1000Mbps WAN RJ45 Ethernet Port
5KM Long Range Amplifier Port 3: 1* RESET Button
900Mbps outdoor Repeater CPE: outdoor wifi Bridge
Antenna Type: Internal
Application: Outdoor
Brand Name: COMFAST
Certification: CE
Frequency: 5 GHz
Frequency Band Class: Single-Band
Function: Firewall
High-concerned chemical: None
IP Index: 2KV Lightning Protection; IP65
Installation Way: Nail-wall / Bracket-mounted / Pole-mounted
LAN Ports: 1
Max. LAN Data Rate: 867Mbps
Outdoor Router CPE Bridge: 900Mbps HD Outdoor Surveillance Network Bridge
Outdoor Wireless Bridge Port 2(313): 1*10/100/1000Mbps LAN RJ45 Ethernet Port
Outdoor booster: waterproof wifi Bridge
Package: Yes
Power Adapter(313): 48V 0.32A POE
Power Adapter(319): 24V 0.5A POE
Power Supply: Support 802.3af
Recommended Uses: Business
Standards And Protocols: Wi-Fi 802.11ac
Support Mesh: Not Supported
Supports WDS: Yes
Supports WPS: Yes
Type: WireLess
WAN Ports: 1 x10/100/1000Mbps
Wi-Fi Supported Frequency: 5G
Wi-Fi Transmission Standard: 802.11ac
Wifi Signal Extender: Outdoor Wireless Bridge,5Ghz Outdoor Amplifier
Wired Transfer Rate: 10/100Mbps
Wireless Communication Standard: 802.11.ac
Wireless Standard: IEEE802.11a/an/ac
Wireless transmission rate: 900M
With Modem Function: No
Working Frequency: 5.180GHz-5.825GHz
Outdoor WiFi Bridge Port 4: 1* POE Switch
Note:
The distance "5KM/11KM" means 2pcs CPE based on point to point bridge mode.
There are many factors that affect distance, such as obstacles(trees, walls, buildings, trucks, etc.), raw network signals, etc
If you want the good and stable signal, 2pcs are recommended

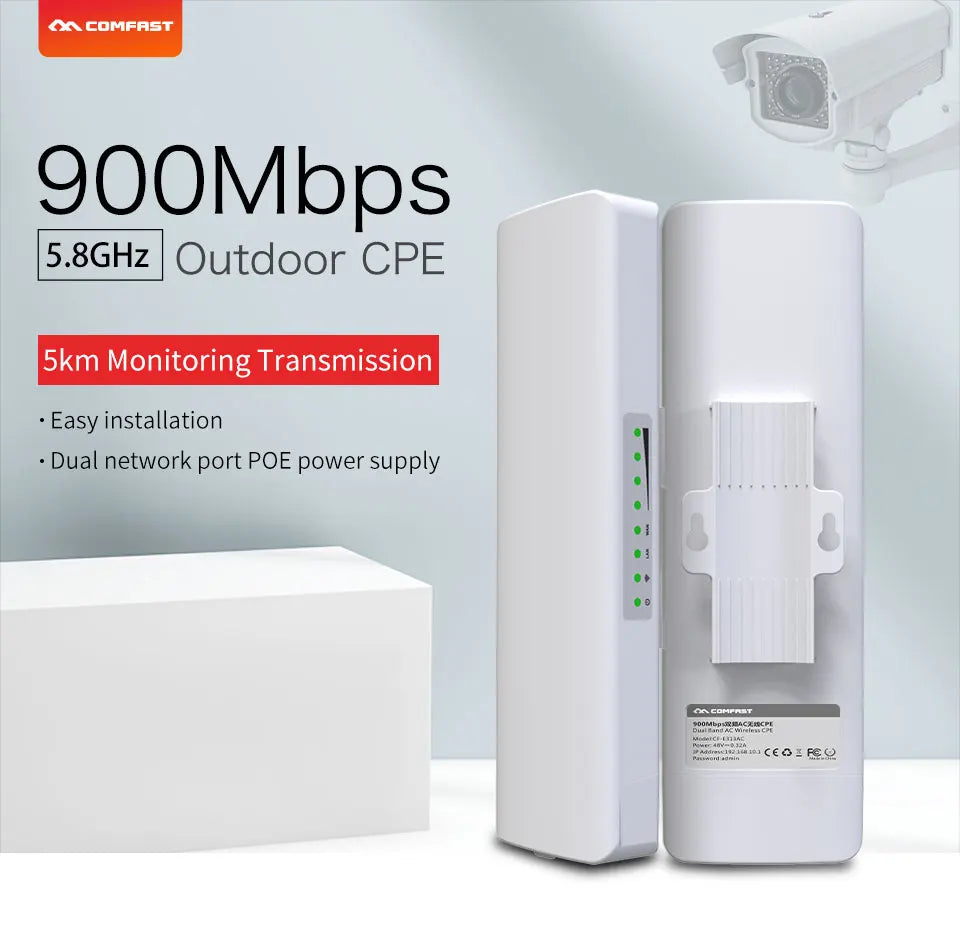

5KM Outdoor WiFi CF-E313A CPE
It is suitable for the transmission of wireless signals in security monitoring projects; the transmission of monitoring projects such as scenic spots, ports, oil fields, and construction sites.

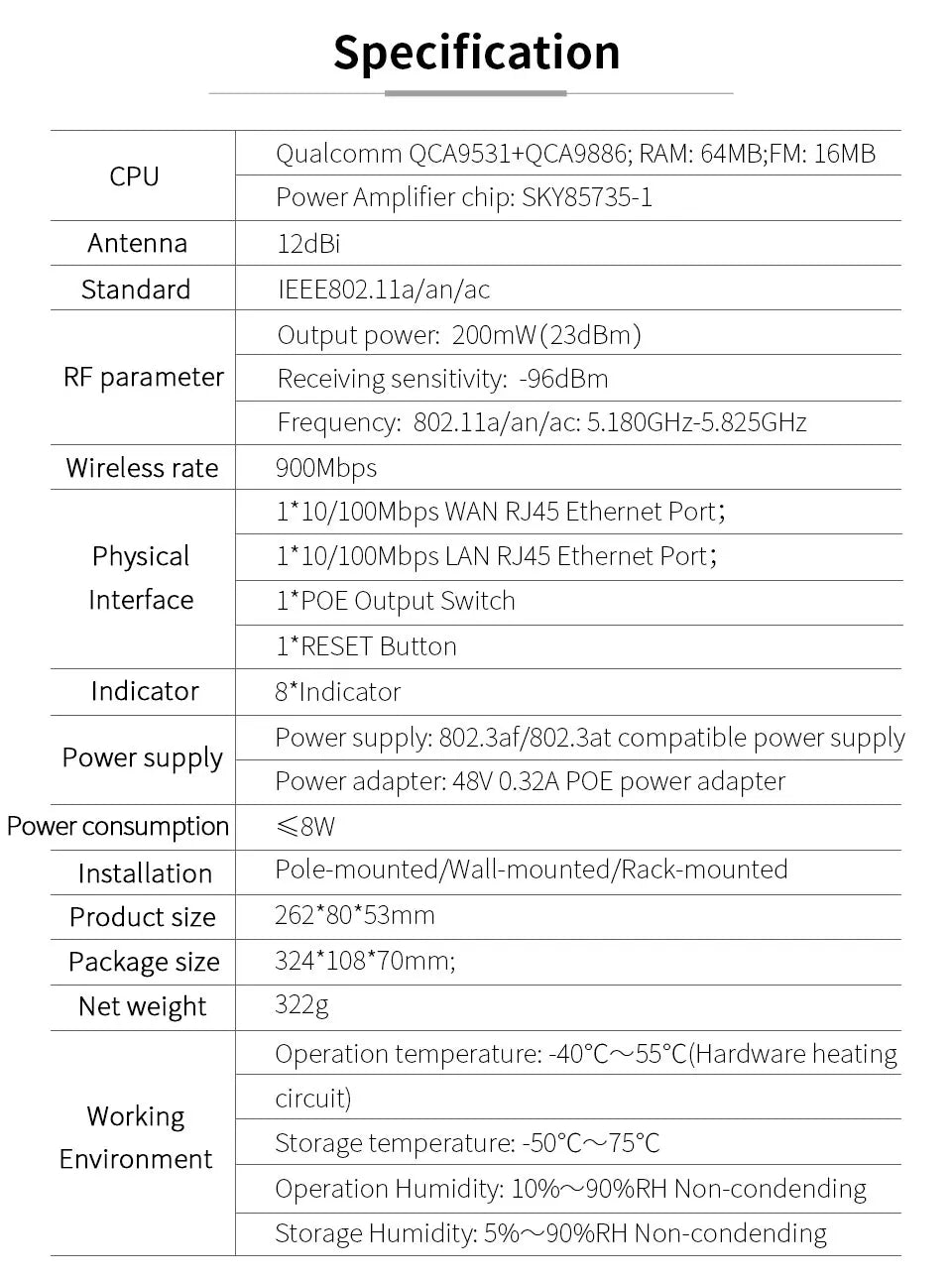

Main Features of CF-E313A CPE
1. QCA9531+QCA9886 Chipset, 802.11a/an/ac Support
2. Built-in 12dBi dual-polarized directional MIMO antenna
3. Adjustable transmission power from 0 to 23dBm/200mw
4. AP / Wireless Client / Repeater operation modes
5. Outdoor stabilized enclosure with IP65 waterproof
6. High Quality 48V Poe Adapter
7. Extend the reach of your existing company network to another building

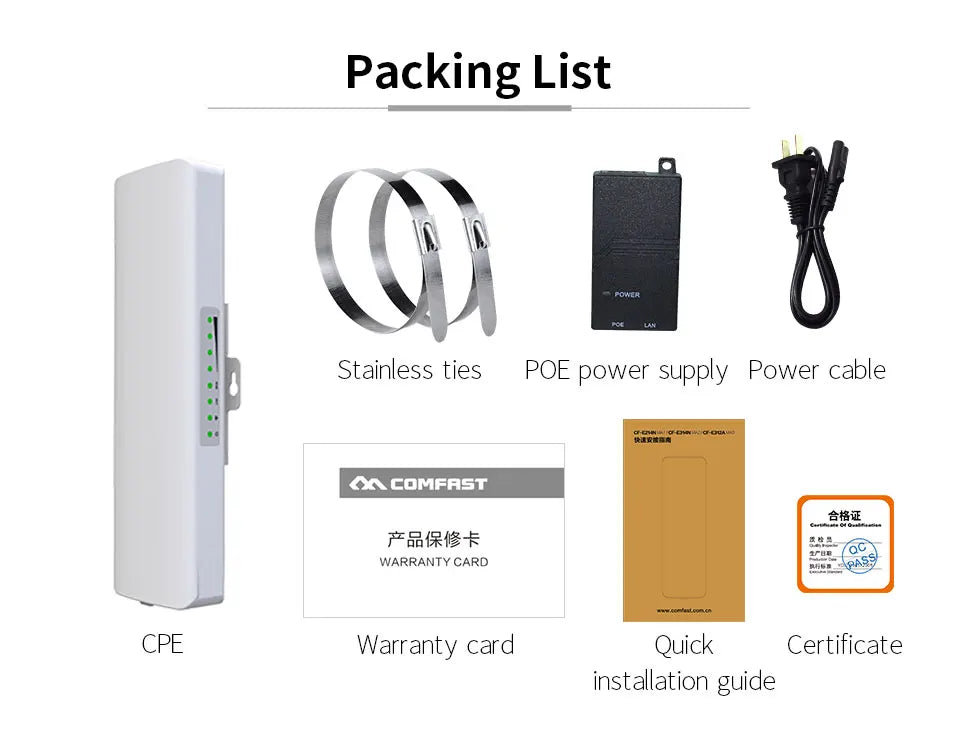

Package includes:
1*CF-E313A CPE
1*Poe Adapter
1*Quick install guide
1*Power cable
2*Stainless Steel Ring


HD CPE Worry-free Monitoring
900mbp/5km Transmission/5.8G Anti-interference
Support 10-20HD cameras/Qualcomm Chip/Dual network port power supply

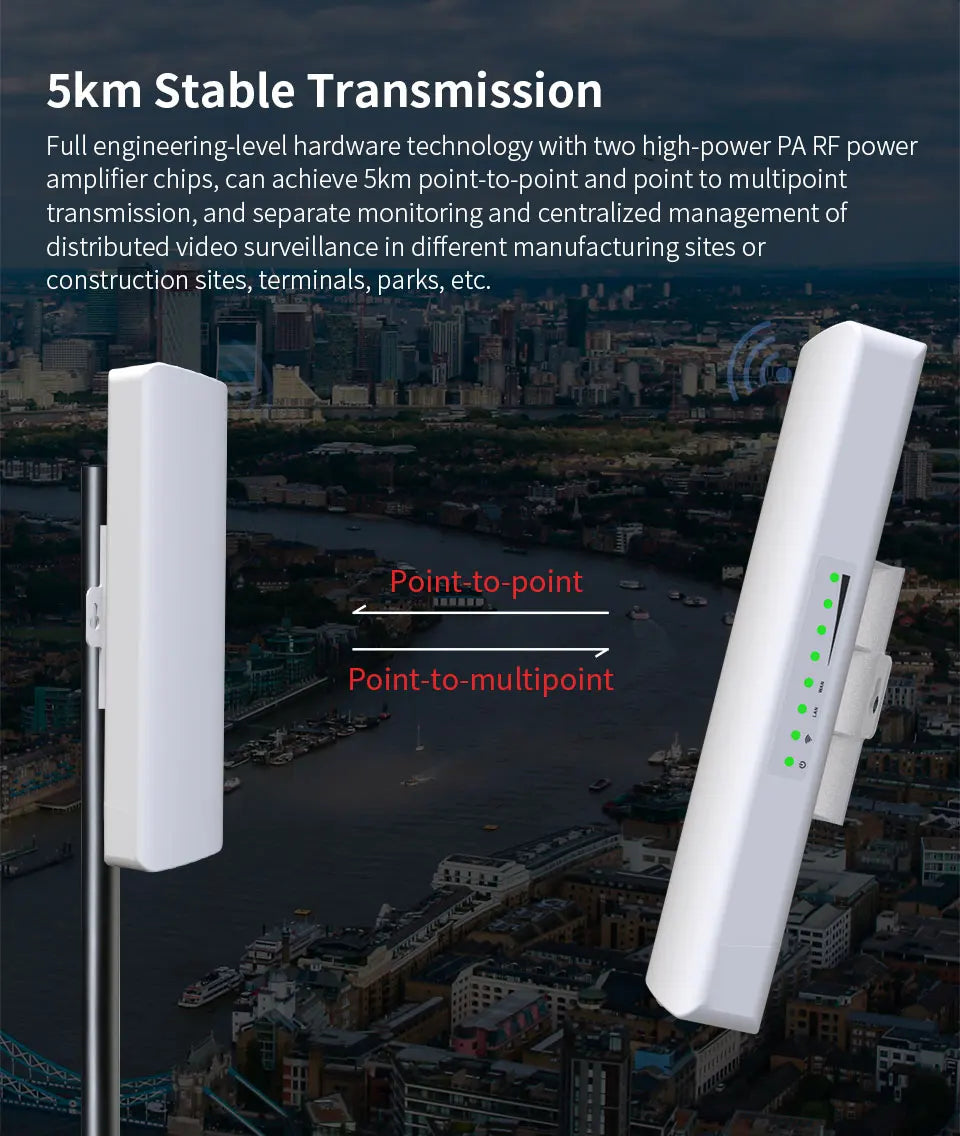

5KM Stable Transmission

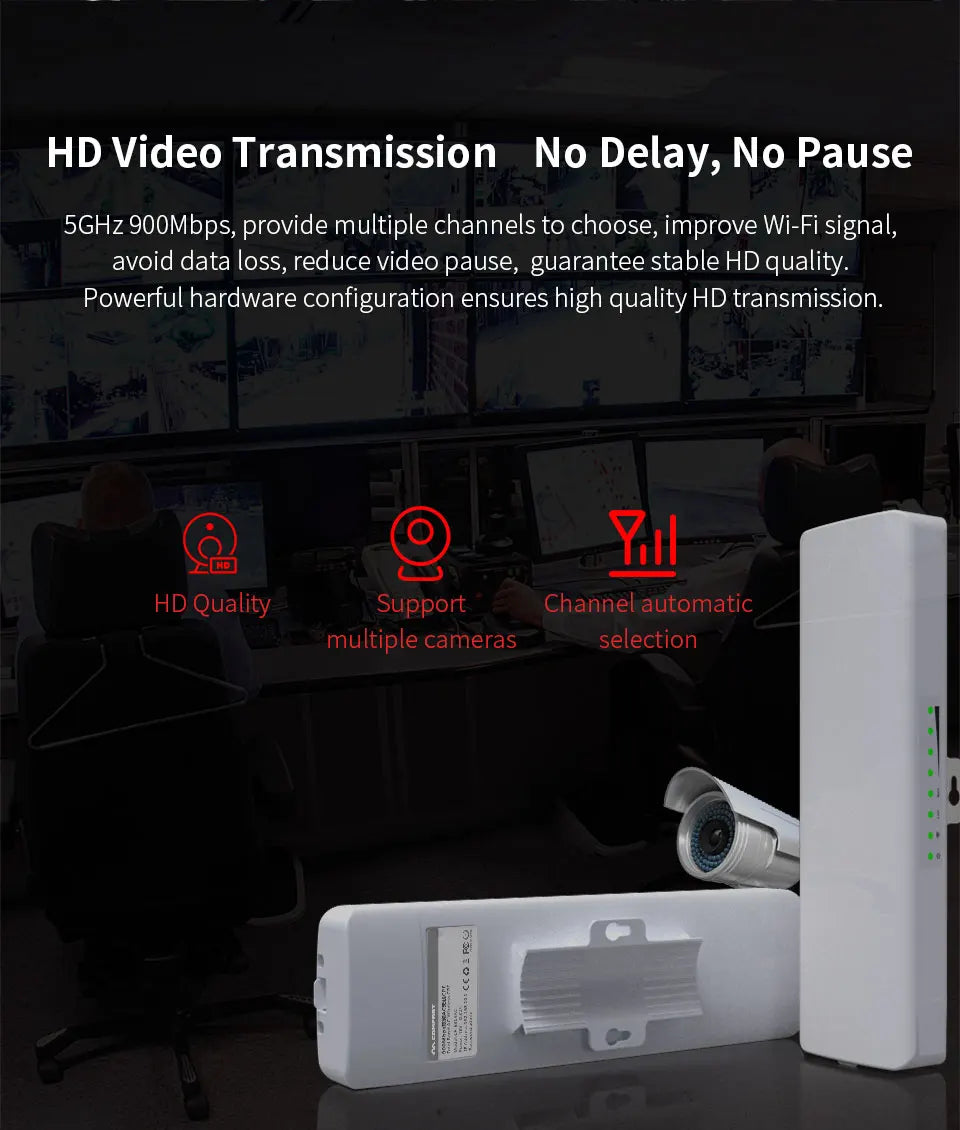

HD Video Transmission No Delay, No Pause

Reduce Interference Effectively with 5.8GHz
Too many equipment working in 2.4GHz cause interference. CF-E313AC works in 5.8GHz, which reduces interference, makes POE work more stable

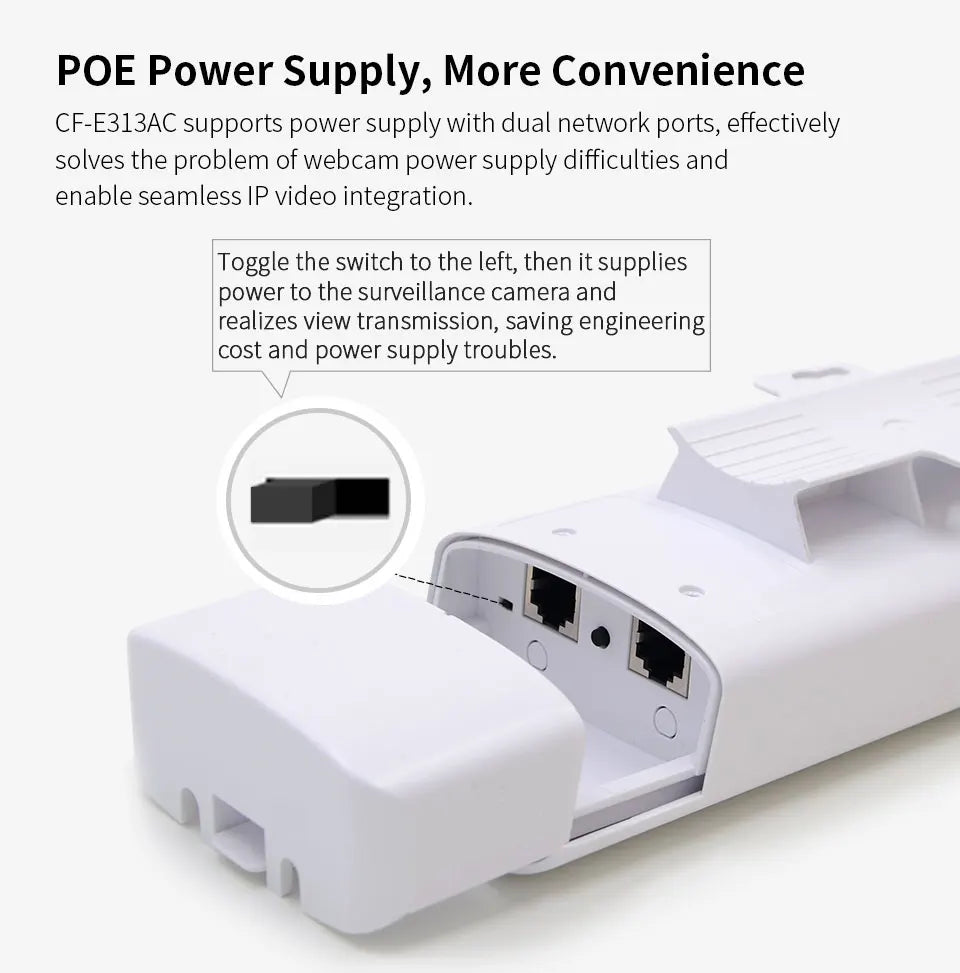

POE Power Supply, More Convenience
CF-E313AC supports power supply with dual network ports , effectively solves the problem of webcam power supply difficulties and enable seamless IP video integration

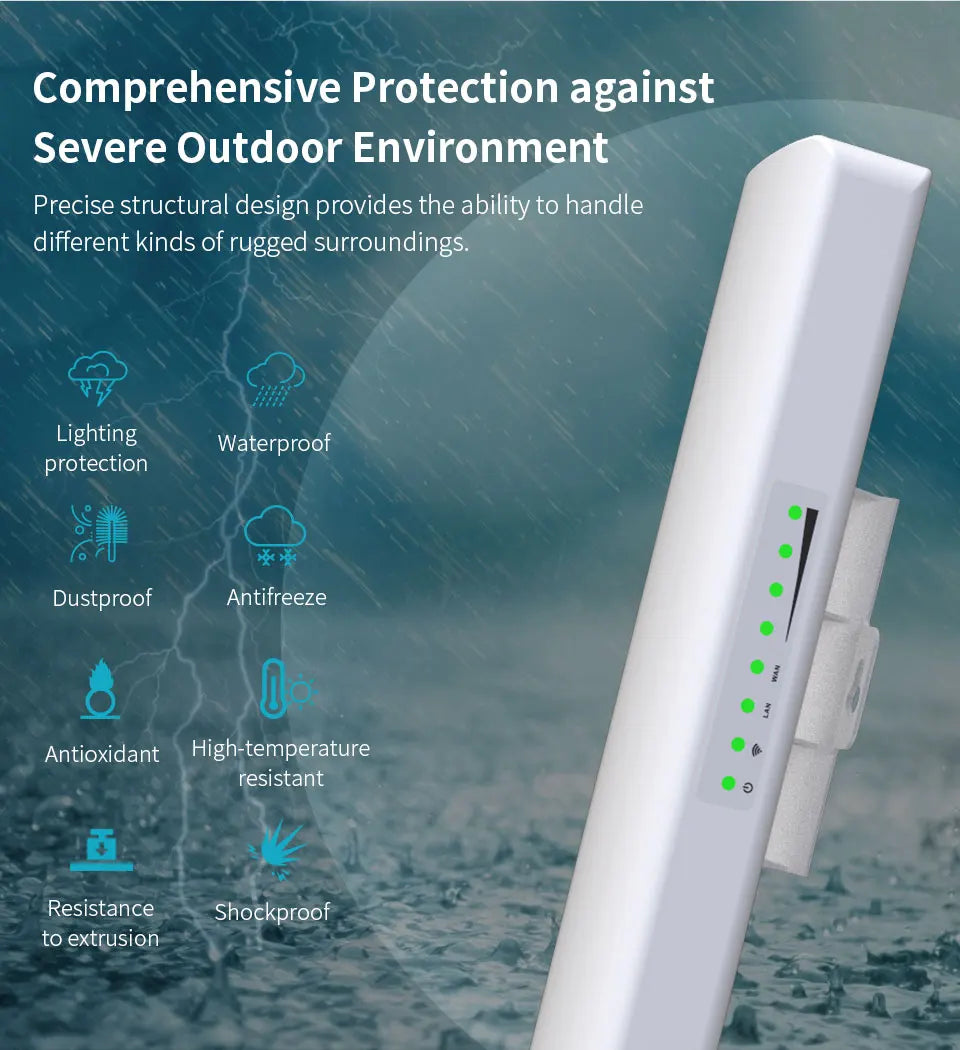

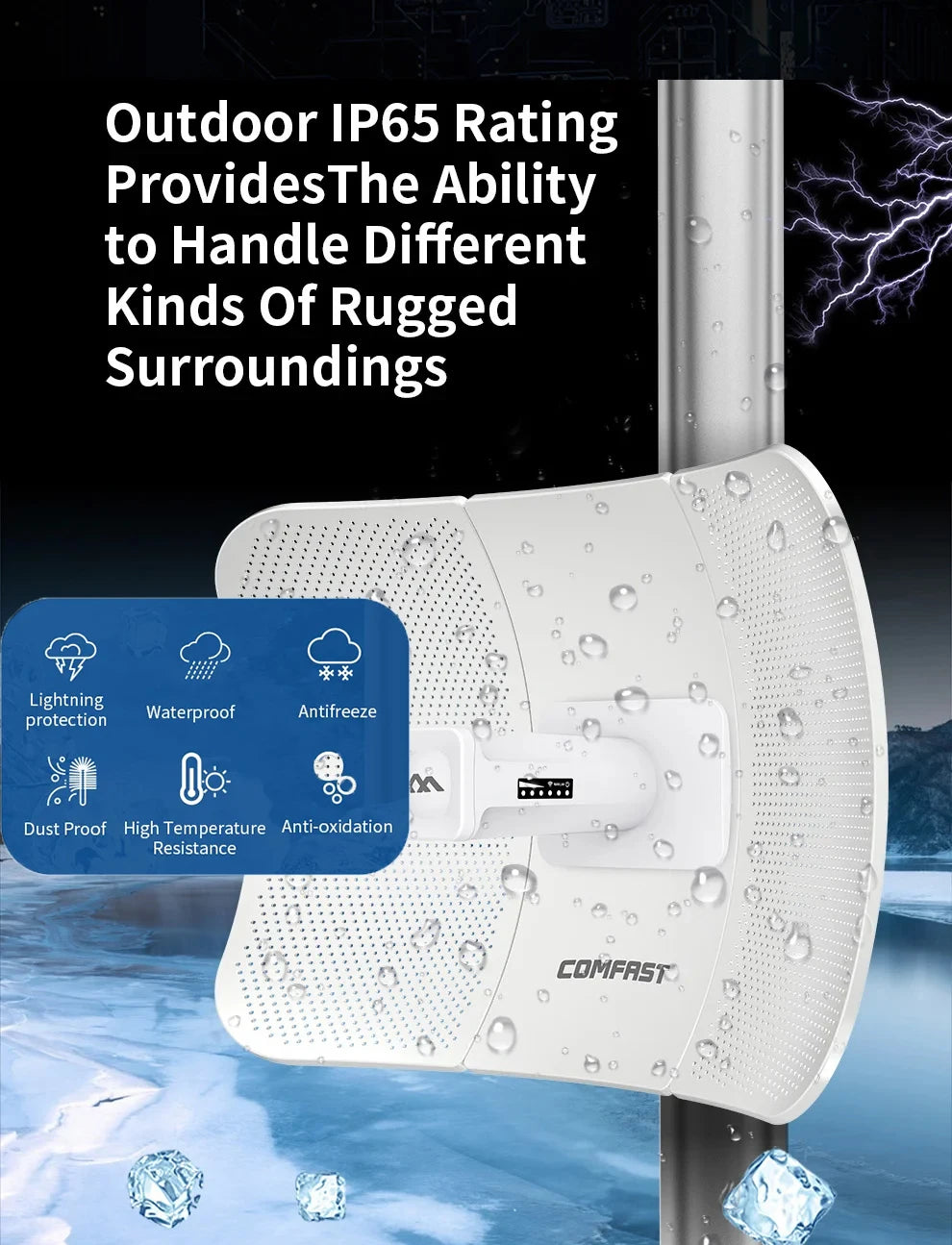

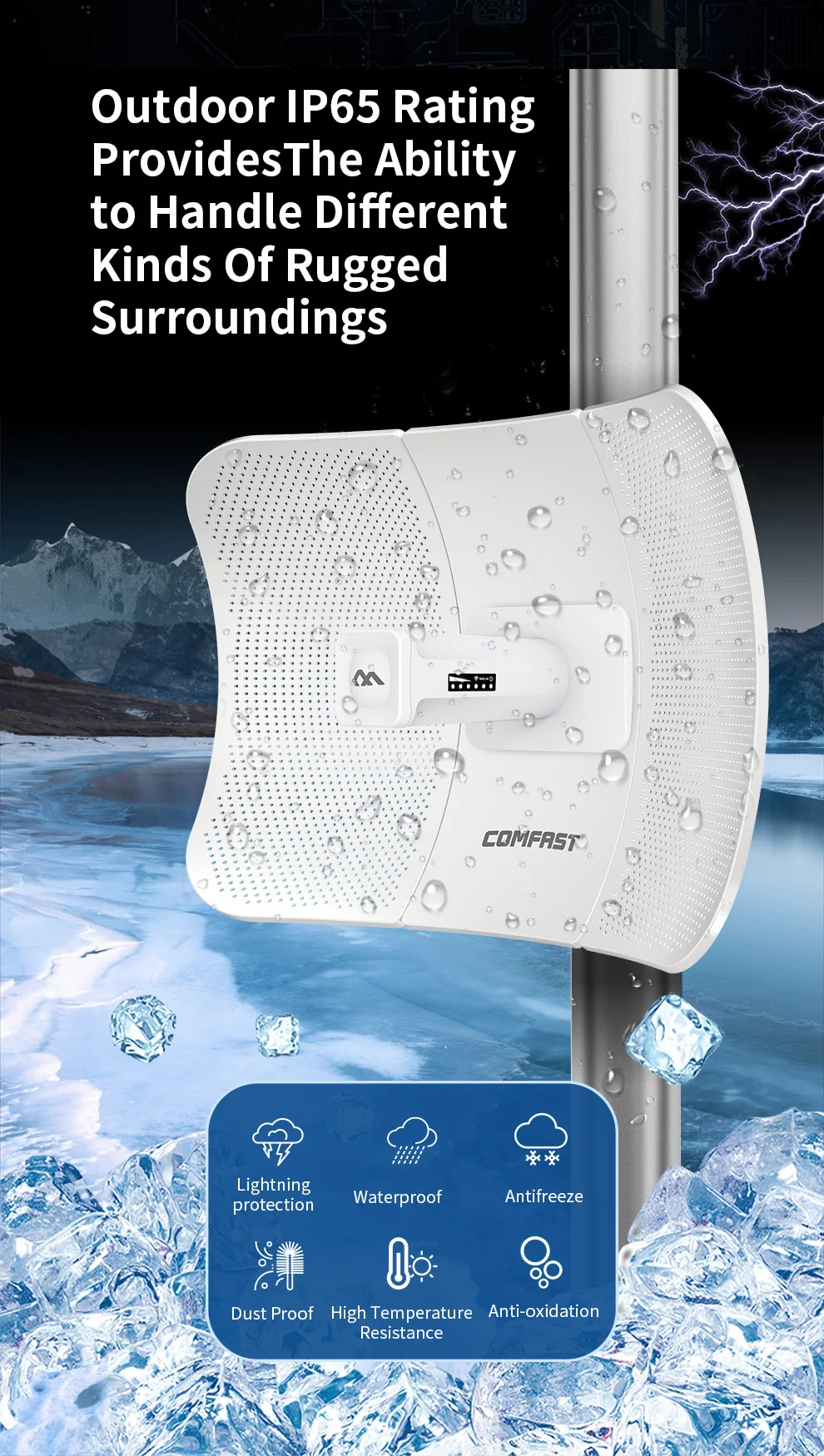

Comprehensive Protection against Severe Outdoor Environment

Precise Location

Powerful Software OS
Multifunctional software OS and and it is easy to set up
Applicable Occasions
Elevator/Community/Driving school
Factory/Tourist sites/Construction sites
Elevator monitoring application

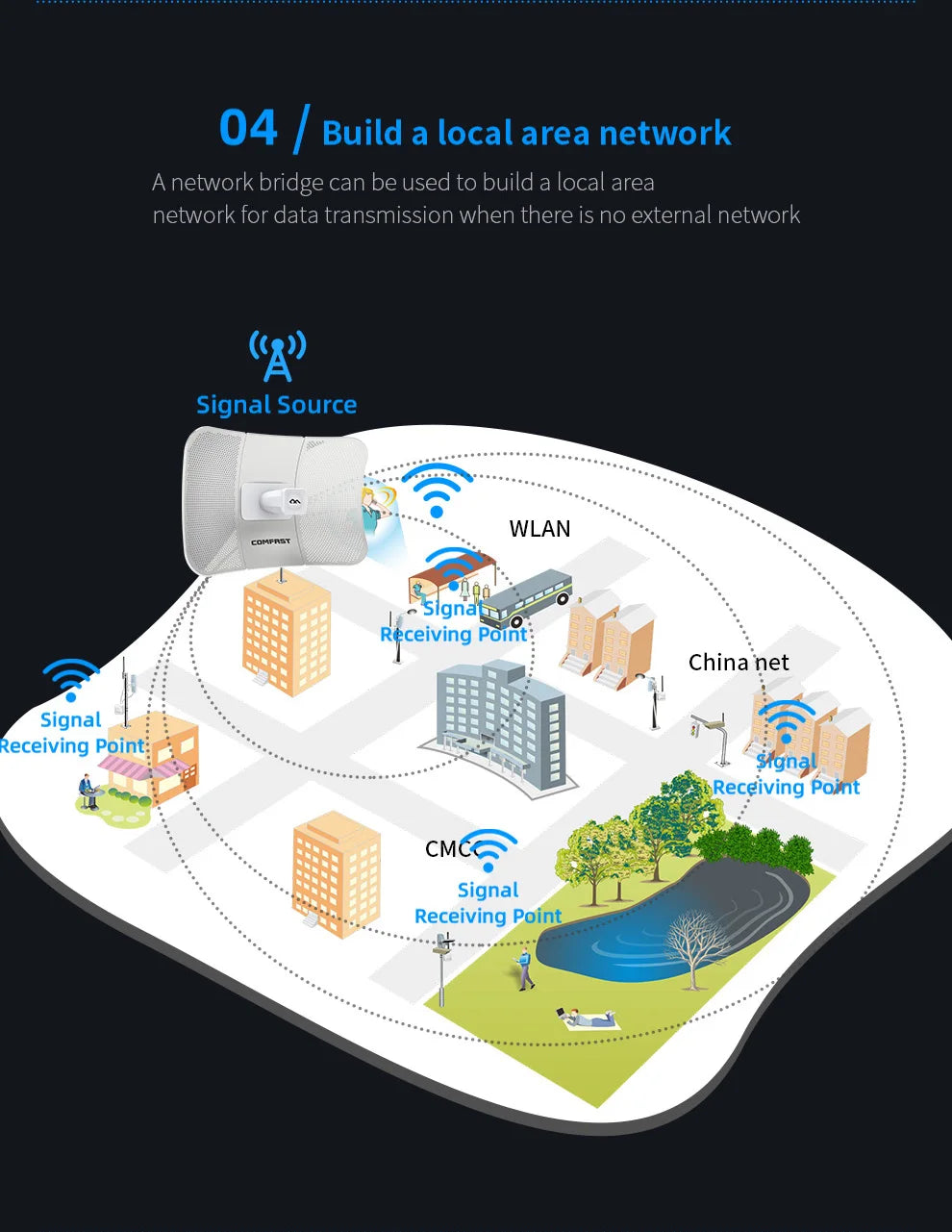

Connecting Application Diagram

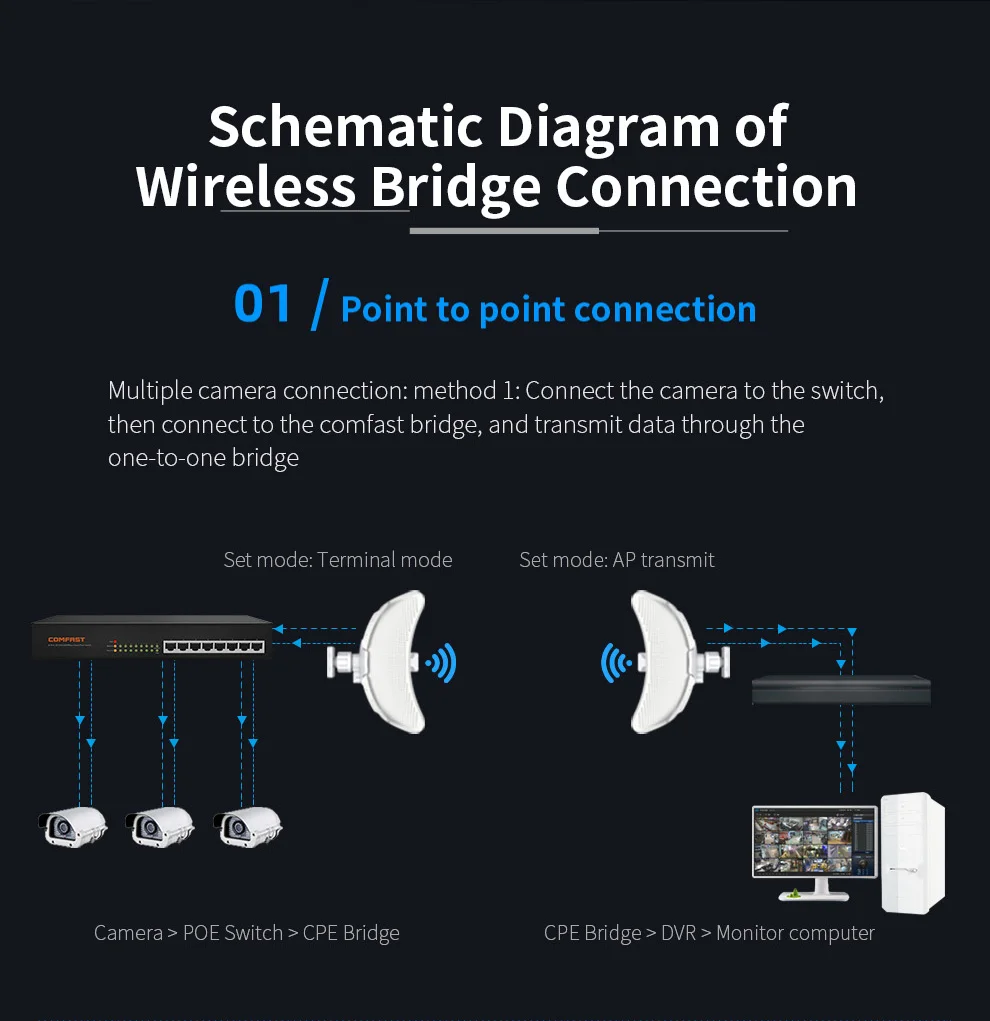

01 Point-to-point connection diagram

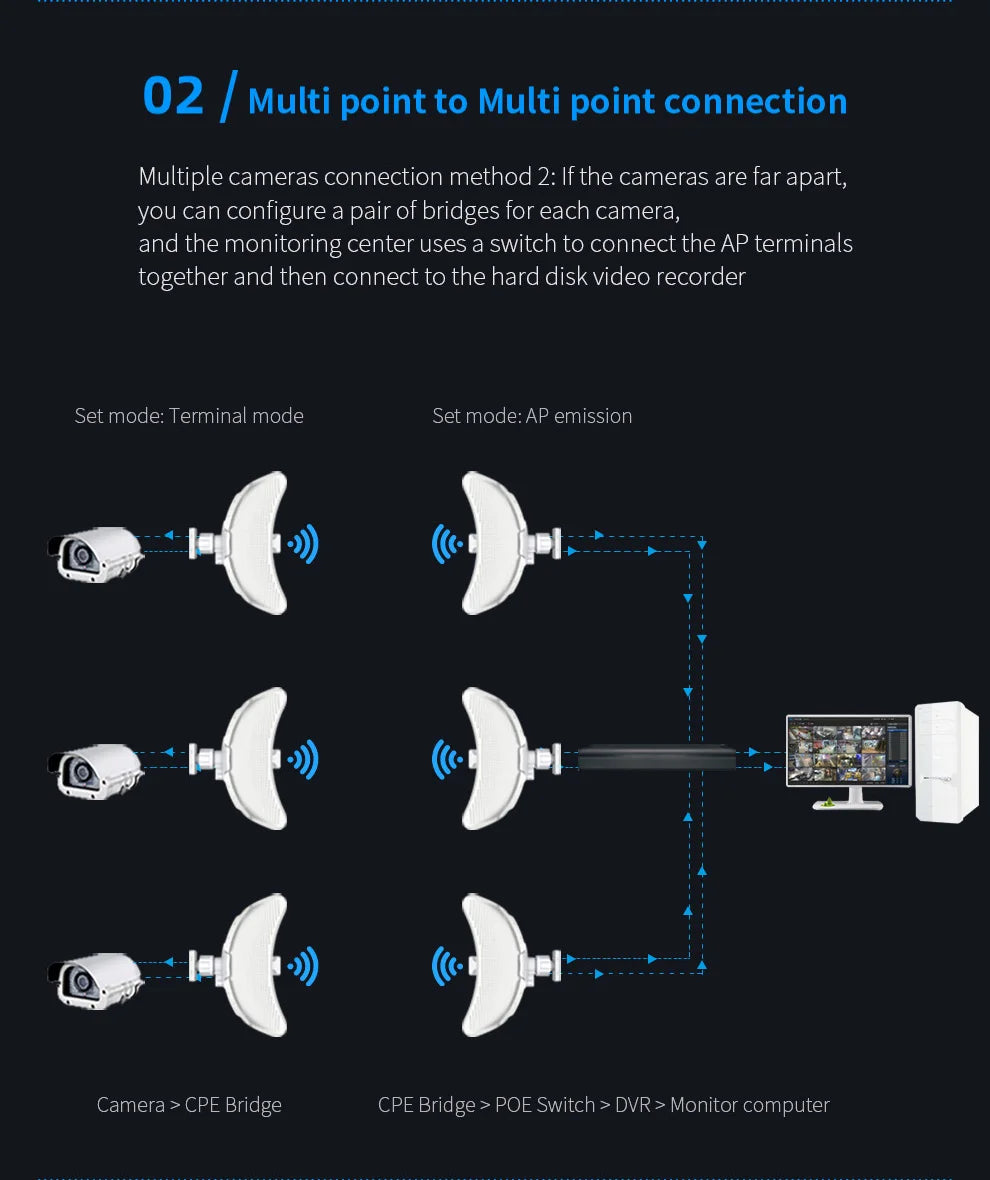

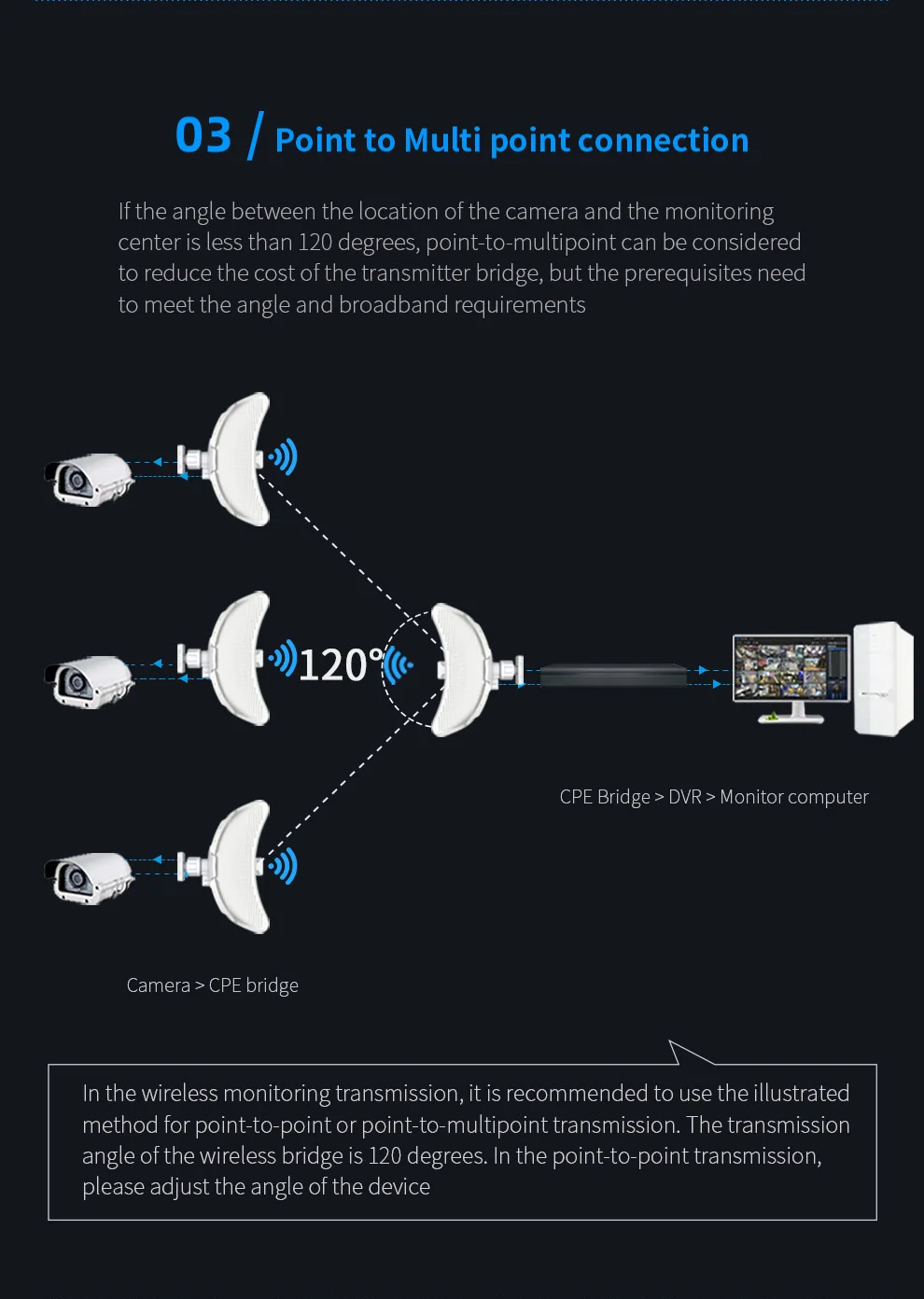

02Point to Muti-point Connection Diagram

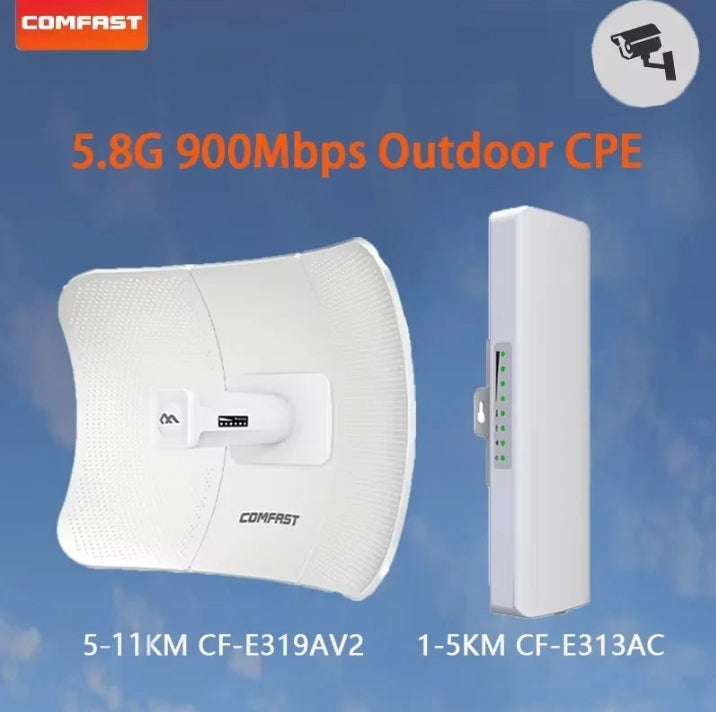

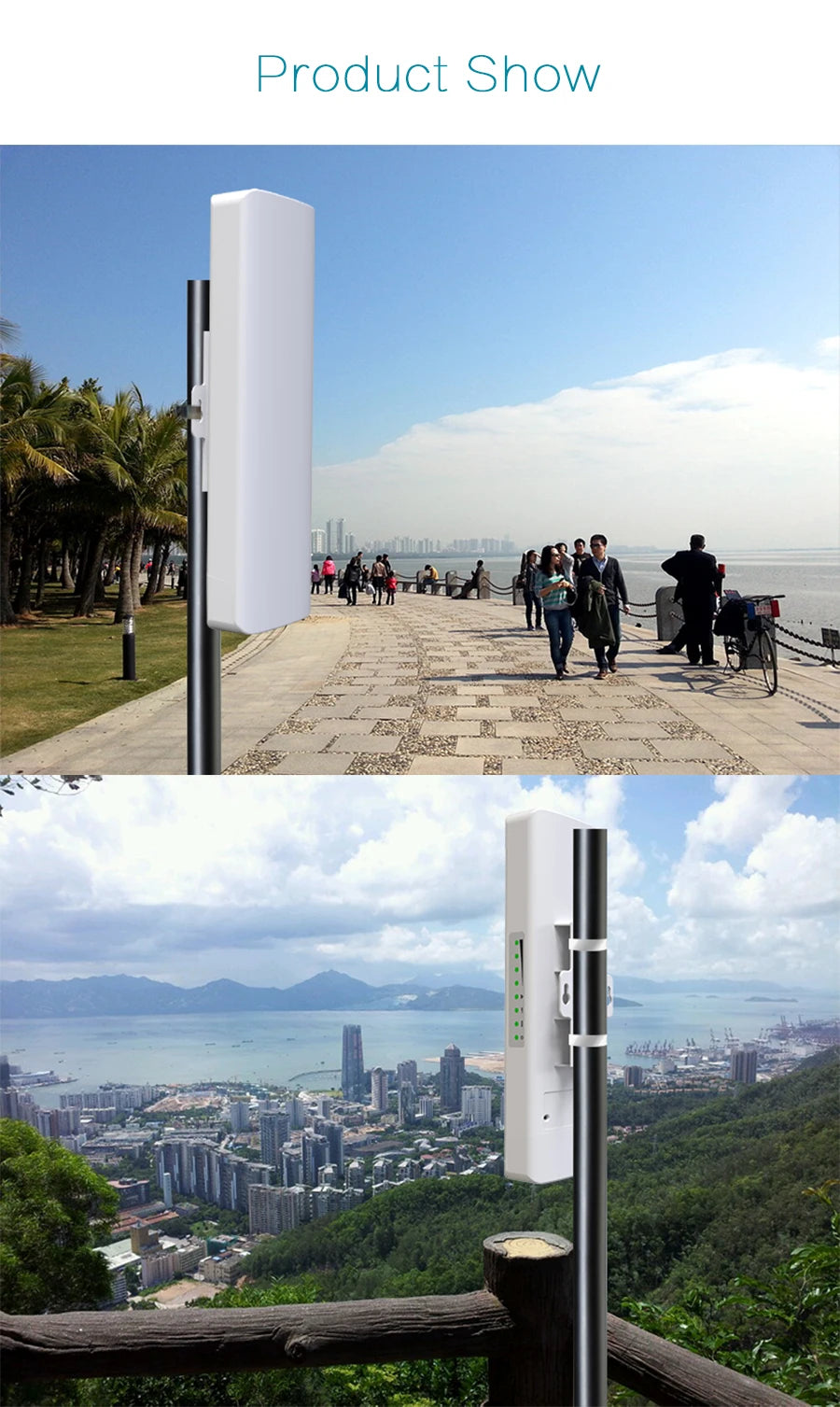

Product Show

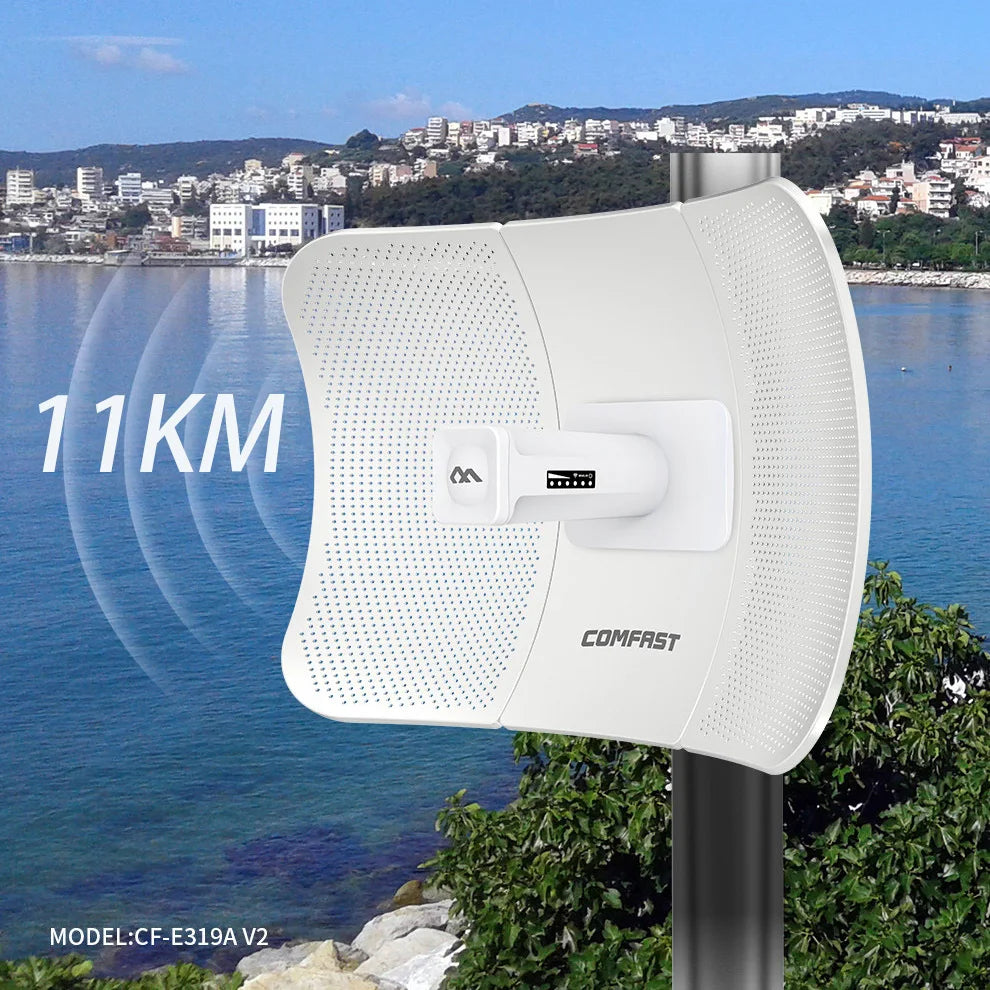

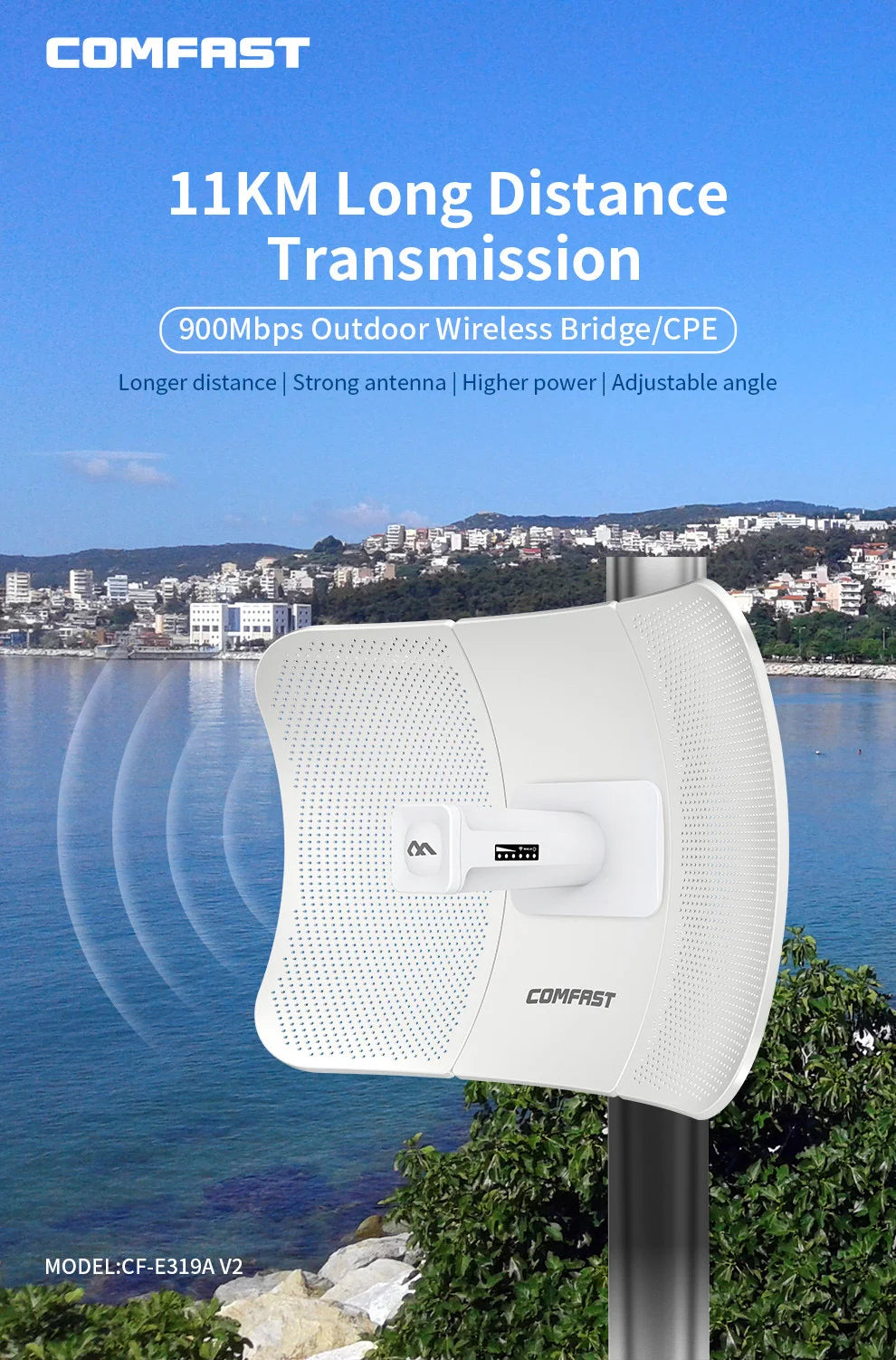

11KM 5.8G 900Mbps Outdoor Wi-Fi Bridge CF-E319AV2
Product Description
1、900Mbps high-speed transmission, faster and more stable rate

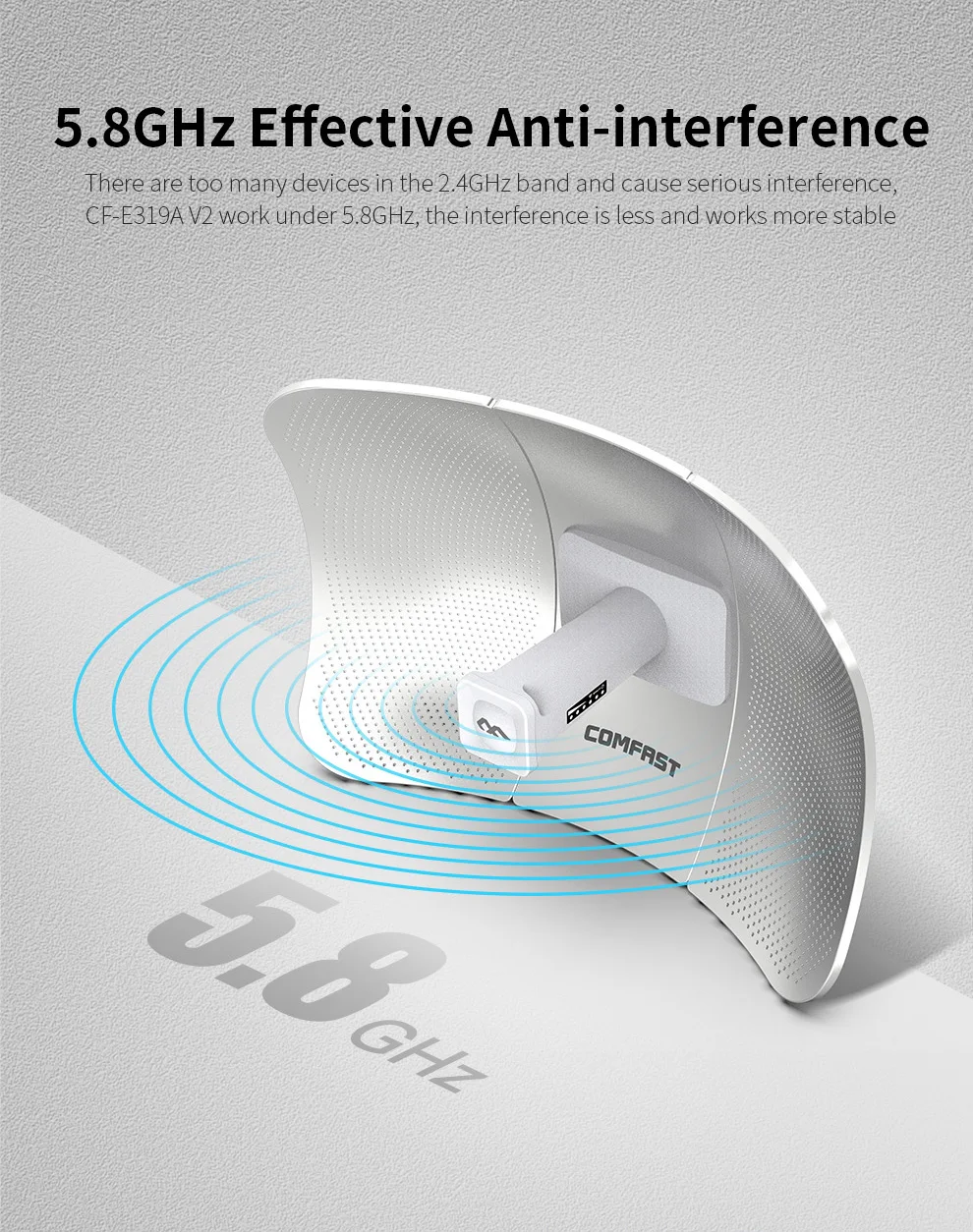

2、5.8GHz Dual band, continuous and stable signal without interference

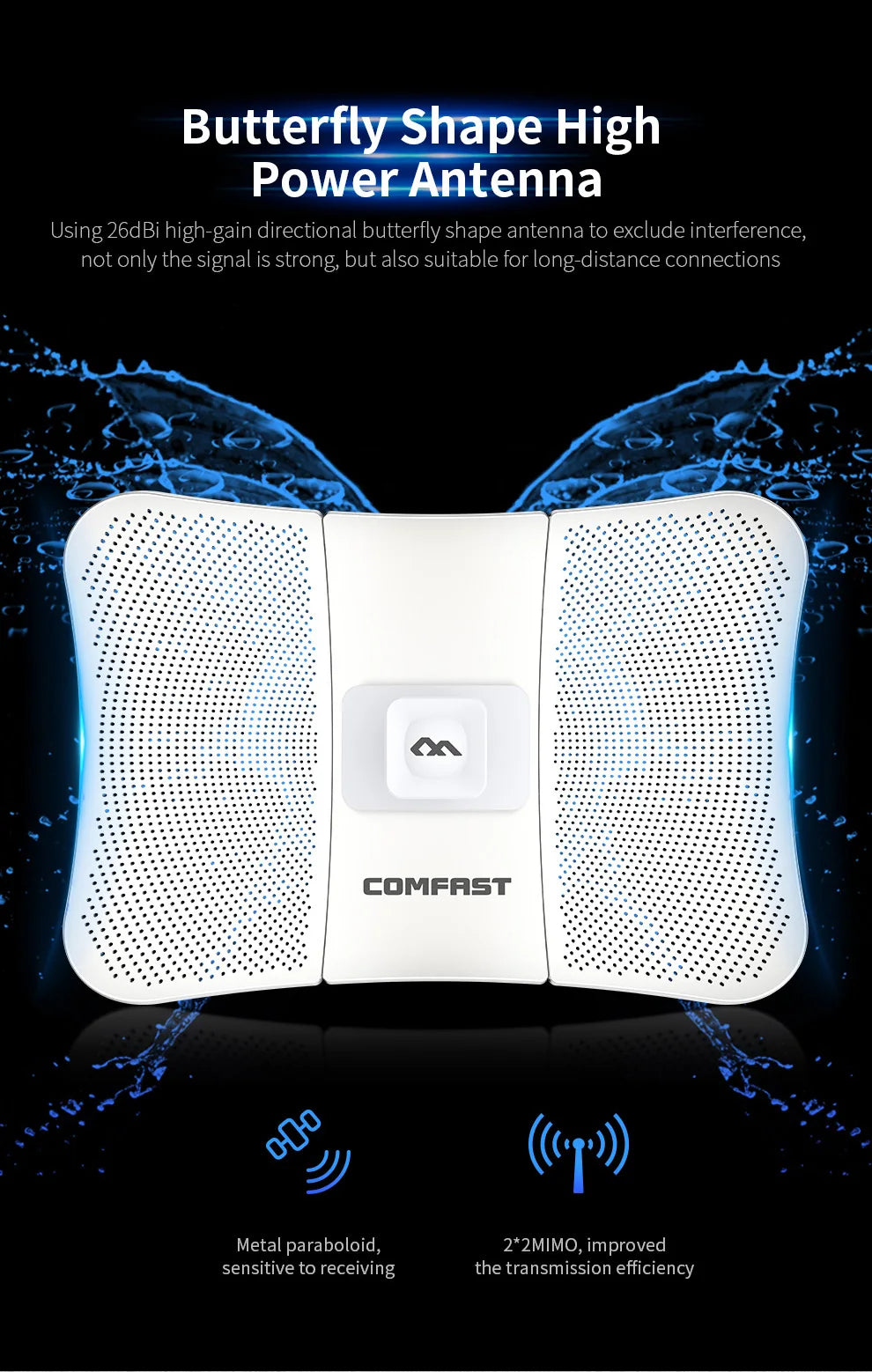

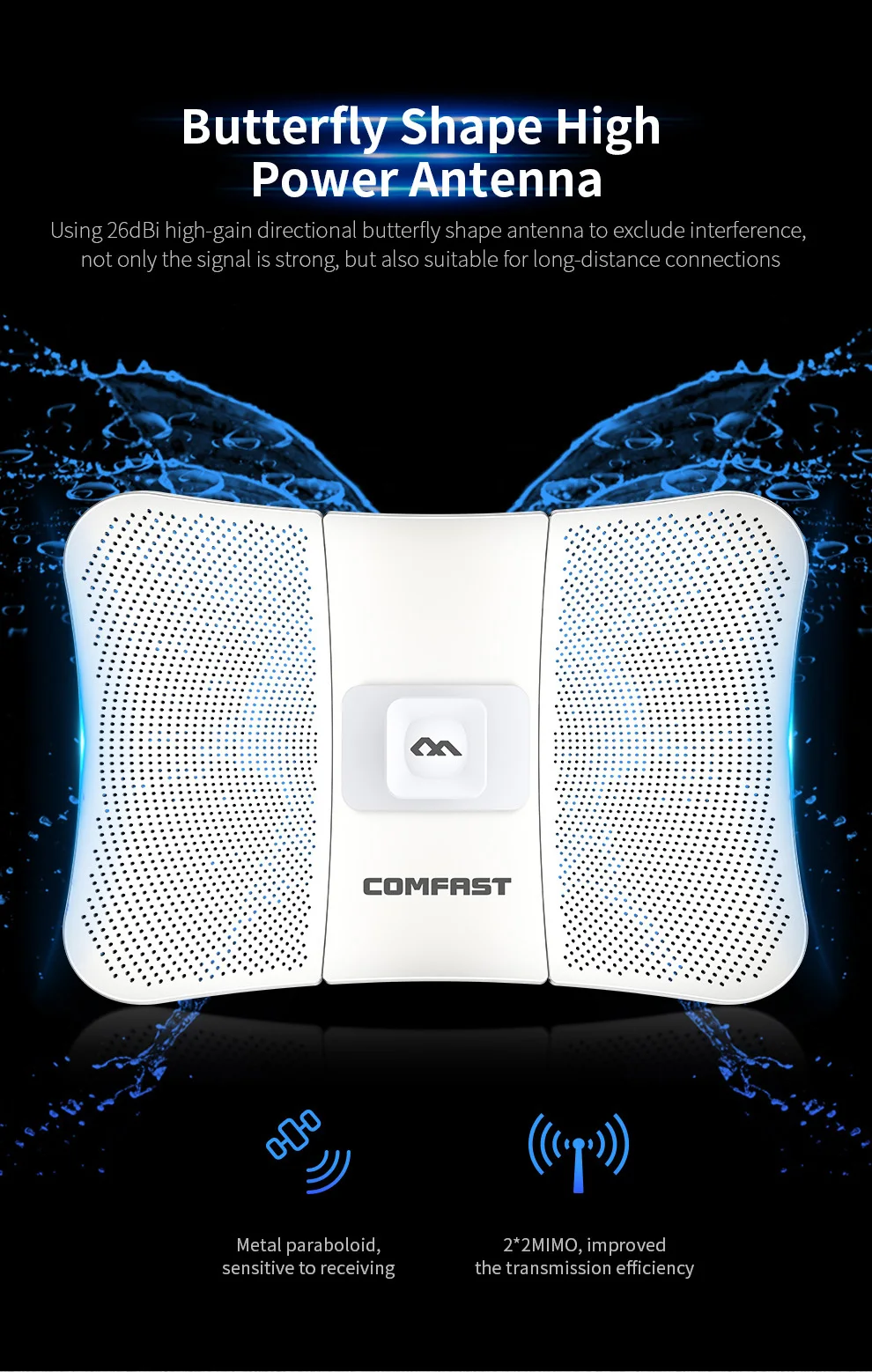

3、26dBi High-Gain directional butterfly shape antenna

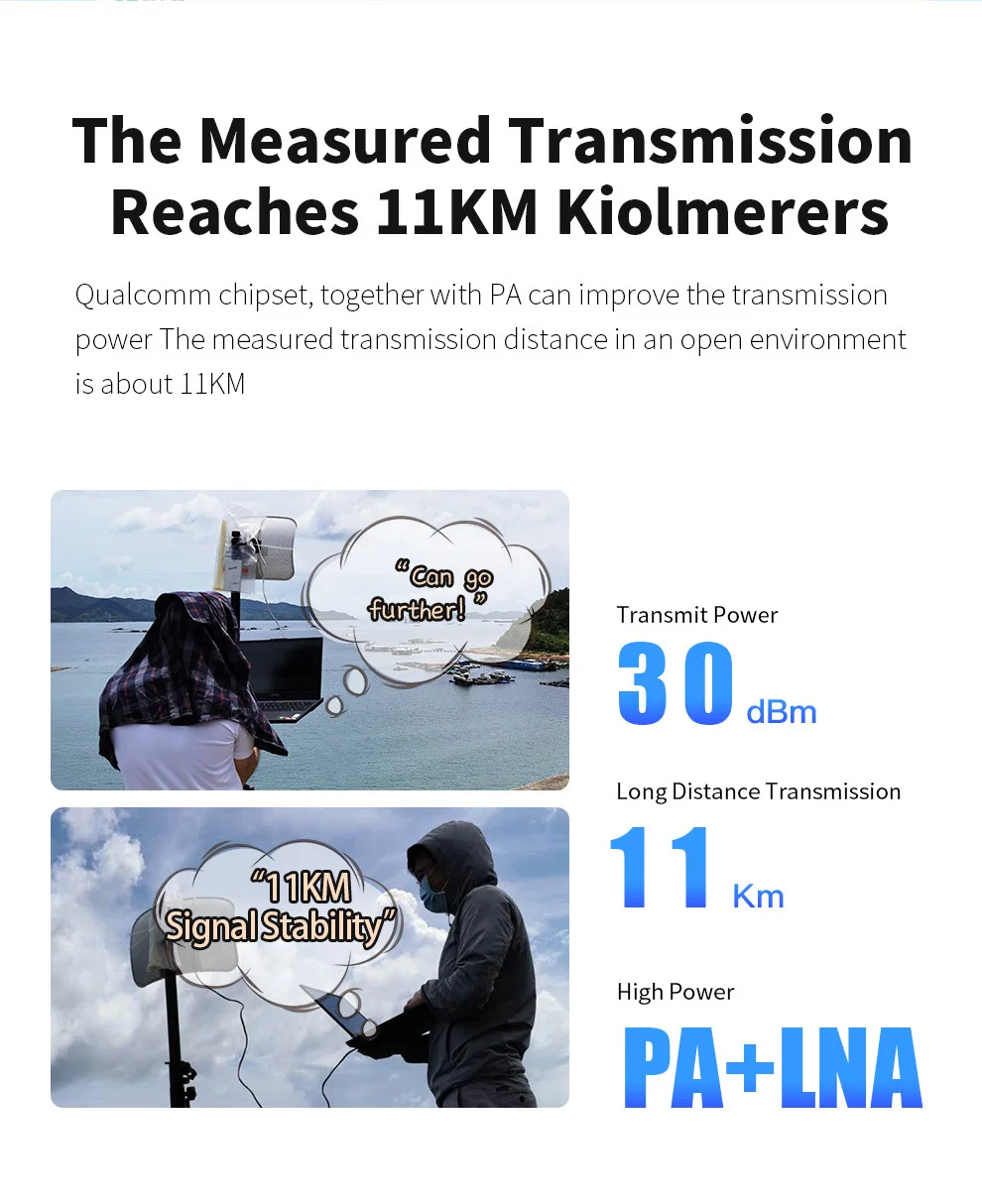

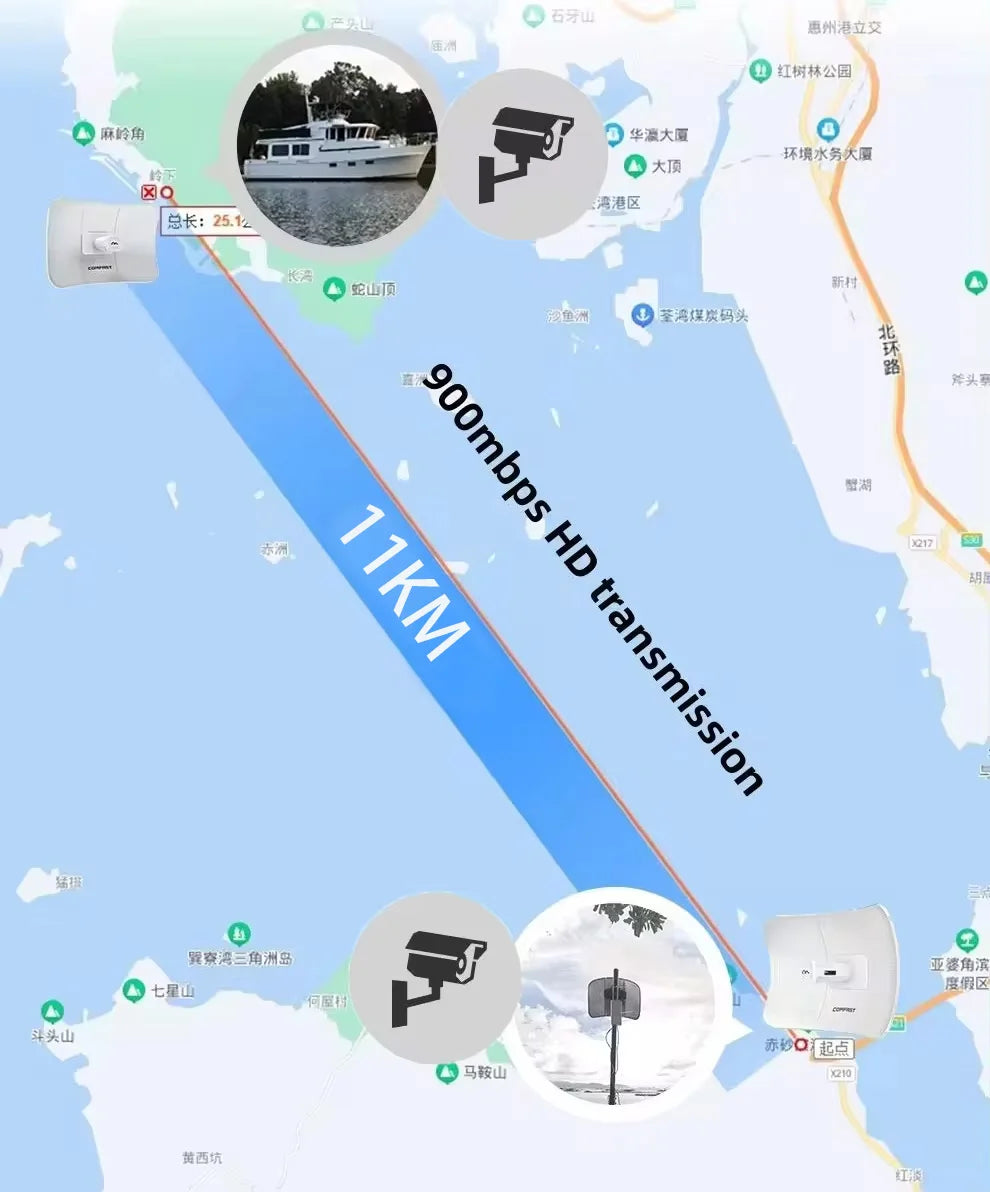

4、Up to 1000mW transmit power, equipped with PA power amplifier, in open environment,point-to-point transmission distance 11KM
5、Waterproof and resistant to high and low temperature
6、2KV lightning protection, safer in thunderstorm days
7、Outdoor installation is convenient, easy to disassemble and easy to use

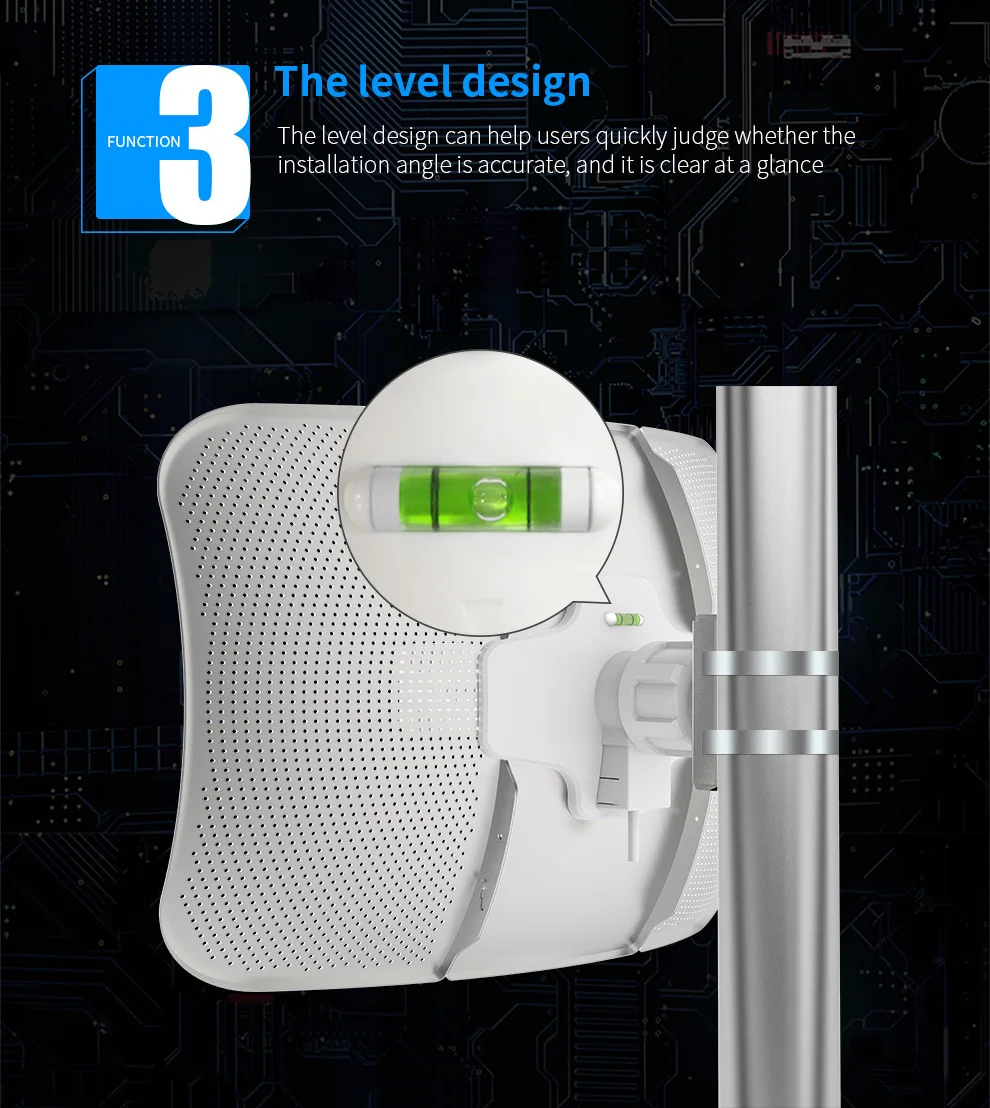

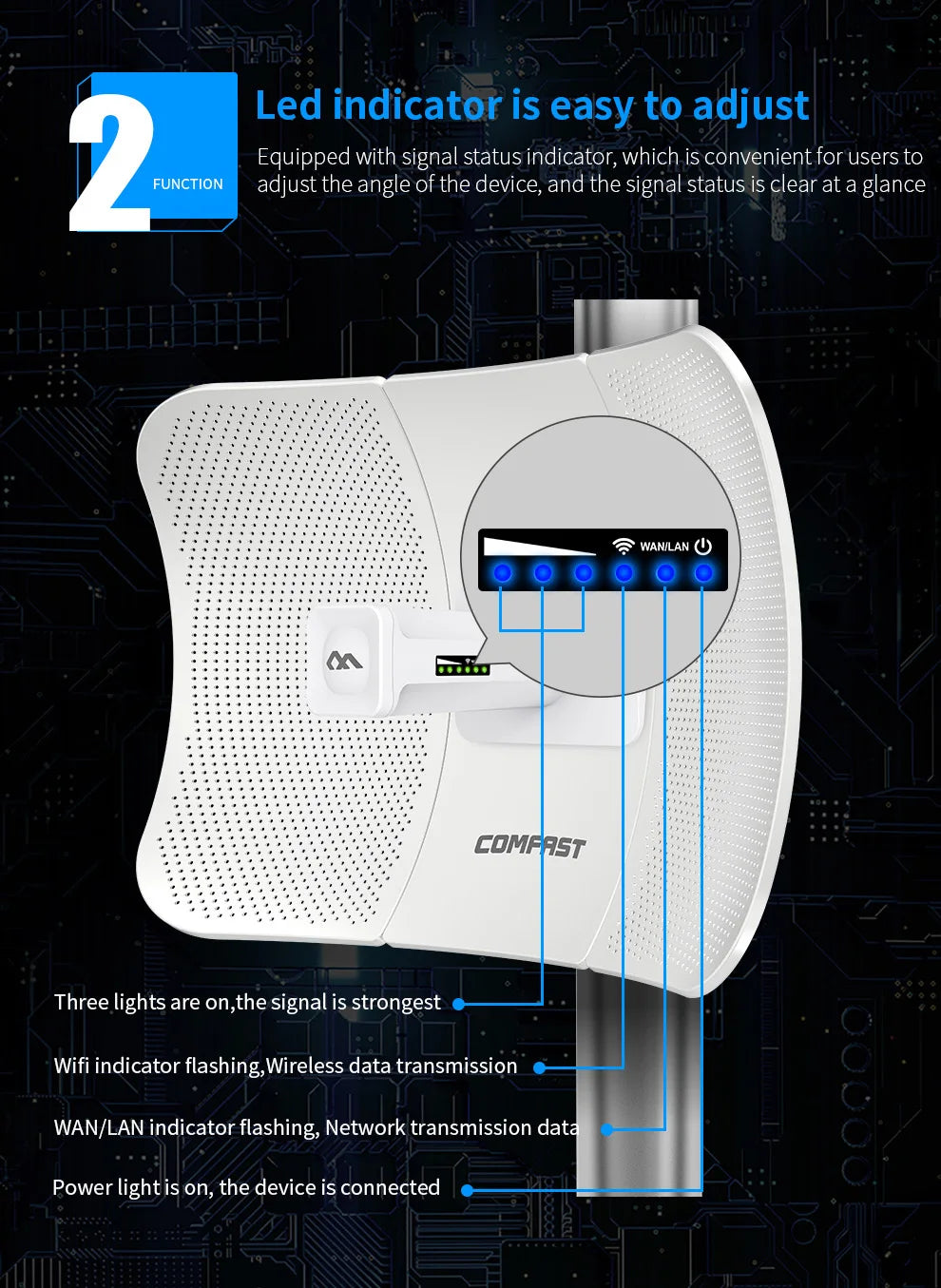

8、Special signal indicator, easy to adjust the correct angle

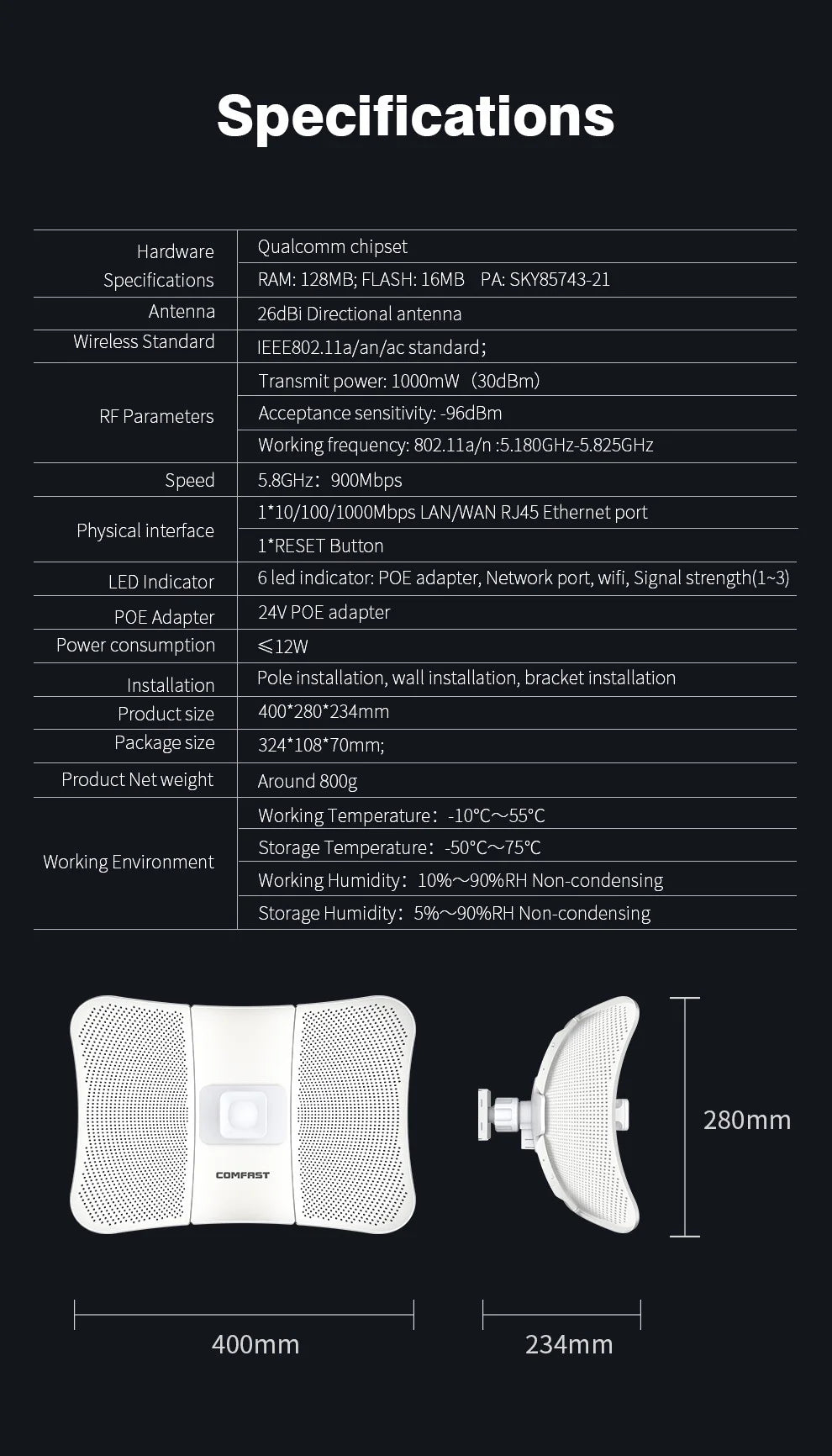

Specifications
1、Condition: Brand new
2、1*10/100/1000Mbps LAN/WAN RJ45 Ethernet Port
3、Working frequency :802.11a/an: 5.180GHz-5.825GHz
4、Power adapter:24V 0.5A Gigabit POE power adapter

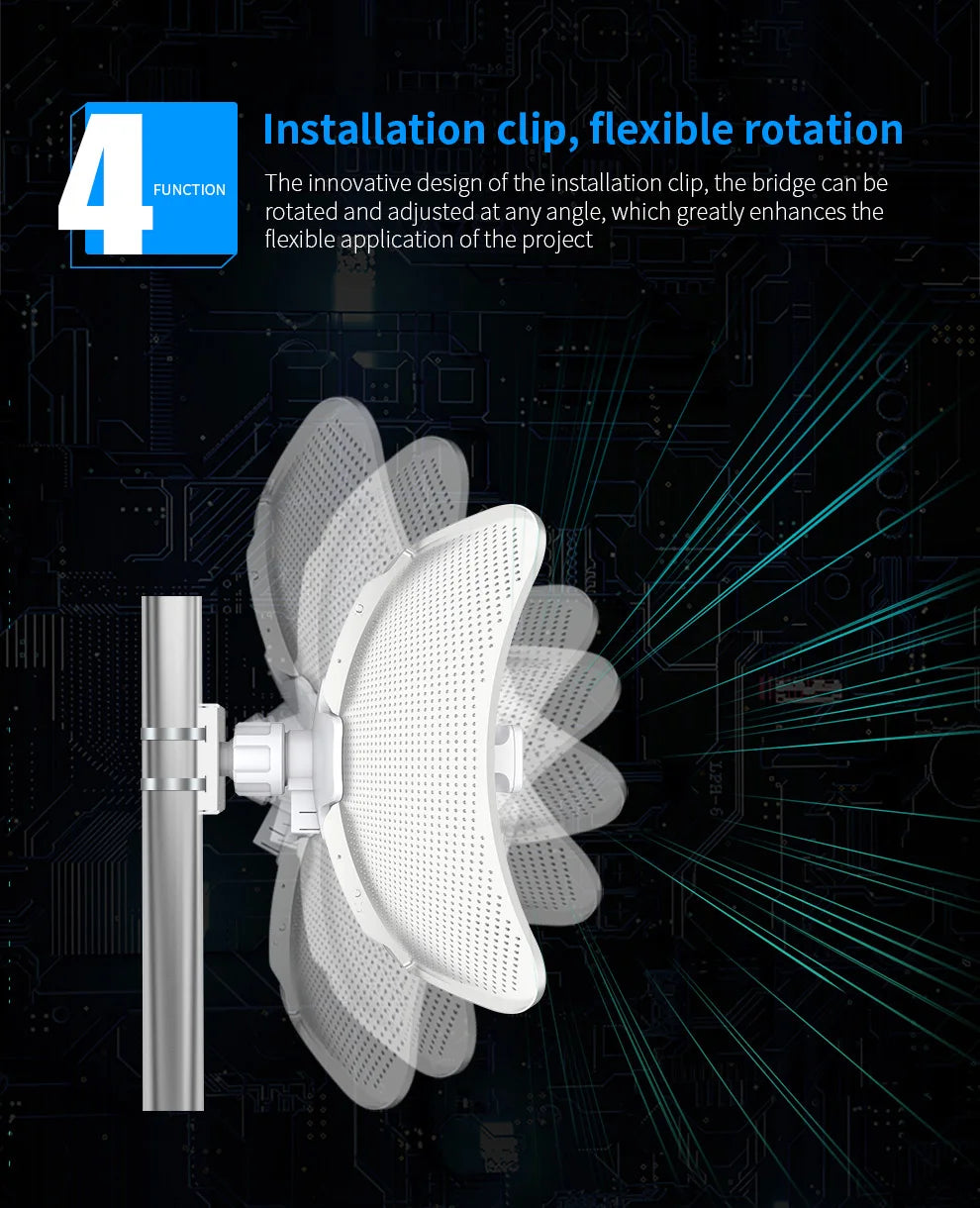

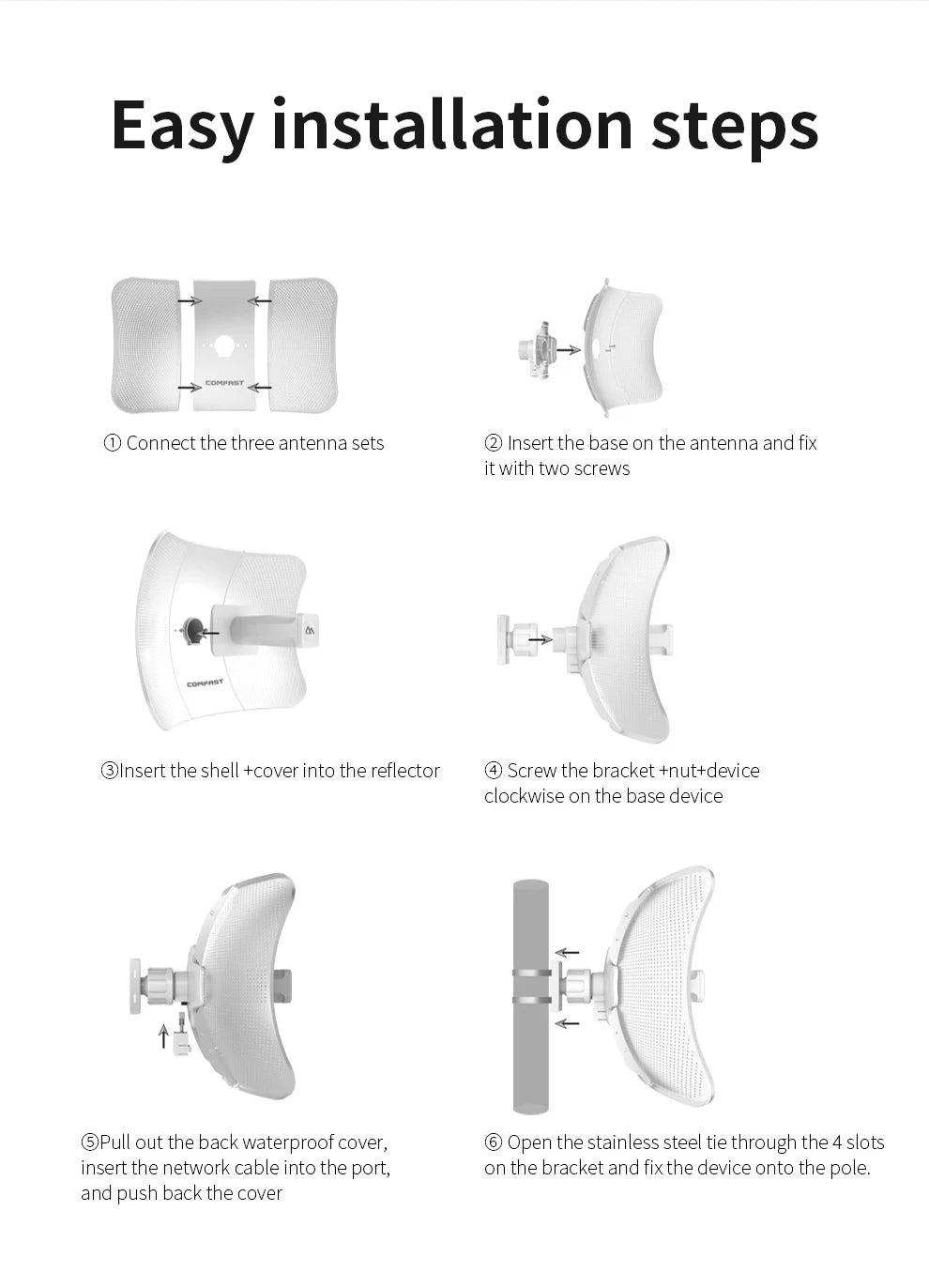

5、Installation method: pole installation, bracket installation
6、Wireless working mode: AP, Client, relay, routing
7、Network setting: LAN port connection: static IP, dynamic IP
8、Support: WDS / channel bandwidth selection
9、Wireless security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) encryption

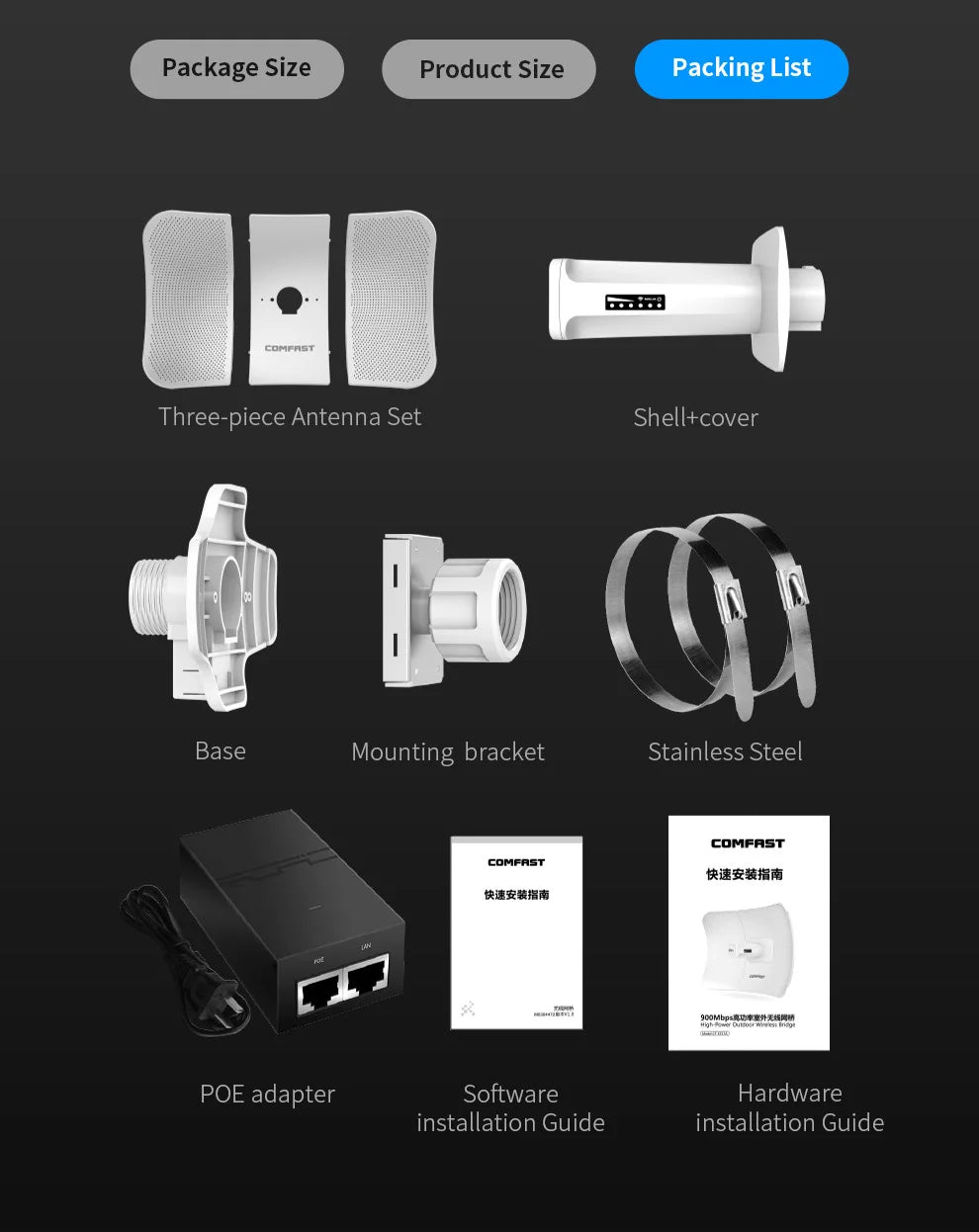

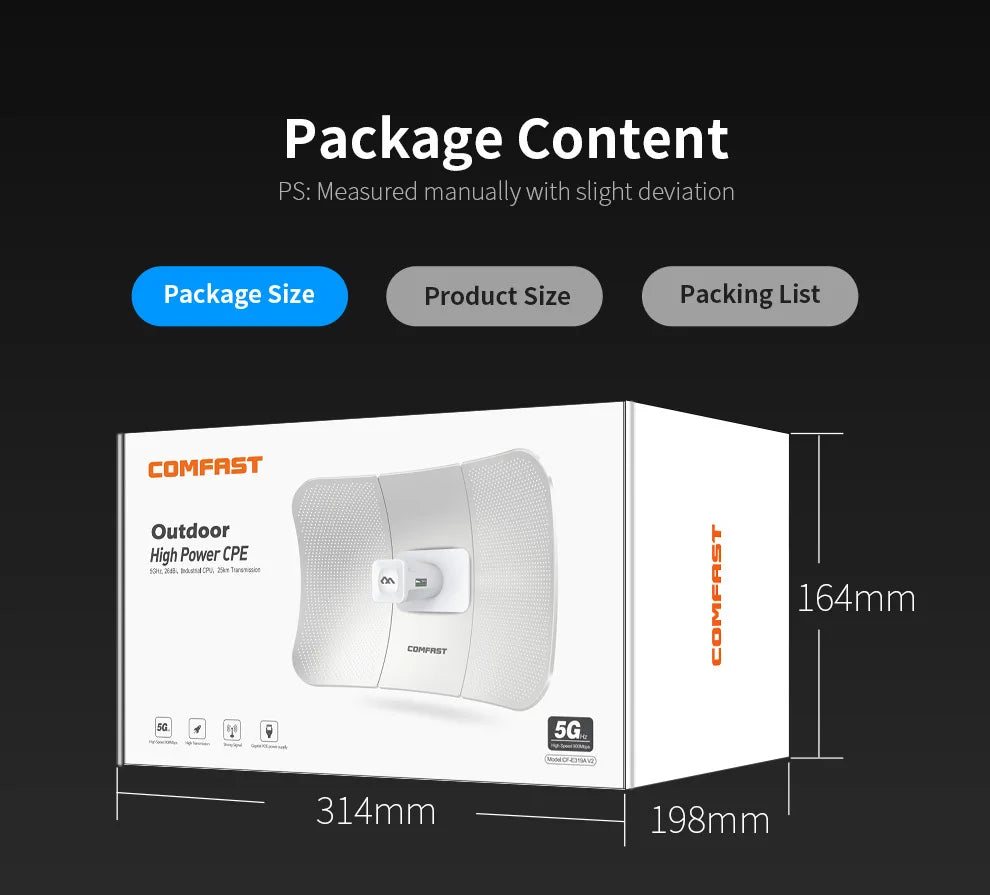

Package includes
1/2*CF-E319A CPE
1*Base
1*Mounting bracket
1*Stainless Steel
1*Poe Adapter
1*Software Installation Guide
1*Hardware Installation Guide
