COMFAST 300/1200Mbps Outdoor Wireless AP 2.4/5.8GHz WIFI Router 48V 0.32A POE Access Point WIFI Bridge Repeater Antenna EU/US
SPECIFICATIONS
2.4G Wi-Fi Transmission Rate: 300 Mbps
5G Wi-Fi Transmission Rate: None
Antenna Type: Fixed
Application: Outdoor
Brand Name: COMFAST
CF-EW71 Feature 1: 360° Omnidirectional Coverage
CF-EW71 Feature 2: Outdoor wifi router
Certification: CE
Choice: yes
Frequency: 5 GHz
Frequency Band Class: Dual-Band
Function: Firewall
LAN Ports: 1
Long Range outdoor wifi router: COMFAST poe access point AP
Max. LAN Data Rate: 300Mbps,300Mbs
Number of USB Interfaces: None
Outdoor AP Antenna: COMFAST WIFI base station hotspot
Package: Yes
Products Status: Stock
Recommended Uses: Business
Standards And Protocols: Wi-Fi 802.11b,Wi-Fi 802.11n,Wi-Fi 802.11g
Support Mesh: Not Supported
Supports WDS: Yes
Supports WPS: Yes
Type: WireLess
WAN Ports: 1 x10/100Mbps
Wi-Fi Supported Frequency: 2.4G
Wi-Fi Transmission Standard: 802.11n
Wired Transfer Rate: 10/100Mbps
Wireless: Wireless
Wireless Communication Standard: 802.11.ac
Wireless transmission rate: 1200M
With Modem Function: Yes
Description
Note: The differences between the two options are as follows:

Descriptions
CFEW72V2 High Power WiFi AP/Repeater is mainly used for providing free WiFi service in big area such as factory, community, street or etc.
Specifications:
1. Brand Name: COMFAST
2. Model Number: CF-EW72 V2
3. Chipset: MT7621DAT+MT7613BEN+MT7603EChipset, RAM: 128MB; Flash: 16MB; PA Chip SE2576L*2;
4. RF Parameters: 200mW (23dBm) Transmitting Power
5. Antenna: 2*5dBi External antenna;
6. Wi-Fi Transmission Rate: 2.4Ghz @ 300Mbps 5.8Ghz @ 867Mbps
7. Maximum receiving sensitivity:-96dBm
8.Working frequency: 802.11b/g/n: 2.412GHz-2.484GHz; 802.11ac/n/a: 5.180GHz-5.825GHz
9. Physical interface: 1*10/100 /1000 LAN RJ45 Ethernet port (Support POE power supply), 1*10/100/1000 WAN RJ45 Ethernet port (Support POE power supply), 1*RESET Button;
10. Indicator light:Power / WAN / LAN / WiFi indicators;
11. Power supply:POE power supply, support 802.3af / 802.3at standard (Up to 100 meters);Power adapter supply: 48V 0.32A POE power adapter;
12. Power Consumption: <8W
13. Lightning protection; IP66 Level
MTBF: >250000H
14. Installation method :Pole installation, wall installation;
15. Product Size: 353*85*44mm
16. Working Environment:
Working Temperature: -40'C~55"C
Storage Temperature: -40"C~70'C
Working Humidity: 10%~90%RH No-condensing
Storage Humidity: 5%~95%RH No-condensing
17. Application: Application for park / school / Driving school / Plant area / Shopping mall / Village

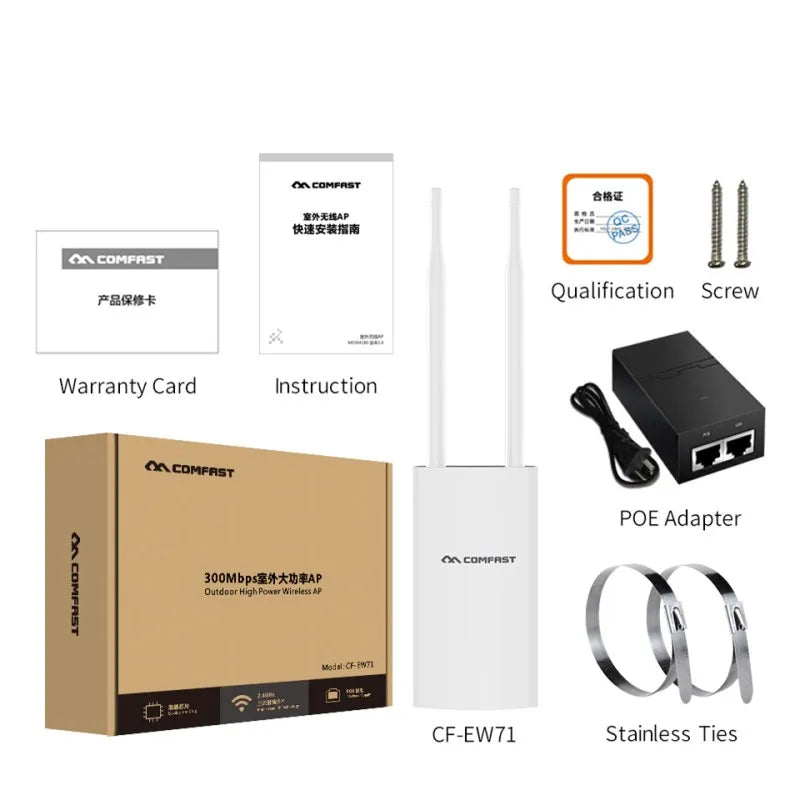

Package Contents:
1* Outdoor Acces Point AP
2* screws
1* POE power supply
1* stainless steel cable tie
1* manual
1200Mbps Outdoor Access Point
CF-EW72 V2: AC1200 HIGH POWER

IP66 Weatherproof
MULTIPLE PROTECTION OUTDOORS
FOUR WORKING MODES
Support POE power supply via Ethernet cable
DUAL ETHERNET PORTS
802.3af/802.3at Passive PoE (PoE Adapter Included), Coverage up to 3280ft/100m.


300Mbps Outdoor Access Point
Descriptions:
CF-EW71 V2 is a 300Mbps outdoor high power AP with professional outdoor protection design, which is suitable for all kinds of harsh outdoor environments, with 2*5dBi omni-directional waterproof antennas
Specifications:
1. Brand Name: COMFAST
2. Model Number: CF-EW71 V2
3. Chipset:QCA9533 Chipset ,RAM : 64MB ; Flash : 16MB ; PA ChipSE2576L*2;
4. RF Parameters: 500mW (27dBm) Transmitting Power
5. Antenna:2*5dBi External antenna;
6. Wi-Fi Transmission Rate: 2.4Ghz: 300Mbps;
7. Maximum receiving sensitivity:-96dBm
8. Working frequency: 802.11b/g/n: 2.412GHz-2.484GHz ;
9. Physical interface: 1*10/100 LAN RJ45 Ethernet port (Support POE power supply), 1*10/100 WAN RJ45 Ethernet port (Support POE power supply), 1*RESET Button;
10. Indicator light:Power / WAN / LAN / WiFi indicators;
11. Power supply:POE power supply, support 802.3af / 802.3at standard (Up to 100 meters);Power adapter supply: 48V 0.32A POE power adapter;
12. Power Consumption: <8W
13. Lightning protection; IP66 Level
MTBF: >250000H
14. Installation method: Pole installation, wall installation;
15. Product Size: 353*85*44mm
16. Working Environment:
Working Temperature: -40'C~55"C
Storage Temperature: -40"C~70'C
Working Humidity: 10%~90%RH No-condensing
Storage Humidity: 5%~95%RH No-condensing
17. Application: Application for park / school / Driving school / Plant area / Shopping mall / Village
Combat the harsh outdoor environment
1, Lightning protection
2, High temperature resistance
3, Dust prevention
4, Anti-freezing
5, Waterproof
6, Antioxidant

Powerful Configuration
High configutation wireless solution, powerful Performance.
1, High Power Chip: QCA9531
2, Power Amplifier: 2.4G SE2576L*2
3, Storage Memory: 64MB; Flash: 16MB
Competent with Complex WiFi Coverage Solution
Factory, Farm, Driving school, School, Park, Village, etc.
