COMFAST 1 Pair 300Mbps Long Range Outdoor WiFi CPE 5Ghz Wireless AP Bridge Antenna Repeater Nanostation

1-3KM long Range Wifi Transmission Outdoor Wireless CPE bridge 5Ghz Comfast  Wifi access Point repeater  Wifi antenna Nanostation

Features:

CF-E120A is a 5.8GHz anti-interference elevator wireless monitoring network bridge (one pair), which has the characteristics of anti-interference, stable signal, 300Mbps transmission, etc., and the transmission distance can reach about 3 kilometers, helping users to easily do projects.

Package includes:

CF-E120A CPE *1/2
Poe Adapter*1/2
Quick install guide *1/2
Power cable *1/2
Stainless Steel Ring *2/4

3km long-distance transmission

5.38GHZ outdoor CPE CF-E120AV3 supports video data backhaul of about 3 km . It can realize scattered video surveillance of different factories or multiple construction sites , docks parks , etc , and can be viewed and centralized in real time in the monitoring centerHigh gain antenna , more stable

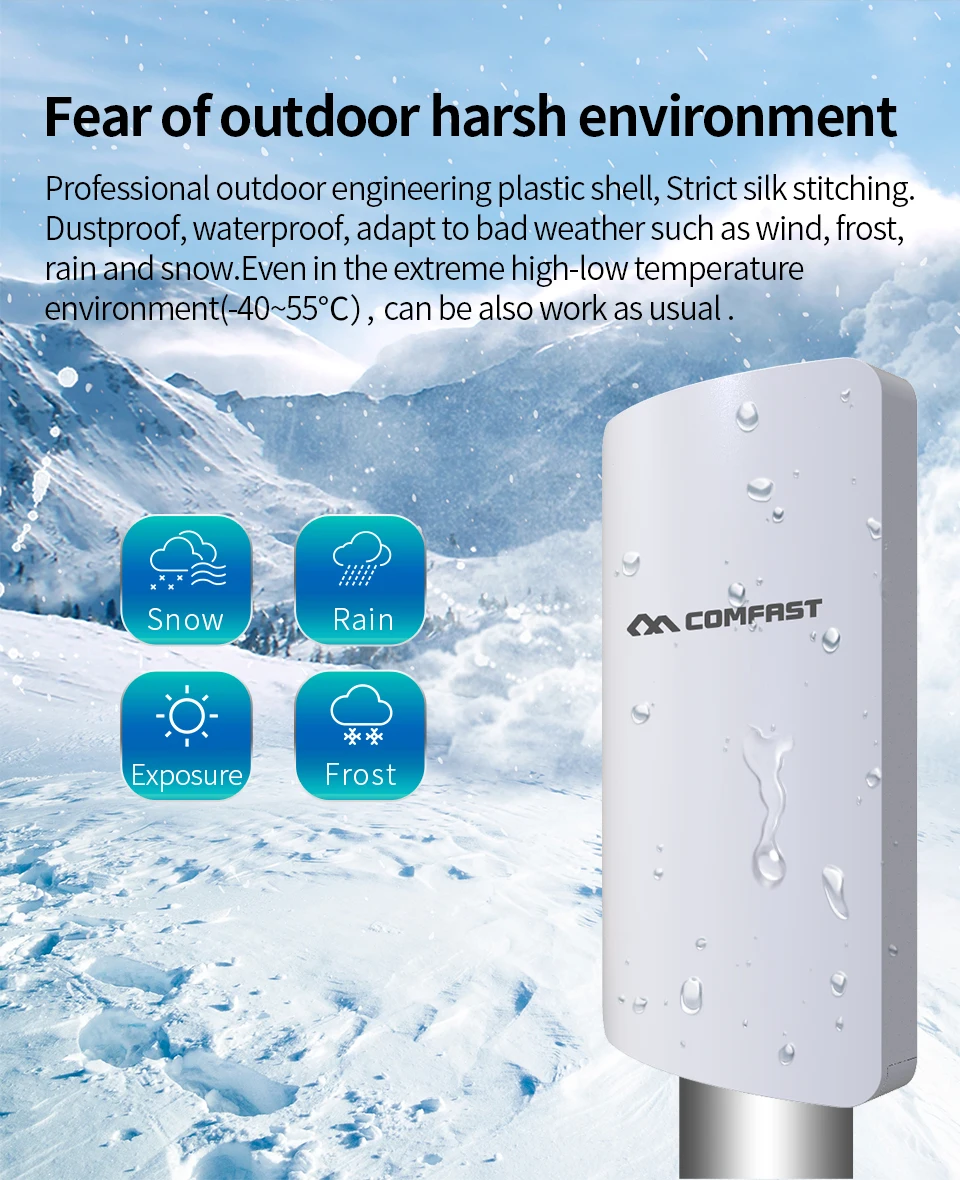

CPE equipped with l1dbi high gain antenna to ensure bridge transmission distance and signal stabilityFear of outdoor harsh environment

Professional outdoor engineering plastic shell , Strict silk stitching Dustproof , waterproof , adapt to bad weather such as wind , frost ,rain and snow Even in the extreme high-low temperature environment(-40~55 C ), can be also work as usualEnjoy the 5.8GHZ band with less interference

The wireless interference in the 2.4 GHZ band is getting bigger and bigger, and it is prone to the situation that the transportation is slow and often dropped. but the 5.8 GHZ band is relatively free of channels. smooth use without interferenceQuality comes from within

Chipset:Qualcomm AR9344;560mhz ;Main frequency CPU

Antenna:11dbi directional antenna,more concentrated; signal transmission

RF:Professional SKY85735 RF chip, transmitting power, up to 200mw

RAM:64M, help the CPU run fast, the network is smoother

Flash:SPT technology, 8MB high-capacity flashFree orientation Monitoring engineering exclusive

Give a rotating base. It can adjust the Wifi transmission direction elevator monitoring equipment , building monitoring and other complex environment-specific equipmentHumanized management system

Provide humanized management system, the wireless CPE transmission power is linearly adjustable, and at the same time support the device working parameter viewing function ,he user controls the working state of the device in real timeFour models are widely used

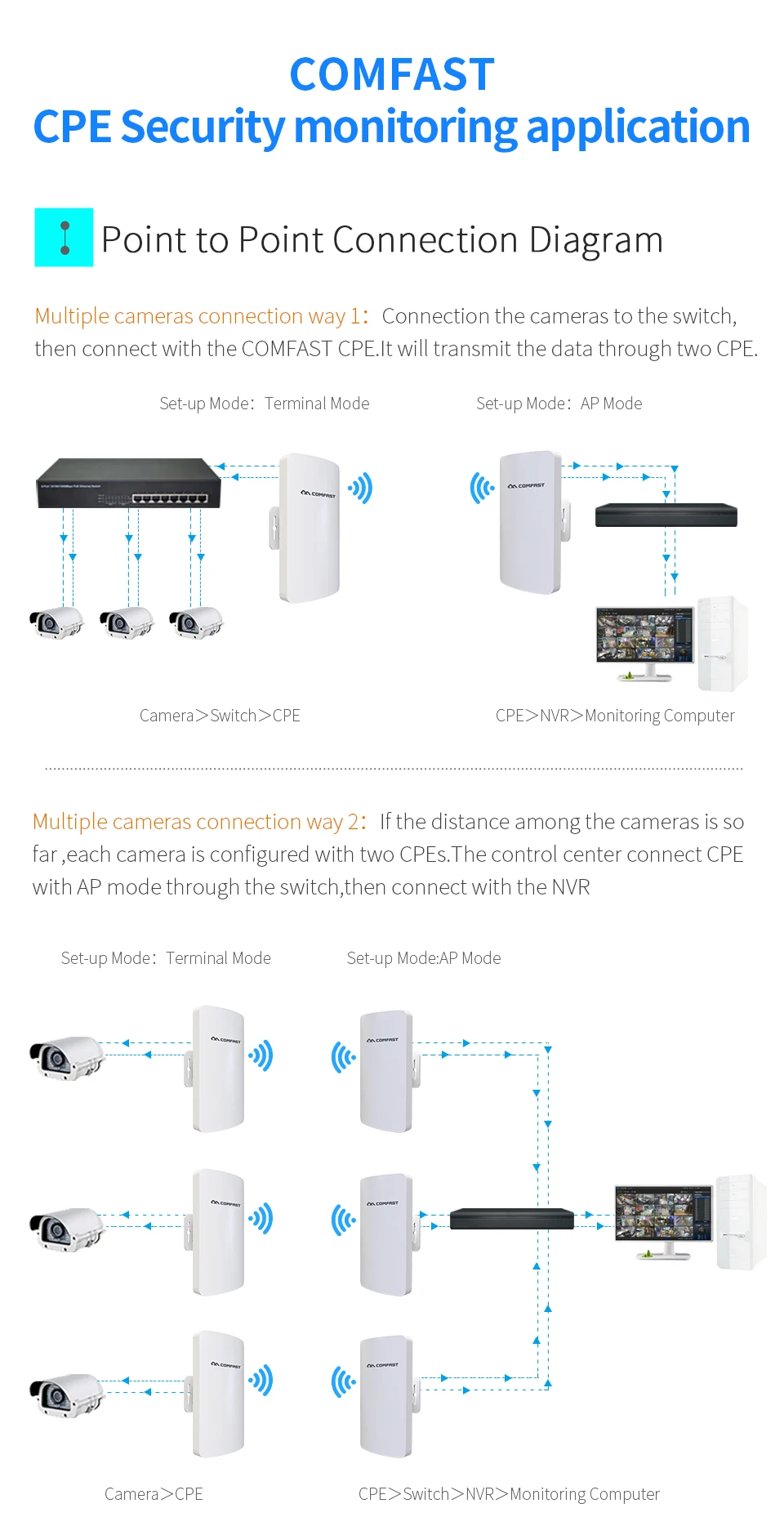

Meet the needs of outdoor Wifi engineering applications "Control core equipment, flexible engineering"COMFAST CPE Outdoor transmission projectCOMFAST CPE Security monitoring application

Point to Point Connection Diagram

Multiple cameras connection way 1: Connection the cameras to the switch, then connect with the COMFAST CPE It will transmit the data through two CPE

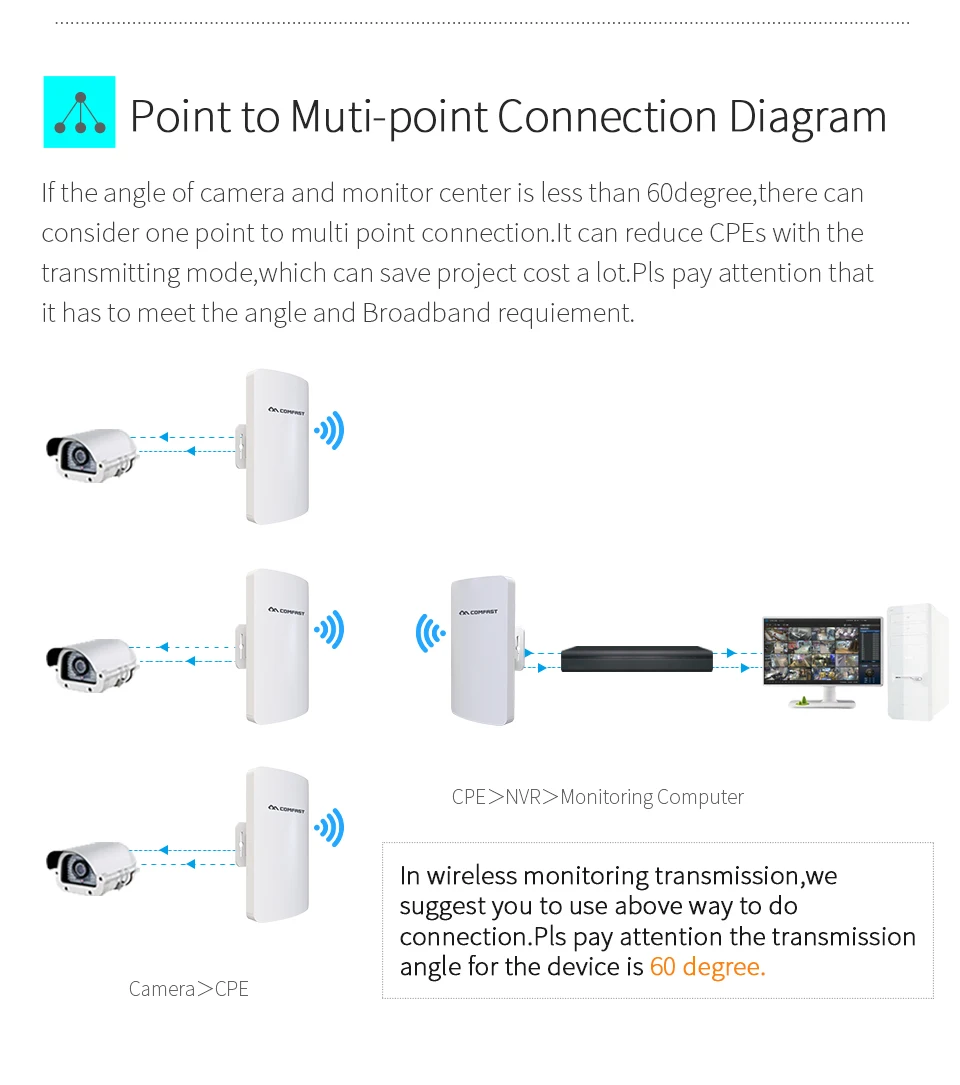

Multiple cameras connection way 2: If the distance among the cameras is soar, each camera is configured with two CPES. The control center connect CPE with AP mode through the switch, then connect with the NVRPoint to Muti-point Connection Diagram

If the angle of camera and monitor center is less than 60 degree, there can consider one point to multi point connection. It can reduce CPES with the transmitting mode, which can save project cost a lot. Pls pay attention that it has to meet the angle and Broadband requiement

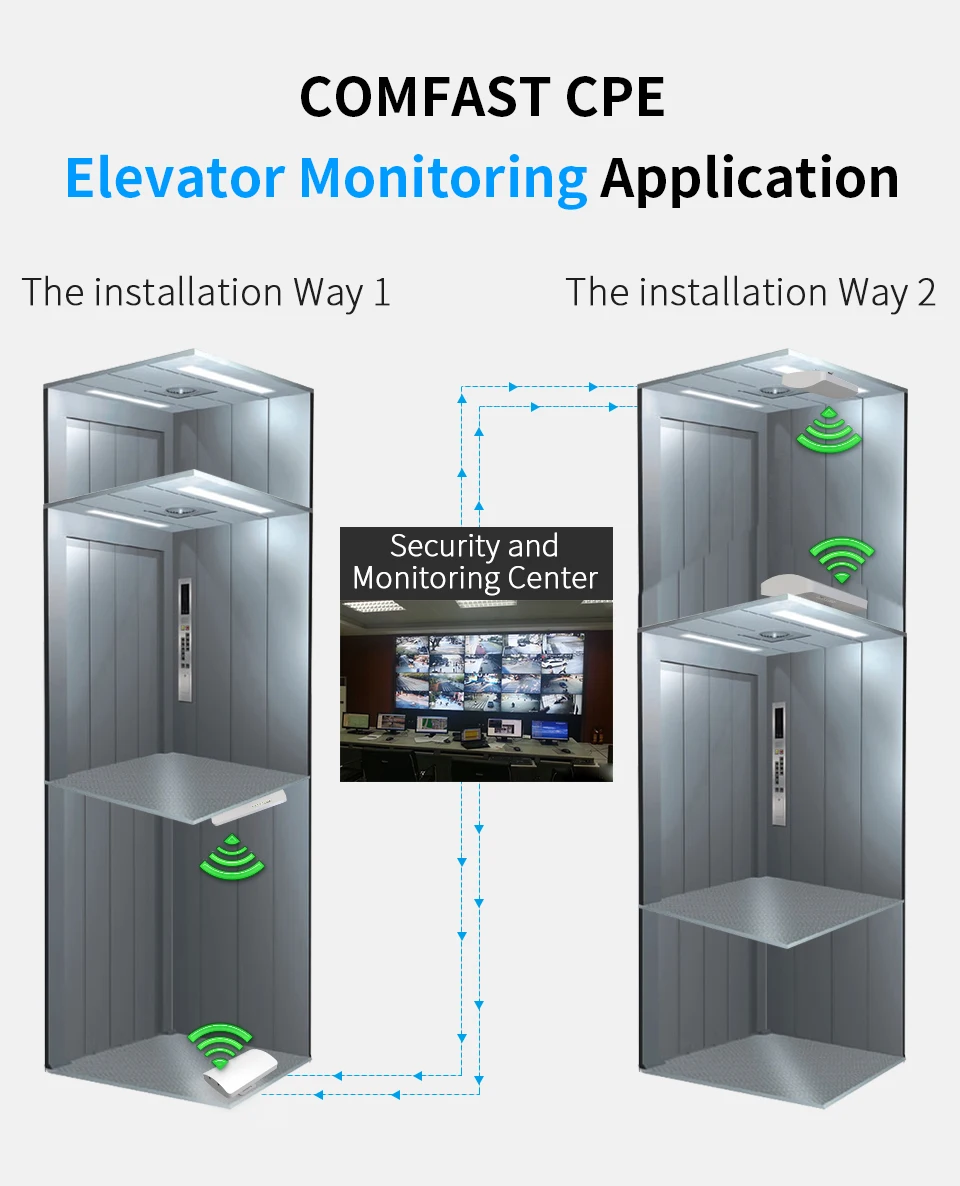

In wireless monitoring transmission, we suggest you to use above way to do connection. Pls pay attention the transmission angle for the device is 60 degreeCOMFAST CPE Elevator Monitoring ApplicationApplication Environment

Scenic Spot & Factory & Driving School & Shipside & Port & Oilfield
