UOTEK UT-6405GC 10G 5 Port Ethernent Switch Full Gigabit Unmanaged Industrial Ethernet Switch 5*Gigabit RJ45, support 10/100/1000Base-T

SPECIFICATIONS

Backplane Bandwidth: 10G

Brand Name: UOTEK

Certification: ROHS, CE, FCC

Gigabit Ethernet: 5*Gigabit RJ45, support 10/100/1000Base-T

High-concerned chemical: None

Installation: DIN-rail installation

Keywords: ethernet switch

LED indicator light: PWR power indicator, RJ-45 indicator

Model Number: UT-6405GC

Port number: 5

Power consumption: 120mA@24Vmax

Product name: UOTEK Gigabit 5-Port unmanaged Ethernet Switch

Type: Ethernet Switch

Use: electricity/rail/intelligent traffic/industry

Product Description

 Overview

UT-6405GC is a 5-port full Gigabit unmanaged Ethernet switch, providing 5 1000Base-T Ethernet port, which supports -20~70°C operating temperature and good EMC performance, and also supports industrial standard DIN-rail mounting to ensure normal operation in harsh environments, so it is very easy to install and apply on any industrial network.

Features

Reliable data transmission and long lifecycle

Supports full-duplex and half-duplex, auto MDI/MDI-X

Auto 10/100/1000Mbps

Fully automatic recognition of network interface

Plug and play for easy access

Operating temperature: -20 ~ 70°C

Voltage input: 12/24/48VDC (10.8~52.8VDC), support reverse connection protection



Specifications

>>Protocol Standards

IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX,

IEEE 802.3ab 1000Base-T, IEEE 802.3x



>>Interfaces

Gigabit Ethernet: 5*Gigabit RJ45, support 10/100/1000Base-T



>>Switching Performance

Forwarding rate: 1488095pps

Transmission mode: store and forward

MAC address size: 2K

Cache size: 1Mb

Backplane bandwidth: 10G

Max. frame length: 16KB



>>LED indicator light

PWR power indicator, RJ-45 indicator



>>Mechanical Characteristics

IP protection level: IP40

Installation: DIN-Rail Mounted





>>Power Requirement

Voltage input: 12/24/48VDC(10.8~52.8VDC)

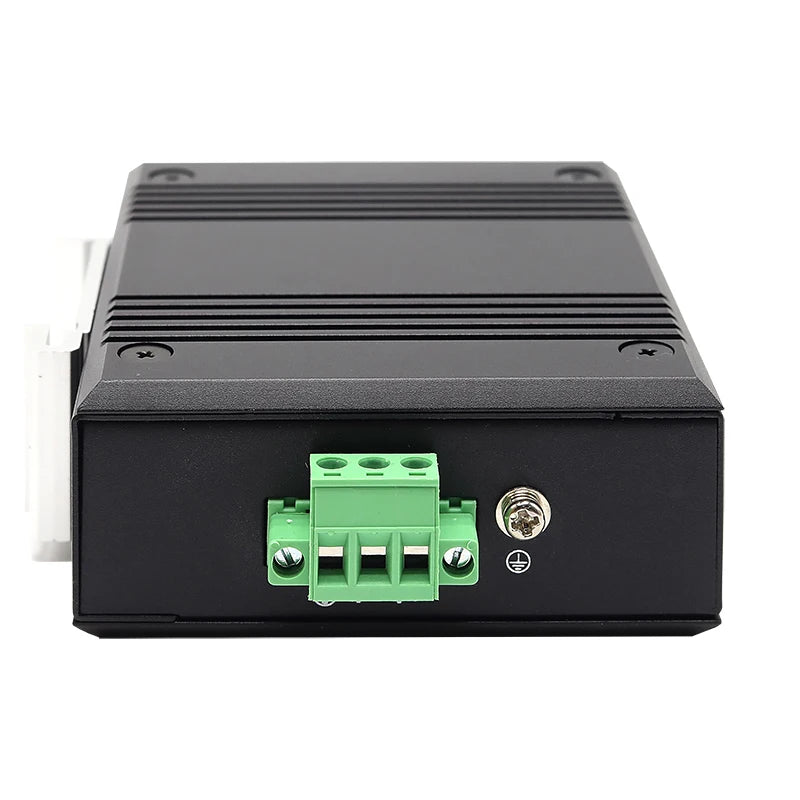

Interface terminal: 1 pluggable 3-pin terminal block

Overload protection: Support

Reverse connection protection: Support



>>Power consumption

120mA@24Vmax



>>Mechanical Dimension

Dimension (W x H x D): 100mm x 80mm x 35mm

Weight: 560g

Packaging dimension: 180mm x 140mm x 35mm



>>Operating Environment

Operating temperature: -20 ~ 70°C

Storage temperature: -40 ~ 85°C

Relative humidity: 0~95% (non-condensing)



>>Industrial Standards

EMI:

FCC Part 15 Subpart B classA,EN55022 class A

EMS:

IEC(EN)61000-4-2(ESD)

IEC(EN)61000-4-3(RS)
IEC(EN)61000-4-4(EFT)
IEC(EN)61000-4-5(Surge)
IEC(EN)61000-4-6(CS)

IEC(EN)61000-4-8
IEC 60068-2-27(Shock)
IEC 60068-2-32(Freefall)
IEC 60068-2-6(Vibration)



Application



Imagine if you could be satisfied and content with your purchase. That can very much be your reality with the UOTEK UT-6405GC 10G 5 Port Ethernent Switch Full Gigabit Unmanaged Industrial Ethernet Switch 5*Gbit RJ45, support 10/100/1000Base-T.
