UOTEK UT-6204-PLC AC DC Power Line Carrier Communication Module RS-485/232 interface 10/700 μ s waveform per line Ethernet interface

R 14,842.07
R 14,842.07
R 19,333.75
Sold out
Shipping calculated at checkout.

UOTEK UT-6204-PLC AC DC Power Line Carrier Communication Module RS-485/232 interface 10/700 μ s waveform per line Ethernet interface

SPECIFICATIONS

Application: Industrial

Brand: UOTEK

Brand Name: UOTEK

Certification: CE

Chipset: N/A

Dimensions: 150mm*100mm*37mm

High-concerned chemical: None

Input voltage: AC100-240V~50/60Hz

Interface Features: The interface is compatible with EIA/TIA RS-232C and RS-485 standards

Model Number: UT-6204-PLC

Operating Environment: -20℃ to 70℃, relative humidity is 5% to 95%

Protection level: differential mode 2000V common mode 1000V surge protection

Transmission Distance: 0-1.2 km (1200-115200 bps)

Transmission Medium: Twisted Pair or Shielded Wire

Transmission rate: 115200bps (1200-115200 bps optional)

Type: Ethernet Module

Working mode: RS-485 asynchronous half-duplex, RS-232 full-duplex communication

Interface: RS-485/232 interface 10/700 μ s waveform per line

Description

Specifications

item

value

Model Number

UT-6204-PLC

Type

Ethernet Module

Country of Origin

N/A

Brand

UOTEK

Chipset

N/A

Application

industrial

Interface features

The interface is compatible with EIA/TIA RS-232C and RS-485 standards

Input voltage

AC100-240V~50/60HZ

Transmission medium

twisted pair or shielded wire

Working mode

RS-485 asynchronous half-duplex, RS-232 full-duplex communication

Transmission rate

115200bps (1200-115200 bps optional)

Transmission distance

0-1.2 km (1200-115200 bps)

Dimensions

150mm*100mm*37mm

Operating environment

-20°C to 70°C, relative humidity is 5% to 95%

Interface

RS-485/232 interface 10/700 μ s waveform per line

Protection level

differential mode 2000V common mode 1000V surge protection

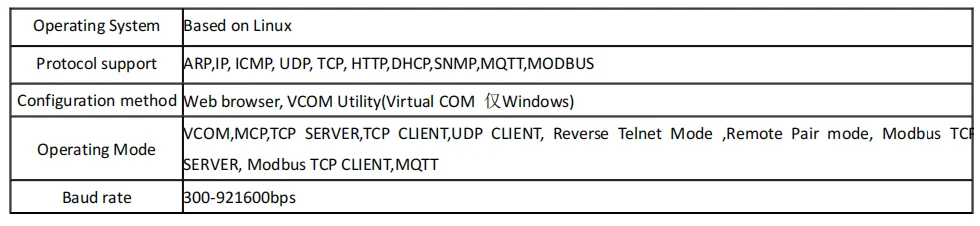

Software Parameters

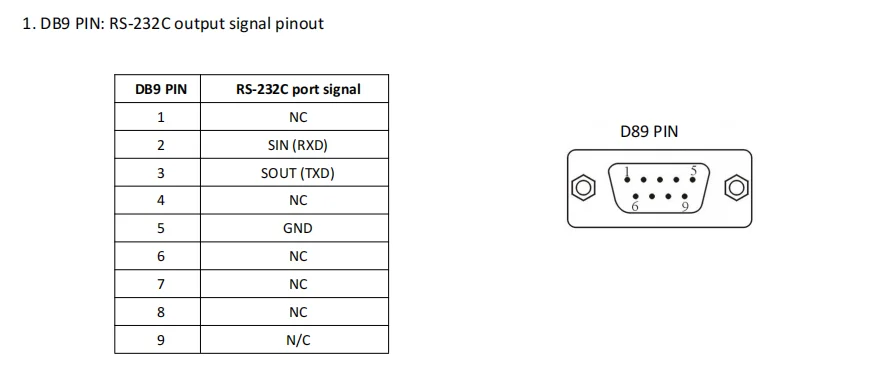

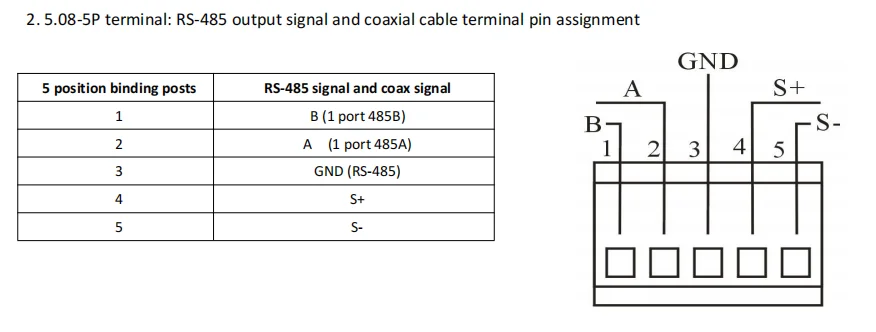

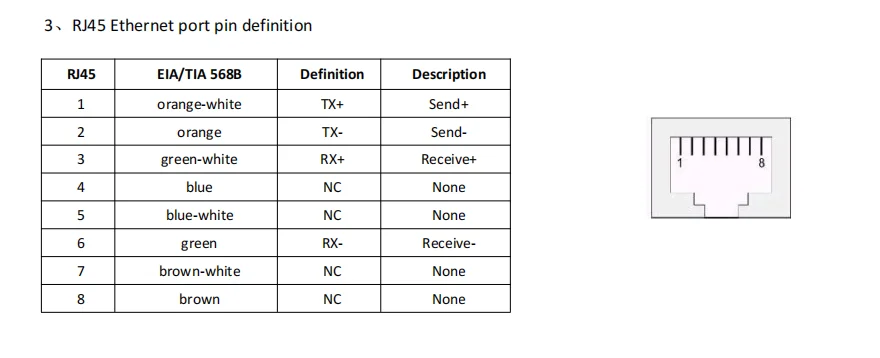

Connector&signal

The UOTEK UT-6204-PLC AC DC Power Line Carrier Communication Module RS-485/232 interface 10/700 μ s waveform per line Ethernet interface is a sensational customer favorite, and we hope you like it just as much.
