UOTEK UT-2602 10/100M 1 Optical Fiber 2 RJ45 Ports Industrial Ethernet Unmanaged Switch, 1x100Base-FX optical fiber, 2x10/100Base-T(X)

UOTEK UT-2602 10/100M 1 Optical Fiber 2 RJ-45 Ports Industrial Ethernet Unmanaged Switch

SPECIFICATIONS

Brand Name: UOTEK

High-concerned Chemical: None

Type: Hand Tool Parts

Model Number: UT-2602

Type: Fiber transceiver

Brand Name: UOTEK

Network: TCP, IP

Keywords: Industrial switch

Application: Network

Installation: DIN-Rail

Number of Ports: 3

Operating temperature: -40℃~85℃

Size: 100*80*34.3mm

Optical Connector: SC

Warranty: 1 Year

IP rating: IP40

Product name: 1 Optical Fiber 2 RJ-45 Ports Industrial Ethernet Unmanaged Switch

Product Description

Overview

UT-2602 is an industrial-grade Ethernet switch. It provides with 1 100base-FX optical fiber port and 2 10/100base-T(X) Ethernet ports, which is used for data communication between 100Base-T(X) twisted pair cable and 100Base-FX optical fiber cable. It is the best choice for intelligent residential area or optical fiber to desktop connector. The transmission rate is 10/100Mbps, auto negotiation. This switch extends the network transmission distance from 100m by twisted pair to more than thousands of meters, which can easily realize the interconnection between mainboard server, repeater, hub, terminals. It adopts industrial design, fanless; It is low power consumption, and with good EMC protection; The working temperature is from - 40 ℃ - 85 ℃. It supports reverse polarity protection. UT-2602 can be widely used in the field of electric power, rail transportation, intelligent transportation, mineral energy, industrial automation industry, etc.

Features

1x100Base-FX optical fiber port, 2x10/100Base-T(X) Ethernet ports Ensure the reliability of data transmission, long life Supports full-duplex or half-duplex 10/100Mbps, auto negotiation Auto MDI/MDI-X Built-in store-and-forward Telecom standard Working voltage: DC12/24/48V SC fiber port(with optional ST, FC, LC)

Specification

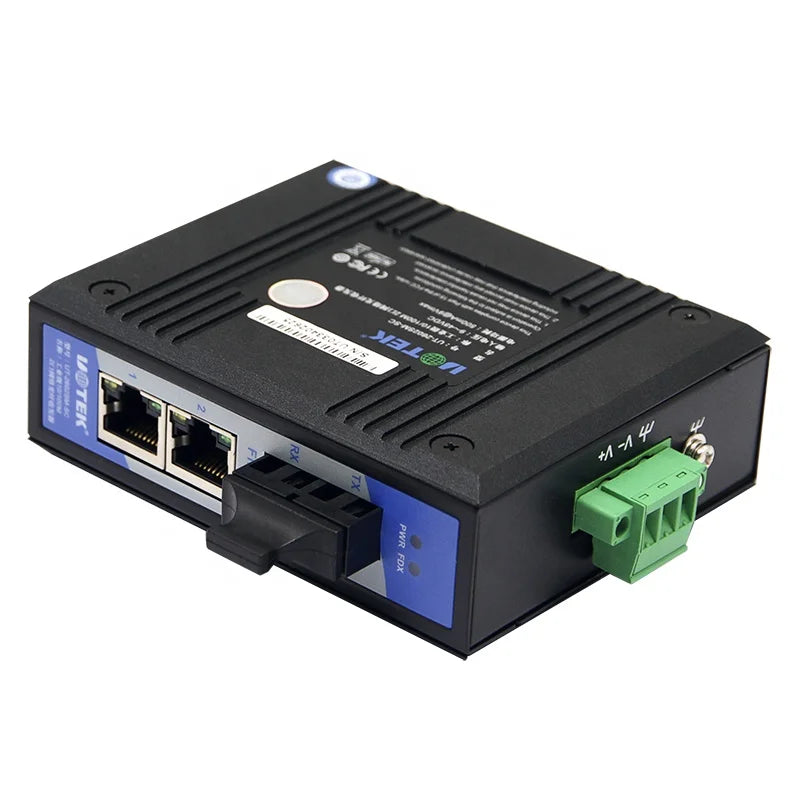

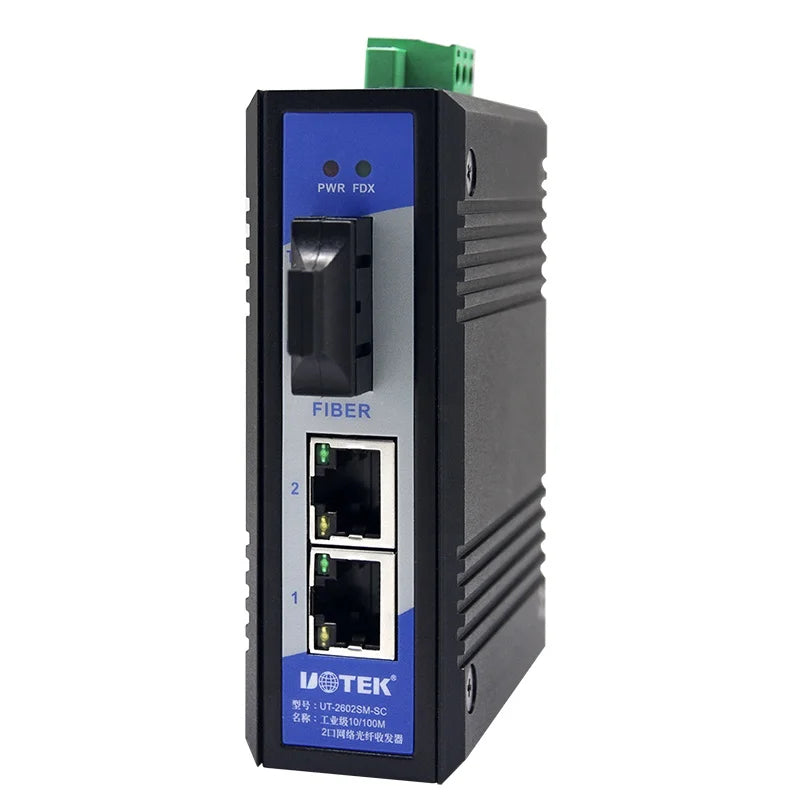

>>Standards IEEE 802.3 IEEE 802.3u Ports Fiber port: 1x100Base-FX(with optional SC, ST, FC, LC) RJ45 port: 2x10/100Base-T(X), auto detection, full-duplex or half-duplex, auto MDI/MDI-X LED indication: PWR, FDX

>>Optical fiber feature Cable Multi-mode: 50/125, 62.5/125 Single-mode: 8.3/125, 8.7/125, 9/125, 10/125μm Transmission distance Multi-mode: 2km Single-mode: 20km UTP5: 100m

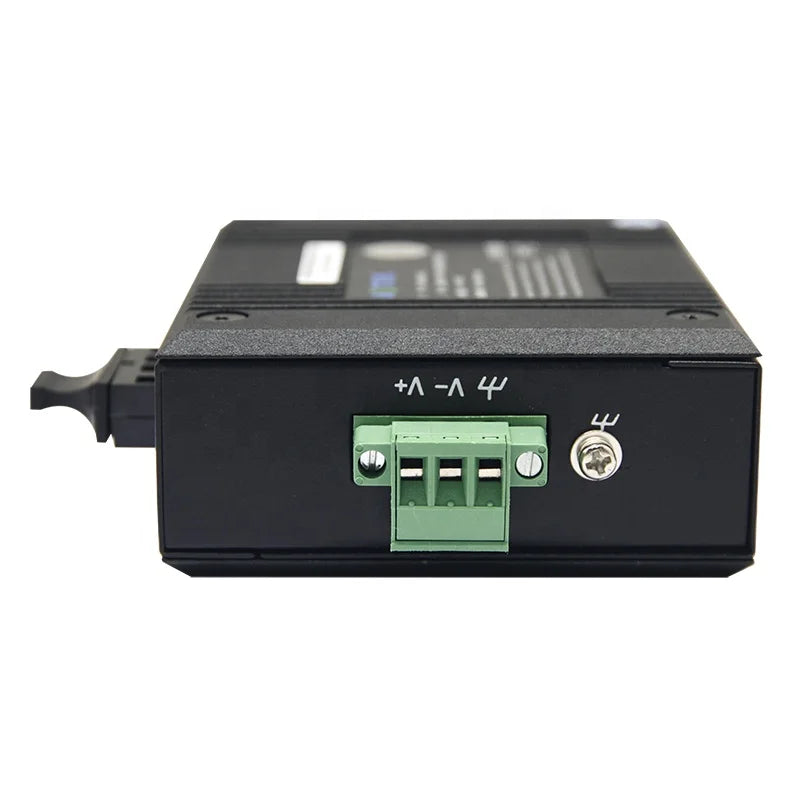

>>Power requirement Voltage input: DC12/24/48V（10.8~52.8VDC) Power consumption: 100mA@24Vmax Terminal block: 1x Pluggable 3-pin Overload protection: Yes Reverse polarity protection: Yes

>>Mechanical characteristics IP rating: IP40 Installation: DIN-Rail Size:100mm×35mm×80.5mm

>>Environment Working temperature: -40℃～85℃ Storage temperature: -40℃～85℃ Relative humidity: 0～95% (non-condensing

>>Industrial standards EMI: FCC Part 15 Subpart B classA, EN55022 class A EMS: IEC(EN)61000-4-2(ESD) IEC(EN)61000-4-3(RS) IEC(EN)61000-4-4(EFT) IEC(EN)61000-4-5(Surge) IEC(EN)61000-4-6(CS) IEC(EN)61000-4-8 IEC 60068-2-27(Shock)
