UOTEK RS232 RS485 RS422 Dual-Fiber MODEM with Built-in Power Supply AC100-240V Optic Fiber Modem Converter AC/DC 100-240V 1W UT-2788

Regular price: R 6,114.00
Sale price: R 6,114.00
Regular price: ~~R 7,581.36~~
Unit price: per

Shipping calculated at checkout.

Color

Quantity must be 1 or more

SPECIFICATIONS

Asynchronous transmission: point to point

Brand Name: UOTEK

Customization: Yes

High-concerned chemical: None

Input voltage: AC/DC 100-240V 1W

Interface: optional SC, FC, ST

Model Number: UT-2788

Multi-mode Transmission distance: 4,000m

Product name: RS-232/485/422 Dual-Fiber MODEM

Single mode Transmission distance: 20,000

Slave mode: can be used as Hub

Transmission Rate: 460kbps max

Type: Fiber optic media converter

Description

UOTEK RS-232/485/422 Dual-Fiber MODEM UT-2788

UT-2788 optic fiber modem supports asynchronous RS-232/485/422 communication. It is the best choice to connect remote terminal unit (RTU) with HOST or SCADA controller. It supports RS-232/485/422 asynchronous protocols; it can be mixed and matched to use 2 RS-232, RS-485 or RS-422 ports, and it supports 2 wires (half-duplex) RS-485 and 4 wires (full-duplex) RS-422 mode. The RS-485 mode supports data transmission (TXD or SD) control, this enhance the adaptation to most of the software. Optic fiber MODEM supports lots of optic connection between asynchronous serial ports. It supports 2 asynchronous serial devices to communicate under full-duplex or half-duplex via optic fiber; the communication distance can be as far as 4km at multimode, and 20km at single mode. The fastest transmission rate for RS-232 can be 115.2Kbps, and for RS-485/422 can be 460Kbps. Ports with different
electronic standards can be mixed and matched to use; it is without problem to connect RS-232 devices with RS-485/422 device. This is a good replacement of RS-232 to RS485/422 converter, which with EMI/RFT features.

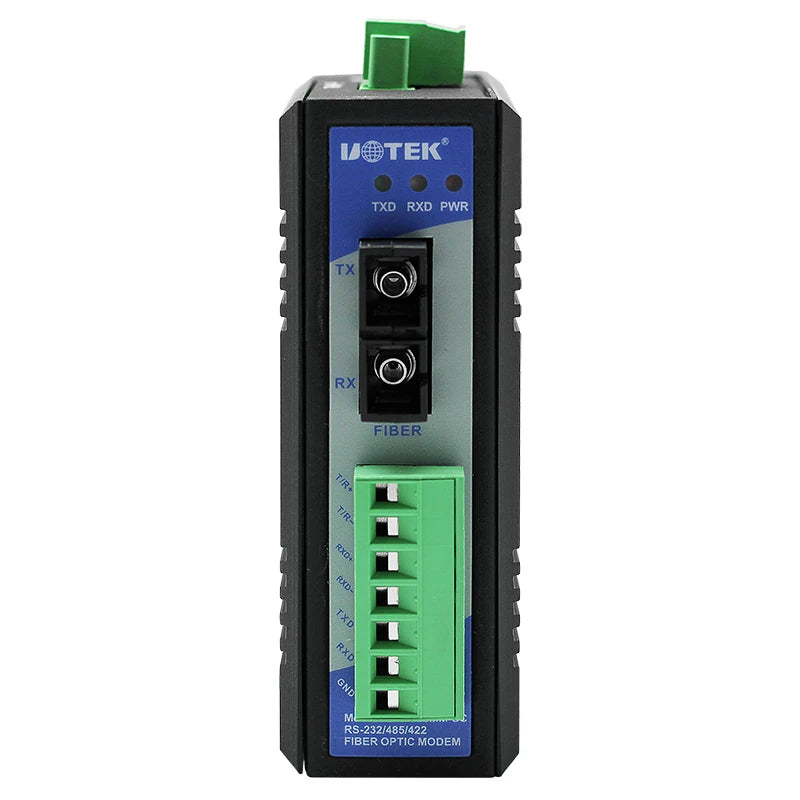

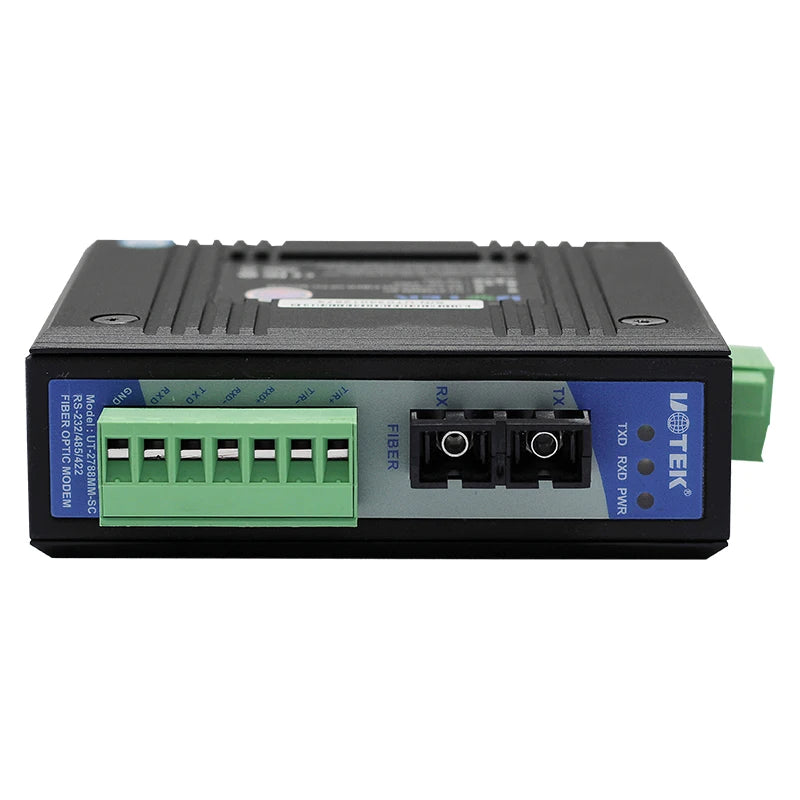

UT-2788 supports two signal data transmission: transmit and receive data. At the same time, it is with RS-485/422 data transmission auto control circuit; Zero delay conversion; all the serial ports is connected via terminal block; the optic fiber is connected via two ST ports.

*Supports RS-232/RS-485/RS-422 ports
*Asynchronous transmission: point to point, 460kbps
*Transmission distance: multimode: 4,000m,
single mode: 20,000
*Wave length: 1,310nm (multi mode), 1,310nm(single mode)
*Electrical interface: RS-232: terminal block
RS-485/422: terminal block
*Fiber interface: SC/FC/ST optional
*RS-232: standard RS-232 3 bits ±15KV ESD protection, as high as 115.2kbps transmission rate

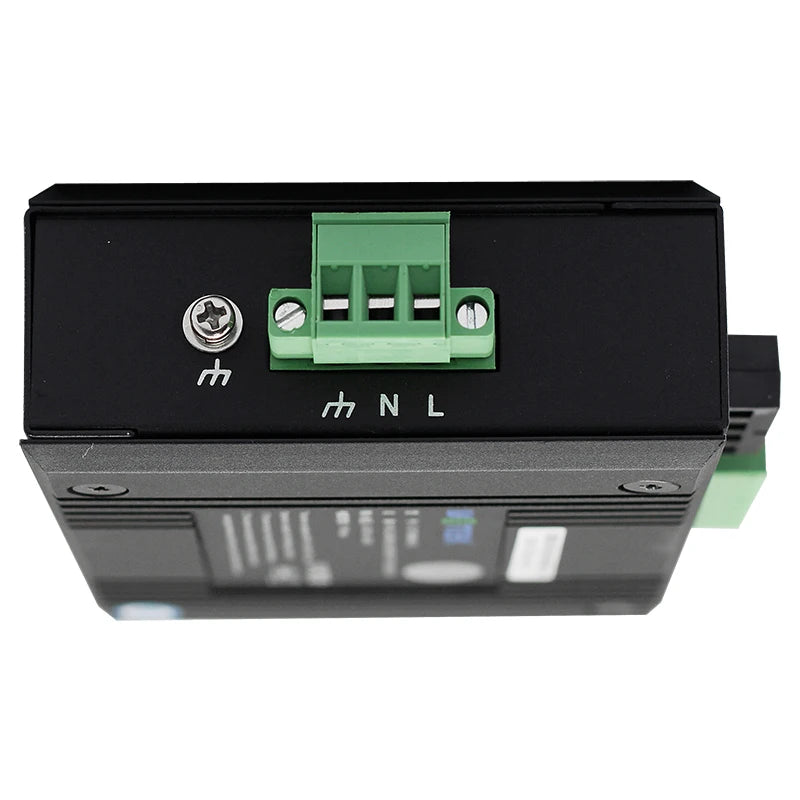

*Input voltage: AC/DC 100-240V 1W
*RS-485/422: auto negotiation, no need switch setting, ±15KV ESD protection

The UOTEK RS232 RS485 RS422 Dual-Fiber MODEM with Built-in Power Supply AC100-240V Optic Fiber Modem Converter AC/DC 100-240V 1W UT-2788 is a sensational customer favorite, and we hope you like it just as much.
