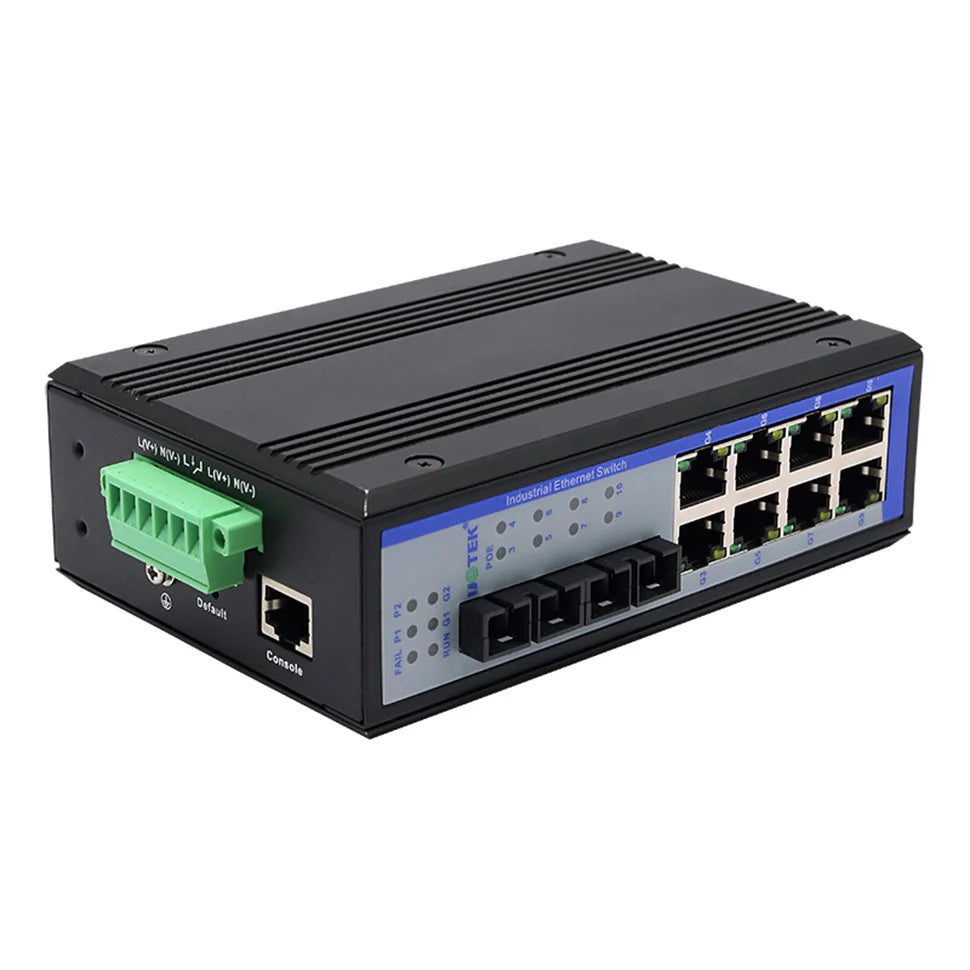

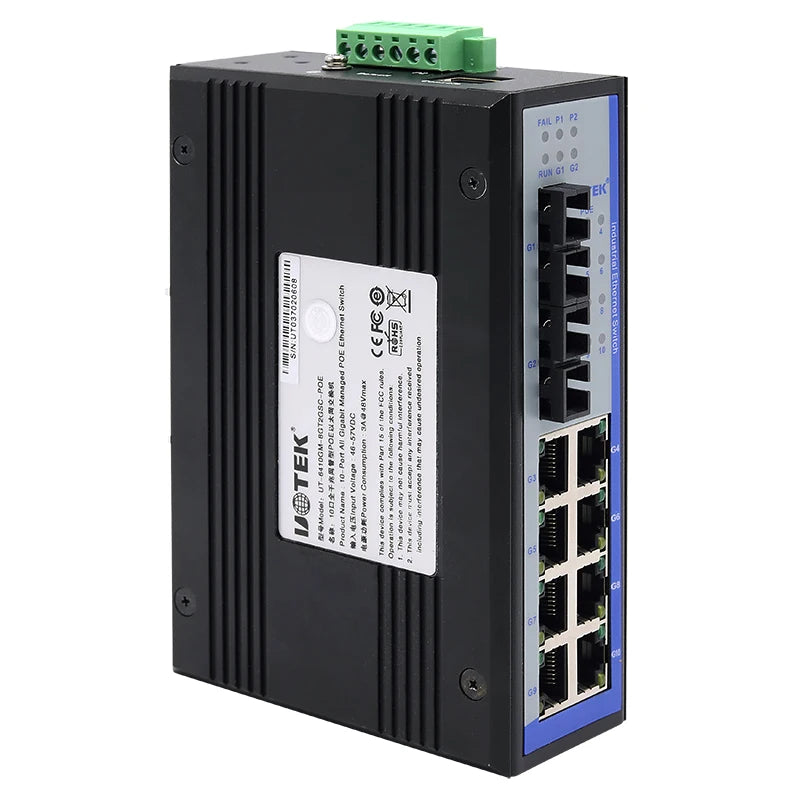

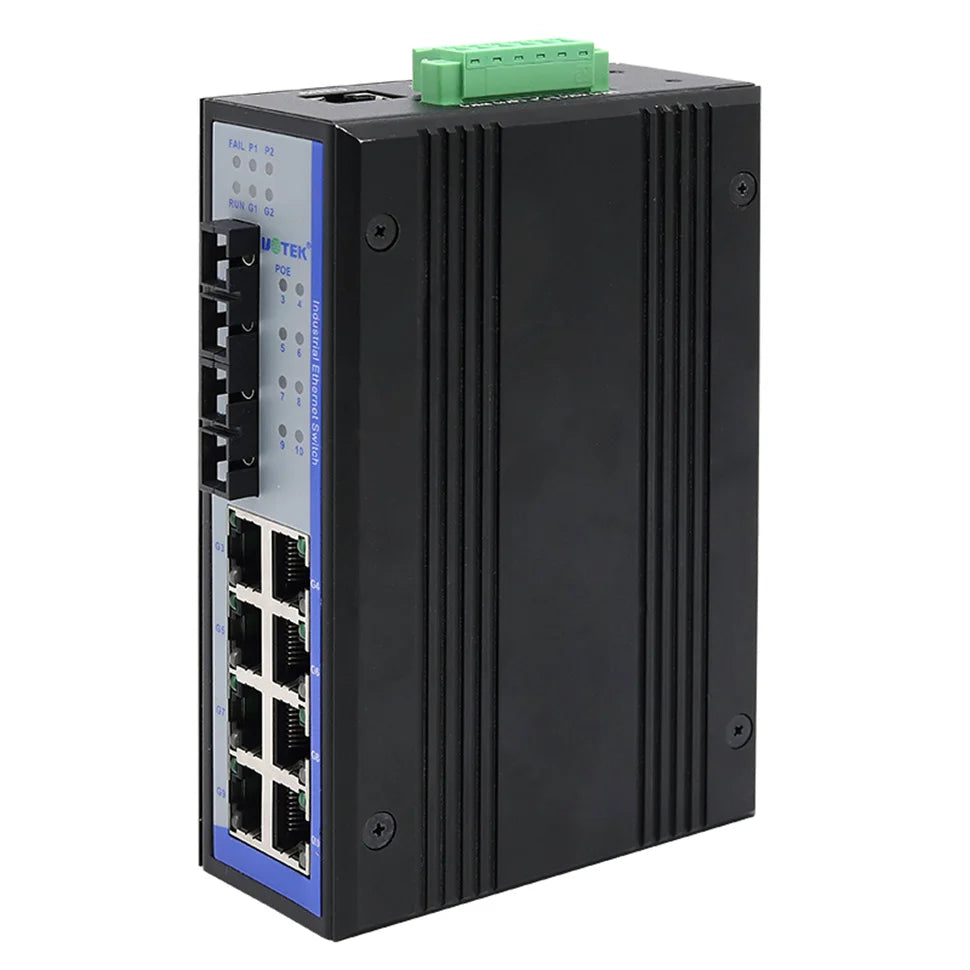

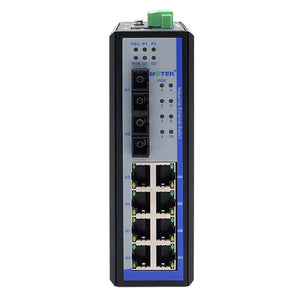

UOTEK Industrial 1000M 8 Ports POE Ethernet Switch Network Managed with 2 Gigabit Optical Fiber SC Interface DIN-rail UT-6410GM

UOTEK Industrial 1000M 8 Ports POE Ethernet Switch Network Managed with 2 Gigabit Optical Fiber SC Interface DIN-rail UT-6410GM

SPECIFICATIONS

Brand Name: UOTEK

High-concerned Chemical: None

Model Number: UT-6410GM-8GT2GSC-POE

Switch Type: Ethernet

Number of Interfaces: 10

Package: Yes

Certification: CE,FCC,RoHS

Transmission Rate: 10/100/1000Mbps

Communication Mode: Full-Duplex & Half-Duplex

Model Number: UT-6410GM-8GT2GSC-POE

Brand Name: UOTEK

Description

UOTEK Industrial 1000M 8 Ports POE Ethernet Switch Network Managed with 2 Gigabit Optical Fiber SC Interface DIN-rail UT-6410GM

The UT-6410GM series managed Gigabit industrial Ethernet switch supports 8 10/100/1000Base-T Ethernet ports (IEEE802.3af/at(POE) compatible) and 2 1000Base-X ports. Each POE port can provide up to 30W of power to connected devices (such as surveillance cameras, wireless access points and IP phones) when AC power is not available or limited by other factors. interference capability to ensure stable operation in harsh industrial environments, providing greater advantages for industrial automation, intelligent transportation, video surveillance and other industrial applications.

*Please Note: This Switch is with 2 fiber SC interface, if you need SFP, ST, FC interface etc., Please send us your Order Request with Specific Requirements


● Support 8-port POE management function

● Support Ethernet and optical ports (ST/FC/SC/SFP types)
● Support IGMP Snooping to filter multicast packets
● Support IEEE 802.1 Q VLAN for easy network planning
● Support QoS (IEEE 802.1 p/1 Q) and TOS/DiffServ to increase network stability
● Support STP/RSTP and MSTP network redundancy and SNMPv1/v2/v3 to ensure network security management
● Support UT-Ring ring function

● Support IEEE802.1x

● Support link aggregation to optimize network bandwidth
● Support Access Control List (ACL)

● Support port mirroring function for online debugging
● Support port speed limit, broadcast storm suppression, multicast storm suppression, unknown unicast storm suppression to ensure    network stability

● Support power, port,UT-Ring abnormal state relay output alarm
● Operating temperature: -40-75°C


UT-6410GM-8GT2GSC-POE Details

UT-6410GM-8GT2GSC-POE Parameters

>>Protocol Standards

Standards: IEEE 802.3af/at, IEEE802.3, IEEE802.3u, IEEE802.3u
IEEE802.3x, IEEE802.3z, IEEE802.1Q, IEEE802.1p, IEEE802.1D, IEEE802.1W,
IEEE802.1W IEEE802.1s, IEEE802.3ad, IEEE802.1x

Protocols: ARP, ICMP, TCP, HTTP, HTTPS, Telnet, STP/ RSTP/MSTP, LLDP, IGMP, SNMPv1/v2c/v3. DHCP Server, NTP, RMON, Syslog

Flow control: IEEE802.3x flow control, backpressure flow control

>>LED indicator light

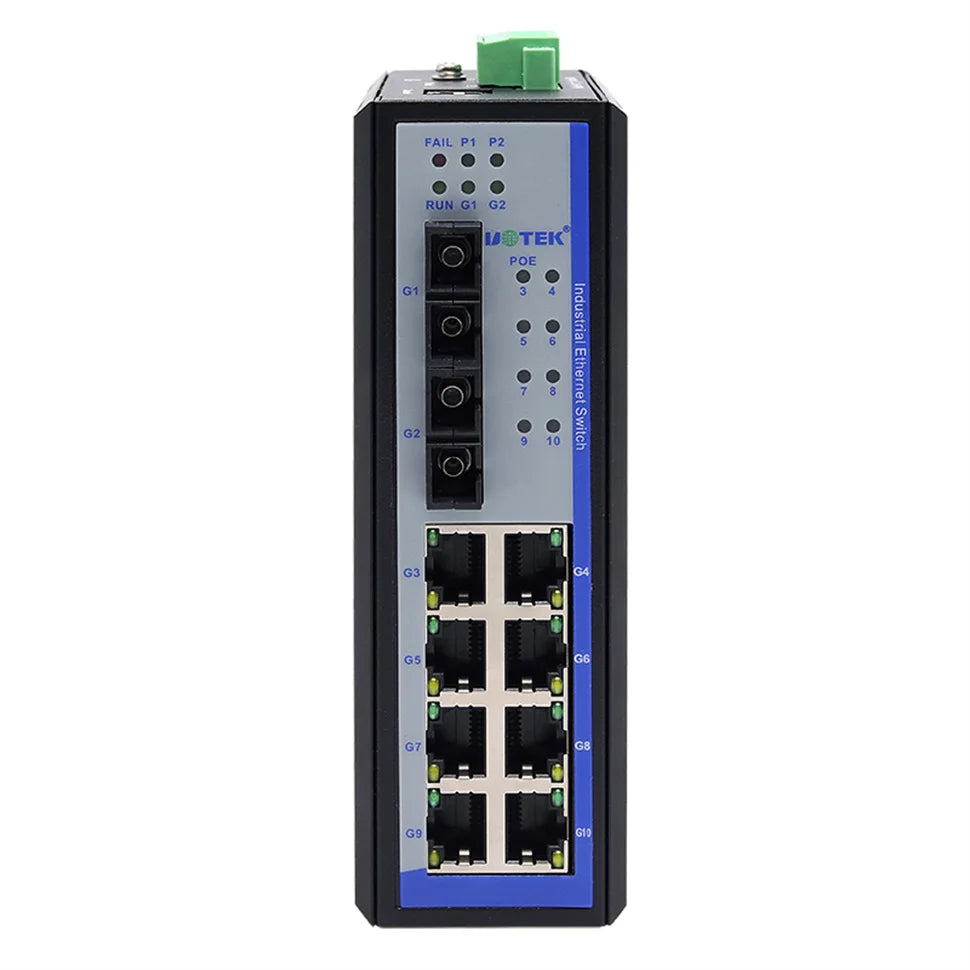

Power Indicator, Optical Port Indicator, RJ45 Indicator Alarm Indicator, Operation Indicator, POE Indicator

>>Interfaces

Fiber optic interface: 1000Base-X,(SC/FC/ST/SFP slot)

RJ45 interface: 10/100/1000Base-T, support POE output

POE pins: V+ ,V+, V-,V- corresponding to pins 1,2,3,6 (default)

>>Switching Performance

Forwarding rate: 1488095pps

Transmission mode: store and forward

MAC address size: 16K

Cache size: 2Mb

Backplane bandwidth: 22G

Max. frame length：10KB

>>Transmission Distance

Cat.5e: 100m

Fiber Optic Module

Single-mode: 1310nm 20/40/60Km

1550nm 80/100/120Km

Multi-mode: 1310nm 2Km

>>Power Requirement

Voltage input: 48VDC(46-57V),redundant input,support reverse connection protection

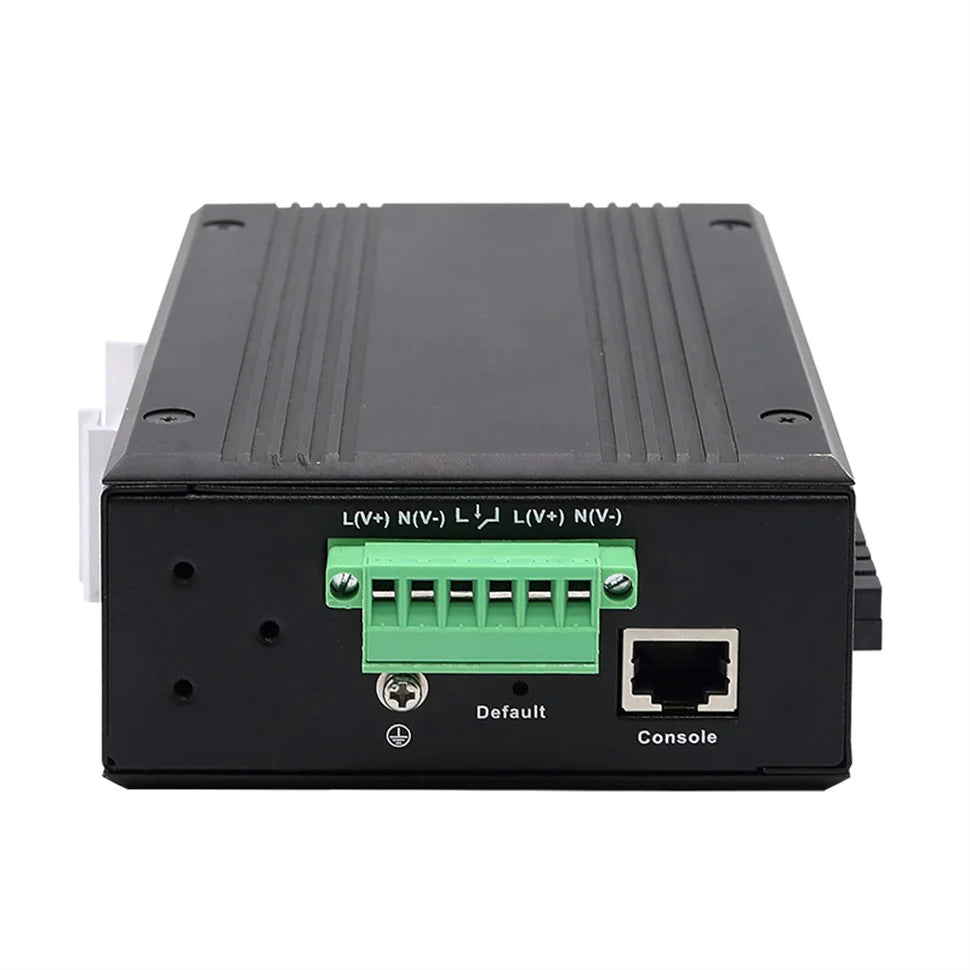

Interface terminal: 1 pluggable 6 pin terminal block

>>Consumption

Max. consumption power for each POE port about 30 W, total power consumption no more than 150W.

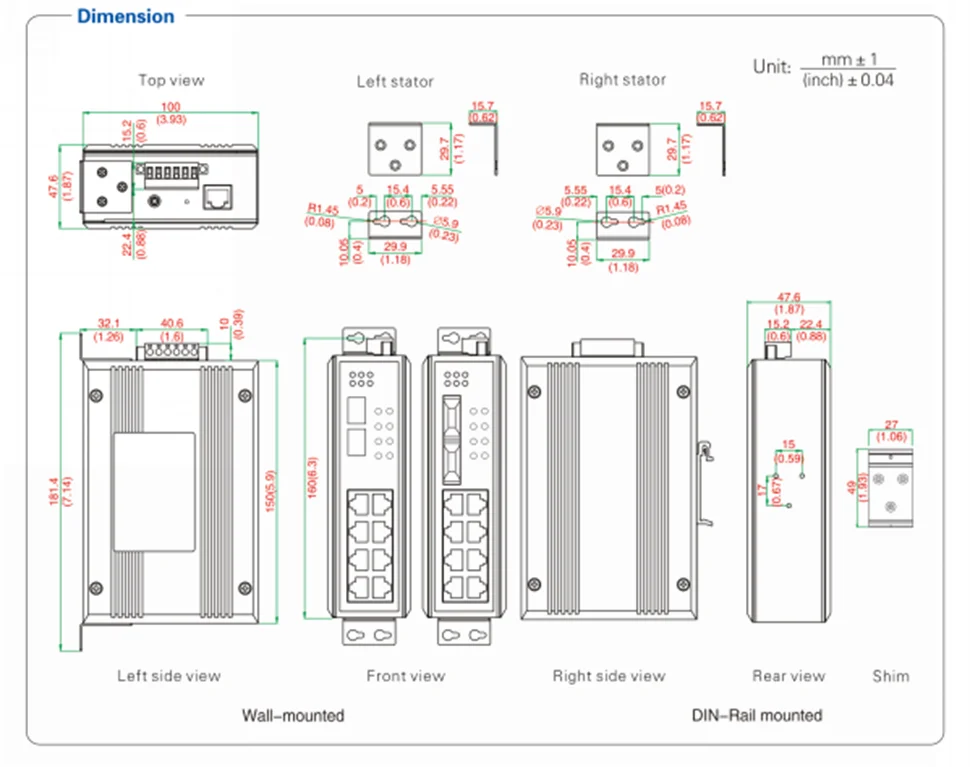

>>Mechanical Dimension

Dimension (W x H x D): 150mm x 47.6mm x 100mm

Package dimension: 250mm x 205mm x 55mm

Weight: 837g

>>Mechanical Characteristics

IP protection level: IP40

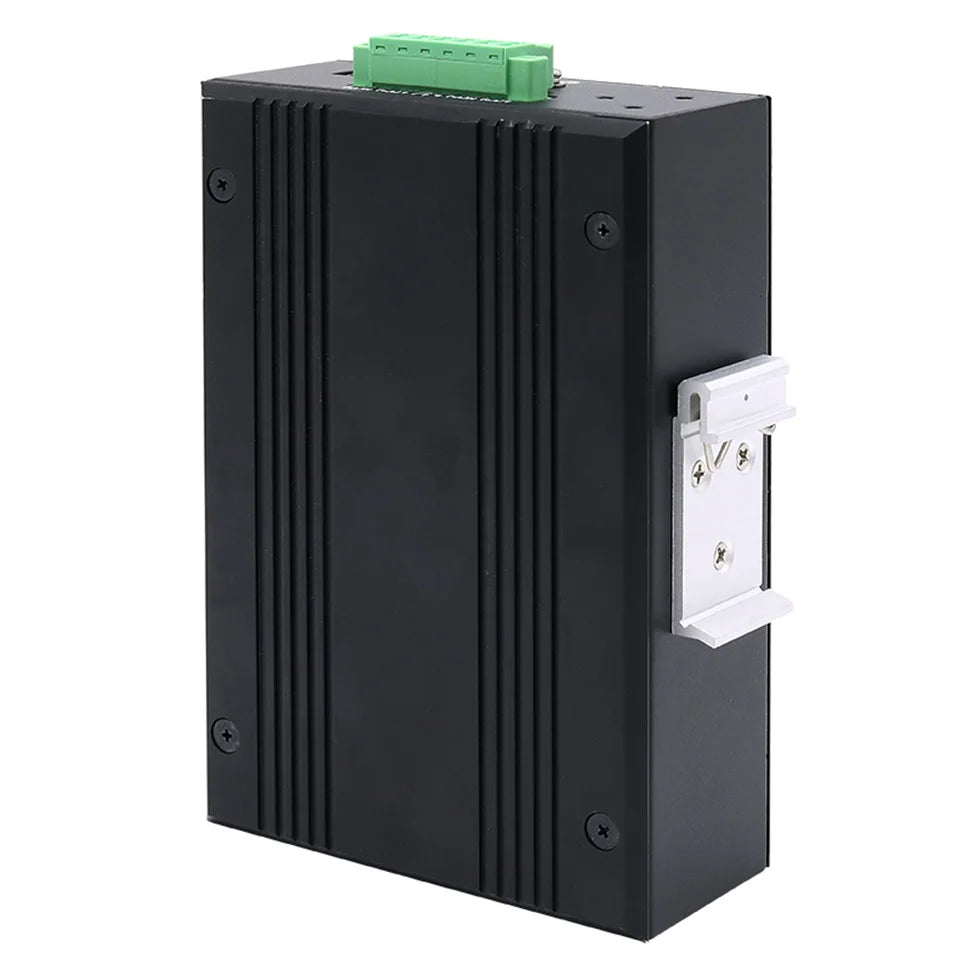

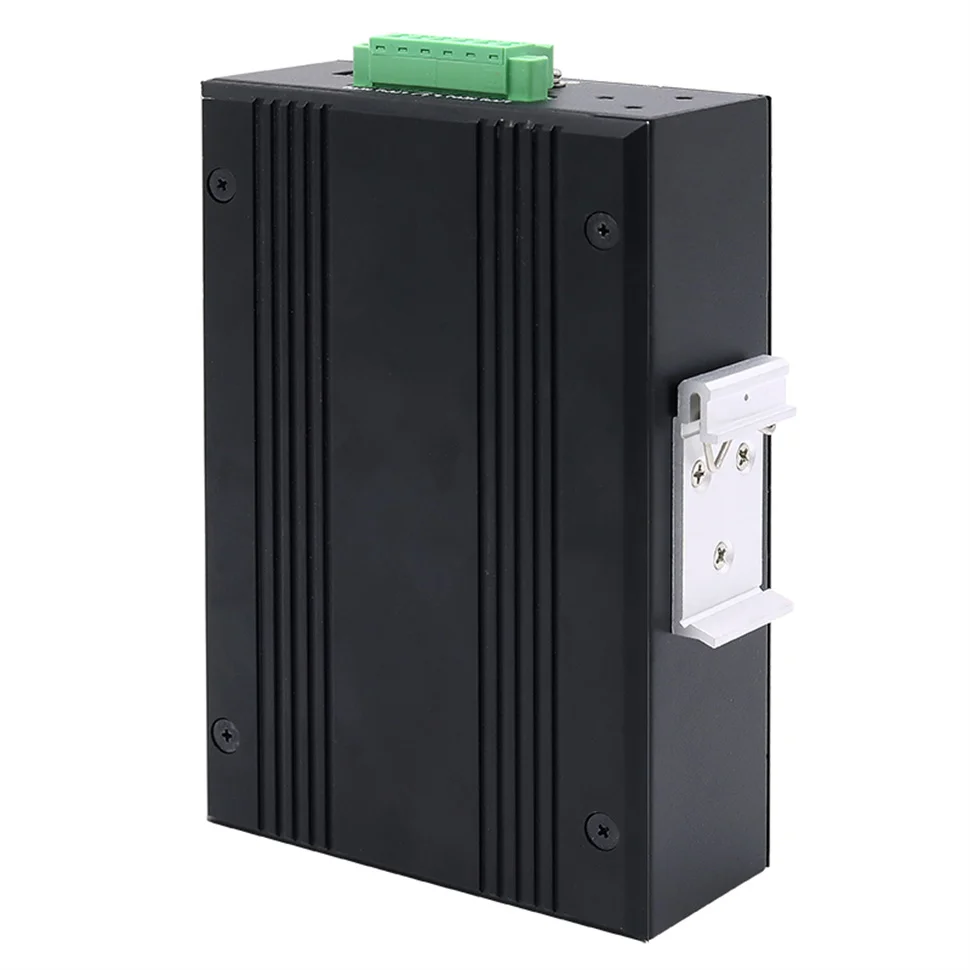

Installation: DIN-Rail /Wall Mounted

>>Operating Environment

Operating temperature: -40~75°C

Storage temperature: -40~85°C

Relative humidity: 0~95% (non-condensing)

>>Industrial Standards

EMI ：

FCC Part 15，CISPR (EN55022) class A

EMS：

IEC(EN)61000-4-2(ESD)

IEC(EN)61000-4-3(RS)

IEC(EN)61000-4-4(EFT)

IEC(EN)61000-4-5(Surge)

IEC(EN)61000-4-6(CS)

IEC(EN)61000-4-8

IEC 60068-2-27(Shock)

IEC 60068-2-32(Freefall)

IEC 60068-2-6(Vibration)
