UOTEK Industrial 1000M 4 Ports Unmanaged Ethernet POE Switch Gigabit Optical Fiber SEP SC Interface DIN-Rail UT-6405G-POE

UOTEK Industrial 1000M 4 Ports Unmanaged Ethernet POE Switch Gigabit Optical Fiber SEP SC Interface DIN-Rail UT-6405G-POE

SPECIFICATIONS

Brand Name: UOTEK

High-concerned Chemical: None

Model Number: UT-6405G-POE

Switch Type: Ethernet

Package: Yes

Certification: CE,FCC,RoHS

Transmission Rate: 10/100/1000Mbps

Communication Mode: Full-Duplex & Half-Duplex

Model Number: UT-6405G-POE

Brand Name: UOTEK

Product Description

UOTEK Industrial 1000M 4 Ports Unmanaged Ethernet POE Switch Gigabit Optical Fiber SEP SC Interface DIN-Rail UT-6405G-POE

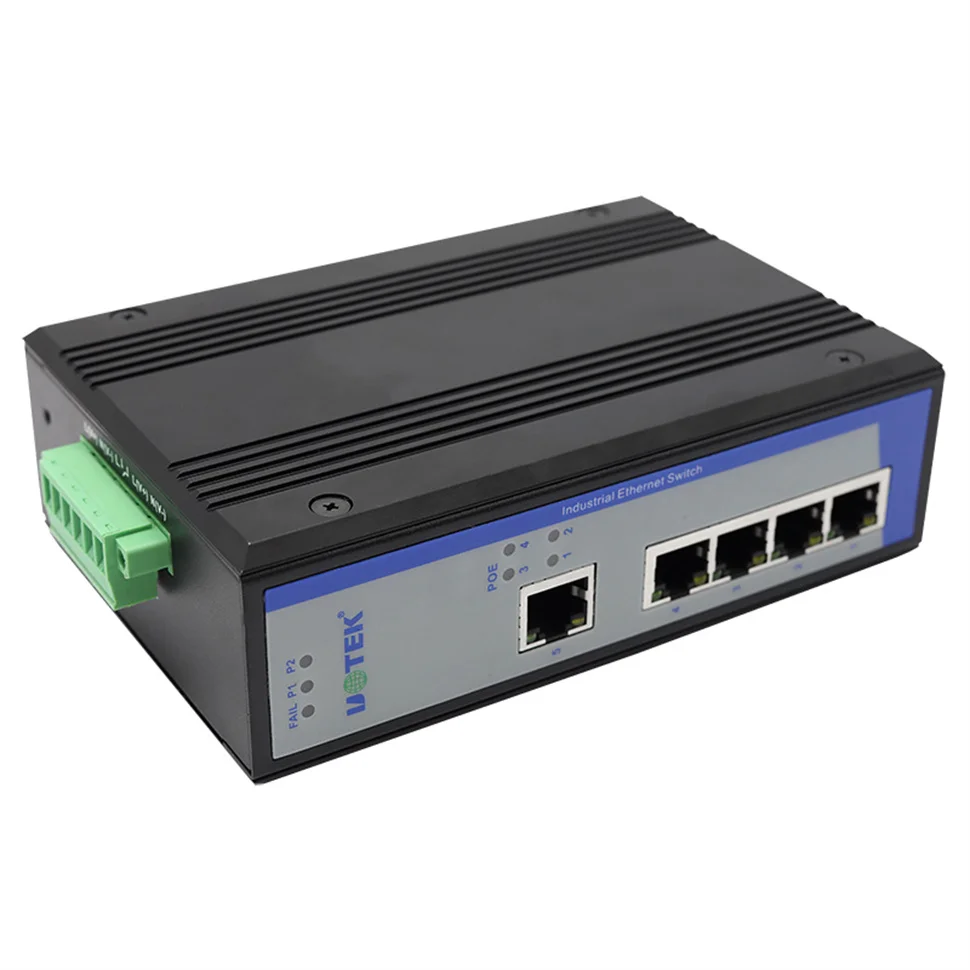

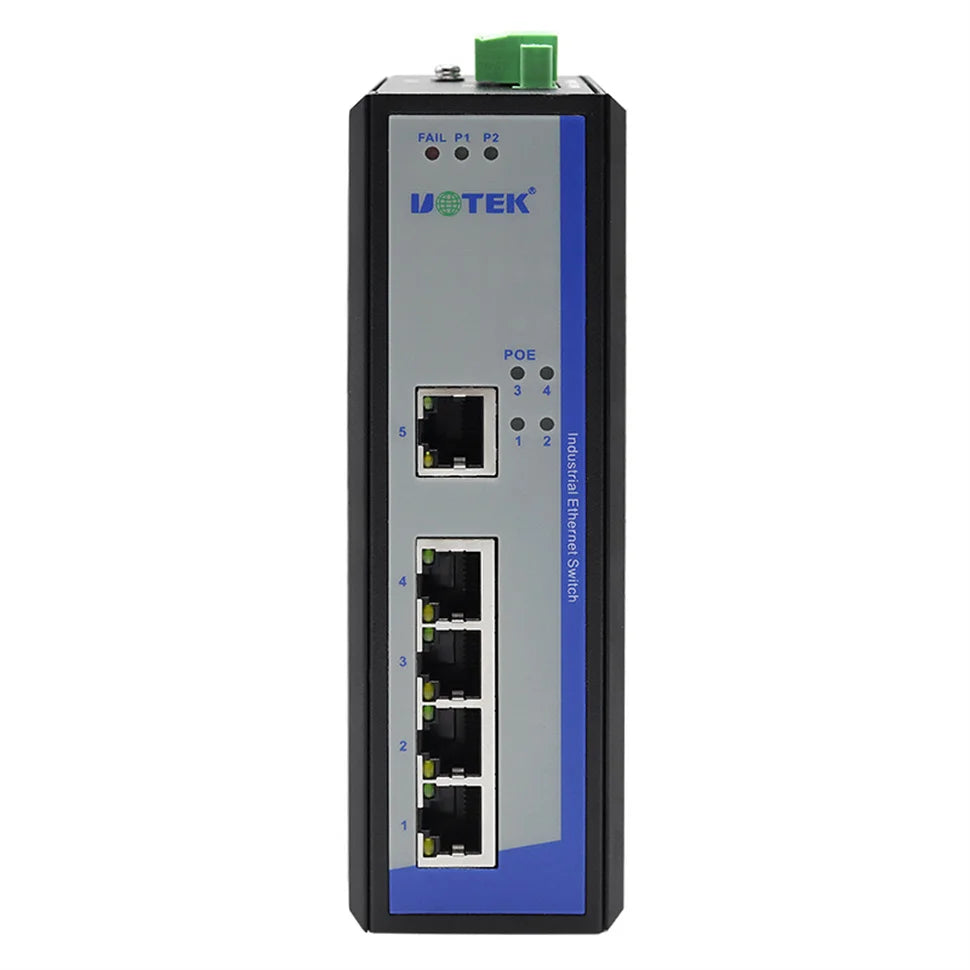

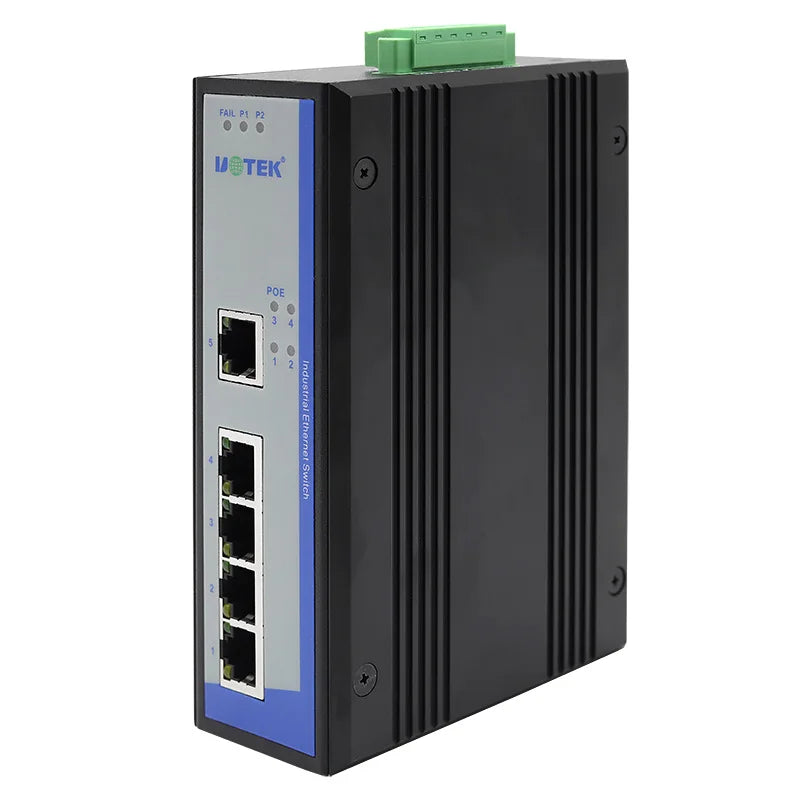

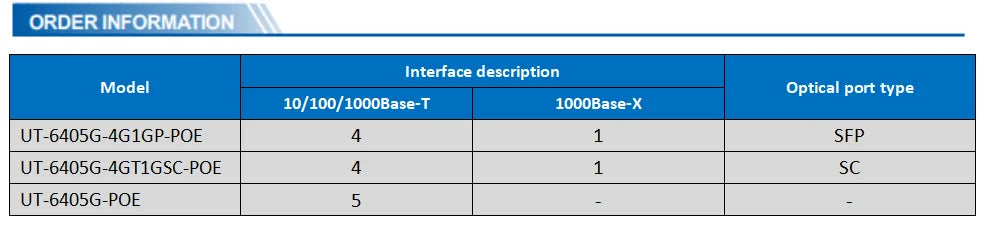

Model 1: UT-6405G-POE

5 Ports Auto-10/100/1000Mbps RJ45

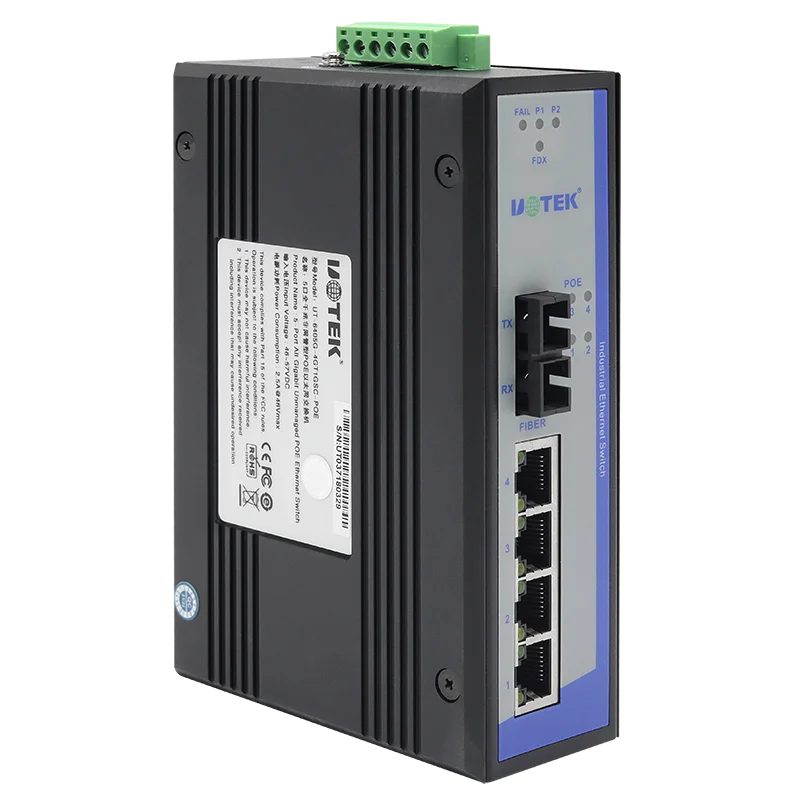

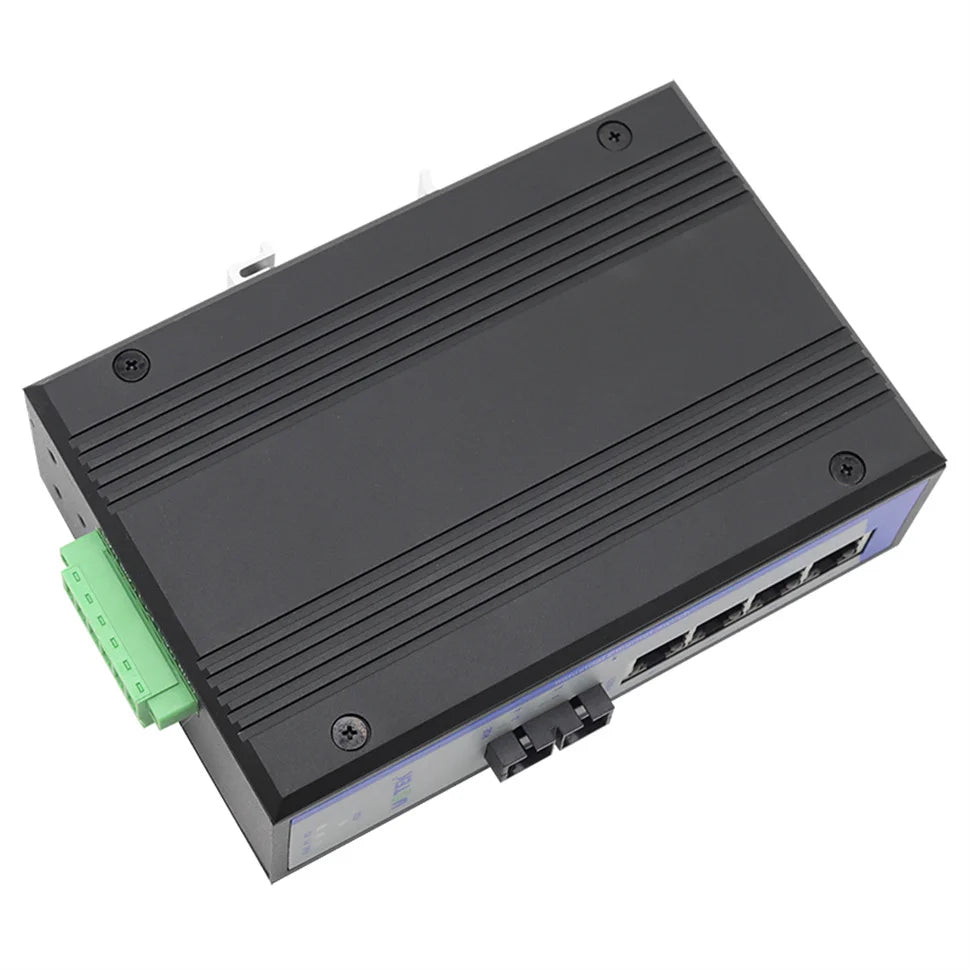

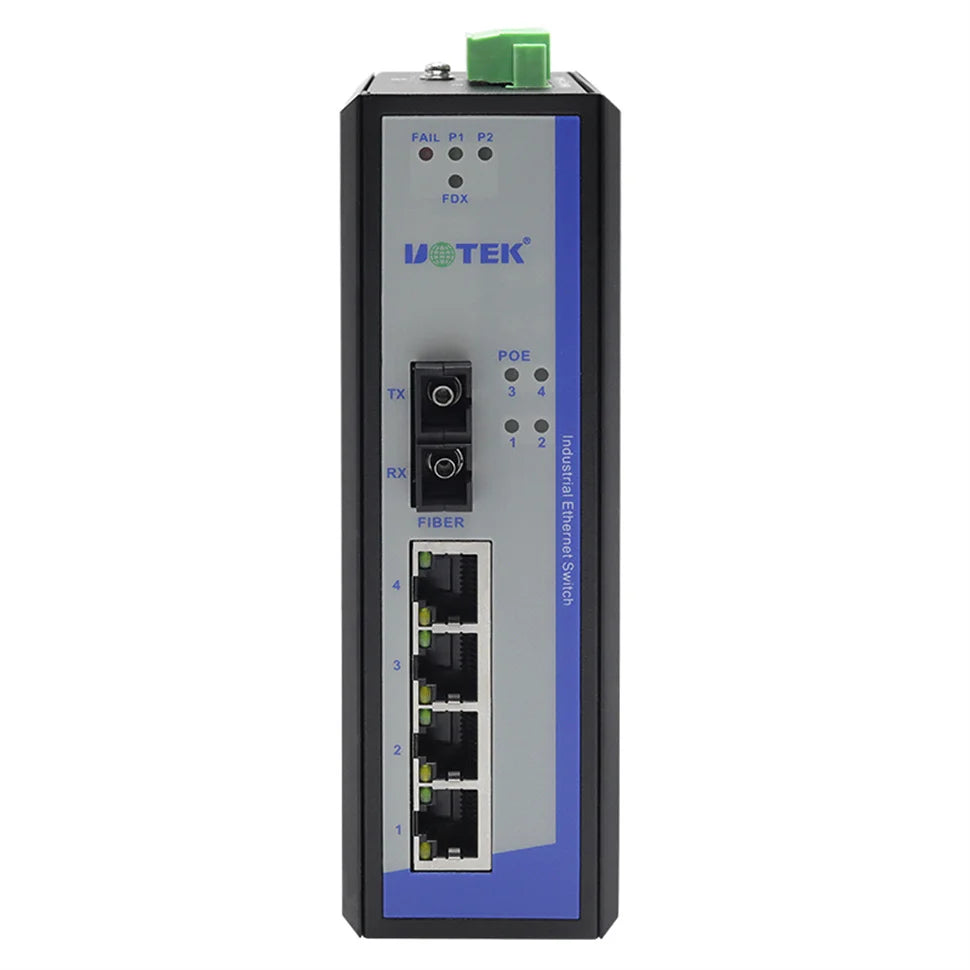

Model 2: UT-6405G-4GT1GSC-POE

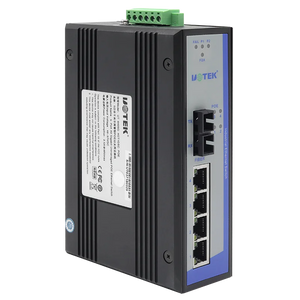

4 Ports Auto-10/100/1000Mbps RJ45 + 1 port Gigabit Optical fiber SC

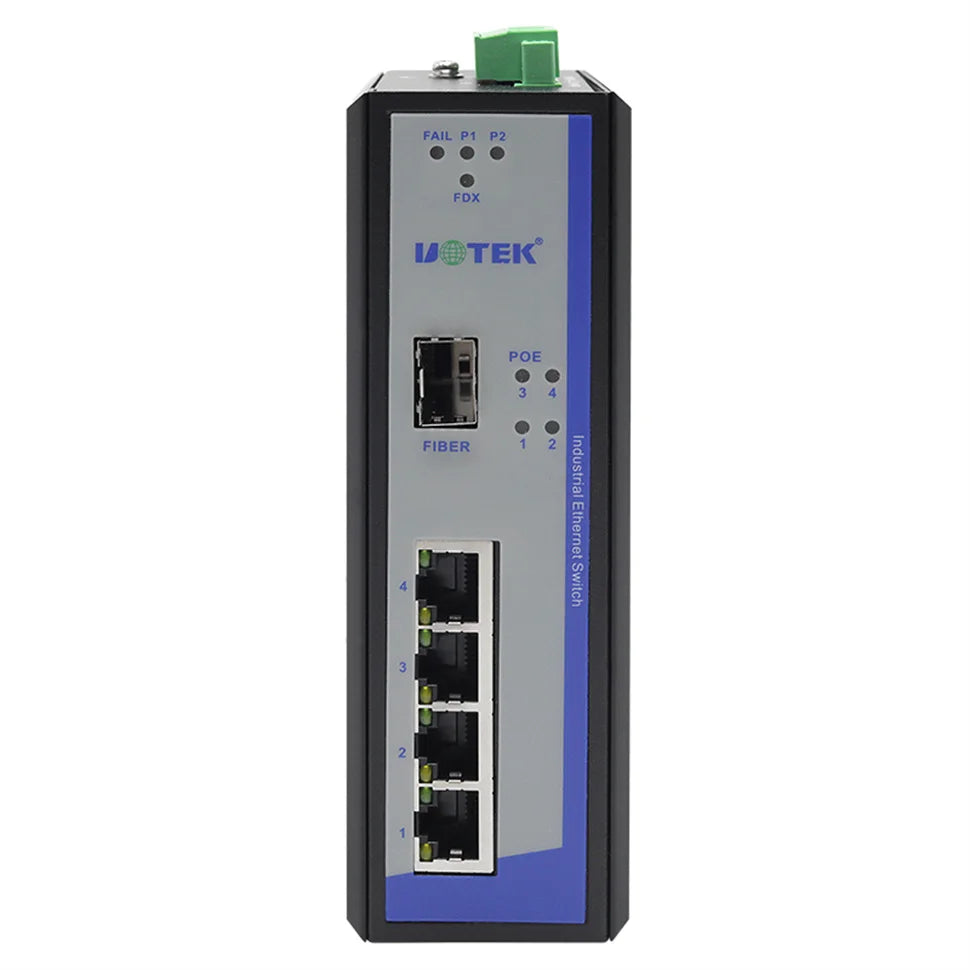

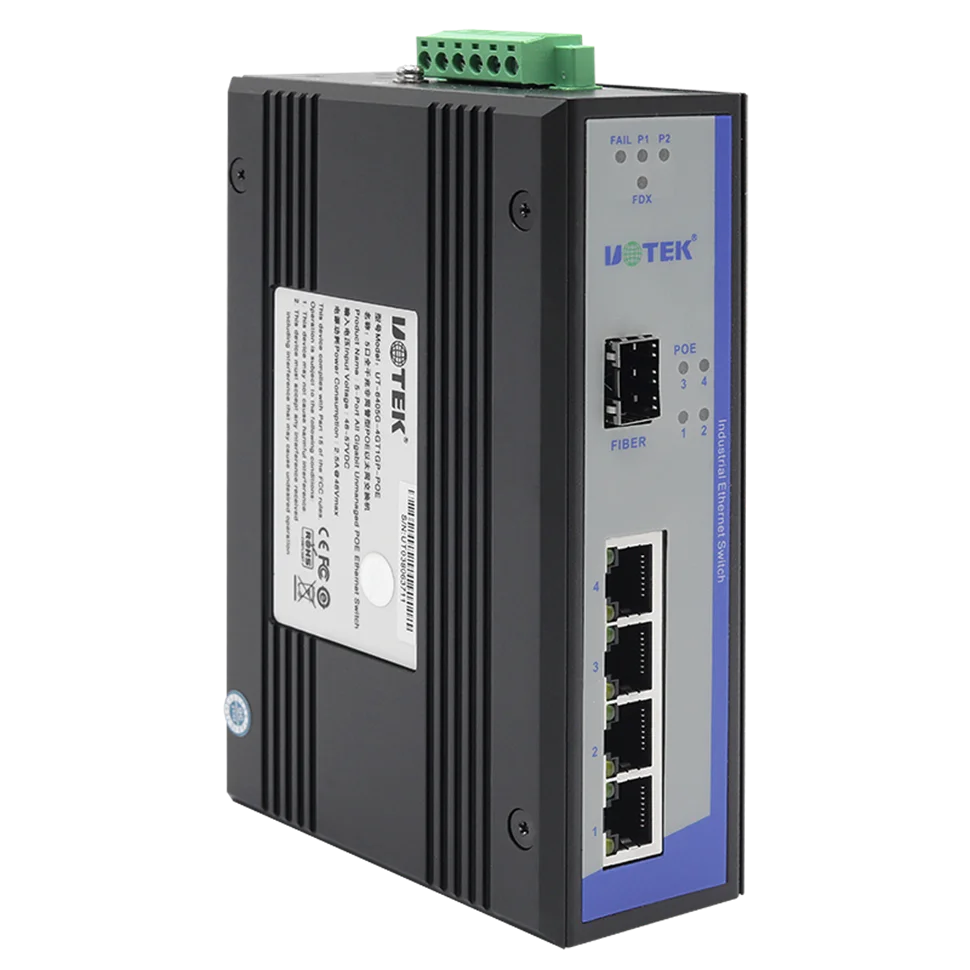

Model 3: UT-6405G-4GT1GP-POE

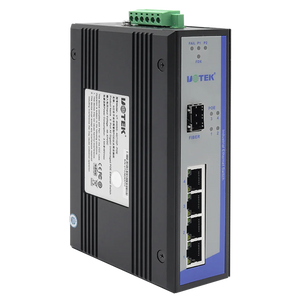

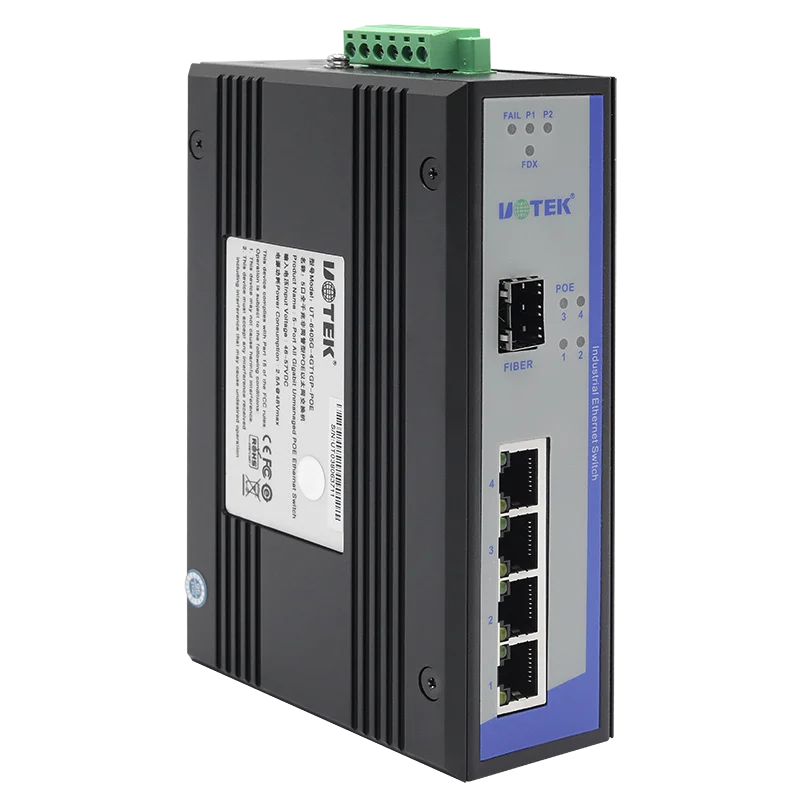

4 Ports Auto-10/100/1000Mbps RJ45 + 1 Port Gigabit Optical fiber SFP

The UT-6405G POE series unmanaged full Gigabit industrial Ethernet switch contains 5 Gigabit interfaces, supporting 4 10/100/1000Base-T and 1 optical option, of which 4 10/100/1000Base-T supports IEEE802.3af/at (POE). Each POE port can provide up to 30W of power to connected devices (such as surveillance cameras, wireless access points and IP phones) when power is inconvenient or limited by other factors.

UT-6405G POE series Ethernet switches are highly flexible and can transmit data over long distances via fiber optic ports. With high anti-electromagnetic interference capability, it ensures stable operation in harsh industrial environments and gives greater advantages to industrial applications such as industrial automation, intelligent transportation, and video surveillance.

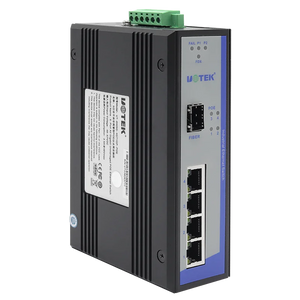

UT-6405G-POE Details

UT-6405G-POE Parameters

>>Protocol Standards

Standard: IEEE 802.3af/at, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z

Flow comtrol: IEEE802.3x flow control, backpressure flow control

>>Interfaces

Fiber interfaces: 1000Base-X (SC/FC/ST/SFP slot)

RJ45 interface: 10/100/1000Base-T, support 4 port POE output

POE pin: V+,V+,V-,V- corresponding footage1,2,3,6 (Default)

>>LED indicator light

Power indicator light,  Power Indicator, Optical Port Indicator, RJ-45 Indicator, Alarm Indicator, POE Indicator

>>Transmission Distance

Cat.5e: 100m

Fiber Optic Module

Single-mode: 1310nm 20/40/60Km

1550nm 80/100/120Km

Multi-mode: 1310nm 2Km

>>Switching Performance

Forwarding rate: 1488095pps

Transmission mode: store and forward

MAC address size: 1K

Cache size: 1Mb

Backplane bandwidth: 12G

Max. frame length: 10KB

>>Power Requirement

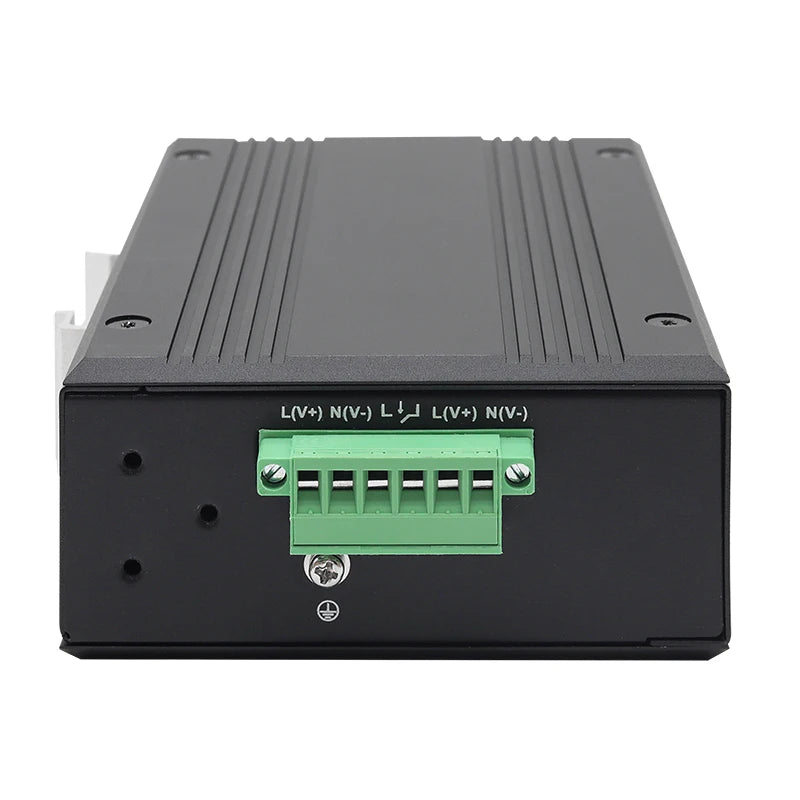

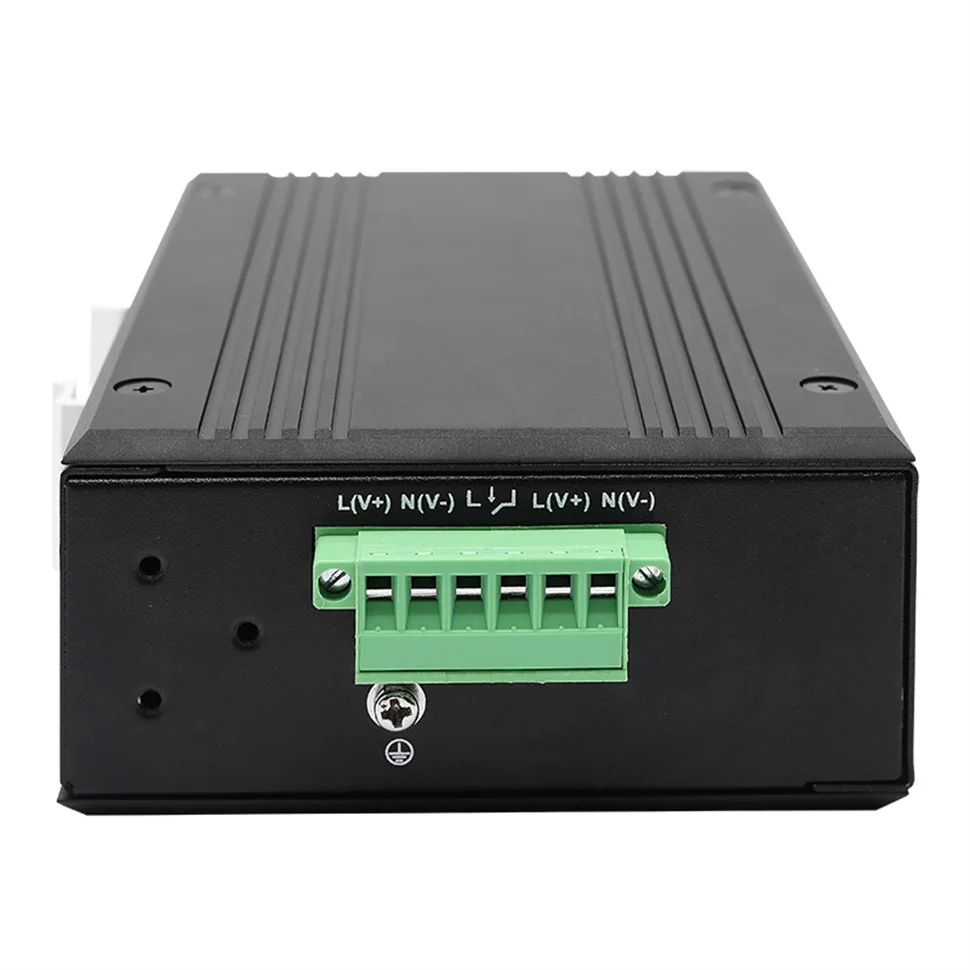

Voltage input: 48 VDC (46-57V), redundant dual power input

Interface terminal: One pluggable 3-pin terminal block

>>Consumption

Max. consumption power for each port about 30 W, total power consumption no more than 80W.

>>Mechanical Characteristics

IP protection level: IP40

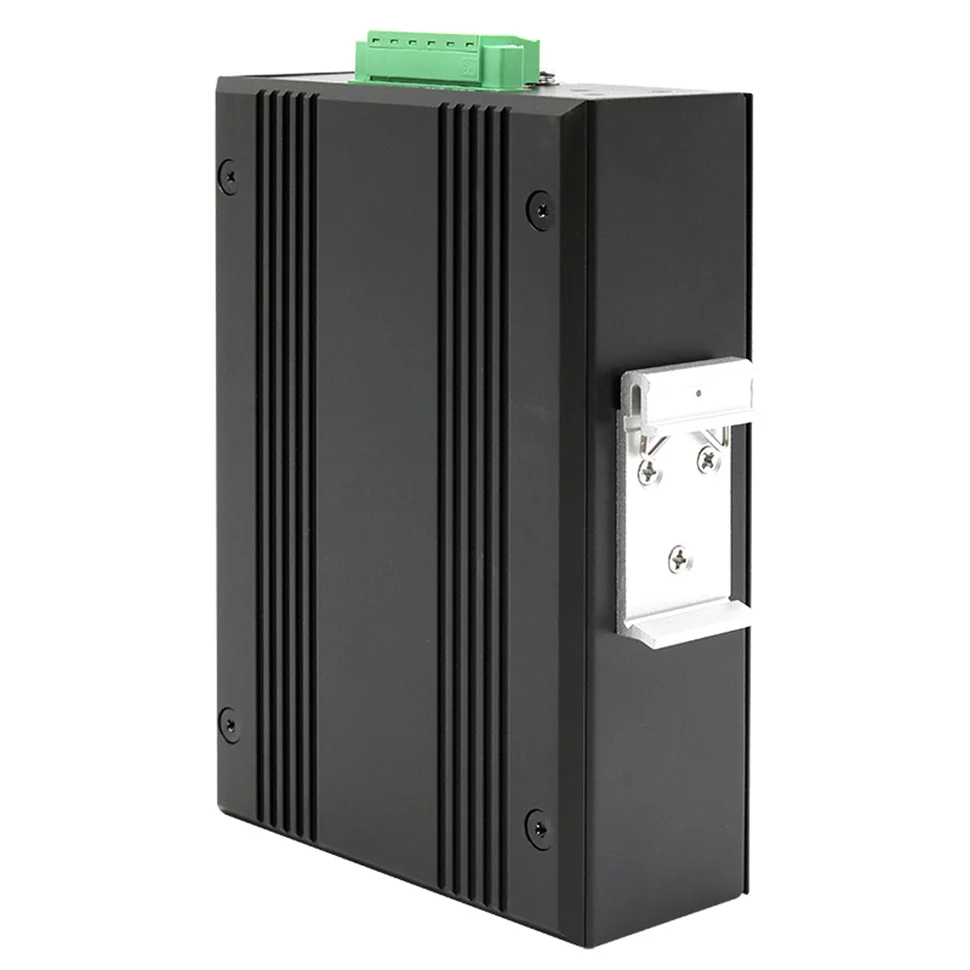

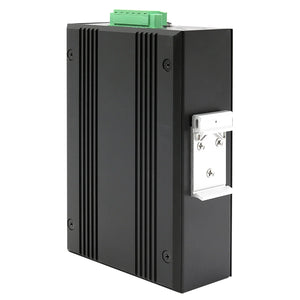

Installation: DIN-Rail /Wall Mounted

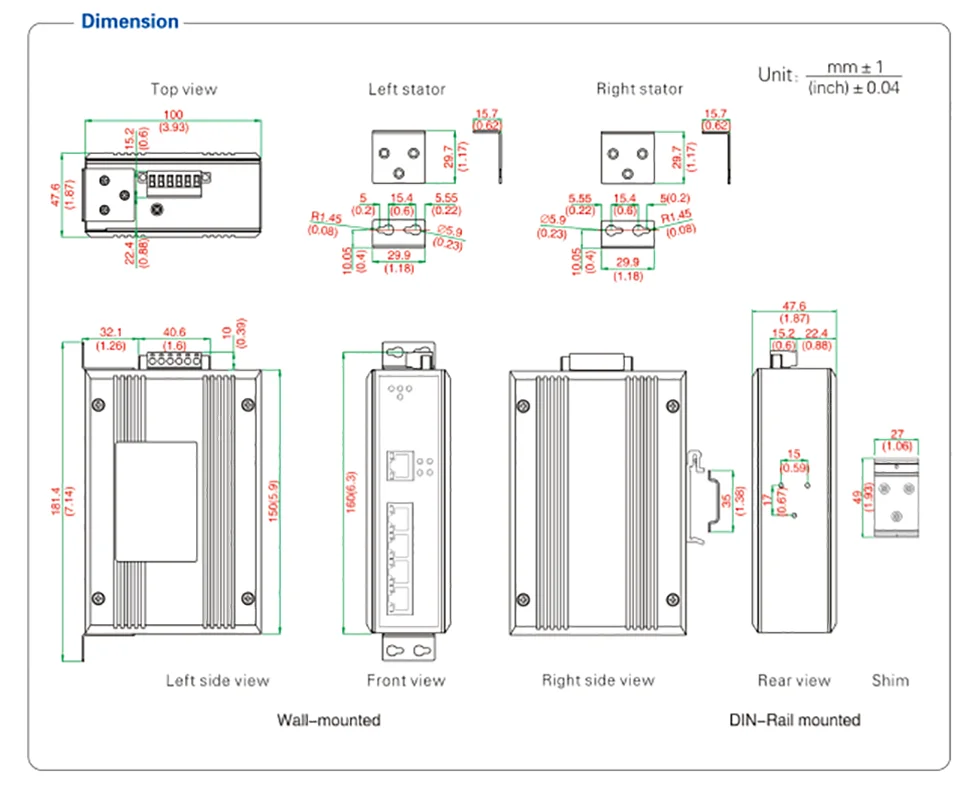

>>Mechanical Dimension

Dimension (W x H x D): 150mm x 47.6mm x 100mm

Package dimension: 250mm x 205mm x 55mm

Weight: 0.83kg

>>Operating Environment

Operating temperature: -40~75°C

Storage temperature: -40~85°C

Relative humidity: 0~95% (non-condensing)

>>Industrial Standards

EMI

FCC Part 15CISPR (EN55022) class A

EMS

IEC(EN)61000-4-2(ESD)

IEC(EN)61000-4-3(RS)

IEC(EN)61000-4-4(EFT)

IEC(EN)61000-4-5(Surge)

IEC(EN)61000-4-6(CS)

IEC(EN)61000-4-8

IEC 60068-2-27(Shock)

IEC 60068-2-32(Freefall)

IEC 60068-2-6(Vibration)
