UOTEK 8 Port Network Managed Industrial Fast Ethernet Switch Custom DIN-rail 2 Fibers 100M Single Mode RJ45 Port UT-62208F-6T2SC-MNF

Regular price: R 22,315.19
Sale price: R 22,315.19
Regular price: ~~R 29,443.65~~
Unit price: per

Shipping calculated at checkout.

Default Title

Quantity must be 1 or more

SPECIFICATIONS

Brand Name: UOTEK

Data control: supports 802.3X full-duplex flow control, network storm relieving

High-concerned chemical: None

Link aggregation: supports link static/dynamic aggregation

Management: supports CLI, WEB, SNMP

Monitoring: supports port mirroring, port status monitoring, log management

Multicast management: supports IGMP Snooping V1/V2/V3

QOS: supports COS, DSCP, 4 queues, WRR, SP control mode

Redundant network: supports STP/RSTP/MSTP, UT-Ring network

Safety management: supports ACL, 802.1X, user level management

VLAN: supports IEEE 802.1Q VLAN

Brand Name: UOTEK

communication mode: Full-Duplex & Half-Duplex

Model Number: UT-62208F-6T2SC-MNF

ports: ≤ 8

Products Status: Stock

Transmission rate: 10/100Mbps

Description

UOTEK 6 Ports Network Managed Fast Ethernet Switch Custom DIN-rail 2 Fibers 100M Single Mode RJ45 Port UT-62208F-6T2SC-MNF

UT-62208F-6T2SC-MNF is managed industrial Ethernet switches. It supports 6 ports, which included 2 100m fiber ports, plug & play; it supports 1 console port, provides CLI management; and it supports industrial field Ethernet layer 2 protocol, this ensure the network stability. This switch is low power consumption; the fanless design prevents it from noise interference. The operating temperature range is from -40~85°C; together with EMC compatibility, these make the switch works stable under poor environment, which provides safe and reliable solution for industrial automation, intelligent transportation, video monitoring, and other industrial application networking access.

Remarks:
1. Single-mode dual-fiber SC port is a standard configuration for products above mentioned, with optional ST/FC
2. The suffix “F” in “MNF” means 12/24/48VDC锛�10.8~52.8VDC锛塸ower input;
3. The suffix “D” in “MND” means 110/220VAC/DC锛�88~264VAC/DC锛塪ual power input

> Data control: supports 802.3X full-duplex flow control, network storm relieving
> Redundant network: supports STP/RSTP/MSTP, UT-Ring network
> Multicast management: supports IGMP Snooping V1/V2/V3
> VLAN: supports IEEE 802.1Q VLAN
> Link aggregation: supports link static/dynamic aggregation
> QOS: supports COS, DSCP, 4 queues, WRR, SP control mode
> Safety management: supports ACL, 802.1X, user level management
> Management: supports CLI, WEB, SNMP
> Monitoring: supports port mirroring, port status monitoring, log management

Please Note: If you need SFP / ST / FC interface, kindly indicate on your inquiry

>>Protocol Standards
IEEE 802.3u, IEEE 802.3z, IEEE 802.3, IEEE 802.1D, IEEE 802.1W,
IEEE 802.1s, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x

>>Interfaces
Fiber interfaces: 100Base-FXC/FC/ST
100Base-XC/FC/ST/SFP slot
RJ45 interface: 10/100Base-T(X), auto MDI/MDI-X

>>LED indicator light
Power indicator light, Network indicator light, alarm indicator light, Running indicator light.

>>Power consumption
Max. input power consumption 400mA@24Vmax

>>Transmission Distance
Cat.5e: 100m
Fiber Patch Cord
Single-mode: 1310nm 20/40/60Km
1550nm 80/100/120Km
Multi-mode: 1310nm 2Km

>>Switching Performance
100M ports: 148,810pps
Transmission mode: store and forward
MAC address size: 8K
Cache size: 1Mb
Backplane bandwidth: 7.6G
Max. frame length: 1632B

>>Mechanical Characteristics
IP protection level: IP40
Installation: DIN-Rail Mounted

>>Power Requirement
Voltage input: 12/24/48 VDC (10.8~52.8VDC) and 110/220 VAC (88~264VAC) /50-60Hz or 110/220VDC(88~264VDC)
Supports redundant dual power input

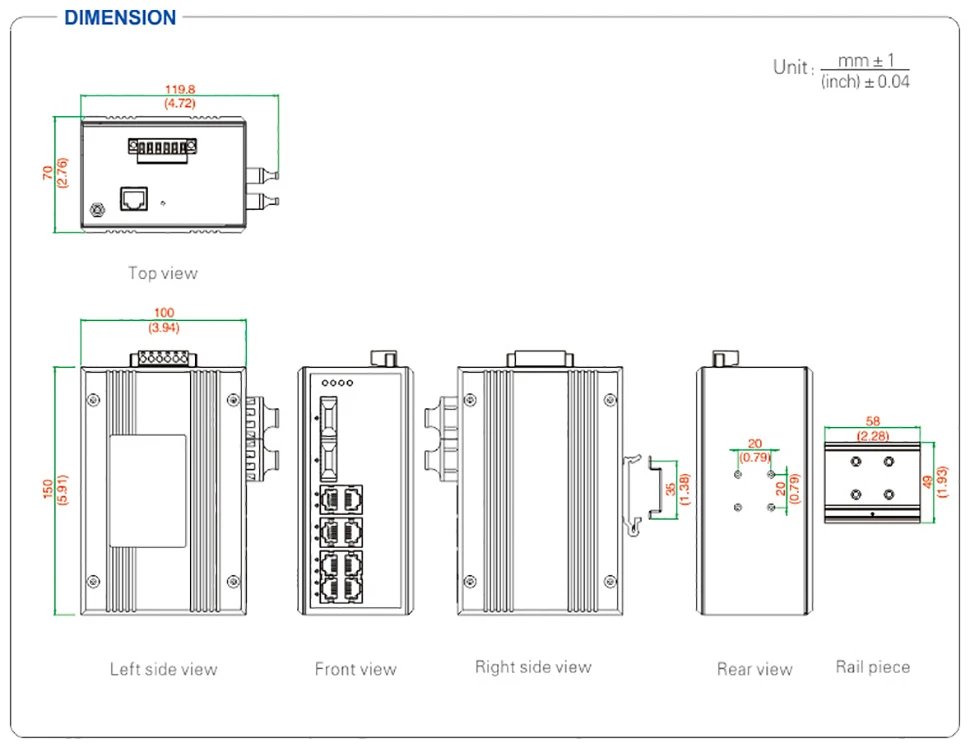

>>Mechanical Dimension
Dimension (W x H x D): 150mm x 47.6mm x 100mm
Weight: 930g
Packaging dimension: 250mm x 55mm x 205mm

>>Industrial Standards
EMI:
FCC Part 15, CISPR (EN55022) class A
EMS:
IEC(EN)61000-4-2(ESD)
IEC(EN)61000-4-3(RS)
IEC(EN)61000-4-4(EFT)
IEC(EN)61000-4-5(Surge)
IEC(EN)61000-4-6(CS)
IEC 60068-2-27(Shock)
IEC 60068-2-32(Freefall)

Every product is unique, just like you. If you're looking for a product that fits the mold of your life, the UOTEK 8 Port Network Managed Industrial Fast Ethernet Switch Custom DIN-rail 2 Fibers 100M Single Mode RJ45 Port UT-62208F-6T2SC-MNF is for you.
