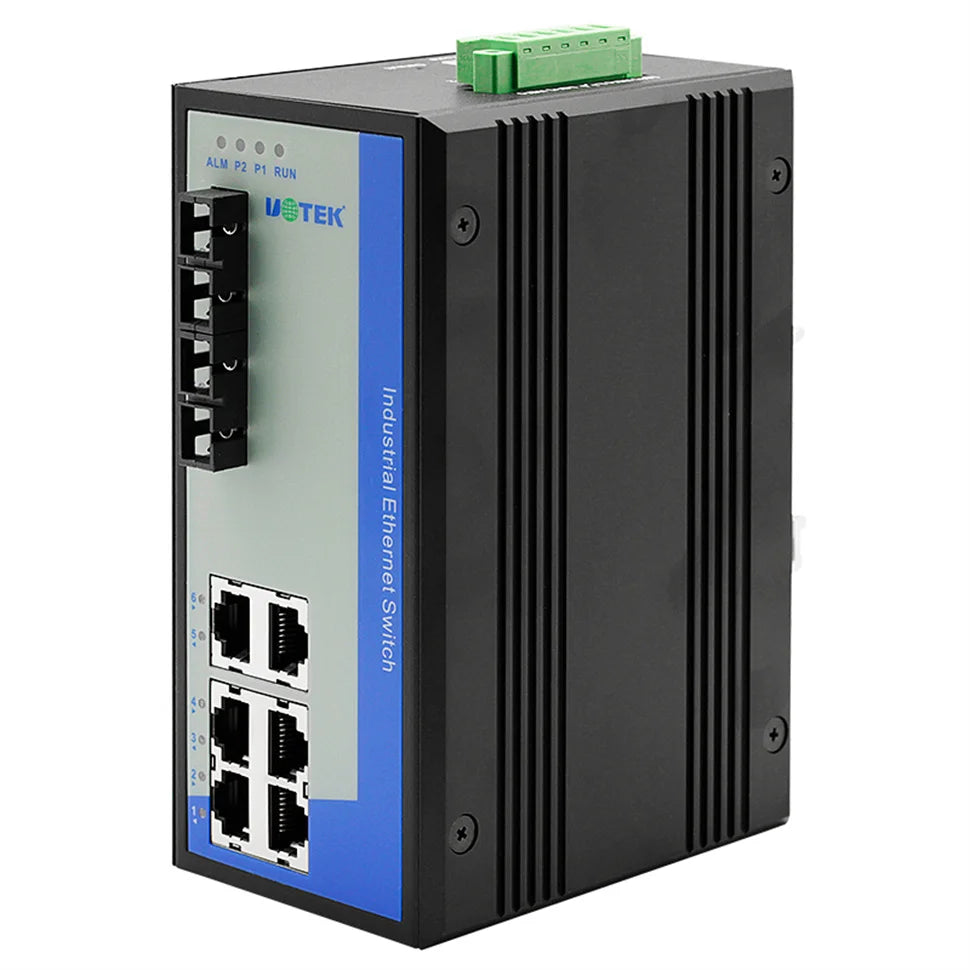

UOTEK 6 Ports RJ45 Industrial Network Managed Ethernet Switch DIN-rail 2 Fibers 100M Single Mode SC UT-62208F-6T2SC-MNF

UOTEK 6 Ports RJ45 Industrial Network Managed Ethernet Switch DIN-rail 2 Fibers 100M Single Mode SC UT-62208F-6T2SC-MNF

SPECIFICATIONS

Brand Name: UOTEK

High-concerned Chemical: None

Model Number: UT-62208F-6T2SC-MNF

Switch Type: Ethernet

VLAN: RJ45

Package: Yes

Certification: CE,FCC,RoHS

Transmission Rate: 10/100Mbps

Switch Capacity: 100M

Communication Mode: Full-Duplex & Half-Duplex

Model Number: UT-62208F-6T2SC-MNF

Brand Name: UOTEK

Description

UOTEK 6 Ports RJ45 Industrial Network Managed Ethernet Switch DIN-rail 2 Fibers 100M Single Mode SC UT-62208F-6T2SC-MNF

UT-62208F-6T2SC-MNF is managed industrial Ethernet switches. It supports 6 ports, which included 2 100m fiber ports, plug & play; it supports 1 console port, provides CLI management; and it supports industrial field Ethernet layer 2 protocol, this ensure the network stability. This switch is low power consumption; the fanless design prevents it from noise interference. The operating temperature range is from -40~85°C; together with EMC compatibility, these make the switch works stable under poor environment, which provides safe and reliable solution for industrial automation, intelligent transportation, video monitoring, and other industrial application networking access.

Remarks:

1. Single-mode dual-fiber SC port is a standard configuration for products above mentioned, with optional ST/FC

2. The suffix “F” in “MNF” means 12/24/48VDC（10.8~52.8VDC）power input;

3. The suffix “D” in “MND” means 110/220VAC/DC（88~264VAC/DC）dual power input

● Data control: supports 802.3X full-duplex flow control, network storm relieving

● Redundant network: supports STP/RSTP/MSTP, UT-Ring network

● Multicast management: supports IGMP Snooping V1/V2/V3

● VLAN: supports IEEE 802.1Q VLAN

● Link aggregation: supports link static/dynamic aggregation

● QOS: supports COS, DSCP, 4 queues, WRR, SP control mode

● Safety management: supports ACL, 802.1X, user level management

● Management: supports CLI, WEB, SNMP

● Monitoring: supports port mirroring, port status monitoring, log management

*Please Note: If you need SFP / ST / FC interface, contact us with your Order Request with Specific Requirements

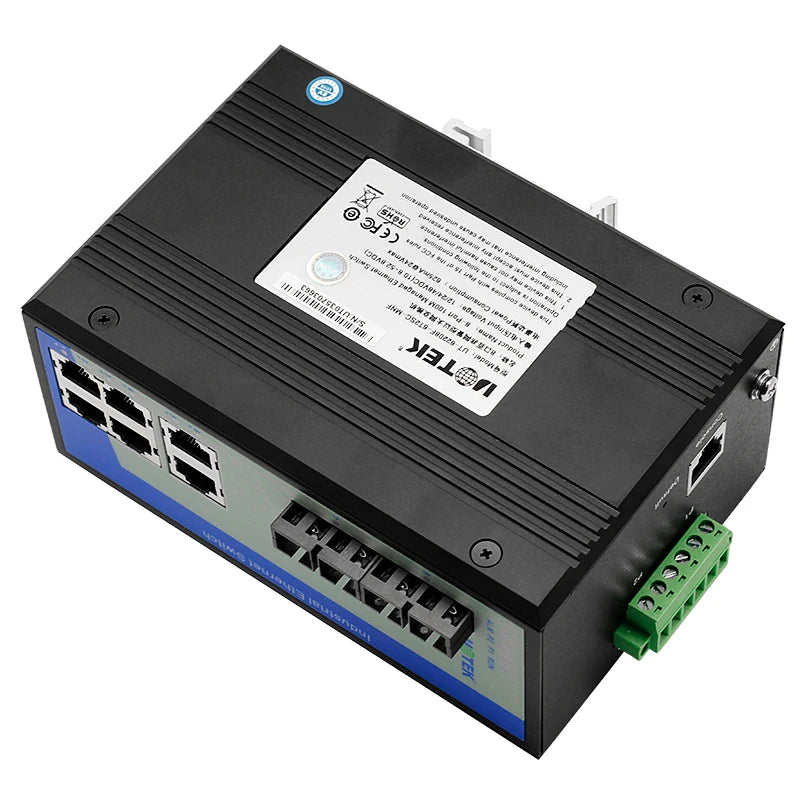

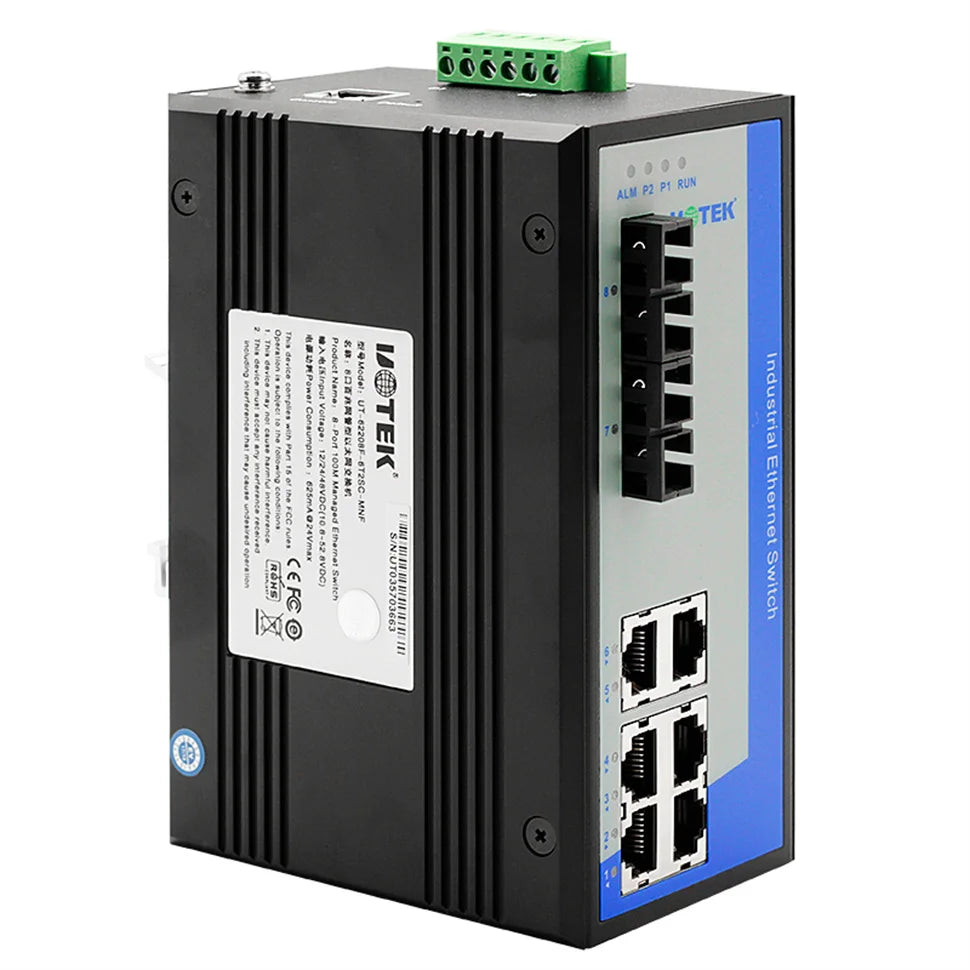

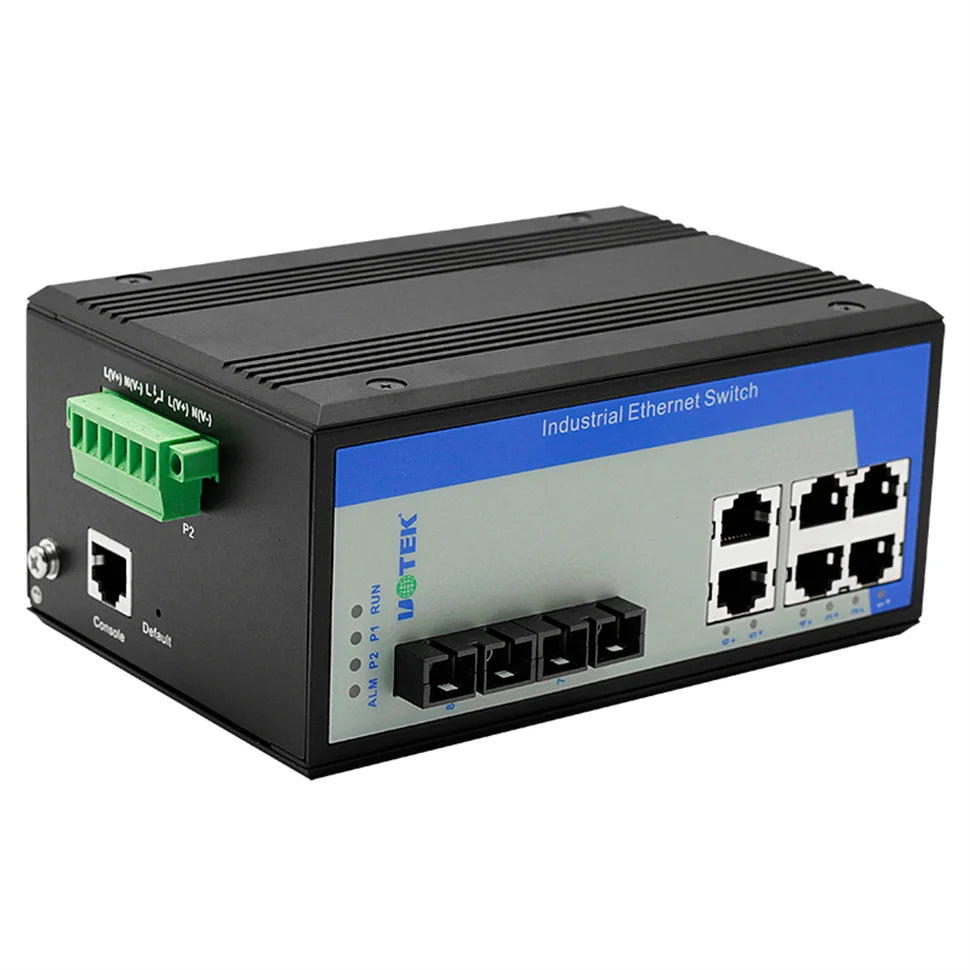

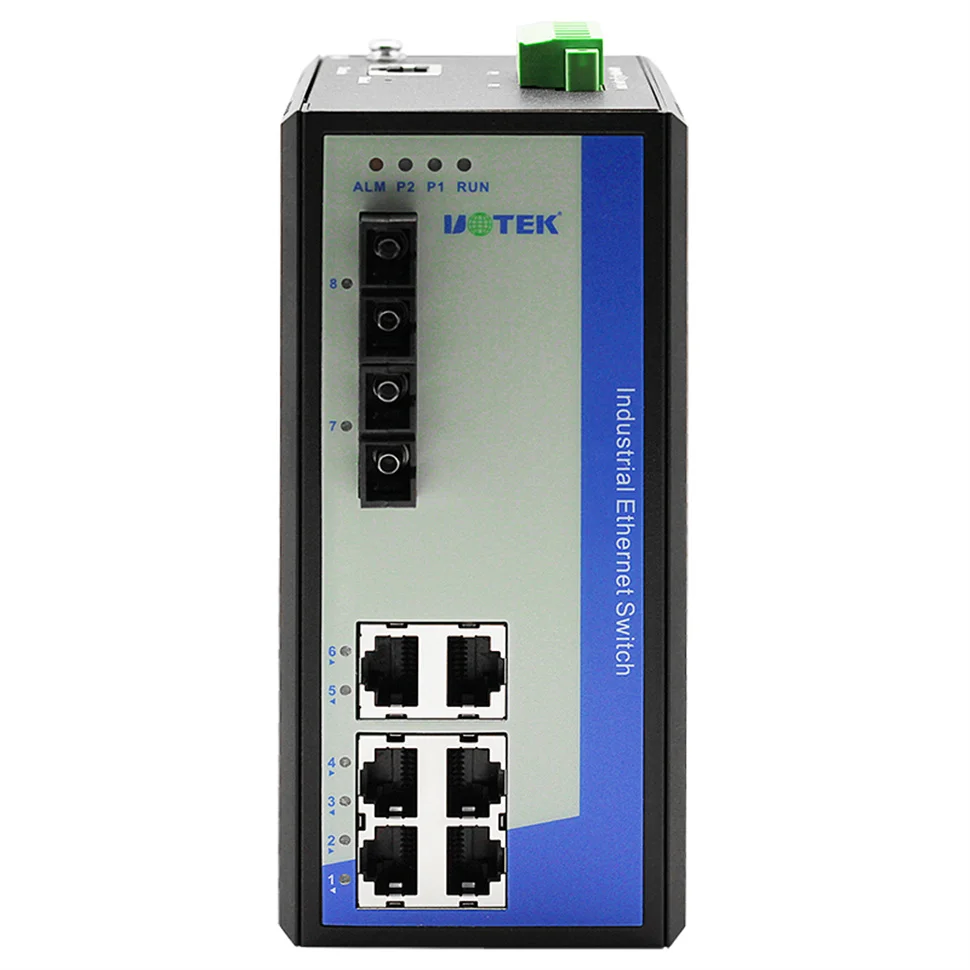

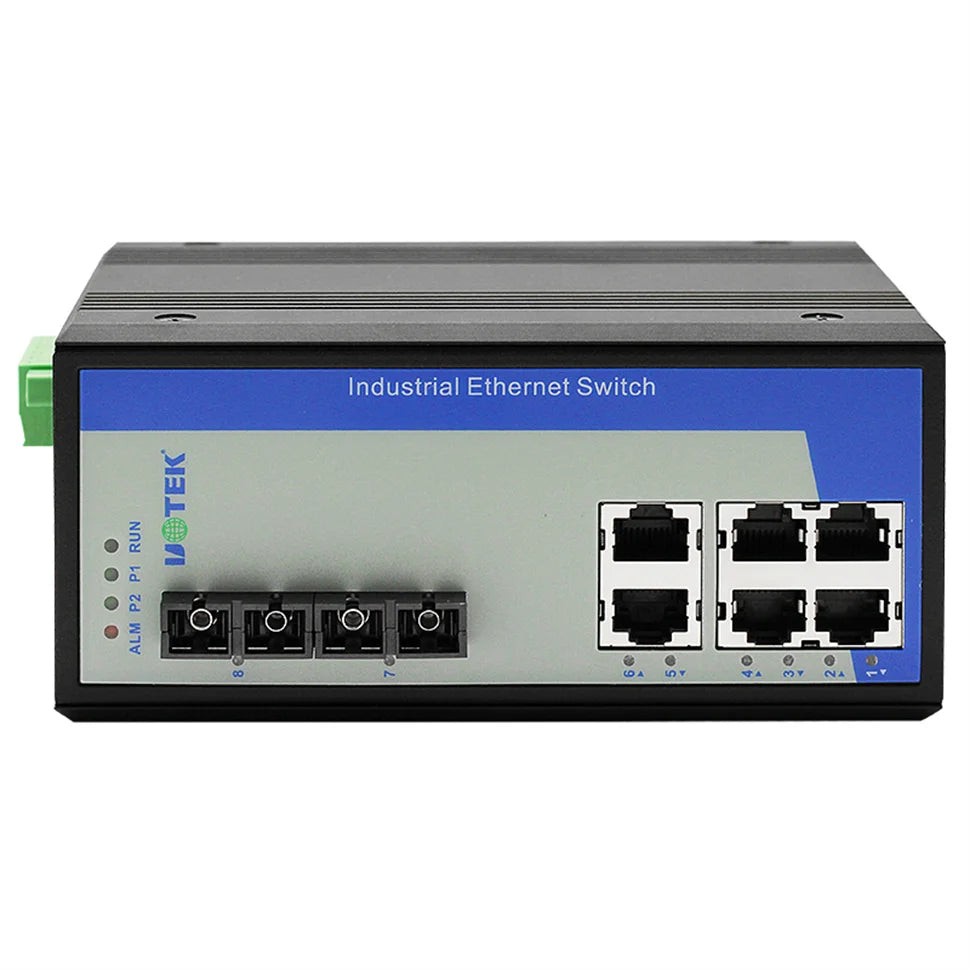

UT-62208F-6T2SC-MNF Details

UT-62208F-6T2SC-MNF Parameters

>>Protocol Standards

IEEE 802.3u, IEEE 802.3z, IEEE 802.3, IEEE 802.1D, IEEE 802.1W,
IEEE 802.1s, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x

>>Interfaces

Fiber interfaces: 100Base-FX（SC/FC/ST）

100Base-X（SC/FC/ST/SFP slot）

RJ45 interface: 10/100Base-T(X), auto MDI/MDI-X

>>LED indicator light

Power indicator light, Network indicator light, alarm indicator light, Running indicator light.

>>Power consumption

Max. input power consumption 400mA@24Vmax

>>Transmission Distance

Cat.5e: 100m

Fiber Patch Cord

Single-mode: 1310nm 20/40/60Km

1550nm 80/100/120Km

Multi-mode: 1310nm 2Km

>>Switching Performance

100M ports: 148,810pps

Transmission mode: store and forward

MAC address size: 8K

Cache size: 1Mb

Backplane bandwidth: 7.6G

Max. frame length: 1632B

>>Mechanical Characteristics

IP protection level: IP40

Installation: DIN-Rail Mounted

>>Power Requirement

Voltage input: 12/24/48 VDC (10.8~52.8VDC) and 110/220 VAC (88~264VAC) /50-60Hz  or 110/220VDC(88~264VDC)

Supports redundant dual power input

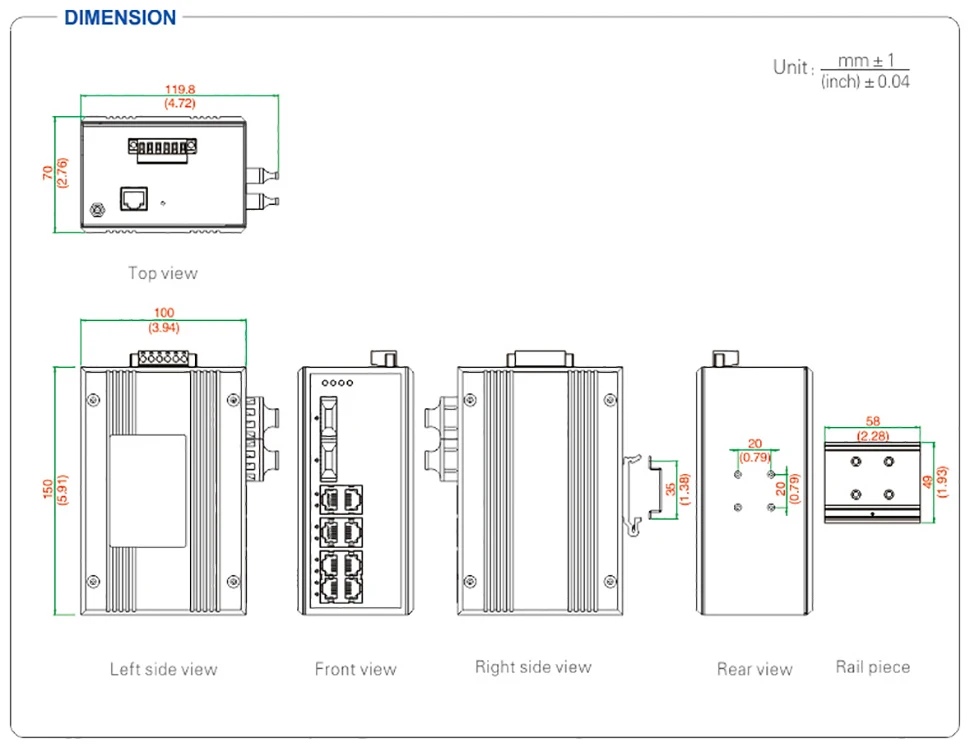

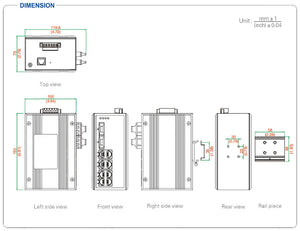

>>Mechanical Dimension

Dimension (W x H x D): 150mm x 47.6mm x 100mm

Weight: 930g

Packaging dimension: 250mm x 55mm x 205mm

>>Industrial Standards

EMI:

FCC Part 15, CISPR (EN55022) class A

EMS:

IEC(EN)61000-4-2(ESD)

IEC(EN)61000-4-3(RS)

IEC(EN)61000-4-4(EFT)

IEC(EN)61000-4-5(Surge)

IEC(EN)61000-4-6(CS)

IEC 60068-2-27(Shock)

IEC 60068-2-32(Freefall)

UT-62208F-6T2SC-MNF Application
