UOTEK 6 Ports Gigabit Ethernet Switch Support VLAN Mode Unmanaged Industrial DIN-rail Switch UT-6406GC-4GT2GP

Regular price: R 7,611.13
Sale price: R 7,611.13
Regular price: ~~R 9,437.80~~
Unit price: per

Shipping calculated at checkout.

Default Title

Quantity must be 1 or more

SPECIFICATIONS

Backplane Bandwidth: 12G

Brand Name: UOTEK

Cache space: 1Mb

Forwarding rate: 1488095pps

High-concerned chemical: None

MAC address space: 4K

Maximum frame length: 10KB

Mode: Full-duplex or half-duplex mode, auto negotiation

Power consumption: 180mA@24Vmax

Shell: IP40 protection level

Transmission mode: Store-and-forward

Voltage input: 12/24/48VDC(10.8~52.8VDC)

Brand Name: UOTEK

Communication Mode: Full-Duplex & Half-Duplex

Model Number: UT-6406GC-4GT2GP

Ports: 6

Products Status: Stock

Transmission Rate: 10/100/1000Mbps

Description

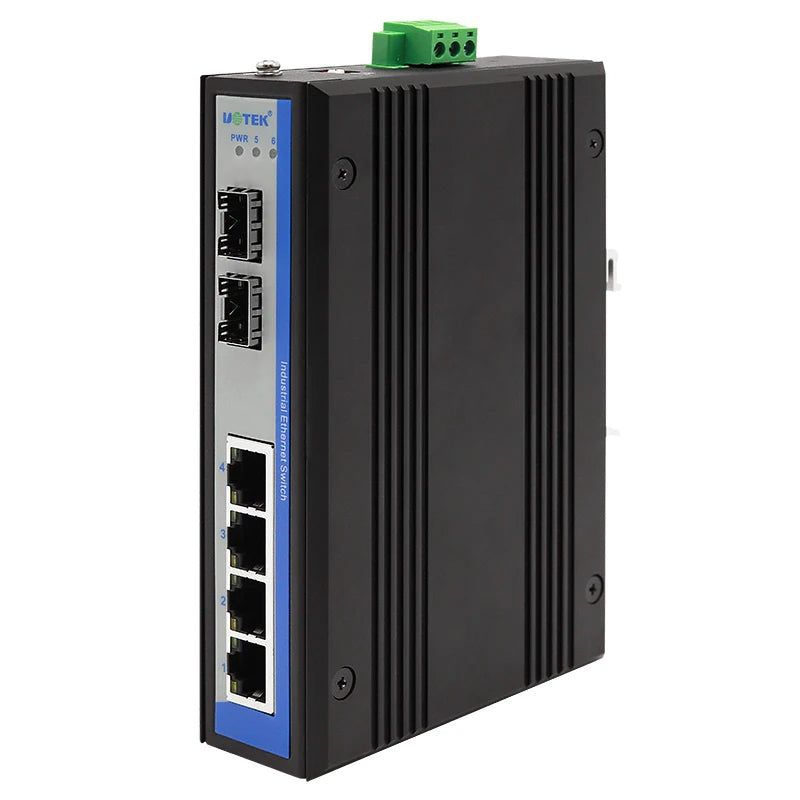

UOTEK 6 Ports Gigabit Ethernet Switch Support VLAN Mode Unmanaged Industrial DIN-rail Switch UT-6406GC-4GT2GP

UT-6406GC series is a non-managed full Gigabit Ethernet switch, supporting 2 gigabit fiber interfaces and 4 gigabit Ethernet ports, plug and play. This series of switches adopts low power consumption and fanless design to ensure no noise interference. It also supports a working temperature of -20~70°C and has good EMC electromagnetic compatibility performance, ensuring stable operation in harsh industrial environments. It provides a secure and reliable solution for quickly and stably connecting network terminals in various industrial applications such as factory automation, intelligent transportation, and video surveillance. The product offers three operating modes: Extend, Standard, and VLAN mode, adapting to various complex application environments.

Characteristics

> Uses high-quality photoelectric integration modules to provide good optical and electrical characteristics, ensuring reliable data transmission and long service life.
> Supports full-duplex or half-duplex mode, with automatic negotiation capability.
> 10/100/1000Mbps auto-adaptation.
> The port supports automatic cross identification without manual operation of switches.
> Plug and play, easy to use.
> Operating temperature: -40-70°C
> Voltage input: 12/24/48VDC(10.8~52.8VDC)

Parameters

Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3x

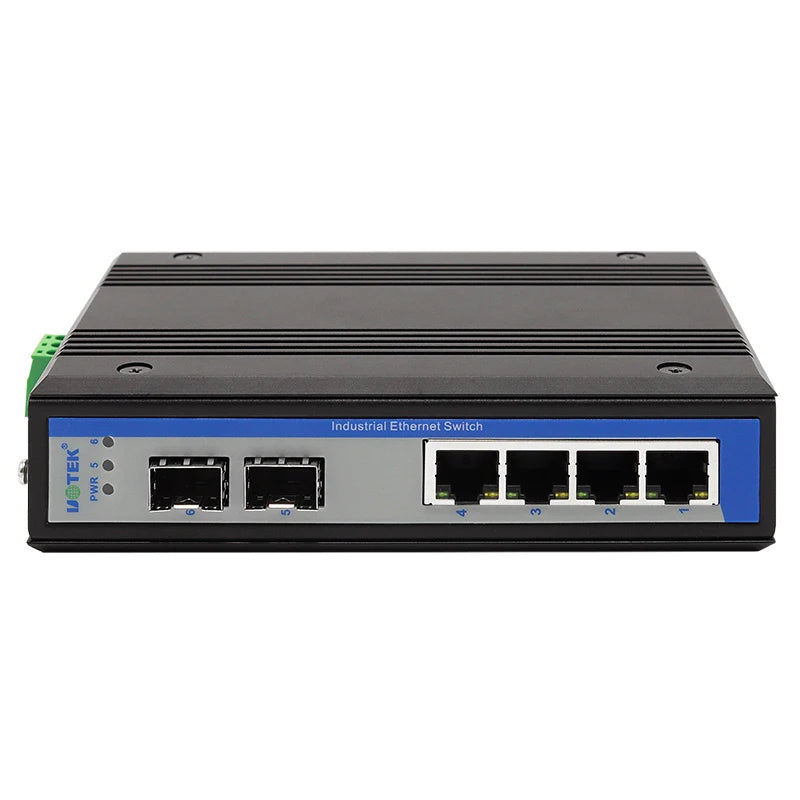

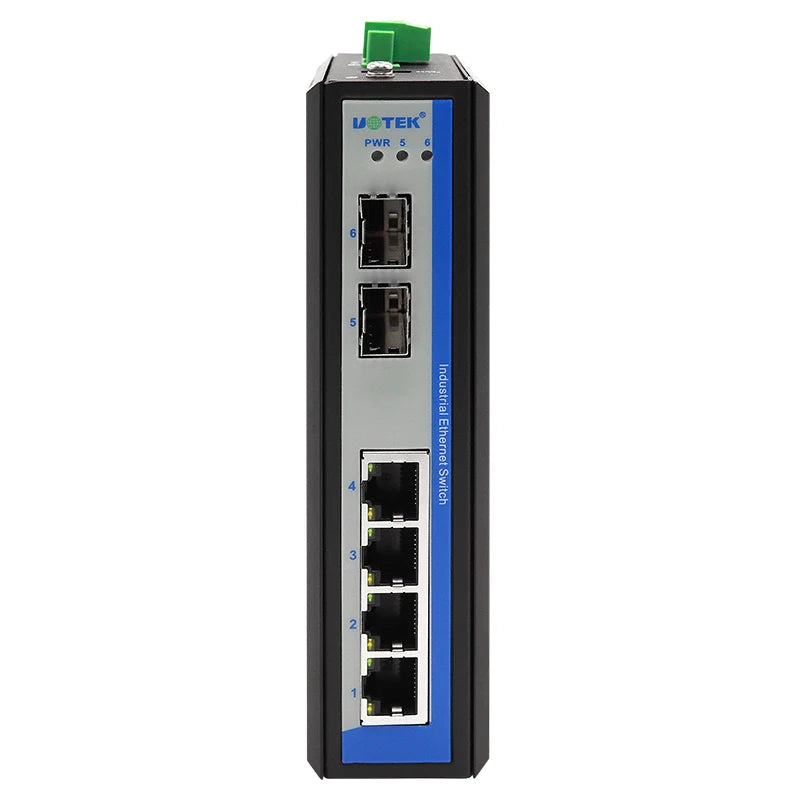

Interfaces
Fiber interface: 1000Base-X port (SC/FC/ST/SFP slot)
RJ45 interface: 10/100/1000Base-T port, MDI/MDI-X adaptive
Transmission distance
Category 5 twisted pair: 100m
Fiber jumper:
Single-mode: 1310nm 20/40/60Km, 1550nm 80/100/120Km
Multi-mode: 1310nm 2Km
Switching performance
Forwarding rate: 1488095pps
Transmission mode: Store-and-forward
MAC address space: 4K
Cache space: 1Mb
Backplane bandwidth: 12G
Maximum frame length: 10KB

Power requirements
Input voltage: 12/24/48VDC(10.8~52.8VDC)

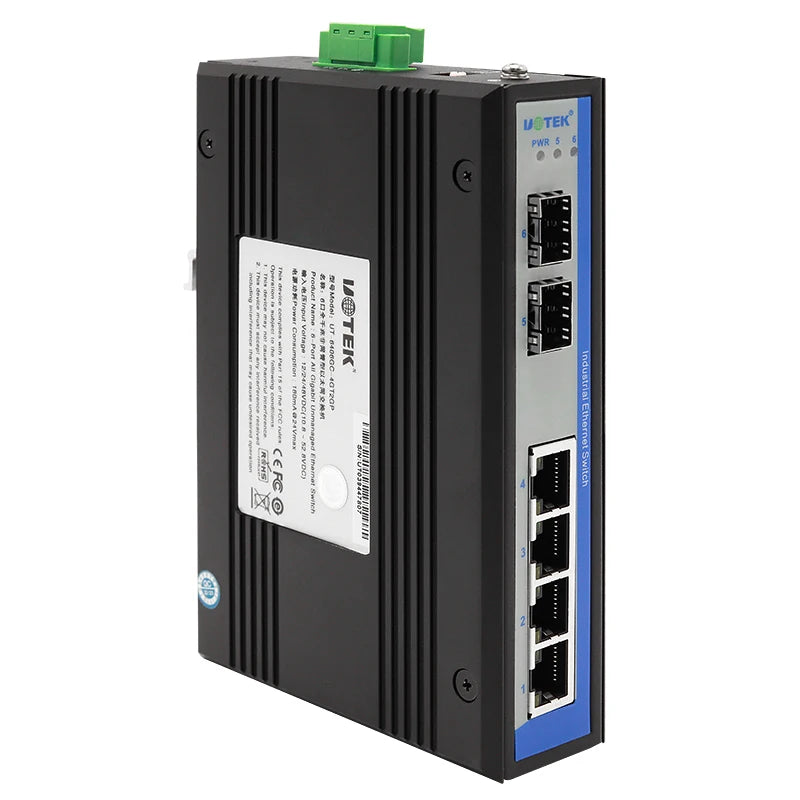

Power consumption: 180mA@24Vmax (for detailed power consumption of the product, please refer to the product label)

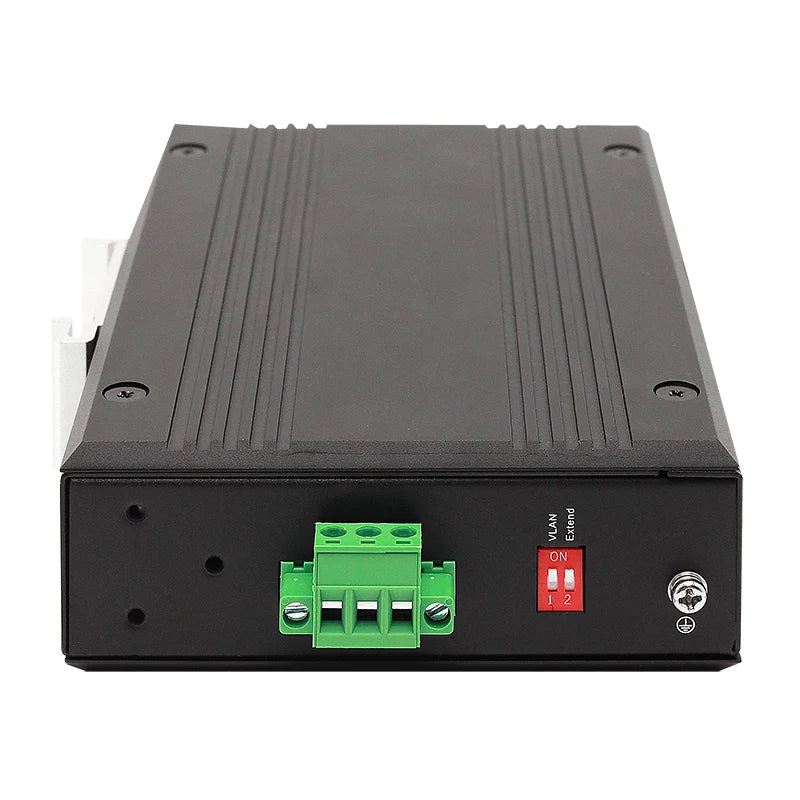

Operating modes
Extend mode: ports 1-4 self-negotiate with a speed reduction of 10M, with the farthest transmission distance of 250 meters.
Standard mode: ordinary switch mode.
VLAN mode: ports 1-4 are isolated from each other and can only communicate with the upstream port; network storms are suppressed;
flow control is disabled.

Mechanical characteristics
Shell: IP40 protection level

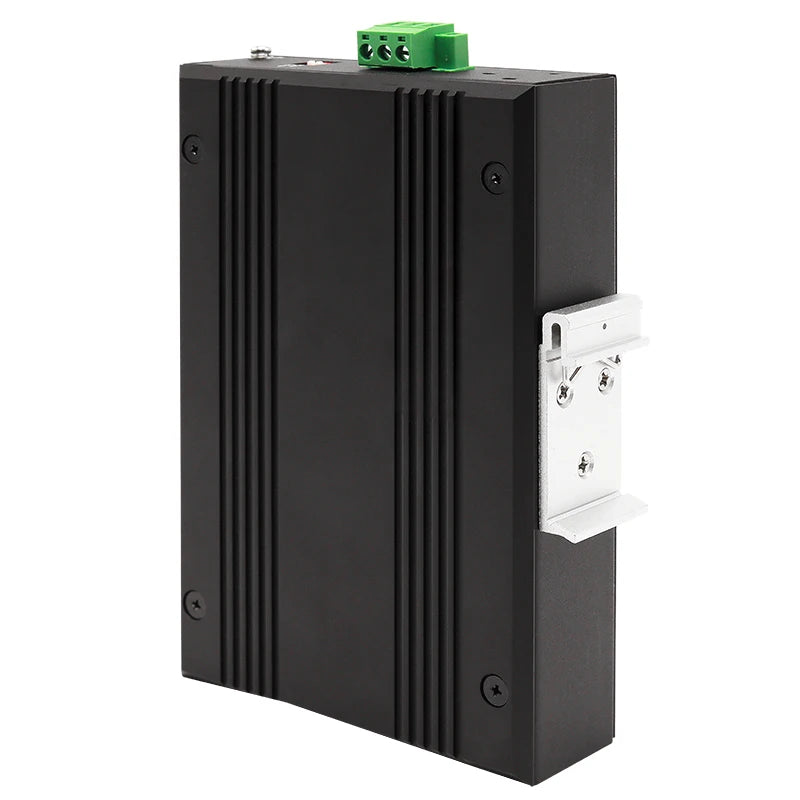

Installation method: rail-mounted/wall-mounted installation

Dimensions (W x H x D): 150mmx37mmx100mm
Packing size: 250mmx205mmx55mm
Weight: 683g

Operating environment
Working temperature: -20~70°C
Storage temperature: -40~85°C
Relative humidity: 0~95% (non-condensing)
Industry standards

EMI
FCC Part 15, CISPR (EN55022) class A
EMS:
IEC(EN)61000-4-2(ESD)
IEC(EN)61000-4-3(RS)
IEC(EN)61000-4-4(EFT)
IEC(EN)61000-4-5(Surge)
IEC(EN)61000-4-6(CS)
IEC(EN)61000-4-8
IEC 60068-2-27(Shock)
IEC 60068-2-32(Freefall)

Every product is unique, just like you. If you're looking for a product that fits the mold of your life, the UOTEK 6 Ports Gigabit Ethernet Switch Support VLAN Mode Unmanaged Industrial DIN-rail Switch UT-6406GC-4GT2GP is for you.

Inventory Last Updated: Apr 18, 2026
