UOTEK 5-Port 100M Simple Managed Ethernet Switch Industrial DIN-Rail Ethernet Switch 310nm 20/40/60Km 1550nm 80/100/120Km SM UT-6405M

Regular price: R 8,399.74
Sale price: R 8,399.74
Regular price: ~~R 10,826.34~~
Unit price: per

Shipping calculated at checkout.

Default Title

Quantity must be 1 or more

SPECIFICATIONS

Backplane bandwidth: 1.2G

Brand Name: UOTEK

Cache size: 0.5Mb

Cat.5e: 100m

Forwarding Rate: 148810pps

High-concerned chemical: None

MAC address size: 1K

Multimode: 1310nm 2Km

Power consumption: 150mA@24Vmax

Single-mode: 310nm 20/40/60Km 1550nm 80/100/120Km

Transmission mode: Store and Forward

Voltage input: 12/24/48VDC(10.8~52.8VDC)

Brand Name: UOTEK

Function: SNMP

Model Number: UT-6405M

Ports: ≤ 8

Products Status: Stock

Transmission Rate: 10/100Mbps

Description

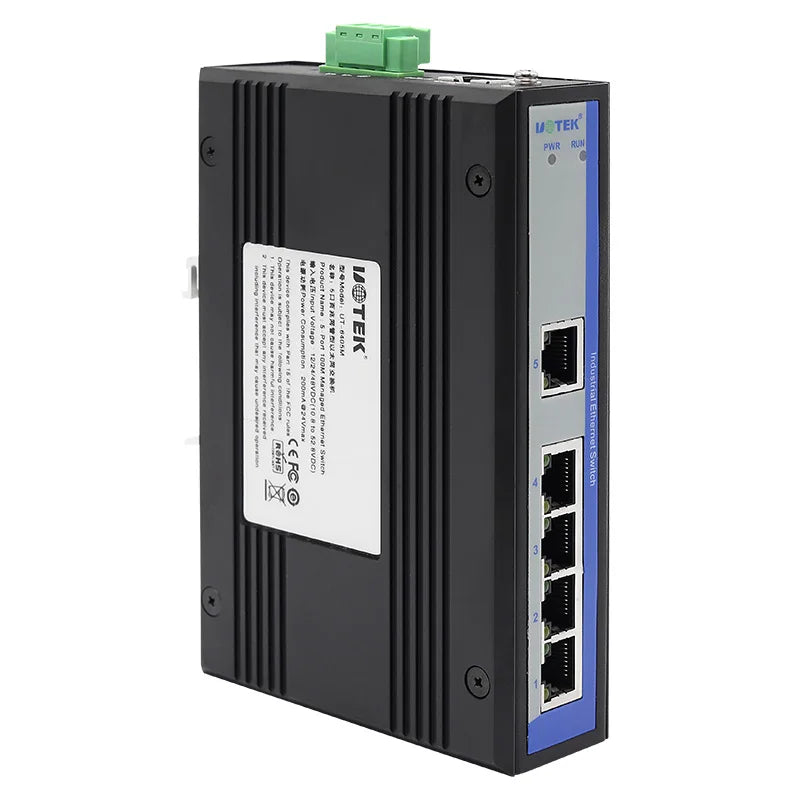

UOTEK 5-Port 100M Simple Managed Ethernet Switch DIN-rail UT-6405M

UT-6405M series is a 5-port 100M simple managed Ethernet switch. It provides fixed 4 10/100Base-T(X) Ethernet interface and 1 opto-electronic optional interface, which is plug-and-play; it provides one console port and supports CLI management; it adopts low power consumption and fanless design to ensure no noise interference, and also supports -40~85°C operating temperature and good EMC electromagnetic compatibility performance to ensure stable operation in harsh industrial environment. It provides a safe and reliable solution for factory automation, intelligent transportation, video surveillance and other industrial applications to set up a fast and stable network terminal access network.

> Supports Fast Ethernet and optical ports (support ST/FC/SC/ SFP interface types)
> Support STP/RSTP and MSTP network redundancy and SNMPv1/v2/v3 to ensure network security management
> Support LLDP, NTP, DHCP client, access user management, system management, etc.

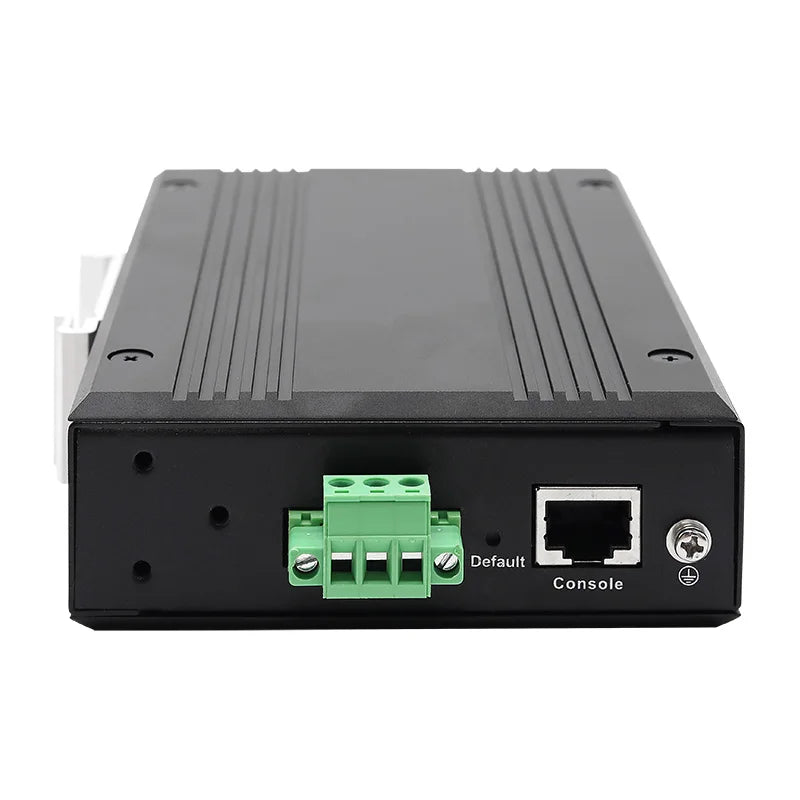

> Support CLI, console, telnet, WEB and other management methods
> Support UT-Ring ring function
> Support power, port and UT-Ring abnormal state relay output alarm function
> Operating temperature: -40~85°C

>>Protocol Standards
Standards: IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3z, IEEE802.1Q, IEEE802.1p, IEEE802.1s, IEEE802.1D, IEEE802.1W, IEEE802.1x
Protocols: ICMP, TCP, HTTP, Telnet, UT-Ring, STP/RSTP. SNMP, LLDP, IGMP-Snooping, GMRP
Flow control: IEEE802.3x flow control, backpressure flow control

>>Interfaces
Fiber optic interface: 100Base-FX (SC/FC/ST)
1000Base-X (SC/FC/ST)
RJ45 interface: 10/100Base-T(X), MDI/MDI-X adaptive

>>LED indicator light

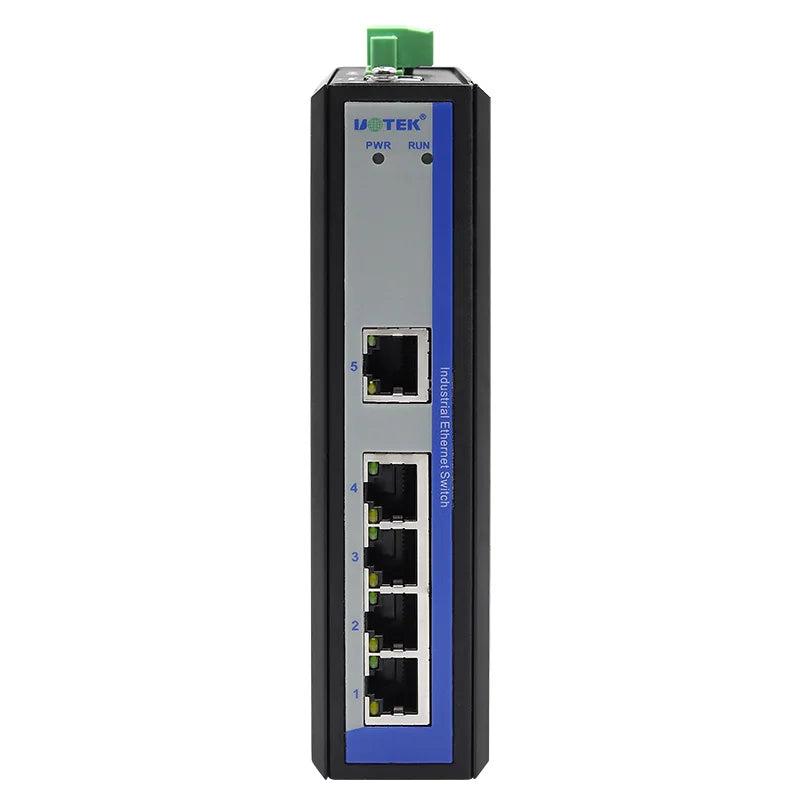

Power indicator, network indicator, alarm indicator, operation indicator

>>Transmission distance
Cat.5e: 100m
Fiber optic patch cord
Single-mode: 1310nm 20/40/60Km
1550nm 80/100/120Km
Multimode: 1310nm 2Km

>>Switching Performance
Forwarding Rate: 148810pps
Transmission mode: Store and Forward
MAC address size: 1K
Cache size: 0.5Mb
Backplane bandwidth: 1.2G

>>Power Requirement
Voltage input: 12/24/48VDC(10.8~52.8VDC)
Power consumption: 150mA@24Vmax

>>Mechanical Characteristics
IP protection level: IP40
Installation: DIN-Rail Mounted

>>Operating Environment
Operating temperature: -40 ~ 85°C
Storage temperature: -40 ~ 85°C
Relative humidity: 0 ~ 95% (non condensing)

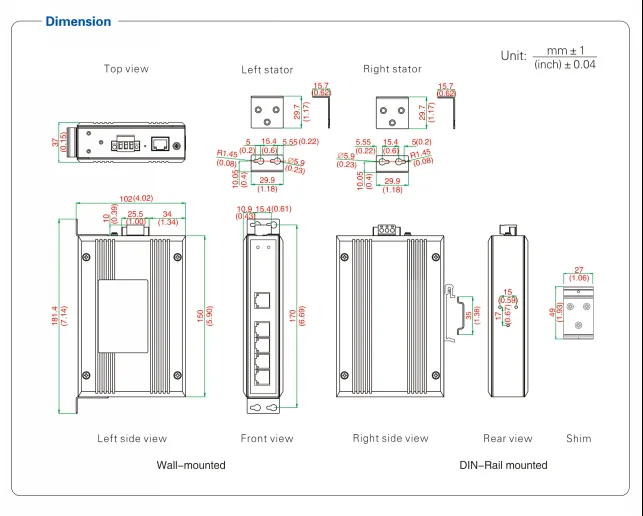

>>Mechanical Dimension
Dimension (W x D x H): 150mm x 100mm x 37mm
Weight: 680SSg
Packaging dimension: 250mm x 205mm x 55mm

>>Industrial Standards
EMI CC Part 15 ISPR (EN55022) class A
EMS
IEC(EN)61000-4-2(ESD)
IEC(EN)61000-4-3(RS)
IEC(EN)61000-4-4(EFT)
IEC(EN)61000-4-5(Surge)
IEC(EN)61000-4-6(CS)
IEC(EN)61000-4-8
IEC 60068-2-27(Shock)
IEC 60068-2-32(Freefall)

The UOTEK 5-Port 100M Simple Managed Ethernet Switch Industrial DIN-Rail Ethernet Switch 310nm 20/40/60Km 1550nm 80/100/120Km SM UT-6405M is the product you didn't think you need, but once you have it, something you won't want to live without.
