UOTEK 4 Ports Gigabit Fiber Optic Media Converter 1310nm 2Km Multi-mode EMC Performance IEEE 802.3x Protocol IP40 Protection rating UT-2604G

SPECIFICATIONS

Backplane Bandwidth: 12G

Brand Name: UOTEK

Cache size: 1Mb

Forwarding Rate: 1488095pps

High-concerned chemical: None

IP protection level: IP40

MAC address size: 1K

Max. frame length: 10KB

Model Number: UT-2604G

Power consumption: 200mA@24Vmax

Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3x

Support: Overload protection;Reversal protection

Transmission mode: Store-and-forward

Type: Fiber Optic Media Converter

Description

UOTEK 4 Ports Gigabit Media Converter With Good EMC Performance IEEE 802.3x Protocol UT-2604G

UT-2604G series is a Gigabit network fiber optic transceiver. It provides 4-ch 100Bbase-T Ethernet ports and 1-ch 1000Base-X port; it is used for Ethernet port and optical cable data communication, it is suitable for the scenarios of intelligent community or FTTD(fiber to the desk). The operating temperature is -40~ 85鈩�,. With good EMC performance, it guarantees the device work normally in the harsh environment. The device greatly extends the transmission distance, it can easily realize the interconnection between host, repeaters, hubs, and the terminal. It provides safe and reliable solutions on video monitoring, finance, education and other industries networking.

Characteristics:

> Adopt high quality optoelectronic integrated modules to provide good optical and electrical characteristics, ensure reliable data transmission and long lifecycle
> Supports full-duplex and half-duplex, auto MDI/MDI-X
> Auto-10/100Mbps
> Fully automatic recognition of network interface, no need to manually operate switches
> Plug and play for easy access
> Operating temperature: -40 ~ 85°C
> Input voltage:12/24/48VDC(10.8~52.8VDC), supports reverse polarity protection
> Support various fiber optic interfaces(SC/ST/FC/SFP)

Parmeters:

>>Protocol Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3x

>>Transmission Distance
Cat.5e: 100m
Patch cord
Single-mode: 1310nm 20/40/60Km
1550nm 80/100/120Km
Multi-mode: 1310nm 2Km

>>Switching Performance
Forwarding rate: 1488095pps
Transmission mode: store and forward
MAC address size: 1K
Cache size: 1Mb
Backplane bandwidth: 12G
Max. frame length: 10KB

>>Interfaces
Fiber interfaces: 1x1000Base -X ports (SC/FC/ST)
RJ45 interfaces: 4x10/100/1000 Base-T ports auto MDI/MDI-X

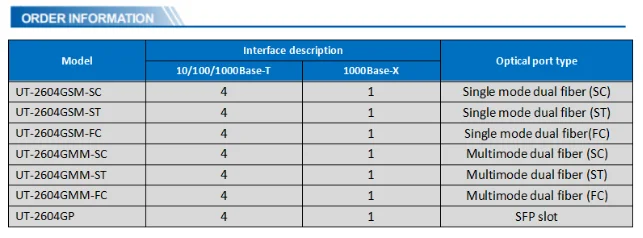

For example: UT-2604GRSM-SC-40, “R”is receiving single fiber, “SM” is single mode, “SC” fiber interface type is SC head, “40”
transmission km for 40kmFiber core diameter:
Multi-mode: 50/125, 62.5/125
Single-mode: 8.3/125, 9/125, 10/125.

>>Power Requirement
Voltage input: 12/24/48VDC(10.8~52.8VDC)
Power Consumption: 200mA@24Vmax

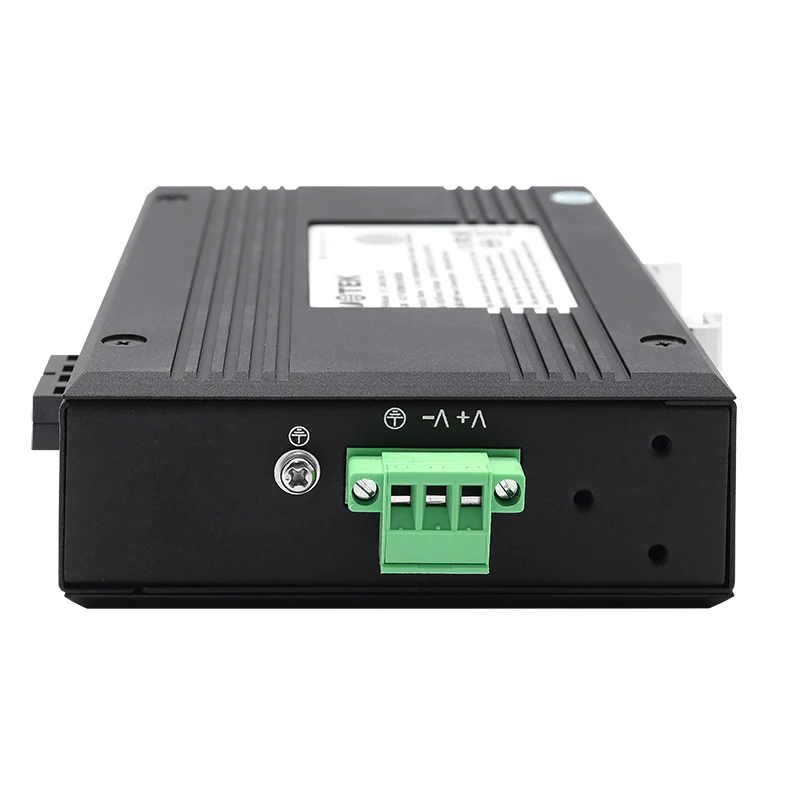

Interface terminal: One pluggable 3-pin terminal block
Overload protection: Support
Reversal protection: Support

>>Mechanical Characteristics
IP protection level: IP40
Installation: DIN-Rail /Wall Mounted

>>Mechanical Dimension
Dimension (W x H x D): 150mm x 100mm x 37mm
Package dimension: 250mm x 205mm x 55mm
Weight: 850g

>>Operating Environment
Operating temperature: -40~85°C
Storage temperature: -40~85°C
Relative humidity: 0~95%

>>Industrial Standards
EMI:
FCC Part 15, CISPR (EN55022) class A
EMS
IEC(EN)61000-4-2(ESD)
IEC(EN)61000-4-3(RS)
IEC(EN)61000-4-4(EFT)
IEC(EN)61000-4-5(Surge)
IEC(EN)61000-4-6(CS)
IEC(EN)61000-4-8
IEC 60068-2-27(Shock)
