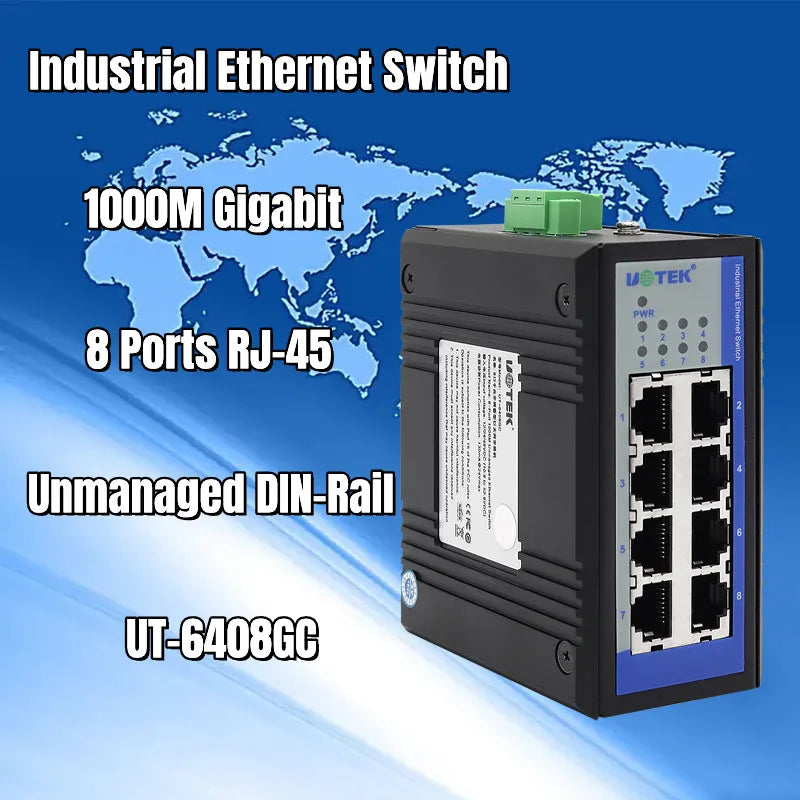

UOTEK 1000M Industrial Ethernet Switch Gigabit 8 Port RJ45 Network Unmanaged DIN-Rail Full Half Duplex Plug and Play UT-6408GC

UOTEK 1000M Industrial Ethernet Switch Gigabit 8 Port RJ45 Network Unmanaged DIN-Rail Full Half Duplex Plug and Play UT-6408GC

SPECIFICATIONS

Brand Name: UOTEK

High-concerned Chemical: None

Model Number: UT-6408GC

Switch Type: Ethernet

Number of Interfaces: 7

VLAN: RJ45

Package: Yes

Certification: CE,FCC,RoHS

Transmission Rate: 10/100/1000Mbps

Switch Capacity: 8 Ports

Communication Mode: Full-Duplex & Half-Duplex

Model Number: UT-6408GC

Brand Name: UOTEK

Description

UOTEK 1000M Industrial Ethernet Switch 8 Port RJ45 Network Gigabit Unmanaged DIN-Rail Full Half Duplex IP40 10.8~52.8V UT-6408GC

The UT-6408GC is an 8-port Gigabit unmanaged Ethernet switch that provides DC input positive and negative protection to prevent burnout of the instrument. It has a compact design and supports industry standard DIN-rail mounting, it is easy to install in any industrial network
application.

● Adopt high quality opto-electric integration modules to provide good optical and electrical characteristics, ensure reliable data    transmission and long lifecycle
● Supports full-duplex and half-duplex, auto MDI/MDI-X
● Auto 10/100/1000Mbps
● Fully automatic recognition of network interface
● Plug and play for easy access
● Operating temperature: -20 ~ 70°C

● Voltage input: 12/24/48VDC (10.8~52.8VDC), support reverse connection protection

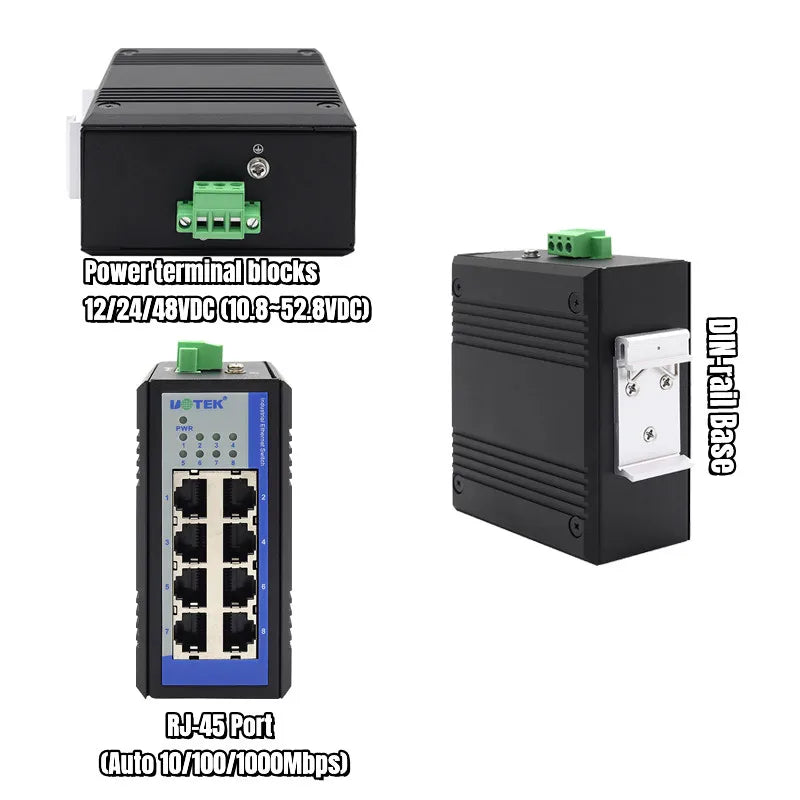

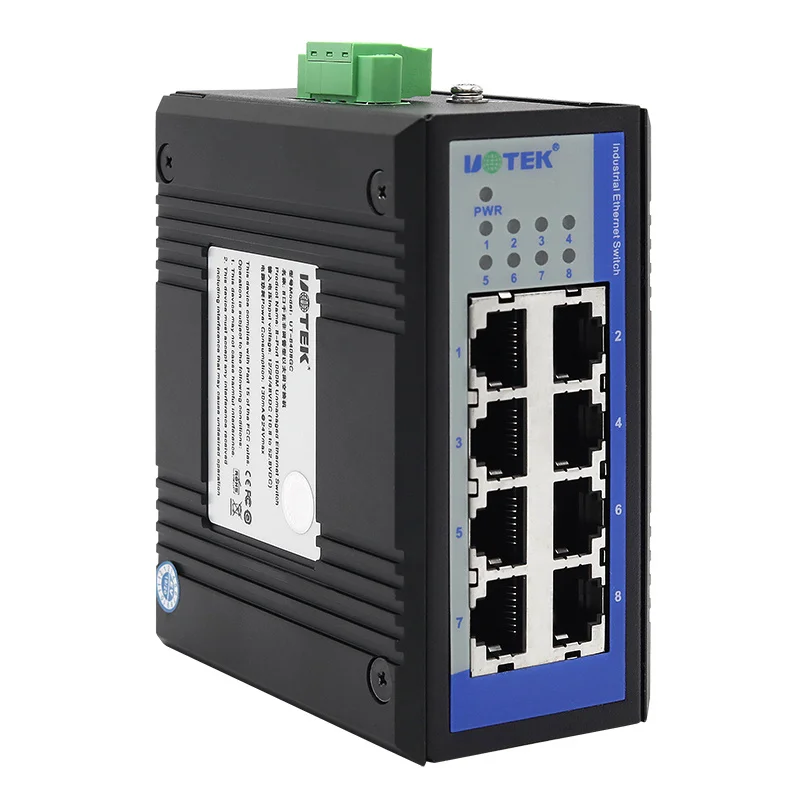

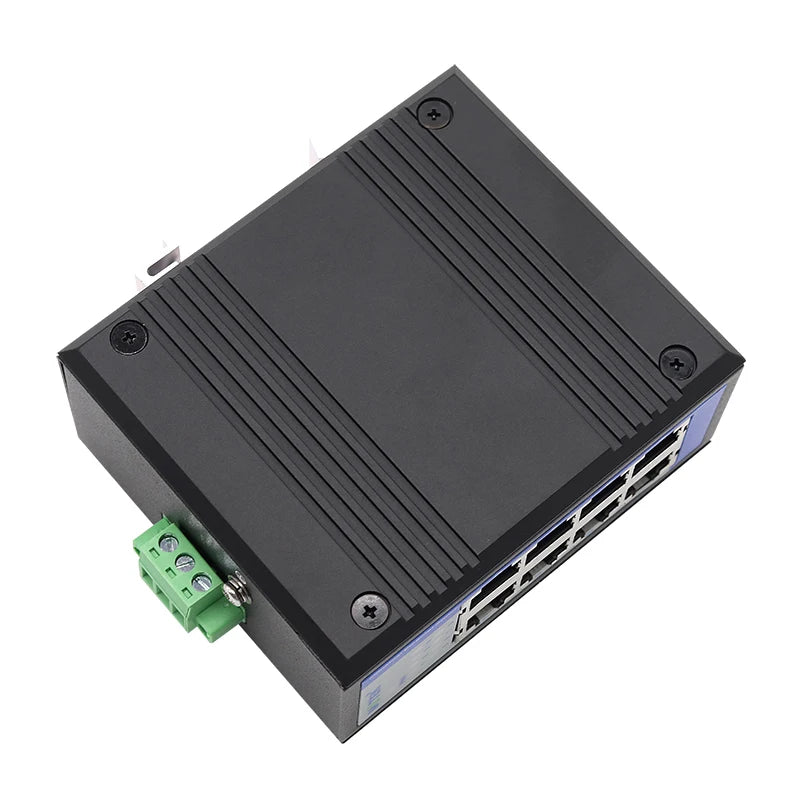

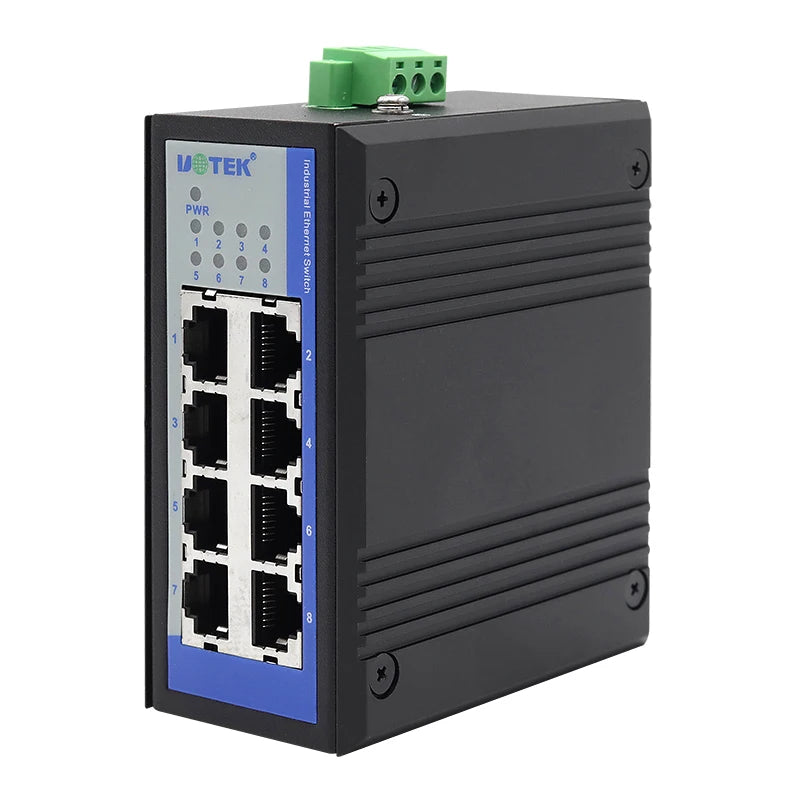

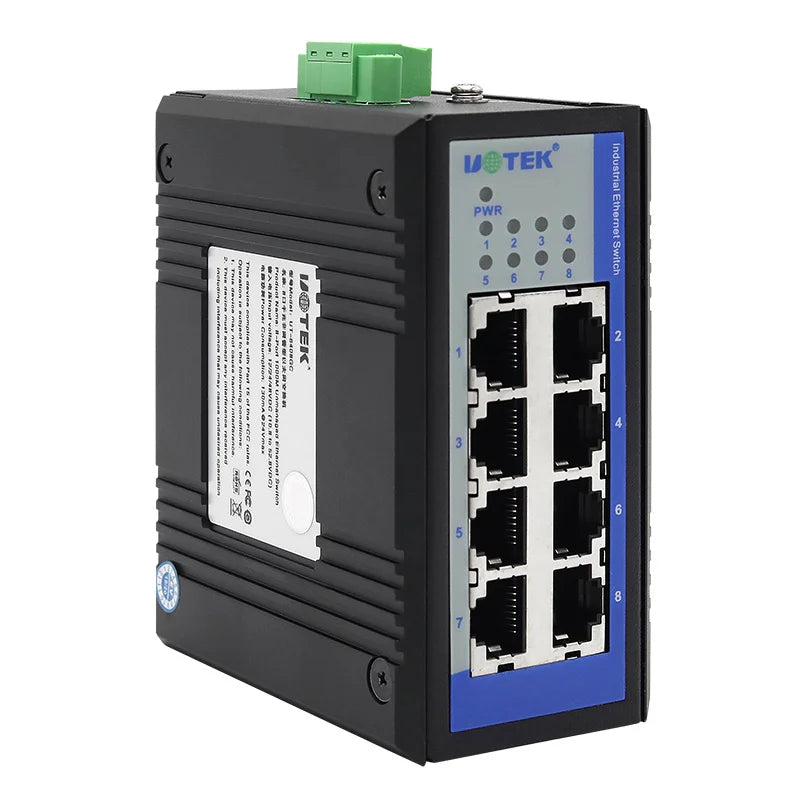

UT-6408GC Details

UT-6408GC Parameters

>>Protocol Standards

IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX,

IEEE 802.3ab 1000Base-T, IEEE 802.3x

>>Interfaces

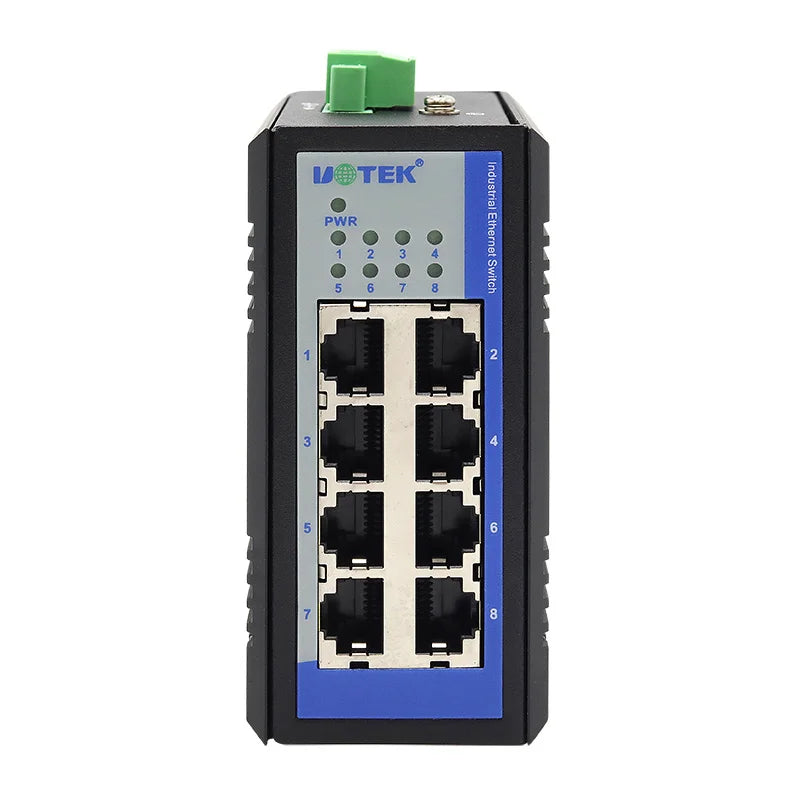

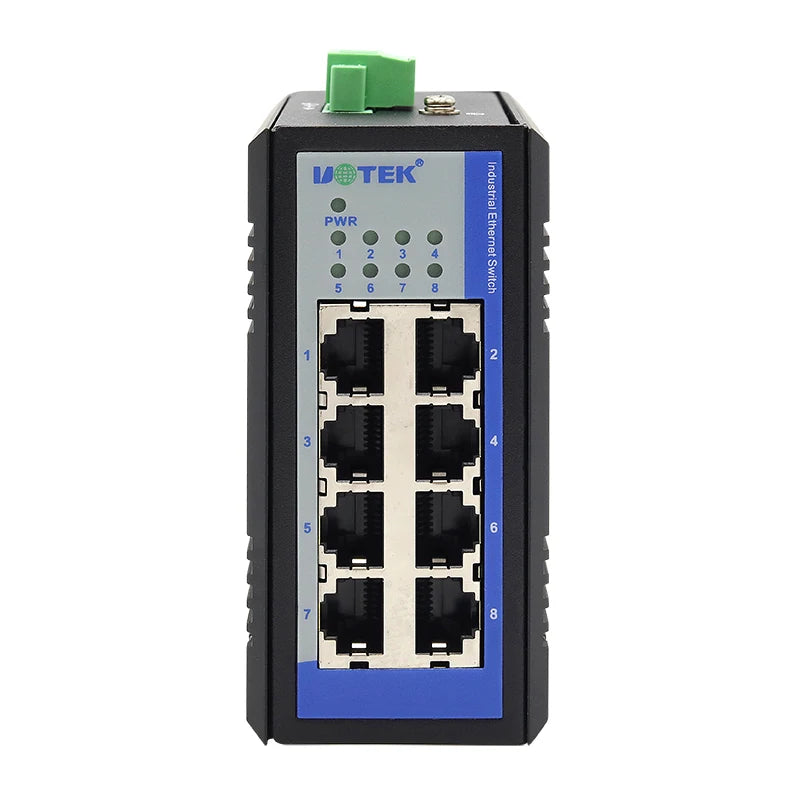

RJ45 interface: 8* 10/100/1000Base-X, auto-detection, full/half duplex, auto MDI/MDI-X

>>Switching Performance

Forwarding rate: 1488095pps

Transmission mode: store and forward

MAC address size: 4K

Cache size: 1Mb

Backplane bandwidth: 16G

Max. frame length: 16KB

>>LED indicator light

PWR power light, 1~8 network indicator

>>Mechanical Characteristics

IP protection level: IP40

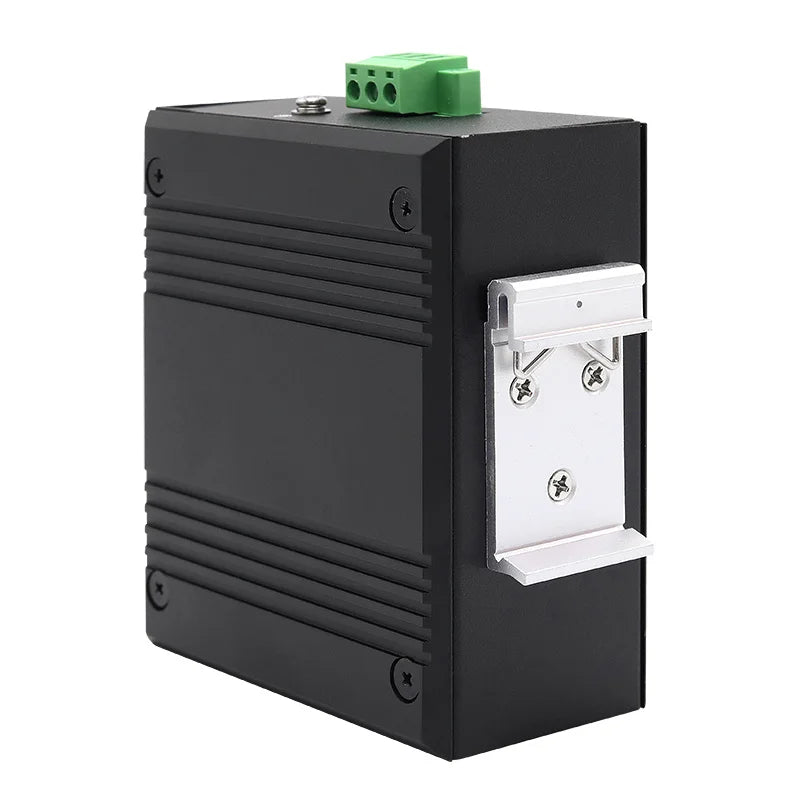

Installation: DIN-Rail Mounted

>>Power Requirement

Voltage input: 12/24/48VDC(10.8~52.8VDC)

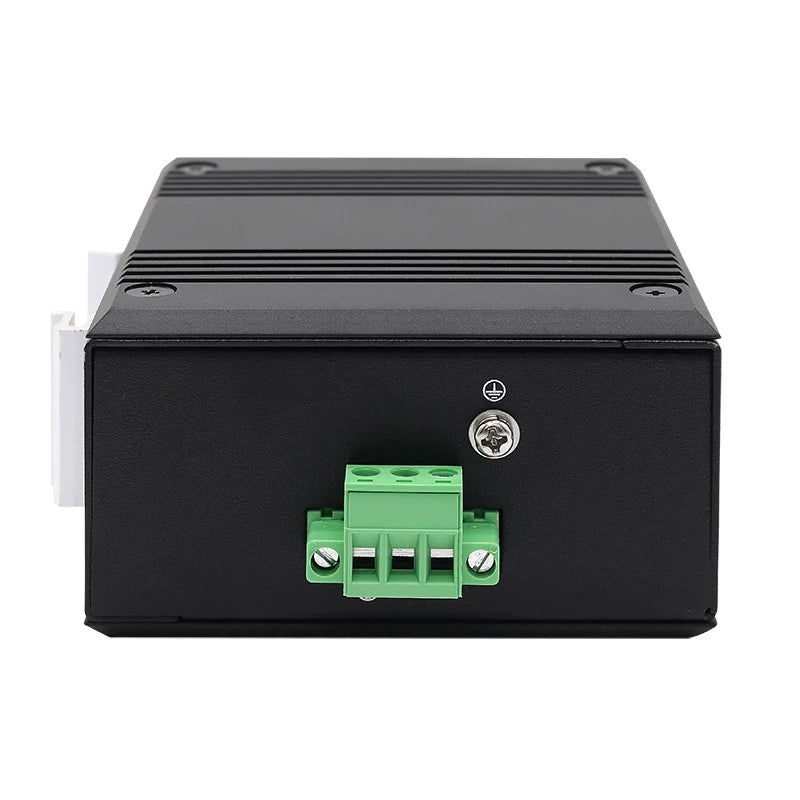

Interface terminal: 1 pluggable 3-pin terminal block

Overload protection: Support

Reverse connection protection: Support

>>Power consumption

130mA@24Vmax

>>Mechanical Dimension

Dimension (W x H x D): 100mm x 85mm x 47mm

Weight: 600g

Packaging dimension: 190mm x 182mm x 65mm

>>Operating Environment

Operating temperature: -20 ~ 70°C

Storage temperature: -40 ~ 85°C

Relative humidity: 0~95% (non-condensing)

>>Industrial Standards

EMI:

FCC Part 15 Subpart B classA，EN55022 class A

EMS:

IEC(EN)61000-4-2(ESD)

IEC(EN)61000-4-3(RS)
IEC(EN)61000-4-4(EFT)
IEC(EN)61000-4-5(Surge)
IEC(EN)61000-4-6(CS)

IEC(EN)61000-4-8
IEC 60068-2-27(Shock)
IEC 60068-2-32(Freefall)
IEC 60068-2-6(Vibration)
