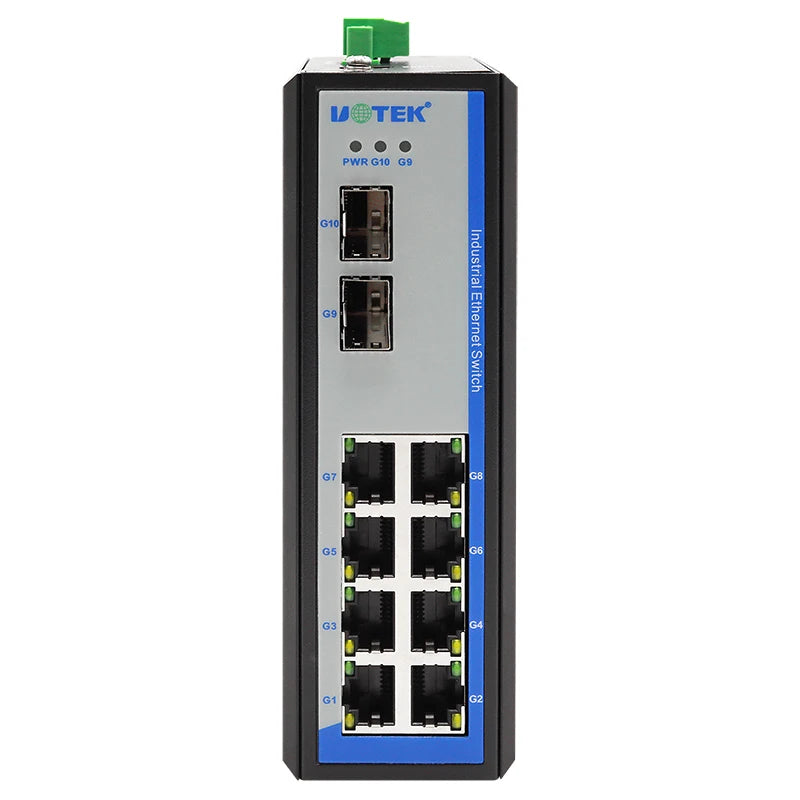

UOTEK 10 Ports Unmanaged Full Gigabit Industrial Ethernet Switch RJ45 Port Low Power Consumption Ethernet Switch UT-6410GC-8GT2GP

Regular price: R 7,383.07
Sale price: R 7,383.07
Regular price: ~~R 9,155.01~~
Unit price: per

Shipping calculated at checkout.

Default Title

Quantity must be 1 or more

SPECIFICATIONS

Backplane Bandwidth: 20G

Brand Name: UOTEK

Cache size: 1Mb

Cat.5e: 100m

Forwarding Rate: 1,488,095pps

High-concerned chemical: None

Input voltage: 12/24/48VDC(10.8~52.8VDC)

MAC address size: 4K

Maximum frame length: 10KB

Multimode: 1,310nm 2Km

Single-mode: 1,310nm 20/40/60Km 1,550nm 80/100/120Km

Transmission mode: Store and Forward

Brand Name: UOTEK

Communication Mode: Full-Duplex & Half-Duplex

Function: VLAN Support

Model number: UT-6410GC-8GT2GP

Ports: 10

Products Status: Stock

Transmission Rate: 10/100/1000Mbps

Description

UOTEK 10 Ports Unmanaged Full Gigabit Ethernet Switch RJ45 Port Low Power Consumption Ethernet Switch UT-6410GC-8GT2GP

UT-6410GC series is an unmanaged full Gigabit Ethernet switch, it supports 2 Gigabit fiber ports and 8 Gigabit RJ-45 ports, plug and play. This series of switches adopts low power consumption & fan-less design, which to ensure no noise interference. It also supports wide operating temperature of -40~75°; with good EMC electromagnetic compatibility, it ensures the device working stable in harsh industrial environments. It provides a safe and reliable solution for quickly and stably connecting network in various industrial applications such as industrial automation, intelligent transportation, and video surveillance. The switch offers three working modes: Extend, Standard, and VLAN mode, which made it adapting to various complex application environments.

> Photoelectric integration module ensures reliable data transmission
> Full-duplex or half-duplex mode, auto-negotiation
> 10/100/1000Mbps, auto-adaptation
> Plug and play, easy to use
> Operating temperature: -40~75°C
> Voltage input: 12/24/48VDC(10.8~52.8VDC)

PARAMETERS

Standard
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3x
Interface
Fiber port: 1000Base-X port (SC/FC/ST/SFP slot)
RJ-45 port: 10/100/1000Base-T, auto-MDI/MDI-X
Transmission distance
Cat 5e: 100m
Optical module:
Single-mode: 1,310nm 20/40/60Km
1,550nm 80/100/120Km
Multi-mode: 1,310nm 2Km
Switch property
Forwarding rate: 1,488,095pps
Transmission mode: Store-and-forward
MAC address space: 4K
Cache size: 1Mb
Bandwidth: 20G
Maximum frame length: 10KB
Power requirement
Input voltage: 12/24/48VDC(10.8~52.8VDC)
Power consumption: 240mA@24Vmax

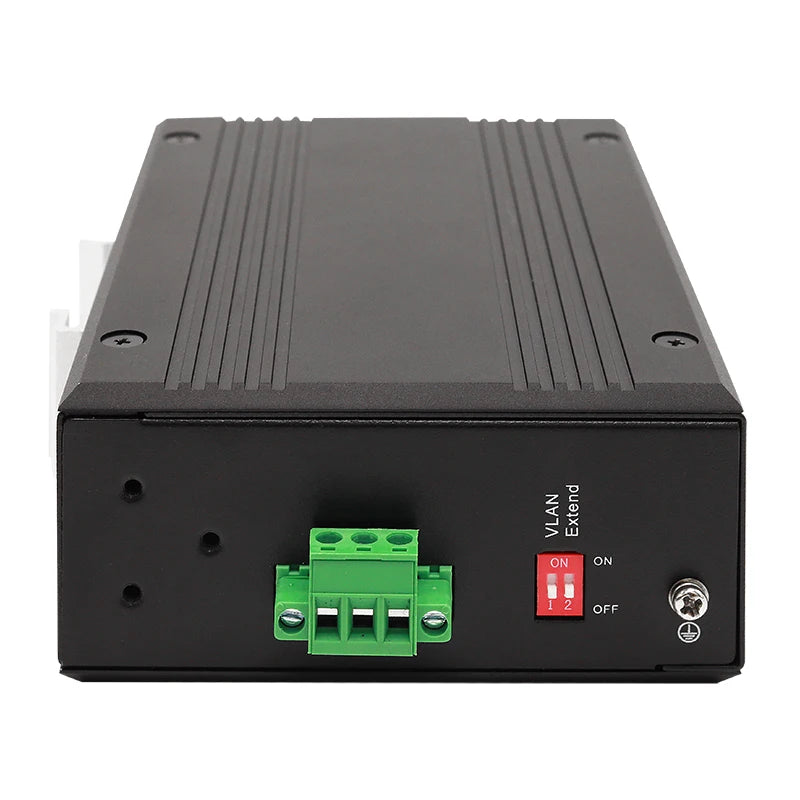

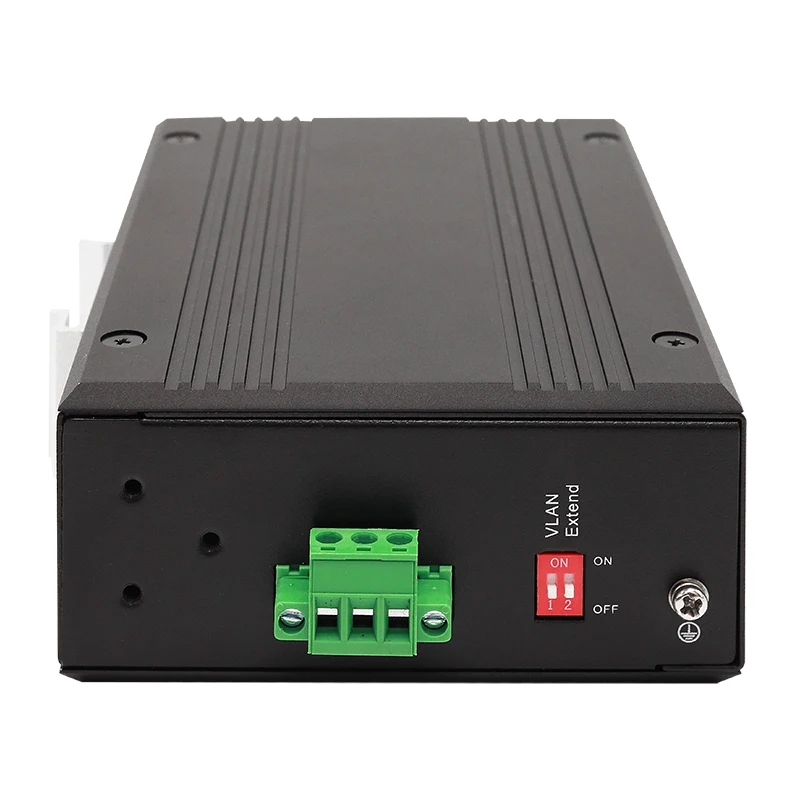

Working mode
Extend mode: ports 1-4 auto-negotiate with a speed reduction of 10M, with the farthest transmission distance of 250 meters.
Standard mode: ordinary switch mode.
VLAN mode: ports 1-8 are isolated from each other and can only communicate with the uplink port; network storm suppression; flow
control is disabled.
Mechanical characteristic
IP rating: IP40
Installation: DIN-Rail/wall-mounting
Dimension(W x H x D): 150mmx47.6mmx100mm
Packing size: 250mmx205mmx55mm
Weight: 752g
Operating environment
Working temperature: -40~75'C
Storage temperature: -40~85°C
Relative humidity: 0~95% (non-condensing)
Industrial standard
EMI
FCC Part 15 Subpart B classA, EN55022 class A
EMS:
IEC(EN)61000-4-2(ESD)
IEC(EN)61000-4-3(RS)
IEC(EN)61000-4-4(EFT)
IEC(EN)61000-4-5(Surge)
IEC(EN)61000-4-6(CS)
IEC(EN)61000-4-8
IEC 60068-2-27(Shock)
IEC 60068-2-32(Freefall)
IEC 60068-2-6(Vibration)

Imagine if you could be satisfied and content with your purchase. That can very much be your reality with the UOTEK 10 Ports Unmanaged Full Gigabit Industrial Ethernet Switch RJ45 Port Low Power Consumption Ethernet Switch UT-6410GC-8GT2GP.
