UOTEK 1 Port 10/100/1000M Industrial Network Fiber Optic Transceiver FTTD Adopt Optoelectronic Integrated Modules IP40 UT-2601GC

Regular price: R 6,759.61
Sale price: R 6,759.61
Regular price: ~~R 8,381.92~~
Unit price: per

Shipping calculated at checkout.

Default Title

Quantity must be 1 or more

SPECIFICATIONS

Backplane Bandwidth: 6G

Brand Name: UOTEK

Cache size: 1M

Forwarding Rate: 1488095pps

High-concerned chemical: None

IP protection level: IP40

MAC address size: 2K

Max. frame length: 16KB

Model Number: UT-2601GC

Power consumption: 100mA@24Vmax

Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3x

Support: Overload protection;Reversal protection

Transmission mode: Store and Forward

Type: Fiber Optic Media Converter

Description

UOTEK 1 Port 10/100/1000M Network Fiber Optic Transceiver FTTD Adopt High Quality Optoelectronic Integrated Modules UT-2601GC

UT-2601GC series is a Gigabit network fiber optic transceiver, providing 1 1000Base-T Ethernet ports and 1 1000Base- X optical port; it is used for Ethernet port and optical cable data communication, it is suitable for the scenarios of intelligent community or FTTD(fiber to the desk).The series of products support -20 ~ 70°C operating temperature and good EMC performance to ensure normal operation in harsh environments, the series switch will greatly extend the distance of network transmission, can easily achieve the interconnection between the main board server, repeater, hub, and terminal, for video surveillance, finance, education and other industries to build a network to provide cost-effective, safe and reliable solutions.

Characteristics:

> Adopt high quality optoelectronic integrated modules to provide good optical and electrical characteristics, ensure reliable
data transmission and long lifecycle
> Supports full-duplex and half-duplex, auto negotiation
> Auto-10/100/1000Mbps
> Fully automatic recognition of network interface
> Plug and play for easy access
[ Operating temperature: -20 ~ 70°C
> Input voltage: 12/24/48VDC(10.8~52.8VDC), supports reverse polarity protection
> Support various fiber optic interfaces(SC/ST/FC/SFP)

Parameters:

>>Protocol Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3x

>>Interfaces
Fiber interfaces: 1*1000Base-X C/FC/ST
RJ45 interface: 1*10/100/1000Base-T, auto detection, full/half-duplex,
auto MDI/MDI-X

>>Switching Performance
Forwarding Rate: 1488095pps
Transmission mode: Store and Forward
MAC address size: 2K
Cache size: 1M
Backplane bandwidth: 6G
Max. frame length: 16KB

>>Mechanical Characteristics
IP protection level: IP40

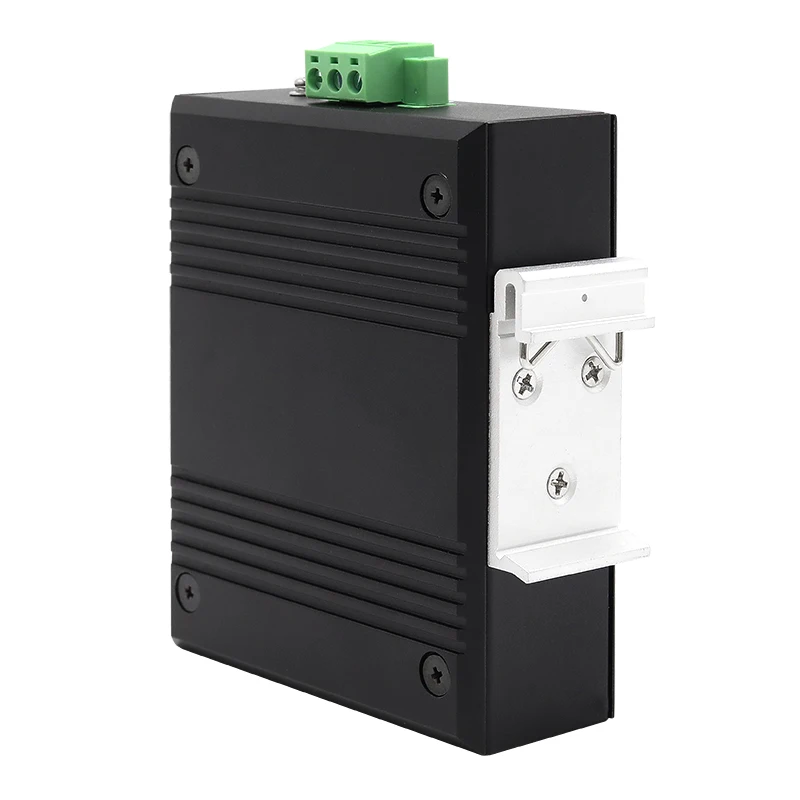

Installation: DIN-Rail Mounted

>>Power Requirement
Voltage input: 12/24/48VDC(10.8~52.8VDC)
Power consumption 100mA@24Vmax

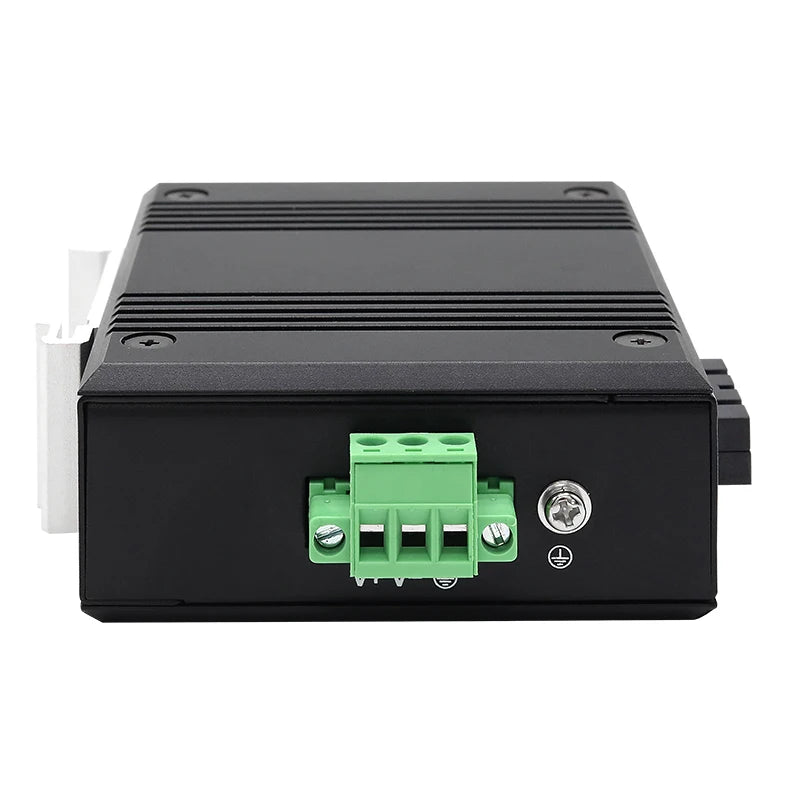

Terminal block: One pluggable 3-pin terminal block
Overload protection: Support
Reversal protection: Support

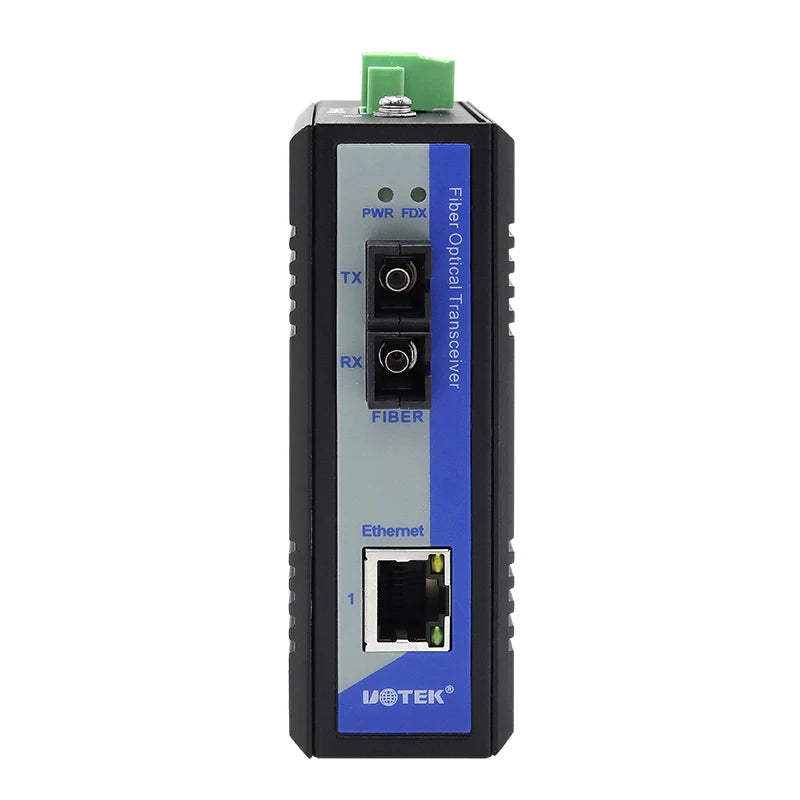

>>LED indicator light
PWR, FDX

For example: UT-2601GCRSM-SC-40, “R”is receiving single fiber, “SM” is single mode, “SC” fiber interface type is SC head, “40”
transmission km for 40km

>>Operating Environment
Operating temperature: -20 ~ 70°C
Storage temperature: -40 ~ 85°C
Relative humidity: 0 ~ 95%

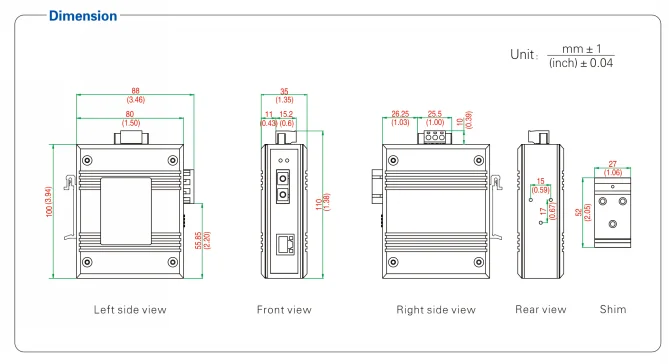

>>Mechanical Dimension
Dimension (W x H x D): 100mm x 80mm x 35mm
Weight: 0.45kg
Packaging dimension: 180mm x 140mm x 45mm

>>Industrial Standards
EMI:
FCC Part 15 Subpart B class A, EN55022 class A
EMS:
IEC(EN)61000-4-2(ESD)
IEC(EN)61000-4-3(RS)
IEC(EN)61000-4-4(EFT)
IEC(EN)61000-4-5(Surge)
IEC(EN)61000-4-6(CS)
IEC(EN)61000-4-8
IEC 60068-2-27(Shock)

The UOTEK 1 Port 10/100/1000M Industrial Network Fiber Optic Transceiver FTTD Adopt Optoelectronic Integrated Modules IP40 UT-2601GC is far and away, one of our most popular items. People can't seem to get enough of it.
